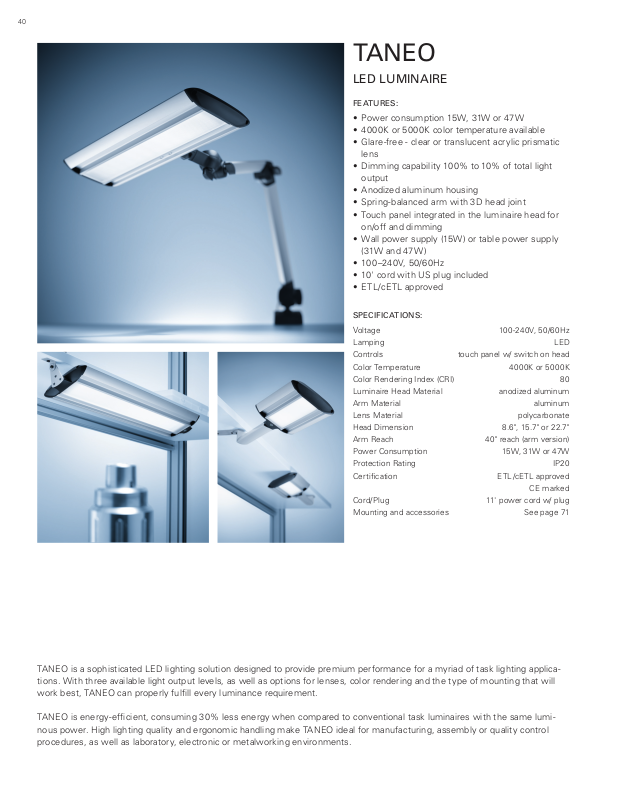

TANEO

LED LUMINAIRE

FE ATU RES:

• Power consumption 15W, 31W or 47W

• 4000K or 5000K color temperature available

• Glare-free - clear or translucent acrylic prismatic
lens

• Dimming capability 100% to 10% of total light
output

• Anodized aluminum housing

• Spring-balanced arm with 3D head joint

• Touch panel integrated in the luminaire head for
on/off and dimming

• Wall power supply (15W) or table power supply
(31W and 47W)

• 100–24 0V, 50/6 0Hz

• 10' cord with US plug included

• ETL/cETL approved

SPECIFICATIONS:

Voltage 100-240V, 50/60Hz

Lamping LED
Controls touch panel w/ switch on head
Color Temperature 4000K or 5000K
Color Rendering Index (CRI) 80
Luminaire Head Material anodized aluminum
Arm Material aluminum
Lens Material polycarbonate
Head Dimension 8.6", 15.7" or 22.7"
Arm Reach 40" reach (arm version)
Power Consumption 15W, 31W or 47W
Protection Rating IP20
Certification ETL/cETL approved
CE marked
Cord/Plug 11' power cord w/ plug
Mounting and accessories See page 71

TANEO is a sophisticated LED lighting solution designed to provide premium performance for a myriad of task lighting applica­tions. With three available light output levels, as well as options for lenses, color rendering and the type of mounting that will
work best, TANEO can properly fulfill every luminance requirement.

TANEO is energy-efficient, consuming 30% less energy when compared to conventional task luminaires with the same lumi­nous power. High lighting quality and ergonomic handling make TANEO ideal for manufacturing, assembly or quality control
procedures, as well as laboratory, electronic or metalworking environments.

Task & WorkbenchMachine Magnification & Inspection Accessories

33°

45°

DIMENSIONAL DATA

180 °

252

180 °

180°

A x 136 x 33

384

180°

130°

360°

Measurements in millimeters

136

19

63

90°

33

400

A + 119,5

A + 95,5

ø 5,1 ø 5,1

A

52

33

45°

136

36

50

360°

523

431

ORDERING INFORMATION

Version Wattage Color Temp. Lens Dimension (A) Lumens Model Part #

Articulated arm 15W 4000K Clear prismatic 8.6" (218mm) 650 STZL 12 R 112 576 000
Articulated arm 15W 5000K Clear prismatic 8.6" (218mm) 650 STZL 12 R 112 576 000
Articulated arm 15W 4000K Translucent 8.6" (218mm) 600 STZL 12 R 112 576 000
Articulated arm 15W 5000K Translucent 8.6" (218mm) 600 STZL 12 R 112 576 000
Articulated arm 31W 4000K Clear prismatic 15.7" (398mm) 1300 STZL 24 R 112 577 000
Articulated arm 31W 5000K Clear prismatic 15.7" (398mm) 1300 STZL 24 R 112 577 000
Articulated arm 31W 4000K Translucent 15.7" (398mm) 120 0 STZL 24 R 112 577 000
Articulated arm 31W 5000K Translucent 15.7" (398mm) 120 0 STZL 24 R 112 577 000
Articulated arm 47W 4000K Clear prismatic 22.7" (577mm) 1950 STZL 36 R 112 578 000
Articulated arm 47W 5000K Clear prismatic 22.7" (577mm) 195 0 STZL 36 R 112 578 000
Articulated arm 47W 4000K Translucent 22.7" (577mm) 1800 STZL 36 R 112 578 000
Articulated arm 47W 5000K Translucent 22.7" (577mm) 1800 STZL 36 R 112 578 000
Mounted swivel arm 15W 4000K Clear prismatic 8.6" (218mm) 650 SARKL 12 R 112 991 000
Mounted swivel arm 15W 5000K Clear prismatic 8.6" (218mm) 650 SARKL 12 R 112 991 000
Mounted swivel arm 15W 4000K Translucent 8.6" (218mm) 600 SARKL 12 R 112 991 000
Mounted swivel arm 15W 5000K Translucent 8.6" (218mm) 600 SARKL 12 R 112 991 000
Fixed mount with rotation 31W 4000K Clear prismatic 15.7" (398mm) 1300 SARL 24 R 112 992 000
Fixed mount with rotation 31W 5000K Clear prismatic 15.7" (398mm) 1300 SARL 24 R 112 992 000
Fixed mount with rotation 31W 4000K Translucent 15.7" (398mm) 120 0 SARL 24 R 112 992 000
Fixed mount with rotation 31W 5000K Translucent 15.7" (398mm) 120 0 SARL 24 R 112 992 000
Fixed mount with rotation 47W 4000K Clear prismatic 22.7" (577mm) 1950 SARL 36 R 112 993 000
Fixed mount with rotation 47W 5000K Clear prismatic 22.7" (577mm) 1950 SARL 36 R 112 993 000
Fixed mount with rotation 47W 4000K Translucent 22.7" (577mm) 1800 SARL 36 R 112 993 000
Fixed mount with rotation 47W 5000K Translucent 22.7" (577mm) 1800 SARL 36 R 112 993 000

Mounting Options Item Dimensions Part #

Table clamp w/ pin mount (included) 0 x 3.5" span 191 025 069 40
Wall bracket 3" x 3" 226 108 019
1/2" Pin mount adapter 1.77" length US0 209 022
1/2" Pin mount adapter 3.75" length US0 209 012

41

179,5ø 5,5 (2x)

- 005 620 55

- 005 620 45

- 005 620 95

- 005 621 04

- 005 621 30

- 005 621 41

- 005 621 57

- 005 621 77

- 005 621 92

- 005 622 07

- 005 622 19

- 005 622 28

- 005 624 01

- 005 624 64

- 005 624 76

- 005 624 86

- 005 624 95

- 005 625 10

- 005 625 22

- 005 625 43

- 005 625 56

- 005 625 67

- 005 625 89

- 005 625 98

- 006 107 54

Accessories Item Strength Size Part #

Add-x magnifier 3.5 diopters (1.88X) 5" diameter 190 207 019

- 005 759 00
