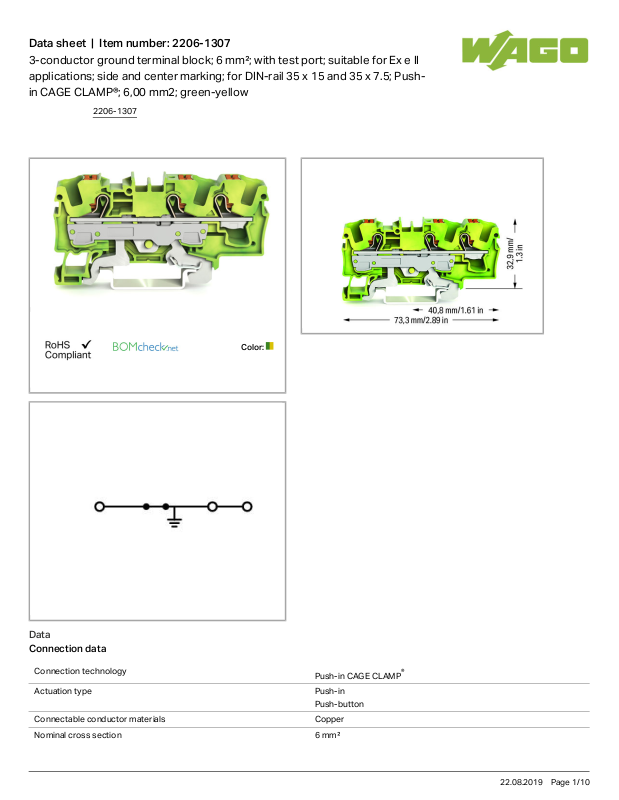

Data sheet | Item number:2206-1307

3-conductor ground terminal block; 6 mm²; with test port; suitable for Ex e II
applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push­in CAGE CLAMP®; 6,00 mm2; green-yellow

Color:

Data

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Push-button

Connectable conductor materials Copper

Nominal cross section 6mm²

2206-1307

22.08.2019Page /1 10

Data sheet | Item number:2206-1307



Solid conductor 0.5 10mm²/ 20 8AWG

Solid conductor, push-in termination 1 10mm²/ 14 8AWG

Fine-stranded conductor 0.5 10mm²/ 20 8AWG

Strip length 13 15mm/ 0.51 0.59inch

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Geometrical Data

Width 7.5mm/ 0.295inch

Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch

Depth 73.3mm/ 2.886inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Fire load 0.202 MJ

Weight 20.905g

Commercial data

Country of origin DE

GTIN 4055143712125

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 4788362294

AEx

Underwriters Laboratories Inc.

UL 60079 4788362294

2206-1307

22.08.2019Page /2 10

Data sheet | Item number:2206-1307

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX 1007
U

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX 1007
U

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

18.0014U
(Ex eb IIC
Gb and Ex
eb I Mb)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

18.0014U
(Ex eb IIC
Gb and Ex
eb I Mb)

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7667

CSA

DEKRA Certification B.V.

C22.2 70175034

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102879

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7667

CSA

DEKRA Certification B.V.

C22.2 70175034
