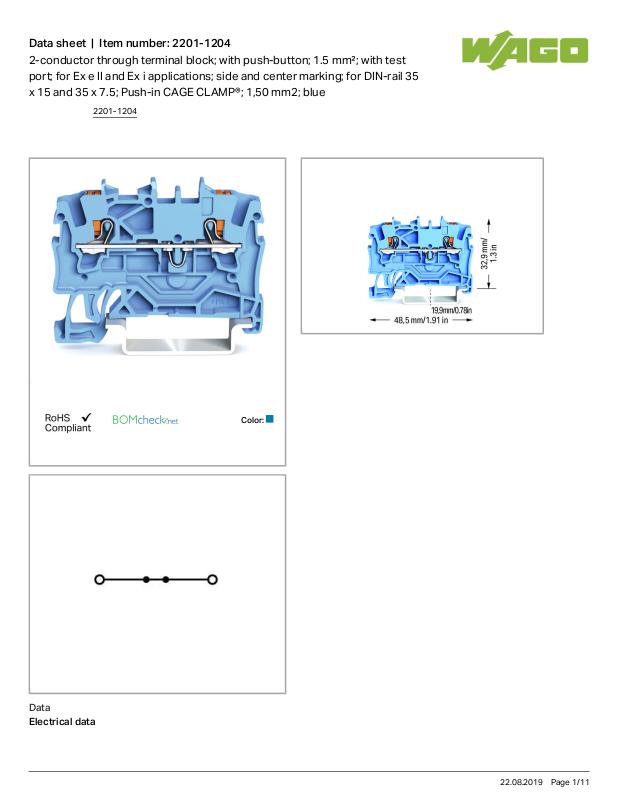

Data sheet | Item number:2201-1204
2-conductor through terminal block; with push-button; 1.5 mm²; with test
port; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35
x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm2; blue
Color:
Data
Electrical data
2201-1204
22.08.2019Page /1 11
Data sheet | Item number:2201-1204
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 18 A
Rated current (2) 24 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 15 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 15 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Push-button
Connectable conductor materials Copper
Nominal cross section 1.5mm²
Solid conductor 0.25 2.5mm²/ 22 14AWG
Solid conductor, push-in termination 0.75 2.5mm²/ 18 14AWG
Fine-stranded conductor 0.25 2.5mm²/ 22 14AWG
Strip length 9 11mm/ 0.35 0.43inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Number of jumper slots 2
Geometrical Data
Width 4.2mm/ 0.165inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 48.5mm/ 1.909inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
2201-1204
22.08.2019Page /2 11
Data sheet | Item number:2201-1204
Material Data
Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.089 MJ
Weight 4.145g
Commercial data
Country of origin DE
GTIN 4055143694667
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt
UL 60079 E185892
sec. 25
ATEX
Physikalisch Technische Bundesanstalt
IEC 60079-0 PTB 18
ATEX
1004 U (II
2 G Ex eb
IIC Gb
bzw. I M 2
Ex eb I Mb)
ATEX
Physikalisch Technische Bundesanstalt
IEC 60079-0 PTB 18
ATEX
1004 U (II
2 G Ex eb
IIC Gb
bzw. I M 2
Ex eb I Mb)
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079-0 IECEx PTB
18.0011U
(Ex eb IIC
Gb and Ex
eb I Mb)
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079-0 IECEx PTB
18.0011U
(Ex eb IIC
Gb and Ex
eb I Mb)
Radio-Approvals
Certificate
2201-1204
22.08.2019Page /3 11
Data sheet | Item number:2201-1204
Logo Approval Additional Approval Text name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7664
CSA
DEKRA Certification B.V.
C22.2 70173738
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
102875
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7664
CSA
DEKRA Certification B.V.
C22.2 70173738
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
102875
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
- 19HG1866350PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00003JT
LR
Lloyds Register
- 19/20050
Other Approvals
Certificate
2201-1204
22.08.2019Page /4 11
Data sheet | Item number:2201-1204
Logo Approval Additional Approval Text name
cURus
Underwriters Laboratories Inc.
UL 1059 4788308064
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
cURus
Underwriters Laboratories Inc.
UL 1059 4788308064
Compatible products
check
Item no.: 2001-511
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole; 1,50 mm2; gray
2001-511
Item no.: 2001-549
Spacer module; modular; e.g., for bridging commoned terminal blocks; gray
2001-549
Item no.: 2001-552
Modular TOPJOB®S connector; modular; for jumper contact slot; 2-pole; 1,50 mm2; gray
2001-552
Item no.: 2001-553
Modular TOPJOB®S connector; modular; for jumper contact slot; 3-pole; 1,50 mm2; gray
2001-553
Item no.: 2001-554
Modular TOPJOB®S connector; modular; for jumper contact slot; 4-pole; 1,50 mm2; gray
2001-554
Item no.: 2001-555
Modular TOPJOB®S connector; modular; for jumper contact slot; 5-pole; 1,50 mm2; gray
2001-555
Item no.: 2001-556
Modular TOPJOB®S connector; modular; for jumper contact slot; 6-pole; 1,50 mm2; gray
2001-556
Item no.: 2001-557
Modular TOPJOB®S connector; modular; for jumper contact slot; 7-pole; 1,50 mm2; gray
2001-557
Item no.: 2001-558
Modular TOPJOB®S connector; modular; for jumper contact slot; 8-pole; 1,50 mm2; gray
2001-558
2201-1204
22.08.2019Page /5 11
Data sheet | Item number:2201-1204
Item no.: 2001-559
Modular TOPJOB®S connector; modular; for jumper contact slot; 9-pole; 1,50 mm2; gray
2001-559
Item no.: 2001-560
Modular TOPJOB®S connector; modular; for jumper contact slot; 10-pole; 1,50 mm2; gray
2001-560
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks; gray
2009-174
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm; gray
2009-182
End plate
Item no.: 2002-1291
End and intermediate plate; 0.8 mm thick; gray
2002-1291
Item no.: 2002-1292
End and intermediate plate; 0.8 mm thick; orange
2002-1292
Item no.: 2002-1293
Separator plate; 2 mm thick; oversized; gray
2002-1293
Item no.: 2002-1294
Separator plate; 2 mm thick; oversized; orange
2002-1294
plug
Item no.: 2002-880
Empty component plug housing; 10.4 mm wide; 2-pole; Type 4; gray
2002-880
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715; silvercolored
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715; coppercolored
210-198
ferrule
Item no.: 216-241
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; electrolytic copper; gastight
216-241
2201-1204
22.08.2019Page /6 11
Data sheet | Item number:2201-1204
crimped; acc. to DIN 46228, Part 4/09.90; white
Item no.: 216-242
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; gray
216-242
Item no.: 216-243
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; red
216-243
Item no.: 216-244
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; black
216-244
tools
Item no.: 210-647
Operating tool; Blade: 2.5 x 0.4 mm; with a partially insulated shaft
210-647
Item no.: 210-648
Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled
210-648
Item no.: 210-719
Operating tool; Blade: 2.5 x 0.4 mm; with a partially insulated shaft
210-719
Jumper
Item no.: 2001-402
Push-in type jumper bar; insulated; 2-way; Nominal current 18 A; light gray
2001-402
Item no.: 2001-403
Push-in type jumper bar; insulated; 3-way; Nominal current 18 A; light gray
2001-403
Item no.: 2001-404
Push-in type jumper bar; insulated; 4-way; Nominal current 18 A; light gray
2001-404
Item no.: 2001-405
Push-in type jumper bar; insulated; 5-way; Nominal current 18 A; light gray
2001-405
Item no.: 2001-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block; light gray
2001-405
/011-000
Item no.: 2001-406
Push-in type jumper bar; insulated; 6-way; Nominal current 18 A; light gray
2001-406
Item no.: 2001-406/020-000
Delta jumper; insulated; 1-2 3-4 5-6; IN = IN terminal block; light gray
2001-406
/020-000
Item no.: 2001-407
Push-in type jumper bar; insulated; 7-way; Nominal current 18 A; light gray
2001-407
Item no.: 2001-408
Push-in type jumper bar; insulated; 8-way; Nominal current 18 A; light gray
2001-408
Item no.: 2001-409
Push-in type jumper bar; insulated; 9-way; Nominal current 18 A; light gray
2001-409
Item no.: 2001-410
Push-in type jumper bar; insulated; 10-way; Nominal current 18 A; light gray
2001-410
2201-1204
22.08.2019Page /7 11
Data sheet | Item number:2201-1204
Item no.: 2001-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 18 A; light gray
2001-433
Item no.: 2001-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 18 A; light gray
2001-434
Item no.: 2001-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 18 A; light gray
2001-435
Item no.: 2001-436
Push-in type jumper bar; insulated; from 1 to 6; Nominal current 18 A; light gray
2001-436
Item no.: 2001-437
Push-in type jumper bar; insulated; from 1 to 7; Nominal current 18 A; light gray
2001-437
Item no.: 2001-438
Push-in type jumper bar; insulated; from 1 to 8; Nominal current 18 A; light gray
2001-438
Item no.: 2001-439
Push-in type jumper bar; insulated; from 1 to 9; Nominal current 18 A; light gray
2001-439
Item no.: 2001-440
Push-in type jumper bar; insulated; from 1 to 10; Nominal current 18 A; light gray
2001-440
Item no.: 2006-499
Step-down jumper; insulated; from 6/4 mm² to 4/2.5/1.5 mm²; Nominal current 32 A; light gray
2006-499
Item no.: 2009-412
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; black
2009-412
Item no.: 2009-414
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; black
2009-414
Item no.: 2009-414/000-005
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; red
2009-414
/000-005
Item no.: 2009-414/000-006
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; blue
2009-414
/000-006
Item no.: 2009-416
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 1.5 mm²; suitable
for 2001, 2002, 2003 and 2022 Series rail-mounted terminal blocks; black
2009-416
Item no.: 210-103
Wire commoning chain; insulated; 50 connections; black
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
General accessories
Item no.: 2002-880/1000-411
Component plug; 2-pole; with diode 1N4007; 10.4 mm wide; Operating temperature 85°C max.; gray
2002-880
/1000-411
Item no.: 2002-880/1000-541
Component plug; 2-pole; LED (red); 10.4 mm wide; Operating temperature 85°C max.; gray
2002-880
/1000-541
2201-1204
22.08.2019Page /8 11
Data sheet | Item number:2201-1204
Item no.: 2002-880/1000-542
LED module; with red LED; 10.4 mm wide; 30 - 65 V; Operating temperature 85°C max.
2002-880
/1000-542
Item no.: 2002-880/1000-836
Component plug; 2-pole; LED (red); 10.4 mm wide; Operating temperature 85°C max.; gray
2002-880
/1000-836
Insulation stop
Item no.: 2001-171
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip; light gray
2001-171
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type; white
2009-110
Item no.: 2009-114
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; white
2009-114
Item no.: 2009-114/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; yellow
2009-114
/000-002
Item no.: 2009-114/000-005
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; red
2009-114
/000-005
Item no.: 2009-114/000-006
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; blue
2009-114
/000-006
Item no.: 2009-114/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; gray
2009-114
/000-007
Item no.: 2009-114/000-012
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; orange
2009-114
/000-012
Item no.: 2009-114/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; green
2009-114
/000-023
Item no.: 2009-114/000-024
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; violet
2009-114
/000-024
Item no.: 793-4501
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; white
793-4501
Item no.: 793-4501/000-002
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; yellow
793-4501
/000-002
Item no.: 793-4501/000-005
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; red
793-4501
/000-005
2201-1204
22.08.2019Page /9 11
Data sheet | Item number:2201-1204
Item no.: 793-4501/000-006
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; blue
793-4501
/000-006
Item no.: 793-4501/000-007
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; gray
793-4501
/000-007
Item no.: 793-4501/000-012
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; orange
793-4501
/000-012
Item no.: 793-4501/000-017
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; light green
793-4501
/000-017
Item no.: 793-4501/000-023
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; green
793-4501
/000-023
Item no.: 793-4501/000-024
WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; violet
793-4501
/000-024
Downloads
Documentation
Bid Text
2201-1204 docx
15.0 kB
Download
Additional Information
Technical explanations Apr 3, 2019 pdf
2.1 MB
Download
CAD/CAE - Smart Data
CAD data
3D Download 2201-1204 URL Download
EPLAN
EPLAN Data Portal Download
2201-1204
22.08.2019Page /10 11
Data sheet | Item number:2201-1204
2201-1204
Subject to changes.
22.08.2019Page /11 11
Loading...
