V-ZUG CCSXSL60 Specifications Sheet
V-ZUG Ltd
Industriestrasse 66, P.O.Box 59, 6301 Zug/Switzerland
Phone +41 58 767 67 67, Fax +41 58 767 61 67
info@vzug.com, www.vzug.com

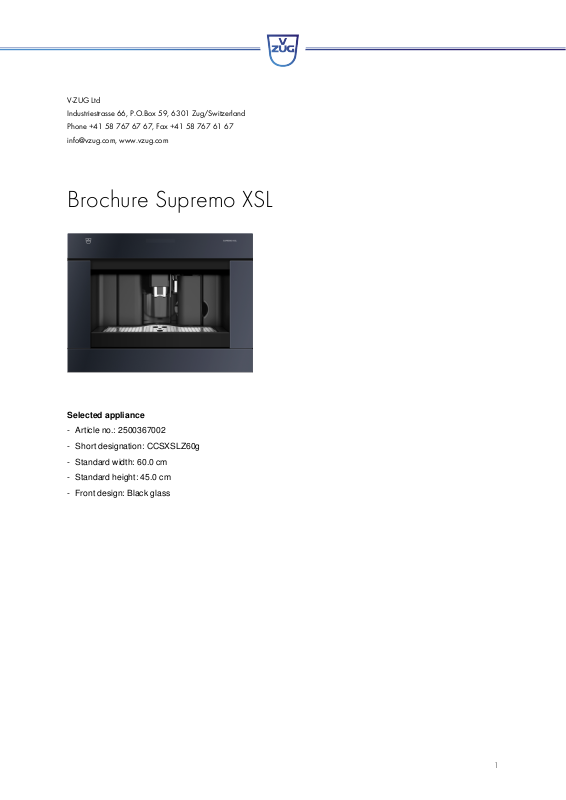

Brochure Supremo XSL
Selected appliance
- Article no.: 2500367002
- Short designation: CCSXSLZ60g
- Standard width: 60.0 cm
- Standard height: 45.0 cm
- Front design: Black glass
1
Details CCSXSLZ60g
Additional settings
- Hot milk
- Milk froth
- User-controlled descaling
Design
- Standard width: 60.0 cm
- Standard height: 45.0 cm
- Front design: Black glass
- Plug type B: AS/NZS 3112
- Plug type C: BS1363/13A
- Plug type D: CN CH1-10P
- Connection cable: 1.8 m
CoffeeCenter features
- Adjustable grinder setting levels: 13
- Height-adjustable dispensing head: 80-110 mm
- Integrated cleaning programme
- Programmable quantities
- Powder / beans selection button
Dimensions
- Niche height: 450.0 mm
- Max. niche height: 450.0 mm
- Niche width: 600.0 mm
- Max. niche width: 600.0 mm
- Niche depth: 550.0 mm
- Appliance height: 454.0 mm
- Max. appliance height: 454.0 mm
- Appliance width: 596.0 mm
- Appliance depth: 412.0 mm
- Empty weight: 23.0 kg
Display and operation
- Display: plain text
- Controls: TouchControl
- Number of languages in display: 11
- Languages in display: de. en. fr. it. nl. no. ru. sv. tr. uk. zh
- Lighting: LED
- Number of lights: 2
Energy
- Energy efficiency: A
- Annual energy consumption: 63.0 kWh
- Type of connection: 220-240 V~
- Frequency (1): 50/60 Hz
- Connected loads: 1.35 kW
- Fuse protection: 10.0 A
- Plug type: Schuko 16A
Functions
- 1 cup
- 2 cups
- Espresso
- Coffee
- Cappuccino
- Latte macchiato
- Caffé latte
- Hot water
Additional data
- Coffee bean holder capacity: 200.0 g
- Milk container capacity: 0.75 l
- Waste grounds container capacity: 14.0
- Water tank: 1.8 l
- Grinder: silent conical grinder
- Programmable brewing temperature
- Programmable operating time / switch-off time
- Programmable water hardness
- Drip guard
- Feature level: 5
Service and interfaces
- Warranty: 2 years
