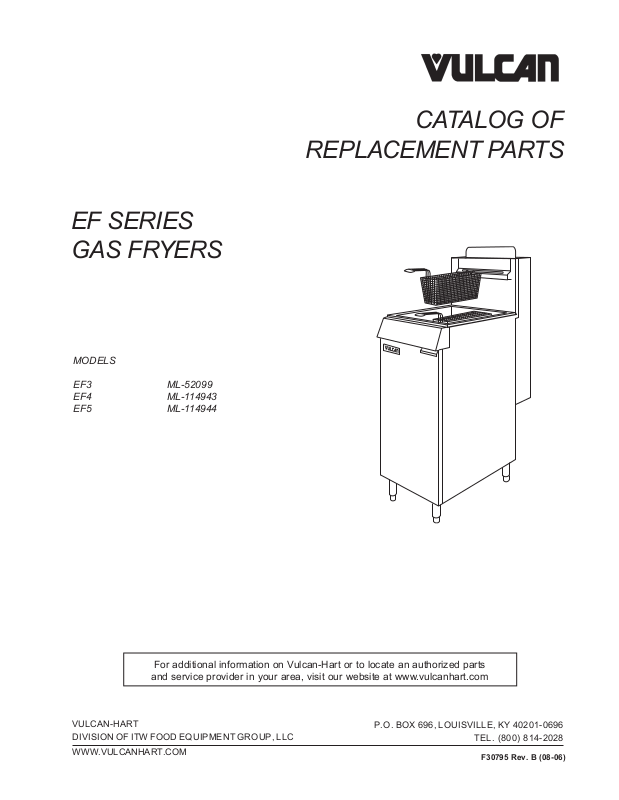

EF SERIES
GAS FRYERS
MODELS
EF3 ML-52099
EF4 ML-114943
EF5 ML-114944
CATALOG OF
REPLACEMENT PARTS
For additional information on Vulcan-Hart or to locate an authorized parts
and service provider in your area, visit our website at www.vulcanhart.com
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANHART.COM
P.O. BOX 696, LOUISVILLE, KY 40201-0696
TEL. (800) 814-2028
F30795 Rev. B (08-06)
EF SERIES GAS FRYERS
Fig. 1B
EF SERIES
BURNER COMPONENTS
- 2 -
EF SERIES GAS FRYERS
BURNER COMPONENTS
ILLUS. PART NO. NAME OF PART AMT.
Fig. 1B
* 1 416942-G10 Tank Assembly ........................................................................................ 1 .............................
1 418192-G6 Tank Assembly ......................................................................................................... 1 .............
1 418196-G6 Tank Assembly .......................................................................................................................... 1
2 410681-1 Burner ............................................................................................ 3 ............ 4 ............ 5
3 417714-1 Hanger - Manifold Extension ..................................................................... 1 ............ 1 ............ 1
4 408659-5 Knob - Thermostat .................................................................................... 1 ............ 1 ............ 1
5 419999-1 Thermostat - Millivolt ................................................................................. 1 ............ 1 ............ 1
6 419613 Bracket - Control ...................................................................................... 1 ............ 1 ............ 1
7 419670-2 Thermostat - Hi-Limit (W/Stuff Box).......................................................... 1 ............ 1 ............ 1
8 416999-1 Manifold ............................................................................................ 1
8 418212-1 Manifold ............................................................................................................ 1
8 418318-1 Manifold ............................................................................................................................ 1
9 010901-39 Orifice - Spud (Nat. Gas) (Sea Level - 2000 Ft.) ................................... AR ......... AR ......... AR
10 010901-41 Orifice - Spud (Nat. Gas) (2000 - 3000 Ft.)............................................ AR ......... AR ......... AR
11 010901-42 Orifice - Spud (Nat. Gas) (3000 - 5000 Ft.)............................................ AR ......... AR ......... AR
12 010901-43 Orifice - Spud (Nat. Gas) (5000 - 7000 Ft.)............................................ AR ......... AR ......... AR
13 010901-44 Orifice - Spud (Nat. Gas) (7000 - 8000 Ft.)............................................ AR ......... AR ......... AR
14 010901-52 Orifice - Spud (LP. Gas) (Sea Level - 2000 Ft.) ..................................... AR ......... AR ......... AR
15 010901-53 Orifice - Spud (LP. Gas) (3000 - 5000 Ft.) ............................................. AR ......... AR ......... AR
16 010901-54 Orifice - Spud (LP. Gas) (5000 - 8000 Ft.) ............................................. AR ......... AR ......... AR
17 410695-1 Extension - Orifice .................................................................................... 3 ............ 4 ............ 5
18 418208-1 Hanger - Manifold ..................................................................................... 1
18 418211-1 Hanger - Manifold ..................................................................................................... 1
18 418317-1 Hanger - Manifold ..................................................................................................................... 1
19 FP085-58 Drain - Extension (1” NPT Pipe ................................................................ 1 ............ 1 ............ 1
20 427903-1 Valve (1” Ball Drain) .................................................................................. 1 ............ 1 ............1
21 410841-22 Valve - Combination (Natural Gas) ......................................................... 1 ............ 1 ............ 1
497616-G1 Service Kit to Convert White-Rogers Valve to RobertShaw (Nat. Gas)
22 410841-23 Valve - Combination (L.P. Gas) ............................................................... 1 ............ 1 ............ 1
497616-G2 Service Kit to Convert White-Rogers Valve to RobertShaw (LP. Gas)
23 426505-23 Flex Tube - Pilot ....................................................................................... 1 ............ 1 ............ 1
24 412212-7 Pilot - (Nat. Gas) ...................................................................................... 1 ............ 1 ............ 1
25 412212-2 Pilot - (L.P. Gas) ....................................................................................... 1 ............ 1 ............ 1
26 497301-1 Thermopile, 750 Millivolt (Used Feb. 2005 Through Nov. 2005) ............. 1 ............ 1 ............ 1
410839-4 Thermopile, Millivolt (Used Prior to Feb. 2005 and After Nov. 2005) ...... 1 ............ 1 ............ 1
27 497952-1 Bracket - Pilot Mounting........................................................................... 1 ............ 1 ............ 1
417008-G1 Heat Baffle for Burner ............................................................................ 1 ............ 1 ............ 1
EF3 EF4 EF5
* FP-028-14 Plug (Must Order Plug When Ordering EF3 Frytank ............................... 1
- 3 -
EF SERIES GAS FRYERS
Fig. 2
EF SERIES
BODY UNIT
- 4 -
EF SERIES GAS FRYERS
BODY UNIT
ILLUS. PART NO. NAME OF PART AMT.
Fig. 2
1 419664-2 Hanger - Basket ....................................................................................... 1
1 419664-2 Hanger - Basket ....................................................................................................... 1
1 419664-4 Hanger - Basket .......................................................................................................................1
2 410737-7 Basket (Twin - Red Handle) ...................................................................... 2 ............ 2 ............ 2
3 411378-1 Basket - Single ......................................................................................... 1 ............ 1 ............ 1
4 427883-1 Rack - Crumb ........................................................................................... 1
4 427883-2 Rack - Crumb ........................................................................................................... 1
4 427883-3 Rack - Crumb ........................................................................................................................... 1
5 402558-5 Clamp - Thermostat Bulb .......................................................................... 2 ............ 2 ............ 2
6 417522-1 Clip - Capillary .......................................................................................... 2 ............ 2 ............ 2
7 SD-036-03 Self-Tapping Screw 8-18 x 3/8” Hex Washer Hd., Type AB ................. 4 ............ 4 ............ 4
8 SD-036-03 Self-Tapping Screw 8-18 x 3/8” Hex Washer Hd., Type AB ................. 2 ............ 2 ............ 2
9 419778-6 Body - L.H. Side ....................................................................................... 1 ............ 1 ............ 1
10 419656 Heat Shield ............................................................................................ 1 ............ 1 ............ 1
11 419662-G1 Front Panel Assembly ............................................................................... 1
11 419662-G1 Front Panel Assembly ............................................................................................... 1
11 419662-G2 Front Panel Assembly ............................................................................................................... 1
12 421582-G2 Door Panel Assembly (Stainless Steel) (Incls. Item 29) ............................. 1
12 421582-G2 Door Panel Assembly (Stainless Steel) (Incls. Item 29) ............................................. 1
12 421582-G6 Door Panel Assembly (Stainless Steel) (Incls. Item 29) ............................................................. 1
13 428023-G1 Hinge - Assembly ..................................................................................... 1 ............ 1 ............ 1
14 SD-032-07 Self-Tapping Screw 10-24 x 1/2” Hex Washer Hd., Type TT ................ 2 ............ 2 ............ 2
15 NS-044-09 Nut Assembly 10-24 Hex “KEPS”............................................................ 2 ............ 2 ............ 2
16 413112-9 Legs (6”) (Stainless Steel) ........................................................................ 4 ............ 4 ............ 4
17 421893-1 Caster, 4” W/Brake................................................................................... 2 ............ 2 ............ 2
18 421893-2 Caster. 4” ............................................................................................ 2 ............ 2 ............2
19 NS-044-14 Nut - 1/4-20 x 1/2 Hex Washer Hd., Type TT ......................................... AR ......... AR ......... AR
20 413112-10 Base Plate - Leg ....................................................................................... 4 ............ 4 ............ 4
21 SD-015-14 Self-Tapping Screw 1-4-20 x 1/2” Hex Washer Hd., Type TT ............... AR ......... AR ......... AR
22 427886-1 Body - Front Bottom ................................................................................ 1
22 427886-1 Body - Front Bottom .................................................................................................. 1
22 428152-1 Body - Front Bottom .................................................................................................................. 1
23 497296-G1 Magnet - Door .......................................................................................... 1 ............ 1 ............ 1
24 421499-1 Nameplate ............................................................................................ 1 ............ 1 ............ 1
25 419778-5 Body - R.H. Side ....................................................................................... 1 ............ 1 ............ 1
26 419653 Handle ............................................................................................ 1 ............ 1 ............ 1
27 427884-1 Body - Rear Bottom .................................................................................. 1
27 427884-1 Body - Rear Bottom .................................................................................................. 1
27 428153-1 Body - Rear Bottom .................................................................................................................. 1
28 419788-1 Shield - Front ............................................................................................ 1 ............ 1
28 419788-2 Shield - Front ............................................................................................................................ 1
29 SD-032-07 Self-Tapping Screw 10-24 x 1/2” Hex Washer Hd., Type TT ................ 4 ............ 4 ............ 4
30 419795-G1 Insulation - Heat Shield ............................................................................. 1
30 419795-G1 Insulation - Heat Shield ............................................................................................. 1
30 419795-G2 Insulation - Heat Shield ............................................................................................................. 1
31 416959-6 Wrap - Flue ............................................................................................ 1
31 416959-6 Wrap - Flue ............................................................................................................ 1
31 418336-6 Wrap - Flue ............................................................................................................................ 1
EF3 EF4 EF5
- 5 -
EF SERIES GAS FRYERS
Fig. 3B
EF SERIES
ACCESSORIES
ILLUS. PART NO. NAME OF PART AMT.
Fig. 3B
1 411378-2 Basket - Single, Dual Handle ................................................................... 1 ............ 1
1 418380-1 Basket - Single, Dual Handle ..................................................................................................... 1
2 421756-1 Brush - Fryer Cleaning............................................................................ 1 ............ 1 ............. 1
3 410863-2 Grease Strip ............................................................................................ 1 ............ 1 ............. 1
4 497211-1 Vat Cover (SST) ...................................................................................... 1 ............ 1
4 497211-2 Vat Cover (SST) ....................................................................................................................... 1
- 6 -
EF3 EF4 EF5
EF SERIES GAS FRYERS
RECOMMENDED SPARE PARTS LIST
PART NO. NAME OF PART AM T.
419670-2 High Limit .................................................................................................................................... 2
419999-1 Thermostat-Millivolt ..................................................................................................................... 2
408659-5 Thermostat Knob ........................................................................................................................ 2
410841-22 Combination Valve (Nat. Gas) ....................................................................................................1
410841-23 Combination Valve (LP. Gas) .....................................................................................................1
412212-7 Pilot Assy. (Nat. Gas) ................................................................................................................. 2
412212-2 Pilot Assy. (LP. Gas) ................................................................................................................... 2
410839-4 Thermopile .................................................................................................................................. 2
- 7 -
