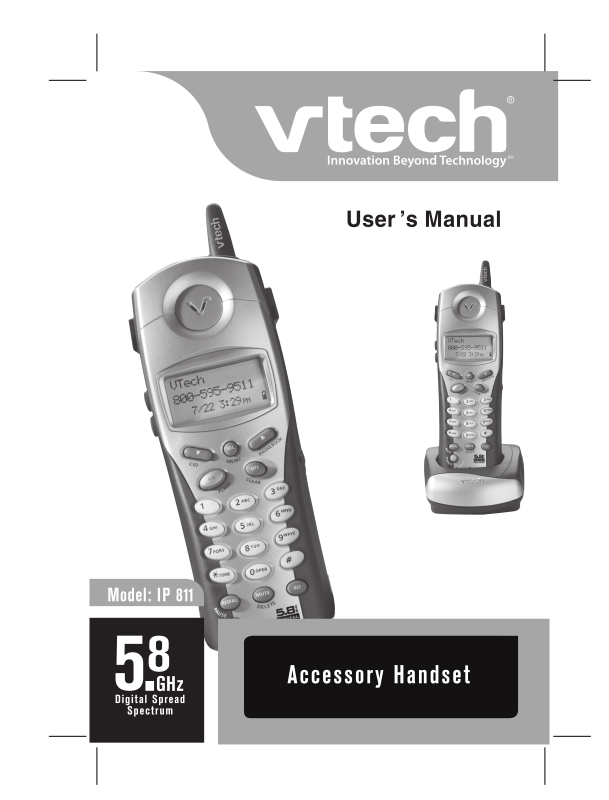

VTech IP 811 User Manual

Important Safety Instructions

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this product near water (for example, near a bath tub, kitchen sink or swimming pool).

5. Do not place this product on an unstable surface, such as a table, shelf or stand. The product may fall, causing serious damage.

6. Slots and openings in the back or bottom of the base unit and handset are provided for ventilation. To protect them from overheating, these openings must not be blocked by placing the product on a soft surface such as a bed, sofa or rug. This product should never be placed near or over a radiator or heat register. This product should not be placed in any area where proper ventilation is not provided.

7. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply in your home, consult your dealer or local power company.

8. Do not allow anything to rest on the power cord. Do not install this product where the cord may have anyone walking on it.

9. Never push objects of any kind into this product through slots in the base or handset as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product.

10. To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service facility. Opening or removing parts of the base or handset other than specified access doors may expose you to dangerous voltages or other risks. Incorrect reassembling can cause electric shock when the product is subsequently used.

11. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.

12. Unplug this product from the wall outlet and refer servicing to an authorized service facility under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled onto the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and often requires extensive work by an authorized technician to restore the product to normal operation.

E. If the product has been dropped and the base and/or handset has been

damaged.

F. If the product exhibits a distinct change in performance.

13. Avoid using a telephone (other than cordless) during an electrical storm. There is a remote risk of electric shock from lightning.

14. Do not use the telephone to report a gas leak in the vicinity of the leak.

15. Only put the handset of your telephone next to your ear when it is in normal talk mode.

Important Safety Instructions

VTech Communications, Inc. Customer Service: www.vtechphones.com or 1-800-595-

9511. In Canada, call VTech Telecommunications Canada Ltd. at 1-800-267-7377.

BEFORE USING YOUR IP 811, CAREFULLY PEEL OFF THE PROTECTIVE FILM COVERING THE DISPLAYS.

IMPORTANT:

Your IP 811 is an accessory handset for use with the IP 8100-2/8100-3 systems. You must have one of these base units in order to use the accessory handset. This manual is designed to familiarize you with the IP 811 accessory handset setup, registration and basic functions. For detailed instructions, please refer to the

IP 8100-2/8100-3 user’s manual.

Parts Check List

1. Handset

2. Handset Charger

3. Charger Wall Mounting Bracket

To purchase replacement batteries, visit us on the web at www.vtechphones.com or call VTech Communications, Inc. at 1-800-595-9511. In Canada, call VTech Telecommunications Canada Ltd. at 1-800-267-7377.

NOTE: Use only VTech batteries (part number 89-1324-00-00).

Handset

Charger Wall Mounting

4. Belt Clip

5. User’s Manual

6. Battery Pack

Handset Charger

Bracket

Belt Clip

Battery Pack

User’s Manual

The Handset Layout

1. Antenna

2. Earpiece

3. Volume Control

4. CID (Scroll Down)

5. On (Flash)

6. Voicemail

7. Dialing Keys (0-9,

8. Redial (Pause)

*, #)

9. Speakerphone

10. LCD Display

11. Select (Menu)

12. Phonebook (Scroll Up)

13. Headset jack (2.5mm)

14. Off (Clear)

15. Intercom

16. Mute (Delete)

Setup

Connecting Power to Handset Charger

Because the IP 811 is an accessory handset to the IP 8100-2/8100-3 all you need to do is choose the location for your handset charger and plug in the power supply into an electrical outlet.

CAUTION: Use only the VTech power supply provided with your telephone.

Getting Started

Installation of Battery Pack

1. Remove battery compartment cover by pressing on the indentation and sliding downward.

2. Place the new battery pack in the handset with the positive and negative poles aligned in the battery compartment.

3. Replace the battery pack cover by sliding it upwards.

4. If the new battery is not already charged, place the handset in its charger and allow it to charge for 10-12 hours.

5. After the initial charge, a maintenance charge of 10-12 hours should be sufficient. Be sure to place the handset in its charger when not in use to insure maximum daily performance.

6. Average talk time on a fully charged battery is about nine hours, standby time is approximately four days.
