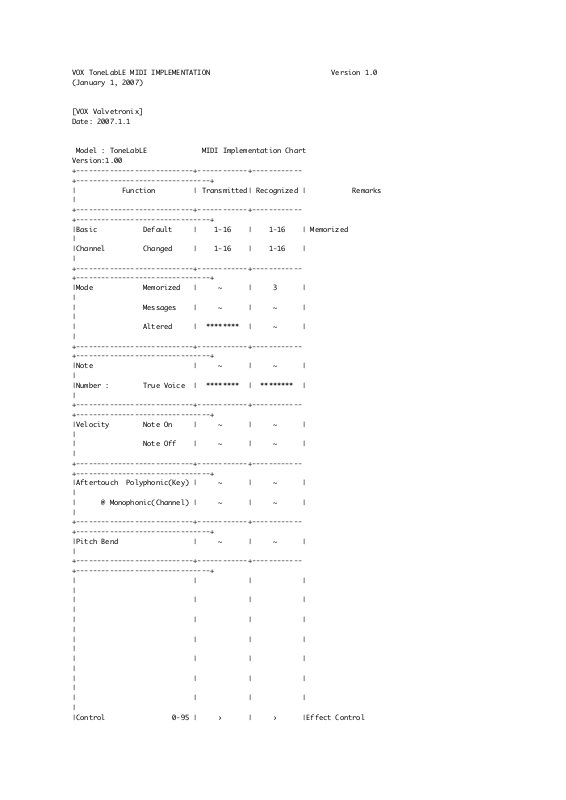

VOX ToneLabLE MIDI IMPLEMENTATION Version 1.0
(January 1, 2007)
[VOX Valvetronix]
Date: 2007.1.1
Model : ToneLabLE MIDI Implementation Chart
Version:1.00
+----------------------------+------------+-----------+--------------------------------+
| Function | Transmitted| Recognized | Remarks
|
+----------------------------+------------+-----------+--------------------------------+
|Basic Default | 1-16 | 1-16 | Memorized
|
|Channel Changed | 1-16 | 1-16 |
|
+----------------------------+------------+-----------+--------------------------------+
|Mode Memorized | ~ | 3 |
|
| Messages | ~ | ~ |
|
| Altered | ******** | ~ |
|
+----------------------------+------------+-----------+--------------------------------+
|Note | ~ | ~ |
|
|Number : True Voice | ******** | ******** |
|
+----------------------------+------------+-----------+--------------------------------+
|Velocity Note On | ~ | ~ |
|
| Note Off | ~ | ~ |
|
+----------------------------+------------+-----------+--------------------------------+
|Aftertouch Polyphonic(Key) | ~ | ~ |
|
| @ Monophonic(Channel) | ~ | ~ |
|
+----------------------------+------------+-----------+--------------------------------+
|Pitch Bend | ~ | ~ |
|
+----------------------------+------------+-----------+--------------------------------+
| | | |
|
| | | |
|
| | | |
|
| | | |
|
| | | |
|
| | | |
|
| | | |
|
|Control 0-95 | › | › |Effect Control
*C*1 |
|Change | | |
|
| | | |
|
| | | |
|
| | | |
|
| | | |
|
| | | |
|
| | | |
|
| | | |
|
+----------------------------+------------+-----------+--------------------------------+
|Program | › 0-119 | › 0-119 |
*P |
|Change Variable Range | ******** | 0-119 |
|
+----------------------------+------------+-----------+--------------------------------+
|System Exclusive | › | › |Parameter Control
*E*1 |
| | | |Program Data Dump
|
+----------------------------+------------+-----------+--------------------------------+
|System : Song Position | ~ | ~ |
|
|Common : Song Select | ~ | ~ |
|
|@ : Tune | ~ | ~ |
|
+----------------------------+------------+-----------+--------------------------------+
|System : Clock | ~ | ~ |
|
|Real Time : Command | ~ | ~ |
|
+----------------------------+------------+-----------+--------------------------------+
|Aux : Loacl On/Off | ~ | ~ |
|
|Message : All Note Off | ~ | ~ |
|
| : Active Sense | ~ | ~ |
|
| ; Reset | ~ | ~ |
|
+----------------------------+------------+-----------+--------------------------------+
|Notes
|
|*P : Transmitted if GLOBAL "PCHG OUT" is On.
|
|*C : Transmitted and received according to the setting of each controller
if GLOBAL |
| "CCHG I/O" is On.
|
|*E : Transmitted and received if GLOBAL "SYEX OUT" is On. (Responses to
Request |
| messages are always transmitted regardless of the "SYSEX OUT"
setting.) |
|*1 : In additon to messages specifically for this device, Device Inquiry
is also |
| supported.
|
|*2 : "AMP CTRL" and "CAB CTRL" are recieve only.
|
+--------------------------------------------------------------------------
-------------+
1.TRANSMITTED DATA
1-1 CHANNEL MESSAGES [H]:Hex, [D]:Decimal
+--------+---------+--------+---------------------------------------------------+---+
| Status | Second | Third | Description (Transmitted
by ) |ENA|
| [Hex] | [H] [D] | [H] [D] |
| |
+--------+---------+--------+---------------------------------------------------+---+
| Bn | cc (cc) | vv (vv) | Control Change cc=00~5F(00~95) (Pedal
Control) | C |
| Cn | pp (pp) | -- -- | Program Change pp=00~5F(00~95) (Program
Change) | P |
+--------+---------+--------+---------------------------------------------------+---+
n : MIDI Channel (0~F)
vv : Value
ENA = C : Enabled when "CCHG I/O" Global Parameter is "On".
P : Enabled when "PCHG OUT" Global Parameter is "On".
1-2 UNIVERSAL SYSTEM EXCLUSIVE MESSAGE
DEVICE INQUIRY REPLY
+--------+-----------------------------------------------+
| Byte | Description |
| [Hex] | |
+--------+-----------------------------------------------+
| F0 | Exclusive Status |
| 7E | Non Realtime Message |
| 0n | Device ID (MIDI Channel) |
| 06 | Inquiry Message |
| 02 | Identity reply |
| 42 | KORG ID ( Manufacturers ID ) |
| 6D | VOX Digital Products ID ( Family ID (LSB)) |
| 00 | ( Family ID (MSB)) |
| 10 | ToneLabLE ID ( Member ID (LSB)) |
| 00 | ( Member ID (MSB)) |
| vv | 00~ ( Minor Ver. (LSB)) |
| 00 | ( Minor Ver. (MSB)) |
| vv | 01~ ( Major Ver. (LSB)) |
| 00 | ( Major Ver. (MSB)) |
| F7 | End of Exclusive |
+--------+-----------------------------------------------+
This message is transmitted whenever a INQUIRY MESSAGE REQUEST is
received.
1-3 KORG SYSTEM EXCLUSIVE MESSAGE
+--------+----------------------------------+
| Byte | Description |
| [Hex] | |
+--------+----------------------------------+
| F0 | Exclusive Status |
| 42 | KORG ID |
| 3n | Format ID (n: MIDI Channel) |
| 6D | VOX Digital Products ID |
| 10 | ToneLabLE ID |
| ff | Function Code |
| (dd) | Data |
| F7 | End of Exclusive |
+--------+----------------------------------+
See 3.KORG SYSTEM EXCLUSIVE MESSAGE FORMAT for more info.
2. RECOGNIZED RECEIVE DATA
2-1 CHANNEL MESSAGES [H]:Hex, [D]:Decimal
+--------+---------+--------+------------------------------------------------------+---+
| Status | Second | Third | Description (Used .....)
|ENA|
| [Hex] | [H] [D] | [H] [D] |
| |
+--------+---------+--------+------------------------------------------------------+---+
| Bn | cc (cc) | vv (vv) | Control Change cc=00~5F(00~95) (as the same
as PdC) | C |
| Cn | pp (pp) | -- -- | Program Change pp=00~5F(00~95) (for Prog
Change) | P |
+--------+---------+--------+------------------------------------------------------+---+
n : MIDI Channel (0~F)
vv : Value
PdC : Pedal Control
ENA = C : Enabled when "CCHG I/O" Global Parameter is "On".
P : Enabled when Program Select Mode.
2-2 UNIVERSAL SYSTEM EXCLUSIVE MESSAGE
DEVICE INQUIRY MESSAGE REQUEST
+--------+----------------------+
| Byte | Description |
| [Hex] | |
+--------+----------------------+
| F0 | Exclusive Status |
| 7E | Non Realtime Message |
| nn | Device ID |
| 06 | Inquiry Message |
| 01 | Inquiry Request |
| F7 | End of Exclusive |
+--------+----------------------+
nn = 00 ~ 0F :MIDI Channel
= 7F :Any Channel
2-3 KORG SYSTEM EXCLUSIVE MESSAGE
+--------+----------------------------------+
| Byte | Description |
| [Hex] | |
+--------+----------------------------------+
| F0 | Exclusive Status |
| 42 | KORG ID |
| 3n | Format ID (n: MIDI Channel) |
| 6D | VOX Digital Products ID |
| 10 | ToneLabLE ID |
| ff | Function Code |
| (dd) | Data |
| F7 | End of Exclusive |
+--------+----------------------------------+
See 3.KORG SYSTEM EXCLUSIVE MESSAGE FORMAT for more info.
3.KORG SYSTEM EXCLUSIVE MESSAGE FORMAT
Function Code List (R:Receive, T:Transmit)
+--------+-------------------------------------------+-----+-----------+
| Func | Description | R | T |
| [Hex] | | | (*1) (*2) |
+--------+-------------------------------------------+-----+-----+-----+
| 12 | MODE REQUEST | o | | |
| 10 | CURRENT PROGRAM PARAMETER DUMP REQUEST | o | | |
| 1C | PROGRAM PARAMETER DUMP REQUEST | o | | |
| 0E | GLOBAL DATA DUMP REQUEST | o | | |
| 0F | ALL DATA (PROGRAM,GLOBAL) DUMP REQUEST | o | | |
| 11 | PROGRAM WRITE REQUEST | o | | |
| | | | | |
| 40 | CURRENT PROGRAM PARAMETER DUMP | o | r,D | |
| 4C | PROGRAM PARAMETER DUMP | o | r | |
| 51 | GLOBAL DATA DUMP | o | r | |
| 50 | ALL DATA (PROGRAM,GLOBAL) DUMP | o | r,D | |
| | | | | |
| 4E | MODE CHANGE | o | | M |
| 41 | PARAMETER CHANGE | o | | C |
| | | | | |
| 42 | MODE DATA | | r | |
| | | | | |
| 26 | DATA FORMAT ERROR | | E | |
| 23 | DATA LOAD COMPLETED | | E | |
| 24 | DATA LOAD ERROR | | E | |
| 21 | WRITE COMPLETED | | E | W |
| 22 | WRITE ERROR | | E | |
+--------+-------------------------------------------+-----+-----+-----+
*1 : Transmitted when
r : Request message is received.
E : Exclusive message is received.
D : DATA DUMP is executed by Switch.
*2 : Transmitted when "SYEX OUT" Global Parameter is "On" and
M : Mode or Program is changed by Switch.
C : Parameter is changed by Switch or Knob.
W : DATA WRITE by Switch is completed.
(1) MODE REQUEST R
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 12 | Function Code |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Receives this message, and transmits Func=42 message.
(2) CURRENT PROGRAM PARAMETER DUMP REQUEST R
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 10 | Function Code |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Receives this message, and transmits Func=40 or Func=24 message.
(3) PROGRAM PARAMETER DUMP REQUEST R
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 1C | Function Code |
| 00k0 0000 | Kind (NOTE 7) |
| 0ppp pppp | Program No. |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Receives this message, and transmits Func=4C or Func=24 message.
(4) GLOBAL DATA DUMP REQUEST R
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 0E | Function Code |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Receives this message, and transmits Func=51 or Func=24 message.
(5) ALL DATA (PROGRAM,GLOBAL) DUMP REQUEST R
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 0F | Function Code |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Receives this message, and transmits Func=50 or Func=24 message.
(6) PROGRAM WRITE REQUEST R
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 11 | Function Code |
| 00 | (Reserved) |
| 0ppp pppp | Destination Program No. |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Receives this message, write the data and transmits Func=21 or Func=22
message.
(7) CURRENT PROGRAM PARAMETER DUMP R , T
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 40 | Function Code |
| 0ddd dddd | Data (NOTE 1) |
| : | : |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Receives this message & data, saves them to Current Buffer and transmits
Func=23 or Func=24 message.
Receives Func=10 message, and transmits this message & data.
Transmits this message & data when DATA DUMP is executed.
(8) PROGRAM PARAMETER DUMP R , T
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 4C | Function Code |
| 00k0 0000 | Kind (NOTE 7) |
| 0ppp pppp | Program No. |
| 0ddd dddd | Data (NOTE 2,3) |
| : | : |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Receives this message & data, saves them to Internal Memory and transmits
Func=23 or Func=24 message.
Receives Func=1C message, and transmits this message & data.
(9) GLOBAL DATA DUMP R , T
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 51 | Function Code |
| 0ddd dddd | Data (NOTE 4) |
| : | : |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Receives this message & data, saves them to Internal Memory and transmits
Func=23 or Func=24 message.
Receives Func=0E message, and transmits this message & data.
(10) ALL DATA (PROGRAM,GLOBAL) DUMP R , T
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 50 | Function Code |
| 0ddd dddd | Data (NOTE 5) |
| : | : |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Receives this message & data, saves them to Internal Memory and transmits
Func=23 or Func=24 message.
Receives Func=0F message, and transmits this message & data.
Transmits this message & data when DATA DUMP is executed.
(11) MODE CHANGE R , T
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 4E | Function Code |
| 0moo 0000 | Mode and Option (NOTE 6) |
| 0ppp pppp | Program No. |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Receives this message & data, changes the Mode and transmits Func=23 or
Func=24.
When the Mode or Program is changed by Switch, transmits this message &
data.
(12) PARAMETER CHANGE R , T
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 41 | Function Code |
| 0ppp ppp | Parameter ID (TABLE 1) |
| 0sss sss | Parameter SUB ID (TABLE 1) |
| 0vvv vvv | Value (MSB bit13~7) |
| 0vvv vvv | Value (LSB bit 6~0) |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Receives this message & data, changes a Parameter and transmits Func=23 or
Func=24 message.
When the Parameter is changed by Switch & Knob, transmits this message &
data.
(13) MODE DATA T
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 42 | Function Code |
| 0m00 0000 | Mode (NOTE 6) |
| 0ppp pppp | Program No. |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Receives Func=12 message, and transmits this message & data.
(14) DATA FORMAT ERROR T
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 26 | Function Code |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Transmits this message when there is an error in the MIDI IN message.
(15) DATA LOAD COMPLETED (ACK) T
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 23 | Function Code |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Transmits this message when DATA LOAD, PROCESSING have been completed.
(16) DATA LOAD ERROR (NAK) T
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 24 | Function Code |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Transmits this message when DATA LOAD, PROCESSING have not been completed.
(17) WRITE COMPLETED T
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 21 | Function Code |
| 00 | (Reserved) |
| 0ppp pppp | Destination Program No. |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Transmits this message when DATA WRITE has been completed.
(18) WRITE ERROR T
+----------------+-------------------------------------------------------+
| Byte | Description |
+----------------+-------------------------------------------------------+
| F0,42,3n,6D,10 | Exclusive Header |
| 22 | Function Code |
| 00 | (Reserved) |
| 0ppp pppp | Destination Program No. |
| F7 | End of Exclusive |
+----------------+-------------------------------------------------------+
Transmits this message when DATA WRITE MIDI has not been completed.
NOTE 1: CURRENT PROGRAM PARAMETER (in Current Buffer) DUMP FORMAT
92Bytes = 7*13+1 -> 8*13+(1+1) => 106Bytes
(TABLE 1)
NOTE 2: PROGRAM PARAMETER (in Internal Memory) DUMP FORMAT (1 Program)
Same as CURRENT PROGRAM PARAMTER DUMP FORMAT.
NOTE 3: PROGRAM PARAMETER (in Internal Memory) DUMP FORMAT (All Program)
[Prog 1-1(92Bytes)],....,[Prog 24-4(92Bytes)]
92*96Bytes = 7*1261+5 -> 8*1261+(1+5) => 10094Bytes
NOTE 4: GLOBAL DATA (in Internal Memory) DUMP FORMAT
16Bytes = 7*2+2 -> 8*2+(1+2) => 19Bytes
(TABLE 2)
NOTE 5: ALL DATA (in Internal Memory) DUMP FORMAT
[Prog 1-1(92Bytes)],....,[Prog 24-4(92Bytes)],[dummy(92bytes)],
[Global Data].
92*97+16Bytes = 7*1277+1 -> 8*1277+(1+1) => 10218Bytes
NOTE 6: oo = 00 : Mode and Program Change (Use m,p)
01 : Mode Change Only (Use m)
10 : Program Change Only (Use p)
m = 0 : Program Select Mode
1 : Fx On/Off Mode
NOTE 7: k = 0 : All Program
1 : 1 Program (Use p)
NOTE 8: DUMP DATA CONVERSION
DATA ( 1set = 8bit x 7Byte )
b7 ~ b0 b7 ~ b0 b7 ~~ b0 b7 ~ b0
+-+-+-+-+-+-+-+-+ +-+-+-+-+-+-+-+-+ +-+-+-~~-+-+-+ +-+-+-+-+-+-+-++
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
+-+-+-+-+-+-+-+-+ +-+-+-+-+-+-+-+-+ +-+-+-~~-+-+-+ +-+-+-+-+-+-+-++
7n+0 7n+1 7n+2 ~~ 7n+5 7n+6
MIDI DATA ( 1set = 7bit x 8Byte )
b7b7b7b7b7b7b7 b6 ~ b0 b6 ~~ b0 b6 ~
b0
+-+-+-+-+-+-+-+-+ +-+-+-+-+-+-+-+-+ +-+-+-~~-+-+-+ +-+-+-+-+-+-+-++
|0| | | | | | | | |0| | | | | | | | |0| | | | | |0| | | | | | |
|
+-+-+-+-+-+-+-+-+ +-+-+-+-+-+-+-+-+ +-+-+-~~-+-+-+ +-+-+-+-+-+-+-++
7n+6,5,4,3,2,1,0 7n+0 7n+1 ~~ 7n+5 7n+6
[ TABLE 1 ] PROGRAM PARAMETERS
No. : Address in the PROGRAM DUMP DATA.
PARA No. : Parameter ID, SUB ID for PARAMETER CHANGE.
+---------+-----------------------+--------+--------------------------------+---------+
| No. | PARAMETER | DATA | VALUE
| PARA No.|
| [Dec] | | [Hex] |
| [Hex] |
+---------+-----------------------+--------+--------------------------------+---------+
| 00 | PROGRAM NAME (1st) | |
| 00,00 |
| : | : | 20~5F | ASCII code ' ' ~ '_'
| : |
| 07 | PROGRAM NAME (8th) | |
| 00,07 |
+---------+-----------------------+--------+--------------------------------+---------+
| 08 | PROGRAM LEVEL | |
| 01,00 |
+---------+-----------------------+--------+--------------------------------+---------+
| 09 | NR SENS | |
| 01,01 |
+---------+-----------------------+--------+--------------------------------+---------+
| EFFECT STATUS
|
+---------+-----------------------+--------+--------------------------------+---------+
| 10 b0 | PEDAL | 00,01 | Off,On
| 02,00 |
| -----+-----------------------+--------+--------------------------------+---------+
| b1 | MODULATION | 00,01 | Off,On
| 02,01 |
| -----+-----------------------+--------+--------------------------------+---------+
| b2 | DELAY | 00,01 | Off,On
| 02,02 |
| -----+-----------------------+--------+--------------------------------+---------+
| b3 | REVERB | 00,01 | Off,On
| 02,03 |
| -----+-----------------------+--------+--------------------------------+---------+
| b4 | AMP | 00,01 | Off,On
| 02,04 |
| -----+-----------------------+--------+--------------------------------+---------+
| b5 | CABINET | 00,01 | Off,On
| 02,05 |
| -----+-----------------------+--------+--------------------------------+---------+
| b6 | (Reserved) | |
| |
| -----+-----------------------+--------+--------------------------------+---------+
| b7 | INSERT | 00,01 | Off,On
| 02,07 |
+---------+-----------------------+--------+--------------------------------+---------+
| 11 | CHAIN | 00~05 | M-D-R ~ R-D-M
| 02,10 |
+---------+-----------------------+--------+--------------------------------+---------+
| PEDAL EFFECT PARAMETERS
|
+---------+-----------------------+--------+--------------------------------+---------+
| 12 | Effect Type | 00~0F | COMP ~ (TABLE
1-1) | 03,00 |
+---------+-----------------------+--------+--------------------------------+---------+
| 13 |
| 04,?? |
| : | Parameter Structure ( TABLE 1-1 )
| : |
| 18 |
| 04,?? |
+--------+-----------------------------------------------------------------+---------+
| MODULATION EFFECT PARAMETERS
|
+---------+-----------------------+--------+--------------------------------+---------+
| 19 | Effect Type | 00~0A | CLASSIC CHORUS ~ (TABLE
1-2) | 03,01 |
+---------+-----------------------+--------+--------------------------------+---------+
| 20 |
| 05,?? |
| : | Parameter Structure ( TABLE 1-2 )
| : |
| 25 |
| 05,?? |
+--------+-----------------------------------------------------------------+---------+
| DELAY EFFECT PARAMETERS
|
+---------+-----------------------+--------+--------------------------------+---------+
| 26 | Effect Type | 00~0A | ECHO PLUS ~ (TABLE
1-3) | 03,02 |
+---------+-----------------------+--------+--------------------------------+---------+
| 27 |
| 06,?? |
| : | Parameter Structure ( TABLE 1-3 )
| : |
| 33 |
| 06,?? |
+---------
+-----------------------------------------------------------------+---------+
| REVERB EFFECT PARAMETERS
|
+---------+-----------------------+--------+--------------------------------+---------+
| 34 | Effect Type | 00~0A | SLAP ~ (TABLE
1-4) | 03,03 |
+---------+-----------------------+--------+--------------------------------+---------+
| 35 |
| 07,?? |
| : | Parameter Structure ( TABLE 1-4 )
| : |
| 40 |
| 07,?? |
+--------+-----------------------------------------------------------------+---------+
| AMP PARAMETERS
|
+---------+-----------------------+--------+--------------------------------+---------+
| 41 | AMP Type | 00~0F | AC15 ~ (TABLE
1-5) | 03,04 |
+---------+-----------------------+--------+--------------------------------+---------+
| 42 | GAIN | 00~64 | 0.0~10.0
| 08,00 |
+---------+-----------------------+--------+--------------------------------+---------+
| 43 | VR GAIN | 00~64 | 0.0~10.0
| 08,01 |
+---------+-----------------------+--------+--------------------------------+---------+
| 44 | TREBLE | 00~64 | 0.0~10.0
| 08,02 |
+---------+-----------------------+--------+--------------------------------+---------+
| 45 | MIDDLE | 00~64 | 0.0~10.0
| 08,03 |
+---------+-----------------------+--------+--------------------------------+---------+
| 46 | BASS | 00~64 | 0.0~10.0
| 08,04 |
+---------+-----------------------+--------+--------------------------------+---------+
| 47 | CH VOLUME | 00~64 | 0.0~10.0
| 08,05 |
+--------+-----------------------------------------------------------------+---------+
| 48 | PRESENCE | 00~64 | 0.0~10.0
| 08,06 |
+---------+-----------------------+--------+--------------------------------+---------+
| CABINET PARAMETERS
|
+---------+-----------------------+--------+--------------------------------+---------+
| 49 | CABINET Type | 00~0A | TWEED 1x8 ~ (TABLE
1-6) | 03,05 |
+---------+-----------------------+--------+--------------------------------+---------+
| EXPRESSION PEDAL 1
|
+---------+-----------------------+---------
+--------------------------------+---------+
| 50 b0~5| Target | | (TABLE
1-1~1-4,1-7) | 0C,00 |
| -----+-----------------------+--------+--------------------------------+---------+
| b6,7| (Reserved) | |
| |
+---------+-----------------------+--------+--------------------------------+---------+
| 51~52 | Target Range (MIN) | | (TABLE
1-1~1-4,1-7) | 0C,01 |
+---------+----------------------+------------------------------------------+---------+
| 53~54 | Target Range (MAX) | | (TABLE
1-1~1-4,1-7) | 0C,02 |
+---------+-----------------------+--------+--------------------------------+---------+
| CONTROL PEDAL
|
+---------+-----------------------+--------+--------------------------------+---------+
| 55 b0~5| Target | 00~0B | (TABLE
1-8) | 0E,00 |
| -----+-----------------------+--------+--------------------------------+---------+
| b6,7| (Reserved) | |
| |
+---------+-----------------------+--------+--------------------------------+---------+
| 56 | FACTOR | 00~0B | 1/6~4
(*3) | 0E,01 |
+---------+----------------------+------------------------------------------+---------+
| 57~91 | (Reserved) | |
| |
+---------+-----------------------+--------+--------------------------------+---------+
[ TABLE 1-1 ] PEDAL EFFECT Parameter Structure
+----------------------+
|
Expression Target |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Offset | PARAMETER | DATA | VALUE | PARA No.| |
DATA | VALUE |
| [Dec] | | [Hex] | | [Hex] | |
[BIN] | |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 00 : COMP | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | SENS | 00~5A | 1.0~10.0 | 04,00 | |
001000 | P/SENS |
| 01 | LEVEL | 00~64 | 0.0~10.0 | 04,01 | |
001001 | P/LEVEL |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 01 : ACOUSTIC | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | BODY | 00~64 | 0.0~10.0 | 04,00 | |
001000 | P/BODY |
| 01 | BASS | 00~64 | 1.0~10.0 | 04,01 | |
001001 | P/BASS |
| 02 | TREBLE | 00~64 | 1.0~10.0 | 04,02 | |
001010 | P/TREBLE |
| | | | | | |
| |
| 04 | TYPE | 00~03 | 1,2,3,4 | 04,04 | |
| |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 02 : VOX WAH | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| | | | | | |
| |
| 01 | CLOSE | 00~5A | 1.0~10.0 | 04,01 | |
| |
| 02 | OPEN | 00~5A | 1.0~10.0 | 04,02 | |
| |
| 03 | MANUAL | 00~5A | 1.0~10.0 | 04,03 | |
001000 | P/MANUAL |
| 04 | TYPE | 00,01 | V847,V848 | 04,04 | |
| |
| 05 | ORDER | 00,01 | PRE,POST | 04,05 | |
| |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 03 : U-VIBE | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | SPEED | 32~64 | 1.0~10.0 [Hz] (*4) | 04,00 | |
001000 | P/SPEED |
| 01 | DEPTH | 00~64 | 0.0~10.0 | 04,01 | |
001001 | P/DEPTH |
| 02 | MIX | 00~64 | 0.0~10.0 | 04,02 | |
| |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 04 : BLK/ORG PHASE | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | SPEED | 00~64 | 0.1~10.0 [Hz] (*4) | 04,00 | |
001000 | P/SPEED |
| 01 | DEPTH | 00~64 | 0.0~10.0 | 04,01 | |
001001 | P/DEPTH |
| 02 | RESONANCE | 00~64 | 0.0~10.0 | 04,02 | |
001010 | P/RESO |
| 03 | MANUAL | 00~5A | 1.0~10.0 | 04,03 | |
001011 | P/MANUAL |
| 04 | TYPE | 00~02 | BLK,ORG1,ORG2 | 04,04 | |
| |
| 05 | ORDER | 00,01 | PRE,POST | 04,05 | |
| |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 05 : OCTAVE | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | DIRECT | 00~64 | 0.0~10.0 | 04,00 | |
001000 | P/DIRECT |
| 01 | 1 OCTAVE | 00~64 | 0.0~10.0 | 04,01 | |
001001 | P/1OCT |
| 02 | 2 OCTAVE | 00~64 | 0.0~10.0 | 04,02 | |
001010 | P/2OCT |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 06 : RING MODULATOR | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | DIRECT | 00~64 | 0.0~10.0 | 04,00 | |
001000 | P/DIRECT |
| 01 | EFFECT | 00~64 | 0.0~10.0 | 04,01 | |
001001 | P/EFFECT |
| 02 | FILTER | 00~5A | 1.0~10.0 | 04,02 | |
001010 | P/FILTER |
| 03 | MANUAL | 00~64 | 0.0~10.0 | 04,03 | |
001011 | P/MANUAL |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 07 : TREBLE BOOST | |
|
| Effect Type = 08 : TUBE OD | |
|
| Effect Type = 09 : SUPER OD | |
|
| Effect Type = 0A : BOUTIQUE | |
|
| Effect Type = 0B : FAT DIST | |
|
| Effect Type = 0C : ORANGE DIST | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | DRIVE | 00~5A | 1.0~10.0 | 04,00 | |
001000 | P/DRIVE |
| 01 | LEVEL | 00~64 | 0.0~10.0 | 04,01 | |
001001 | P/LEVEL |
| 02 | TONE | 00~5A | 1.0~10.0 | 04,02 | |
001010 | P/TONE |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 0D : METAL DIST | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | DRIVE | 00~5A | 1.0~10.0 | 04,00 | |
001000 | P/DRIVE |
| 01 | LEVEL | 00~64 | 0.0~10.0 | 04,01 | |
001001 | P/LEVEL |
| 02 | TREBLE | 00~64 | 0.0~10.0 | 04,02 | |
001010 | P/TREBLE |
| 03 | MIDDLE | 00~64 | 0.0~10.0 | 04,03 | |
001011 | P/MIDDLE |
| 04 | BASS | 00~64 | 0.0~10.0 | 04,04 | |
001100 | P/BASS |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 0E : FUZZ | |
|
| Effect Type = 0F : OCTAFUZZ | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | DRIVE | 00~5A | 1.0~10.0 | 04,00 | |
001000 | P/DRIVE |
| 01 | LEVEL | 00~64 | 0.0~10.0 | 04,01 | |
001001 | P/LEVEL |
| 02 | TONE | 00~5A | 1.0~10.0 | 04,02 | |
001010 | P/TONE |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
[ TABLE 1-2 ] MODULATION EFFECT Parameter Structure
+----------------------+
|
Expression Target |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Offset | PARAMETER | DATA | VALUE | PARA No.| |
DATA | VALUE |
| [Dec] | | [Hex] | | [Hex] | |
[BIN] | |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 00 : CLASSIC CHORUS | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | SPEED | 00~64 | 0.1~10.0 [Hz] (*4) | 05,00 | |
010000 | M/SPEED |
| 01 | DEPTH | 00~64 | 0.0~10.0 | 05,01 | |
010001 | M/DEPTH |
| | | | | | |
| |
| 03 | MANUAL | 00~5A | 1.0~10.0 | 05,03 | |
010010 | M/MANUAL |
| 04 | MODE | 00~02 | 1,2,3 | 05,04 | |
| |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 01 : MULTI TAP CHORUS | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | SPEED | 00~64 | 0.1~10.0 [Hz] (*4) | 05,00 | |
010000 | M/SPEED |
| 01 | DEPTH | 00~64 | 0.0~10.0 | 05,01 | |
010001 | M/DEPTH |
| | | | | | |
| |
| 03 | TIME | 00~64 | 0.0~10.0 | 05,03 | |
| |
| | | | | | |
| |
| 05 | MIX | 00~64 | 0.0~10.0 | 05,05 | |
010010 | M/MIX |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 02 : CLASSIC FLANGER | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | SPEED | 00~64 | 0.1~10.0 [Hz] (*4) | 05,00 | |
010000 | M/SPEED |
| 01 | DEPTH | 00~64 | 0.0~10.0 | 05,01 | |
010001 | M/DEPTH |
| 02 | RESONANCE | 00~64 | 0.0~10.0 | 05,02 | |
010010 | M/RESO |
| 03 | MANUAL | 00~5A | 1.0~10.0 | 05,03 | |
010011 | M/MANUAL |
| 04 | OFFSET | 00~64 | 0.0~10.0 | 05,04 | |
| |
| 05 | MIX | 00~64 | 0.0~10.0 | 05,05 | |
010100 | M/MIX |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 03 : BI CHORUS | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | SPEED1 | 00~64 | 0.1~10.0 [Hz] (*4) | 05,00 | |
010000 | M/SPEED1 |
| 01 | DEPTH | 00~64 | 0.0~10.0 | 05,01 | |
010001 | M/DEPTH |
| 02 | RESONANCE | 00~64 | 0.0~10.0 | 05,02 | |
010010 | M/RESO |
| 03 | SPEED2 | 00~64 | 0.1~10.0 [Hz] (*4) | 05,03 | |
010011 | M/SPEED2 |
| 04 | MODE | 00~03 | S,P1,P2,P3 | 05,04 | |
| |
| 05 | MIX | 00~64 | 0.0~10.0 | 05,05 | |
010100 | M/MIX |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 04 : DUO PHASE | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | SPEED1 | 00~64 | 0.1~10.0 [Hz] (*4) | 05,00 | |
010000 | M/SPEED1 |
| 01 | DEPTH | 00~64 | 0.0~10.0 | 05,01 | |
010001 | M/DEPTH |
| 02 | RESONANCE | 00~64 | 0.0~10.0 | 05,02 | |
010010 | M/RESO |
| 03 | SPEED2 | 00~64 | 0.1~10.0 [Hz] (*4) | 05,03 | |
010011 | M/SPEED2 |
| 04 | MODE | 00~04 | S1,S2,P1,P2,P3 | 05,04 | |
| |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 05 : TEXTREM | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | SPEED | 32~64 | 1.0~10.0 [Hz] (*4) | 05,00 | |
001000 | M/SPEED |
| 01 | DEPTH | 00~64 | 0.0~10.0 | 05,01 | |
010001 | M/DEPTH |
| | | | | | |
| |
| 04 | SPREAD | 00~64 | 0.0~10.0 | 05,04 | |
| |
| 05 | LEVEL | 00~5A | 1.0~10.0 | 05,05 | |
010010 | M/LEVEL |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 06 : ROTARY | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | SPEED1 | 2D~64 | 0.8~10.0 [Hz] (*4) | 05,00 | |
010000 | M/SPEED1 |
| 01 | DEPTH | 00~64 | 0.0~10.0 | 05,01 | |
010001 | M/DEPTH |
| | | | | | |
| |
| 03 | SPEED2 | 2D~64 | 0.8~10.0 [Hz] (*4) | 05,03 | |
010010 | M/SPEED2 |
| 04 | ACCEL | 00~5A | 1.0~10.0 | 05,04 | |
010011 | M/ACCEL |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 07 : PITCH SHIFTER | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | PITCH | 00~30 | -24~24 [x100cent] | 05,00 | |
010000 | M/PITCH |
| 01 | FINE | 00~64 | -50~50 [cent] | 05,01 | |
010001 | M/FINE |
| | | | | | |
| |
| 03 | TRACKING | 05~4B | 10~150 [ms] (2ms step) | 05,03 | |
| |
| 04 | DIRECT | 00~64 | 0.0~10.0 | 05,04 | |
010010 | M/DIRECT |
| 05 | EFFECT | 00~64 | 0.0~10.0 | 05,05 | |
010011 | M/EFFECT |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 08 : MOD DELAY | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | SPEED | 00~64 | 0.1~10.0 [Hz] (*4) | 05,00 | |
010000 | M/SPEED |
| 01 | DEPTH | 00~64 | 0.0~10.0 | 05,01 | |
010001 | M/DEPTH |
| 02 | FEEDBACK | 00~64 | 0.0~10.0 | 05,02 | |
010010 | M/FBACK |
| 03 | TIME | 00~5A | 1.0~10.0 | 05,03 | |
010011 | M/TIME |
| 04 | MODE | 00~02 | 1,2,3 | 05,04 | |
| |
| 05 | MIX | 00~64 | 0.0~10.0 | 05,05 | |
010100 | M/MIX |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 09 : FILTRON | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | ATTACK | 00~5A | 1.0~10.0 | 05,00 | |
010000 | M/ATTACK |
| 01 | DEPTH | 00~64 | 0.0~10.0 | 05,01 | |
010001 | M/DEPTH |
| 02 | RESONANCE | 00~64 | 0.0~10.0 | 05,02 | |
010010 | M/RESO |
| 03 | MANUAL | 00~5A | 1.0~10.0 | 05,03 | |
010011 | M/MANUAL |
| 04 | POLARITY | 00,01 | UP,DOWN | 05,04 | |
| |
| 05 | SENS | 00~64 | 0.0~10.0 | 05,05 | |
010100 | M/SENS |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 0A : TALK MOD | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | ATTACK | 00~5A | 1.0~10.0 | 05,00 | |
010000 | M/ATTACK |
| 01 | DEPTH | 00~64 | 0.0~10.0 | 05,01 | |
010001 | M/DEPTH |
| 02 | TYPE | 00~09 | A-E~O-U | 05,02 | |
| |
| 03 | MANUAL | 00~5A | 1.0~10.0 | 05,03 | |
010010 | M/MANUAL |
| 04 | POLARITY | 00,01 | UP,DOWN | 05,04 | |
| |
| 05 | SENS | 00~64 | 0.0~10.0 | 05,05 | |
010011 | M/SENS |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
[ TABLE 1-3 ] DELAY EFFECT Parameter Structure
+----------------------+
|
Expression Target |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Offset | PARAMETER | DATA | VALUE | PARA No.| |
DATA | VALUE |
| [Dec] | | [Hex] | | [Hex] | |
[BIN] | |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 00 : ECHO PLUS | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00~01 | TIME | 1A~7D0 | 26~2000 [ms] | 06,00 | |
011001 | D/TIME |
| 02 | FEEDBACK | 00~64 | 0.0~10.0 | 06,01 | |
011010 | D/FBACK |
| 03 | TONE | 00~5A | 1.0~10.0 | 06,02 | |
011011 | D/TONE |
| | | | | | |
| |
| 05 | LO DAMP | 00~64 | 0.0~10.0 | 06,04 | |
011100 | D/LODAMP |
| 06 | MIX | 00~64 | 0.0~10.0 | 06,05 | |
011101 | D/MIX |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 01 : MULTI HEAD | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00~01 | TIME | 01~7D0 | 1~2000 [ms] | 06,00 | |
| |
| 02 | FEEDBACK | 00~64 | 0.0~10.0 | 06,01 | |
011001 | D/FBACK |
| 03 | TONE | 00~5A | 1.0~10.0 | 06,02 | |
011010 | D/TONE |
| | | | | | |
| |
| 05 | MODE | 00~04 | 1,2,3,4,5 | 06,04 | |
| |
| 06 | MIX | 00~64 | 0.0~10.0 | 06,05 | |
011011 | D/MIX |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 02 : ANALOG DELAY | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00~01 | TIME | 01~7D0 | 1~2000 [ms] | 06,00 | |
011001 | D/TIME |
| 02 | FEEDBACK | 00~64 | 0.0~10.0 | 06,01 | |
011010 | D/FBACK |
| 03 | TONE | 00~5A | 1.0~10.0 | 06,02 | |
011011 | D/TONE |
| | | | | | |
| |
| 06 | MIX | 00~64 | 0.0~10.0 | 06,05 | |
011100 | D/MIX |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 03 : MOD DELAY | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00~01 | TIME | 03~7D0 | 3~2000 [ms] | 06,00 | |
011001 | D/TIME |
| 02 | FEEDBACK | 00~64 | 0.0~10.0 | 06,01 | |
011010 | D/FBACK |
| 03 | TONE | 00~5A | 1.0~10.0 | 06,02 | |
011011 | D/TONE |
| | | | | | |
| |
| 05 | SPEED | 00~64 | 0.1~10.0 [Hz] (*4) | 06,04 | |
011100 | D/SPEED |
| 06 | MIX | 00~64 | 0.0~10.0 | 06,05 | |
011101 | D/MIX |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 04 : SWEEP DELAY | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00~01 | TIME | 1A~7D0 | 26~2000 [ms] | 06,00 | |
011001 | D/TIME |
| 02 | FEEDBACK | 00~64 | 0.0~10.0 | 06,01 | |
011010 | D/FBACK |
| 03 | TONE | 00~5A | 1.0~10.0 | 06,02 | |
011011 | D/TONE |
| | | | | | |
| |
| 05 | SENS | 00~64 | 0.0~10.0 | 06,04 | |
011100 | D/SENS |
| 06 | MIX | 00~64 | 0.0~10.0 | 06,05 | |
011101 | D/MIX |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 05 : STEREO DELAY | |
|
| Effect Type = 06 : CROSS DELAY | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00~01 | TIME | 01~FA0 | 1~4000 [ms] | 06,00 | |
| |
| 02 | FEEDBACK | 00~64 | 0.0~10.0 | 06,01 | |
011001 | D/FBACK |
| 03 | TONE | 00~5A | 1.0~10.0 | 06,02 | |
011010 | D/TONE |
| 04 | DUCKING | 00~64 | 0.0~10.0 | 06,03 | |
011011 | D/DUCK |
| | | | | | |
| |
| 06 | MIX | 00~64 | 0.0~10.0 | 06,05 | |
011100 | D/MIX |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 07 : 2TAP DELAY | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00~01 | TIME | 01~FA0 | 1~4000 [ms] | 06,00 | |
| |
| 02 | FEEDBACK | 00~64 | 0.0~10.0 | 06,01 | |
011001 | D/FBACK |
| 03 | TONE | 00~5A | 1.0~10.0 | 06,02 | |
011010 | D/TONE |
| 04 | DUCKING | 00~64 | 0.0~10.0 | 06,03 | |
011011 | D/DUCK |
| 05 | TAP TIME | 00~64 | 0.0~10.0 | 06,04 | |
| |
| 06 | MIX | 00~64 | 0.0~10.0 | 06,05 | |
011100 | D/MIX |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 08 : RHYTHM DELAY | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00~01 | TIME | 01~FA0 | 1~4000 [ms] | 06,00 | |
| |
| 02 | FEEDBACK | 00~64 | 0.0~10.0 | 06,01 | |
011001 | D/FBACK |
| 03 | TONE | 00~5A | 1.0~10.0 | 06,02 | |
011010 | D/TONE |
| 04 | DUCKING | 00~64 | 0.0~10.0 | 06,03 | |
011011 | D/DUCK |
| 05 | RHYTHM | 00~0A | 1~11 | 06,04 | |
| |
| 06 | MIX | 00~64 | 0.0~10.0 | 06,05 | |
011100 | D/MIX |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 09 : HOLD DELAY | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00~01 | TIME | 01~1F40 | 1~8000 [ms] | 06,00 | |
| |
| 02 | FEEDBACK | 00~64 | 0.0~10.0 | 06,01 | |
011001 | D/FBACK |
| 03 | TONE | 00~5A | 1.0~10.0 | 06,02 | |
011010 | D/TONE |
| | | | | | |
| |
| 06 | MIX | 00~64 | 0.0~10.0 | 06,05 | |
011011 | D/MIX |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 0A : REVERSE DELAY | |
|
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00~01 | TIME | 1A~1F40 | 26~8000 [ms] | 06,00 | |
| |
| 02 | FEEDBACK | 00~64 | 0.0~10.0 | 06,01 | |
011001 | D/FBACK |
| 03 | TONE | 00~5A | 1.0~10.0 | 06,02 | |
011010 | D/TONE |
| | | | | | |
| |
| 06 | MIX | 00~64 | 0.0~10.0 | 06,05 | |
| |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
[ TABLE 1-4 ] REVERB EFFECT Parameter Structure
+----------------------+
|
Expression Target |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Offset | PARAMETER | DATA | VALUE | PARA No.| |
DATA | VALUE |
| [Dec] | | [Hex] | | [Hex] | |
[BIN] | |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| Effect Type = 00 : SLAP | |
| |
| Effect Type = 01 : SPRING | |
| |
| Effect Type = 02 : BOUNCE | |
| |
| Effect Type = 03 : PLATE | |
| |
| Effect Type = 04 : GARAGE | |
| |
| Effect Type = 05 : CHAMBER | |
| |
| Effect Type = 06 : CANYON | |
| |
| Effect Type = 07 : ROOM | |
| |
| Effect Type = 08 : STUDIO | |
| |
| Effect Type = 09 : HALL | |
| |
| Effect Type = 0A : ARENA | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
| 00 | TIME | 00~5A | 1.0~10.0 | 07,00 | |
100001 | R/TIME |
| 01 | LO DAMP | 00~64 | 0.0~10.0 | 07,01 | |
100010 | R/LODAMP |
| 02 | HI DAMP | 00~64 | 0.0~10.0 | 07,02 | |
100011 | R/HIDAMP |
| 03 | PRE DLY | 00~64 | 0~70 [ms] | 07,03 | |
| |
| | | | | | |
| |
| 05 | MIX | 00~64 | 0.0~10.0 | 07,05 | |
100100 | R/MIX |
| | | | | | |
| |
+---------+-------------+---------+-------------------------+---------+
+----------+-----------+
[ TABLE 1-5 ] AMP Type List
+---------+-----------------------+
| DATA | AMP Type |
| [Hex] | |
+---------+-----------------------+
| 00 | AC15 |
| 01 | AC15TB |
| 02 | AC30 |
| 03 | AC30TB |
| 04 | UK BLUES |
| 05 | UK 68P |
| 06 | UK '80S |
| 07 | UK '90S |
| 08 | UK MODERN |
| 09 | US MODERN |
| 0A | US HIGAIN |
| 0B | BOUTIQUE OD |
| 0C | BOUTIQUE CL |
| 0D | BLACK 2x12 |
| 0E | TWEED 1x12 |
| 0F | TWEED 4x10 |
+---------+-----------------------+
[ TABLE 1-6 ] CABINET Type List
+---------+-----------------------+
| DATA | CABINET Type |
| [Hex] | |
+---------+-----------------------+
| 00 | TWEED 1x8 |
| 01 | TWEED 1x12 |
| 02 | TWEED 4x10 |
| 03 | BLACK 2x10 |
| 04 | BLACK 2x12 |
| 05 | VOX AC15 |
| 06 | VOX AC30 |
| 07 | VOX AD120VTX |
| 08 | UK H30 4x12 |
| 09 | UK T75 4x12 |
| 0A | US V30 4x12 |
+---------+-----------------------+
[ TABLE 1-7 ] EXPRESSION PEDAL Target List
+---------+---------------------------------------------+-------------------------------------+
| DATA | Target | TARGET RANGE
|
| [Bin] | | DATA[Hex] :
VALUE |
+---------+---------------------------------------------+-------------------------------------+
| 000000 | --OFF-- No Target |
|
| 000001 | VOLUME Volume Pedal | 00~64 :
0.0~10.0 |
+---------+---------------------------------------------+-------------------------------------+
| 001nnn | P/?????? PEDAL Parameter (TABLE 1-1) | Same as
Parameter Value Range |
+---------+---------------------------------------------+-------------------------------------+
| 010nnn | M/?????? MODULATION Parameter (TABLE 1-2) | Same as
Parameter Value Range |
+---------+---------------------------------------------+-------------------------------------+
| 011000 | D/INPUT DELAY Input Level | 00~64 :
0.0~10.0 |
+---------+---------------------------------------------+-------------------------------------+
| 011nnn | D/?????? DELAY Parameter (TABLE 1-3) | Same as
Parameter Value Range |
+---------+---------------------------------------------+-------------------------------------+
| 100000 | R/INPUT REVERB Input Level | 00~64 :
0.0~10.0 |
+---------+---------------------------------------------+-------------------------------------+
| 100nnn | R/?????? REVERB Parameter (TABLE 1-4) | Same as
Parameter Value Range |
+---------+---------------------------------------------+-------------------------------------+
| 101000 | A/GAIN AMP GAIN | 00~64 :
0.0~10.0 |
| 101001 | A/VRGAIN AMP VR GAIN | 00~64 :
0.0~10.0 |
+---------+---------------------------------------------+-------------------------------------+
[ TABLE 1-8 ] CONTROL PEDAL Target List
+---------+---------------------------------------+
| DATA | Target |
| [Hex] | |
+---------+---------------------------------------+
| 00 | I/OnOFF INSERT On/Off |
| 01 | P/OnOFF PEDAL On/Off |
| 02 | A/OnOFF AMP On/Off |
| 03 | AC/OnOFF AMP&CABINET On/Off |
| 04 | C/OnOFF CABINET On/Off |
| 05 | M/OnOFF MODULATION On/Off |
| 06 | D/OnOFF DELAY On/Off |
| 07 | R/OnOFF REVERB On/Off |
| 08 | MOD TAP MODULATION TAP (SPEED) |
| 09 | DLY TAP DELAY TAP (TIME) |
| 0A | FLN TRIG FLANGER (TRIGGER) |
| 0B | ROT SPD ROTARY (SPEED SW) |
| 0C | HOLD DLY HOLD DELAY (HOLD) |
+---------+---------------------------------------+
*3 : DATA[Hex] VALUE
00 1/6
01 1/4
02 1/3
03 1/2
04 2/3
05 3/4
06 1
07 4/3
08 3/2
09 2
0A 3
0B 4
*4 : DATA[Hex] VALUE[Hz]
00~09 0.100 ~ 0.145 (0.005 step)
0A~18 0.15 ~ 0.29 (0.01 step)
19~27 0.30 ~ 0.58 (0.02 step)
28~31 0.60 ~ 0.96 (0.04 step)
32~3B 1.00 ~ 1.45 (0.05 step)
3C~4A 1.5 ~ 2.9 (0.1 step)
4B~59 3.0 ~ 5.8 (0.2 step)
5A~63 6.0 ~ 9.6 (0.4 step)
64 10.0
[ TABLE 2 ] GLOBAL PARAMETERS
No. : Address in the GLOBAL DUMP DATA.
PARA No. : Parameter ID, SUB ID for PARAMETER CHANGE.
+---------+-------------------------+--------+------------------------------+---------+
| No. | PARAMETER | DATA | VALUE
| PARA No.|
| [Dec] | | [Hex] |
| [Hex] |
+---------+-------------------------+--------+------------------------------+---------+
| 00 b0~3| MIDI Channel | 0~F | 1~16
| 40,00 |
| -----+-------------------------+--------+------------------------------+---------+
| b4~7| (Reserved) | |
| |
+---------+-------------------------+--------+------------------------------+---------+
| 01 b0 | MIDI ProgChg Output | 00,01 | Off, On
| 41,00 |
| -----+-------------------------+--------+------------------------------+---------+
| b1 | MIDI CtrlChg In/Out | 00,01 | Off, On
| 41,01 |
| -----+-------------------------+--------+------------------------------+---------+
| b2 | MIDI SysEx Output | 00,01 | Off, On
| 41,02 |
| -----+-------------------------+--------+------------------------------+---------+
| b3~4| (Reserved) | |
| |
| -----+-------------------------+--------+------------------------------+---------+
| b5 | EXP Pedal Ctrl Init | 00,01 | Off, On
| 41,05 |
| -----+-------------------------+--------+------------------------------+---------+
| b6~7| (Reserved) | |
| |
+---------+-------------------------+--------+------------------------------+---------+
| 02 | CC# for EXP Pedal | 00,1~60 | Off, CC00~CC95
| 42,00 |
+---------+-------------------------+--------+------------------------------+---------+
| 03 | CC# for CONTROL Pedal | 00,1~60 | Off, CC00~CC95
| 42,02 |
+---------+-------------------------+--------+------------------------------+---------+
| 04 | CC# for PEDAL On/Off | 00,1~60 | Off, CC00~CC95
| 42,03 |
+---------+-------------------------+--------+------------------------------+---------+
| 05 | CC# for MOD On/Off | 00,1~60 | Off, CC00~CC95
| 42,04 |
+---------+-------------------------+--------+------------------------------+---------+
| 06 | CC# for DELAY On/Off | 00,1~60 | Off, CC00~CC95
| 42,05 |
+---------+-------------------------+--------+------------------------------+---------+
| 07 | CC# for REVERB On/Off | 00,1~60 | Off, CC00~CC95
| 42,06 |
+---------+-------------------------+--------+------------------------------+---------+
| 08 | CC# for INSERT On/Off | 00,1~60 | Off, CC00~CC95
| 42,07 |
+---------+-------------------------+---------
+------------------------------+---------+
| 09 | CC# for AMP On/Off | 00,1~60 | Off, CC00~CC95
| 42,09 |
+---------+-------------------------+--------+------------------------------+---------+
| 0A | CC# for CAB On/Off | 00,1~60 | Off, CC00~CC95
| 42,0A |
+---------+-------------------------+--------+------------------------------+---------+
| 0B | Output Select | 00~04 | AP1,AP2,AP3,Ln1,Ln2
| 43,01 |
+---------+-------------------------+--------+------------------------------+---------+
| 0C | EQ Trim | 00~64 | -10.0~0.0~10.0
| 43,02 |
+---------+-------------------------+--------+------------------------------+---------+
| 0D | EQ Lo Gain | 00~64 | -10.0~0.0~10.0
| 43,03 |
+---------+-------------------------+--------+------------------------------+---------+
| 0E | EQ Mid Freq | 00~04 | 1~5
| 43,04 |
+---------+-------------------------+--------+------------------------------+---------+
| 0F | EQ Mid Gain | 00~64 | -10.0~0.0~10.0
| 43,05 |
+---------+-------------------------+--------+------------------------------+---------+
| 10 | EQ Hi Gain | 00~64 | -10.0~0.0~10.0
| 43,06 |
+---------+-------------------------+--------+------------------------------+---------+
| 11 | DigitalOut Level | 00~04 | -12,-6,0,6,12 [dB]
| 43,00 |
+---------+-------------------------+--------+------------------------------+---------+
Loading...
