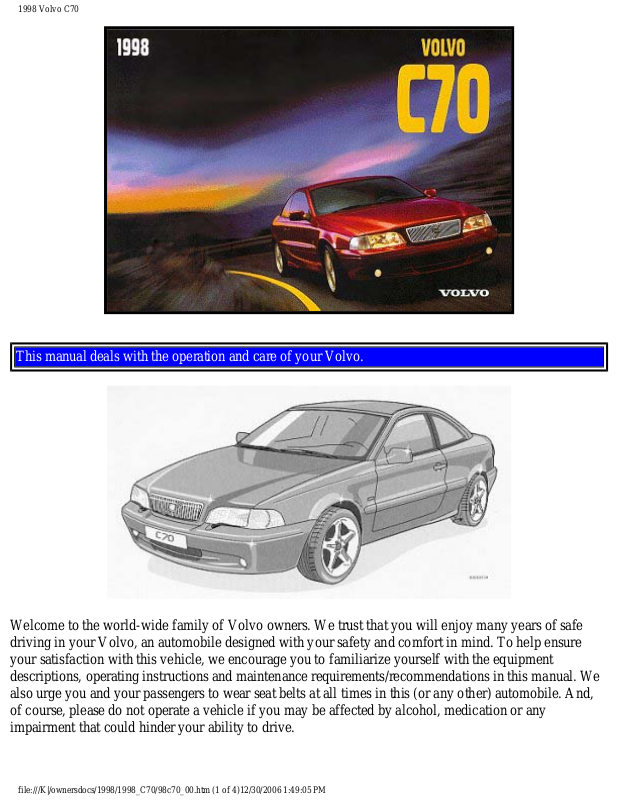

Volvo C70 1998 Owner Manual

1998 Volvo C70

This manual deals with the operation and care of your Volvo.

Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating instructions and maintenance requirements/recommendations in this manual. We also urge you and your passengers to wear seat belts at all times in this (or any other) automobile. And, of course, please do not operate a vehicle if you may be affected by alcohol, medication or any impairment that could hinder your ability to drive.

file:///K|/ownersdocs/1998/1998_C70/98c70_00.htm (1 of 4)12/30/2006 1:49:05 PM

1998 Volvo C70

Your Volvo is designed to meet all applicable safety and emission standards, as evidenced by the certification labels attached to the driver's door opening and on the left wheel housing in the engine compartment.

Volvo and the environment

Volvo is committed to the well being of our customers. As a natural part of this commitment, we care about the environment in which we all live. Caring for the environment means an everyday involvement in reducing our environmental impact.

Volvo's environmental activities are based on a holistic view, which means we consider the overall environmental impact of a product throughout its complete life cycle. In this context, design, production, product use, and recycling are all important considerations.

In production, Volvo has partly or completely phased out several chemicals including freons, lead chromates, naphtanates, asbestos, mercury and cadmium; and reduced the amount of chemicals used in our plants 50% since 1991.

In use, Volvo was the first in the world to introduce into production a three-way catalytic converter with a Lambda sond, now called oxygen sensor, in 1976. The current version of this highly efficient system reduces emissions of harmful substances (CO, HC, NOx) from the exhaust pipe by approximately 95% and the search to eliminate the remaining emissions continues. Volvo is the only automobile manufacturer to offer CFC-free retrofit kits for the air conditioning system for all models back to the M/ Y 1975 240. Advanced electronic engine controls, refined purification systems and cleaner fuels are bringing us closer to our goal.

After Volvo cars and parts have fulfilled their use, recycling is the next critical step in completing the life cycle. The metal content is about 75% of the total weight of the car, which makes the car among the most recycled industrial products. In order to have efficient and well controlled recycling, many Volvo variants have printed dismantling manuals indication the weight and material of individual components. For Volvo, all homogeneous plastic parts weighing more than 1.7 oz. (50 grams)are marked with international symbols that indicate how the component is to be sorted for recycling.

In addition to continuous environmental refinement of conventional gasoline-powered internal combustion engines, Volvo is actively looking at advanced technology alternative-fuel vehicles.

When you drive a Volvo, you become our partner in the work to lessen the car's impact on the environment. To reduce your vehicle's environmental impact, you can:

● Maintain proper air pressure in your tires. Tests have shown decreased fuel economy with

file:///K|/ownersdocs/1998/1998_C70/98c70_00.htm (2 of 4)12/30/2006 1:49:05 PM

1998 Volvo C70

improperly inflated tires

● Follow the recommended maintenance schedule

● Drive at a constant speed

● See an authorized Volvo retailer as soon as possible for inspection if the check engine

(malfunction indicator) lamp illuminates, or stays on after the vehicle has started

● Properly dispose of any vehicle related waste such as used motor oil, used batteries, brake pads,

etc.

● When cleaning your car, use Volvo's own car care products, all of which have systematically

been adapted to the environment.

Contents

Important

Before you operate your car for the first time, please familiarize yourself with the

BREAK-IN information on page 56. You should also be familiar with the information in the first three

chapters of this manual. Information contained in the balance of the manual is extremely useful and should be studied after operating the vehicle for the first time. This manual is structured so that it can be used for reference. It should thus be kept in the car for ready access. Do not export your Volvo to another country before investigating the country's applicable safety and exhaust emission requirements. In some cases it may be difficult or impossible to comply with these requirements. Modifications to the emission control system(s) may render your Volvo not certifiable for legal operation in the U.S., Canada or other countries.

All information, illustrations and specifications contained in this manual are based on the latest product information available at the time of publication. Volvo reserves the right to make model changes at any time, or to change specifications or design, without notice and without incurring obligation.

CAUTION: Certain models have reduced ground clearance due to the design of the front spoiler. Please observe caution when e.g., driving onto garage hoists, through drifted snow or when other road debris is encountered, or when parking near curbs

Contents

Chapter 1 - Occupant safety 1

file:///K|/ownersdocs/1998/1998_C70/98c70_00.htm (3 of 4)12/30/2006 1:49:05 PM

1998 Volvo C70

Chapter 2 - Instruments, switches and controls 15

Chapter 3 - Body and interior 39

Chapter 4 - Starting and driving 55

Chapter 5 - Wheels and tires 75

Chapter 6 - In case of an emergency 81

Chapter 7 - Car care 99 Chapter 8 - Volvo Service 105 Chapter 9 - Specifications 123

Chapter 10 - Audio systems 131

Index 188

Top of Page

file:///K|/ownersdocs/1998/1998_C70/98c70_00.htm (4 of 4)12/30/2006 1:49:05 PM

1998 C70

Chapter 1 - Occupant safety

pg. 1 Occupant safety

Occupant safety

Despite our strongest recommendations, and your best intentions, not wearing a seat belt is like believing "It'll never happen to me!". Volvo urges you and all adult occupants of your car to wear seat belts and ensure that children are properly restrained, using an infant, car or booster seat determined by age, weight and height. Fact: In every state and province, some type of child-restraint legislation has been passed. Additionally, most states and provinces have already made it mandatory for occupants of a car to use seat belts. So, urging you to "buckle up" is not just our recommendation - legislation in your state or province may mandate seat belt usage. The few seconds it takes to buckle up may one day allow you to say, "It's a good thing I was wearing my seat belt".

Seat belts 2

Volvo SRS 4

Side Impact Protection System - (SIPS) air

bag

Child safety 9

Occupant safety 12

Reporting Safety Defects 12

pg. 2 Seat belts

Seat belts

Always fasten the seat belts before you drive or ride.

Two lights above the rear view mirror will be illuminated for 4-8 seconds after the starting (ignition) key is turned to the driving position. A chime will sound at the same time if the driver has not fastened his seat belt. The rear seats are provided with self-retracting inertia reel belts. The front seats are provided with single roller belts with tensioners.

file:///K|/ownersdocs/1998/1998_C70/98c70_01.htm (1 of 4)12/30/2006 1:49:05 PM

1998 C70

Adjusting the shoulder belt

Lap portion of the seat belt should sit low

To buckle: Pull the belt out far enough to insert the latch plate into the receptacle (buckle for rear seats) until a distinct snapping sound is heard. The seat belt retractor is normally "unlocked" and you can move freely, provided that the shoulder belt is not pulled out too far. The retractor will lock up as follows:

● if the belt is pulled out rapidly

● during braking and acceleration

● if the vehicle is leaning excessively

● when driving in turns

For the seat belt to provide maximum protection in the event of an accident, it must be worn correctly. When wearing the seat belt remember:

● The belt should not be twisted or turned.

● The lap belt must be positioned low on the hips (not pressing against the abdomen).

● The shoulder section of the front seat belts adjusts automatically to the driver's height.

Make sure that the shoulder belt is rolled up into its retractor and that the shoulder and lap belts are taut. Before exiting the car, check that the seat belt retracts fully after being unbuckled. If necessary, guide the belt back into the retractor slot.

NOTE: Legislation in your state or province may mandate seat belt usage.

For information on securing child seats, please refer to page 11.

file:///K|/ownersdocs/1998/1998_C70/98c70_01.htm (2 of 4)12/30/2006 1:49:05 PM

1998 C70

WARNING!

● Any device used to induce slack into the shoulder belt portion of the three-point belt system will

have a detrimental effect on the amount of protection available to you in the event of a collision. The seat back should not be tilted too far back. The shoulder belt must be taut in order to function properly.

● Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We

also recommend that children who have outgrown these devices sit in the rear with the seat belt properly fastened.

● The rear seat of the Volvo C70 is intended for two occupants only. Only two three-point seat belts

are provided. The center position should never be used to seat a passenger.

pg. 3 Seat belts

During pregnancy

Pregnant women should always wear seat belts. Remember that the belt should always be positioned in such a way as to avoid any possible pressure on the abdomen. The lap portion of the belt should be located low, as shown in the above illustration.

file:///K|/ownersdocs/1998/1998_C70/98c70_01.htm (3 of 4)12/30/2006 1:49:05 PM

1998 C70

WARNING!

● The rear seat of the Volvo C70 is intended for two occupants only. Only two three-point seat belts

are provided. The center position should never be used to seat a passenger.

● Never use a seat belt for more than one occupant.

● Never wear the shoulder portion of the belt under the arm, behind the back or otherwise out of

position. Such use could cause injury in event of accident.

● As the seat belts lose much of their strength when exposed to violent stretching, they should be

replaced after any collision, even if they may appear to be undamaged.

● Never repair the belt on your own; have this done by an authorized Volvo retailer only.

● Any device used to induce slack into the shoulder belt portion of the three-point belt system will

have a detrimental effect on the amount of protection available to you in the event of a collision.

● The seat back should not be tilted too far back. The shoulder belt must be taut in order to function

properly.

Contents | Top of Page

file:///K|/ownersdocs/1998/1998_C70/98c70_01.htm (4 of 4)12/30/2006 1:49:05 PM

1998 C70

pg. 4 Volvo SRS

Passenger side SRS hatch

As an enhancement to the three-point seat belt system, your Volvo is equipped with a Supplemental Restraint System (SRS). The Volvo SRS consists of an airbag (2) and knee bolster (5) on both the driver's and passenger's sides and seat belt tensioners in both front door pillars (4). The system is designed to supplement the protection provided by the three-point seat belt system.

The SRS system is indicated by the "SRS" embossed on the steering wheel pad and above the glove compartment, the knee bolsters beneath the steering column and the glove compartment and decals on both sun visors and on the far right side of the dash.

The airbags are folded and located in the center of the steering wheel and above the glove compartment. They are designed to deploy during certain frontal-angular collisions, impacts, or decelerations, depending on the crash severity, angle, speed and object impacted. The airbags may also deploy in certain non-frontal collisions where rapid deceleration occurs. Both airbags and seat belt tensioners will deploy, even if the passenger seat is not occupied.

WARNING! As its name implies, SRS is designed to be a SUPPLEMENT to - not a replacement for

- the three-point belt system. For maximum protection, wear seat belts at all times. Be aware that no system can prevent all possible injuries that may occur in an accident.

The airbag system includes gas generators (1) surrounded by the airbags (2) and front seat belt

file:///K|/ownersdocs/1998/1998_C70/98c70_02.htm (1 of 6)12/30/2006 1:49:06 PM

1998 C70

tensioners for both of the front seats (4). To deploy the system, the sensor (3) activates the gas generators causing the airbags to be inflated with nitrogen gas. As the movement of the seat's occupants compresses the airbags, some of the gas is expelled at a controlled rate to provide better cushioning. Both seat belt tensioners also deploy, minimizing any seat belt slack.

The entire process, including inflation and deflation of the airbags, takes approximately two-tenths of a second.

WARNING! When installing any optional equipment, make sure that the SRS system is not damaged. Do not attempt to service any component of the SRS yourself. Attempting to do so may result in serious personal injury. If a problem arises, take your car to the nearest authorized Volvo retailer for inspection as soon as possible.

pg. 5 Volvo SRS

A self-diagnostic system incorporated in the sensor monitors the SRS. This system does not, however, monitor the SIPS airbags. If a fault is detected, the "SRS" warning light will illuminate. The light is included in the warning/indicator light cluster in the instrument panel. Normally, the SRS warning lamp should light up when the ignition is switched on and should go out after 10 seconds or when the engine is started. Check that this light is functioning properly every time the car is started.

The following items are monitored by all the self-diagnostic system:

● Sensor unit

● Cable harness

● Gas generator ignitors

file:///K|/ownersdocs/1998/1998_C70/98c70_02.htm (2 of 6)12/30/2006 1:49:06 PM

1998 C70

WARNING! Never drive an SRS equipped car with your hands on the steering wheel pad/airbag housing. No objects, accessory equipment or stickers may be placed on, attached to or installed near the SRS cover in the center of the steering wheel, the SRS cover above the glove compartment or the area affected by the airbag deployment. If the SRS warning light stays on after the engine has started or if it comes on while you are driving, drive the car to the nearest authorized Volvo retailer for inspection as soon as possible.

The above is a sample of the label found on all seat belts equipped with tensioners, located on the front

seat belts near the lower anchorage point.

The above is a sample of the decal which can be found on the driver's door pillar.

There is no maintenance to perform on the SRS yourself. The only periodic maintenance recommended on the SRS is that the air bag modules and front seat belts (including tensioners) should be replaced approximately every ten years and that the other components in the system (wiring, connectors, etc.) should also be inspected at this time. The SRS decal on your car shows the month and year servicing is due. This service must be performed by an authorized Volvo retailer.

Should you have any questions about the SRS system, please contact your authorized Volvo retailer or Volvo Customer Support:

pg. 6 Volvo SRS (cont.)

file:///K|/ownersdocs/1998/1998_C70/98c70_02.htm (3 of 6)12/30/2006 1:49:06 PM

1998 C70

SRS text at far right of instrument panel

Passenger side air bag

SRS texts on inside of both sun visors

SRS texts on outside of both sun visors

WARNING! Do not use child safety seats or child boosters cushions/backrests in the front passenger's seat. We also recommend that children who have outgrown these devices sit in the rear seat with the seat belt properly fastened.

NOTE: Deployment of SRS components occurs only one time during an accident. In a collision where deployment occurs, the air bags and seat belt tensioners activate. Some noise occurs and a small amount of powder is released. The release of the powder may appear as smoke-like matter. This is a normal characteristic and does not indicate fire.

file:///K|/ownersdocs/1998/1998_C70/98c70_02.htm (4 of 6)12/30/2006 1:49:06 PM

1998 C70

WARNING!

● Children must never be allowed in the front passenger seat. Volvo recommends that ALL

occupants (adults and children) shorter than four feet seven inches (140 cm) be seated in the back seat of the vehicle with a front passenger side airbag. See page 10 for guidelines.

● Occupants in the front passenger's seat must never sit on the edge of the seat, sit leaning toward the

instrument panel or otherwise sit out of position. The occupant's back must be as upright as comfort allows and be against the seat back with the seat belt properly fastened.

● Feet must be on the floor, e.g. not on the dash, seat or out of the window.

● No objects or accessory equipment, e.g. dash covers, may be placed on, attached to or installed

near the SRS hatch (the area above the glove compartment) or the area affected by airbag deployment (see illustration).

● There should be no loose articles, e.g. coffee cups, on the floor, seat or dash area.

● Never try to open the SRS cover on the steering wheel or the passenger side SRS hatch. This

should only be done by an authorized Volvo service technician.

● Failure to follow these instructions can result in injury to the vehicle occupants in an accident.

pg. 7 Volvo SRS (cont.)

NOTE: The information on this page does not pertain to the Side Impact protection System airbags.

When are the airbags deployed?

The SRS system is designed to deploy during certain frontal or front-angular collisions, impacts, or decelerations, depending in the crash severity, angle, speed, and object impacted. The SRS sensor is designed to react to both the impact of the collision and the inertial forces generated by it and to determine if the intensity of the collision is sufficient for the airbags to be deployed.

WARNING! The SRS is designed to help prevent serious injury. Deployment occurs very quickly and with considerable force. During normal deployment and depending on variables such as seating position, one may experience abrasions, bruises, swellings, or other injuries as a result of airbag(s) deployment.

If the airbags have been deployed, we recommend the following:

● Have the car towed to an authorized Volvo retailer. Never drive with the airbags deployed.

● Have an authorized Volvo retailer replace the SRS system components.

● Use only new, Genuine Volvo Parts when replacing SRS components (airbags, seat belts, tensioners,

etc.)

When are the airbags NOT deployed?

Not all frontal collisions activate the SRS system. If the collision involves a non-rigid object (e.g., a snow drift or bush), or a rigid, fixed object at a low speed, the SRS system will not necessarily deploy.

file:///K|/ownersdocs/1998/1998_C70/98c70_02.htm (5 of 6)12/30/2006 1:49:06 PM

1998 C70

Airbags do not normally deploy in a side impact collision, in a collision from the rear or in a rollover situation. The amount of damage to the bodywork does not reliably indicate if the airbags should have deployed or not.

Seat belts - the heart of the Volvo safety system

The heart of the Volvo safety system is the three-point seat belt (a Volvo invention)! In order for the SRS system to provide the protection intended, seat belts must be worn at all times by everyone in the car.

The SRS system is a supplement to the seat belts.

WARNING! If your car has been subjected to flood conditions (e.g. soaked carpeting/standing water

on the floor of the vehicle) or if your car has become flood-damaged in any way, do not attempt to start the vehicle or put the key in the ignition before disconnecting the battery (see below). This may cause airbag deployment which could result in personal injury. Have the car towed to an authorized Volvo retailer for repairs. Automatic transmission only: Before attempting to tow the car, use the following procedure to override the shiftlock system to move the gear selector to the neutral position.

● Disconnect the battery

● Wait at least one minute

● Insert the key in the ignition and turn it to position 1

● Press firmly on the shiftlock override button (located near the base of the gear selector).

● While holding the override button down, move the gear selector from the park position.

WARNING! Never drive with the airbags deployed. The fact that they hang out can impair the steering of your car. Other safety systems can also be damaged. The smoke and dust formed when the airbags are deployed can cause skin and eye irritation in the event of prolonged exposure.

Contents | Top of Page

file:///K|/ownersdocs/1998/1998_C70/98c70_02.htm (6 of 6)12/30/2006 1:49:06 PM

1998 C70

pg. 8 Volvo Side Impact Protection System (SIPS) airbag

SIPS airbag decal *

SIPS airbag

As an enhancement to the structural Side Impact Protection System built into your car, your car is also equipped with Side Impact Protection System (SIPS) airbags. The SIPS airbag system consists of airbag modules built into the sides of both front seat backrests (1), cables (2) from these modules to the mechanical sensor units (3) and gas generators (4). The SIPS airbag system is designed to help increase occupant protection in the event of certain side impact collisions. The SIPS airbags are designed to deploy only during certain side-impact collisions, depending on the crash severity, angle, speed, and point of impact. The airbags are not designed to deploy in all side impact situations.

WARNING!

● The SIPS airbag system is a supplement to the Side Impact Protection System and the three-point

seat belt system. It is not designed to deploy during collisions from the front or rear of the car or in rollover situations.

● The use of seat covers on the front seats may impede SIPS airbag deployment.

● No objects, accessory equipment or stickers may be placed on, attached to or installed near the

SIPS airbag system or in the area affected by SIPS airbag deployment (see illustration to the right above).

● Never try to open or repair any components of the SIPS airbag system. This should only be done

by an authorized Volvo service technician.

● For best protection from the SIPS airbag system, both front seat occupants should sit in an upright

position with the seat belt properly fastened.

NOTE: SIPS airbag deployment (one airbag) occurs only on the side of the vehicle affected by the impact.

file:///K|/ownersdocs/1998/1998_C70/98c70_03.htm (1 of 6)12/30/2006 1:49:06 PM

1998 C70

1 - Airbag, 2 - cable, 3 - sensor unit, 4 - gas generator

WARNING!

● Never drive with the airbags deployed. The fact that they hang out can impair the steering of your

car. Other safety systems can also be damaged. The smoke and dust formed when the airbags are deployed can cause skin and eye irritation in the event of prolonged exposure.

● If your car has been subjected to flood conditions (e.g. soaked carpeting/standing water on the floor

of the vehicle) or if your car has become flood-damaged in any way, do not attempt to start the vehicle or put the key in the ignition before disconnecting the battery. This may cause airbag deployment which could result in personal injury. Have the car towed to an authorized Volvo retailer for repairs.

pg. 9 Child safety

Child Restraint Anchorages

Volvo cars can be fitted with Child Restraint Top Tether Anchorages in the rear seat. There are two pre-drilled anchorage points in the rear window shelf.

In cars designed for Canada, one top tether anchorage set will be in the glove box.

file:///K|/ownersdocs/1998/1998_C70/98c70_03.htm (2 of 6)12/30/2006 1:49:06 PM

1998 C70

Installing the top tether

The pre-drilled holes for the child restraint anchorages are located in the rear window shelf. Refer to the child seat manufacturer's instructions for securing the seat.

WARNING! Child Restraint Anchorages are designed to withstand only those loads imposed by correctly fitted Child Restraints. Under no circumstances are they to be used for adult seat belts or harnesses. The anchorages are not able to withstand excessive forces on them in the event of collision if full harness seat belts or adult seat belts are installed to them. An adult who uses a belt anchored in a Child Restraint Anchorage runs a great risk of suffering severe injuries should a collision occur. Do not install rear speakers which would require the removal of the top tether anchors or interfere with the proper use of the top tether strap.

pg. 10 Child safety (cont.)

Keeping child seats in place (ALR/ELR*)

To make child seat installation easier, each seat belt (except for the driver's belt) is equipped with a locking mechanism to help keep the seat belt taut. When attaching the seat belt to a child seat:

● Attach the seat belt to the child seat according to the child seat manufacturer's instructions.

● Pull the seat belt out as far as possible.

● Insert the seat belt latch plate into the buckle (lock) in the usual way.

● Release the seat belt and pull it taut around the child seat.

A sound from the seat belt retractor will be audible at this time and is normal. The belt will now be locked in place.

This function is automatically disabled when the seat belt is unlocked and the belt is fully retracted.

* Automatic Locking Retractor/Emergency Locking Retractor

Important!

Why Volvo believes no child should sit in the front seat of a car.

It's quite simple really. A front air bag is a very powerful device designed, by law, to help protect an adult. Because of the size of the air bag and its speed of inflation, a child should never be placed in the front seat, even if he or she is properly belted or strapped into a child safety seat. Volvo has been an innovator in safety for over fifty years, and we'll continue to do our part. But we need your help. Please remember to put your children in the back seat, and buckle them up.

Volvo has some very specific recommendations:

● Always wear your seat belt.

● Air bags are a SUPPLEMENTAL safety device which when used in conjunction with a three-point

seat belt can help reduce serious injuries during certain types of severe accidents. Please do not

file:///K|/ownersdocs/1998/1998_C70/98c70_03.htm (3 of 6)12/30/2006 1:49:06 PM

1998 C70

disconnect the air bag system in your vehicle.

● Volvo strongly recommends that ALL children sit in the rear seat of any vehicle and that they be

properly restrained.

● A child should NEVER sit in the front passenger seat of any vehicle equipped with a front passenger

side airbag.

● Volvo recommends that ALL occupants (adults and children) shorter than four feet seven inches (140

cm) be seated in the back seat of any vehicle with a front passenger side airbag. Drive safely!

pg. 11 Child safety (cont.)

Child safety

Volvo recommends the proper use of restraint systems for all occupants including children. Remember that, regardless of age and size, a child should always be properly restrained in a car.

Restraint systems for children are designed to be secured in the vehicle by lap belts or the lap portion of a lap-shoulder belt. Such child restraint systems can help protect children in cars in the event of an accident only if they are used properly. However, children could be endangered in d crash if the child restraints are not properly secured in the vehicle. Failure to follow the installation instructions for your child restraint can result in your child striking the vehicle's interior in a sudden stop.

Holding a child in your arms is NOT a suitable substitute for a child restraint system. In an accident, a child held in a person's arms can be crushed between the vehicle's interior and an unrestrained person. The child could also be injured by striking the interior, or by being ejected from the vehicle during a sudden maneuver or impact. The same can also happen if the infant or child rides unrestrained on the seat. Other occupants should also be properly restrained to help reduce the chance of injuring or increasing the injury of a child.

All states and provinces have legislation governing how and where children should be carried in a car. Find out the regulations existing in your state or province. Recent accident statistics have shown that children are safer in rear seating positions than front seating positions when properly restrained. A child restraint system can help protect a child in a vehicle. Here's what to look for when selecting a child restraint system:

● It should have a label certifying that it meets applicable Federal Motor Vehicle Safety Standards

(FMVSS 213-80) - or in Canada, CMVSS 213.

● Make sure the child restraint system is approved for the child's height, weight and development - the

label required by the standard or regulation, or instructions for infant restraints, typically provide this information.

● In using any child restraint system, we urge you to look carefully over the instructions that are

provided with the restraint. Be sure you understand them and can use the device properly and safely in this vehicle. A misused child restraint system can result in increased injuries for both the infant or child and other occupants in the vehicle.

● If your child restraint requires a top tether strap, consult your authorized Volvo retailer for top tether

file:///K|/ownersdocs/1998/1998_C70/98c70_03.htm (4 of 6)12/30/2006 1:49:06 PM

1998 C70

anchorage and installation information. When a child has outgrown the child safety seat, you should use the rear seat with the standard seat belt

fastened. The best way to help protect the child here is to place the child on a cushion so that the seat belt is properly located on the hips (see page 10 ).

A specially designed and tested booster cushion (not available in Canada ) for children between 22.7 36 kg (50 - 80 lbs) and 117- 137 cm (46 - 54") can be obtained from your Volvo retailer.

WARNING! Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend that children who have outgrown these devices sit in the rear seat with the seat belt properly fastened.

pg. 12 Occupant Safety

Seat belt maintenance

Check periodically that the anchor bolts are secure and that the belts are in good condition. Use water and a mild detergent for cleaning. Check seat belt mechanism function as follows: Attach the seat belt and pull rapidly on the strap.

Volvo Concern for Safety

Safety is the cornerstone for Volvo. Our concern dates back to 1927 when the first Volvo rolled off the production line. Three-point seat belts (a Volvo invention), safety cages, and energy-absorbing impact zones were designed into Volvo cars long before it was fashionable or required by government regulation. We will not compromise our commitment to safety. We continue to seek out new safety features and to refine those already in our cars. You can help. We would appreciate hearing your suggestions about improving automobile safety. We also want to know if you ever have a safety concern with your car. Call us in the U.S. at: 800-458-1552 or in Canada at: 800-663-8255.

Occupant safety

How safely you drive doesn't depend on how old you are but rather on:

● how well you see

● your ability to concentrate

● how quickly you make decisions under stress to avoid an accident.

The tips listed below are suggestions to help you cope with the ever changing traffic environment.

● Never drink and driver.

● If you are taking any medication, consult your physician about its potential effects on your driving

abilities.

● Take a driver-retaining course

● Have your eyes checked regularly

● Keep your windshield and headlamps clean.

● Replace wiper blades when they start to leave streaks.

● Take into account the traffic, road, and water conditions, particularly with regard to stopping distance.

file:///K|/ownersdocs/1998/1998_C70/98c70_03.htm (5 of 6)12/30/2006 1:49:06 PM

1998 C70

Reporting Safety Defects in the U.S. If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Volvo Cars of North America. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your retailer, or Volvo Cars of North America. To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-800-424-9393 (or 366-0123 in Washington, D.C. area) or write to: NHSTA, U.S. Department of Transportation, Washington D.C. 20590. You can also obtain other information about motor vehicle safety from the Hotline.

Contents | Top of Page

file:///K|/ownersdocs/1998/1998_C70/98c70_03.htm (6 of 6)12/30/2006 1:49:06 PM

1998 C70

Chapter 2 - Instruments, switches and controls

pg. 14 Instruments, switches and controls

Click on numbered item below for more information

pg. 15 Instruments, switches and controls

file:///K|/ownersdocs/1998/1998_C70/98c70_04.htm (1 of 4)12/30/2006 1:49:07 PM

1998 C70

Page

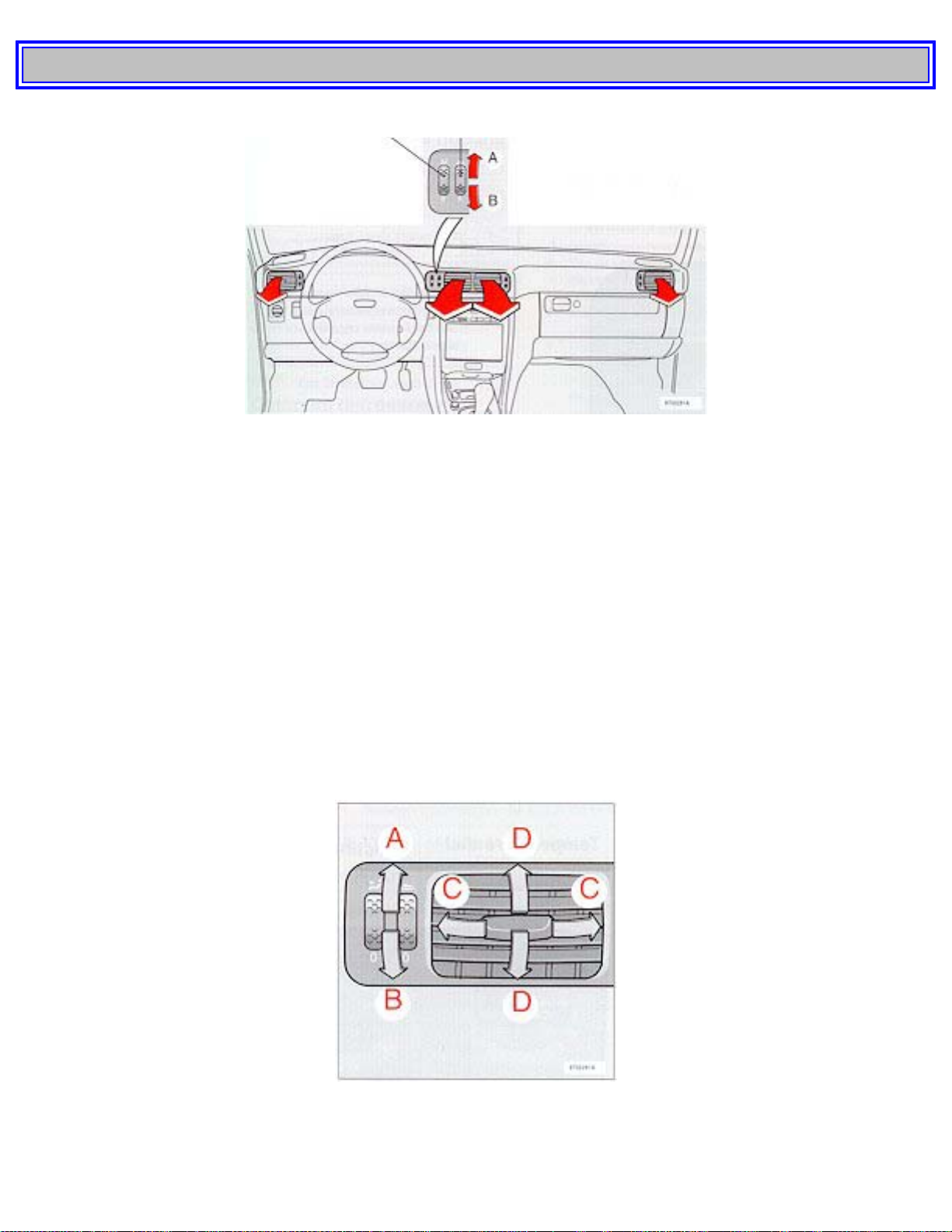

Air vents

Headlights, parking lights

Instrument illumination

Rear fog light

Front fog lights (optional)

6 Space for additional equipment 7 Space for additional equipment 8 Instruments

14-15

Traction control system (optional)

Trip computer (optional)

26-28

Electrically operated sun roof (optional)

Rear window demister/heated door mirrors

Air mix

Air vents

Passenger side air bag (SRS) hatch

4-6

Air vents

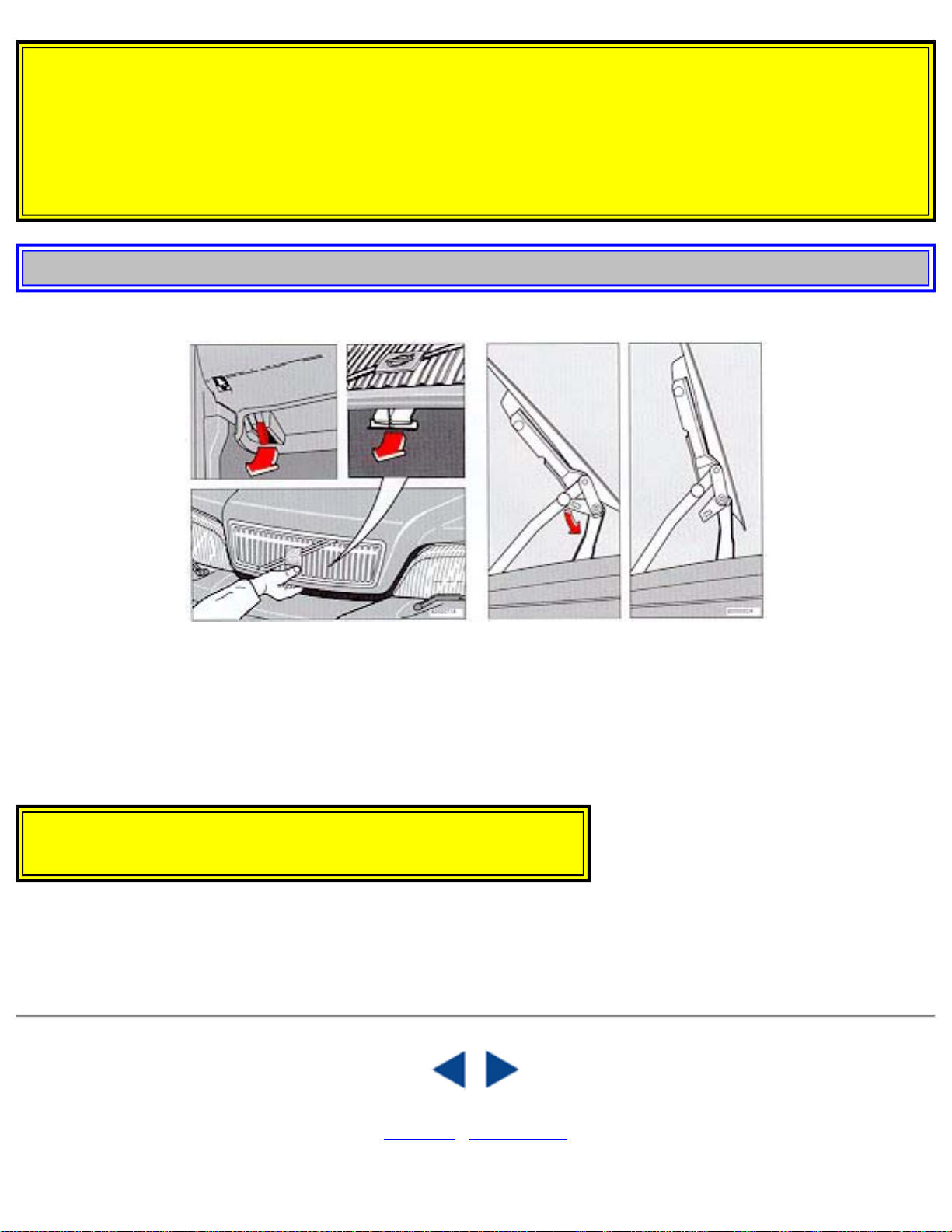

Hood release

Turn signals, high/low beams

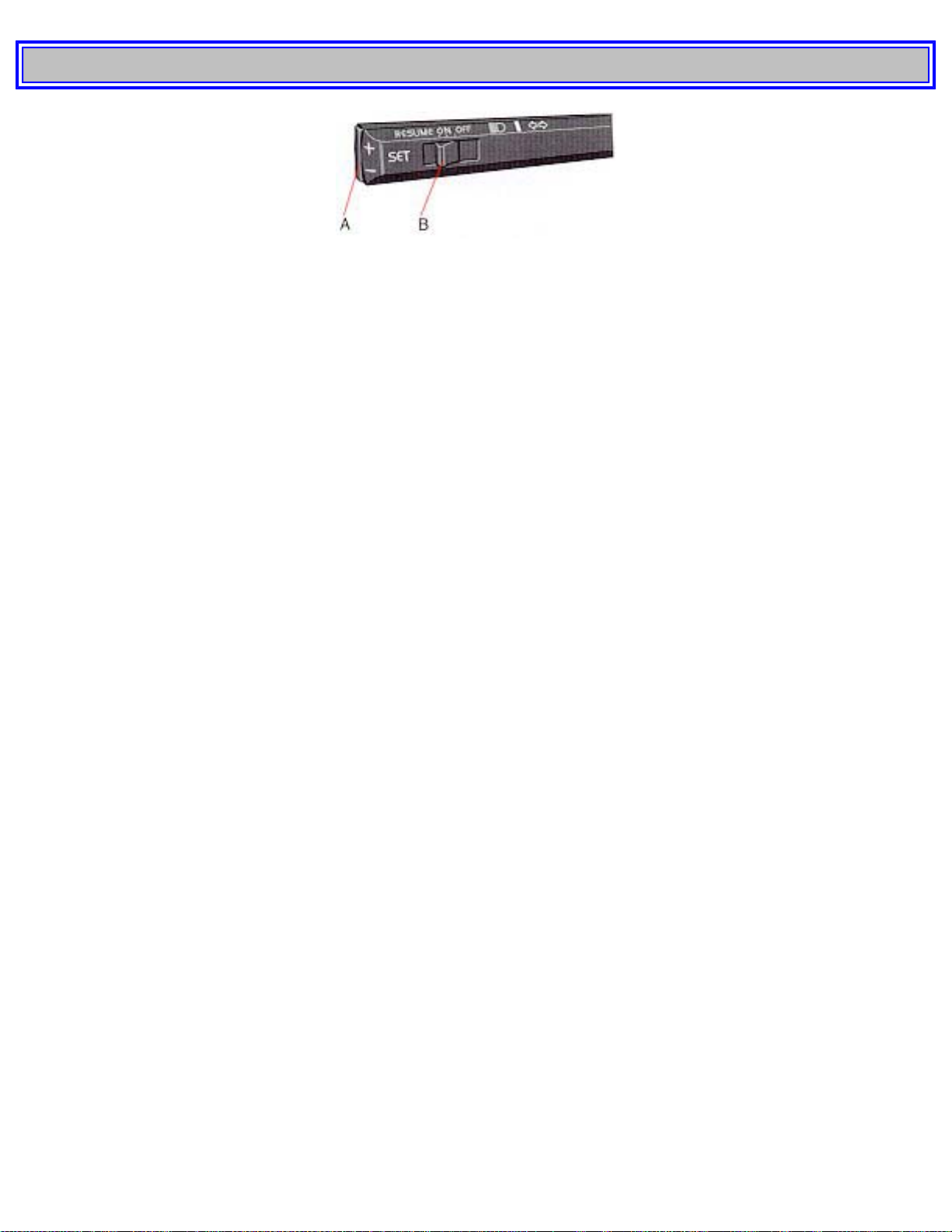

Cruise control

Adjustable steering wheel

Windshield wiper/washer

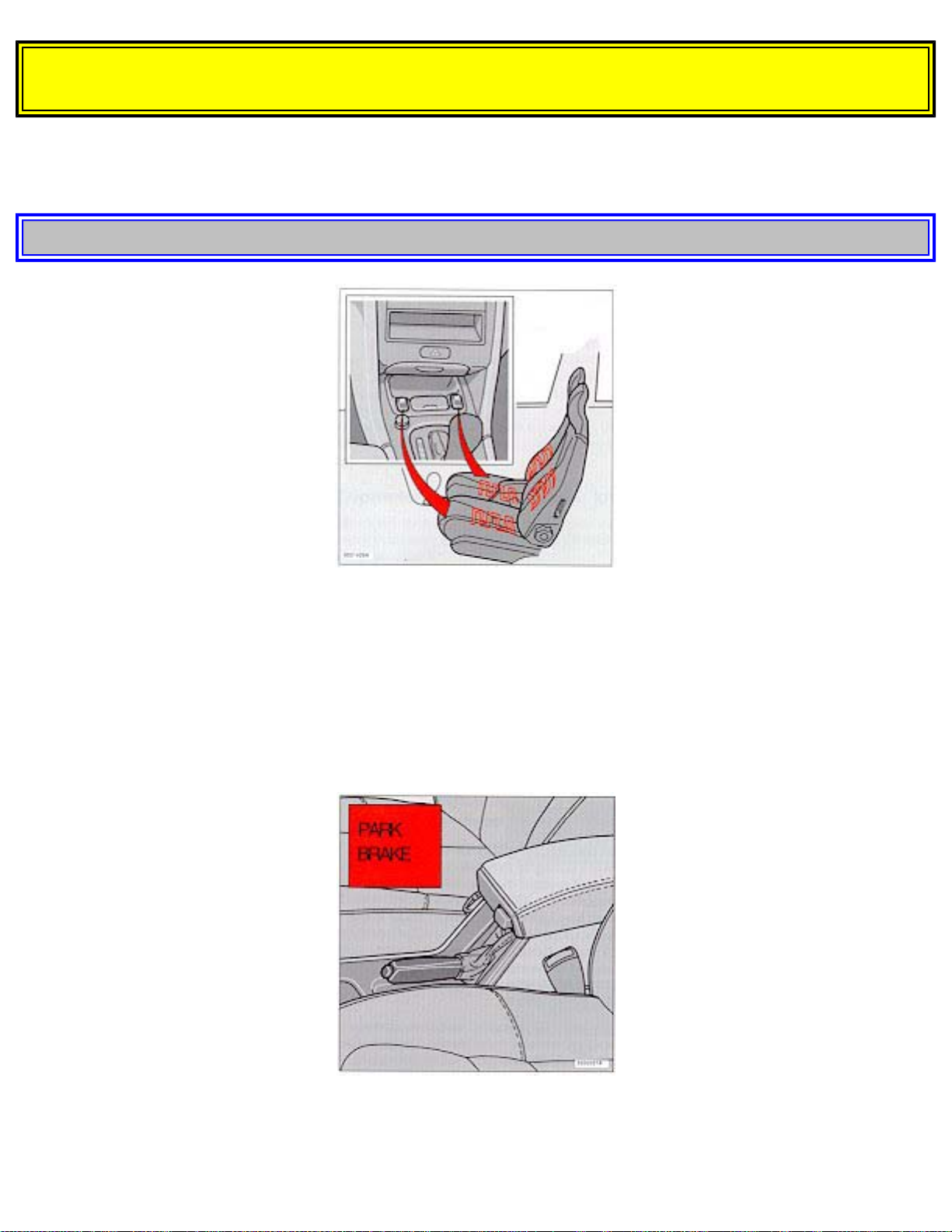

Heated front seats (optional)

Auxiliary socket

Audio systems

131

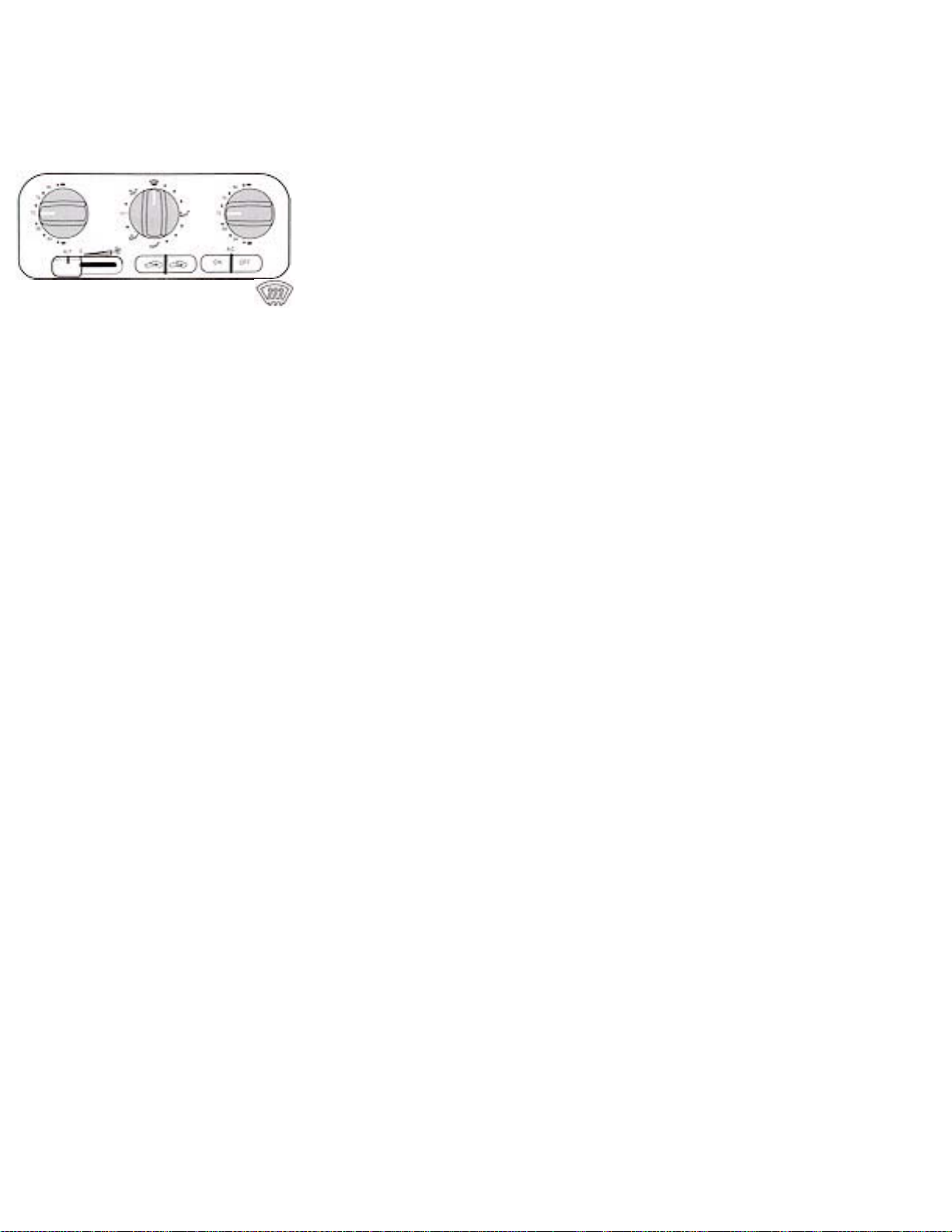

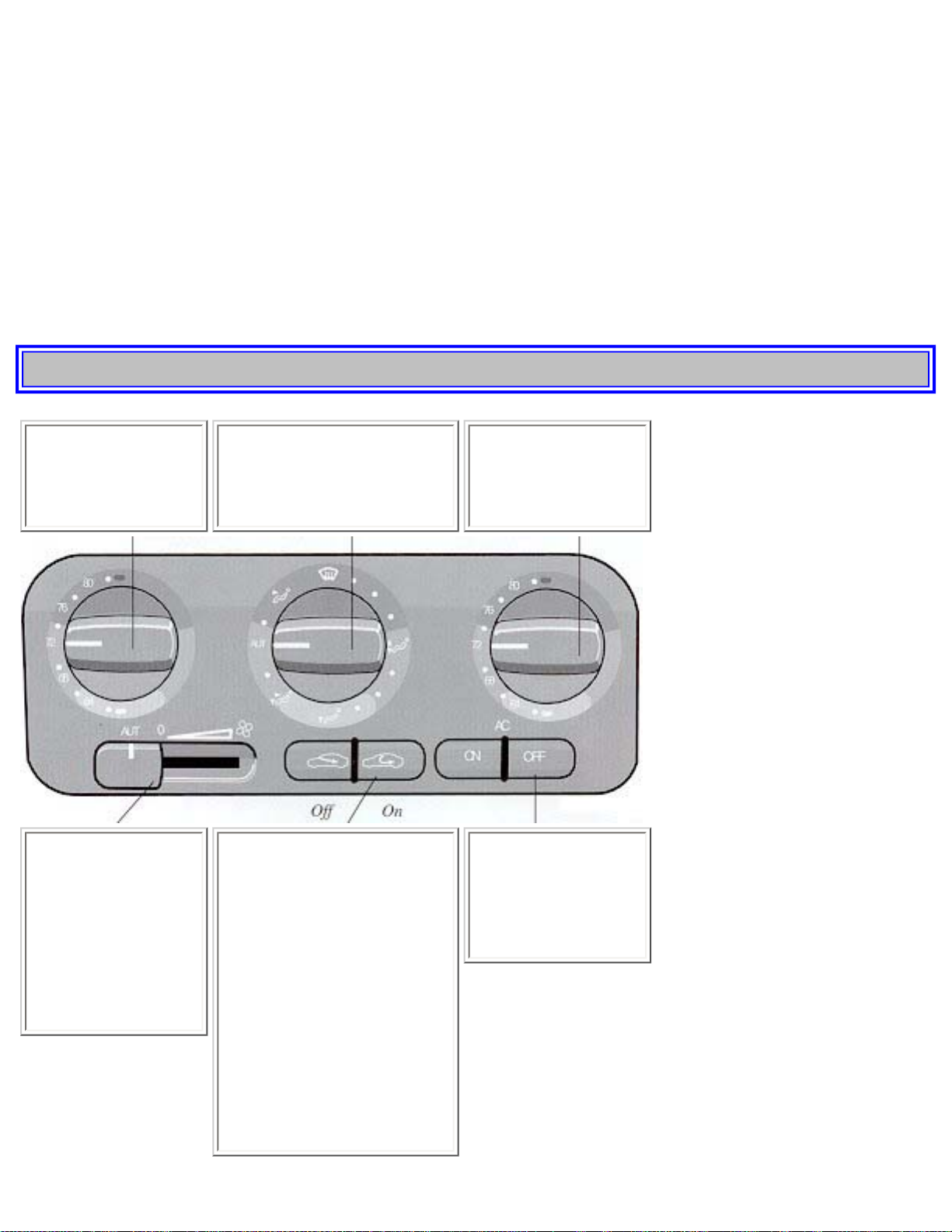

Heating and ventilation controls

33-35

Hazard warning flashers

Ashtray

27 Coin holder 28

Shiftlock release button (automatic transmission only)

Gear selector shift positions

60-62

Transmission mode selectors

file:///K|/ownersdocs/1998/1998_C70/98c70_04.htm (2 of 4)12/30/2006 1:49:07 PM

1998 C70

31 Parking brake

Horn/SRS

4-6

Trunk open control

Power window controls

Power mirror controls

Fuel tank open control

Central locking button

Some of the items above are available on certain models only.

Shiftlock (automatic transmission only)

When your car is parked, the gear selector is locked in the (P)ark position. To release the selector from this position, turn the ignition key to position II (or start the engine), depress the brake pedal, press the button on the front side of the gear selector and move the selector from (P)ark. If it is necessary to manually override the shiftlock system:

● Turn the starting (ignition) key to position I

● Press firmly on the "SHIFTLOCK OVERRIDE" button located near the base of the gear selector.

● While holding the override button down, press the button on the front of the gear selector.

● Move the gear selector from the (P)ark position.

Keylock (automatic transmission only)

This means that when you switch off the ignition, the gear selector must be in the (P)ark position before the starting (ignition) key can be removed from the ignition switch.

Anti-lock Brake System (ABS)

The ABS system in your car performs a self-diagnostic test when the vehicle first reaches the speed of approximately 12 mph (20 km/h). The brake pedal will pulsate several times and a sound may be audible from the ABS control module. This is normal.

Fuel tank cover

The fuel tank cover is locked and must be popped open using the control on the driver's door. The pages in this section provide detailed descriptions of the vehicle's instruments and controls. Note

that vehicles may be equipped differently, depending on special legal requirements.

pg. 16 Instruments

file:///K|/ownersdocs/1998/1998_C70/98c70_04.htm (3 of 4)12/30/2006 1:49:07 PM

1998 C70

1 Fuel gauge

The fuel tank holds approximately 18.4 US gals. (70 liters). When the warning light comes on there is approximately 1.8 US gals. (8 liters) of fuel remaining.

See "Refueling" for further information.

2 Temperature gauge

Do not drive the car with the pointer in the red range. The pointer should be approximately midway

on the gauge face when driving. If the pointer approaches the red range repeatedly, check coolant level.

See page 130.

3 Speedometer 4 Clock, ambient temperature sensor, trip computer (certain models) 5 Odometer 6 Trip odometer

Used for measuring shorter distances. The last digit indicates 1/10 mile/kilometer.

7 Trip odometer reset button 8 Tachometer

Reads thousands of engine rpm. The engine should not be operated in red range. The highest permitted constant engine speed is 6,200 rpm.

Contents | Top of Page

file:///K|/ownersdocs/1998/1998_C70/98c70_04.htm (4 of 4)12/30/2006 1:49:07 PM

1998 C70

pg. 17 Indicator and warning lights

Click on numbered light for more information

1. Turn signal, left

2. Turn signal, right

3. (Not in Use)

4. Low washer fluid level

If the lamp glows continuously when the engine is running, there is only about 1/2 -1 US qt. remaining in the washer fluid reservoir.

5. Low fuel level

When the lamp glows, only about 1.8 US gals. (8 liters) of fuel remain. If the ignition is switched on while refuelling, the gauge may read inaccurately for up to 25 minutes.

6. Rear fog light

7. High beams

8. Trunk open

9. Bulb failure warning sensor

10. (Not in use)

11. (Not in use)

12. SRS indicator lamp

13. Generator not charging

14. Low engine oil pressure

15. Brake warning light

16. Parking brake applied

17. ABS system

18. Transmission mode "W or gear positions 3 or L engaged (automatic transmissions)

19. Low coolant level

20. Traction control system (option)

21. Malfunction indicator lamp (See page 18 for more information)

22. Service reminder indicator

pg. 18 Warning lights

The warning lights described on pages 18 and 19 should never stay on when driving

file:///K|/ownersdocs/1998/1998_C70/98c70_05.htm (1 of 4)12/30/2006 1:49:07 PM

1998 C70

When the ignition key is turned on, and before the engine starts, all of the warning lights should be on to test the function of the bulbs. Should a light not go off after the engine has started, the system indicated should be inspected. However, the parking brake reminder light will not go off until the parking brake is fully released.

Generator warning light

If the light comes on while the engine is running, have the charging system checked.

Malfunction indicator lamp

If the lamp comes on (or stays on after the vehicle has started), the engine diagnostic system has detected a possible fault in the emission control system. Although driveability may not be affected, see an authorized Volvo retailer as soon as possible for inspection.

NOTE: If the fuel filler cap is not closed tightly or if the engine is running when the car is refueled, the Malfunction Indicator Lamp may indicate a fault. Use only Volvo original or approved fuel filler caps.

Oil pressure warning light

If the light comes on while driving, stop the car and then stop the engine immediately and check the engine oil level.

See page 114. If the light stays on after restart, have the car towed to the nearest

authorized Volvo retailer. After hard driving, the light may come on occasionally when the engine is idling. This is normal, provided it goes off when the engine speed is increased.

Parking brake reminder light

This light will be on when the parking brake (hand brake) is applied. The parking brake lever is situated between the front seats. Canadian models are equipped with this warning light:

Brake failure warning light

If the light comes on while driving or braking, stop immediately, open the hood and check the brake fluid level in the reservoir.

See page 121 for reservoir position.

Canadian models are equipped with this warning light:

WARNING! If the fluid level is below the MIN mark in either section of the reservoir: DO NOT DRIVE. Tow the car to a Volvo retailer and have the brake system checked and any leakage repaired.

pg. 19 Warning lights (cont.)

file:///K|/ownersdocs/1998/1998_C70/98c70_05.htm (2 of 4)12/30/2006 1:49:07 PM

1998 C70

TRACS disengaged (option)

If the TRACS (TRAction Control System) is manually disengaged with the switch on the dashboard, the warning light will come on. This will also come on to indicate a TRACS malfunction, and when the brakes overheat, although it goes out again at the normal temperature level. If the lamp remains on, the system should be checked by an authorized Volvo retailer. This lamp should not be confused with the ON/OFF indicator lamp above the switch.

See page 23 for additional information.

Anti-lock Brake System (ABS)

If the warning lamp lights up there is a malfunction of the ABS system (the standard braking system will however function). The vehicle should be driven to a Volvo retailer for inspection.

See page 70 for additional information.

Canadian models are equipped with this warning light:

Coolant level sensor

If the light comes on while driving, the coolant level is low. The coolant level in the expansion tank should be checked immediately and topped up if necessary. The cooling system should be inspected by an authorized Volvo retailer.

Mode "W" engaged

The lamp will light up when the Winter/Wet starting mode is engaged or if gears "3" or "L" are selected. If the warning lamp begins to flash, this means that there is a fault in the automatic gearbox. Contact your Volvo retailer.

Supplemental Restraint System (SRS)

If the light comes on (or stays on after the vehicle has started), the SRS diagnostic system has detected a fault. Drive to an authorized Volvo retailer for an inspection of the system. See the SRS section for more information.

Service reminder indicator

This light will come on at 10,000 mile (16,000 km) intervals*, after 750 hours of driving or after 12 months, whichever occurs first. It is a reminder to the driver that the service interval has been exceeded. The light will stay on for 2 minutes after the start until reset by the servicing retailer.

Bulb failure warning light

The light will come on if any of the following bulbs are defective:

● one of the low beam headlights

file:///K|/ownersdocs/1998/1998_C70/98c70_05.htm (3 of 4)12/30/2006 1:49:07 PM

1998 C70

● one of the tail lights

● one of the brake lights when the brake pedal is depressed.

Check the fuse and bulb. See sections

"Replacing bulbs" and "fuses".

Should the warning light come on after a defective outside bulb has been replaced, the corresponding bulb on the other side of the car should also be replaced.

Contents | Top of Page

file:///K|/ownersdocs/1998/1998_C70/98c70_05.htm (4 of 4)12/30/2006 1:49:07 PM

1998 C70

pg. 20 Headlights, Parking lights, Turn signals

Headlights and parking lights

O All lights off *

Parking lights on **

Headlights and parking lights are on if starting (ignition) switch is in positions I or II.

If the headlight switch is in position

all lights will go out when starting switch is switched off.

With the headlight switch in position

the parking lights will stay on (headlights off) with the

daytime running light screw (A) in position

The high beams can only be switched on if the headlight switch is in position

Switch from high to low beams and vice versa by moving the turn signal switch lever on the left side of the steering column towards the steering wheel.

* Models equipped with daytime running lights: The low beams, tail lights, parking lights and license plate lights will come on automatically when the ignition is switched on.

** The daytime running lights will also function when the headlight switch is in position

and the

daytime running light screw (A) is in position .

For additional information on the daytime running lights, see page 24.

file:///K|/ownersdocs/1998/1998_C70/98c70_06.htm (1 of 4)12/30/2006 1:49:07 PM

1998 C70

Turn signals

1 Lane change position. In maneuvers such as lane changing, the driver can flash the turn signals by

moving the turn signal lever to the first stop and holding it there. The lever will return to the neutral position when released.

2 Signal lever engaged for normal turns 3 High beam/low beam switch (headlights on)

Move the lever towards the steering wheel and release it. Headlight flasher (headlights off) Move the lever towards the steering wheel. The headlight high beam will be on until the lever is released.

NOTE: A defective turn signal bulb will cause the turn signal indicator and remaining signal lights to flash more rapidly than normal.

pg. 21 Windshield wipers/washers, Ignition switch

Windshield wipers/washers

1 Intermittent wiper

With switch in this position, the wipers will sweep approximately every seventh second. 2 "Single sweep" position. The switch returns automatically when released

3 Wipers, normal speed. 4 Wipers, high speed 5 Windshield wiper/washer, headlight wiper/washer (certain models)

The wiper will make 2-3 complete sweeps across the windshield and headlights after the lever is released.

file:///K|/ownersdocs/1998/1998_C70/98c70_06.htm (2 of 4)12/30/2006 1:49:07 PM

+ 198 hidden pages
