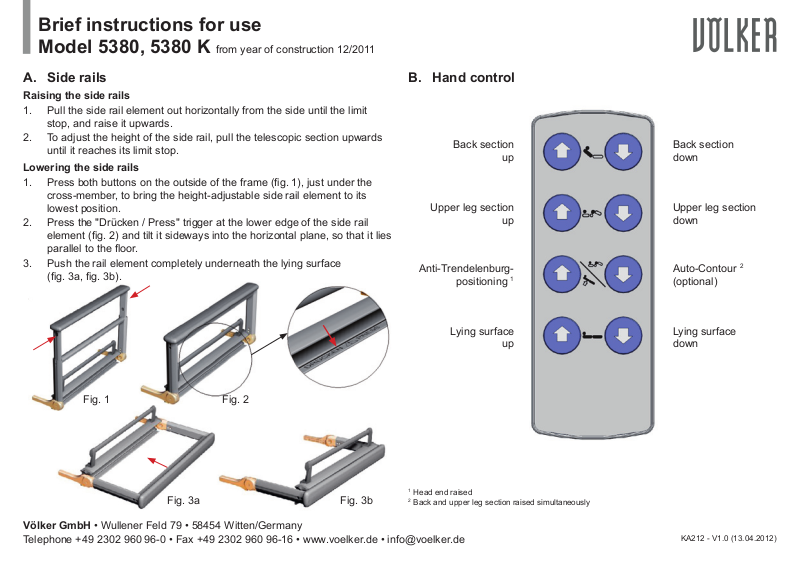

Volker 5380, 5380 K User Manual

Brief instructions for use
Model 5380, 5380 K from year of construction 12/2011

A. Side rails

Raising the side rails

1. Pull the side rail element out horizontally from the side until the limit
stop, and raise it upwards.

2. To adjust the height of the side rail, pull the telescopic section upwards
until it reaches its limit stop.

Lowering the side rails

1. Press both buttons on the outside of the frame (g. 1), just under the
cross-member, to bring the height-adjustable side rail element to its
lowest position.

2. Press the "Drücken / Press" trigger at the lower edge of the side rail
element (g. 2) and tilt it sideways into the horizontal plane, so that it lies
parallel to the oor.

3. Push the rail element completely underneath the lying surface
(g. 3a, g. 3b).

Fig. 1 Fig. 2

B. Hand control

Back section

up

Upper leg section

up

Anti-Trendelenburg-

positioning

Lying surface

up

Back section
down

Upper leg section
down

1

Auto-Contour
(optional)

2

Lying surface
down

1

Head end raised

Fig. 3a

Fig. 3b

2

Back and upper leg section raised simultaneously

Völker GmbH • Wullener Feld 79 • 58454 Witten/Germany
Telephone [phone] • Fax [phone] • www.voelker.de • [e-mail]

KA212 - V1.0 (13.04.2012)

Brief instructions for use
Model 5380, 5380 K from year of construction 12/2011

C. Nurse keypad with complete lock (option)

3

1

Anti-Trendelenburg-

positioning

2

positioning

Trendelenburg-

Lying surface down

1

Head end raised

2

Head end lowered

3

automatic function with double click possible on a country-by-country basis

Lying surface up

3

Back section down

Back section up

Upper leg section down

D. Key lock

Activating the key lock of the hand control or nurse keypad (optional) disables
all functions of the relevant control element.

Upper leg section up

Locking the nurse keypad also locks the hand control.

E. Castor xing

Two of the four guide castors can be braked.
Foot pedal down: The bed is fixed.
Foot pedal up: The bed is ready for moving.
Both castors must be fixed if the bed is not moved.
In the optional, manoeuvrable variant the bed has four
additional guide castors at the head end, allowing the bed to be manoeuvred
on the spot. Two of these castors are provided with direction xers. These
must also always be xed, apart from when moving the bed.
The direction xers are not correctly xed until the foot pedals are down and
the castors can be heard latching into place parallel to the length side of the
bed after turning slightly.

NOTE The bed is not suitable for cleaning in automatic washing systems
(IPX4) and may not be used for transporting occupants/patients.

NOTE Please observe the notes in the detailed instructions for use!

Hand control
or nurse key­pad locked

Hand control
or nurse key­pad unlocked
