Instructions for use
Models 3082 Vis-a-Vis, 3082 K Vis-a-Vis
Help
Hyperlinks
Hyperlinks are cross-references in the text. They are marked with the symbol. Entries in the table of contents also have hyperlink functionality.
•Clicking takes you to the relevant page.
•Clicking in the Acrobat navigation bar takes you back to the start page.
Full-text search for a term
•Clicking opens the "Search" window.
You can search for any term in this Acrobat document or optionally search all of the Acrobat files stored on your computer or those that are accessible.
Other interactive functions
The Adobe Reader and all Adobe Acrobat program versions offer the experienced user a whole raft of highly useful functions for interactive working with documents. For more information, see the relevant user manuals or online help.
Display table of contents |
Jump to Help page (this page) |
Contents |
2 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Version, Imprint, Type label
Instructions for use G96 Version 1.4 (12.04.2012)
for Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis
built after June 2009
© by Völker GmbH 2009-2012
Völker GmbH Wullener Feld 79 58454 Witten
GERMANY
Tel.: |
+49 |
2302 96096-0 |
Fax: |
+49 |
2302 96096-16 |
e-mail: |
info@voelker.de |
Internet: www.voelker.de
All rights reserved. Reproduction - even in part - is not permitted.
We reserve the right to make changes to reflect technical advances.
The contents of this document are subject to change without prior notification.
Customers are advised to contact the responsible area sales manager before placing an order.

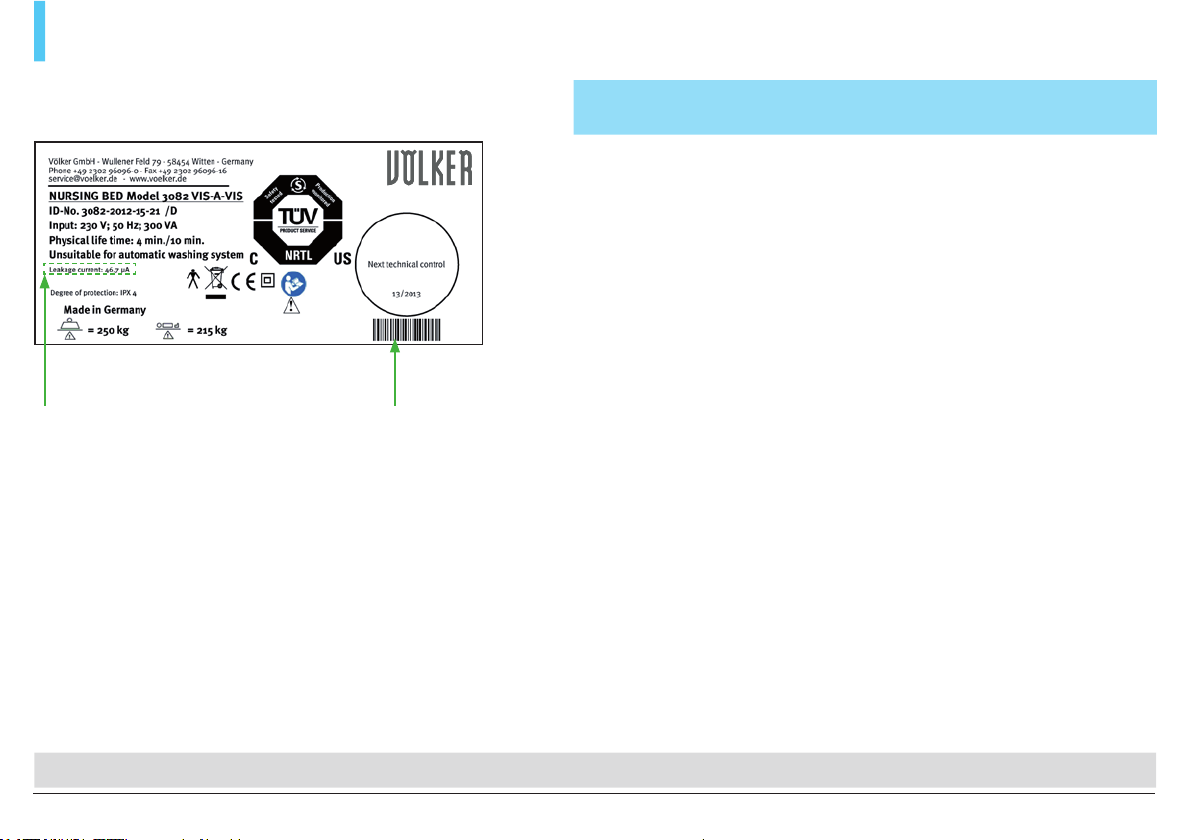

Type label
The type label is located on the inside of the head panel.
Raise the back section to read the type label.
For further information on the type label, see Appendix 72.
Contents |
3 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Table of contents 1/2
Help 2 |
Activation 25 |
Cleaning and disinfection 48 |
Version, Imprint, Type label 3 |
General operating instructions 26 |
Cleaning 49 |
Table of contents 4 |
Preparation 27 |
Wipe and spray disinfection 49 |
Foreword 6 |
Electrical activation 29 |
Spray lances and automatic |
Notes 7 |
Using the battery pack 30 |
washing systems 50 |
Taking out of service 31 |
Maintenance 51 |
|
General information 8 |
Functional check 32 |
|
Designated purpose 9 |
Operation 33 |
Staff training 52 |
General regulations, |
Safety notes 52 |
|
training/instruction of users, |
Key lock 34 |
Maintenance schedule 54 |
further requirements 11 |
Castors 35 |
Technical check 55 |
General safety notes 12 |
Side rails 36 |
|
Functional description 17 |
General safety notes 36 |
Visual inspection 56 |
Side rails 37 |
Functional check of the side rails 56 |
|
Overview 18 |
Back section 39 |
Functional check of the brakes 58 |
Transverse hand control 19 |
Mech. rapid lowering of the back |
Functional check of the motors 58 |
Nurse hand control 20 |
section / CPR function (option) 40 |
Mains connection cable 58 |
Trapeze bar and accessory holders, |
Upper and lower leg sections 41 |
Cabling 58 |
accessory rail 21 |
Lying surface height 42 |
Housing 58 |
Versions and options 22 |
Anti-Trendelenburg and Trendelenburg |
Mechanical check 58 |
Accessories 23 |
positioning 43 |
Measuring in accordance with |
|
Comfort seating position 44 |
DIN EN 62353 59 |
|
Vis-a-Vis position 45 |
Checking the trapeze bar grab |
|
|
handle 59 |
|
|
Further accessories 59 |
Contents |
4 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Table of contents 2/2
Troubleshooting 60
Table of faults 61
Service points 66
Appendix 67 Symbols used 68 Technical data 69 Classification 71 Type label 72
Service life/disposal 74 Manufacturer's declarations, forms, electronic instructions for use 75
Contents |
5 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Foreword
We are delighted that you have chosen Völker beds.
We are also grateful for the trust you have placed in our company and our products.
This step is undoubtedly the result of extensive considerations and examinations of the requirements that you require on new care or hospital beds based on your previous experiences.
You clearly had good reasons to choose Völker care beds.
We promise you that Völker beds will not disappoint you.
Not for nothing do Völker beds enjoy a worldwide reputation as particularly innovative medical aids. This refers not only to the design principle, which was completely redeveloped by Völker. It also refers to the multitude of product advantages which were continually
tested and improved for their practicality. These will support the comfort of the occupant/patient and also help the reduce the load of daily care work.
Now, every care or hospital bed has product features that are of practical benefit to their users. However, as far as we know, none of them offers the range of advantages that a Völker bed does.
Völker beds not only look great, but they also offer functions that can be controlled or adjusted mechanically, although most of them are controlled or adjusted using electric motors or electronic components.
If you purchase these beds, the responsibility for their correct and appropriate use is transferred to you. Consequently, we strongly advise that you consult the enclosed instructions for use to learn about the technical features, handling and use of all the functions.
We wish you every success with Völker beds,
yours Völker GmbH
Contents |
6 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Notes
The Notes section contains information on the designated purpose of the product, as well as general safety notes.
Contents
General information 8 Designated purpose 9
General regulations, training/ instruction of users, further requirements 11
General safety notes 12
Contents |
7 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Notes | General information
General notes
You have purchased a bed from Völker GmbH. This bed has been built in accordance with the applicable national and international standards and the regulations reflecting the current state of technology.
Standard design
The standard design of the bed can be supplied with various options. A description of these options can be found in the section entitled Versions and Options 22.
Völker beds satisfy requirements in terms of safety and functionality. They are tested in accordance with international standards and bear the CE mark, which documents the beds' compliance with essential requirements for medical products.
Please read the general safety notes 12. Please also note (with particular attention to any warranty claims) the further notes on the following pages.
Copyright protection
These instructions for use may only be transferred to third parties with the written consent of Völker GmbH. All documents are protected under copyright.
Warranty and liability
Völker GmbH is liable for any faults or failures, not including further claims, arising in the context of the warranty obligations detailed in the main agreement. Claims for compensation, for whatever legal reason such claims may be raised, will not be entertained.
We reserve the right to make technical modifications without notice as part of the further development of the beds which form the subject of these instructions for use. All specifications are non binding. Printing errors excepted.
We accept no liability for damage and operational faults caused as a result of misuse and/or non-observance of these instructions for use. We accept no liability for damage and operational
faults caused as a result of misuse and/ or non-observance of these instructions for use.
The portrayal of the accessories does not necessarily match the actual product.
Contents |
8 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Notes | Designated purpose 1/2
Intended use
Völker bed models 3082 Vis-a-Vis and 3082 K Vis-a-Vis are beds for medical use and are intended for the laying down and care of occupants/patients in care institutions, hospitals and in suitable rooms in residential buildings.
The bed is intended for use by people over the age of 12 or who are taller than 146 cm.
The bed's safe working load is 250 kg. To calculate the max. occupant/patient weight, 20 kg for the weight of the mattress and 45 kg for accessories as well as the load borne by the accessories must be subtracted from the safe working load in accordance with DIN EN 60601-2-52:2010 when using the bed in application environments 1 and 2 (intensive and acute care).
If using the bed in application environments 3, 4 and 5 (long-term, home and outpatient care), the values to be considered for the mattress are 20 kg and 15 kg for accessories as well as the load borne by the accessories.
The maximum occupant/patient weight |
Any use of the Völker bed other than |
||||
can therefore be taken from the fol- |
for the purpose intended excludes the |
||||
lowing table: |
|
|
company from any possible liability. |
||
|
|
|
|
||
Model |
Safe |
Max. occupant/patient weight |
|
||
|
working |
|
|
|
|
|
|
|
|
|
|
|
load |
in application |
|
in application |
|
|
|
environment 1, 2 |
|
environment 3, |
|
|
|
|
|
4, 5 |
|
|
|
|
|
|
|
3082 Vis-a-Vis |
250 kg |
185 kg |
|
215 kg |
|
|
|
|
|
|
|
3082 K Vis-a-Vis |
250 kg |
185 kg |
|
215 kg |
|
|
|
|
|
|
|
Contents |
9 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Notes | Designated purpose 2/2
None intended use
None intended use can be dangerous. This includes, but is not limited to:
•Incorrect actuation of electrical functions and uncontrolled positioning
•Operation of the care bed by the occupant/patient without having received prior instruction in how to do so
•Use of other electrical equipment on the bed
•Pulling on cables to move the bed
•Removing electrical plug connections by pulling on the cable
•Use of the bed on a slope with more than ten degrees of inclination (the bed's brakes are designed for an angle of inclination of no more than ten degrees)
•Any attempt to move the bed while it is in braked position
•Use of the bed to transport people
•Use of the bed for transport with a vehicle
•Overloading of the bed beyond the specified safe working load.
Contents |
10 of 88 |
CAUTION If, in an emergency situation, it is impossible to avoid putting children under the age of 12 or people who are less than 146 cm tall in the bed, protective covers must be placed on the side rails. This also applies to the use of the bed by weak or confused patients.
The use of the bed for children under the age of 8 is absolutely forbidden.
WARNING The bed may not be placed right next to or stacked up with other equipment. If operation near to or stacked up with other equipment is necessary, it must be ensured that the operation of the bed is observed and correct use in this arrangement is checked.
Help
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Notes | General regulations, user training / instruction, further requirements
General regulations
The bed must only be operated and used in accordance with its designated purpose, in line with the conditions of the Medical Products Directive (MPG) and approved legislation pursuant to this, the generally-acknowledged rules of technology and the stipulations of occupational safety and accident protection guidelines. The bed must not be operated in a faulty state that could endanger its occupant/patient, care personnel or third parties.
User training
The bed may only be operated by individuals whose training or understanding and experience offer surety for correct handling (Medical Products Directive).
User instruction
The thorough induction of care personnel in the operation of the bed can be provided by Völker or its representatives at the customer's request.
Attendance of such training can be certified and confirmed by Völker using the form provided for this purpose, specifying the name, date and signature.
Occupants/patients must be instructed in the use of the bed before care personnel hand over the hand control to them.
Other requirements
Whoever is in charge of the activation, operation or preparation of the bed must have been given a copy of these instructions for use (in printed or electronic form) and have read them.
To avoid operating errors and to safeguard the smooth operation of the bed, care personnel must always have access to the safety notes below.
Flooring requirements
Increasingly overweight patients and occupants have caused a consistent increase in demands on hospital and care beds in recent years. Völker has addressed this topic by increasing the "safe working load" for the beds.
However, not only the beds are exposed to higher levels of strain, but also static and also flooring. Therefore, we recommend that flooring in areas where the beds are used which is designed for this strain. These are floor coverings classified as at least class 32 or 33 in accordance with DIN EN 685 and properly laid. These are floor coverings for areas intended for public and industrial use with moderate or heavy traffic.
Contents |
11 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Notes | General safety notes 1/5
Warning symbols Information marked with this symbol must be read and its content strictly observed.
DANGER represents an immediate threat of danger that can cause serious physical injury or death.
WARNING represents potentially dangerous situations that can lead to serious physical injury or death.
CAUTION represents potentially dangerous situations that can cause slight physical injuries.
NOTE warns of potential damage to objects or property.
Before first activation
Before the bed is put into action for the first time, care personnel must read these instructions for use in full and with care.
Before the bed is activated for the first time, care personnel must be instructed in the handling of the bed using the instructions for use. The potential dangers that can arise despite correct operation of the bed must also be pointed out in full.
Before and during use
Before each use of the bed, the user must be sure that the bed is in a good, safe condition and that safe use is ensured (Functional check 32).
WARNING If other devices are operated on the bed, which are provided with cables, air hoses or similar, make sure that these lines are routed so that they cannot become jammed in the moving parts or be damaged.
Position of the bed
CAUTION To avoid injuries caused by falling, we recommend (except while care is being given) that the bed is generally set at its lowest position with the castors raised.
Contents |
12 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Notes | General safety notes 2/5
Transporting the bed |
Securing the bed |
CAUTION The bed is not de- |
CAUTION "Risk of accident" |
signed for transporting people. |
If the bed is not being transport- |
When moving the bed, it must |
ed, the castors must always be |
always be ensured that the mains |
raised, since the bed may be re- |
connection cable does not touch |
quired as a support for when the |
the ground and that the lying |
occupant/patient stands up or lies |
surface is in a position as low as |
down. If the bed rolls away while |
possible. |
the castors are down, this can |
The bed should only be moved |
lead to a serious fall. Once the |
on a solid floor. Never attempt to |
castors have been raised 35, |
push it over obstacles of over 1 |
it must be checked that the bed is |
cm in height. The maximum an- |
actually securely parked, i.e. the |
gle of inclination of the floor must |
castors are completely raised. |
not exceed 10°. |
The bed can be in a non-fully- |
|
braked status even after first acti- |
|
vation or reactivation, and conse- |
|
quently it must be checked that |
|
the castors are correctly raised. |
One-sided load on the bed
When using the bed as a normal clinic/care bed, the following applies: NOTE In order to prevent one-sided loads on the bed, it must not be used as a seat for persons other than the occupant/ patient (i.e. visitors must not sit on the edge of the bed).
CAUTION A maximum load of 80 kg on the lower leg section is permissible when the bed is in the fully extended Vis-a-Vis position!
Contents |
13 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Notes | General safety notes 3/5
Side rails
WARNING "Risk of entrapment“
In the case of occupants/patients whose physical or mental condition makes it necessary to use side rails to protect them from falling out of bed, the following safety measures must be observed:
•The legal permissibility of using side rails must be ascertained.
•The side rails may only be operated by trained care personnel.
•Ensure that the side rails (or parts thereof) are either fully raised and locked in position or completely lowered.
•It must be ensured that the occupant/patient does not come into contact with the side rail elements when the electrical lying surface adjustment mechanism is actuated. It is also important to ensure that no part of the body is sticking out through the side rails.
•If the side rails are used with a person whose psychological condition makes their use necessary, then it must be ensured that the hand control is kept out of his/her reach or its functions are locked. In addition, it is strongly recommended that side rail covers are used.
•DANGER If these safety measures are not observed by care personnel, injuries can be caused to hands, knees, fingers, feet, legs and hips, along with haematomas and other injuries as a result of entrapment. In children or people who are less than 146 cm tall, non-observance of these guidelines can lead to death!
WARNING "Danger of injury"
If the side rails are damaged, the bed must not be used and must be repaired.
Contents |
14 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Notes | General safety notes 4/5
Height adjustment
DANGER "Risk of entrapment between the lower frame and/or floor and the bed frame when the bed is lowered"
It must be ensured that no people, limbs, pets, bed linen or other objects are caught between the bed frame and the lower frame and/or floor.
DANGER "Danger of movement"
If any movement of the bed could represent a danger to the occupant/patient, all functions must be locked.
Accessories
WARNING "Risk of injury"
Only original Völker accessories should be used! Third-party accessories must be subjected to testing before use.
Use of lifting devices
WARNING "Risk of injury"
No lifting device must be fastened directly to the bed (patient transport, repair).
The lifting devices specified are appliances that can be attached to the bed for transport purposes. Patient lifters can be used.
Contents |
15 of 88 |
Use of oxygen equipment
DANGER "Risk of fire"
Do not use any oxygen equipment other than that which is administered via nasal prongs or masks. Do not use this bed in a room where there is a risk of explosion.
Provided it has been excluded (e.g. based on information in the instructions for use of the equipment being used) that the use of the equipment may cause the O2 concentration to rise to such a degree that there is an explosion risk, then the equipment can be used.
Rail spacer
When using the rail spacer, please read the separate instructions for use for this accessory. During technical checks, the rail spacers should also be checked to ensure they are suitable for the size of side rail used.
Help
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Notes | General safety notes 5/5
Cleaning and disinfection
In order to maintain consistent functioning, the bed should be cleaned, disinfected and tested as soon as possible following each use, so that it can be reused immediately without risk.
Incorrect cleaning/disinfection 48 of the bed can cause danger.
Maintenance and repair
Anyone responsible for carrying out maintenance and repair work must at least have taken part in a service
training by Völker, have read the safety notes and the service manual and be qualified in accordance with MPBetreibV §§ 4 and 6.
After maintenance work or repairs have been carried out, a Technical check 55 must be carried out on the affected parts and/or functions. During this check, it must be determined that the bed can be used in accordance with the specifications without risk to occupants/pa-
tients, users or third parties.
The Technical check must be carried out at least once a year and after every lengthy period of non-use.
Any discernible damage, such as signs of wear and tear, loose screws or breaks/fractures must be eliminated immediately.
Electromagnetic and electrostatic interference
The beds in model series 3082 Vis-a-Vis and 3082 K Vis-a-Vis satisfy the EMC requirements in accordance with the law on medical products (MPG). The basis for testing is standard EN 60601-1-2.
Contents |
16 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Functional description
The features of the Völker care bed and its function are set out in the section Functional description.
Contents
Overview 18
Transverse hand control 19 Nurse hand control 20
Trapeze bar and accessory holders, accessory rail 21
Versions and options 22 Accessories 23
Contents |
17 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Functional description | Overview
Adjustable side rails for back section, both sides
Head section (Quick release,
model 3082 K Vis-a-Vis, see fig. on right)
Holders for trapeze bars, drip stands, etc., both sides (for model 3082 K Vis-a-Vis additional supports for infusion stands at top and bottom end)
Lowerable castors (integrated into all four feet)
Accessory rail for holding accessories (urine bottle basket, universal hook, etc.) on both sides
Optional rapid lowering |
Seat section, |
of the back section (CPR) |
fixed |
for model 3082 K Vis-a-Vis |
|
(not shown) |
|
Contents
Adjustable back section
Transverse hand control
|
|
|
|
|
|
|
Adjustable side rails for lower |
||||
|
|
|
|
|
|
|
leg section, on both sides |
||||
|
|
|
|
|
|
|
|
|
|
|
Model 3082 K |
|
|
|
|
|
|
|
|
|
|
|
Vis-a Vis |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Foot section |
|
|
|
|
|
|
|
|
(Quick release, model |
|||
|
|
|
|
|
|
|
|
|
|
3082 K Vis-a-Vis, |
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
see fig. on right) |
|
|
|
|
|
|
|
|
Adjustable and movable |
|||
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
lower leg section |
|
|
|
|
|
|
|
|
|
|
|
4-column |
|
|
|
|
|
|
|
|
|
height adjustment |
||
|
|
Adjustable |
|
Nurse hand control |
|||||||
|
|
||||||||||
upper leg section |
|
(not shown) |
|||||||||
|
|
|
|
18 of 88 |
|
|
|
|
|
|
Help |
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Functional description | Transverse hand control
Reverse:
|
surface |
-Trendelenburg |
leg section |
section |
|
|
|
|
up |
|
up |
up |
|
|
|
1 |
|
|
||
Lying |
|
positioning |
Back |
|
|
|
|
Upper |
|
|
|||
|
Anti |
|
|
|
|
Hand control locked
|
Lower |
|
|
|
|
3 |
|
|
|
down |
|
|
|
|
|
|
|
|
|
||||
|
|
|
down |
|
|
down |
|
||||
|
|
|
|
|
|
||||||
|
2 |
|
-Contour |
|
|
|
|||||
the |
castors |
|
surface |
Auto |
(optional) |
section |
Back |
section |
|
||
Lying |
Upper |
leg |
|
||||||||
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
1Head end raised
2Press both buttons simultaneously:
the lying surface moves to the lowest position and the castors lower
3Back and upper leg section raised simultaneously
Contents
Hand control unlocked
WARNING When actuating motorised adjustments with the side rails raised, it must be ensured that the occupant/patient does not have any contact with the side rails, and that no parts of his or her body or those of other people are sticking through the side rails or are trapped between the lying surface and the lower frame and/or floor!
19 of 88 |
Help |
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Functional description | Nurse hand control
Reverse:
Length extension |
|
|
|
Length extension |
back |
|
|
|
out |
Back section up |
|
|
|
Back section down |
Lying surface up |
|
|
|
Lying surface down |
|
|
|
||
Anti-Trendelenburg |
|
|
|
Trendelenburg |
positioning 1 |
|
|
|
positioning 2 |
|
|
|
|
Lower the castors 3 |
|
|
|
|
Nurse hand control locked
Nurse hand control unlocked
1Head end raised
2Head end lowered
3Press both buttons simultaneously:
the lying surface moves to the lowest position and the castors lower.
Contents
WARNING When actuating motorised adjustments with the side rails raised, it must be ensured that the occupant/patient does not have any contact with the side rails, and that no parts of his or her body or those of other people are sticking through the side rails or are trapped between the lying surface and the lower frame and/or floor!
20 of 88 |
Help |
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Functional description | Trapeze bar and accessory holders, accessory rail
On the inside of the head panel are holders for the trapeze bar and accessories. On model 3082 K Vis-a-Vis, there are two additional sockets for drip stands at the head and foot ends, next to the protective wheels.
The trapeze bar and other accessories must be slotted into the holders until they audibly engage.
WARNING "Risk of injury"
Ensure that the trapeze bar is completely slotted into the holder and securely seated.
Note: the safe working load of the trapeze bar is max. 75 kg.
WARNING "Risk of falling"
The trapeze bar must not be used by the occupant/patient as an aid for climbing into the bed.
The trapeze bar must never jut out beyond the outer edge of the bed and then be used as a pullingup aid (e.g. when getting out of a wheelchair).
Trapeze bar holders
Accessory holders (e.g. for drip stands, etc.)
There is an accessory rail on either side of the bed to accommodate accessories.
Accessory rail
(e.g. for urine bottle basket, universal hook, etc.)
WARNING Only original Völker trapeze bars should be used!
Contents |
21 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Functional description | Versions and Options
The standard design of the bed can be supplied with various versions and options.
Version/option |
Description |
Hand control |
Transverse on the side rail with clip: |
|
There are different variants of hand con- |
|
trols with different function keys. |
Nurse |
With hook: |
hand control |
|
Version/option |
Description |
Side rails |
The bed can be equipped with various side |
(versions) |
rail versions: |
Back/lower leg section*:
1.Can be pulled out up to 34* cm (standard)
2.Can be pulled out up to 37* cm (option)
(not possible with Design FS)
3 Can be pulled out up to 40* cm (option)
*Measured from the top edge of the side rails to the lying surface (without the mattress).
These instructions for use cover all of the versions and options listed.
Precise details of the supplied bed designs can be found in the order specifications for your beds. If the original bed specification is no longer available, please contact Völker Customer Services.
Please make a note of the Völker serial number (ID No.) on the type label 72 before you call.
Contents |
22 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Functional description | Accessories 1/2
To offer the greatest possible degree of flexibility, Völker offers a wide range of easy-to-attach accessories. The care beds are equipped as standard with holder devices for accessories, such as drip stands and trapeze bars. Urine bottle baskets, universal hooks, standard bars, etc., can be mounted on the accessory rails provided on both sides of the bed.
Further information about accessories can be found in our current information brochure or on the Internet at www.voelker.de . Our staff will gladly provide you with more details on the accessories that are available for your bed model.
Mattresses (2-part) |
|
|
Model 3082 Vis-a-Vis |
|
|
Mattress size |
Mattress frame size |
Density |
89/99 x 139.5+62 x 12 cm |
90/100 x 200 cm (split) |
40-50 kg/m3 |
89/99 x 139.5+72 x 12 cm |
90/100 x 210 cm (split) |
40-50 kg/m3 |
89/99 x 149.5+72 x 12 cm |
90/100 x 220 cm (split) |
40-50 kg/m3 |
Model 3082 K Vis-a-Vis |
|
|
Mattress size |
Mattress frame size |
Density |
89/99 x 139.5+65 x 12 cm |
90/100 x 200 cm (split) |
40-50 kg/m3 |
89/99 x 139.5+75 x 12 cm |
90/100 x 210 cm (split) |
40-50 kg/m3 |
89/99 x 149.5+75 x 12 cm |
90/100 x 220 cm (split) |
40-50 kg/m3 |
WARNING Only original Völker accessories should be used! .
To minimise the risk of injury, only use mattresses with the dimensions and properties detailed above. If you do not use Völker mattresses, please contact a dealer in whom you have confidence.
DANGER If mattresses are used that do not match these specifications, there is a risk of suffocation!
Contents |
23 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Functional description | Accessories 2/2
DANGER The height of the raised side rails above the mattress must always be greater than or equal to 220 mm; otherwise the occupant/patient may accidentally fall out of bed.
Please note that the height of the mattress has a direct influence on this.
≥ 220 mm!
Use of securing systems
Securing systems such as belts or straps should only be used exactly as specified by the manufacturer.
If securing systems in the form of abdominal belts are used, then it must be ensured that the side rails are completely raised. In this case, the gap in the middle of the rails must be closed using a rail spacer.
DANGER When using securing systems and rail spacers, please note the separate instructions for use pertaining to these accessories.
If the patient is restrained with the help of restraint holders, the lying surfaces must never be adjusted while the patient is restrained and must always be in the lowest position!
The lying surface adjustment functions must be locked when a patient is secured, and the hand control must be kept out of the occupant's/patient's reach!
Contents |
24 of 88 |
Restraints may be fastened directly onto beds built after 08/2009.
To do this, fasten the restraints on the corresponding longitudinal section of the lying surface frame. Make sure that the restraint is passed between the mattress holder and the mattress.
Help
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Activation
The section entitled Activation describes the preparation of the bed for use, including the functional check.
Contents
General operating instructions 26 Preparation 27
Electrical activation 29 Using the battery pack 30 Taking out of service 31 Functional check 32
Contents |
25 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Activation | General operating instructions
On-time
The maximum on-time for the electromotive bed functions is specified on the bed (type label 72) or in the technical data sheet.
4 min/10 min means that each electromotive adjustment may be operated for a maximum of 4 minutes followed by a pause of 10 minutes (protection against overheating).
NOTE Should the maximum ontime of 4 minutes be exceeded repeatedly or for longer periods, safety cut-out devices on the bed may cause the electromechanical motor system to shut down. The bed must not be manoeuvred using the motors until it has cooled down sufficiently!
Battery pack
The battery pack integrated into the double drive has a charge capacity that is equivalent in theory to a constant operation of at least 15 lifting and lying surface adjustments with a working load of 250 kg.
NOTE If the bed is parked at its location and the mains plug is not connected, this will cause the battery pack to discharge due to the buffering of the electronic components!
Deep-discharged battery packs can be damaged to the extent that premature replacement is needed!
To increase the stand-by time, it is recommended to activate the reset button on the housing when storing the bed and to disconnect the bed from the mains. The bed should not be stored for a period longer than 6 months with a fully charged battery pack without recharging it.
Appropriate and correct use of the battery pack is essential for it to have a long service life!
In order to guarantee electrical functionality at all times, the bed should be connected to the mains as much as possible.
Safety cut-out device
The bed is equipped with an electrical, self-resetting safety cut-out device that prevents overloading of the motor systems. In the event of very severe overloading, the bed is automatically switched off.
Contents |
26 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
Activation | Preparation 1/2
Conditions for set-up
The bed is only approved for use in dry rooms (technical data sheet). A mains power supply and possibly an earth connection are required for operation of the bed in any suitable room. When this is available and the building installation permits it, the bed should always be connected to the potential equalisation.
Mechanical activation

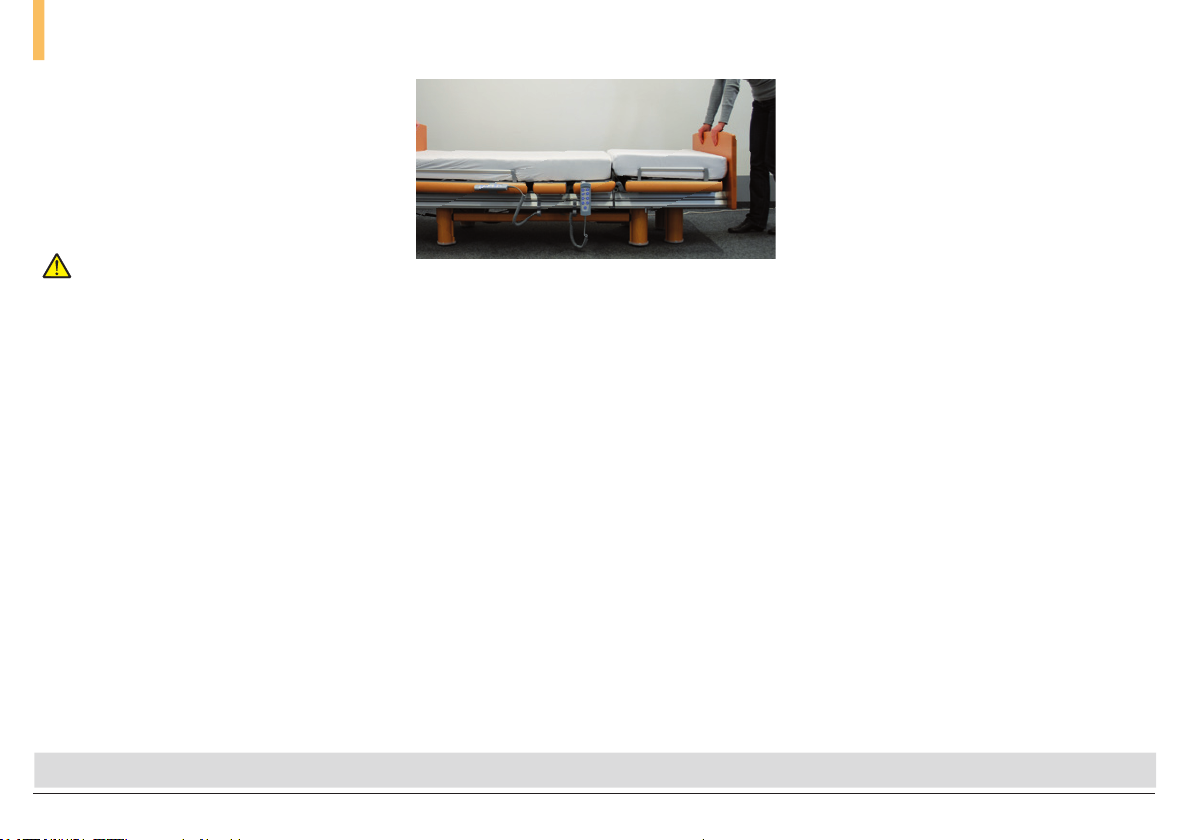

The supplied head and foot sections must be slotted into the corner connectors on the bed frame (only for model 3082 K Vis-a-Vis).
Check that the cross end stop can be moved freely and has not become jammed during transport.

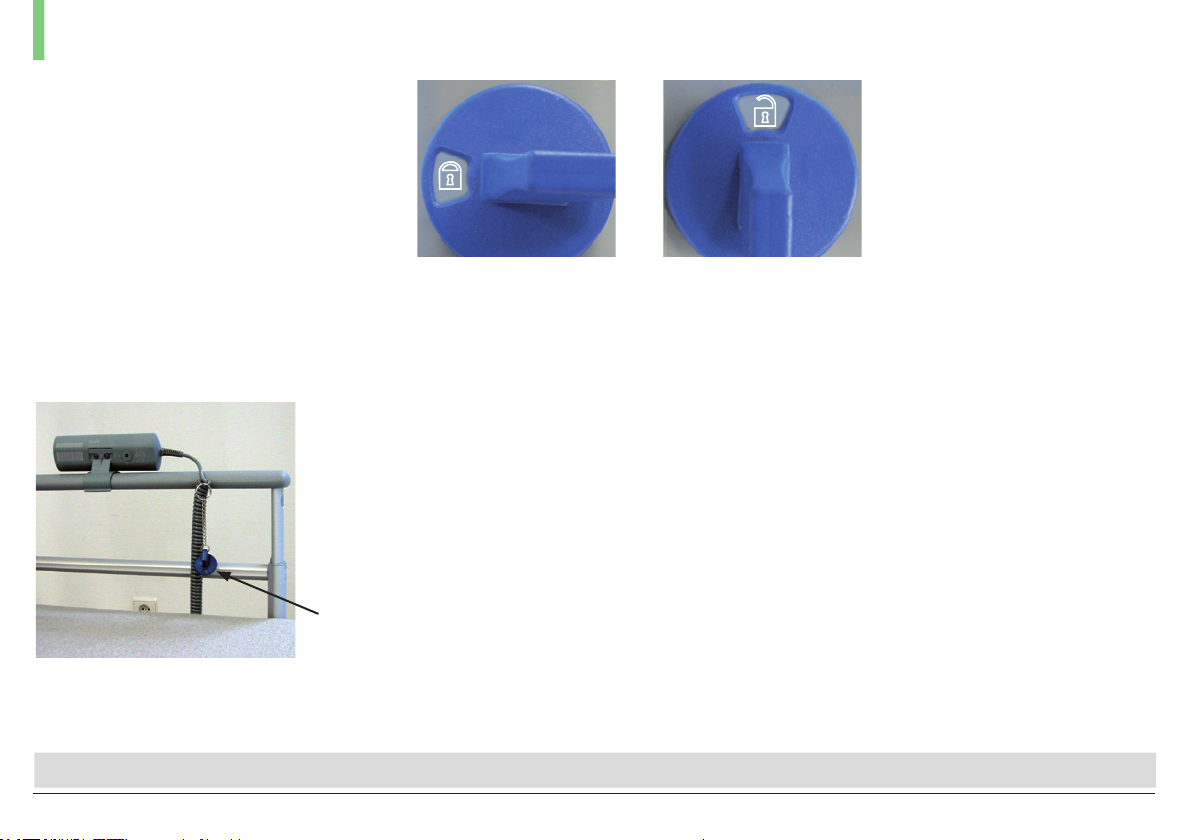

Hand control connection
The hand control should be connected to the socket provided, where appropriate. The spiral cable must be routed so that it is not under tension.
Cross end stop between upper and lower leg Routing the hand control cable section
Contents |
27 of 88 |
Help |
|
|
|
Völker bed models 3082 Vis-a-Vis, 3082 K Vis-a-Vis built after June 2009 – Instructions for use G96 |
V1.4 (12.04.2012) |
