VlZtO VX32L HDTV10A User Manual

Dear VlZlO Customer,

Congratulations on your new VlZtO VX32L High

Definition LCD Television purchase. Thank you

for your support. For maximum benefit of your set, please read these instructions before making any

adjustments, and retain them for future reference. We hope you will experience many years of

enjoyment from your new VlZlO VX32L High

Definition Television.

For assistance, please call (949) 428-2525 or e-

mail us at techsupport@vinc.com.

To purchase or inquire about accessories and installation services for your VlZlO LCD HDTV,

please visit our website at www.VlZlO.com or call toll free at 888-VlZIOCE (888-849-4623).

We recommend you register your VlZlO VX32L

HDTVl0A either at our website www.VlZlO.com

or fill in your registration card and mail it in. For peace of mind and to protect your investment

beyond the standard warranty, VlZlO offers on- site extended warranty service plans. These

plans give additional coverage during the standard warranty period. Visit our website or call

us to purchase a plan. Write down the serial number located on the back

of your VX32L.

Purchase Date

VlZlO is a registered trademark of V, Inc.

HDMI logo and "High Definition Multimedia Interface" are registered trademarks of HDMI Licensing LLC.

Version 3/13/2007 1

www,VlZlO,com

VlZtOVX32LHDTV10AUserManual

THIS PRODUCT HAS BEEN DESIGNED AND TESTED FOR COMPLIANCE WITH REGULATORY SAFETY CERTIFICATIONS

This product is designed and manufactured to operate within defined design limits, and misuse may result in electric

shock or fire. To prevent the product from being damaged, the following rules should be observed for the installation, use and maintenance of the product. Read the following safety instructions before operating the display. Keep these

instructions in a safe place for future reference.

• To avoid the risk of electric shock or component damage, switch off the power before connecting other components to the VX32L LCD HDTV.

• Unplug the power cord before cleaning the VX32L LCD HDTV. A damp cloth is sufficient for cleaning the VX32L LCD HDTV. Do not use a liquid or a spray cleaner for cleaning the product. Do not use abrasive cleaners.

• Always use the accessories recommended by the manufacturer to insure compatibility.

• When moving the VX32L LCD HDTV from an area of low temperature to an area of high temperature, condensation may form on the housing. Do not turn on the VX32L LCD HDTV immediately after this to avoid causing fire, electric shock or component damage.

• Do not place the VX32L LCD HDTV on an unstable cart, stand, or table. If the VX32L LCD HDTV falls, it can injure a person and cause

serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the VX32L LCD HDTV.

• A distance of at least 3 feet should be maintained between the VX32L LCD HDTV and any heat source, i.e. radiator, heater, oven,

amplifier etc. Do not install the product close to smoke. Operating the product close to smoke or moisture may cause fire or electric shock.

• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the VX32L LCD HDTV and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the VX32L LCD HDTV in a bookcase or cabinet unless proper ventilation is provided.

• Never push any object into the slot on the VX32L LCD HDTV cabinet. Do not place any objects on the top of the product. It could short

circuit parts causing a fire or electric shock. Never spill liquids on the VX32L LCD HDTV.

• The VX32L LCD HDTV should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

• The power cable must be replaced when using different voltage from that specified in the User Manual. For more information, contact

your dealer.

• The VX32L LCD HDTV is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install

the correct outlet, or use an adapter to ground the appliance safely. DO not defeat the safety purpose of the

grounded plug.

• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

• The wal! socket shall be installed near the equipment and shall be easily accessible.

• Only the marked power source can be used for the product. Any power source other than the specified one may cause fire or electric

shock.

• Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.

• Unplug the unit during a lightening storm or when it will not be used for long period of time. This will protect the VX32L LCD HDTV from

damage due to power surges.

• Do not attempt to repair or service the product yourself. Opening or removing the back cover may expose you to high voltages, the risk

of electric shock, and other hazards. If repair is required, please contact your dealer and refer all servicing to qualified service

personnel.

• Keep the product away from moisture. Do not expose this appliance to rain or moisture. If water penetrates into the product, unplug

the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.

• Do not use the product if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your

dealer immediately. Do not try to repair the product yourself.

• Avoid using dropped or damaged appliances. If the product is dropped and the housing is damaged, the internal components may

function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of the product may cause fire or electric shock.

• Do not install the product in an area with heavy dust or high humidity. Operating the product in environments with heavy dust or high humidity may cause fire or electric shock.

• Follow instructions for moving the product. Ensure that the power connector and any other cables are unplugged before moving the product.

• Hold the power connector when removing the power cable. Pulling the power cable itself may damage the wires inside the cable and

cause fire or etectric shock. When the product wilt not be used for an extended period of time, unplug the power connector.

• To avoid risk of electric shock, do not touch the connector with wet hands.

• Insert batteries in accordance with instructions. Incorrect polarities may cause damage and leakage of the batteries, operator injury

and contamination the remote controller.

• If any of the following occurs please contact the dealer:

o The power connector fails or frays. o Liquid sprays or any object drops into the VX32L LCD HDTV.

o The Display is exposed to rain or other moisture. o The Display is dropped or damaged in any way.

o The performance of the Display changes substantially.

Version 3/13/2007 2

www.VlZlO.com

VlZlOVX32LHDTV10AUserManual

TeLevision Antenna Connection Protection

External TeLevision Antenna Groundinq

If an outside antenna/satellite dish or cable system is to be connected to the TV, make sure that the antenna or cable system is electrically grounded to provide some protection against voltage surges and

static charges.

Article 810 of the National Electrical Code, ANSt/NFPSA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge

unit, size of the grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements of the grounding electrode.

Lightning Protection For added protection of the TV during a lightning storm or when it is left unattended or unused for long

periods of time, unplug the TV from the wall outlet and disconnect the antenna or cable system.

Power Lines

Do not locate the antenna near overhead light or power circuits, or where it could fall into such power lines or circuits.

Remember, the screen of the coaxial cable is intended to be connected to earth in the building installation.

Version 3/13/2007 3

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

Opeoioq the PBokBqe

Your VlZIO VX32L HDTVl0A and it accompanying accessories are carefully packed in a cardboard carton that has been designed to protect it from transportation damage. Now you have opened the carton

check that the VX32L HDTVl0A is in good condition and that all of the accessories are included. The VX32L HDTVl0A weighs approximately 32 Ibs and is nearly 32" wide and we advise that you take

sensible lifting precautions when you unpack and install the HDTV. The screen can easily be scratched or broken so please handle the product gently and never place the

HDTV with the glass facing downwards on a surface without protective padding.

IMPORTANT: Save the carton and packing material for future shipping.

PBokBqe Oom eo s

VlZtO VX32L HDTVl0A VlZtO Remote Control

AV Cable (Yellow, Red and White Connectors) Power Cord

VlZIO Bezel and Screen Cleaning Cloth This User Manual

Quick Setup Guide Registration Card

VlZlO Warranty and Repair Information VlP Services Brochure

CeFti#ied RooessoFies

VX32L HDTVloR aFe sold sepaFatetv

Wall Mounts High Definition Cables

Extra or replacement Remote

VlZtO also offers Installation Services and Extended Warranty Services for your VlZtO VX32L HDTV10A

To purchase or inquire about additional accessories and services for your VIZlO product, visit our web site at www.VlZIO.com or call us toll free at 888-VlZtOCE (888-849-4623)

Version 3/13/2007 4

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

InstaLLation Preparation

Please read this user manual carefully before installing your VlZtO HDTV. The power consumption of the TV is about 180W, please use the power cord designated for TV. When

an extension cord is required, use one with the correct power rating. The cord must be grounded and the grounding feature must not be defeated.

The TV should be installed on a flat surface to avoid tipping. For proper ventilation, you must allow space between the back of the TV and the wall. tf you would like to mount your TV on the wall, please see

below 'Preparing Your LCD HDTV for Wall Mounting' for additional information. Avoid installing the TV in places with high humidity, dust or smoke so as not to shorten the service life of the electronic components.

Install the TV in landscape orientation; any 90 ° clockwise or counter-clockwise installation may induce poor ventilation and excessive component damage.

VlZlO offers professional installation services. Please contact VlZtO for more information on these services at 888-VlZlOCE (888-849-4623) or www.VlZlO.com.

Preparinq Your LCD HDTW WaLL Mountinq

The VlZlO VX32L can either be kept on the stand base or mounted on the wall for viewing. If you choose to mount the VX32L on the wall, please follow the instructions below for removing the stand base.

To remove the sband base

1. Unplug all of the cables and cords from your VX32L.

2. Place the VX32L face down on a soft and flat surface (blanket, foam, cloth,

etc) to prevent any damage to the TV.

3. Remove the eight (8) screws holding the base to the VX32L.

4. Carefully remove the stand base.

To find the perfect mount for the VlZlO VX32L, browse VlZlO's certified mount selection at

www.VlZlO.com or call directly 888-VlZlOCE (888-849-4623).

Version 3/13/2007 5

www.VlZlO.com

VlZlOVX32LHDTV10AUserManual

Tabke of Contents

Chapter 1 Basic G©ntrol.s and Connections .................................................................. 8

1.1 Front Panel .......................................................................................................................................................... 8

1.2 Right Side Panel Controls ................................................................................................................................... 8

1.3 Left Side Connections ......................................................................................................................................... 8

1.4 Rear Panel Connections ..................................................................................................................................... 9

1.5 VlZlO Remote Control ....................................................................................................................................... 10

1.5.1 Insertion of Batteries in the Remote Control .............................................................................................. 12

1.5.2 Remote Control Range .............................................................................................................................. 12

1.5.3 VlZlO Remote Control Precautions ........................................................................................................... 12

Chapter 2 Eonnectinq Equipment ..................................................................................s3

2.1 Which Video Connection Should IUse? ............................................................................................................ 13

2.2 Connecting Coaxial (RF) ................................................................................................................................... 14

2.2.1 Using Your Antenna or Digital Cable for DTV ITV ..................................................................................... 14

2.2.2 Using the Antenna or Cable through your VCR ......................................................................................... 14

2.3 Connecting Your HDTV Set-Top Box ................................................................................................................ 15

2.3.1 Using HDMI ............................................................................................................................................... 15

2.3.2 Using Component Video ............................................................................................................................ 17

2.4 Connecting Your Basic Set-Top Box ................................................................................................................. 18

2.4.1 Using Composite Video ............................................................................................................................. 18

2.4.2 Using Coax (RF) ........................................................................................................................................ 18

2.5 Connecting Your DVD Player ............................................................................................................................ 19

2.5.1 Using HDMI ............................................................................................................................................... 19

2.5.2 Using Component Video ............................................................................................................................ 20

2.5.3 Using S-Video (AVl) .................................................................................................................................. 21

2.5.4 Using Composite (AV) Video ..................................................................................................................... 21

2.6 Connecting Your VCR or Video Camera ........................................................................................................... 22

2.7 Connecting a PC Computer .............................................................................................................................. 22

2.7.1 Preset PC Resolutions ............................................................................................................................... 23

Chapter 3 Settlnq Up to Watch Television ...................................................................a A

3.1 Basic LCD HDTV StartUp ................................................................................................................................24

3.2 Watching a TV Program ....................................................................................................................................27

3.3 Adjusting Basic HDTV Settings .........................................................................................................................27

3.4 Program Information..........................................................................................................................................28

3.5 Information on HDTV Status .............................................................................................................................28

Oqapter 4 Rdvanced Rd]ustment off HDTV ...................................................................2q

4.1 Using the On Screen Display (OSD) .................................................................................................................29

4.2 DTV /TV Input PictureAdjustment ....................................................................................................................30

4.2.1 PictureMode .............................................................................................................................................30

4.2.2 BackIight....................................................................................................................................................30

4.2.3 Brightness..................................................................................................................................................31

4.2.4Contrast .....................................................................................................................................................31

4.2.5Color ..........................................................................................................................................................31

4.2.6Tint.............................................................................................................................................................31

4.2.7Sharpness .................................................................................................................................................32

4.2.8Color Temperature .....................................................................................................................................32

4.2.9Advanced Video ........................................................................................................................................33

4.3 DTV /TV InputAudio Adjustment ......................................................................................................................34

4.3.1Volume ......................................................................................................................................................34

4.3.2 Bass ........................................................................................................................................................... 34

4.3.3 Treble ........................................................................................................................................................ 34

4.3.4 Balance ...................................................................................................................................................... 34

4.3.5 Surround .................................................................................................................................................... 35

4.3.6 Speakers ................................................................................................................................................... 35

4.4 DTV 1TV Tuner Setup ....................................................................................................................................... 35

4.4.1 Tuner Mode ............................................................................................................................................... 35

4.4.2 Auto Search ............................................................................................................................................... 35

4.4.3 Skip Channel ............................................................................................................................................. 35

4.4.4 Time Zone ................................................................................................................................................. 36

4.4.5 Daylight Saving .......................................................................................................................................... 36

Version 3/13/2007 6

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

4.5 DTV / TV Input Setup ........................................................................................................................................ 36

4.5.1 Language ................................................................................................................................................... 36

4.5.2 Sleep Timer ............................................................................................................................................... 36

4.5.3 Analog Closed Caption .............................................................................................................................. 36

4.5.4 Digital Closed Caption ............................................................................................................................... 36

4.5.5 Digital Closed Caption Style ...................................................................................................................... 37

4.5.6 Reset All Settings ...................................................................................................................................... 37

4.6 DTV / TV Input Parental Control ........................................................................................................................ 38

4.6.1 Channel Block ........................................................................................................................................... 38

4.6.2 TV Rating ................................................................................................................................................... 39

4.6.3 Movie Rating .............................................................................................................................................. 39

4.6.4 Blocked Unrated Programming .................................................................................................................. 40

4.6.5 Change the Password ............................................................................................................................... 40

4.7 HDMI Input Picture Adjustment ......................................................................................................................... 41

4.8 HDMI Input Audio Adjustment ........................................................................................................................... 41

4.9 HDMI Input Setup .............................................................................................................................................. 41

4.10 Video input Picture Adjustment ....................................................................................................................... 42

4.11 Video input Audio Adjustment ......................................................................................................................... 42

4.12 Video input Setup ............................................................................................................................................ 42

4.13 Video input Parental Control ........................................................................................................................... 43

4.14 PC Input Picture Adjustment ........................................................................................................................... 43

4.14.1 Auto Adjust .............................................................................................................................................. 43

4.14.2 Backlight .................................................................................................................................................. 43

4.14.3 Brightness ................................................................................................................................................ 43

4.14.4 Contrast ................................................................................................................................................... 44

4.14.5 Color Temperature ................................................................................................................................... 44

4.14.6 H-SIZE ..................................................................................................................................................... 45

4.14.7 H. Position ............................................................................................................................................... 45

4.14.8 V. Position ............................................................................................................................................... 45

4.14.9 Fine Tune ................................................................................................................................................ 45

4.15 PC Input Audio Adjustment ............................................................................................................................. 45

4.16 PC Input Setup ................................................................................................................................................ 45

4.17 Understanding Viewing Features .................................................................................................................... 46

4.17.1 Viewing Modes ........................................................................................................................................ 46

4.17.2 Picture-In-Picture(PIP) Mode ................................................................................................................... 47

4.17.3 Adjusting Basic PIP Settings ................................................................................................................... 47

4.17.4 Setting the Sleep Timer ........................................................................................................................... 48

4.18 Using a Cable or Satellite Remote .................................................................................................................. 48

Chapter S Ma_n_er_ance and 'Troub[eshoo_inq ............................................................. 4B

5.1 Maintenance ...................................................................................................................................................... 48

5.2 Troubleshooting Guide ...................................................................................................................................... 49

5.3 Telephone & Technical Support ........................................................................................................................ 50

5.4 Compliance ....................................................................................................................................................... 51

5.5 FCC Class B Radio interference Statement ...................................................................................................... 51

Ghaptec B MIsoe[[ameous Imff©rma_i©m ...........................................................................S_

6.1 Specifications .................................................................................................................................................... 52

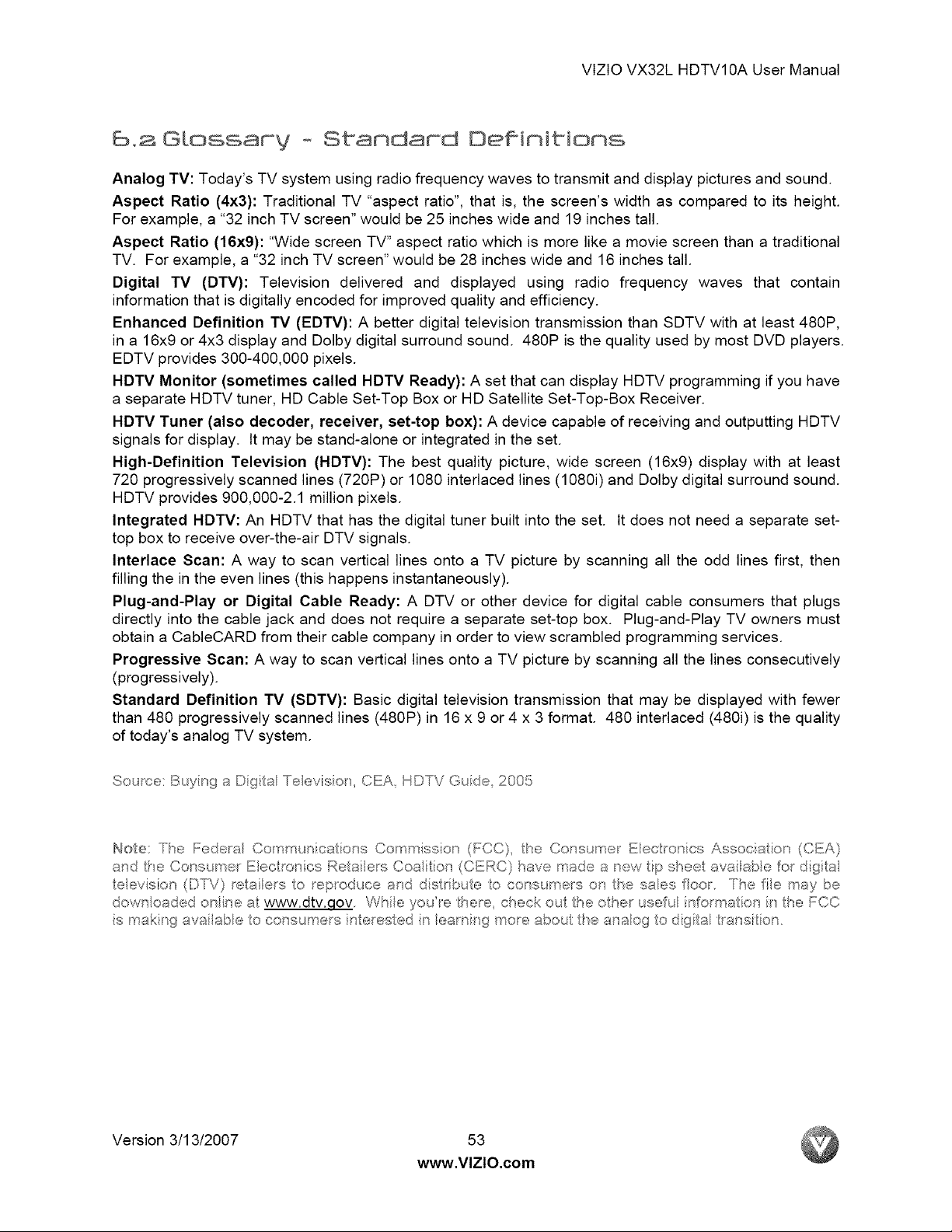

6.2 Glossary - Standard Definitions ........................................................................................................................ 53

6.3 index ................................................................................................................................................................. 54

Version 3/13/2007 7

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

Chapter 1 Basic ControLs and Connections

1.1 Front Panel

Power 'VlZlO' light - The VtZlO name lights white when powered on and orange when powered off.

Remote Control Sensor - This is the window through which all of the remote control signals pass to the sensor. Point the

remote control directly at this window for the best response to the remote signal.

1,s Ri@ht Side Panel Eontrots

Power ( _ ) - Switch the VX32L on by pressing the button once. Press the button again to the VX32L off.

Menu - This button activates the On Screen Display (OSD). If a sub-menu is active, pressing this button will return to

the previous menu level. Channel A/T - Use these buttons to step up or down the

TV channels. While the OSD is active, these buttons function as up and down controls in the OSD menus.

Volume </1_ - Use these buttons to increase or decrease to the speaker volume. While the OSD is active, these

buttons function as left and right controls in the OSD menus. Input (Enter) - Repeated pressing of this buttons steps

through the input sources in the following sequence: TV, AV1 (S-Video or Video), AV2, Component 1, Component 2,

HDMI 1, HDMI 2, and RGB. Once you have stepped through the entire sequence, you will return to the

beginning. Additionally, when the OSD is active, this button confirms

the menu function to be adjusted. When the OSD is not active, pressing this button will display the current input

mode.

_t_u

OH÷

C_4_

VOL ÷

_HP_JT

z.3 Left Side Connections

Version 3/13/2007 8

AVl In - Connect the primary source for composite video devices, such as a VCR or video game. Use

the white and red connectors to connect the external audio from the same source. The orange

color band on the rear of the TV indicates this connection. The S-Video, if connected, will take

priority over AVl RCA connector.

www.VlZlO.com

i,q Ream Panel Connections

VlZtOVX32LHDTV10AUserManual

10.

11.

AC IN - Plug-in the supplied AC Power Cord here. SERVICE - This custom communication port is for factory service only.

HDMI 1 - Connect the primary source for digital video such as a DVD multimedia player or set top box through this all digital connector. The white color band on the rear of the TV indicates this connection. Your VlZtO Certified HDMI cables are available for purchase from

www.VIZIO.com or by calling 888-VIZIOCE (888-849-4623).

HDMI 2 - Connect the secondary source for digital video such as a DVD multimedia player or

set top box through this all digital connector. The white color band on the rear of the TV indicates this connection. For users who want to connect to a DVt enabled device, use a

DVI-HDMI cable and connect the Analog Audio output of the device to the L+R AUDIO here.. Your VlZIO Certified HDMI and HDMI-DVl cables are available for purchase from

www.VIZIO.com or by calling 888-VtZIOCE (888-849-4623).

RGB PC - Connect the video and audio from a computer here. The blue color band on the

rear of the TV indicates this connection. COMPONENT 1 (YPb/CbPr/Cr with Audio L/R) - Connect the primary source for

component video devices such as a DVD Player or set top box here. From left to right, use green for Y, blue for Pb (or Cb), red for Pr (or Cr), white for left audio and red for right audio

inputs. The green color band on the rear of the TV indicates this connection. COMPONENT 2 (YPb/CbPr/Cr with Audio L/R) - Connect the secondary source for

component video devices such as a DVD Player or set top box here. From left to right, use green for Y, blue for Pb (or Cb), red for Pr (or Cr), white for left audio and red for right audio

inputs. The purple color band on the rear of the TV indicates this connection. AV2 In - Connect the secondary source for composite video devices, such as a VCR or

video game. Use the white and red connectors to connect the external audio from the same source. The orange color band on the rear of the TV indicates this connection.

DTV - Connect to an antenna or digital cable (out-of-the-wall, not from Cable Box) for Digital

TV.* OPTICAL DIGITAL AUDIO OUT - When the DTV input is selected for viewing, the digital

audio associated with digital programming will be available on this SPDIF Optical connector for connection to your home theatre system. The gray color band on the rear of the TV

indicates this connection. Audio Out - Connect the audio from the LCD HDTV to an external device, such as a home

theatre system, external amplifier or stereo. Speakers cannot be connected directly to here. The gray color band on the rear of the TV indicates this connection.

* For digital TV stations in your area visit www.antennaweb.orq. Version 3/13/2007 9

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

i0S WIZIO Remote Controt

Remote LED - Blinks when the remote operates. POWER - Press this button to turn the TV on from the Standby mode.

Press it again to return to the Standby mode. Number Button Pad - Use these buttons to select a channel or enter a password.

INPUT - This button allows the user to cycle through the inputs.

- (Dash) - When selecting a digital channel directly use this button for the separation of main and sub-channels. For example, channel 28-2 would

be selected by the button sequence 2 8 ENTER 2. CH (+ or -) - These buttons change the channels up or down.

LAST - This button recalls the previously viewed channel. MUTE - This button turns the sound on and off. VOL (+ or -) - These

buttons turn the volume up or down. MENU - Use this button for the On-Screen Display (OSD) menus.

INFO - This button displays the image and system information display. GUIDE - This button displays program information. Noo his buoy is

ory _ncliona D_V EXIT - This button exits the On-Screen Display (OSD) menus.

OK - Use this button to select your chosen option in On-Screen Display (OSD) menus.

D _ - These buttons navigate the On-Screen Display (OSD).

look Uke bhis0

Version 3/13/2007 10

www.VlZlO.com

VlZtO VX32L HDTV10A User Manual

WIDE - This button cycles through the available screen formats. The options for SD (Standard Definition 4:3) are Normal, Zoom and Panoramic.. The options for HD (High Definition 16:9) and RGB PC are

Normal and Zoom. SLEEP - This button allows the user to select the sleep options by

adjusting the timer for 30, 60, 90 or 120 minutes. MTS - This button will select the MTS options of Stereo, SAP or Mono in

TV mode and alternate audio channels, where available, in DTV mode. CC - This button will select the Closed Caption mode. The options are

OFF, CC1, CC2, CC3 or CC4. TV - Press this button to select TV.

AV - Repeated pressing of this button with switch between AV-C (Composite, yellow RCA) and AV-S (S-Video) inputs.

COMPONENT - Press this button to select the Component (YPbPr) input. HDMI - Press this button to select the HDMI input. ZOOM (- and +) - Use these buttons to increase or decrease the size of

the picture. Note that in the zoom mode parts of the picture will not be visible because they extend beyond the edges of the screen.

FREEZE - Press this button to "Freeze-Frame" the current screen. Press this button again the continue playing.

RGB - This button selects an RGB Analog component such as a PC. PIP - Use this button to activate the Picture-In-Picture mode.

PIP CH (- and +) - These buttons are used to select the channels within the PIP screen when DTV/TV is the PIP input selected.

AUDIO - Press this button to switch the audio from the main screen to the sub-screen while in PIP mode.

PIP INPUT- Press the button to choose the PIP input. No :/°he TV mus be in P mode [x_ lis b on o be uncliona ol addiliona iMx£ms ion

regarding he PP options see seclion 4.17.2 ....Piclule_ Piclule (PP)

Mode page 47 PIP SIZE - Press this button to select the size of the PIP screen from one of the following: small, medium or large.

MODE - Use this button to change the picture mode from Custom, Standard, Movie and Game.

SWAP - Used to swap the inputs from the main screen and the sub-screen while in PIP mode.

Version 3/13/2007 11

www.VlZlO.com

VtZtO VX32L HDTV10A User Manual

1°Sol Mnsertion o_ Batteries in the Remote Control

Insert two AA batteries into the remote control. Make sure that you match the (+) and (-) symbols on the batteries with the (+) and (-) symbols inside the battery compartment. Re-attach the battery cover.

Precautionary Tips for Inserting the Batteries:

Only use the specified AA batteries. Do not mix new and old batteries. This may result in cracking or leakage

that may pose a fire risk or lead to personal injury. Inserting the batteries incorrectly may also result in cracking or leakage

that may pose a fire risk or lead to personal injury. Dispose of the batteries in accordance with local laws and regulations.

Keep the batteries away form children and pets.

IoSo_ Remote Control Range

Point the remote control at the remote control sensor to transmit the commands. Do not place any obstacles between the remote control and the receiver window.

The effective range of the remote control is approximately 30 feet (10 meters) from the front of the receiver window, 30° to the left and right, 20 ° up and down.

loSo3 VISO Remote Control Precautions

The remote control should be kept dry and away from heat sources. Avoid humidity. If the TV responds erratically to the remote control or does respond at all, check the batteries. If the

batteries are low or exhausted, replace them with fresh batteries. When not using the remote control for a long period of time, remove the batteries.

Do not take the batteries apart, heat them, or throw them into a fire. Do not subject the remote control to undue physical stress, such as striking or dropping it.

Do not attempt to clean the remote control with a volatile solvent. Wipe it with a clean, damp cloth.

Version 3/13/2007 12

www.VlZlO.com

VlZlOVX32LHDTV10AUserManual

Chapter 2 Connectinq Equipment

a°i Which Video Connection Should I Use?

The VlZlO VX32L has six different ways to connect your video equipment from a basic connection to the most advanced for digital displays.

HDMI (High-Definition Multimedia Interface) - It is the first and only industry-supported, uncompressed,

Best

(digital)

White

all-digital audio/video interface. HDMI provides an interface between any audio/video source, such as a set-top box, DVD player, or A/V receiver and an audio and/or video monitor, such as a digital

television (DTV), over a single cable.

Best

(digital)

Good

(analog)

Best

(analog)

Better

(analog)

Good

(analog)

Black

Blue

Green

and

Purple

Red

DTV Coaxial RF. When used for MPEG2 encoded bit streams from ATSC broadcast programming, this

input takes advantage of the High Definition content.

TV Coaxial RF. This is the connection for standard NTSC TV using antenna or cable.

RGB PC (VGA) - This video input has separate red, green and blue color components. The signal carries horizontal and vertical sync information on the green signal. This is most commonly used for

PC input.

Component - The video signal is separated into three signals, one containing the black-and-white

information and the other two containing the color information. This enhancement over S-Video takes

advantage of the superior picture provided by progressive scan DVD players and HDTV formats.

S-Video (AVl) - The video signal is separated into two signals, one containing the black-and-white

information and the other containing the color information. Separating the color in this way avoids

'cross color' effects where closely spaced black and white lines are erroneously displayed in color. It also

enables text to be displayed more sharply.

Good

(analog)

Noe: Fo_ mole intY_re/b_ to the Quick Sta/ Guide

Yellow

and

Orange

Version 3/13/2007 13

www.VlZlO.com

Composite (AVli2) - The complete video signal is carried through this single pin connector. This is the most commonly used video connection.

VlZtOVX32LHDTV10AUserManual

s,s Connecbinq Coaxiat (RF) 2,2,1 Usinq Your Antenna or Oiqibak Oabke for OTV /TV

_®

Turn off the power to the HDTV.

Connect the coaxial (RF) connector from your antenna or digital cable (out-of-the-wall, not from the Cable Box) to

the DTV/TV CABLE/ANTENNA connector.

Turn on the power to the HDTV. Select DTV using the INPUT button on the remote or side

of the HDTV, or directly by pressing the TV button on the

Remote Control.

s,a,a Usinq the Antenna or Cabke throuqh your VCR

Turn off the power to the HDTV and VCR.

Version 3/13/2007 14

Connect the "Output to TV", "RF Out" or "Antenna Out" connector on the rear of your VCR to the DTV/TV

CABLE/ANTENNA connector at the rear of the HDTV.

Turn on the power to the HDTV and VCR. Select TV using the INPUT button on the remote or side of

the HDTV, or directly by pressing the TV button on the

Remote Control.

www.VlZlO.com

VtZlOVX32LHDTV10AUserManual

a,3 Connecbinq Your HDTV SeboTop Box

2o3oi Usinq HDMI

HDTV Set-Top Boxes that have a HDMI digital interface should be connected to the HDMI input of the LCD HDTV for optimal results.

_®

Turn off the power to the HDTV and HDTV Set-Top Box.

Connect a HDMI cable to the HDMI output of your HDTV Set-Top Box and the other end to the HDMt Input (white color area) at the rear of the HDTV.

Turn on the power to the HDTV and HDTV Set-Top Box.

Select HDMI using the INPUT button on the remote or side of the HDTV, or directly by pressing the HDMI button on the Remote Control.

Version 3/13/2007 15

www.VlZlO.com

For HDTV Set-Top Boxes with OVI °

Turn off the power to the HDTV and HDTV Set-Top Box.

Using a HDMI-DVl cable, connect the DVl end to your HDTV Set-Top Box and the HDMI end

to the HDMI Input (white color area) at the rear of the HDTV.

Using an audio cable (white and red connectors), connect the cable to the audio output

connectors associated with the DVl output on your HDTV Set-Top Box and connect the other end to the audio connectors associated with the HDMI input (white area) at the rear of the

HDTV.

Turn on the power to the HDTV and HDTV Set-Top Box.

Select HDMI using the INPUT button on the remote or side of the HDTV, or directly by pressing the HDMt button on the Remote Control.

VlZtOVX32LHDTV10AUserManual

_®

Note: The HDM npu is [or HD Video and wil ory suppo_ 640x480 a[ 60Hz fro_r_ a PC. Use fie RGB PC inpu or a g_ea er se eclior o PC _o_ma s.

_iiii

Version 3/13/2007 16

www,VlZlO,com

VlZtO VX32L HDTV10A User Manual

2.3,2 Usinq Component Video

Connectinq vour HDTV Set-Top Box (Better):

Turn off the power to the HDTV and HDTV Set-Top Box. Connect the Y (green color) connector on your HDTV Set-Top Box to the corresponding Y

(green color) connector in the Component 1 group (green color area - row of connectors nearest to you when viewing from the rear of the TV) at the rear of the HDTV.

Connect the Pb (blue color) connector on your HDTV Set-Top Box to the corresponding Pb (blue color) connector in the Component 1 group (green color area - row of connectors

nearest to you when viewing from the rear of the TV) at the rear of the HDTV.

Connect the Pr (red color) connector on your HDTV Set-Top Box to the corresponding Pr (red color) connector in the Component 1 group (green color area - row of connectors nearest to

you when viewing from the rear of the TV) at the rear of the HDTV.

Using an audio cable (white and red connectors), connect the cable to the audio output

connectors associated with the Component output on your HDTV Set-Top Box and connect the other end to the audio connectors associated with the Component 1 input (green color

area) at the rear of the HDTV.

Turn on the power to the HDTV and HDTV Set-Top Box. Select Component 1 using the INPUT button on the remote or side of the HDTV, or directly

by pressing the Component button on the Remote Control.

Version 3/13/2007 17

www.VlZlO.com

Conneotinq roof Basic SetoTop 8ox

2,4,i Usinq Composite Video

Turn off the power to the HDTV and Set-Top Box.

Using the AV Cable, connect the Video (yellow

color) connector on your Set-Top Box to the corresponding Video (yellow color) connector in

the AV2 group (yellow color area) at the rear of the HDTV.

Using the white and red connectors, connect the

cable to the audio output connectors associated with the Video output on your Set-Top Box and

connect the other end to the audio connectors associated with the AV2 input (yellow color area) at the rear of the HDTV.

Turn on the power to the HDTV and Set-Top Box. Select AV2 using the INPUT button on the remote or side of the HDTV, or directly by

pressing the AV button on the Remote Control.

VlZlOVX32LHDTV10AUserManual

_®

8,4,8 Usinq Coax (RF}

Turn off the power to the HDTV and Set-Top Box.

Using a Coax (RF) cable, connect one end to the TV OUT (RF) on your Set Top Box and the other end to the DTV/TV input at the rear of the HDTV.

Turn on the power to the HDTV and Set-Top Box. Select TV using the INPUT button on the remote or side

of the HDTV, or directly by pressing the TV button (below the WIDE button) on the Remote Control.

Version 3/13/2007 18

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

s,S Eonnectinq Your DWD Prayer

You have several options for connecting your DVD player to your VX32L; HDMI, Component, AV (S- Video or Composite) inputs. Based on your configuration, you can decide which option is right for you.

s°S.z Usinq HDMI

DVD players that have a digital interface such as HDMI (High Definition Multimedia Interface) should be connected to the HDMI input of the VlZtO VX32L for optimal results.

Connectinq your OVO PLayer [Best}:

_®

Turn off the power to the HDTV and DVD player.

Connect a HDMI cable to the HDMI output of your DVD player and the other end to

the HDMI Input (white color area) at the rear of the HDTV. Turn on the power to the HDTV and DVD player.

Select HDMI using the INPUT button on the remote or side of the HDTV, or directly by pressing the HDMI button on the Remote Control.

For OgD Pkavers with OVI:

Turn off the HDTV and DVD player.

Version 3/13/2007 19

Using a HDMI-DVt cable, connect the DVl end to your DVD player and the HDMI end to the HDMI Input (white color area) at the rear of the HDTV.

Connect an audio cable (white and red connectors) to the audio output connectors associated with the DVl output of the DVD

player and connect the other end to the audio connectors by the HDMt input (white area) at the rear of the HDTV.

Turn on the power to the HDTV and your DVD player.

Select HDMI using the INPUT button on the remote or side of the HDTV, or directly by pressing the HDMI button on the Remote.

www,VlZlO,com

_®

2.5_2 Usinq Component Video

Connectinq your DYD Player (Better}:

t3 ¸

VlZtOVX32LHDTV10AUserManual

Turn off the power to the HDTV and DVD player.

Connect the Y (green color) connector on your DVD player to the corresponding Y (green color) connector in the Component 1 group (green color area - row of connectors nearest to

you when viewing from the rear of the TV) at the rear of the HDTV.

Connect the Pb (blue color) connector on your DVD player to the corresponding Pb (blue color) connector in the Component 1 group (green color area - row of connectors nearest to

you when viewing from the rear of the TV) at the rear of the HDTV.

Connect the Pr (red color) connector on your DVD player to the corresponding Pr (red color) connector in the Component 1 group (green color area - row of connectors nearest to you

when viewing from the rear of the TV) at the rear of the HDTV.

Using an audio cable (white and red connectors), connect the cable to the audio output connectors associated with the Component output on your DVD player and connect the other

end to the audio connectors associated with the Component 1 input (green color area) at the rear of the HDTV.

Turn on the power to the HDTV and DVD player.

Select Component using the INPUT button on the remote or side of the HDTV, or directly by pressing the Component button on the Remote Control.

Version 3/13/2007 20

www.VlZlO.com

s,S,3 Usinq SoVideo {AVl} Connecbinq vour DUD Player {Good}:

Turn off the power to the HDTV and DVD _ ......

player.

Connect the S-Video jack on the rear of your DVD player to the S-Video jack in

the AVl group on the side of the HDTV.

Connect an audio cable (white and red connectors) to the audio output

connectors associated with the S-Video output on your DVD player and connect

the other end to the audio connectors associated with the AVl input on the side of the HDTV.

Turn on the power to the HDTV and DVD player. Select AVl using the INPUT button on the remote or side of the HDTV, or directly by

pressing the AV button on the Remote Control.

VlZtOVX32LHDTV10AUserManual

2o5_4 Usinq Composite (AV} Video

Connectinq vour OVO Player {Good}

Turn off the power to the HDTV and DVD player.

Connect the Video (yellow color) connector on your DVD player to the Video (yellow color)

connector in the AV2 group (yellow color area).

Connect the R (red color) and L (white color) audio connectors on your DVD player to the corresponding R (red color) and L (white color)

audio input connectors in the AV2 group (yellow color area).

Turn on the power to the HDTV and DVD Player. Select AV2 using the INPUT button on the remote or side of the HDTV, or directly by

pressing the AV button on the Remote Control.

nSV _U$_

i thewc

Version 3/13/2007 21

www.VlZlO.com

VlZlO VX32L HDTV10A User Manual

a,S Connectinq Your VCR or Video Camera

Turn off the HDTV and VCR or Video Camera.

Connect the S-Video jack on the rear of your VCR ....

or Video Camera to the S-Video jack in the AVl group on the side of the HDTV.

Connect an audio cable (white and red connectors) cable to the audio output connectors associated

with the S-Video output on your VCR or Video Camera and connect the other end to the audio

connectors associated with the AVl input on the side of the HDTV.

Turn on the power to the HDTV and VCR or Video Camera. Select AVl using the INPUT button on the remote or side of the HDTV, or directly by

pressing the AV button on the Remote Control.

s,7 Conneotinq a PC Computer

Turn off the power to the HDTV and PC Computer.

Connect a 15-pin D-Sub RGB (VGA) cable to the RGB output of your pc computer and the other end to the RGB PC input (blue area) at the rear of the HDTV.

Connect the Audio Out on your pc computer to the RGB PC Audio input (blue area) at the rear of the HDTV.

Turn on the HDTV and PC Computer. Select RGB using the INPUT button on the remote or

side of the HDTV, or directly by pressing the RGB button on the Remote Control.

Version 3/13/2007 22

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

2o7oi Pmeset PC Resolutions

If connecting to a PC through the RGB PC input, set the TV timing mode to VESA 1366x768 at 60Hz

for best picture quality (refer to the graphic card's user guide for questions on how to set this timing mode). Please see the table below for the factory preset resolutions.

640x480 60 31.5 59.94 N N 25.175 640x480 75 37.5 75.00 N N 31.500 720x400 70 31.46 70.08 N P 28.320 800x600 60 37.9 60.317 P P 40.000 800x600 75 46.9 75 P P 49.500

800x600 85 53.7 85.06 P P 56.250 1024x768 60 48.4 60.01 N N 65.000 1024x768 75 60.0 75.03 P P 78.750

"1366x768 60 47.7 60.00 P N 85.500

NOTES: N = Negative, P = Positive, * = Primary (Native) Mode

Version 3/13/2007 23

www.VlZlO.com

VlZlOVX32LHDTV10AUserManual

Chapter 3 Se ioq Up to Watch TeLevision

For 'Preparing Your LCD HDTV for Wall Mounting', see page 5.

3,1 Basic LCD HDTU Start Up

Connecting the Power Cable Connect the power cord to the power cord connector on the back of the HDTV, and then plug the

power cord into an AC wall socket.

Connect Audio and Video Cables to the HDTV (see pages 13 ~ 22 for detailed steps)

Turning Power On Once all the components are connected, press the Power ON button on the side of the HDTV, or

press the Power ON (Red) button on the remote control.

Select Input Source Select the Input Source for the HDTV by pressing the INPUT

button on the side of the TV or using the Input button on the remote control. Pressing this button will cycle you through the

following options: TV, AV1, AV2, Component1, Component2,

RGB, HDMI1 and HDMI2.

Using DTV and TV with an Antenna or Cable

At first power on, the HDTV will have the DTV/TV input selected

and will guide through some setup screens. If it is not the first time the HDTV has been powered on, you will need to select TV

using the INPUT button on the remote control or the side of the HDTV, or directly by pressing the TV button on the remote

control, and Auto Scan for the available TV channels.

a. The screen will show 'snow' and

the first Initial Setup OSD panel. Press the OK button on the

remote control.

Version 3/13/2007 24

www.VlZlO.com

TheLanguagechoicescreenwill bedisplayed;thedefaultEnglish

optionishighlighted.Ifyouwish tochangetheOSDlanguageto

Fran£aisorEspa_ol,pressthe buttonontheremotecontrolto

selectthelanguageyouwant.

Press the Inl button on the remote to go to the next screen.

C. The Tuner screen will be

displayed; default choice is Antenna. If you are using Cable, press the _ button to highlight CABLE.

Press the I1_ button on the remote to go to the next screen.

VlZtOVX32LHDTV10AUserManual

d. The Channel Scan screen will be

displayed; default choice is Scan. Press the OK button on the remote control to commence the

search for available channels to be stored into memory.

If you do not want to scan for channels at this time, press the

button on the remote to highlight Skip Scan and then press the OK

button.

Version 3/13/2007 25

www.VlZlO.com

The screen will now change to show the progress of the search

for Analog (NTSC) and Digital (ATSC) channels.

Noe:DTVcigila broadcas is no avaiabeina aeas. Re[e_ o www.antennaweb.or,q o ge

inI_>rma ion abou avaiabiily ir_you_ aea ype o an e Ina arid i__which di_ectio _o poir_l you_

anenna Thechanne avaiabiily __oughcabe depends uponw ichcha_esyou cabeoperao

suppiesinCea_QAM consu you cabe opera o_ mo_e in o_ma ion.

When finished, the Complete screen will be displayed to

informed that the HDTV has completed the Initial Setup.

VlZtOVX32LHDTV10AUserManual

Press the OK button on the remote control to exit and begin

watching TV.

Version 3/13/2007 26

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

3,a Wabchinq a TY Proqram

Before you start watching TV, please make sure that any cable, satellite or off-air antenna connections are secure. Also, verify that the power cord is plugged into a correctly grounded electrical outlet or surge protector.

Press the power button on the remote or on the side of the HDTV. The VlZlO logo on the

front will change from orange to white.

There are 3 options for selecting your programming: a. If you are using an antenna or cable connected through the DTV/TV CABLE/ANTENNA

input, you can select TV directly by pressing the TV button on the remote, or by pressing the INPUT button on the remote or on the side of the HDTV.

b. If you are watching broadcasts through a cable or satellite set-top box connected by an

HDMI cable, select HDMI directly by pressing the HDMI button on the remote, or by pressing the INPUT button on the remote or on the side of the HDTV.

c. If you are watching broadcasts through a cable or satellite set-top box connected by a

Component (YPbPr) cable, select Component directly by pressing the Component button on the remote, or by pressing the INPUT button on the remote or on the side of the HDTV.

When using option 2a, press the Channel buttons on the remote or the +/- buttons on the side of the HDTV to change the channel. Nob: T_e C nne bu ons_ on t_e side o he HDZV

aid or_ he emoe con_o wi _o work ff you a_e waching a pogam tsing HDM Composen andAVinpus

3°3 Ad]ustinq Basic HOTY Settinqs

Volume To increase the volume, press and hold the VOL+ or VOL- button on the side of the LCD HDTV or remote

control until the desired level is reached.

TV Channels

To step up or down through the available TV channels, press the CH+ or CH- button on the side of the HDTV or remote control once for the next or previous channel, or hold it depressed until the desired

channel is reached. Noe:Chan_e up anddow_ wi oryopeaeinDTVandTVmodes

Wide

Using this feature, you can watch video content in different size modes on the HDTV. Press the WIDE button on the remote control to switch among the modes.

Fore more information see Section 4.17.1 - Viewing Modes, on page 46.

Version 3/13/2007 27

www.VIZIO.com

VlZtO VX32L HDTV10A User Manual

Proqram Information

Press the GUIDE button on the remote and program information for the channel you are watching will be displayed on the screen with the live program content in a small window in the lower left corner.

Press the _ or I_! button to scroll up or down the channels. Each time you pause at a channel, the program list will update with the program schedule for the channel and the window will show the live program for that channel. Press the GUIDE button to exit this feature.

3°S Information on HDTV Status

When you change TV channels or inputs, or press the INFO button on the remote, an Information Banner is displayed for a few seconds to tell you the status of the LCD HDTV.

I Program Information:

Provided by Broadcaster

Audio is Stereo

Number

I TV Channel

Station Name: provided by Broadcaster

Source is Cable

I ProgramRating

Closed Caption is available

I NTSC SDTV (Standard Definition TV)

Version 3/13/2007 28

www.VlZlO.com

VlZlOVX32LHDTV10AUserManual

Ehaptem 4 Rdvanced Rdoustment off HDTW

4.,i Usin9 the On Scmeen Display {OSD}

The remote control or the control buttons on the right hand side of the TV can control all the function settings. The On Screen Display (OSD) allows you to adjust the save contrast, brightness and other

settings. The TV will save changes made to the settings, even if the TV is turned off.

The OSD consists of several menu options: Picture Adjust, Audio Adjust, Setup, TV Tuner Setup and Parental Controls. The main menu options may very depending on your selected input source.

Note: Some of the main menu options may have additional submenus, i.e. the TV Rating submenu for

Parental Controls. o.......................................................

Press the MENU button on the remote control or the

side of the TV and the Picture Adjust menu will be shown on the screen.

Press the Dor _ button on the remote control or the

VOL + or VOL - button on the side of the HDTV to select one of the other menu options.

Picture Adjust Audio Adjust TV Tuner Setup Setup Parental Controls

Once the menu option is displayed, press the 17 or _ button on the remote control or the CH + or CH - button on the side of the TV to select one of the items to adjust.

Press the I_ button on the remote control or the VOL - button on the side of the HDTV to

begin adjustment of the item.

Press OK when finished. Repeat steps 2 through 5 to adjust additional options within this menu.

Once the adjustments are completed press the MENU button repeatedly to exit the OSD completely.

Version 3/13/2007 29

www.VlZlO.com

VlZlOVX32LHDTV10AUserManual

A,_ DTV / TV input PictuFe Rd3ustment

4,_.1 Pictume Mode

When the MENU button is pressed, the On Screen Display (OSD) appears on the PICTURE adjustment page. Press the _lkbutton to highlight

the Picture Mode selection.

Use the _1 or I_1 button to choose from Custom, Standard, Movie and Game.

If Standard, Movie or Game is chosen for the Picture Mode, then the only Picture Adjustments

available for you are for the Backlight and Advanced Video; the rest are preset.

4°2o_ 8aokUqht

Press the _ button to highlight the Backlight selection.

Press the _ button to start adjusting the brightness of the Backlight and the menu page will disappear and be replaced by a small Backlight Indicator Bar so you can see the light level between the minimum

and maximum available levels. Use the D or _ button to adjust the level.

The Backlight level does not affect the Brightness (black level) or Contrast (white level) of the picture, it adjusts the lamp current and this affects the overall brilliance of the picture.

Version 3/13/2007 30

www.VlZlO.com

VlZtOVX32LHDTVIOAUserManual

4 so3 Briqhtness

Press the _ button to highlight the Brightness selection. Press theObutton to start adjusting the brightness and the menu page will disappear and be replaced by

a small Brightness Indicator Bar so you can see the brightness level between the minimum and maximum available levels. Use the D or _ button to adjust the level.

The Brightness adjusts the black levels in the picture. If the brightness is too low you will not be able to see the detail in darker parts of the picture and if the brightness is too high the picture will look washed

out.

4°so4 Eontrast

Press the _ button to highlight the Contrast selection. Press the _ button to start adjusting the contrast and the menu page will disappear and be replaced by a

small Contrast Indicator Bar so you can see the contrast level between the minimum and maximum available levels. Use the D or I11 button to adjust the level.

The Contrast adjusts the white levels in the picture, tf the contrast is too low the picture will look washed out and if the contrast is too high you will not be able to see any detail in the bright parts of a picture.

4°2°S [oLor

Press the _ button to highlight the Color selection. Press the_ button to start adjusting the color and the menu page will disappear and be replaced by a

small Color Indicator Bar so you can see the color level between the minimum and maximum available levels. Use the D or _ button to adjust the level.

The Color adjusts the amount of color in the picture.

4.s,6 Tinb

Press the _ button to highlight the Tint selection. Press the_button to start adjusting the tint and the menu page will disappear and be replaced by a small

Tint Indicator Bar so you can see the tint adjustment to the left or right of the nominal position. Use the _1 or O button to adjust the level.

The Tint adjusts the hue of the picture. The easiest way to set tint is to look at flesh tones and adjust for a realistic appearance. In most cases, the default middle position is correct. If people's faces look too

orange try reducing the level of color first as the case of this is often too much color

Version 3/13/2007 31

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

4.2,7 Sharpness

Pressthe_ buttontohighlighttheSharpnessselection. PresstheObutton tostartadjustingthesharpnessand themenu page willdisappearand be replacedby

a smallSharpness IndicatorBar so you can see thesharpnesslevelbetween theminimum and maximum availablelevels.Use the D or O buttonto adjustthelevel.

The Sharpness adjusts the sharpness of the picture.

CoLor Temperatore

Press the _ button to highlight the option for Color Temperature selection.

The default is COOL; this is the 9300K setting. Press the D or _ button if you want to choose

the Normal or Custom option.

If you choose the Custom option, then a new menu will be displayed showing the primary color

items, Red, Green and Blue. Press the_ button to highlight the color you wish to adjust.

Press the _button to start adjusting the color and the menu page will disappear and be replaced by

a small Color (Red, Green or Blue) Indicator Bar as before. Use the _1 or _ button to adjust the

color. Press the OK button when finished. Repeat the

procedure to adjust the other colors if desired.

Version 3/13/2007 32

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

4.m.q Rdvanoed Video

Press the _ button to highlight the option for Advanced Video selection and press the OK button. A new menu will be displayed showing the

advanced functions available for fine tuning of the picture.

DNR

Press the _ button to highlight DNR (Dynamic Noise Reduction). Use this feature to diminish

picture artifacts caused by the digitizing of image motion content that may be present in the picture.

Press the _ or _1 button to choose from the Low, Medium or Strong setting.

Black Level Extender

Press the _ button to highlight Black Level Extender. Use this feature to increase the picture reproduction performance

On or Off.

in the dark areas of the picture. Press the _ or _ button to turn this feature

Off,

White Peak Limiter

Press the _ button to highlight White Peak Limiter. Use this feature to limit excessive white in bright areas of the picture, caused by a lower sync level for a channel being received from the antenna or cable.

Press the D or _ button to turn this feature On or Off.

CTI

Press the _button to highlight CTI (Color Transient Improvement). This feature can be used to reduce the time taken to transition from one color to another. The effect will be seen as sharpening the border

between colors. Press the D or _ button to choose from the Off, Low, Medium or Strong setting.

Flesh Tone

Press the _ button to highlight Flesh Tone. In some cases, activation of this feature can result in a more pleasing production of sky and flesh color. Press the D or _ button to turn this feature On or Off.

Adaptive Luma

Press the _ button to highlight Adaptive Luma. Large areas of darkness in a picture will result in a lower Average Picture Level (APL) and the overall 3icture will look too dark; activation of this feature will

raise the APL to counteract this effect. Press the or _ button to turn this feature On or Off.

DCR (Dynamic Contrast Ratio)

Press the _ button to highlight DCR= Turnin_g on this feature can improve the contrast (see section

4.2.4 Contrast) of the picture. Press the _1 or O button to turn this feature On or Off.

Version 3/13/2007 33

www.VIZIO.com

VlZlO VX32L HDTV10A User Manual

4,3 DTV / TV Input Rudio Rd]ustment

4,3°i Votome

When the MENU button is pressed, the On Screen Display (OSD) appears on the PICTURE adjustment page. Press the _ button to display

the AUDIO ADJUST page.

Press the _, button to highlight the Volume selection. Press the O button to start adjusting the volume and the menu page will disappear and be replaced by a

small Volume Indicator Bar so you can see the volume level between the zero and maximum available levels. Use the D or O button to adjust the level.

The Volume Indicator Bar will also appear when watching a program on your TV is the Volume button on the remote or the side of the TV is pressed.

Ao3,2 Bass

Press the _ button to highlight the Bass selection. Press the_ button to start adjusting the bass and the menu page will disappear and be replaced by a

small Bass Indicator Bar, as before, so you can see the bass level between the zero and maximum available levels. Use the D or _ button to adjust for bass boost or attenuation.

4-3,3 TFebte

Press the _ button to highlight the Treble selection. Press the_ button to start adjusting the treble and the menu page will disappear and be replaced by a

small Treble Indicator Bar, as before, so you can see the treble level between the zero and maximum available levels. Use the _ or _ button to adjust for treble boost or attenuation.

Ao3,A 8atamoe

Press the _ button to highlight the Balance selection. Press the O button to start adjusting the balance and the menu page will disappear and be replaced by a

small Balance Indicator Bar, as before, so you can see the balance adjustment to the left or right of the nominal position. Use the D or _ button to adjust the left/right balance.

Version 3/13/2007 34

www.VlZlO.com

VlZtOVX32LHDTVIOAUserManual

4- 3, $ Surround

Press the _ button to highlight the Surround selection. Press the _ button to select for the simulated surround sound feature to be On or Off.

4°3,6 Speakers

Press the _ button to highlight the Speakers selection. Press the O button to turn the internal speakers On or Off. You may want to turn-off the internal

speakers when listening to the audio through your Home Theatre System.

4,4 DTU / TU Tuner Setup

When you first used your VX32L you will have setup your TV for DTV / TV channels using the Initial Setup screens. If you did not do this or if your setup has changed, you can do this from the TV TUNER

SETUP menu.

4,4.z Tuner Mode

When the MENU button is pressed, the On Screen Display (OSD) appears on the PICTURE

adjustment page. Press the _button to display the TV page.

Press the _ button to highlight the Tuner Mode selection.

Press the _i button to choose Cable or Air (Antenna) depending upon which equipment you have attached to the DTV / TV Input.

4.4,2 Auto Search

Press the _ button to highlight the Auto Search selection.

Press the _I button to Auto Search for TV channels available. The TV will automatically

search for analog and digital channels.

4-4-3 Skip Ehannel

After the TV has stored all of the available DTV channels in memory you will find that some channels will be too weak to watch comfortably or they may be channels you do not want to see. Select the channel

wish to remove, press the MENU and _ buttons to open the TV TUNER SETUP menu and thenyou press the_ button to highlight SKIP CHANNEL. Press theObutton to select this channel to be skipped when using the CH+ or CH- button. You will still be able to select this channel using the number buttons on the remote control.

Version 3/13/2007 35

www.VlZlO.com

VlZlOVX32LHDTVIOAUserManual

4°4,4 Time Zone

Setting the correct Time Zone for your area will ensure that the correct program times are shown

after pressing the GUIDE button on the remote control.

Press the I_ button to highlight the Auto Search selection.

Press the _ button to select

4,4°S DavUqhb Sawimq

As for Time Zone, setting the daylight saving time for your area will ensure that the correct program times are shown after pressing the GUIDE button on the remote control. Press the _ button to highlight

the Daylight Saving selection. Press the _ button to select On or Off.

4-5 DTV / TV Input Setup

4,S.Z LanGuaGe

When the MENU button is pressed, the On Screen Display (OSD) appears on the PICTURE

adjustment page. Press the I11 button until the SETUP page is displayed.

your

area.

Press the am button to highlight the Language selection. The default is English.

Press the @ button to select Fran£ais or Espafiol.

4°S,a Sleep Timer

Press the _ button to highlight the Sleep Timer selection. Press the _ button to select the timer

to turn-off the TV in 30, 60, 90 or 120 minutes.

4,5-3 Ana[oq Closed Capbion

When watching regular analog (NTSC) TV, the Analog CC feature is available in the Setup menu. Press the _ button to highlight the Analog CC selection.

Press the @ button to select CC1, CC2, CC3 or CC4. Closed Caption for regular TV is usually CCl or CC2.

4,5-4 Diqiba[ Closed Capbion

When watching DTV, the Digital CC feature is available in the Setup menu. Press the _ button to highlight the Digital CC selection.

Press the _ button to select Service 1.

Version 3/13/2007 36

www.VlZlO.com

4,SOS Diqits[ Closed Csptiom StV_oe

When selecting Digital Closed Caption you are also able to customize the look of the Closed

Caption. Press the _ button to highlight the Digital CC

Style selection. The default is Broadcast which means the style is the same as the broadcast

channel has chosen for transmission. Press the _ button to select Custom.

The Custom page allows you to change the font size and color, the background color, and the

transparency of the Closed Caption.

4.8,6 Rese_ RLL Se_ioqs

Press the _ button to highlight the Reset All Settings selection.

Press the _ button to reset the TV to the default factory settings.

Note: This does NOT reset the Parental Control Password.

VlZtOVX32LHDTV10AUserManual

Version 3/13/2007 37

www.VlZlO.com

VlZlOVX32LHDTV10AUserManual

4,5 OTY / TY Input Parental Control

4°6,1 Channel Block

If you want to restrict certain channel and program viewing, you can do this by turning on the Parental Control. Selected programs, movies and channels can then be made available only after an authorized

password has been entered and accepted by the TV.

When the MENU button is pressed, the On Screen Display (OSD) appears on the PICTURE

adjustment page. Press the _button to display the PARENTAL page.

The Password must be entered before the TV will continue with Parental settings. The default

password set in the factory is 0 0 0 0. If you are going to use the Parental Control feature you

should change the password.

Press the _ button to highlight the Channel Block selection.

Press the _ button to turn it on or off.

Version 3/13/2007 38

www.VlZlO.com

4.6.2 TV Ratinq

Follow the procedure in the previous section 4.6.1 to display the Parental Control menu and then

press the t_ button to highlight the TV Rating selection.

Press the _ button and the Block TV Rating panel will be displayed.

In the Block TV Rating panel you can customize the program blocking of the following TV ratings:

Y - All children Y7 - Older children

G - General audience PG - Guidance suggested

14 - Strongly cautioned

MA - Mature audience

You can also customize the TV ratings for the following content:

A - Sexual dialog D - Sexual dialog

L - Adult language S - Sexual situations

V - Violence FV - Fantasy violence

VlZtOVX32LHDTV10AUserManual

Press the _ or i_ button to navigate through the TV rating options. Press the _ button to block (locked) or allow (unlocked).

4.8,3 Movie Ratinq

Press the _ button to highlight the Movie Rating selection. Press the 0 button and the Block Movie Rating panel will be

In the Block Movie Rating panel you can customize the program blocking of the following

Movie ratings:

G - General audience

PG - Parental guidance suggested

PG-13 - Recommended for children 13 years of

age or older

R - Mature audience

NC-17 - No one under 17 years of age

X - No one under 17 years of age

Press the _ or _ button to navigate through the Movie rating options. Press the _ button to block (locked) or allow (unlocked).

Version 3/13/2007 39

www.VlZlO.com

displayed.

4°6°4 Blocked Unrated Proqramminq

Follow the procedure in the previous section 4.6.1 to display the Parental Control menu and then

press the _lb button to highlight the Block Unrated TV selection.

Press the a button to turn-on or turn-off the blocking of programming that does not have a rating.

4_6_5 Chanqe the Password

Press the _lh button to highlight the Access Code Edit selection.

Press the _ button and the new Password panel will be displayed.

Enter the new, 4-digit password using the number buttons on the remote. Enter it a second time to

confirm you entered it correctly.

VtZtOVX32LHDTV10AUserManual

Version 3/13/2007 4O

www.VlZlO.com

4°7 HDM_ input mioture Rdoustment

The Picture Adjust menu operates in the same way for the HDMI Input as for the DTV / TV input

in section 4.2. The menu difference is that there is no icon along the top for DTV / TV or Parental

Control adjustments.

4.8 HDM_ input Rudio Rd]ustment

VlZtOVX32LHDTV10AUserManual

The Audio Adjust menu operates in the same way for the HDMI Input as for the DTV / TV input in

section 4.3. The menu difference is that there is no icon along the top for DTV / TV or Parental

Control adjustments.

4-q HDM_ input Setup

The Setup menu operates in the same way for the HDMI Input as for the TV input in section 4.4. The

menu difference is that there is no icon along the top for DTV / TV or Parental Control adjustments.

Version 3/13/2007 41

www.VlZlO.com

4,so Video Input Piobure Ad]ustment

The Picture Adjust menu operates in the same way for Video Inputs (Component and AV) as for

the DTV / TV input in section 4.2. The menu difference is that there is no icon along the top for

DTV / TV adjustments.

4.11 Video Input Audio Ad]ustment

VlZlOVX32LHDTV10AUserManual

The Audio Adjust menu operates in the same way for Video Inputs (Component and AV) as for the

DTV / TV input in section 4.3. The menu difference is that there is no icon along the top for

DTV / TV adjustments.

4.s_ Video Input Setup

The Setup menu operates in the same way for Video Inputs (Component and AV) as for the TV

input in section 4.4. The menu difference is that there is no icon along the top for TV adjustments.

Version 3/13/2007 42

www.VlZlO.com

4,13 Video Input Parentat [ontrot

The Parental Control menu operates in the same way for Video Inputs (Component and AV) as for

the DTV / TV input in section 4.6. The menu difference is that there is no icon along the top for

DTV / TV adjustments.

4.14 PC Input Picture Ad]ustment

The Picture Adjust menu operates in the same way for the PC Input as for the DTV / TV input in

section 4.2 for Backlight, Contrast, Brightness and Color Temperature.

VtZtOVX32LHDTV10AUserManual

401401 Roto Rdoosb

When the MENU button is pressed, the On Screen Display (OSD) appears on the PICTURE

adjustment page. Press the l_button to highlight the Auto Adjust selection.

Press the _ button for the LCD HDTV to adjust to the PC signal timing automatically.

4o14o_ 88okUqhb

Press the _ button to highlight the Backlight selection. Press the @ button to start adjusting the brightness of the Backlight and the menu page will disappear

and be replaced by a small Backlight Indicator Bar so you can see the light level between the minimum and maximum available levels. Use the D or _ button to adjust the level.

The Backlight level does not affect the Brightness (black level) or Contrast (white level) of the picture, it adjusts the lamp current and this affects the overall brilliance of the picture.

4o1403 8Fiqhtness

Press the _ button to highlight the Brightness selection. Press the@button to start adjusting the brightness and the menu page will disappear and be replaced by

a small Brightness Indicator Bar so you can see the brightness level between the minimum and maximum available levels. Use the D or _ button to adjust the level.

Version 3/13/2007 43

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

TheBrightnessadjuststheblacklevelsinthepicture.Ifthebrightnessistoolowyouwillnotbeableto seethedetailindarkerpartsofthepictureandifthebrightnessistoohighthepicturewilllookwashed

out.

4°14 4 Contrast

Press the _ button to highlight the Contrast selection. Press the O button to start adjusting the contrast and the menu page will disappear and be replaced by a

small Contrast Indicator Bar so you can see the contrast level between the minimum and maximum available levels. Use the _1 or _ button to adjust the level.

4.14.5 CoLor Temperature

Press the _ button to highlight the option for Color Temperature selection.

The default is COOL; this is the 9300K setting. Press the D or _ button if you want to choose

the Normal or Custom option.

If you choose the Custom option, then a new menu will be displayed showing the primary color

items, Red, Green and Blue. Press the _ button to highlight the color you wish to adjust.

Press the _button to start adjusting the color and the menu page will disappear and be replaced by

a small Color (Red, .._GreenA°rBlue) Indicator Bar as before. Use the _ or q button to adjust the

color. Press the OK button when finished. Repeat the

procedure to adjust the other colors if desired.

Version 3/13/2007 44

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

4.14.6 H°SmZE

Press the _ button to highlight the H-Size selection. Press theObutton to start adjusting the horizontal size of the picture. Use the D or O button to adjust

the horizontal size.

4.14°7 H. Posibion

Press the _ button to highlight the Horizontal Shift selection. Press the_ button to start adjusting the horizontal position of the picture. Use the D or

adjust the horizontal position.

4o14o8 Vo Posibioo

Pressthe_ buttontohighlighttheVerticalShiftselection.

Press the _I button to start adjusting the vertical position of the picture. Use the _1 or O button to adjust the vertical position.

4o14oq Fine Tome

Press the _ button to highlight the Fine Tune selection. Press the _Ibutton to start tuning the to the PC signal. Use the D or O button to adjust the tuning.

button to

4.1S PC Input Audio Adoustment

The Audio Adjust menu operates in the same way for the PC Input as for the DTV / TV input in

section 4.3. The menu difference is that there are no icons along the top for DTV / TV and Parental

Control adjustments.

A.IS PC Inpub Setup

The Setup menu operates in the same way for the PC Input as for the DTV / TV input in section 4.4.

The menu difference is that there is no icon along the top for TV adjustments and no Closed Caption.

Version 3/13/2007 45

www.VlZlO.com

4,17 Understandinq Wiewinq Features

VlZlOVX32LHDTV10AUserManual

Your HDTV features four viewing modes and Picture-In-Picture (PIP) mode. modes using the remote control.

4STS Wiewinq Modes

Normal Mode The original 4:3 aspect ratio (1.33:1 source) is preserved, so black bars are

added to the left and right of the display image. Standard TV broadcasts are displayed with a 4:3 Aspect Ratio. Movies in 4:3 Aspect Ratio may be referred

to as pan-and-scan or full frame. These movies were originally filmed in 16:9 (widescreen), and then modified to fit a traditional TV screen (4:3).

Wide Mode

When watching a standard broadcast or full-frame movie in this mode, the display image is stretched proportionately to fill the TV screen.

When watching a widescreen (1.78:1 source) program or movie, the display image fills the TV screen, tf you are watching a widescreen

(1.85:1 or 2.35:1 source) program or movie, there will still be black bars at the top and bottom.

When watching a standard definition 4:3 aspect ratio (1.33:1 source) the picture will fill the screen but will be stretched horizontally; people

will look fatter than they are.

You can switch viewing

Zoom Mode When watching a widescreen (1.78:1, 1.85:1, or 2.35:1 source)

program or movie, the display image is zoomed proportionally to fill the width of the screen. The top and bottom are cut off to remove most of

the source material's black bars. This mode is good for programs or movies with sub-titles.

Panoramic Mode

When watching a standard broadcast or full frame movie in this mode, the 4:3 Aspect Ratio (1.33:1 source) display image is stretched

horizontally on the left and right sides to fill the TV screen. The center of the image is not stretched.

Version 3/13/2007 46

www.VIZlO.com

VlZtO VX32L HDTV10A User Manual

4.17._ Pictureolnopicture{PIP] Mode

Your TV features PIP mode so you can watch two pictures at the same time. When PIP is turned on, you can display two pictures at one time. One picture is displayed as the full screen (main screen) and the

other picture is displayed in a small window (sub screen). The sub-screen can be set to small, medium or large.

See below for detailed information regarding the PIP sources.

DTV / TV ,/ ,/ ,/ AV "/ "/ "/

Component ./ ./ ./ RGB ,/ ,/ ,/

HDMI ,/ ,/ ,/ ,/

"¢" - Indicates which inputs are available for PIP mode. *When HDMt is used for the Sub-Screen it cannot support 1080i.

4.17.3 Ad]ustinq Basic PMP Settinqs

The PIP channel is independent of the main TV channel. To change the PIP channel, press the PIP CH + or - button

on the remote control.

Repeated pressing of the PIP button will turn on, turn off the PIP mode.

Repeated pressing of the PIP INPUT button will cycle through

the inputs for PIP. This button has no effect when PIP is off.

Press the PIP SIZE button to alternate between Small, Medium and Large PIP sizes.

You can swap the program that is in the main picture with the program in the PIP sub-picture. To swap the main picture program with the PIP sub-picture program, press SWAP on the remote control. If you

press SWAP again, it will return the program to the main picture.

Version 3/13/2007 47

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

4o174 Sebbinq the Sleep Timer

The Sleep Timer lets you set a time delay to turn off the LCD HDTV automatically. To set the Sleep Timer using the remote control:

1. Press the SLEEP button on the remote control. The Sleep Timer appears in the center of you screen.

2. Press the SLEEP button one or more times to select the time you want. The choices are 30, 60, 90 or 120 minutes.

To turn off the sleep time using the remote control, press the SLEEP button repeatedly until Off appears on the screen.

4°18 Usinq 8 Csbte or SstetUbe Remote

Your VlZtO remote uses codes 11758 and 10178 to work your LCD HDTV. To use a cable or satellite remote to work the LCD HDTV, refer to your cable or satellite remote user guide for more information on

how to program the remote. If your cable or satellite remote uses a 5-digit code (like most Direct TV units), first try 11758 and then, if that does not work, 10178. If your cable or satellite remote uses a 4- digit code, try 1758 and then 0178 as an alternative. If your cable or satellite remote uses a 3-digit code

(Echostar or Dish Network for example), use code 627. Note: SoY_e b_lons may/so Iuncior as expeced o_ youl cabe ol saeite remoe Typicay powe_

voumea_dmuewi wok.

Chapter S Maimbemamoe and TroubLeshootinq

S°i Mainbenanoe

1. Make sure that the power cable is removed from the socket before cleaning the TV.

2. Do not use volatile solvent (such as toluene, rosin and alcohol) to clean the TV. Such chemicals may damage the housing, screen glass and remote control, and cause paint to

peel.

C[eaninq the Housinq and Remote Control

1. Use the VlZlO soft cloth (included) for cleaning.

2. tf the housing or remote control is seriously contaminated, use a soft cloth moistened with diluted neutral cleaner to clean the display. Wring water out of the cloth before cleaning to

prevent water from penetrating into the housing. Wipe the display with a dry cloth after cleaning.

E[eaninq the Screen

Use the VlZtO soft cotton cloth (included) to gently clean the screen.

The screen glass is very fragile. Do not scrape it with any sharp object. Do not press or tap the screen to avoid cracking. When the screen is seriously contaminated, use a soft cloth

moistened with diluted neutral cleaner to clean the display. Wring water out of the cloth before cleaning to prevent water from penetrating into the housing. Wipe the display with a

dry cloth after cleaning.

Version 3/13/2007 48

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

TroubLeshoobinq Guide

If the TV fails or the performance changes dramatically, check the display in accordance with the following instructions. Remember to check the peripherals to pinpoint the source of the failure. If the

display still fails to perform as expected, contact the VlZtO for assistance by calling 1-(949) 428-2525 or e-mail us at techsupport(_,vinc.com.

No power. Make sure the power button is ON (White VlZlO Logo).

Make sure AC power cord is securely connected to the AC socket. Plug another electrical device (like a radio) to the power outlet to verify that the

outlet is supplying the proper voltage.

No sound. Check your audio connection

Press MUTE on the remote control, so that mute symbol disappears from the screen

Check your audio settings, your TV audio may be set to SAP, min or speakers off

Press the Volume + (Up) key on your remote control

Make sure that headphones are not connected If the screen is black. Check your input connections. Power is ON but no screen Make sure the video cable supplied with the TV is secured to the correct video

image, output port on the back of the VCR and the TV. Make any cable you have attached

to the TV is secured to the correct output your Set-Top Box, DVD, etc. Adjust brightness and contrast.

Check Source settings.

Wrong or abnormal colors If any colors (red, green, or blue) are missing, check the video cable to make sure it appear, is securely connected.

Control buttons do not work. Press only one button at a time. Remote Control does not Make sure batteries are inserted correctly

work. Batteries could be weak.

There appears to be image For best image quality, view HD wide screen programs where possible. If HD quality issues, content is not available view "Standard Definition" from a digital source. Standard,

analog TV will always be noticeably inferior to HD because your digital flat panel TV has video that is many times better than old TV's and so you can see interference

and deficiencies you did not know you had.

You cannot see a picture. Make sure that the power cord is plugged into a grounded electrical outlet.

Make sure that the power button is turned on.

Make sure that the selected input source is connected to a working input source.

If your TV is connected to your computer in RGB or HDMI mode, press any key on

your keyboard to "wake" your computer.

You see a distorted picture or You may be getting interference from electrical appliances, cars, motorcycles, or hear unusual sound, fluorescent lights. If you have not mounted it on the wall, try moving your TV to

another location to see if this is the cause of the problem.

The picture has abnormal Make sure that the input source cable is attached securely and correctly to the back patterns, of your TV.

Make sure that the video input source is within the range of your TV. Compare the

video input source's specifications with your TV specifications.

The display image does not If you are using RGB mode, make sure that H Size and V Position in the On Screen cover the entire screen. Display (OSD) are set correctly.

Version 3/13/2007 49

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

If you are using TV, AV-C, AV-S or Component with 480i input, use the WIDE button

on the remote control to scroll through various screen modes.

You can see a picture but you cannot hear sound.

The TV has pixels that are always dark or colored.

You see "noise" or "trash" on the screen.

You switch to a different input and the volume changes.

You switch to a different input The TV remembers the viewing mode from the last time you used a particular input and the screen size changes. (AV, Component, HDMI and TV).

Tips for High-Definition Users. The LCD HDTV is an ideal platform for viewing High Definition Content.

Make sure that the volume is not turned down.

Make sure that the sound is not muted.

Make sure that your audio input source cables are connected securely and correctly.

Your LCD HDTV is manufactured using an extremely high level of precision technology, however, sometimes some pixels of your LCD HDTV may not display.

Pixel defects within industry specifications are inherent to this type of product and do

not constitute a defective product. When your LCD HDTV's digital capabilities exceed a digital broadcast signal, the

signal is up-converted (increased) to match your TV's display capabilities. Up- converting can cause noise or trash.

The TV remembers the volume level from the last time you adjusted it. If the sound level is higher or lower from another source, then the loudness will change.

Best image Quality will be achieved by the HDMI input, then YPbPr, then RGB.

However, due to variances in broadcast practices, it is possible some image

distortions can occur.

Tips for Letterbox Content Letterboxed (or "Widescreen") versions of DVD movies are most commonly Users. formatted for standard 4:3 Televisions. The LCD HDTV has the capability of

expanding this content so the entire screen is filled at the expense of image accuracy. To use this function, press the "ZOOM" key on the remote control and

cycle among the available options.

So3 Tetephome Techmiosl Suppor

Products are often returned due to a technical problem rather than a defective product that may result in unnecessary shipping charges billed to you. Our trained support personnel can often resolve the problem

over the phone. For more information on warranty service or repair, after the warranty period, please contact our Support Department at the number below.

Customer support and quality service are integral parts of VtZtO's commitment to service excellence. For technical assistance contact our VlZtO Technical Support Department via email or phone.

E-mail: techsupport@vinc.com

Tel: (949) 428-2525

Hours of operations:

6:00am - 6:00pm PST Monday - Friday

10:00am - 2:00pm PST Saturday - Sunday

Please have your VlZlO model number, serial number and date of purchase available before you call.

39 Tesla, trvine, CA 92618

Tel: (714)428-2525 Fax: (949)585-9514

Web: wwwoW_Z_Oooom

Version 3/13/2007 5O

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

S04 CompUanoe

Caution: Always use a power cable that is properly grounded. Please use the AC cords listed below for each area.

USA UL Canada CSA

Germany VDE UK BASE/BS

Japan Electric Appliance Control Act

S°S FCC Crass B Radio Interference Sbabemenb

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Notice:

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such

interference.

Version 3/13/2007 51

www.VlZlO.com

VlZlOVX32LHDTV10AUserManual

Ehapter 8 MisceLtaneous Information

5.1 Specifiications

Panel 32" Diagonal, 16:9 Aspect Ratio Resolution 1366 x 768 pixels Pixel (Dot) Pitch 0.51075mm (H) x 0.51075mm (V) Display Compatibility HDTV (720P)

Signal Compatibility 480i (SDTV), 480P (EDTV), 720P (HDTV), 1080i (HDTV) Colors 16.77 Million (8-bit)

Brightness 500 cd/m 2 (typical)

Contrast 1200:1 (typical) Response Time 8mS (typical) Viewing Angle Up to 178 ° (horizontal and vertical)

Inputs lx Co-axial RF (ATSC/QAMtNTSC), 2x HDMI TM with HDCP (plus lx Stereo Audio RCA for

DVl source), 2x Component YPbPr plus Stereo Audio, lx RGB PC plus Stereo Audio, lx S-

Video (AVl) plus Stereo Audio, 2x Composite Video (AVl & AV2) Outputs lx SPDIF Optical Digital Audio (from digital TV only), lx Analog Audio Features PIP, Noise Reduction, CC, V-Chip, 3D Comb Filter, Zoom, Freeze, Motion Adaptive De-

Interlace, Picture Enhancement, MPEG-2 Decoding via DTV input, NTSC Video decoding via

Video (Composite, S-Video or Component), Progressive Scan Video via HDMI TM, Component

or RGB, HDTV via HDMI TM, Component (Set-Top Box required), Computer 640x480,

800x600, 1024x768, 1366x768 via RGB, Sound Enhancement Speakers Built-in, 10W x 2 Panel Life 60,000 hours to half the original brightness

Input Voltage Range

Power Consumption

Operating Non-Operating

Dimensions Net Weight Gross Weight

Certifications

100 ~ 240Vac at 50/60Hz 180 W max.

Temperature: 5°C~35°C, Relative Humidity: 20~80%, Altitude: 0~14,000 ft

Temperature: -20°C~50°C, Relative Humidity: 10~90%, Altitude: 0~40,000 ft

31.4" W x 23.3" H x 8.6" D with stand; 31.4" W x 22.1" H x 3.9" D without stand

32 Ibs with stand, 30.7 Ibs without stand

41.6 Ibs

UL, C-UL, FCC Class B

*Product specifications may change without notice or obligation.

Version 3/13/2007 52

www.VlZlO.com

VlZlOVX32LHDTV10AUserManual

5,s G[ossarv - Standard Oefiinitions

Analog TV: Today's TV system using radio frequency waves to transmit and display pictures and sound. Aspect Ratio (4x3): Traditional TV "aspect ratio", that is, the screen's width as compared to its height.

For example, a "32 inch TV screen" would be 25 inches wide and 19 inches tall. Aspect Ratio (16x9): "Wide screen TV" aspect ratio which is more like a movie screen than a traditional

TV. For example, a "32 inch TV screen" would be 28 inches wide and 16 inches tall. Digital TV (DTV): Television delivered and displayed using radio frequency waves that contain

information that is digitally encoded for improved quality and efficiency. Enhanced Definition TV (EDTV): A better digital television transmission than SDTV with at least 480P,

in a 16x9 or 4x3 display and Dolby digital surround sound. 480P is the quality used by most DVD players. EDTV provides 300-400,000 pixels.

HDTV Monitor (sometimes called HDTV Ready): A set that can display HDTV programming if you have a separate HDTV tuner, HD Cable Set-Top Box or HD Satellite Set-Top-Box Receiver.

HDTV Tuner (also decoder, receiver, set-top box): A device capable of receiving and outputting HDTV signals for display, tt may be stand-alone or integrated in the set.

High-Definition Television (HDTV): The best quality picture, wide screen (16x9) display with at least 720 progressively scanned lines (720P) or 1080 interlaced lines (1080i) and Dolby digital surround sound.

HDTV provides 900,000-2.1 million pixels. Integrated HDTV" An HDTV that has the digital tuner built into the set. It does not need a separate set-

top box to receive over-the-air DTV signals. Interlace Scan: A way to scan vertical lines onto a TV picture by scanning all the odd lines first, then

filling the in the even lines (this happens instantaneously). Plug-and-Play or Digital Cable Ready: A DTV or other device for digital cable consumers that plugs

directly into the cable jack and does not require a separate set-top box. Plug-and-Play TV owners must obtain a CableCARD from their cable company in order to view scrambled programming services.

Progressive Scan: A way to scan vertical lines onto a TV picture by scanning all the lines consecutively (progressively).

Standard Definition TV (SDTV): Basic digital television transmission that may be displayed with fewer than 480 progressively scanned lines (480P) in 16 x 9 or 4 x 3 format. 480 interlaced (480i) is the quality

of today's analog TV system.

Soulce: Buying a Digital Te evisio_ CEA HDTV Guide 2005

Note: The Fede_a Comma ficaions Commission (FCC} he Consumer Eiecrorlics Associaion (CEA) and tie Consumer Eec _onics Re ai e_s Coa ilion (CERC) have made a _ew ip steel avai abe For digila

teevisio_ (DTV} elaiers o epoduce arid disAbue o cons Jmers on the sales oor T_e ie may be downoadedoninea www.dtv.qov Whieyou_e kere checkou teoher .aseI'u/ir_ormaioni_ltleFCC

ismakirsgavaiable oconsumesineresedinlearrffsgmoeabou learaloytodigilal _ansilio_.

Version 3/13/2007 53

www.VlZlO.com

3 index

Accessories, 4 Adjustments

Closed Caption, 11 Selecting the Screen Size, 27, 46, 53

Selecting the Screen Size, 11 Stepping through TV Channels, 27 Volume, 8, 27, 49

Advanced Video Features

Adaptive Luma, 33 Black Level Extender, 33

CTI (Color Transient Improvement, 33 DNR (Dynamic Noise Reduction, 33

Flesh Tone, 33 White Peak Limiter, 33

Cleaning your VIZIO TV, 48 Coax (RF)

Connecting for DTV, 14 Connecting your Basic Set Top Box, 18

Component

Connecting your DVD Player, 20 Connecting your HDTV Set-Top Box, 17

Composite (AV)

Connecting your Basic Set-Top Box, 18 Connecting your DVD Player, 21

Controls

Front Panel, 8 Side Panel, 8

DTV

Audio Adjustment, 34 Parental Control, 38 Picture Adjustment, 30

Special Features, 36 Tuner Setup, 35

DTV Audio Adjust

Balance, 34 Bass, 34

Simulated Sun'ound Sound, 35 Speakers On/Oft; 35

Treble, 34 Volume, 34

DTV Picture Adjust

Advanced Video, 33 Backlight, 30, 43

Brightness, 31, 43 Color, 31

Color Temperature, 32, 44 Contrast, 31, 44

Picture Mode, 30 Sharpness, 32

VlZtOVX32LHDTV10AUserManual

Tint, 31

DTV Special Features

Closed Caption, 36 Closed Caption Style, 37

Language, 36 Reset, 37

Sleep Timer, 36

DTV Tuner Setup

Auto Search, 35 Daylight Saving, 36

Skip Channel, 35 Time Zone, 36 Tuner Mode, 35

DVI

Connecting your DVD Player, 19 Connecting your HDTV Set-Top Box, 16

Glossary, 53

HDMI

Connecting your DVD Player, 19 Connecting your HDTV Set-Top Box, 15

HDMI Input

Audio Adjustment, 41 Picture Adjustment, 41

Setup, 41

Inputs

Antenna, 3 Connectors, 13

Rear Label, 9

Installation

Base removal, 5 Preparation, 5 Safety Instructions, 2

Wall Mounting, 5, 24

OSD

Brightness Adjustment, 52 Closed Caption Selection, 11

Color Adjustment, 13 Contrast Adjustment, 52

Parental Control

Block Unrated Programming, 40 Channel Block, 38 Movie Rating, 39

Version 3/13/2007

www.VlZlO.com

VlZtOVX32LHDTV10AUserManual

Password change, 40 TV Rating, 39

PC Input

Audio Adjustment, 45 Picture Adjustment, 43 Setup, 45

PC Picture Adjust

Auto Adjust, 43 Fine Tune, 45 Horizontal Position, 45 Horizontal Size, 45

Vertical Position, 45

PC Resolutions, 23 PIP and POP Inputs, 47

Remote

Batteries, 12 Layout, 10, 12 Range, 12

Remote Control

Setting the Sleep Timer, 48 Using your Cable or Satellite Remote to Operate your

VIZIO TV, 48

RGB

Connecting your PC, 22

Screen Size explanation, 46 S-Video

Connecting your DVD Player, 21 Connecting your VCR, 22

Connecting your Video Camera, 22

Technical Specifications, 52 Troubleshooting Guide, 49

Audio Adjustment, 34 Parental Control, 38

Picture Adjustment, 30 Special Features, 36

TV Audio Adjust

Balance, 34 Bass, 34

Simulated Sun'ound Sound, 35 Speakers OniOfi; 35

Treble, 34 Volume, 34

TV Picture Adjust

Advanced Video, 33 Backlight, 30, 43

Brightness, 31, 43 Color, 31

Color Temperature, 32, 44 Contrast, 31, 44 Picture Mode, 30

Sharpness, 32 Tint, 31

TV Special Features

Closed Caption, 36 Language, 36 Reset, 37

Sleep Timer, 36

TV Tuner Setup, 35

Auto Search, 35 Skip Channel, 35

Tuner Mode, 35

Video Input

Audio Adjustment, 42 Parental Control, 43

Picture Adjustment, 42 Setup, 42

Watching TV

Basic Adjustments, 27 Basic connections, 24

First Startup, 24 Getting your Programs, 27 Program Infonnation, 28 Status Infomlation, 28

Version 3/13/2007 55

www.VlZlO.com

Vizio VX32L User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
