Vizio VSB211Z User Manual

VIZIO

QUICK START GUIDE

Model: VSB211Z

IMPORTANT SAFETY INFORMATION

Your Sound Bar System is designed and manufactured to operate within deﬁned design limits, and misuse may result in electric shock or ﬁre. To prevent your Sound Bar System from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Sound Bar System. Keep these instructions in a safe place for future reference. Please heed all warnings and follow all instructions.

• To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your Sound Bar System.

• When moving your Sound Bar System from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your Sound Bar System to avoid causing ﬁre, electric shock, or component damage.

• Never push any object into the slots and openings on your Sound Bar System enclosure. Do not place any objects on the top of your Sound Bar System. Doing so could short circuit parts causing a ﬁre or electric shock. Never spill liquids on your Sound Bar System.

• Your Sound Bar System should be operated only from the type of power source indicated on the label on the AC/DC Adapters. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

• Only power of the marked voltage can be used for your Sound Bar System. Any other voltage than the speciﬁed voltage may cause ﬁre or electric shock

• The power cord must be replaced when using different voltage than the voltage speciﬁed. For more information, contact your dealer.

• Do not defeat the safety purpose of the grounded plug.

• When connected to a power outlet, power is always ﬂowing into your Sound Bar System. To totally disconnect power, unplug the power cord.

• The lightning ﬂash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-isolated, dangerous voltage within your Sound Bar System that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons.

• The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying your Sound Bar System.

• Do not overload power strips and extension cords. Overloading can result in ﬁre or electric shock.

• The wall socket should be located near your Sound Bar System and be easily accessible

• Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.

• Do not attempt to repair or service Sound Bar System yourself. Opening or removing the front cover may expose you to high voltages, electric shock, and other hazards. If repair is required, contact your dealer and refer all servicing to qualiﬁed service personnel.

• Keep your Sound Bar System away from moisture. Do not expose your Sound Bar System to rain or moisture. If water penetrates into your Sound Bar System, unplug the power cord and contact your dealer. Continuous use in this case may result in ﬁre or electric shock.

• Do not use your Sound Bar System if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not tr y to repair your Sound Bar System yourself.

• Avoid using dropped or damaged appliances. If your Sound Bar System is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your Sound Bar System may cause ﬁre or electric shock.

• Do not install your Sound Bar System in an area with heavy dust or high humidity. Operating your Sound Bar System in environments with heavy dust or high humidity may cause ﬁre or electric shock.

• Ensure that the power cord and any other cables are unplugged before moving your Sound Bar System.

• When unplugging your Sound Bar System, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause ﬁre or electric shock. When your Sound Bar System will not be used for an extended period of time, unplug the power cord.

• To reduce risk of electric shock, do not touch the connector with wet hands.

• Insert the remote control battery in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote control or injure the operator.

• If any of the following occurs, contact the dealer:

- The power cord fails or frays

- Liquid sprays or any object drops into your Sound Bar System

- Sound Bar System is exposed to rain or other moisture

- Sound Bar System is dropped or damaged in any way

- The performance of your Sound Bar System changes substantially

• Unplug the power cord before cleaning your Sound Bar System. Clean only with dry cloth. Do not use a liquid or a spray cleaner on your Sound Bar System. Do not use abrasive cleaners.

• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Sound Bar System and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your Sound Bar System in a bookcase or cabinet unless proper ventilation is provided.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

• Your Sound Bar System AC/DC Adapters are equipped with a three-pronged grounded plug (a plug with a third grounding pin). This plug will ﬁt only into a grounded power outlet. This is a safety feature. If your outlet does not accommodate the three-pronged, have an electrician install the correct outlet, or use an adapter to ground your Sound Bar System safely.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories speciﬁed by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualiﬁed service personal. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• To reduce the risk of ﬁre or electric shock, do not expose this apparatus to rain or moisture.

• The Apparatus shall not be exposed to dripping or splashing and that no objects ﬁlled with liquids, such as vases, shall be placed on the apparatus.

• The main plug is used as the disconnect device, the disconnect device shall remain readily operable.

• CAUTION - Danger of explosion or ﬁre if battery is mistreated. Replace only with the same or speciﬁed type.

• Do not leave the battery exposed to direct sunlight for a long period of time with doors and windows closed.

• Do not disassemble the battery or dispose of it in ﬁre.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

PACKAGE CONTENTS

32” Home Theater Sound Bar

Power Adapter and Cables

Included cables may vary slightly in appearance from those shown.

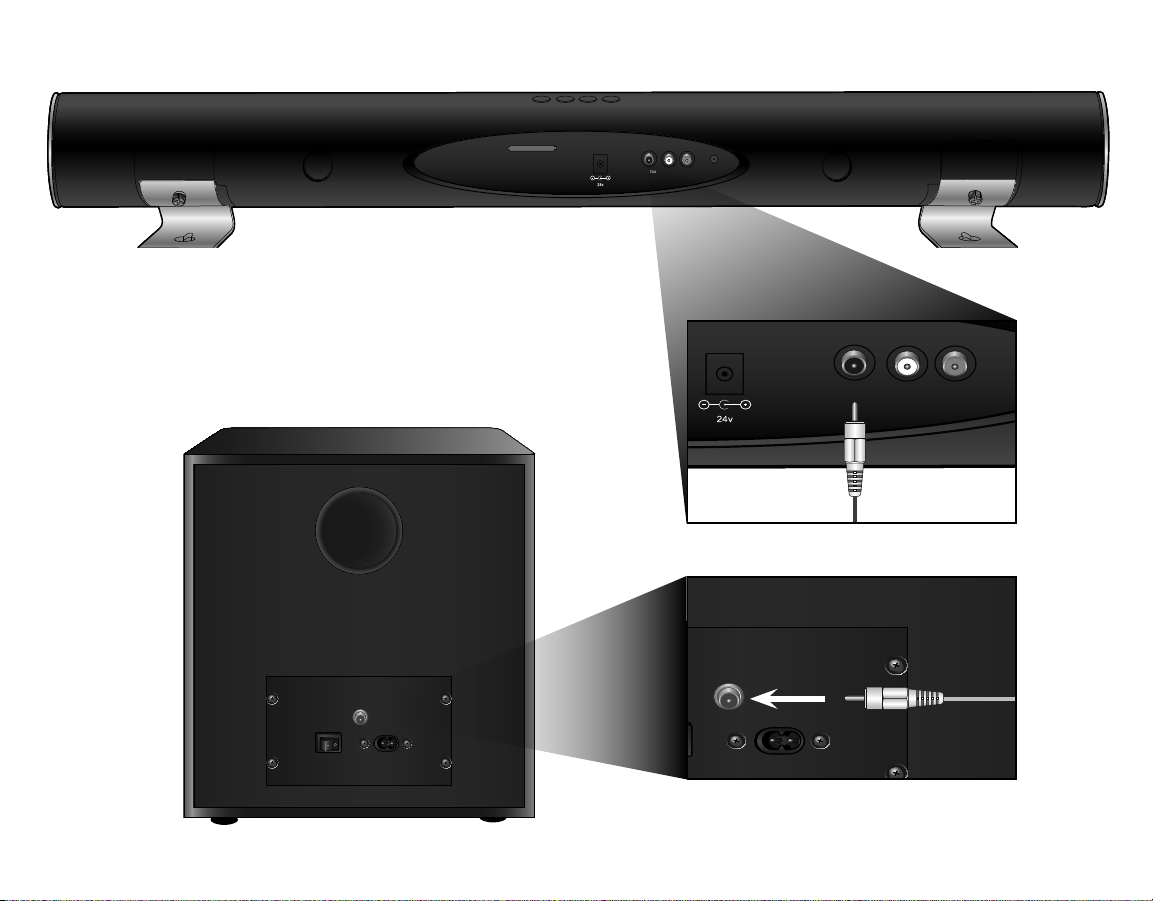

Subwoofer Cable

Subwoofer

Stereo RCA to 3.5mm

Audio Cable

Sub -

Sub +

Input

SRS

Remote Control with BatteryThis Quick Start Guide

CONTROLS & CONNECTIONS

Power

Press to turn Sound

Bar on or off.

Input

Press to change input

source (Input 1, Input 2).

SERVICE

Input Vol -Vol +

SERVICE

Sub Out

Input 1 Input 2

Sub Out

Volume Up

Press to increase system volume.

Volume Down

Press to decrease system volume.

Input 1 Input 2

Power Port Sub OutService Port

Input 1

(Stereo RCA)

Input 2

(3.5mm Stereo)

FIRST-TIME SETUP

BACK OF YOUR TV*

AUDIO OUT

Connect the included Stereo RCA to 3.5mm

Cable to ONE TV audio output as shown.

AUDIO OUT

CHOOSE ONE

BACK OF SOUND BAR

SERVICE

Sub Out

*Not all TVs have the audio outputs shown above. To connect the Sound Bar directly to your other devices (Blu-ray player, game system, etc) see your device’s user manual.

Input 1 Input 2

Sub Out

SERVICE

BACK OF SOUND BAR

Input 1 Input 2

Sub Out

Connect the included power adapter from

the sound bar to a power outlet as shown.

3 4
