Vizio E320VP User Manual

VIZIO E320VP User Manual

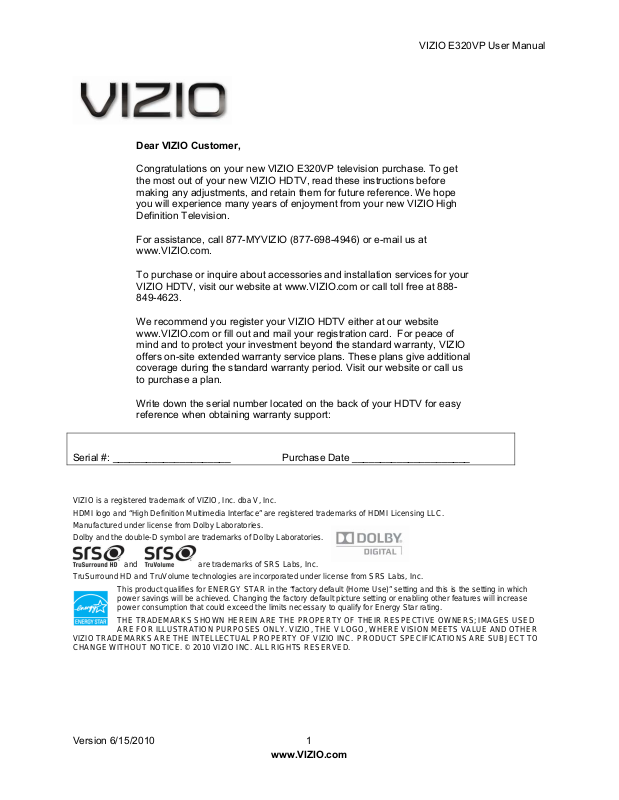

Dear VIZIO Customer,

Congratulations on your new VIZIO E320VP television purchase. To get
the most out of your new VIZIO HDTV, read these instructions before
making any adjustments, and retain them for future reference. We hope
you will experience many years of enjoyment from your new VIZIO High
Definition Television.

For assistance, call 877-MYVIZIO (877-698-4946) or e-mail us at
www.VIZIO.com.

To purchase or inquire about accessories and installation services for your
VIZIO HDTV, visit our website at www.VIZIO.com or call toll free at 888­849-4623.

We recommend you register your VIZIO HDTV either at our website
www.VIZIO.com or fill out and mail your registration card. For peace of
mind and to protect your investment beyond the standard warranty, VIZIO
offers on-site extended warranty service plans. These plans give additional
coverage during the standard warranty period. Visit our website or call us
to purchase a plan.

Write down the serial number located on the back of your HDTV for easy
reference when obtaining warranty support:

Serial #: _____________________ Purchase Date _____________________

VIZIO is a registered trademark of VIZIO, Inc. dba V, Inc.
HDMI logo and “High Definition Multimedia Interface” are registered trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.

and are trademarks of SRS Labs, Inc.

TruSurround HD and TruVolume technologies are incorporated under license from SRS Labs, Inc.

This product qualifies for ENERGY STAR in the “factory default (Home Use)” setting and this is the setting in which
power savings will be achieved. Changing the factory default picture setting or enabling other features will increase
power consumption that could exceed the limits necessary to qualify for Energy Star rating.

THE TRADEMARKS SHOWN HEREIN ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS; IMAGES USED

VIZIO TRADEMARKS ARE THE INTELLECTUAL PROPERTY OF VIZIO INC. PRODUCT SPECIFICATIONS ARE SUBJECT TO
CHANGE WITHOUT NOTICE. © 2010 VIZIO INC. ALL RIGHTS RESERVED.

ARE FOR ILLUSTRATION PURPOSES ONLY. VIZIO, THE V LOGO, WHERE VISION MEETS VALUE AND OTHER

Version 6/15/2010 1

www.VIZIO.com

VIZIO E320VP User Manual

Important Safety Instructions

Your HDTV is designed and manufactured to operate within defined design limits. Misuse may
result in electric shock or fire. To prevent your HDTV from being damaged, the following rules
should be observed for the installation, use, and maintenance of your HDTV. Read the following
safety instructions before operating your HDTV. Keep these instructions in a safe place for future
reference.

Warning:

1. To reduce the risk of electric shock or component damage, switch off the power before connecting
other components to your HDTV.

2. Unplug the power cord before cleaning your HDTV. A damp cloth is sufficient for cleaning your HDTV.
Do not use a liquid or a spray cleaner for cleaning your HDTV. Do not use abrasive cleaners.

3. Always use the accessories recommended by the manufacturer to insure compatibility.

4. When moving your HDTV from an area of low temperature to an area of high
temperature, condensation may form in the housing. Wait before turning on your
HDTV to avoid causing fire, electric shock, or component damage.

5. Use only with the cart, stand, tripod, bracket, or table specified by manufacturer or
sold with your HDTV. When a cart is used, use caution when moving the
cart/HDTV combination to avoid injury from tip-over. Do not place your HDTV on
an unstable cart, stand, or table. If your HDTV falls, it can injure a person and cause serious damage
to your HDTV. Use only a cart or stand recommended by the manufacturer or sold with your HDTV.

6. A distance of at least three feet should be maintained between your HDTV and any heat source, such
as a radiator, heater, oven, amplifier etc. Do not install your HDTV close to smoke. Operating your
HDTV close to smoke or moisture may cause fire or electric shock.

7. Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure
reliable operation of your HDTV and to protect it from overheating, be sure these openings are not
blocked or covered. Do not place your HDTV in a bookcase or cabinet unless proper ventilation is
provided.

8. Never push any object into the slots and openings on your HDTV cabinet. Do not place any objects
on the top of your HDTV. Doing so could short circuit parts causing a fire or electric shock. Never spill
liquids on your HDTV.

9. Your HDTV should be operated only from the type of power source indicated on the label. If you are
not sure of the type of power supplied to your home, consult your dealer or local power company.

10. Do not apply pressure or throw objects at your HDTV. This may compromise the integrity of the
display. The manufacturer’s warranty does not cover user abuse or improper installations.

11. The power cord must be replaced when using different voltage than the voltage specified. For more
information, contact your dealer.

12. Your HDTV is equipped with a three-pronged grounded plug (a plug with a third grounding pin).
This plug will fit only into a grounded power outlet. This is a safety feature. If your outlet does not
accommodate the three-pronged, have an electrician install the correct outlet, or use an adapter to
ground your HDTV safely. Do not defeat the safety purpose of the grounded plug.

13. When connected to a power outlet, power is always flowing into your HDTV. To totally disconnect
power, unplug the power cord.

14. The lightning flash with arrowhead symbol within an equilateral triangle is intended
to alert the user to the presence of un-isolated, dangerous voltage within the inside
of your HDTV that may be of sufficient magnitude to constitute a risk
of electric shock to persons.

15. The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and servicing instructions in the
literature accompanying your HDTV.

16. Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

17. The wall socket should be installed near your HDTV and easily accessible.

18. Only power of the marked voltage can be used for your HDTV. Any other voltage than the specified
voltage may cause fire or electric shock

2

www.VIZIO.com

VIZIO E320VP User Manual

19. Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord
during electrical storms.

20. Unplug your HDTV during a lightning storm or when it will not be used for long period of time. This will
protect your HDTV from damage due to power surges.

21. Do not attempt to repair or service your HDTV yourself. Opening or removing the back cover may
expose you to high voltages, electric shock, and other hazards. If repair is required, contact your
dealer and refer all servicing to qualified service personnel.

22. Keep your HDTV away from moisture. Do not expose your HDTV to rain or moisture. If water
penetrates into your HDTV, unplug the power cord and contact your dealer. Continuous use in this
case may result in fire or electric shock.

23. Do not use your HDTV if any abnormality occurs. If any smoke or odor becomes apparent, unplug the
power cord and contact your dealer immediately. Do not try to repair your HDTV yourself.

24. Avoid using dropped or damaged appliances. If your HDTV is dropped and the housing is damaged,
the internal components may function abnormally. Unplug the power cord immediately and contact
your dealer for repair. Continued use of your HDTV may cause fire or electric shock.

25. Do not install your HDTV in an area with heavy dust or high humidity. Operating your HDTV in
environments with heavy dust or high humidity may cause fire or electric shock.

26. Follow instructions for moving your HDTV. Ensure that the power cord and any other cables are
unplugged before moving your HDTV.

27. When unplugging your HDTV, hold the power plug, not the cord. Pulling on the power cord may
damage the wires inside the cord and cause fire or electric shock. When your HDTV will not be used
for an extended period of time, unplug the power cord.

28. To reduce risk of electric shock, do not touch the connector with wet hands.

29. Insert batteries in accordance with instructions. Incorrect polarities may cause the batteries to leak
which can damage the remote control or injure the operator.

30. If any of the following occurs, contact the dealer:

o The power cord fails or frays.
o Liquid sprays or any object drops into your HDTV.
o Your HDTV is exposed to rain or other moisture.
o Your HDTV is dropped or damaged in any way.
o The performance of your HDTV changes substantially.

Version 6/15/2010 3

www.VIZIO.com

VIZIO E320VP User Manual

Television Antenna Connection Protection

External Television Antenna Grounding

If an outside antenna/satellite dish or cable system is to be connected to the TV, make sure that the
antenna or cable system is electrically grounded to provide some protection against voltage surges and
static charges.

Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides information with regard to proper
grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge
unit, size of the grounding conductors, location of antenna discharge unit, connection to grounding
electrodes, and requirements of the grounding electrode.

Lightning Protection

For added protection of the TV during
a lightning storm or when it is left
unattended or unused for long periods
of time, unplug the TV from the wall
outlet and disconnect the antenna or
cable system.

Power Lines

Do not locate the antenna near
overhead light or power circuits, or
where it could fall into such power
lines or circuits.

Remember, the screen of the coaxial cable is intended to be connected to earth in the building
installation.

4

www.VIZIO.com

VIZIO E320VP User Manual

Advisory of the DTV Transition

The nationwide switch to digital television broadcasting will be complete on June 12, 2009, but your local
television stations may switch sooner. After the switch, analog-only television sets that receive TV
programming through an antenna will need a converter box to continue to receive over-the-air TV. Watch
your local stations to find out when they will turn off their analog signal and switch to digital-only
broadcasting. Analog-only TVs should continue to work as before to receive low power, Class A or
translator television stations and with cable and satellite TV services, gaming consoles, VCRs, DVD
players, and similar products.

For additional information, contact the parties listed below, as appropriate:

FCC (US Federal Communications Commission)
http://www.fcc.gov/
Phone: 1-888-CALL-FCC (1-888-225-5322)
TTY: 1-888-TELL-FCC (1-888-835-5322)
Fax: [phone]
E-mail: [e-mail]

NTIA (National Telecommunications and Information Administration)
http://www.ntia.doc.gov/
1-888-DTV-2009

Listings of US Television Stations
http://www.high-techproductions.com/usTVstations.htm

Note: Your VIZIO HDTV is capable of receiving Digital Broadcasts, and no Digital Converter Box is

required.

Version 6/15/2010 5

www.VIZIO.com

VIZIO E320VP User Manual

Table of Contents

Important Safety Instructions..................................................................................................................... 2

Television Antenna Connection Protection ...............................................................................................4

Advisory of the DTV Transition.................................................................................................................. 5

CHAPTER 1 SETTING UP YOUR HDTV................................................................................... 10

Finding a Location for Your HDTV ..........................................................................................................10

Attaching the TV Stand............................................................................................................................10

Wall Mounting your HDTV....................................................................................................................... 11

CHAPTER 2 BASIC CONTROLS AND CONNECTIONS.......................................................... 12

Front Panel ..............................................................................................................................................12

Side Button Controls................................................................................................................................12

Rear Panel Connection ........................................................................................................................... 13

Side Panel Connections ..........................................................................................................................13

CHAPTER 3 VIZIO REMOTE CONTROL .................................................................................. 14

Installing the Batteries .............................................................................................................................14

Remote Control Range............................................................................................................................ 14

VIZIO Remote Control Precautions.........................................................................................................14

Remote Control Buttons ..........................................................................................................................15

CHAPTER 4 GETTING STARTED............................................................................................. 16

CHAPTER 5 USING YOUR HDTV FOR THE FIRST TIME .......................................................17

Select Input Source ................................................................................................................................. 17

Watching a TV Program ..........................................................................................................................17

Viewing Digital TV Program Information ................................................................................................. 18

CHAPTER 6 CONNECTING EQUIPMENT ................................................................................ 19

Which Video Connection Should I Use? .................................................................................................19

Connecting Your Cable/Satellite Box ......................................................................................................20

Using HDMI (Best) ............................................................................................................................... 20

HDMI Connections for Cable or Satellite Boxes with DVI ...................................................................20

Using Component Video (Better) Using Component Video (Better) ...................................................21

Using Composite (AV) Video (Good)...................................................................................................21

Using Coaxial (Antenna) (Good).......................................................................................................... 22

Connecting Your DVD Player.................................................................................................................. 22

Using HDMI (Best) ............................................................................................................................... 22

HDMI Connections for DVD Players with DVI .....................................................................................23

Using Component Video (Better).........................................................................................................23

Using Composite (AV) Video (Good)...................................................................................................24

Connecting Coaxial (RF) .........................................................................................................................24

Using Your Antenna or Digital Cable for Standard or Digital TV .........................................................24

Connecting Your VCR or Video Camera................................................................................................. 25

Connecting a Home Theater System ...................................................................................................... 25

Connecting a Computer...........................................................................................................................26

RGB (VGA) .......................................................................................................................................... 26

Using HDMI.......................................................................................................................................... 26

CHAPTER 7 VIEWING PICTURES............................................................................................ 27

Viewing Pictures ...................................................................................................................................... 27

Adjusting Photo Settings .........................................................................................................................27

Adjusting Photo Settings .........................................................................................................................28

6

www.VIZIO.com

VIZIO E320VP User Manual

Slideshow Mode................................................................................................................................... 28

Repeat..................................................................................................................................................28

Sort By .................................................................................................................................................28

Duration ...............................................................................................................................................28

Slideshow Effect ..................................................................................................................................28

Thumbnail Size .................................................................................................................................... 28

Info ....................................................................................................................................................... 28

CHAPTER 8 ADJUSTING YOUR HDTV SETTINGS.................................................................29

Using the On-screen Display (OSD) .......................................................................................................29

Input Menu............................................................................................................................................... 29

Wide Menu ..............................................................................................................................................30

Normal..................................................................................................................................................30

Wide..................................................................................................................................................... 30

Panoramic............................................................................................................................................ 30

Stretch.................................................................................................................................................. 30

CC (Closed Caption) Menu ..................................................................................................................... 30

Adjust closed caption options. ................................................................................................................. 30

Analog Closed Caption ........................................................................................................................ 30

Digital Closed Caption .........................................................................................................................30

Digital CC Style.................................................................................................................................... 31

Sleep Timer Menu ...................................................................................................................................31

Picture Menu ...........................................................................................................................................31

Picture Mode........................................................................................................................................ 31

Backlight ..............................................................................................................................................31

Brightness ............................................................................................................................................31

Contrast ...............................................................................................................................................31

Color.....................................................................................................................................................31

Tint .......................................................................................................................................................32

Sharpness............................................................................................................................................ 32

More..................................................................................................................................................... 32

Audio Menu .............................................................................................................................................33

Audio Mode.......................................................................................................................................... 33

Balance ................................................................................................................................................33

Lip Sync ...............................................................................................................................................33

TV Speakers ........................................................................................................................................ 34

Advanced Audio................................................................................................................................... 34

Equalizer Settings ................................................................................................................................ 34

Reset Audio Mode ...............................................................................................................................34

Settings Menu.......................................................................................................................................... 35

Tuner.................................................................................................................................................... 35

Name Input ..........................................................................................................................................36

Parental Controls .................................................................................................................................36

Menu Language ................................................................................................................................... 38

Time & Local Settings .......................................................................................................................... 38

CEC......................................................................................................................................................39

Media Menu............................................................................................................................................. 39

Slideshow Mode................................................................................................................................... 39

Repeat..................................................................................................................................................39

Sort By .................................................................................................................................................39

Duration ...............................................................................................................................................40

Slideshow Effect ..................................................................................................................................40

Thumbnail Size .................................................................................................................................... 40

Info ....................................................................................................................................................... 40

Version 6/15/2010 7

www.VIZIO.com

VIZIO E320VP User Manual

CHAPTER 9 MAINTENANCE AND TROUBLESHOOTING......................................................40

Cleaning the TV and Remote Control .....................................................................................................40

Troubleshooting Guide ............................................................................................................................41

TV/Display Troubleshooting................................................................................................................. 41

Audio Troubleshooting......................................................................................................................... 43

Remote Control Troubleshooting......................................................................................................... 44

Telephone & Technical Support .............................................................................................................. 44

CHAPTER 10 SPECIFICATIONS ..............................................................................................45

E320VP Specifications ............................................................................................................................ 45

Compliance.............................................................................................................................................. 46

FCC Class B Radio Interference Statement ...........................................................................................46

Preset PC Resolutions ............................................................................................................................ 47

Resolution through RGB Input ................................................................................................................47

WARRANTY ...............................................................................................................................48

INDEX .........................................................................................................................................49

8

www.VIZIO.com

VIZIO E320VP User Manual

Opening the Package

Your HDTV and its accompanying accessories are carefully packed in a cardboard carton that has been
designed to protect it from transportation damage. After you have opened the carton, check that your
HDTV is in good condition and that all of the contents are included.

The screen can easily be scratched or broken, so handle your HDTV gently and never place your HDTV
with the glass facing downwards on a surface without protective padding.

IMPORTANT: Save the carton and packing material for future shipping.

Package Contents

 VIZIO E320VP
 VIZIO remote control VR15
 AA batteries for the remote control (2)
 AC/DC power adapter
 Detachable base
 This user manual
 Quick Setup Guide
 Registration Card

HDTV Accessories and Services

Additional certified accessories for your HDTV are
sold separately, including:

 Wall mounts
 High Definition cables
 Extra or replacement remote controls
 Sound Bars
 Blu-ray DVD Players

VIZIO also offers installation services and extended warranty services for your HDTV. To purchase or
inquire about additional accessories and services for your VIZIO HDTV, visit our website at
www.VIZIO.com or call us toll free at 877-MYVIZIO (877-698-4946).

Caution: Do not apply pressure or throw objects at your HDTV (including game controllers).

This may compromise the integrity of the display. The manufacturer’s warranty does not cover
user abuse or improper installations.

Version 6/15/2010 9

www.VIZIO.com

VIZIO E320VP User Manual

Chapter 1 Setting Up Your HDTV

Finding a Location for Your HDTV

 The power consumption of your HDTV is about <51.5W (Avg).

o Use the included power cord.
o When an extension cord is required, use one with the correct power rating. The 3-pronged

cord must be grounded and the grounding feature (3

 Install your HDTV on a flat surface to avoid tipping.
 For proper ventilation, you must allow space between the back of your HDTV and the wall.
 Avoid installing your HDTV in places with high humidity, dust, or smoke so you do not shorten the

service life of the electronic components.

 Install your HDTV in a level, landscape orientation, with the VIZIO logo at the bottom to prevent

poor ventilation and excessive component damage.

 If you want to mount your HDTV on the wall, see below for additional information.
 Read this user manual carefully before installing your HDTV.

VIZIO offers professional installation services including home networking. Contact VIZIO for more
information on these services at 877-MYVIZIO (877-698-4946) or www.VIZIO.com.

Attaching the TV Stand

Note: We strongly recommend that two people perform the setup and assembly due to the weight and

size of the TV.

rd

prong) must not be compromised.

Unpack the TV and stand base

1. Remove the two top foam end caps.

2. Remove the stand base and accessory box from packaging.

3. Remove the TV from the box and lay it face down on a clean, padded, flat surface.

Note: Make sure that the surface is free of debris to prevent the TV screen from getting scratched.

Attach the TV stand base

1. Align the stand base to the stand neck already attached to the TV.

2. Slide the base on and tighten the thumb screw to secure.

10

www.VIZIO.com

VIZIO E320VP User Manual

Wall Mounting your HDTV

Your HDTV can be mounted on the wall for viewing. If you choose to mount your HDTV on the wall, follow
the instructions below.

1. Write down the serial number located on the back of your HDTV in the space provided on page 1 to
have it handy if you need to call for support.

2. Remove the stand base and neck:

a. Disconnect the cables from your HDTV.
b. Place your HDTV face down on a soft, flat

surface to prevent damage to the screen.
c. Remove the cover on the stand neck.
d. Remove the four (4) screws holding the stand

neck, and then remove the neck and base.

Note: To remove the base from the neck, unscrew the

thumbscrew on the bottom.

3. Mount your HDTV on the wall:
a. Attach your HDTV to a wall mount (sold

separately) using the mounting holes in the back
panel of your HDTV.

b. Read the instructions that came with your

specific wall mount to properly hang your HDTV.

Wall Mounting Specifications

Screw Size M4

Screw Length 12.0 mm

Screw Pitch 0.7 mm

Hole Pattern

VESA standard 100 x 100
mm spacing

Version 6/15/2010 11

www.VIZIO.com

VIZIO E320VP User Manual

Chapter 2 Basic Controls and Connections

Front Panel

Remote Control Sensor—Point the remote control directly at

this window on the lower left corner of your HDTV for the best
response to the remote signal.

Side Button Controls

POWER ( )—Turn your HDTV on by pressing the button once. Press the

button again to turn your HDTV off.

MENU—Press to launch the on-screen menu. If a sub-menu is active, this button
will proceed to the next level.

CH

these buttons function as up and down controls.

VOL

active, these buttons function as left and right controls.

INPUT (SELECT)—Press to cycle through the various devices connected to your
TV (called Inputs). The inputs cycle in the following sequence: TV, Comp/AV,
HDMI-1, HDMI-2, RGB, and Media. After you have stepped through the entire
sequence, you will return to the beginning. If a sub-menu is active, pressing this
button will return to the previous menu level. Additionally, when the menu is active,
this button confirms the menu function to be adjusted.

Note: When using an AV (composite) connection, the yellow cable needs to be

connected to the green jack on the side of your HDTV.

▲/▼—Press to change the channels up or down. While the menu is active,

+/- —Press to increase or decrease the speaker volume. While the menu is

12

www.VIZIO.com

Rear Panel Connection

1. USB—Service port for use by a professional service technician. Register

your HDTV to receive future product updates including upgrades for these
ports.

2. RGB PC—Connect the video and audio from a computer here. Connect a

1/8” mini plug stereo connector from the computer to your HDTV if you
want the sound to come from your HDTV speakers.

3. AUDIO OUT:

 HEADPHONE—Connect your headphones for personal listening.

 OPTICAL—When digital TV is selected for viewing, the audio

associated with the programming will be available on the S/PDIF
Optical connector for connection to a VIZIO Sound Bar or your home
theater system.

VIZIO E320VP User Manual

Side Panel Connections

1. HDMI 1 and 2—Connect digital video devices such as a DVD player
or Set-Top Box through this all digital connector.

2. COMPONENT (Y Pb/Cb Pr/Cr with L/R Audio)—

 Connect Component video devices such as a DVD Player or

Cable/Satellite box here.

 You can also connect Composite (AV) video devices such as

camcorders and VCRs here. Connect the yellow video cable to
the green Component Y jack and then connect the red and white
audio cables to the Component L/R jacks.

3. DTV/TV—Connect to an antenna or digital cable source. For digital
TV stations in your area visit www.antennaweb.org. For Cable and
Satellite boxes, we recommend that you use a HDMI cable
connection for high definition image quality.

Version 6/15/2010 13

www.VIZIO.com

VIZIO E320VP User Manual

Chapter 3 VIZIO Remote Control

Installing the Batteries

1. Remove the battery cover.

2. Insert two AA batteries into the remote control. Make sure that
you match the (+) and (-) symbols on the batteries with the (+)
and (-) symbols inside the battery compartment

3. Replace the battery cover.

Precautionary Tips for Inserting the Batteries:

 Only use AA batteries.

 Do not mix new and old batteries. This may result in cracking or leakage that may cause a fire or

lead to personal injury.

 Inserting the batteries incorrectly may also result in cracking or leakage that may cause a fire or

lead to personal injury.

 Dispose of batteries according to local hazardous waste regulations.

 Keep the batteries away from children and pets.

Remote Control Range

 Point the remote control directly at this sensor for the

best response to the remote signal.

 Do not place any obstacles between the remote control

and the remote control sensor.

 The effective range of the remote control is

approximately 22 feet (7 meters) from the front of the
remote control sensor, 30° to the left and right, 20° up
and down.

VIZIO Remote Control Precautions

 The remote control should be kept dry and away from heat sources. Avoid humidity.

 If your HDTV responds erratically to the remote control or does not respond at all, check the

batteries. If the batteries are low or exhausted, replace them with fresh batteries.

 When not using the remote control for a long period of time, remove the batteries.

 Do not take the batteries apart, heat them, or throw them into a fire.

 Do not subject the remote control to undue physical stress, such as striking or dropping it.

 Do not attempt to clean the remote control with a volatile solvent. Wipe it with a clean, damp cloth.

14

www.VIZIO.com

VIZIO E320VP User Manual

Remote Control Buttons

POWER ( )—Press to turn the TV on from the Standby mode. Press it

again to return to the Standby mode.

CEC-Supported Buttons:

CEC needs to be set up and enabled for these buttons to work. See CEC on

page 39 for more information.

● (Record)—Press to begin recording on your CEC-supported device.
(Pause)—Press to pause playback on your CEC-supported device.

► (Play)—Press to start Playback on your CEC-supported device.

■ (Stop)—Press to stop playback/recording on your CEC-supported

device.

(Previous)—Press to skip the previous track on your CEC-

supported device.

(Reverse)—Press to reverses playback on your CEC-supported

device.

(Fast Forward)—Press to fast forward playback on your CEC-

supported device.

(Next)—Press to skip to the next chapter on your CEC-supported

device.

EXIT—Press to exit from open menus.
MENU—Press to open the On-Screen Display (OSD) menu.
OK—Press this button to display the Channel List. Press to confirm

selections for On-Screen Display (OSD) menus.
Silver Diamond (represented by ▲▼◄ ► in the manual instructions)—

Pressing up, down, left, or right on the points of the diamond are used to
navigate the OSD menu. They will also be used as value settings when the
slide bar is shown on the screen and option settings to turn a feature off or on.

BACK—Press to return to a previous OSD menu.
GUIDE—Press to display detailed program information when viewing a digital

TV program.
Color Buttons (Yellow, Blue, Red, & Green)—These buttons currently do

not operate any functions on your HDTV.

VOL +/- —Press to turn the volume up or down.
MEDIA – Use this button to access the USB drive to view your pictures.
MUTE—Press to turn the sound on and off.
LAST— Press to recall the previously viewed channel.
CH +/- —Press to change the channels up or down
HDMI—Press to select the HDMI input. Press repeatedly to cycle between both HDMI inputs.
AV—Press to select the AV input.
TV—Press to select the TV input.
Number Button Pad—Press to select a channel or enter a password.
INPUT—Press to cycle through the various devices connected to your TV (called Inputs). The inputs

cycle in the following sequence: TV, Comp/AV, HDMI-1, HDMI-2, RGB, and Media. After you have
stepped through the entire sequence, you will return to the beginning.

- (DASH)—Press to insert a dash between the main and sub-channels. For example, channel 28-2 would
be selected by the button sequence 2, 8, DASH, 2.

Version 6/15/2010 15

www.VIZIO.com
