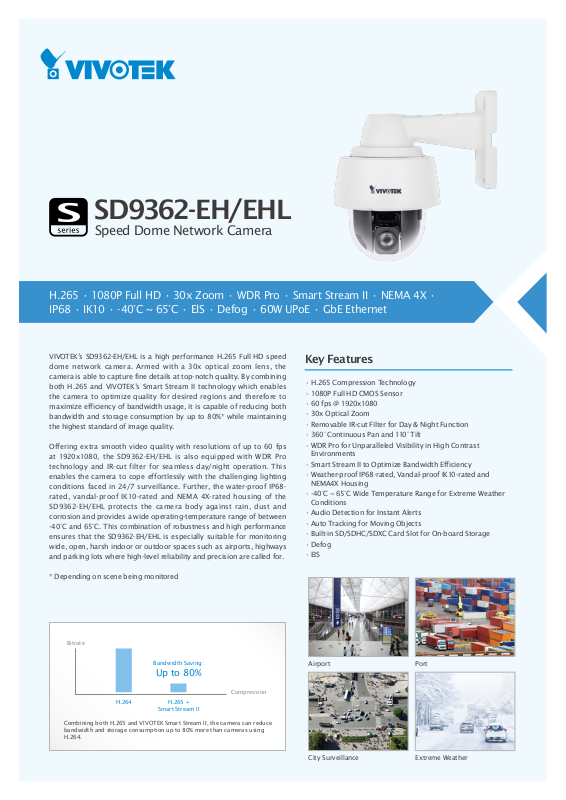

Vivotek SD9362-EHL Specsheet

SD9362-EH/EHL

Speed Dome Network Camera

H.265 • 1080P Full HD • 30x Zoom • WDR Pro • Smart Stream II • NEMA 4X •
IP68 • IK10 • -40°C ~ 65°C • ElS • Defog • 60W UPoE • GbE Ethernet

VIVOTEK’s SD9362-EH/EHL is a high performance H.265 Full HD speed
dome net work camera. Armed with a 30x optical zoom lens, the
camera is able to capture fine details at top-notch quality. By combining
both H.265 and VIVOTEK’s Smart Stream II technology which enables
the camera to optimize quality for desired regions and therefore to
maximize ef ficiency of bandwidth usage, it is capable of reducing both
bandwidth and storage consumption by up to 80%* while maintaining
the highest standard of image quality.

Offering extra smooth video quality with resolutions of up to 60 fps
at 1920x1080, the SD9362-EH/EHL is also equipped with WDR Pro
technology and IR-cut filter for seamless day/night operation. This
enables the camera to cope effortlessly with the challenging lighting
conditions faced in 24/7 surveillance. Further, the water-proof IP68­rated, vandal-proof IK10-rated and NEMA 4X-rated housing of the
SD9362-EH/EHL protects the camera body against rain, dust and
corrosion and provides a wide operating-temperature range of between

-40°C and 65°C. This combination of robustness and high performance
ensures that the SD9362-EH/EHL is especially suitable for monitoring
wide, open, harsh indoor or outdoor spaces such as airports, highways
and parking lots where high-level reliabilit y and precision are called for.

* Depending on scene being monitored

Key Features

• H.265 Compression Technology

• 1080P Full HD CMOS Sensor

• 60 fps @ 1920x1080

• 30x Optical Zoom

• Removable IR-cut Filter for Day & Night Function

• 360° Continuous Pan and 110° Tilt

• WDR Pro for Unparalleled Visibility in High Contrast
Environments

• Smart Stream II to Optimize Bandwidth Efficiency

• Weather-proof IP68-rated, Vandal-proof IK10-rated and
NEMA4X Housing

• -40°C ~ 65°C Wide Temperature Range for Extreme Weather
Conditions

• Audio Detection for Instant Alerts

• Auto Tracking for Moving Objects

• Built-in SD/SDHC/SDXC Card Slot for On-board Storage

• Defog

• EIS

Bitrate

Bandwidth Saving:

Up to 80%

Compression

H.264 H.265 +

Combining both H. 265 and VIVOTEK Smar t Strea m II, the camera c an redu ce
bandw idth an d storag e consumption up to 80 % more than cam eras using
H.264.

Smart Stream II

Airport

City Surveillance

Port

Extreme Weather

Technical Specifications

Model

SD9362-EH
SD9362-EHL

System Information

CPU Multime dia SoC (Syste m-on -Chip)

Flash 128 M B

RAM 512MB

Camera Features

Image Sensor

Maximum Resolution 1920x1080 (2MP)

Lens Type 30x Optica l Zoom, Auto Focus

Focal Len gth f= 4.3 ~ 129 mm

Aperture F1.6 ~ F4.7

Auto-iris DC-iris

Field of View

Shutte r Time

WDR Technology WDR Pro

Day/Night Removable IR-cut f ilter for day & night function

Minimum Illumination

Pan Speed 0.05° ~ 450°/sec.

Pan Range 360° endless

Tilt Spee d 0.05° ~ 450°/sec.

Tilt Rang e 11 0 °

Preset Locations 256 preset locati ons, 128 preset s per tour

Pan/Tilt/Zoom Functionalities

On-board Storage

SD9362-EH: 1/2.8" Progressive CMOS
SD9362-EHL: 1/3" Progressiv e CMOS

SD9362-EH:
2° ~ 64° (Horizonta l)
1° ~ 39° (Verti cal)
3° ~ 71° (Diagona l)
SD9362-EHL:
2° ~ 59° (Horizontal)
2° ~ 45° (Vert ical)
3° ~ 71° (Diagona l)

SD9362-EH: 1 sec. to 1/10,00 0 sec.
SD9362-EHL: 1/8 sec. to 1/30,000 sec.

SD9362-EH:

0.53 Lux @ F1.6 (Color)

0.01 Lux @ F1.6 (B/ W)
SD9362-EHL:

0.42 Lux @ F1.6 (Col or)

0.01 Lux @ F1.6 (B/ W)

SD9362-EH:
48x digital zoom (4x on IE plug-in, 12x built-in)
Auto pan mode
Auto patro l mode
SD9362-EHL:
128x digital zoom (4x on IE plug-in, 32x built-in)
Auto pan mode
Auto patro l mode

Slot type: SD/SDHC/SDXC ca rd slot
Seamless Recordin g

Video

Compression H.265, H.264, MJPEG

H.265 & H.264:

Maximum Frame Rate

Maximum Streams 4 simultaneous strea ms

S/N Ratio

Dynamic Range 100 dB

Video Streaming

Image Set tings

60 fps @ 1920x1080
MJPEG:
30 fps @ 1920x1080

SD9362-EH: 63 dB
SD9362-EHL: 53 dB

Adjusta ble resolution, quality and constant bit rate
control; Smart Stre am II

Time stamp, text overla y, flip & mirror; Conf igurable
brightness, contrast, saturation, sharpness,
white balance, exposure control, gain, back light
compens ation, pr ivac y masks (up to 24); Scheduled
profile settin gs, EIS, 3DNR , defog

Audio

Audio Capability Two-way Audio (Full duplex)

Compression G.711, G.726

Interface

External microphone input
External line output

Network

Users Live viewing for up to 10 clients

Protocols

Interface

ONVIF Suppor ted, specific ation availabl e at www.onvif.org

IPv4, IP v6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/
RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS,
PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP, ARP, SSL, TLS

10 Base-T/100 BaseTX/1000 BaseTX Ethernet (RJ -45)
*It is highly recommend ed to use standa rd CAT5e
& CAT6 cables which ar e compliant with the 3P/ETL
standard.

Intelligent Video

Video Motion Detection F ive- windo w video motion detec tion

Auto-Tracking Auto-t racking on moving object

Alarm and Event

Alarm Triggers

Alarm Events

Motion detection, manual trigger, digit al input,
perio dical trigger, system boot, recording
notification, audio detection

Event notification using digi tal output, HTT P, SMTP,
FTP, NAS server and SD Card
File uploa d via HTT P, SMTP, FTP, NAS serve r and SD
card

General

RJ-45 cabl e connector for Net work/PoE connection
Audio input

Connectors

LED Indicator Sy stem powe r and status indicator

Power Inpu t

Power Consumption Max. 48/26 W (Heater on/of f)

Dimensions Ø 162 x 221 mm

Weight 2.95 kg

Casing

Safety Certifications CE , FCC Class A, VCCI, C-tick, UL, NEMA 4X

Operating Temperature -40°C ~ 65°C (-40°F ~ 149°F)

Humidity 90%

Warranty 36 months

Audio output
24VDC / 24VAC power input
Digital input*4
Digital output *2
RS-485

24VDC
24VAC
60W UPoE

Weather-proof IP68-rate d, Vandal-proof IK10-rated,
and NEMA 4X-rated mated housing

System Requirements

Operating System Microsoft Windows 8/7/Vista/XP/2000

Web Browser

Other Players

Mozilla Firefox 7~43 (streaming only)
Internet Explorer 7/8/9/10/11

VLC: 1.1.11 or above
Quicktime: 7 or above

Included Accessories

CD

Others

User's manual, quick installation guide, Inst allati on
Wizard 2, VAST

Wall mount bra cket, screw s, waterp roof connector s,
quick insta llation guide,
alignment sticker, L-wrench, sof tware CD, desicca nt
bags, I/O combo cab le

Dimensions

Ø223 mm

221 mm

331 m m

355 mm
