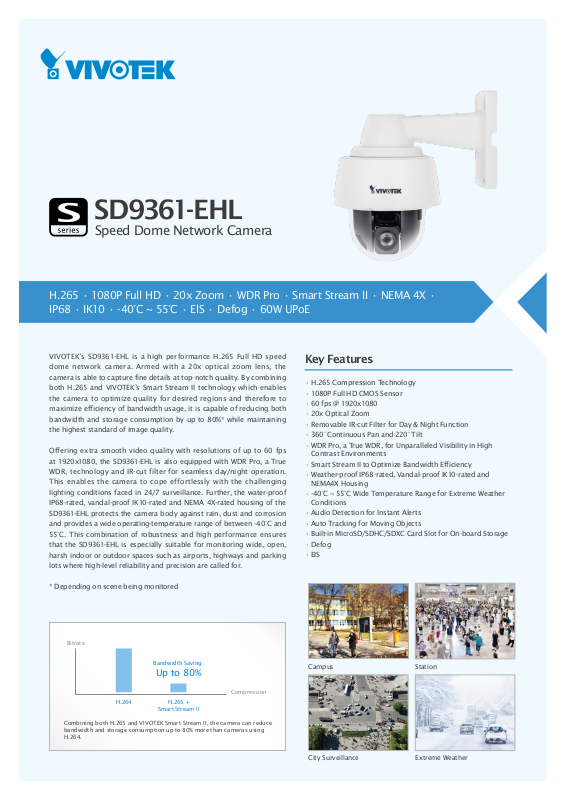

Vivotek SD9361-EHL Technical data

SD9361-EHL

Speed Dome Network Camera

H.265 • 1080P Full HD • 20x Zoom • WDR Pro • Smart Stream II • NEMA 4X •
IP68 • IK10 • -40°C ~ 55°C • ElS • Defog • 60W UPoE

VIVOTEK’s SD9361-EHL is a high performance H.265 Full HD speed
dome net work camera. Armed with a 20x optical zoom lens, the
camera is able to capture fine details at top-notch quality. By combining
both H.265 and VIVOTEK’s Smart Stream II technology which enables
the camera to optimize quality for desired regions and therefore to
maximize ef ficiency of bandwidth usage, it is capable of reducing both
bandwidth and storage consumption by up to 80%* while maintaining
the highest standard of image quality.

Offering extra smooth video quality with resolutions of up to 60 fps
at 1920x1080, the SD9361-EHL is also equipped with WDR Pro, a True
WDR, technology and IR-cut filter for seamless day/night operation.
This enables the camera to cope effortlessly with the challenging
lighting conditions faced in 24/7 surveillance. Further, the water-proof
IP68-rated, vandal-proof IK10-rated and NEMA 4X-rated housing of the
SD9361-EHL protects the camera body against rain, dust and corrosion
and provides a wide operating-temperature range of between -40°C and
55°C. This combination of robustness and high performance ensures
that the SD9361-EHL is especially suitable for monitoring wide, open,
harsh indoor or outdoor spaces such as airports, highways and parking
lots where high-level reliability and precision are called for.

* Depending on scene being monitored

Key Features

• H.265 Compression Technology

• 1080P Full HD CMOS Sensor

• 60 fps @ 1920x1080

• 20x Optical Zoom

• Removable IR-cut Filter for Day & Night Function

• 360° Continuous Pan and 220° Tilt

• WDR Pro, a True WDR, for Unparalleled Visibility in High
Contrast Environments

• Smart Stream II to Optimize Bandwidth Efficiency

• Weather-proof IP68-rated, Vandal-proof IK10-rated and
NEMA4X Housing

• -40°C ~ 55°C Wide Temperature Range for Extreme Weather
Conditions

• Audio Detection for Instant Alerts

• Auto Tracking for Moving Objects

• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage

• Defog

• EIS

Bitrate

Bandwidth Saving:

Up to 80%

Compression

H.264 H.265 +

Combining both H. 265 and VIVOTEK Smar t Strea m II, the camera c an redu ce
bandw idth an d storag e consumption up to 80 % more than cam eras using
H.264.

Smart Stream II

Campus

City Surveillance

Station

Extreme Weather

Technical Specifications

Model SD9361- EHL

System Information

CPU Multime dia SoC (Syste m-on -Chip)

Flash 128 M B

RAM 512MB

Camera Features

Image Sensor 1/3" Progressive CMO S

Maximum Resolution 1920x1080 (2MP)

Lens Type 20x Optical Zoom, Auto Focus

Focal Len gth f= 4.7 ~ 94 mm

Aperture F1.6 ~ F3.5

Auto-iris DC-iris

Field of View

Shutte r Time 1/8 sec. to 1/30,000 sec.

WDR Technology WDR Pro, True WDR

Day/Night Removable IR-cut f ilter for day & night function

Minimum Illumination

Pan Speed 0.05° ~ 450°/sec.

Pan Range 360° endless

Tilt Spee d 0.05° ~ 450°/sec.

Tilt Rang e 220° (-110° ~ +110°)

Preset Locations 256 preset locati ons, 128 preset s per tour

Pan/Tilt/Zoom Functionalities

On-board Storage

3° ~ 55° (Horizontal)
2° ~ 33° (Vertical )
3° ~ 63° (Diagonal)

0.26 Lux @ F1.6 (Color)

0.01 Lux @ F1.6 (B/ W)

128x digital zoom (4x on IE plug-in, 32x built-in)
Auto pan mode
Auto patro l mode

Slot type: MicroSD/SD HC/SDXC car d slot
Seamless Recordin g

Video

Compression H.265, H.264, MJPEG

Maximum Frame Rate

Maximum Streams 4 simultaneous strea ms

S/N Ratio 53 dB

Dynamic Range True WDR, 100 dB

Video Streaming

Image Set tings

H.265 & H.264: 60 fps @ 1920x1080
MJPEG: 30 fps @ 1920x1080

Adjusta ble resolution, quality and constant bit rate
control; Smart Stre am II

Time stamp, text overla y, flip & mirror; Conf igurable
brightness, contrast, saturation, sharpness,
white balance, exposure control, gain, back light
compens ation, pr ivac y masks (up to 24); Scheduled
profile settin gs, EIS, 3DNR , defog, HLC

Audio

Audio Capability Two-way Audio (Full duplex)

Compression G.711, G.726

Interface

External microphone input
External line output

Network

Users Live viewing for up to 10 clients

IPv4, IP v6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/

Protocols

RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS,
PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP, ICMP, ARP,
SSL, TLS

10 Base-T/100 BaseTX Ether net (RJ- 45)

Interface

ONVIF Support ed, specif icat ion avail able at www.onv if.org

*It is highly recommend ed to use standa rd CAT5e
& CAT6 cables which ar e compliant with the 3P/ETL
standard.

Intelligent Video

Video Motion Detection F ive- windo w video motion detec tion

Auto-Tracking Auto-t racking on moving object

Alarm and Event

Alarm Triggers

Alarm Events

Motion detection, manual trigger, digit al input,
perio dical trigger, system boot, recording
notification, audio detection

Event notification using digi tal output, HTT P, SMTP,
FTP, NAS server and SD Card
File uploa d via HTT P, SMTP, FTP, NAS serve r and SD
card

General

RJ-45 cabl e connector for Net work/PoE connection
Audio input

Connectors

LED Indicator System power and status indicator

Power Inpu t

Power Consumption Max. 48/26 W (Heater on/of f)

Dimensions Ø 162 x 221 mm

Weight 2.95 kg

Casing

Safety Certifications CE , FCC Class A, VCCI, C-tick, UL, NEMA 4X

Operating Temperature

Humidity 0 ~ 90%

Warranty 36 months

Audio output
DC 24V / AC 24V power inp ut
Digital input*4
Digital output *2
RS-485

DC 24V
AC 24V
60W UPoE

Weather-proof IP68-rate d, Vandal-proof IK10-rated,
and NEMA 4X-rated mated housing

Star ting Temperature: -40°C ~ 55°C (-40°F ~ 131°F)
Working Temperature: -40 °C ~ 55°C (-40°F ~ 131°F)

System Requirements

Operating System Microsoft Windows 8/7/Vista/XP/2000

Web Browser

Other Players

Mozilla Firefox 7~43 (streaming only)
Internet Explorer 7/8/9/10/11

VLC: 1.1.11 or above
Quicktime: 7 or above

Included Accessories

CD

Others

User's manual, quick installation guide, Inst allati on
Wizard 2, VAST

Wall mount bra cket, screw s, waterp roof connector s,
quick installation guide, alignment sticker, L-wrench,
soft ware CD, desiccant bags, I/O combo cable

Dimensions

Ø223 mm

221 mm

Ø162 m m

331 m m

355 mm
