Vivotek SD8363E, SD8363E-M Installation

Speed Dome

SD8363E/63E-M

Network Camera

Quick Installation Guide

繁中 日本語

English

Dansk

Indonesia

簡中

Français

Deutsch

Español Português

1080P • 20x Zoom • NEMA 4x • IP67 • Extreme Weatherproof

Italiano

Türkçe

Polski

Русский

Česky Svenska

Nederlands

Warning Before Installation

5

1

0

0

0

0

2

1

0

G

English

Power off the Network Camera as soon as
smoke or unusual odors are detected.

Do not disassemble the Network Camera.

Do not insert sharp or tiny objects into the

Refer to your user’s manual for the
operating temperature.

Do not touch the Network Camera during
a lightning storm.

Do not drop the Network Camera.

Network Camera.

Do not manually pan and tilt the Network
Camera when the power is on.

1

Package Contents

Wall Mount Bracket / ScrewsSD83xxE/-M (with extended cables)

Screws / Alignment Sticker / T25
Stardriver / Desiccant Bags (SD8363E)

Ground Wire

Quick Installation Guide PC/ABS Dome Cover

Software CD

EN-1

2

Physical Description

Outer View

Inner View

This drawing shows a camera with its dome
cover removed.

Reset Button

Network LED

Status LED

Lens

The SD card slot is accessed by
removing the top section using the
T25 stardriver.

Camera Body

Board-to-board
Connector

SD/SDHC/SDXC Card Slot

EN-2

Hardware Installation

3

IMPORTANT:

If your camera comes without the dehumidier,

you should examine whether the color of the
silica gel inside the chassis has turned red. If

so, you should replace the desiccant bag.

To replace the desiccant bags:

1. Remove the dome cover by loosening 4 T25
anti-tamper screws.

2. Replace the desiccant bags by attaching

them rmly to the inside of the chassis.

3. Re-install the dome cover.

Also note the following:

1. Do not install the camera in a raining day.

2. It takes approximately 2 days to suppress

the moisture level to 30% or lower, either
using the desiccant bags or the dehumidier.

3. Condensation may still be observed from on
the dome cover within 30 minutes.

English

HD WDR Pro

EN-3

3-1. Install the Wall-mount Bracket

1. The camera weighs 3.66kg. Select a rigid mounting location to prevent vibration to
the camera. Attach the alignment sticker to the wall.

2. Drill 4 pilot holes (10mm in diameter and 4cm deep) into the wall, and then hammer in
threaded anchors. Note that you should hammer the anchors with hex nuts on them

so that the threaded poles will not be deformed! If preferred, drill another hole for

routing cables.

3. Secure the wall mount bracket to wall using 4 sets of captive washers and nuts.

2

3

1

NOTE:

1. IO wires are user-supplied.

2. Avoid touching the circuit boards to prevent damage by electro static discharge.

3. Use CAT5e, CAT6 cables only.

EN-4

3-2. Cabling Connections & Attach the Top Section

1. Hold your top section with one hand and pass all cables through the wallmount
bracket.

5

English

4

3

1

2

2. Secure the top section to the wall mount bracket.

Note that you should turn and orient the top section so that the C mark is facing a
direction 15 degrees off the center line.

Remove seal from the breathe hole on
the top section if your camera comes with

the dehumidier.

Center line

C Mark

15°

EN-5

3. Connect cables and use sealants and putties to make sure cable joints and the
cabling hole are waterproof.

4. Secure the included ground wire to the dome cap, pass it through the mount brack­et, and connect the other end to a grounded conduit later.

5. Use the included hex wrench to secure the top section.

3-3. Mounting the Camera

1. Align the camera body with the top section. Align the alignment mark on the camera
with that on the interface section. Push the camera up to match the top section.

2. Rotate the camera clockwise until its alignment mark is aligned with the "C" mark.

3. Use the included T25 stardriver to tighten the 3 anti-tamper screws from the top.
Make sure all parts have been securely tightened.

1

4

Alignment Mark

HD WDR Pro

2

3

C Mark

HD WDR Pro

HD WDR Pro

EN-6

Network Deployment

4

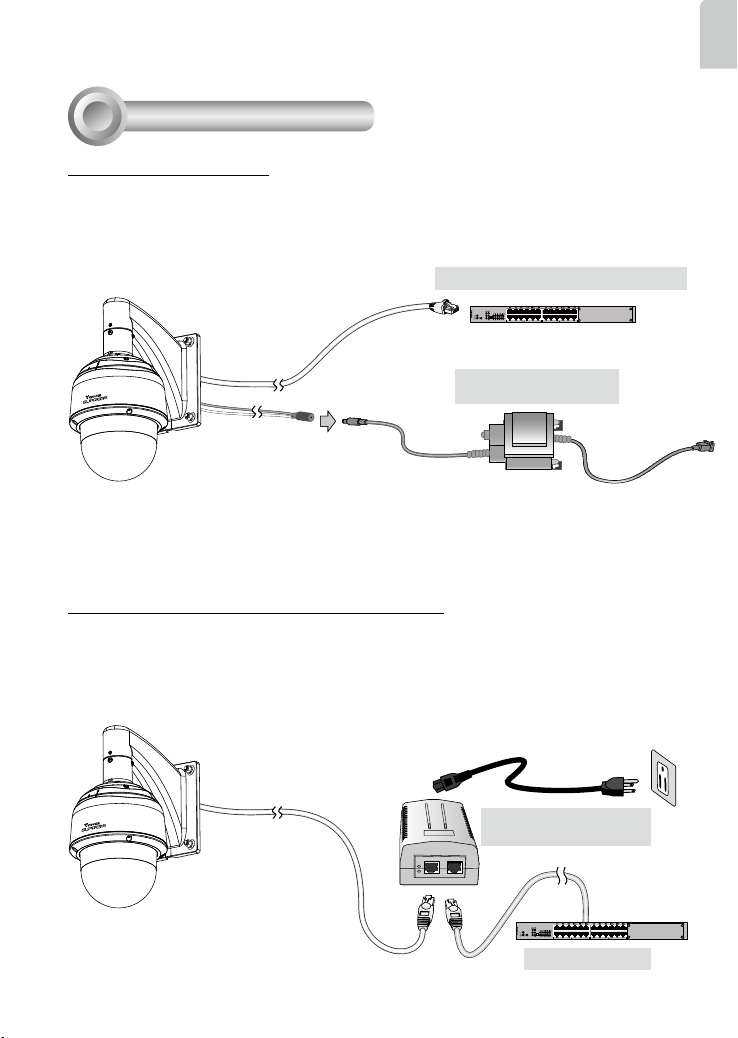

General Connection

1. Connect the Network Camera's Ethernet cable (CAT5e, CAT6) to a PoE Plus switch. A
30W PoE output port alone can not drive the onboard heater, and hence if using the PoE
switch alone, the application does not apply in low-temperature condition. The 30W PoE

plus can only drive the camera when it is working at a temperature higher than -5ºC.

IEEE 802.3at PoE Switch (30W output)

and / or

AC 24V 3.5A Adapter

HD WDR Pro

(User-supplied)

2. Connect the power wires to an AC 24V power adaptor (user-supplied). The AC 24V
adapter can drive the camera and the onboard heater.

You can connect both power sources for redundancy in power supply.

Power over Ethernet (High Power PoE)

When using a non-PoE switch

Use a High Power PoE power injector (separately purchased) capable of 60W output to

connect between the Network Camera and a non-PoE switch. Sufcient power is required

for low temperature conditions when the onboard heater is activated.

English

HD WDR Pro

High Power PoE Power

Injector

Non-PoE Switch

EN-7

Assigning IP Address

5

1. Install "Installation Wizard 2" from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network

is analyzed, please click on the "Next" button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network

Cameras on the same LAN.

4. After a brief search, the main installer window will pop up. Double-click on the MAC

address that matches the one printed on the camera label or the S/N number on the
package box label to open a browser management session with the Network Camera.

6

Ready to Use

1. A browser session with the Network Camera should prompt as shown below.

2. You should be able to see live video from your camera. You may also install the
32-channel recording software from the software CD in a deployment consisting of

multiple cameras. For its installation details, please refer to its related documents.

28x

For further setup, please refer to the user's manual on the software CD.

EN-8

P/N:625019001G Rev.: 1.1

All specications are subject to change without notice.

c

Copyright 2014 VIVOTEK INC. All rights reserved.

VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

|T: [phone]| F: [phone]| E: [e-mail]

VIVOTEK Netherlands B.V.

Busplein 36, 1315KV, Almere, The Netherlands

|T: [phone]| F: [phone]| E: [e-mail]

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131

|T: 408-773-8686| F: 408-773-8298|E : [e-mail]
