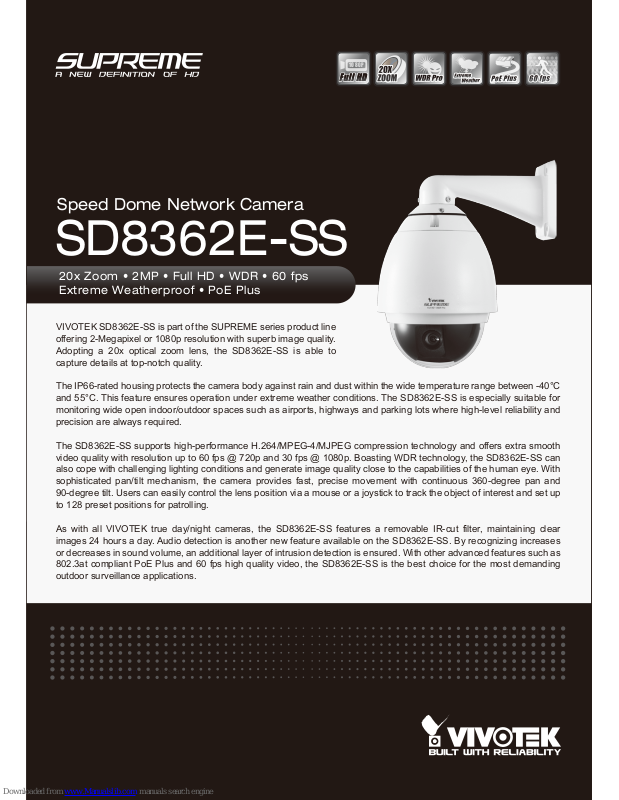

Vivotek SD8362E-SS Specification

1080P

Full HD

Speed Dome Network Camera

SD8362E-SS

20x Zoom • 2MP • Full HD • WDR • 60 fps
Extreme Weatherproof • PoE Plus

VIVOTEK SD8362E-SS is part of the SUPREME series product line
offering 2-Megapixel or 1080p resolution with superb image quality.
Adopting a 20x optical zoom lens, the SD8362E-SS is able to
capture details at top-notch quality.

The IP66-rated housing protects the camera body against rain and dust within the wide temperature range between -40°C
and 55°C. This feature ensures operation under extreme weather conditions. The SD8362E-SS is especially suitable for
monitoring wide open indoor/outdoor spaces such as airports, highways and parking lots where high-level reliability and
precision are always required.

The SD8362E-SS supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth
video quality with resolution up to 60 fps @ 720p and 30 fps @ 1080p. Boasting WDR technology, the SD8362E-SS can
also cope with challenging lighting conditions and generate image quality close to the capabilities of the human eye. With
sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and
90-degree tilt. Users can easily control the lens position via a mouse or a joystick to track the object of interest and set up
to 128 preset positions for patrolling.

As with all VIVOTEK true day/night cameras, the SD8362E-SS features a removable IR-cut filter, maintaining clear
images 24 hours a day. Audio detection is another new feature available on the SD8362E-SS. By recognizing increases
or decreases in sound volume, an additional layer of intrusion detection is ensured. With other advanced features such as

802.3at compliant PoE Plus and 60 fps high quality video, the SD8362E-SS is the best choice for the most demanding
outdoor surveillance applications.

Technical Specifications

Ver 1.0

VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

|T : [phone]| F: [phone]| E: [e-mail]

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131

|T : 408-773-8686|F: 408-773-8298| E: [e-mail]

All specications are subject to change without notice. Copyright © 2012 VIVOTEK INC. All rights reserved. P/N: 971005700

．Pan range: 360° continuous rotation
．Tilt range: 0° ~ 90° flip
．20x optical zoom
．Pan speed: 0.1° ~ 300°/sec
．Tilt speed: 0.1° ~ 120°/sec
．Number of Presets: 128
．Auto pan mode
．Auto patrol mode
．12x Digital Zoom

．20x optical zoom lens, f = 4.7 ~ 94 mm, F1.6 (wide), F3.5 (tele), auto

focus, auto-iris, focus range: 10 mm (wide) ~ 800 mm (tele) to infinity

．Removable IR-cut filter for day & night function

．2.9° ~ 55.4° (horizontal)

．1/1 sec. to 1/10,000 sec.

．1/3" SONY CMOS Progressive Sensor in 1920x1080 resolution
．Signal to Noise Ratio: 50dB

．0.02 Lux @ F1.6 (Color)
．0.001 Lux @ F1.6 (B/W)

．Compression: H.264, MJPEG & MPEG-4
．Streaming:

Multiple simultaneous streams (up to 4 individual configurable streams)
H.264 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS

．Supports activity adaptive streaming for dynamic frame rate control
．Supports 3GPP mobile surveillance
．Frame rates:

H.264:
Up to 60 fps at 1280x720
Up to 30 fps at 1920x1080
MPEG-4:
Up to 60 fps at 1280x720
Up to 27 fps at 1920x1080
MJPEG:
Up to 60 fps at 1280x720
Up to 30 fps at 1920x1080
(Up to 30/15 fps in WDR mode)

．Adjustable image size, quality and bit rate
．Time stamp and text caption overlay
．Flip & mirror
．Configurable brightness, contrast, saturation, sharpness, white balance

and exposure

．AGC, AWB, AES
．WDR Pro
．Automatic, manual or scheduled day/night mode
．BLC (Backlight Compensation)
．Supports up to 24 3D privacy masks

．Compression:

GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps

G.711 audio encoding, bit rate: 64 kbps, μ-Law or A-Law mode

selectable.
．Interface:
External microphone input
Audio output

．Supports two-way audio
．Supports audio mute

Pan/Tilt/Zoom

Lens

Angle of View

Shutter Time

Image Sensor

Minimum Illumination

Video

Image Settings

Audio

．10/100 Mbps Ethernet, RJ-45
．Onvif support
．Protocols:

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP,
SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,
and 802.1X

．Triple-window video motion detection
．Audio detection
．Three D/I and two D/O for external sensor and alarm
．Event notification using HTTP, SMTP or FTP
．Local recording of MP4 file

．Multi-level user access with password protection
．IP address filtering
．HTTPS encrypted data transmission
．802.1X port-based authentication for network protection

．Live viewing for up to 10 clients

．Net: 3,400 g

．System power and status indicator
．System activity and network link indicator

．24V AC
．Power consumption: Max. 60 W
．802.3at compliance PoE plus

．Weather-proof IP66-rated housing

．CE, LVD, FCC, VCCI, C-Tick

．Temperature: -40°C ~ 55°C (AC 24V)
．Temperature: -10°C ~ 55°C (PoE Plus)
．Humidity: 90% RH

．OS: Microsoft Windows 7/Vista/XP/2000
．Browser: Mozilla Firefox, Internet Explorer 6.x or above
．Cell phone: 3GPP player
．Real Player: 10.5 or above
．Quick Time: 6.5 or above

．Installation Wizard 2
．32-CH ST7501 recording software
．Supports firmware upgrade

．SDK available for application development and system integration

．36 months

．Camera: Ø 200 mm x 270 mm
．Cable length: 1330 mm
．Cable diameter: Ø 15 mm; Max width: Ø 20 mm

Networking

Alarm and Event Management

Security

Users

Weight

LED Indicator

Power

Housing

Approvals

Operating Environments

Viewing System Requirements

Installation, Management, and Maintenance

Applications

Warranty

Dimension

332 mm

270 mm

110 mm

200 mm

130 mm

286 mm
