Vivotek SD8333-M, SD8333-E/M User Manual
User’s Manual
SD8333-E/M
Speed Dome
Network Camera
720P • 30x Zoom • NEMA 4x • IP66 •
Extreme Weatherproof
Rev. 1.0
VIVOTEK
2 - User's Manual
Table of Contents
Overview.......................................................................................................................................................4
Revision History ......................................................................................................................................4
Read Before Use ..................................................................................................................................... 5
Package Contents ................................................................................................................................... 5
Symbols and Statements in this Document ............................................................................................. 5
Physical Description
...............................................................................................
6
Installation - for the Conguration w/ Extended Cables ..............................................................................9
Hardware Installation
.........................................................................................................9
Network Deployment ............................................................................................................................. 14
Software Installation .............................................................................................................................. 17
Ready to Use ......................................................................................................................................... 18
Accessing the Network Camera .................................................................................................................19
Using Web Browsers .............................................................................................................................19
Using RTSP Players ..............................................................................................................................21
Using 3GPP-compatible Mobile Devices ............................................................................................... 22
Using VIVOTEK Recording Software .................................................................................................... 23
Main Page ..................................................................................................................................................24
Client Settings ............................................................................................................................................30
Conguration ..............................................................................................................................................35
System > General settings ....................................................................................................................36
System > Homepage layout .................................................................................................................37
System > Logs ......................................................................................................................................40
System > Parameters ........................................................................................................................... 41
System > Maintenance .......................................................................................................................... 42
Media > Image ....................................................................................................................................46
Media > Video .......................................................................................................................................56
Media > Audio........................................................................................................................................ 59
Network > General settings ................................................................................................................... 60
Network > Streaming protocols ...........................................................................................................68
Network > DDNS ................................................................................................................................. 72
Network > SNMP (Simple Network Management Protocol) ..................................................................77
Security > User Account ........................................................................................................................ 78
Security > HTTPS (Hypertext Transfer Protocol over SSL) ........................................................79
Security > Access List .........................................................................................................................86
PTZ > PTZ settings ..............................................................................................................................91
Event > Event settings ..........................................................................................................................96
Applications > Motion detection........................................................................................................... 111
Applications > DI and DO .................................................................................................................. 114
Applications > Audio detection ..........................................................................................................115
Applications > VADP (VIVOTEK Application Development Platform) ................................................117
VIVOTEK
User's Manual - 3
Recording > Recording settings ........................................................................................................................ 119
Local storage > SD card management ............................................................................................................... 124
Local storage > Content management ............................................................................................................... 125
Appendix ................................................................................................................................................................. 127
URL Commands for the Network Camera .......................................................................................................... 127
Technical Specications ..................................................................................................................................... 222
Technology License Notice ................................................................................................................................. 223
Electromagnetic Compatibility (EMC) ................................................................................................................. 224
VIVOTEK
4 - User's Manual
Overview
VIVOTEK SD8333-E is part of the SUPREME series product line offering 720p HD resolution
with superb image quality. Adopting a 30x optical zoom lens, the SD8333-E is able to capture
details at top-notch quality. The IP66- and NEMA 4X-rated housing protects the camera body
against rain, dust and corrosion within a wide temperature range between -40°C to 55°C. This
feature ensures operation under extreme weather conditions and hazardous environments. It is
especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways
and parking lots where high-level reliability and precision are always required.
The SD8333-E supports high-performance H.264/MPEG-4/MJPEG compression technology
and offers extra smooth video quality with resolution up to 60 fps @ 720p. Boasting WDR
Pro technology, the SD8333-E can also cope with challenging lighting conditions and
generate image quality close to the capabilities of the human eye. With a sophisticated pan/tilt
mechanism, the camera provides fast, precise movement with continuous 360-degree pan and
220-degree tilt. Users can also easily control the lens position via a mouse or a joystick to track
the object of interest and set up to 256 preset positions. With the built-in auto tracking feature,
the SD8333-E provides instantaneous reaction to suspicious moving objects in wide area
locations before operators are aware of activity.
Revision History
■ Rev. 1.0: Initial release
VIVOTEK
User's Manual - 5
Read Before Use
The use of surveillance devices may be prohibited by law in your country. The Network Camera is not
only a high-performance web-ready camera but can also be part of a exible surveillance system. It is
the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for
its intended use.
It is important to rst verify that all contents received are complete according to the Package Contents
listed below. Take note of the warnings in the Quick Installation Guide before the Network Camera is
installed; then carefully read and follow the instructions in the Installation chapter to avoid damage due to
faulty assembly and installation. This also ensures the product is used properly as intended.
The Network Camera is a network device and its use should be straightforward for those who have basic
networking knowledge. It is designed for various applications including video sharing, general security/
surveillance, etc. The Configuration chapter suggests ways to best utilize the Network Camera and
ensure proper operations. For creative and professional developers, the URL Commands of the Network
Camera section serves as a helpful reference to customizing existing homepages or integrating with the
current web server.
Package Contents
■ SD8333-E/ -M (-M species the camera that comes with an electronic dehumidier unit)
■ Wall Mount Bracket / Screws
■ Waterproof Connectors / Terminal Blocks / Ethernet Cable / Ground Wire
■ Screws / Alignment Sticker / T25 Stardriver / Seal Ring / Desiccant Bags
■ Quick Installation Guide
■ Software CD / Warranty Card
■ PC/ABS /Smoked Dome Cover / IO Combo Cable (may come with one 1m combo cable or Separately
Purchased)
Symbols and Statements in this Document
i
INFORMATION: provides important messages or advices that might help prevent inconvenient
or problem situations.
NOTE: Notices provide guidance or advices that are related to the functional integrity of the
machine.
Tips: Tips are useful information that helps enhance or facilitae an installation, function, or
process.
WARNING: or IMPORTANT:: These statements indicate situations that can be dangerous or
hazardous to the machine or you.
Electrical Hazard: This statement appears when high voltage electrical hazards might occur
to an operator.
VIVOTEK
6 - User's Manual
Physical Description
Lens
Outer View
Status LED
Network LED
Reset Button
This drawing shows a camera with its dome cover
removed.
Inner View
Board-to-board Connector
SD/SDHC/SDXC Card Slot
Camera Body
The card slot is accessed by removing the top
section using the T25 stardriver.
VIVOTEK
User's Manual - 7
Status LED
Item LED status Description
1 Steady red Power on and system booting
Red LED OFF Power off
2 Steady red & Green blinking every 1 sec. Network normal (heartbeat)
Steady red & Green LED OFF Network failed
3 Red blinking every 0.15 sec. & Green blinking
every 1 sec.
Upgrading rmware
4 Red blinking every 0.15 sec. & Green blinking
every 0.15 sec.
Restoring default
Hardware Reset
The reset button is used to reset the system or to restore the factory default settings. Sometimes
resetting the system can return the camera to normal operation. If the system problems remain
after reset, restore the factory settings and install again.
Reset: Press and release the reset button with a paper clip or thin object. Wait for the Network
Camera to reboot.
Restore: Press and hold the reset button for at least ten seconds to restore system defaults.
Note that all settings will be restored to factory defaults.
SD/SDHC/SDXC Card Capacity
This network camera is compliant with SD/SDHC/SDXC 32GB, 64GB, and other preceding
standard SD cards.
VIVOTEK
8 - User's Manual
DI/DO Diagram
Please refer to the following illustration for the connection method. Please note that the
maximum load on the DO pins is 50mA.
GND
Camera Power
Input
Output
+12
VDC
Max.
VDC
Switch
BJT transistor
GND
Camera Power (DO+ 12V)
Input
Output
+12
VDC
VDC
Switch
BJT transistor
Relay
Relay
1. The camera can be driven by an Ethernet connection to a PoE Plus switch (30W output). You
can connect both the PoE Plus and the 24V power for fail-safe redundancy.
2. If the installation requires heating in the winter (<-5ºC), you require approximately 60 Watts of
power to drive the embedded heater. You can connect either or both of the 24V power lines
or a High Power PoE power injector (separately purchased).
IMPORTANT:
VIVOTEK
User's Manual - 9
Installation - for the Conguration w/ Extended Cables
Hardware Installation
HD WDR Pro
IMPORTANT:
If your camera comes without the dehumidier, you
should examine whether the color of the silica gel inside
the chassis has turned dark. If so, you should replace
the desiccant bag.
To replace the desiccant bags:
1. Remove the dome cover by loosening 4 T25 antitamper screws.
2. Replace the desiccant bags by attaching them rmly
to the inside of the chassis.
3. Re-install the dome cover.
Also note the following:
1. Do not install the camera in a raining day.
2. It takes approximately 2 days to suppress the
moisture level to 30% or lower, either using the
desiccant bags or the dehumidier.
3. Condensation may still be observed from on the
dome cover within 30 minutes.
VIVOTEK
10 - User's Manual
1. The camera weighs 3.66 kgs. Select a rigid mounting location to prevent vibration to the
camera. Attach the alignment sticker to the wall.
2. Drill 4 pilot holes (10mm in diameter and 4cm deep) into the wall, and then hammer in the
threaded anchors. Note that you should hammer the anchors with hex nuts on them so that
the threaded poles will not be deformed! If preferred, drill another hole for routing cables.
3. Secure the wall mount bracket to wall using 4 sets of captive washers and nuts.
1
2
3
Install the Wall-mount Bracket
1. IO wires are user-supplied.
2. Avoid touching the circuit boards to prevent damage by electro static discharge.
3. Use CAT5e, CAT6 cables only.
NOTE:
VIVOTEK
User's Manual - 11
1
2
3
4
5
1. Hold your top section with one hand and pass all cables through the wallmount bracket.
Cabling Connections & Attach the Top Section
2. Secure the top section to the wall mount bracket.
Note that you should turn and orient the top section so that the C mark is facing a direction 15
degrees off the center line.
15°
Center line
C Mark
Remove seal from the breathe hole on the top sec-
tion if your camera comes with the dehumidier.
VIVOTEK
12 - User's Manual
3. Connect cables and use sealants and putties to make sure cable joints and the cabling hole
are waterproof.
4. Secure the included ground wire to the dome cap, pass it through the mount bracket, and connect the other end to a grounded conduit later.
5. Use the included hex wrench to secure the top section.
Mounting the Camera
4
2
3
1
HD WDR Pro
HD WDR Pro
HD WDR Pro
Alignment Mark
C Mark
1. Align the camera body with the top section. Align the alignment mark on the camera with that
on the interface section. Push the camera up to match the top section.
2. Rotate the camera clockwise until its alignment mark is aligned with the "C" mark.
3. Use the included T25 stardriver to tighten the 3 anti-tamper screws from the top. Make sure
all parts have been securely tightened.
VIVOTEK
User's Manual - 13
Mechanical Dimensions
243,8140
200
107,8
165,5
10
R5
225,2
20
9
13,9
R253,2
156
170,06
3mm Hexagon Socket
Headless Set Screw
Cable Clamp
1-1/2" (PS11)
Shown below are the dimensions of the wall mount bracket and its mounting holes:
You can nd the installation instructions on VIVOTEK’s website for
other options such as parapet mount: http://www.vivotek.com/web/
product/accessories.aspx
Before mounting the camera, install an SD card if you prefer recording to local storage.
NOTE:
VIVOTEK
14 - User's Manual
Network Deployment
Setting up the Network Camera over the Internet
There are several ways to set up the Network Camera over the Internet. The rst way is to set
up the Network Camera behind a router. The second way is to utilize a static IP. The third way is
to use PPPoE.
Internet connection via a router
Before setting up the Network Camera over the Internet, make sure you have a router and follow
the steps below.
1. Connect your Network Camera behind a router, the Internet environment is illustrated below.
Regarding how to obtain your IP address, please refer to Software Installation on page 17 for
details.
2. In this case, if the Local Area Network (LAN) IP address of your Network Camera is
192.168.0.3, please forward the following ports for the Network Camera on the router.
■ Secondary HTTP port: 8080
■ RTSP port: 554
■ RTP port for audio: 5558
■ RTCP port for audio: 5559
■ RTP port for video: 5556
■ RTCP port for video: 5557
If you have changed the port numbers on the Network page, please open the ports accordingly
on your router. For information on how to forward ports on the router, please refer to your
router’s user’s manual.
3. Find out the public IP address of your router provided by your ISP (Internet Service Provider).
Use the public IP and the secondary HTTP port to access the Network Camera from the
IP address : 192.168.0.3
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
IP address : 192.168.0.2
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
LAN (Local Area Network)
Router IP address : 192.168.0.1
WAN (Wide Area Network )
Router IP address : from ISP
Cable or DSL Modem
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
Internet
VIVOTEK
User's Manual - 15
Internet. Please refer to Network Type on page 60 for details.
For example, your router and IP settings may look like this:
Device IP Address: internal
port
IP Address: External Port (Mapped port on the
router)
Public IP of router 122.146.57.120
LAN IP of router 192.168.2.1
Camera 1 192.168.2.10:80 122.146.57.120:8000
Camera 2 192.168.2.11:80 122.146.57.120:8001
... ... ...
Congure the router, virtual server or rewall, so that the router can forward any data coming
into a precongured port number to a network camera on the private network, and allow data
from the camera to be transmitted to the outside of the network over the same path.
From Forward to
122.146.57.120:8000 192.168.2.10:80
122.146.57.120:8001 192.168.2.11:80
... ...
When properly congured, you can access a camera behind the router using the HTTP request
as follows: http://122.146.57.120:8000
If you change the port numbers on the Network conguration page, please open the ports
accordingly on your router. For example, you can open a management session with your router
to congure access through the router to the camera within your local network. Please consult
your network administrator for router conguration if you have troubles with the conguration.
For more information with network conguration options (such as that of streaming ports),
please refer to Conguration > Network Settings. VIVOTEK also provides the automatic port
forwarding feature as an NAT traversal function with the precondition that your router must
support the UPnP port forwarding feature.
VIVOTEK
16 - User's Manual
General Connection
HD WDR Pro
1. Connect the Network Camera's Ethernet cable (CAT5e) to a PoE Plus switch. A 30W PoE
output port alone can not drive the onboard heater, and hence if using the PoE switch alone,
the application does not apply in low-temperature condition. 30W PoE plus can only drive the
camera when it is working at a temperature higher than -5ºC.
HD WDR Pro
When using a non-PoE switch
Use a High Power PoE power injector (separately purchased) capable of 60W output to connect
between the Network Camera and a non-PoE switch. Sufcient power is required for low temperature conditions when the onboard heater is activated.
Non-PoE Switch
High Power PoE
Power Injector
2. Connect the power wires to an AC 24V power adaptor (user-supplied). The AC 24V adapter
can drive the camera and the onboard heater.
You can connect both power sources for redundancy in power supply.
Power over Ethernet (High Power PoE)
AC 24V 3.5A Adapter
(User-supplied)
IEEE 802.3at PoE Switch (30W output)
and / or
Internet connection with static IP
Choose this connection type if you are required to use a static IP for the Network Camera.
Please refer to LAN on page 60 for details.
Internet connection via PPPoE (Point-to-Point over Ethernet)
Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to
PPPoE on page 61 for details.
VIVOTEK
User's Manual - 17
Software Installation
Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up
your Network Camera on the LAN.
1. Install IW2 under the Software Utility directory from the software CD.
Double click the IW2 shortcut on your desktop to launch the program.
2. The program will conduct an analysis of your network environment.
After your network environment is analyzed, please click Next to continue the program.
3. The program will search for all VIVOTEK network devices on the same LAN.
4. After a brief search, the main installer window will prompt. Double-click on the MAC and
model name which matches the product label on your device to connect to the Network
Camera via a web browser.
0002D1730202
00-02-D1-73-02-02 192.168.5.151 SD8333E
Installation
Wizard 2
IW
2
Network Camera
Model No: SD8333E
Made in Taiwan
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Pat. 6,930,709
MAC:0002D1730202
R o HS
VIVOTEK
18 - User's Manual
Ready to Use
1. A browser session with the Network Camera should prompt as shown below.
2. You should be able to see live video from your camera. You may also install the 32-channel
recording software from the software CD in a deployment consisting of multiple cameras. For
its installation details, please refer to its related documents.
•
Currently the Network Camera utilizes a 32-bit ActiveX plugin. You CAN NOT open a
management/view session with the camera using a 64-bit IE browser.
•
If you encounter this problem, try execute the Iexplore.exe program from C:\Windows\
SysWOW64. A 32-bit version of IE browser will be installed.
•
On Windows 7, the 32-bit explorer browser can be accessed from here: C:\Program Files
(x86)\Internet Explorer\iexplore.exe
•
If you experience compatibility issues between the plug-in control, you may try to uninstall
the Camera Stream Controller located in: C:/Program Files (x86)/Camera Stream Controller.
30x
IMPORTANT:
VIVOTEK
User's Manual - 19
Accessing the Network Camera
This chapter explains how to access the Network Camera through web browsers, RTSP players,
3GPP-compatible mobile devices, and VIVOTEK recording software.
Using Web Browsers
Use Installation Wizard 2 (IW2) to access to the Network Cameras on the LAN.
If your network environment is not a LAN, follow these steps to access the Netwotk Camera:
1. Launch your web browser (e.g., Microsoft
®
Internet Explorer or Mozilla Firefox).
2. Enter the IP address of the Network Camera in the address eld. (A temporary IP will be
generated for the camera. Find it in your Network Neighborhood). Press Enter.
3. Live video will display in your web browser.
4. If it is the rst time installing the VIVOTEK network camera, an information bar will pop up as
shown below. Follow the instructions to install the required plug-in on your computer.
For Mozilla Firefox or Netscape users, your browser will use Quick Time to stream live video.
If you do not have Quick Time on your computer, please download Quick Time from Apple Inc's
website, and then launch your web browser.
30x
28x
28x
NOTE:
VIVOTEK
20 - User's Manual
► By default, the Network Camera is not password-protected. To prevent unauthorized access,
it is highly recommended to set a password for the Network Camera.
For more information about how to enable password protection, please refer to Security on
page 78.
► If you see a dialog box indicating that your security settings prohibit running ActiveX
®
Controls, please enable the ActiveX
®
Controls for your browser.
1. Choose Tools > Internet Options > Security > Custom Level.
2. Look for Download signed ActiveX
®
controls; select Enable or Prompt. Click OK.
3. Refresh your web browser, then install the ActiveX
®
control. Follow the instructions to
complete installation.
VIVOTEK
User's Manual - 21
Using RTSP Players
To view the H.264/MPEG-4 streaming media using RTSP players, you can use one of the
following players that support RTSP streaming.
Quick Time Player
VLC Media Player
VLC media player
mpegable Player
pvPlayer
As most ISPs and players only allow RTSP streaming through port number 554, please set the
RTSP port to 554. For more information, please refer to RTSP Streaming on page 69.
For example:
4. The live video will be displayed in your player.
For more information on how to configure the RTSP access name, please refer to RTSP
Streaming on page 69 for details.
1. Launch the RTSP player.
2. Choose File > Open URL. An URL dialog box will pop up.
3. The address format is rtsp://<ip address>:<rtsp port>/<RTSP streaming access name for
stream1 or stream2>
rtsp://192.168.5.151:554/live.sdp
Video 16:38:01 2011/03/25
VIVOTEK
22 - User's Manual
Using 3GPP-compatible Mobile Devices
To view the streaming media through 3GPP-compatible mobile devices, make sure the Network
Camera can be accessed over the Internet. For more information on how to set up the Network
Camera over the Internet, please refer to Setup the Network Camera over the Internet on page
14.
To utilize this feature, please check the following settings on your Network Camera:
1. Because most players on 3GPP mobile phones do not support RTSP authentication, make
sure the authentication mode of RTSP streaming is set to disable.
For more information, please refer to RTSP Streaming on page 69.
2. As the the bandwidth on 3G networks is limited, you will not be able to use a large video size.
Please set the video and audio streaming parameters as listed below.
For more information, please refer to Stream settings on page 57.
Video Mode MPEG-4
Frame size 176 x 144
Maximum frame rate 5 fps
Intra frame period 1S
Video quality (Constant bit rate) 40kbps
Audio type (GSM-AMR) 12.2kbps
3. As most ISPs and players only allow RTSP streaming through port number 554, please set
the RTSP port to 554. For more information, please refer to RTSP Streaming on page 69.
4. Launch the player on the 3GPP-compatible mobile devices (ex. Real Player).
5. Type the following URL commands into the player.
The address format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP streaming
access name for stream 3>.
For example:
rtsp://192.168.5.151:554/live.sdp
VIVOTEK
User's Manual - 23
Using VIVOTEK Recording Software
The product software CD also contains recording software, allowing simultaneous monitoring
and video recording for multiple Network Cameras. Please install the recording software; then
launch the program to add the Network Camera to the Channel list. For detailed information
about how to use the recording software, please refer to the user’s manual of the software or
download it from http://www.vivotek.com.
VIVOTEK
24 - User's Manual
Main Page

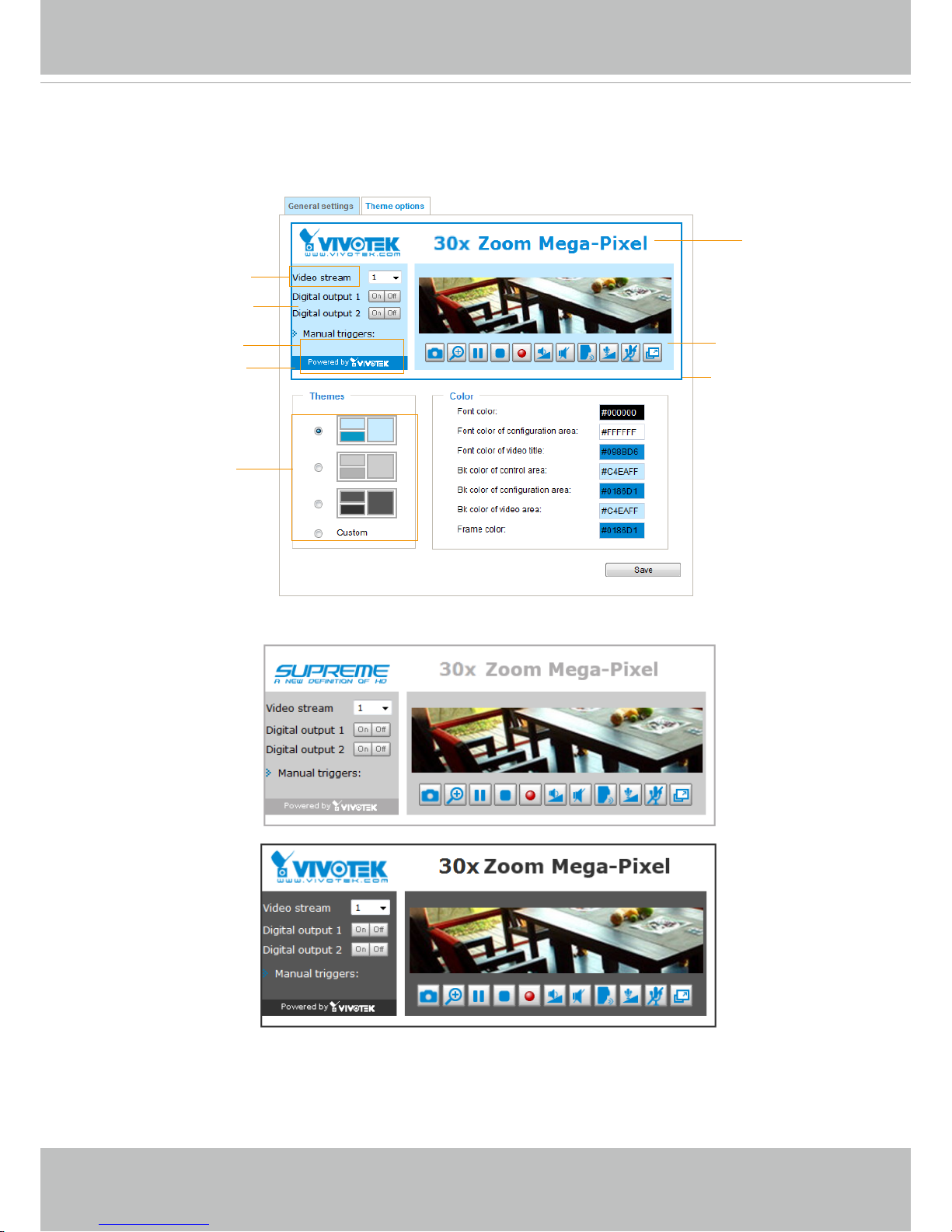

This chapter explains the layout of the main page. It is composed of the following sections:
VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, and Live Video
Window.
Live View Window
Host Name
VIVOTEK INC.
Logo
Camera Control
Area
Configuration
Area
Resize Buttons
Hide Button
Mouse and Screen Control
In addition to the use of a joystick, mouse control is also supported by the web session. You can click
on any spot on the screen to move camera's eld of view to that direction. To pan 360 degrees, you can
click and hold down the left mouse button when clicking a PTZ button. The same applies to arrow keys,
Zoom, and Focus buttons on the PTZ panel.
Note that if your screen control malfunctions, it is possible that the CPU of your current view station can
not cope with the HD video feeds or that an incompatibility issue occurred with the ActiveX control plugins.

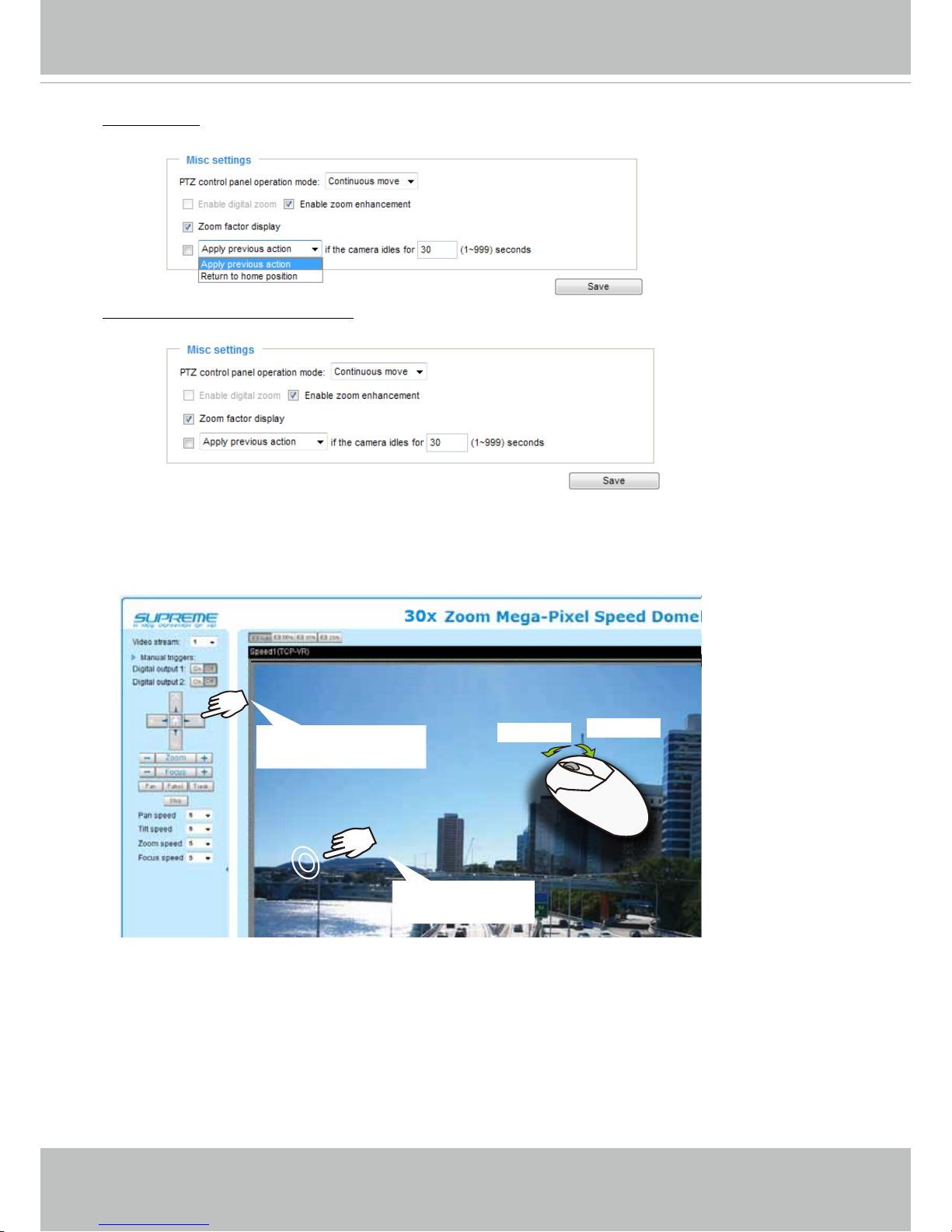

Zoom In
Zoom Out
Click and hold down
the button
Click to bring to
center of view
VIVOTEK
User's Manual - 25
Left
Down
Zoom Out
Focus Near
Start to Auto Patrol
Start to Auto Pan
Stop Auto Panning/patrolling/tracking
Return to Home Position
Right
Up
Zoom In
Focus Far
Auto Focus
Auto Tracking
VIVOTEK INC. Logo
Click this logo to visit the VIVOTEK website.
Host Name

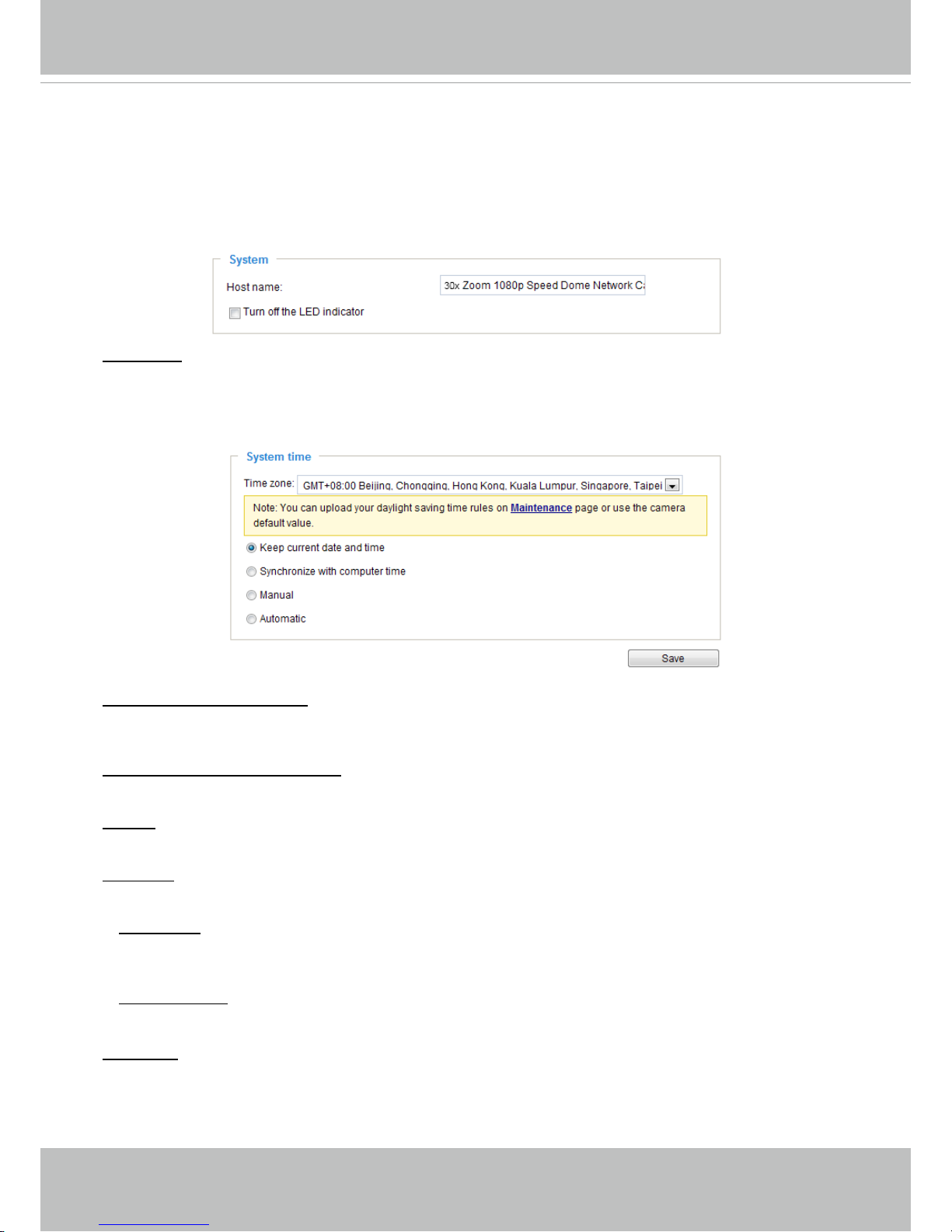

The host name can be customized to t your needs. For more information, please refer to System on page 36.
Camera Control Area
Video Stream: This Network Camera supports multiple streams (stream 1 ~ 4) simultaneously. You can
select either one for live viewing. For more information about multiple streams, please refer to page 56
for detailed information.
Manual triggers: Manual triggers can be turned on/off by users from the main page. The manual triggers
can be associated with the Event settings, and, as the result, can be used to perform recording actions,
sending notications, and so on. See Event settings on page 96.
Digital Output: Click to turn the digital output device on or off.
PTZ Control Panel:
Pan: Click this button to start the auto pan (360° continuous rotation).
Stop: Click this button to stop the Auto Pan, Auto Patrol, and Auto Tracking functions.
Patrol: Once the Administrator has determined the list of preset positions (including the zoom-in action
on a particular position), click this button to command the camera to patrol among those positions on
the Patrol List. The Network Camera will patrol continuously. For more information, please refer to PTZ
control on page 91.
Track: Allows the camera to move along following the moving objects in the current eld of view. If you
observe an object of your interest, click this button to track the object. Note that this function does not
apply in an extremely crowded area, such as a market or sidewalk full of pedestrian activities. Constant
shift of tracked objects will decrease the usability of this feature.
Once started, you can use the Stop button to stop the current action. A click on the screen can also stop
the tracking action.
Another key concept is that the camera only detect movements within the current eld of view.
Please refer to PTZ > Auto tracking on page 94 and further for tracking conguration details.
VIVOTEK
26 - User's Manual
Pan /Tilt /Zoom /Focus speed: Adjust the speed of Pan/ Tilt/ Zoom/ Focus:
Note that mouse screen control is also supported. You can refer to page 91 for related information.
Conguration Area
Client Settings: Click this button to access the client setting page. For more information, please refer to
Client Settings on page 30.
Conguration: Click this button to access the conguration page of the Network Camera. It is suggested
that a password be applied to the Network Camera so that only the administrator can configure the
Network Camera. For more information, please refer to Conguration on page 35.
Language: Click this button to choose a language for the user interface. Language options are available
in: English, Deutsch, Español, Français, Italiano,
日本語
, Português,
簡体中文
, and
繁體中文
. You can
also change a language on the Conguration page; please refer to page 35.
Hide Button
You can click the hide button to hide the control panel or display the control panel.
Pan speed Tilt speed Zoom speed Focus speed
-5 -5 -5 -5 Slower
Faster
-4 -4 -4 -4
-3 -3 -3 -3
-2 -2 -2 -2
-1 -1 -1 -1
0 0 0 0
1 1 1 1
2 2 2 2
3 3 3 3
4 4 4 4
5 5 5 5
VIVOTEK
User's Manual - 27
Resize Buttons
:
Click the Auto button, the video cell will resize automatically to t the monitor.
Click 100% is to display the original homepage size.
Click 50% is to resize the homepage to 50% of its original size.
Click 25% is to resize the homepage to 25% of its original size.
Go to
If you have preset PTZ positions, these positions will be available in the Go to menu. Please refer to
page 91 for more information.
Live Video Window
■ The following window is displayed when the video mode is set to H.264 / MPEG-4:
Video Title: The video title can be congured. For more information, please refer to Video settings on
page 46.
H.264 / MPEG-4 Protocol and Media Options: The transmission protocol and media options for H.264 /
MPEG-4 video streaming. For further conguration, please refer to Client Settings on page 30.
Time: Display the current time. For further configuration, please refer to Media > Image > General
settings on page 46.
Title and Time: The video title and time can be stamped on the streaming video. For further conguration,
please refer to Media > Image > General settings on page 46. The zoom ratio is also displayed with the
title bar.
Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera
conguration, some buttons may not be available.
2.0x Title 2014/03/05 10:39:08
Video 17:08:56 2014/03/10
Title and Time
2014/03/10 17:08:56
Time
Video and Audio Control Buttons
Video (TPC-AV)
H.264/MPEG-4 Protocol and Media Options
Video Title
VIVOTEK
28 - User's Manual
Snapshot: Click this button to capture and save still images. The captured images will be displayed
in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP
(*.bmp) format.
Digital Zoom: Click and deselect the “Disable digital zoom” to enable the zoom operation. The
navigation screen indicates the part of the image being magnied. To control the zoom level, drag the
slider bar. To move to a different area you want to magnify, drag the navigation screen.
Pause: Pause the transmission of the streaming media. The button becomes the Resume button
after clicking the Pause button.
Stop: Stop the transmission of the streaming media. Click the Resume button to continue
transmission.

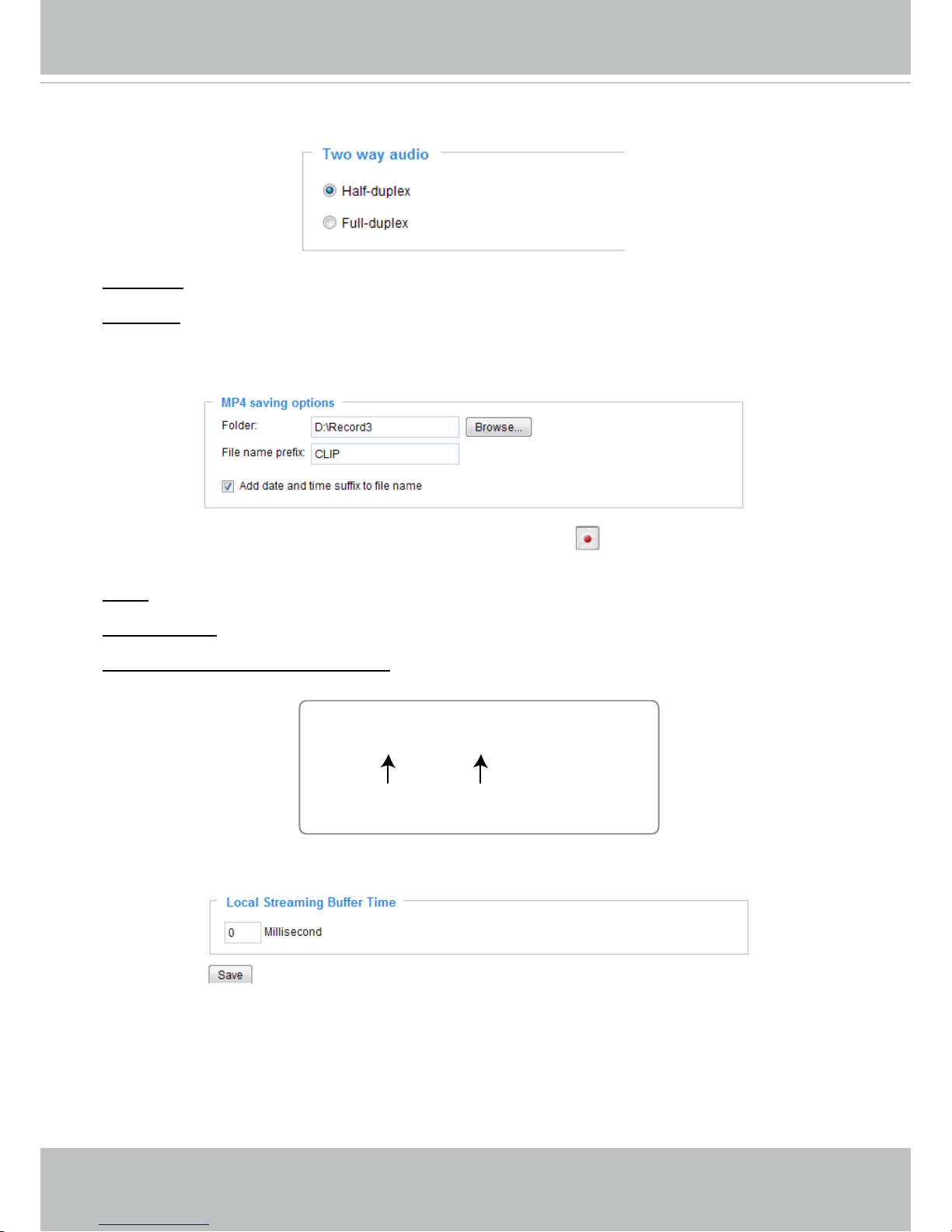

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.
Press the
Stop MP4 Recording button to end recording. When you exit the web browser, video
recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving
Options on page 31 for details.
Volume: When the Mute function is not activated, move the slider bar to adjust the volume on the
local computer.
Mute: Turn off the volume on the local computer. The button becomes the Audio On button after
clicking the Mute button.
Talk: Click this button to talk to people around the Network Camera. Audio will project from
the external speaker connected to the Network Camera. Click this button
again to end talking
transmission.
Mic Volume: When the Mute function is not activated, move the slider bar to adjust the
microphone volume on the local computer.
Mute: Turn off the Mic volume on the local computer. The button becomes the Mic On button
after clicking the Mute button.
Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal
mode.
VIVOTEK
User's Manual - 29
■ The following window is displayed when the video mode is set to MJPEG:
Video Title: The video title can be congured. For more information, please refer to Media > Image on
page 46.
Time: Display the current time. For more information, please refer to Media > Image on page 46.
Title and Time: Video title and time can be stamped on the streaming video. For more information, please
refer to Media > Image on page 46
.
Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera
conguration, some buttons may not be available.
Snapshot: Click this button to capture and save still images. The captured images will be displayed
in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP
(*.bmp) format.
Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation
screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To
move to a different area you want to magnify, drag the navigation screen.
Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.
Press the
Stop MP4 Recording button to end recording. When you exit the web browser, video
recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving
Options on page 31 for details.
Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal
mode.
Video 17:08:56 2011/03/10
Title and Time
2011/03/10 17:08:56
Time
Video (HTTP-V)
Video Title
Video Control Buttons
VIVOTEK
30 - User's Manual
Client Settings
This chapter explains how to select the stream transmission mode and saving options on the
local computer. When completed with the settings on this page, click Save on the page bottom
to enable the settings.
H.264/MPEG-4 Media Options
Select to stream video or audio data or both. This is enabled only when the video mode is set to H.264 or
MPEG-4.
H.264/MPEG-4 Protocol Options
Depending on your network environment, there are four transmission modes of H.264 or MPEG-4
streaming:
UDP unicast: This protocol allows for more real-time audio and video streams. However, network
packets may be lost due to network burst trafc and images may be broken. Activate UDP connection
when occasions require time-sensitive responses and the video quality is less important. Note that each
unicast client connecting to the server takes up additional bandwidth and the Network Camera allows up
to ten simultaneous accesses.
UDP multicast: This protocol allows multicast-enabled routers to forward network packets to all clients
requesting streaming media. This helps reduce the network transmission load of the Network Camera
while serving multiple clients at the same time. Note that to utilize this feature, the Network Camera must
be configured to enable multicast streaming at the same time. For more information, please refer to
RTSP Streaming on page 70.
TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video
quality. The downside of this protocol is that its real-time effect is not as good as that of the UDP protocol.
HTTP: This protocol allows the same quality as TCP protocol without needing to open specic ports for
streaming under some network environments. Users inside a firewall can utilize this protocol to allow
streaming data through.
H.264/MPEG-4 Media Options
H.264/MPEG-4 Protocol Options
Loading...
