Vivotek SD8314E, SD8316E User Manual

Speed Dome

SD83x4E/83x6E

Network Camera

User’s Manual

D1 • 18x or 36x Zoom • NEMA 4x • IP66 • Extreme Weatherproof

Rev. 1.1

VIVOTEK

Table of Contents

Overview.......................................................................................................................................................4

Revision History ......................................................................................................................................4

Read Before Use ..................................................................................................................................... 5

Package Contents ................................................................................................................................... 5

Symbols and Statements in this Document ............................................................................................. 5

Physical Description

Installation ....................................................................................................................................................9

...............................................................................................

Hardware Installation

Network Deployment ............................................................................................................................. 18

Software Installation .............................................................................................................................. 21

Ready to Use ......................................................................................................................................... 22

Accessing the Network Camera .................................................................................................................23

Using Web Browsers .............................................................................................................................23

Using RTSP Players ..............................................................................................................................25

Using 3GPP-compatible Mobile Devices ............................................................................................... 26

Using VIVOTEK Recording Software .................................................................................................... 27

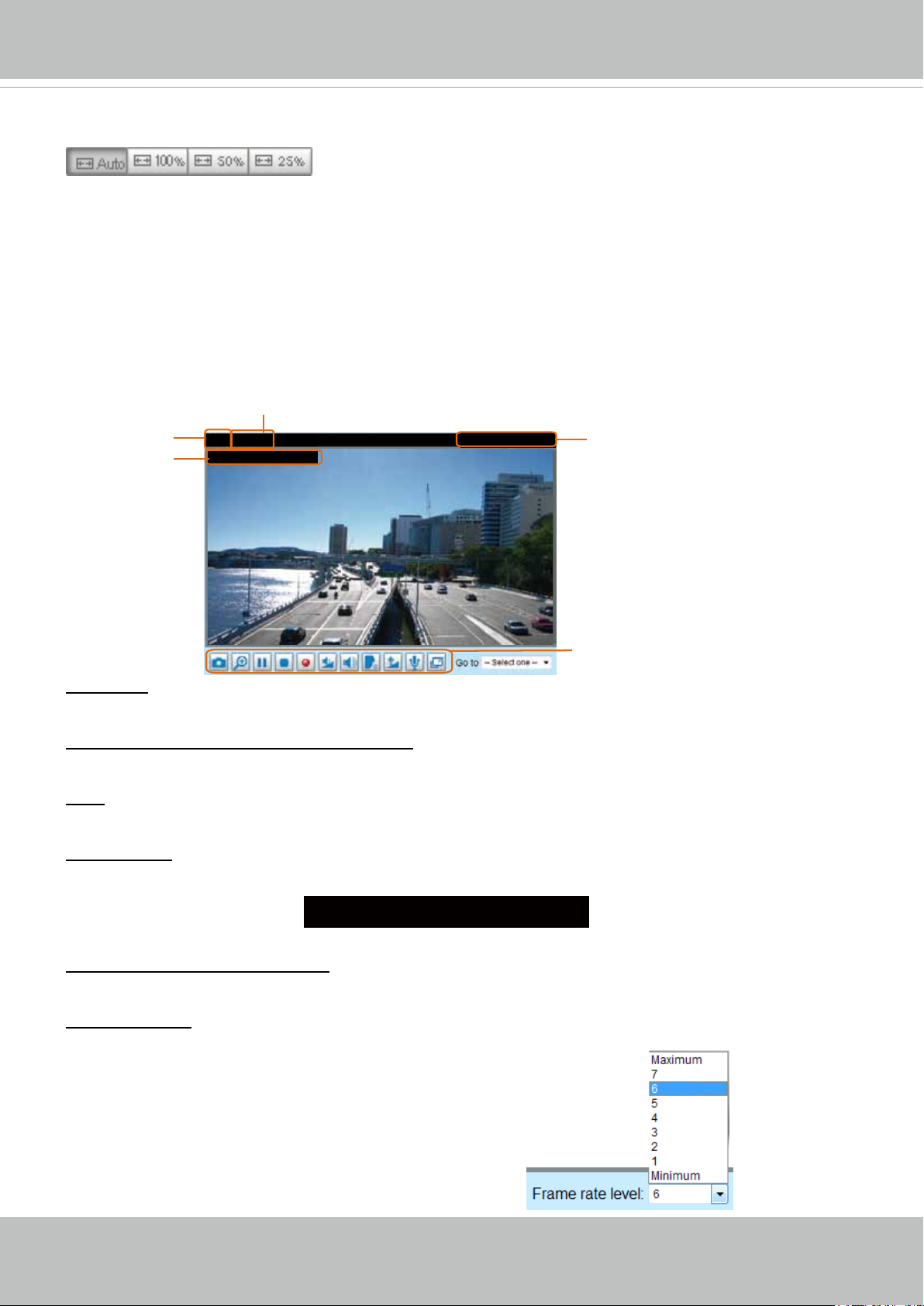

Main Page ..................................................................................................................................................28

Client Settings ............................................................................................................................................34

Conguration ..............................................................................................................................................39

System > General settings ....................................................................................................................40

System > Homepage layout .................................................................................................................42

System > Logs ......................................................................................................................................45

System > Parameters ........................................................................................................................... 46

System > Maintenance .......................................................................................................................... 47

Media > Image ....................................................................................................................................51

Media > Video .......................................................................................................................................61

Media > Audio........................................................................................................................................ 65

Network > General settings ................................................................................................................... 66

Network > Streaming protocols ...........................................................................................................74

Network > DDNS ................................................................................................................................. 78

Network > SNMP (Simple Network Management Protocol)

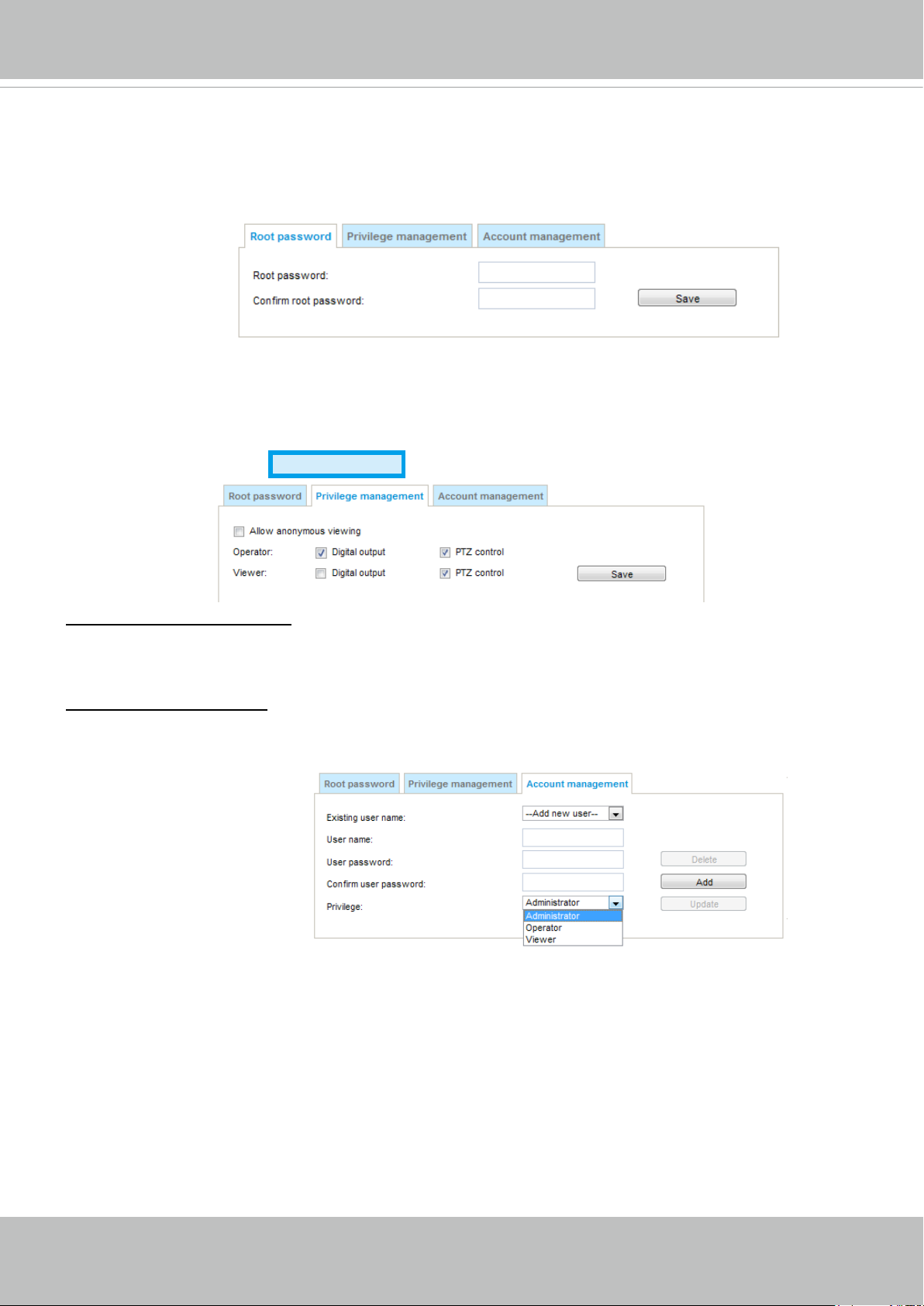

Security > User Account ........................................................................................................................ 84

Security > HTTPS

Security > Access List .........................................................................................................................92

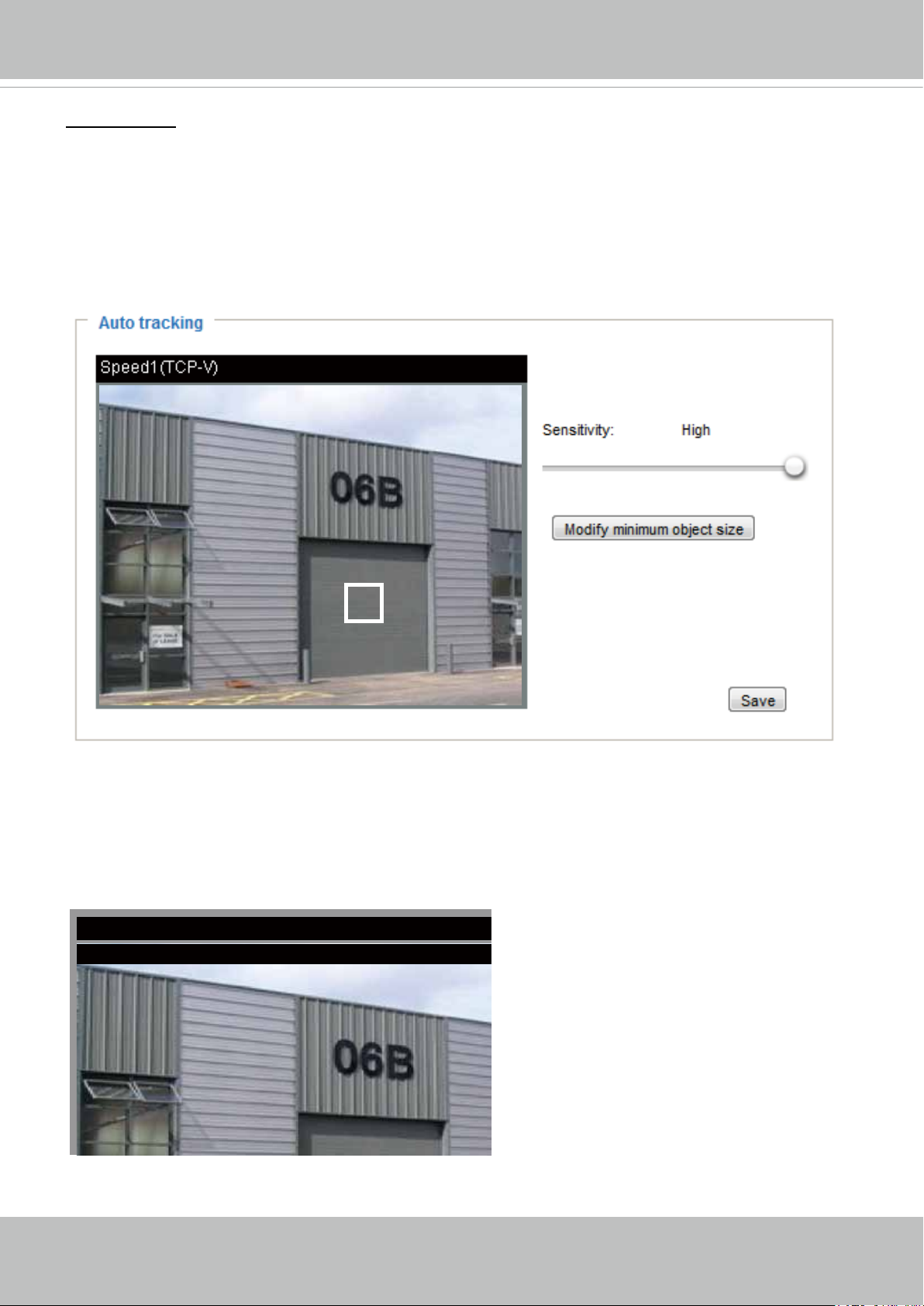

PTZ > PTZ settings ..............................................................................................................................97

Event > Event settings ........................................................................................................................102

Applications > Motion detection........................................................................................................... 116

Applications > DI and DO .................................................................................................................. 119

Applications > Audio detection ..........................................................................................................120

Applications > VADP (VIVOTEK Application Development Platform ..................................................122

Recording > Recording settings .........................................................................................................124

.....................................................................................................

............................................................

(Hypertext Transfer Protocol over SSL)

................................................85

2 - User's Manual

VIVOTEK

Local storage > SD card management ............................................................................................................... 129

Local storage > Content management ............................................................................................................... 130

Appendix ................................................................................................................................................................. 132

URL Commands for the Network Camera .......................................................................................................... 132

Technical Specications ..................................................................................................................................... 220

Technology License Notice ................................................................................................................................. 221

Electromagnetic Compatibility (EMC) ................................................................................................................. 222

User's Manual - 3

VIVOTEK

Overview

VIVOTEK SD83x4E/x6E is a series of high performance day/night speed dome network cameras suitable for professional outdoor surveillance applications. The IP66-rated housing protects the camera body against rain and dust and the wide temperature range ensures operation under extreme weather conditions. It is especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways, and parking lots where high-level reliability and precision are always required.

The SD83x4E/x6E support high-performance H.264/MPEG-4/MJPEG compression technology and offer extra smooth video quality up to 30 fps @ D1 Resolution. Boasting WDR Pro technology, the SD83x4E/x6E can also cope with challenging lighting conditions and generate image quality similar to the capabilities of a human eye. With sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 90-degree tilt. Users can easily control the lens position via a mouse or a joystick to track the object of interest and set up to 128 preset positions for patrolling.

As with all VIVOTEK true day/night cameras, the SD83x4E/x6E feature removable IR-cut lter,

maintaining clear images 24 hours a day. The built-in SD/SDHC card slot offers a convenient and portable storage option to prevent data loss in case of network disconnection. With other advanced features such as audio detection, 802.3at compliant PoE Plus and 30 fps high quality video, the SD83x4E/x6E are the best choices for the most demanding outdoor surveillance applications.

Revision History

■ Rev. 1.0: Initial release

■ Rev. 1.2: Corrected and added a note about preset positions and the available positions for patrol.

4 - User's Manual

VIVOTEK

Read Before Use

The use of surveillance devices may be prohibited by law in your country. The Network Camera is not

only a high-performance web-ready camera but can also be part of a exible surveillance system. It is

the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.

It is important to rst verify that all contents received are complete according to the Package Contents

listed below. Take note of the warnings in the Quick Installation Guide before the Network Camera is installed; then carefully read and follow the instructions in the Installation chapter to avoid damage due to faulty assembly and installation. This also ensures the product is used properly as intended.

The Network Camera is a network device and its use should be straightforward for those who have basic networking knowledge. It is designed for various applications including video sharing, general security/ surveillance, etc. The Configuration chapter suggests ways to best utilize the Network Camera and ensure proper operations. For creative and professional developers, the URL Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server.

Package Contents

■ SD83x4E/83x6E

■ Wall Mount Bracket / Screws

■ Waterproof Connectors / Terminal Blocks / Ethernet Cable / Ground Wire

■ Screws / Alignment Sticker / T25 Stardriver / Seal Ring / Desiccant Bags

■ Quick Installation Guide

■ Software CD / Warranty Card

■ PC/ABS /Smoked Dome Cover / IO Combo Cable (Separately Purchased)

Symbols and Statements in this Document

INFORMATION: provides important messages or advices that might help prevent inconvenient

or problem situations.

NOTE: Notices provide guidance or advices that are related to the functional integrity of the

machine.

Tips: Tips are useful information that helps enhance or facilitae an installation, function, or

process.

WARNING! or IMPORTANT!: These statements indicate situations that can be dangerous or

hazardous to the machine or you.

Electrical Hazard: This statement appears when high voltage electrical hazards might occur

to an operator.

User's Manual - 5

VIVOTEK

Physical Description

Outer View

Reset Button

Network LED

Status LED

Lens

This drawing shows a camera with its dome cover removed.

Inner View

Camera Body

Board-to-board Connector

SD/SDHC/SDXC Card Slot

The card slot is accessed by removing the top section using the T25 stardriver.

6 - User's Manual

Interface Section

VIVOTEK

Ethernet 10/100 RJ45 Plug

General I/O Terminal Block

AC24V AC24V

Reserved

MIC IN

RS485-

RS485+

Ethernet

DI GND DI4 DI3 DI2

DI1 DO2

DO1 DO+(12V)

Status LED

Item LED status Description 1 Steady red Power on and system booting

Red LED off Power off

2 Steady red & Green blinking every 1 sec. Network normal (heartbeat)

Steady red & Green LED off Network failed

3 Red blinking every 0.15 sec. & Green blinking

every 1 sec.

4 Red blinking every 0.15 sec. & Green blinking

every 0.15 sec.

Upgrading rmware

Restoring default

Hardware Reset

The reset button is used to reset the system or to restore the factory default settings. Sometimes resetting the system can return the camera to normal operation. If the system problems remain after reset, restore the factory settings and install again.

Reset: Press and release the recessed reset button with a paper clip or thin object. Wait for the Network Camera to reboot.

Restore: Press and hold the recessed reset button for a while to restore. Note that all settings will be restored to factory default.

SD/SDHC/SDXC Card Capacity

This network camera is compliant with SD/SDHC/SDXC 32GB, 64GB, and other preceding standard SD cards.

User's Manual - 7

VIVOTEK

DI/DO Diagram

Please refer to the following illustration for the connection method. Please note that the maximum load on the DO pins is 50mA.

Camera Power

BJT transistor

GND

Input

Output

VDC

Switch

Relay

+12 VDC Max.

GND

Camera Power (DO+ 12V)

Input

BJT transistor

Output

VDC

Switch

+12 VDC

Relay

IMPORTANT:

1. The camera can be driven by an Ethernet connection to a PoE Plus switch (30W output). You can connect both the PoE Plus and the 24V power for fail-safe redundancy.

2. If the installation requires heating in the winter (<-5ºC), you will need approximately 60 Watts of power to drive the embedded heater. You can either connect the 24V power lines or a High Power PoE power injector (separately purchased).

8 - User's Manual

Installation

VIVOTEK

Hardware Installation

1. Connecting RJ45 Ethernet Cable

RJ45 Cable Dimension (unit: mm)

Use CAT5e cables only.

100

Assembling Steps

Prepare an Ethernet cable

and strip part of the sheath.

Insert the housing into the

screw nut.

Components of the Waterproof Connector

Sealing Nut (A)

Seal (B)

Screw Nut (C)

Housing (D)

Gasket (E)

Insert the seal into the hous-

ing.

Recommended cable gauge: O.D. 5.5~7

Insert the stripped Ethernet

cable through the sealing nut and the housing.

(A)

Attach the gasket to the front of the housing.

(E)

(C)

Clamp the cable with

an RJ45 plug.

Connect the Ethernet cable to the RJ45 cable and secure

the connectors tightly.

(D)

(B)

Push the RJ45 plug into the

housing, then secure the sealing nut tightly.

User's Manual - 9

VIVOTEK

2. Connecting Power and I/O Wires

If you need to connect I/O wires and 24V power, disassemble the top section of the camera. It is highly recommended to complete the following before you can mount the speed dome camera at the installation

site:

Skip this section and move to Section 3-3 if you connect the Ethernet cable only.

1-3

1-1

1-2

Connect with the mount bracket

Cabling through the dome cap and waterproof connectors

Plan the wire length and complete cabling to the Interface Section

2-1. Cabling through the Waterproof Connectors

Components of the Waterproof Connector

Screw Nut (A)

Seal (B)

Seals (C)

Housing (D)

Sealing Nut (E)

10 - User's Manual

•

Wire range: 13~16AWG (1.2~1.8mm)

A socket wrench for the M20 hex nut is required.

1. Disassemble the components of the waterproof connector into parts (A) ~ (E) as

shown above.

2. Remove the plastic stopper from the bottom of the dome cap and keep the M20 hex nut for later use.

3. Depending on the number of wires, remove seals (C) from the rubber seal (B).

4. If you have external devices such as sensors and alarms, feed IO wires through the waterproof connector (E --> D --> B --> A) as the illustrated below. Note that there are 16 holes on the seal (B), and wire range is beteen 1.2 and 1.8mm.

5. Push the seal (B) into the housing (D).

6. Secure the sealing nut (E) tightly.

(E)(D)(B)(A)

VIVOTEK

M20 hex

nut

(C)

(B)

2-2. Connect cables:

1. Use a small-size at-blade screwdriver to secure IO

wires to the included terminal blocks. You may also purchase an IO combo cable from VIVOTEK.

AC24V DI GND AC24V DI4

Reserved DI3

MIC IN DI2

Line OUT DI1

Audio GND DO2

RS485- DO1

RS485+ DO+(12V)

Reserved

Line OUT

Audio GND

RS485+

AC24V AC24V

MIC IN

RS485-

Ethernet

DI GND DI4 DI3 DI2

DI1 DO2 DO1

DO+(12V)

(D)

Wire range: 13~16AWG Strip length: 6~7mm Screw: M2

User's Manual - 11

VIVOTEK

2. Feed the Ethernet cable and IO wires through the mounting bracket, the openings on the dome cap, and to the interface section. Attach the rubber seal plug to dome cap for water

proong.

3. Secure the included ground wire to the dome cap, pass it through the mount bracket, and connect the other end to a grounded conduit later.

Mount bracket

Dome cap

Interface Section

NOTE:

1. I/O wires are user-supplied.

2. Avoid touching the circuit boards to prevent damage by electro static discharge.

12 - User's Manual

VIVOTEK

1-3. Connect with the Mount Bracket

Combine the components of the top section.

1. Press the seal ring into the groove on the interface section. Use the black machine screws (M4x8) to attach the interface section to the dome cap.

2. Secure the dome cap to the mount bracket.

3. Use the included hex wrench to secure the connection.

Seal Ring

When done, the top section will look like this. You can now carry the camera and the top section to the installation site.

Mount

Bracket

Interface Section

Board-to-board Connector

User's Manual - 13

VIVOTEK

2. Mounting the Network Camera

Shown below are the dimensions of the wall mount bracket and its mounting holes:

3mm Hexagon Socket Headless Set Screw

200

165,5

225,2

156

R253,2

107,8

1-1/2" (PS11)

170,06

243,8140

13,9

Cable Clamp

You can nd the installation instructions on VIVOTEK’s website for other options such as a parapet mount: http://www.vivotek.com/web/

product/accessories.aspx

14 - User's Manual

IMPORTANT:

You should examine whether the color of the silica gel inside the chassis has turned red. If so, you should replace the desiccant bag.

To replace the desiccant bags:

1. Remove the dome cover by loosening 4 T25 anti-tamper screws.

2. Replace the desiccant bags by attaching them

rmly to the inside of the chassis.

3. Re-install the dome cover.

Note that it takes approximately 2 days to suppress the moisture level to 30% or lower. Before that, condensation may still be observed from on the dome cover.

VIVOTEK

HD WDR Pro

User's Manual - 15

VIVOTEK

NOTE:

Before mounting the camera, install an SD card if you prefer recording to local storage.

1. Mounting with Ethernet Connection Only

1. The camera weighs 3.66kg. Select a rigid mounting location to prevent vibration to the camera. Attach the alignment sticker to the wall.

2. Drill 4 pilot holes (10mm in diameter and 4cm deep) into the wall, and then hammer in threaded anchors. Note that you should hammer the anchors with hex nuts on them so that the threaded poles will not be deformed! If preferred, drill another hole for routing cables.

3. Secure the wall mount bracket to wall using 4 sets of captive washers and nuts.

4. Align the camera with the wall mount bracket.

5. Tighten 3 included screws using a Phillips screwdriver. Make sure all parts have been securely tightened.

16 - User's Manual

HD WDR Pro

VIVOTEK

2. Mounting with Ethernet & I/O Wires

1. The camera weighs 3.66kg. Select a rigid mounting location to prevent vibration to the camera. Attach the alignment sticker to the wall.

3. Secure the wall mount bracket to wall using 4 sets of captive washers and nuts.

4. Align the camera body with the top section. Align the alignment mark on the camera with that on the interface section. Push the camera up to match the top section.

5. Rotate the camera clockwise until its alignment mark is aligned with the "C" mark.

6. Use the included T25 stardriver to tighten the 3 anti-tamper screws from the top. Make sure all parts have been securely tightened.

HD WDR Pro

C Mark

Alignment Mark

HD WDR Pro

User's Manual - 17

VIVOTEK

Network Deployment

Setting up the Network Camera over the Internet

There are several ways to set up the Network Camera over the Internet. The rst way is to set up the Network Camera behind a router. The second way is to utilize a static IP. The third way is to use PPPoE.

Internet connection via a router

Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below.

1. Connect your Network Camera behind a router, the Internet environment is illustrated below.

Regarding how to obtain your IP address, please refer to Software Installation on page 21 for details.

IP address : 192.168.0.3 Subnet mask : 255.255.255.0 Default router : 192.168.0.1

IP address : 192.168.0.2 Subnet mask : 255.255.255.0 Default router : 192.168.0.1

Internet

Cable or DSL Modem

WAN (Wide Area Network ) Router IP address : from ISP

LINK

POWER

COLLISION

RECEIVE

PARTITION

LAN (Local Area Network) Router IP address : 192.168.0.1

2. In this case, if the Local Area Network (LAN) IP address of your Network Camera is

192.168.0.3, please forward the following ports for the Network Camera on the router.

■ Secondary HTTP port: 8080

■ RTSP port: 554

■ RTP port for audio: 5558

■ RTCP port for audio: 5559

■ RTP port for video: 5556

■ RTCP port for video: 5557

If you have changed the port numbers on the Network page, please open the ports accordingly on your router. For information on how to forward ports on the router, please refer to your router’s user’s manual.

3. Find out the public IP address of your router provided by your ISP (Internet Service Provider). Use the public IP and the secondary HTTP port to access the Network Camera from the

18 - User's Manual

VIVOTEK

Internet. Please refer to Network Type on page 66 for details.

For example, your router and IP settings may look like this:

Device IP Address: internal

port

IP Address: External Port (Mapped port on the

router) Public IP of router 122.146.57.120 LAN IP of router 192.168.2.1 Camera 1 192.168.2.10:80 122.146.57.120:8000 Camera 2 192.168.2.11:80 122.146.57.120:8001

... ... ...

Congure the router, virtual server or rewall, so that the router can forward any data coming into a precongured port number to a network camera on the private network, and allow data

from the camera to be transmitted to the outside of the network over the same path.

From Forward to

122.146.57.120:8000 192.168.2.10:80

122.146.57.120:8001 192.168.2.11:80

... ...

When properly congured, you can access a camera behind the router using the HTTP request as follows: http://122.146.57.120:8000

If you change the port numbers on the Network conguration page, please open the ports

accordingly on your router. For example, you can open a management session with your router

to congure access through the router to the camera within your local network. Please consult your network administrator for router conguration if you have troubles with the conguration.

For more information with network conguration options (such as that of streaming ports), please refer to Conguration > Network Settings. VIVOTEK also provides the automatic port

forwarding feature as an NAT traversal function with the precondition that your router must support the UPnP port forwarding feature.

User's Manual - 19

VIVOTEK

Internet connection with static IP

Choose this connection type if you are required to use a static IP for the Network Camera.

Please refer to LAN on page 66 for details.

Internet connection via PPPoE (Point-to-Point over Ethernet)

Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to PPPoE on page 67 for details.

General Connection

1. Connect the Network Camera's Ethernet cable (CAT5e) to a PoE Plus switch. A 30W PoE

output port alone can not drive the onboard heater, and hence if using the PoE switch alone, the application does not apply in low-temperature condition. 30W PoE plus can only drive the camera when it is working at a temperature higher than -5ºC.

2. Connect the power wires to an AC 24V power adaptor (user-supplied). The AC 24V adapter

can drive the camera and the onboard heater.

You can connect both power sources for redundancy in power supply.

IEEE 802.3at PoE Switch (30W output)

HD WDR Pro

and / or

AC 24V 3.5A Adapter

(User-supplied)

Power over Ethernet (High Power PoE)

When using a non-PoE switch

Use a High Power PoE power injector (separately purchased) capable of 60W output to connect between the Network Camera and a non-PoE switch. Sufcient power is required for low temperature conditions when the onboard heater is activated.

HD WDR Pro

20 - User's Manual

High Power PoE

Power Injector

Non-PoE Switch

VIVOTEK

Software Installation

Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up your Network Camera on the LAN.

1. Install IW2 under the Software Utility directory from the software CD. Double click the IW2 shortcut on your desktop to launch the program.

2. The program will conduct an analysis of your network environment. After your network environment is analyzed, please click Next to continue the program.

Installation

Wizard 2

3. The program will search for all VIVOTEK network devices on the same LAN.

4. After a brief search, the main installer window will prompt. Double-click on the MAC and model name which matches the product label on your device to connect to the Network Camera via a web browser.

Network Camera

Model No: SD83x4E

MAC:0002D1730202

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Pat. 6,930,709

R o HS

Made in Taiwan

00-02-D1-73-02-02 192.168.5.151 SD83x4E

0002D1730202

User's Manual - 21

VIVOTEK

Ready to Use

1. A browser session with the Network Camera should prompt as shown below.

2. You should be able to see live video from your camera. You may also install the 32-channel

recording software from the software CD in a deployment consisting of multiple cameras. For its installation details, please refer to its related documents.

18x

IMPORTANT:

Currently the Network Camera utilizes a 32-bit ActiveX plugin. You CAN NOT open a

•

management/view session with the camera using a 64-bit IE browser. If you encounter this problem, try execute the Iexplore.exe program from C:\Windows\

•

SysWOW64. A 32-bit version of IE browser will be installed. On Windows 7, the 32-bit explorer browser can be accessed from here: C:\Program Files

•

(x86)\Internet Explorer\iexplore.exe If you experience compatibility issues between the plug-in control, you may try to uninstall

•

the Camera Stream Controller located in: C:/Program Files (x86)/Camera Stream Controller.

22 - User's Manual

VIVOTEK

Accessing the Network Camera

This chapter explains how to access the Network Camera through web browsers, RTSP players, 3GPP-compatible mobile devices, and VIVOTEK recording software.

Using Web Browsers

Use Installation Wizard 2 (IW2) to access to the Network Cameras on the LAN.

If your network environment is not a LAN, follow these steps to access the Netwotk Camera:

1. Launch your web browser (e.g., Microsoft

2. Enter the IP address of the Network Camera in the address eld. (A temporary IP will be

generated for the camera. Find it in your Network Neighborhood). Press Enter.

3. Live video will display in your web browser.

4. If it is the rst time installing the VIVOTEK network camera, an information bar will pop up as

shown below. Follow the instructions to install the required plug-in on your computer.

28x

Internet Explorer or Mozilla Firefox).

NOTE:

For Mozilla Firefox or Netscape users, your browser will use Quick Time to stream live video. If you do not have Quick Time on your computer, please download Quick Time from Apple Inc's website, and then launch your web browser.

28x

User's Manual - 23

VIVOTEK

► By default, the Network Camera is not password-protected. To prevent unauthorized access,

it is highly recommended to set a password for the Network Camera. For more information about how to enable password protection, please refer to Security on page 84.

► If you see a dialog box indicating that your security settings prohibit running ActiveX

Controls, please enable the ActiveX

Controls for your browser.

1. Choose Tools > Internet Options > Security > Custom Level.

2. Look for Download signed ActiveX

controls; select Enable or Prompt. Click OK.

3. Refresh your web browser, then install the ActiveX complete installation.

control. Follow the instructions to

24 - User's Manual

VIVOTEK

Using RTSP Players

To view the H.264/MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming.

Quick Time Player

VLC Media Player

VLC media player

1. Launch the RTSP player.

2. Choose File > Open URL. An URL dialog box will pop up.

mpegable Player

3. The address format is rtsp://<ip address>:<rtsp port>/<RTSP streaming access name for

pvPlayer

stream1 or stream2>

As most ISPs and players only allow RTSP streaming through port number 554, please set the RTSP port to 554. For more information, please refer to RTSP Streaming on page 75.

For example:

rtsp://192.168.5.151:554/live.sdp

4. The live video will be displayed in your player. For more information on how to configure the RTSP access name, please refer to RTSP Streaming on page 75 for details.

Video 16:38:01 2011/03/25

User's Manual - 25

VIVOTEK

Using 3GPP-compatible Mobile Devices

To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page

18.

To utilize this feature, please check the following settings on your Network Camera:

1. Because most players on 3GPP mobile phones do not support RTSP authentication, make sure the authentication mode of RTSP streaming is set to disable.

For more information, please refer to RTSP Streaming on page 75.

2. As the the bandwidth on 3G networks is limited, you will not be able to use a large video size.

Please set the video and audio streaming parameters as listed below.

For more information, please refer to Stream settings on page 62.

Video Mode MPEG-4 Frame size 176 x 144 Maximum frame rate 5 fps Intra frame period 1S Video quality (Constant bit rate) 40kbps Audio type (GSM-AMR) 12.2kbps

3. As most ISPs and players only allow RTSP streaming through port number 554, please set

the RTSP port to 554. For more information, please refer to RTSP Streaming on page 75.

4. Launch the player on the 3GPP-compatible mobile devices (ex. Real Player).

5. Type the following URL commands into the player.

The address format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP streaming

access name for stream 3>.

For example:

rtsp://192.168.5.151:554/live.sdp

26 - User's Manual

VIVOTEK

Using VIVOTEK Recording Software

The product software CD also contains recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras. Please install the recording software; then launch the program to add the Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www.vivotek.com.

User's Manual - 27

VIVOTEK

Main Page

This chapter explains the layout of the main page. It is composed of the following sections:

VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, and Live Video Window.

VIVOTEK INC. Logo

Camera Control Area

Resize Buttons

Hide Button

36x

Host Name

Configuration Area

Live View Window

Mouse and Screen Control

In addition to the use of a joystick, mouse control is also supported by the web session. You can click

on any spot on the screen to move camera's eld of view to that direction. To pan 360 degrees, you can

click and hold down the left mouse button when clicking a PTZ directional button. The same applies to arrow keys, Zoom, and Focus buttons on the PTZ panel.

36x

Click and hold down the button

Zoom In

Zoom Out

Click to bring to center of view

Note that if your screen control malfunctions, it is possible that the CPU of your current view station can not cope with the HD video feeds or that an incompatibility issue occurred with the ActiveX control plugins.

28 - User's Manual

VIVOTEK

VIVOTEK INC. Logo

Click this logo to visit the VIVOTEK website.

Host Name

The host name can be customized to t your needs. For more information, please refer to System on page 40.

Camera Control Area

Video Stream: This Network Camera supports multiple streams (stream 1 ~ 4) simultaneously. You can select either one for live viewing. For more information about multiple streams, please refer to page 63 for detailed information.

Manual triggers: Manual triggers can be turned on/off by users from the main page. The manual triggers can be associated with the Event settings, and, as the result, can be used to perform recording actions,

sending notications, and so on. See Event settings on page 102.

Digital Output: Click to turn the digital output device on or off.

PTZ Control Panel:

Return to Home Position

Left

Right

Down

Zoom Out

Zoom In

Auto Focus

Focus Near

Start to Auto Pan

Focus Far

Auto Tracking

Start to Auto Patrol

Stop Auto Panning/patrolling

Pan: Click this button to start the auto pan (360° continuous rotation).

Stop: Click this button to stop the Auto Pan, Auto Patrol, and Auto Tracking functions.

Patrol: Once the Administrator has determined the list of preset positions (including the zoom-in action on a particular position), click this button to command the camera to patrol among those positions on the Patrol List. The Network Camera will patrol continuously. For more information, please refer to PTZ control on page 97.

Track: Allows the camera to move along following the moving objects in the current eld of view. If you observe an object of your interest, click this button to track the object. Note that this function does not apply in an extremely crowded area, such as a market or sidewalk full of pedestrian activities. Constant shift of tracked objects will decrease the usability of this feature.

Once started, you can use the Stop button to stop the current action. A click on the screen can also stop the tracking action.

Another key concept is that the camera only detect movements within the current eld of view.

Please refer to PTZ > Auto tracking on page 100 and further for tracking conguration details.

User's Manual - 29

VIVOTEK

Pan /Tilt /Zoom /Focus speed: Adjust the speed of Pan/ Tilt/ Zoom/ Focus:

Pan speed Tilt speed Zoom speed Focus speed

-5 -5 -5 -5 Slower

-4 -4 -4 -4

-3 -3 -3 -3

-2 -2 -2 -2

-1 -1 -1 -1

0 0 0 0

1 1 1 1

2 2 2 2

3 3 3 3

4 4 4 4

5 5 5 5

Faster

Note that mouse screen control is also supported. You can refer to page 97 for related information.

Conguration Area

Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 34.

Conguration: Click this button to access the conguration page of the Network Camera. It is suggested

that a password be applied to the Network Camera so that only the administrator can configure the

Network Camera. For more information, please refer to Conguration on page 39.

Language: Click this button to choose a language for the user interface. Language options are available in: English, Deutsch, Español, Français, Italiano,

日本語

, Português,

簡体中文

, and

繁體中文

. You can

also change a language on the Conguration page; please refer to page 39.

Hide Button

You can click the hide button to hide the control panel or display the control panel.

30 - User's Manual

+ 192 hidden pages
