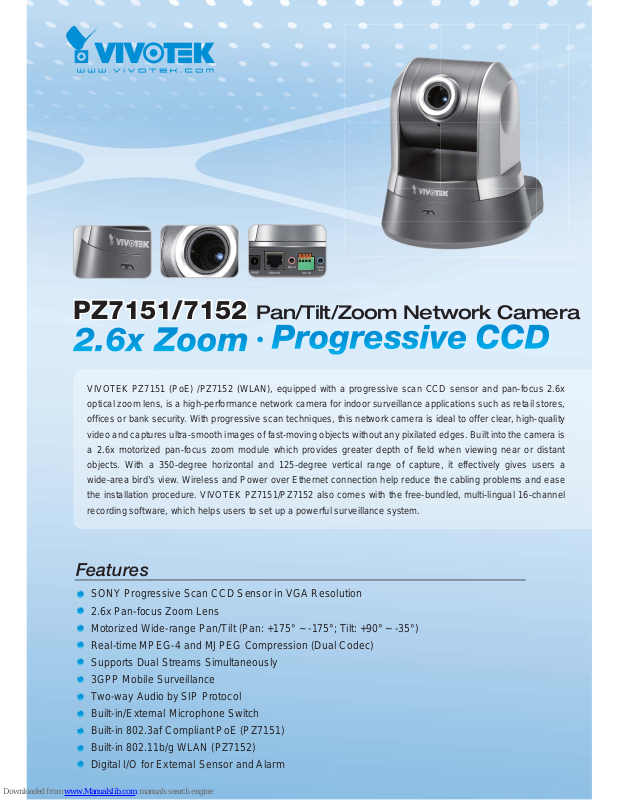

Vivotek PZ7151, P7152 Specifications

Pan/Tilt/Zoom Network Camera

Features

SONY Progressive Scan CCD Sensor in VGA Resolution

2.6x Pan-focus Zoom Lens
Motorized Wide-range Pan/Tilt (Pan: +175° ~ -175°; Tilt: +90° ~ -35°)
Real-time MPEG-4 and MJPEG Compression (Dual Codec)
Supports Dual Streams Simultaneously
3GPP Mobile Surveillance
Two-way Audio by SIP Protocol
Built-in/External Microphone Switch
Built-in 802.3af Compliant PoE (PZ7151)
Built-in 802.11b/g WLAN (PZ7152)
Digital I/O for External Sensor and Alarm

PZ7151/7152

PZ7151/7152

PZ7151/7152

VIVOTEK PZ7151 (PoE) /PZ7152 (WLAN), equipped with a progressive scan CCD sensor and pan-focus 2.6x
optical zoom lens, is a high-performance network camera for indoor surveillance applications such as retail stores,
offices or bank security. With progressive scan techniques, this network camera is ideal to offer clear, high-quality
video and captures ultra-smooth images of fast-moving objects without any pixilated edges. Built into the camera is
a 2.6x motorized pan-focus zoom module which provides greater depth of field when viewing near or distant
objects. With a 350-degree horizontal and 125-degree vertical range of capture, it effectively gives users a
wide-area bird’s view. Wireless and Power over Ethernet connection help reduce the cabling problems and ease
the installation procedure. VIVOTEK PZ7151/PZ7152 also comes with the free-bundled, multi-lingual 16-channel
recording software, which helps users to set up a powerful surveillance system.

All specifiations are subject to change without notice. All other trademarks are owned by their respective companies

Networking

．10/100 Mbps Ethernet, RJ-45
．Protocols: IPv4, TCP/IP, HTTP,HTTPS, UPnP, RTSP/RTP/RTCP,

IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, and PPPoE

．Built-in 802.11b/g WLAN (PZ7152)

Alarm and Event Management

．Triple-window video for motion detection
．One D/I and one D/O for external sensor and alarm
．Event notification using HTTP, SMTP, or FTP

Security

．Multi-level user access with password protection
．IP address filtering
．Wireless: WEP, WPA-PSK, WPA2 (PZ7152)

Users

．Camera live viewing for up to 10 clients

Dimension

．104.1 mm (W) x 103.5 mm (D) x 118 mm (H)

Weight

．Net: 352 g (PZ7151)
．Net: 371 g (PZ7152)

LED Indicator

．System activity and network link indicator

Power

．12V DC
．802.3af compliant Power over Ethernet (PZ7151)
．Power consumption: Max. 12W

Approvals

．CE, FCC, C-Tick, LVD, VCCI

Operating Environments

．Temperature: 0° ~ 50° C (32° ~ 122° F)
．Humidity: 20 % ~ 80 % RH

Viewing System Requirements

．OS: Microsoft Windows 2000/XP/Vista
．Browser: Internet Explorer 6.x or above
．Cellphone: 3GPP player
．Real Player: 10.5 or above
．Quick Time: 6.5 or above

Installation, Management, and Maintenance

．Installation Wizard 2
．16-CH recording software
．Supports firmware upgrade

Applications

．SDK available for application development and system integration

Networking

．10/100 Mbps Ethernet, RJ-45
．Protocols: IPv4, TCP/IP, HTTP,HTTPS, UPnP, RTSP/RTP/RTCP,

IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, and PPPoE

．Built-in 802.11b/g WLAN (PZ7152)

Alarm and Event Management

．Triple-window video for motion detection
．One D/I and one D/O for external sensor and alarm
．Event notification using HTTP, SMTP, or FTP

Security

．Multi-level user access with password protection
．IP address filtering
．Wireless: WEP, WPA-PSK, WPA2 (PZ7152)

Users

．Camera live viewing for up to 10 clients

Dimension

．104.1 mm (W) x 103.5 mm (D) x 118 mm (H)

Weight

．Net: 352 g (PZ7151)
．Net: 371 g (PZ7152)

LED Indicator

．System activity and network link indicator

Power

．12V DC
．802.3af compliant Power over Ethernet (PZ7151)
．Power consumption: Max. 12W

Approvals

．CE, FCC, C-Tick, LVD, VCCI

Operating Environments

．Temperature: 0° ~ 50° C (32° ~ 122° F)
．Humidity: 20 % ~ 80 % RH

Viewing System Requirements

．OS: Microsoft Windows 2000/XP/Vista
．Browser: Internet Explorer 6.x or above
．Cellphone: 3GPP player
．Real Player: 10.5 or above
．Quick Time: 6.5 or above

Installation, Management, and Maintenance

．Installation Wizard 2
．16-CH recording software
．Supports firmware upgrade

Applications

．SDK available for application development and system integration

Models

．PZ7151 (PoE)
．PZ7152 (WLAN)

System

．CPU: VVTK-1000 SoC
．Flash: 8MB
．RAM: 64MB
．Embedded OS: Linux 2.4

Pan/Tilt/Zoom

．Pan range: 350° (-175° ~ +175°)
．Tilt range: 125° (-35° ~ +90°)
．Auto pan mode
．Auto patrol mode
．2.6x optical zoom

Lens

．Board lens, f=2.8 ~ 7.3 mm, auto iris, focus range: 0.75 mm to infinity

Shutter Time

Angle of view

．28.7°~73.4° (horizontal)
．21.6°~54.7° (vertical)
．35.8°~92.2° (diagonal)

Image Sensor

．SONY 1/4” progressive scan CCD sensor in VGA resolution

Minimum Illumination

Video

．Compression: MJPEG & MPEG-4
．Streaming:

Simultaneous dual-streaming
MPEG-4 streaming over UDP, TCP, or HTTP
MPEG-4 multicast streaming
MJPEG streaming over HTTP

．Supports 3GPP mobile surveillance
．Frame rates: 640x480 up to 30fps

Image settings

．Adjustable image size, quality, and bit rate
．Time stamp and text caption overlay
．Flip & mirror
．Configurable brightness, contrast, and saturation
．AGC, AWB, AES
．Backlight compensation (BLC)

Audio

．Compression:

GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps

．Interface:

Built-in microphone
External microphone input
Audio output
External/Internal microphone switch

．Supports two-way audio by SIP protocol
．Supports audio mute

P/N: Ver

System Overview

Specifications

PC with

Recording Software

PZ7151

Built-in MIC

Status LED

Lens

Power Cord Socket

Ethernet 10/100

RJ45 Socket

General I/O
Terminal Block

Audio Out

Antenna
(PZ7152 only)

MIC In

External/Internal
MIC Switch
