Overview

VIVOTEK IP8352 is a best-in-class 1�3-Megapixel bullet network camera designed for diverse outdoor applications� Incorporated with a progressive scan CMOS sensor with exceptional low lux capabilities, the IP8352 captures not only razor-sharp images of fast-moving objects during the daytime, but also offers unparalleled night visibility under low light conditions�

Equipped with VIVOTEK’s self-developed next-generation SoC, the IP8352 supports highperformance H�264/MPEG-4/MJPEG compression technology and offers extra smooth video quality up to 60 fps @ 720p and 30fps @ 1�3MP� Furthermore, the IP8352 boasts a number of innovative technologies, including Activity Adaptive Streaming and Gigabit Ethernet

Transmission, giving a user the utmost in bandwidth exibility and storage efciency.

To adapt to constantly changing lighting conditions, the IP8352 comes with a removable IR-

cut lter and built-in IR illuminators for both day and night applications. Its IP67-rated housing

protects the camera body against rain and dust and ensures operation under extreme weather conditions� For complete installation and prevention of tampering and vandalism, the IP8352 is also packaged with a mounting bracket that conceals all cabling�

With other advanced features such as tamper detection, 802�3af compliant PoE, MicroSD/SDHC card slot for on-board storage, Gigabit Ethernet Transmission, plus Supreme Night Visibility and

60fps high denition video quality, the IP8352 is the best choice for the most demanding outdoor

surveillance applications such as parking lots, entrances, housing communities, and much more�

4 - User's Manual

VIVOTEK

i

Read Before Use

The use of surveillance devices may be prohibited by law in your country� The Network Camera is not

only a high-performance web-ready camera but can also be part of a exible surveillance system. It is

the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use�

It is important to rst verify that all contents received are complete according to the Package Contents

listed below� Take note of the warnings in the Quick Installation Guide before the Network Camera is installed; then carefully read and follow the instructions in the Installation chapter to avoid damage due to faulty assembly and installation� This also ensures the product is used properly as intended�

The Network Camera is a network device and its use should be straightforward for those who have basic networking knowledge� It is designed for various applications including video sharing, general security/ surveillance, etc� The Configuration chapter suggests ways to best utilize the Network Camera and ensure proper operations� For creative and professional developers, the URL Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server�

Package Contents

■ IP8352 - the Network Camera

■ Alignment Sticker

■ Sun Shield, Wrench/RJ45 Female/Female

Coupler/Double-sided Tape/Screws

■ Power Adapter

■ Wall Mount Bracket & Mounting Plate

■ Waterproof Connector (Optional)

■ Moisture Absorber

■ Quick Installation Guide / Warranty Card

■ Software CD

Symbols and Statements in this Document

INFORMATION: provides important messages or advices that might help prevent inconvenient

or problem situations�

NOTE: Notices provide guidance or advices that are related to the functional integrity of the

machine�

Tips: Tips are useful information that helps enhance or facilitae an installation, function, or

process�

WARNING! or IMPORTANT!: These statements indicate situations that can be dangerous or

hazardous to the machine or you�

Electrical Hazard: This statement appears when high voltage electrical hazards might occur

to an operator�

User's Manual - 5

VIVOTEK

Physical Description

Light Sensor

IR LEDs

Reset Button

Lens

Focus Controller

Zoom Controller

SD/SDHC Card Slot

When inserting an SD/SDHC card, note the orientation of the contacts�

6 - User's Manual

General I/O Terminal Block

+ AC 24V +

- AC 24V -

Gb Ethernet RJ45 Plug

Power Cord Socket

VIVOTEK

Hardware Installation

1� Attach the alignment sticker to the wall� Drill three holes into the wall� Then hammer the

supplied plastic anchors into the holes and secure the plate with supplied screws�

2� Feed the cables through the front opening of the wall mount bracket� (If you want to use

external devices such as sensors and alarms, please refer to the assembling steps on the

next page�) 3� Hang the wall mount bracket on the plate� 4� Fix the Network Camera on the wall mount bracket with two screws on both sides� 5� Secure the wall mount bracket with the supplied screws� 6� Adjust the angle of the wall mount bracket to aim at the shooting area�

1

2

3

4

6

5

4

5

6

IMPORTANT!

The supplied L-type hex key wrenches are exclusively designed to match each screw� In case you will need to adjust the lens later, do not discard the wrenches�

User's Manual - 7

VIVOTEK

Rubber (A)

Waterproof Connector

Components of the Waterproof Connector

IO Block Pin Denitions

1 Power +12V

Screw Nut (B)

Seal (C)

87654321 109

Seals (D)

Housing (E)

Sealing Nut (F)

2 Digital Output 3 Digital Input 4 Ground 5 RS485 + 6 RS485 7 Ground 8 Audio Input 9 Ground

10 Audio Output

Assembling Steps

1� Disassemble the components of the waterproof connector into part (A) ~ (F) as shown above� 2� Remove the rubber stopper from the bottom of the Network Camera and secure the rubber (A)

and screw nut (B) tightly� 3� Open the back cover of the Network Camera� 4� If you have external devices such as sensors and alarms, feed the cables through the

waterproof connector (F --> E --> C --> A+B) as the illustration shown below� Then refer to

the pin denition to connect them to the general I/O terminal block. Note: The recommended

cable gauge is 2�0 ~ 2�8 mm� 5� Push the seal (C) into the housing (E)� 6� Insert the seals (D) into the empty holes on the seal (C) to avoid moisture� 7� Secure the sealing nut (F) tightly� 8� Tighten the back cover� 9� Remove rubber (G) and feed the cables through the wall mount bracket�

2

3

(A)+(B)

(C)

6

(D)

(E)

(F)

7

8

(C)

5

(E)

(F)

4

(G)

(F)

9

8 - User's Manual

DI/DO Diagram

Please refer to the following illustration for the connection method�

12V

PIN 1

Power+12V

PIN 2

Digital output

+12V

PIN 3

Digital input

PIN 4

Ground

VIVOTEK

Hardware Reset

Reset Button

The reset button is used to reset the system or restore the factory default settings� Sometimes resetting the system can return the camera to normal operation� If the system problems remain after reset, press the reset button longer to restore the factory settings and install again�

Reset: Press and release the recessed reset button with a straightened paper clip� Wait for the Network Camera to reboot�

Restore: Press and hold the recessed reset button for at least several seconds to restore� Note that all settings will be restored to factory defaults�

SD/SDHC Card Capacity

This network camera is compliant with Micro SD/SDHC 32GB and other preceding standard SD cards�

User's Manual - 9

VIVOTEK

Network Deployment

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable� Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable�

RJ45 Female/

Female Coupler

PoE Switch

POWER

COLLISION

LINK

RECEIVE

1

2

PARTITION

3

4

5

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch�

RJ45 Female/

Female Coupler

PoE Power

Injector

(Optional)

10 - User's Manual

POWER

COLLISION

LINK

RECEIVE

1

2

PARTITION

3

4

5

Non-PoE Switch

VIVOTEK

L

A

N (

Local Area Network)

R

o

u

t

e

r

I

P

a

d

dre

s

W

A

N (Wide Area Network )

R

o

u

t

e

r

I

P

a

d

dre

s

f

r

o

m

I

S

P

I

P

a

d

dre

s

9

2

.

6

8

.0.

3

Network Deployment

Setting up the Network Camera over the Internet

There are several ways to set up the Network Camera over the Internet� The rst way is to set up the Network Camera behind a router� The second way is to utilize a static IP� The third way is to use PPPoE�

Internet connection via a router

Before enabling the access to the Network Camera over the Internet, make sure you have a router and follow the steps below�

1� Connect your Network Camera behind a router, the Internet environment is illustrated below�

Regarding how to obtain your IP address, please refer to Software Installation on page 13 for

details�

IP address : 192.168.0.3 Subnet mask : 255.255.255.0 Default router : 192.168.0.1

IP address : 192.168.0.2 Subnet mask : 255.255.255.0 Default router : 192.168.0.1

Internet

Cable or DSL Modem

WAN (Wide Area Network ) Router IP address : from ISP

LINK

POWER

COLLISION

RECEIVE

1

2

PARTITION

3

4

5

LAN (Local Area Network) Router IP address : 192.168.0.1

2� In this case, if the Local Area Network (LAN) IP address of your Network Camera is 192�168�0�3, please forward the following ports for the Network Camera on the router�

■ Secondary HTTP port

■ RTSP port

■ RTP port for audio

■ RTCP port for audio

■ RTP port for video

■ RTCP port for video

If you have changed the port numbers on the Network page, please open the ports accordingly on your router� For information on how to forward ports on the router, please refer to your router’s user’s manual�

3� Find out the public IP address of your router provided by your ISP (Internet Service Provider)� Use the public IP and the secondary HTTP port to access the Network Camera from the Internet� Please refer to Network Type on page 51 for details�

User's Manual - 11

VIVOTEK

Internet connection with static IP

Choose this connection type if you are required to use a static IP for the Network Camera�

Please refer to LAN conguration on page 51 for details.

Internet connection via PPPoE (Point-to-Point over Ethernet)

Choose this connection type if you are connected to the Internet via a DSL Line� Please refer to PPPoE on page 49 for details�

12 - User's Manual

VIVOTEK

Software Installation

Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up your Network Camera on the LAN�

IW

1� Install IW2 under the Software Utility directory from the software CD� Double click the IW2 shortcut on your desktop to launch the program�

2� The program will conduct an analysis of your network environment� After your network environment is analyzed, please click Next to continue the program�

2

Installation

Wizard 2

3� The program will search for all VIVOTEK network devices on the same LAN�

4� After a brief search, the main installer window will pop up� Double-click on the MAC address

that matches the one printed on the camera label or the S/N number on the package box label

to open a browser management session with the Network Camera�

0002D1083236

00-02-D1-07-25-8A 192.168.5.151 FD8162

0002D107258A

User's Manual - 13

VIVOTEK

T

W

∞

N

Ready to Use

1� A browser session with the Network Camera should prompt as shown below�

2� You should be able to see live video from your camera� You may also install the 32-channel

recording software from the software CD in a deployment consisting of multiple cameras� For

its installation details, please refer to its related documents�

3� Unscrew the zoom controller to adjust the zoom

factor� Upon completion, tighten the zoom

controller� 4� Unscrew the focus controller to adjust the focus

range� Upon completion, tighten the focus

controller�

4

14 - User's Manual

3

VIVOTEK

5� Tighten the lens cover� 6� Replace the moisture absorber with a new one if you open the back cover during the

installation procedure�

6

IMPORTANT!

5

Please tear down the aluminum foil vacuum bag and take out the moisture absorber, and then replace it with the absorber in kit using a double-sided tape�

NOTE:

If you want to use the supplied sun shield for outdoor environments, please follow the steps below to install:

1� Tighten the supplied two screws� 2� Attach the supplied sun shield to the Network Camera and slide it to the desired position� 3� Fix the sun shield with the supplied two screws�

1

2

3

User's Manual - 15

VIVOTEK

Accessing the Network Camera

This chapter explains how to access the Network Camera through web browsers, RTSP players, 3GPP-compatible mobile devices, and VIVOTEK recording software�

Using Web Browsers

Use Installation Wizard 2 (IW2) to access the Network Cameras on the LAN� If your network environment is not a LAN, follow these steps to access the Netwotk Camera: 1� Launch your web browser (ex� Microsoft

2. Enter the IP address of the Network Camera in the address eld. Press Enter� 3� The live video will be displayed in your web browser�

4. If it is the rst time installing the VIVOTEK network camera, an information bar will prompt as

shown below� Follow the instructions to install the required plug-in on your computer�

®

Internet Explorer or Mozilla Firefox)�

NOTE:

For Mozilla Firefox or Netscape users, your browser will use Quick Time to stream live video� If you do not have Quick Time on your computer, please download Quick Time from Apple Inc's website, and then launch your web browser�

16 - User's Manual

VIVOTEK

NOTE:

1� By default, your Network Camera is not password-protected� To prevent unauthorized

access, it is highly recommended to congure a password for your camera later.

For more

information about how to enable password protection, please refer to Security on page 40

2� If you see a dialogue box indicating that your security settings prohibit running ActiveX

Controls®, please enable ActiveX Controls for your browser�

To enable the ActiveX® Controls for your browser:

1� Choose Tools > Internet Options > Security > Custom Level�

�

2� Look for Download signed ActiveX® controls; select Enable or Prompt� Click OK�

3� Refresh your web browser, then install the ActiveX

complete installation�

®

control� Follow the instructions to

User's Manual - 17

VIVOTEK

Using RTSP Players

To view the H�264/MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming�

Quick Time Player

Real Player

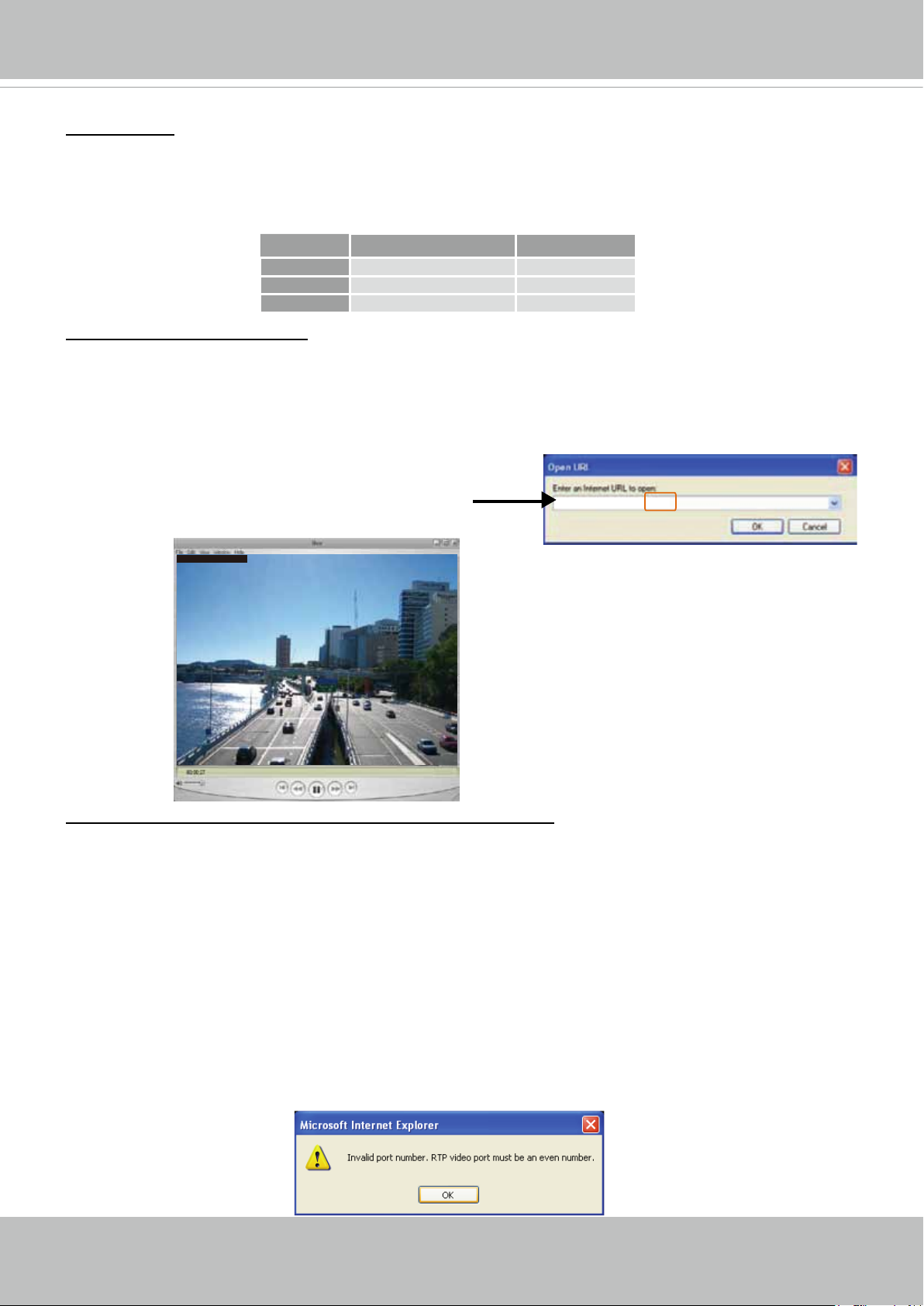

1� Launch the RTSP player� 2� Choose File > Open URL� A URL dialog box will prompt� 3� The address format is rtsp://<ip address>:<rtsp port>/<RTSP streaming access name for

stream1 or stream2>

As most ISPs and players only allow RTSP streaming through port number 554, please set the RTSP port to 554� For more information, please refer to RTSP Streaming on page 60� For example:

rtsp://192.168.5.151:554/live.sdp

4. The live video will be displayed in your player. For more information on how to congure the

RTSP access name, please refer to RTSP Streaming on page 60 for details�

Video 16:38:01 2011/03/25

18 - User's Manual

VIVOTEK

Using 3GPP-compatible Mobile Devices

To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet� For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 11�

To utilize this feature, please check the following settings on your Network Camera:

1� Because most players on 3GPP mobile phones do not support RTSP authentication, make

sure the authentication mode of RTSP streaming is set to disable�

For more information, please refer to RTSP Streaming on page 60�

2� As the the bandwidth on 3G networks is limited, you will not be able to use a large video size�

Please set the video and audio streaming parameters as listed below� For more information, please refer to Stream settings on page 77�

Video Mode MPEG-4 Frame size 176 x 144 Maximum frame rate 5 fps Intra frame period 1S Video quality (Constant bit rate) 40kbps Audio type (GSM-AMR) 12.2kbps

3� As most ISPs and players only allow RTSP streaming through port number 554, please set

the RTSP port to 554� For more information, please refer to RTSP Streaming on page 60�

4� Launch the player on the 3GPP-compatible mobile devices (e�g�, Real Player)�

5. Type the following URL commands in the URL eld.

The address format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP streaming

access name for stream 3>� For example:

rtsp://192.168.5.151:554/live.sdp

User's Manual - 19

VIVOTEK

Using VIVOTEK Recording Software

The product software CD also contains recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras� Please install the recording software; then launch the program to add the Network Camera to the Channel list� For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www�vivotek�com�

20 - User's Manual

VIVOTEK

Main Page

This chapter explains the screen elements on the main page� It is composed of the following

sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Conguration Area, and Live

Video Window�

VIVOTEK INC. Logo

Camera Control Area

Live View Window

Configuration Area

VIVOTEK INC. Logo

Resize Buttons

Hide Button

Host Name

Click this logo to visit the VIVOTEK website�

Host Name

The host name can be customized to t your needs. For more information, please refer to System on page 29.

Camera Control Area

Video Stream: This Network Cmera supports multiple streams (stream 1 ~ 4) simultaneously� You can select either one for live viewing� For more information about multiple streams, please refer to page 77 for detailed information�

Manual Trigger: Click to enable/disable an event trigger manually� Please configure an event setting

before enabling this function. A total of 3 or 4 event settings can be congured. For more information

about event setting, please refer to page 85� If you want to hide this item on the homepage, please go to the System > Homepage Layout > General settings > Customized button to uncheck “show manual trigger button”�

Digital Output: Click to turn the digital output device on or off�

User's Manual - 21

VIVOTEK

T

W

∞

N

The color bar fluctuates according to current focus value. The color bar reaches the optimal value.

Focus Assist Button:

Follow the steps below to manually ne-tune the camera’s focus.

1. Manually adjust the zoom controller of the camera lens to x the camer’s view angle.

2� Click on the “On” button of the Focus Assist function on the homepage session with the camera to

start the focus assist function� The Live View window will automatically enter the full screen mode�

Stream is being adjusted

Zoom

Focus

3

4

3. The oating indicator will appear at the bottom of the screen showing the calculated focus information.

While you manually adjust the camera’s focus, the numeric readings and the onscreen color bar should fluctuate and you should find the best results when the focus value is stated as the “BEST FOCUS�”

FOCUS VALUE

98/107

BEST FOCUS

107/107

4� When done, tighten the zoom and focus controller bars, and then press the ESC key to leave the full-

screen mode�

5� Turn off the focus assist function by clicking the “Off” button�

IMPORTANT!

1� Before using the Focus Assist function, the camera should have been stably installed

and the camera's shooting direction and view angle must be secured for a stable view� If the view is altered, you should fine-tune the camera's zoom and focus again by turning off and restarting the function�

2� Instead of a BNC connector, the camera is equipped with an AV output phone-jack that

serves the same purpose for initial video adjustment� You may use the AV output to connect to a portable monitor such as a mini-DVR�

You may also refer to VIVOTEK’s website for an application note on the use of this function: http://www�

vivotek.com/support/appnote.php?appcon=29&appcatagory=rmware.

22 - User's Manual

VIVOTEK

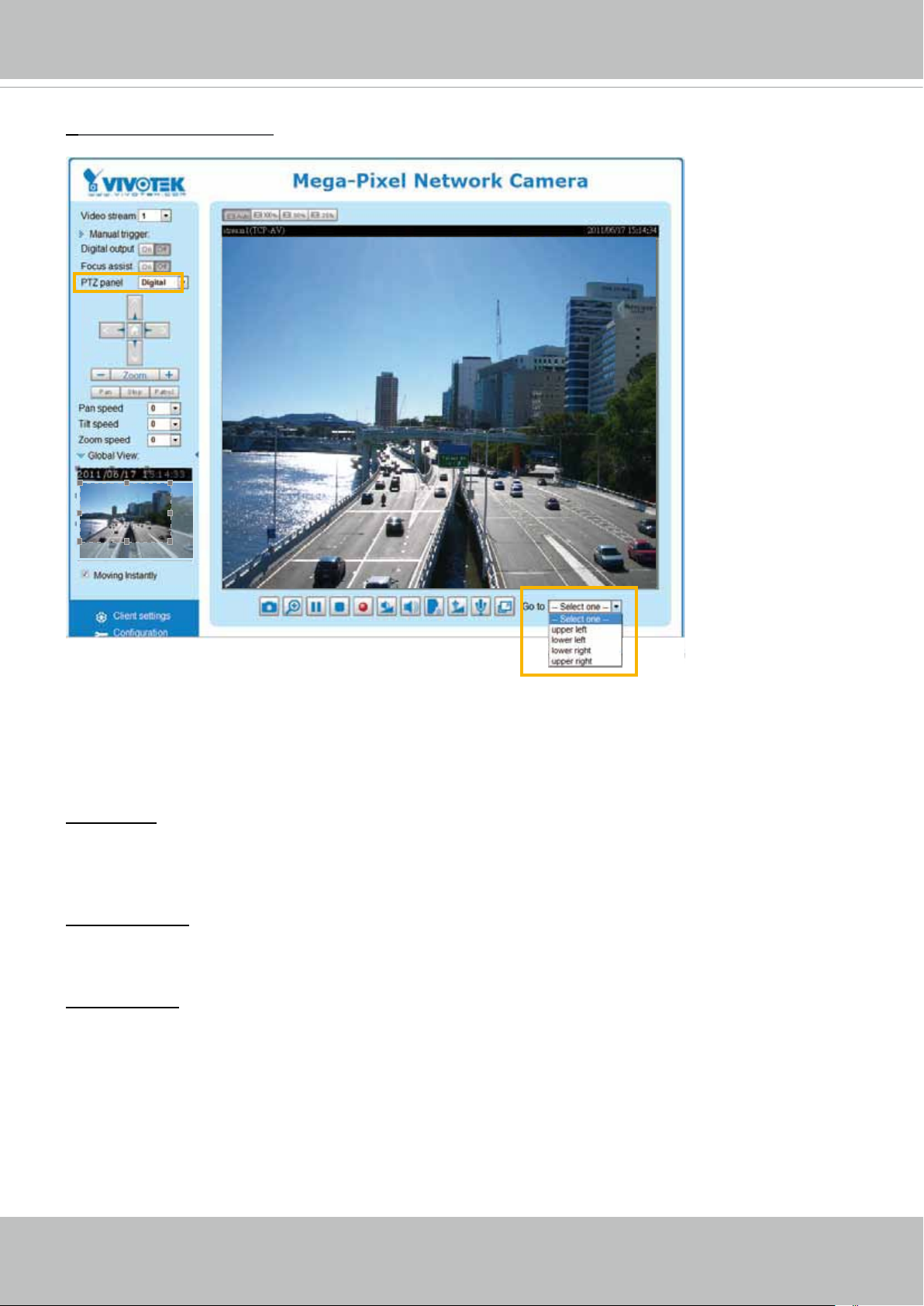

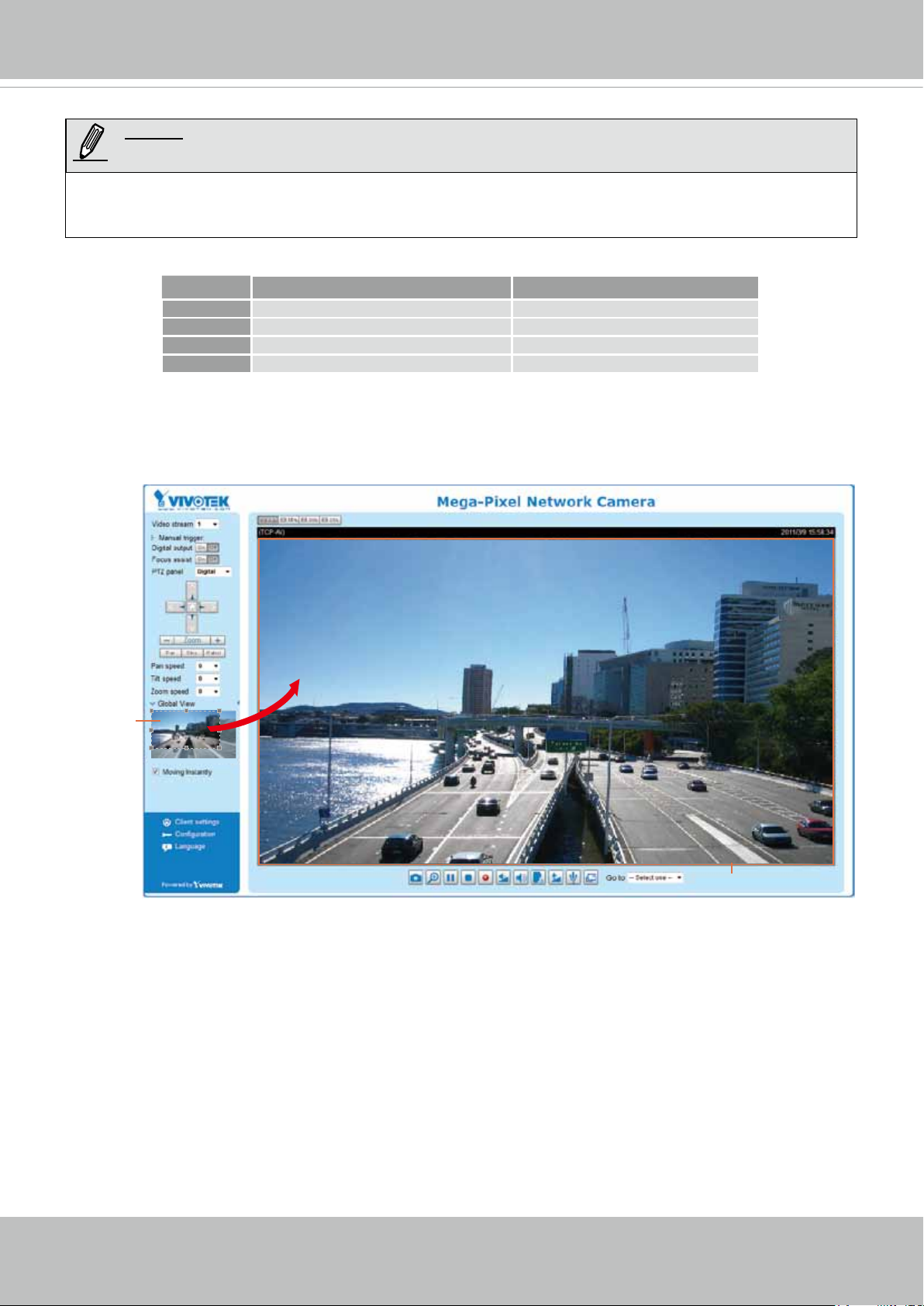

Global View: Click on this item to display the Global View window� The Global View window contains a full view image (the largest frame size of the captured

The viewing region of the current video stream

video) and a oating frame (the viewing region of the current video stream). The oating frame allows users

to control the e-PTZ function (Electronic Pan/Tilt/

The largest frame size

Zoom)� For more information about e-PTZ operation, please refer to E-PTZ Operation on page 82� For more information about how to set up the viewing region of the current video stream, please refer to page 77�

To move the current view window, place your cursor on it and let the cursor change to the all-direction arrow�

Conguration Area

all-direction arrow

Client Settings: Click this button to access the client setting page� For more information, please refer to Client Settings on page 26�

Conguration: Click this button to access more of the conguration options provided with the Network

Camera� It is suggested that a password is applied to the Network Camera so that only the administrator can configure the Network Camera� For more information, please refer to the description for the

Conguration menus on page 28.

Language: Click this button to choose a language for the user interface� Language options are available in: English, Deutsch, Español, Français, Italiano,

日本語

, Português,

簡体中文

, and

繁體中文

� You can

also change a language on the Conguration page; please refer to page 28.

Hide Button

You can click the hide button to hide the control panel or display the control panel�

Resize Buttons

:

Click the Auto button, the video cell will resize automatically to t the monitor.

Click 100% is to display the original homepage size� Click 50% is to resize the homepage to 50% of its original size� Click 25% is to resize the homepage to 25% of its original size�

Live Video Window

■ The following window is displayed when the video mode is set to H�264 / MPEG-4:

H.264/MPEG-4 Protocol and Media Options

Video Title

Title and Time

Video (TPC-AV)

Video 17:08:56 2011/03/10

2011/03/10 17:08:56

Time

Video and Audio Control Buttons

Video Title: The video title can be congured. For more information, please refer to Video settings on page 69�

User's Manual - 23

VIVOTEK

Audio will project from

H�264 / MPEG-4 Protocol and Media Options: The transmission protocol and media options for H�264 /

MPEG-4 video streaming. For further conguration, please refer to Client Settings on page 26.

Time: Display the current time. For further conguration, please refer to Media > Image > Genral settings on page 69�

Title and Time: The video title and time can be stamped on the streaming video. For further conguration, please refer to Media > Image > Genral settings on page 69�

Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera

conguration, some buttons may not be available.

Snapshot: Click this button to capture and save still images� The captured images will be displayed in a pop-up window� Right-click the image and choose Save Picture As to save it in JPEG (*�jpg) or BMP (*�bmp) format�

Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation� The navigation

screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To

move to a different area you want to magnify, drag the navigation screen�

Pause: Pause the transmission of the streaming media� The button becomes the Resume button after clicking the Pause button�

Stop: Stop the transmission of the streaming media� Click the Resume button to continue transmission�

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer� Press the

Stop MP4 Recording button to end recording� When you exit the web browser, video

recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving Options on page 27 for details�

Volume: When the Mute function is not activated, move the slider bar to adjust the volume on the local computer�

Mute: Turn off the volume on the local computer� The button becomes the Audio On button after clicking the Mute button�

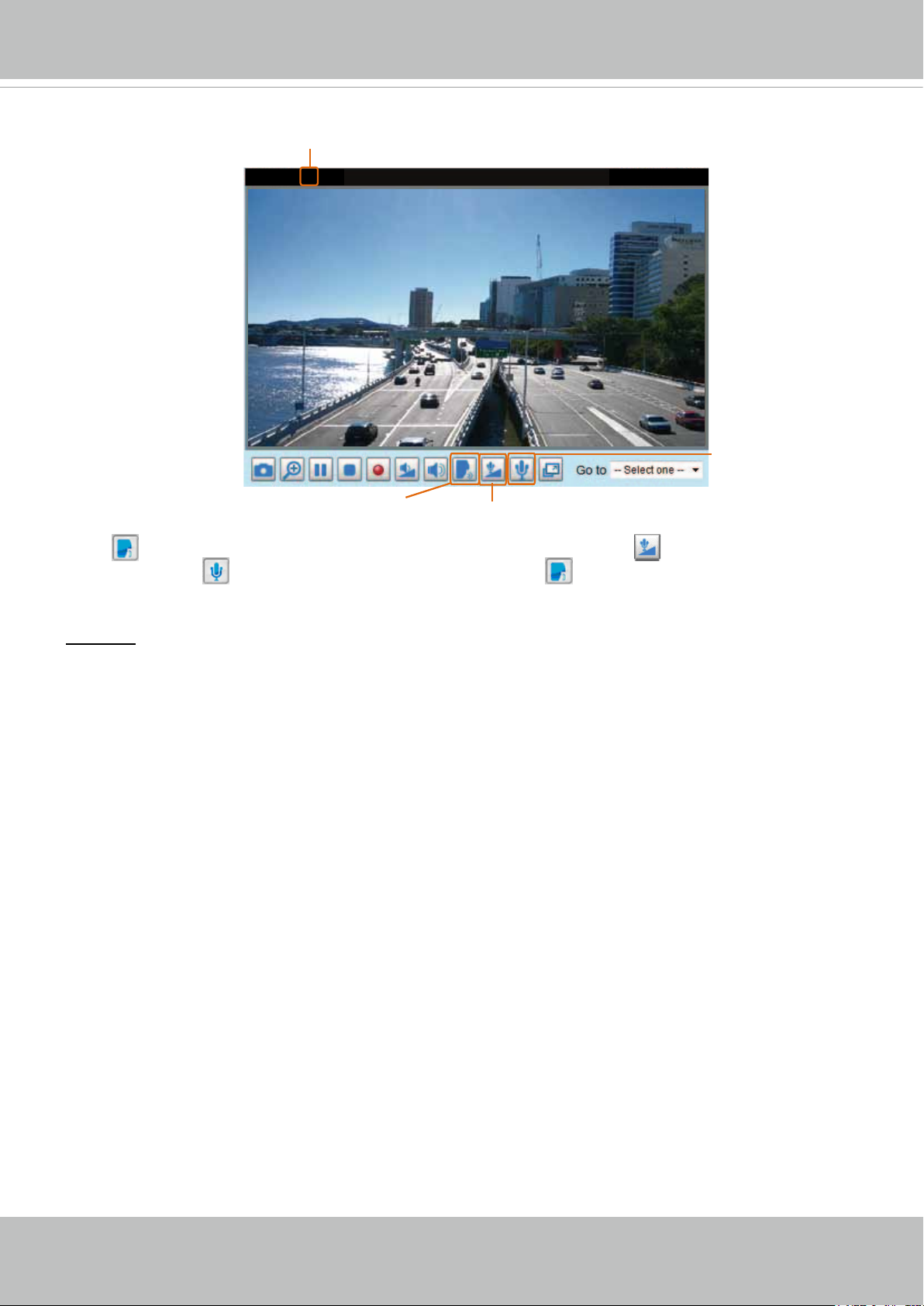

Talk: Click this button to talk to people around the Network Camera� Audio will project from

the external speaker connected to the Network Camera� Click this button

again to end talking

transmission�

Mic Volume: When the Mute function is not activated, move the slider bar to adjust the microphone volume on the local computer�

Mute: Turn off the Mic volume on the local computer� The button becomes the Mic On button after clicking the Mute button�

Full Screen: Click this button to switch to full screen mode� Press the “Esc” key to switch back to normal

mode�

24 - User's Manual

■ The following window is displayed when the video mode is set to MJPEG:

VIVOTEK

Video Title

Title and Time

Video (HTTP-V)

Video 17:08:56 2011/03/10

2011/03/10 17:08:56

Time

Video Control Buttons

Video Title: The video title can be congured. For more information, please refer to Media > Image on page 69�

Time: Display the current time� For more information, please refer to Media > Image on page 69�

Title and Time: Video title and time can be stamped on the streaming video� For more information, please refer to Media > Image on page 69

�

Video Control Buttons: Depending on the camera model and your current conguration, some buttons may not be available�
