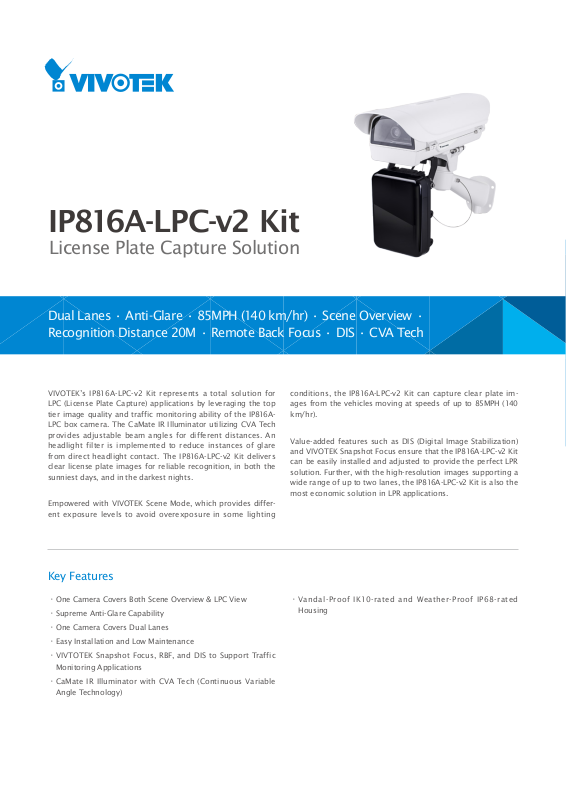

IP816A-LPC-v2 Kit

License Plate Capture Solution

Dual Lanes • Anti-Glare • 85MPH (140 km/hr) • Scene Overview •
Recognition Distance 20M • Remote Back Focus • DIS • CVA Tech

VIVOTEK’s IP816A-LPC-v2 Kit represents a total solution for
LPC (License Plate Capture) applications by leveraging the top
tier image quality and traffic monitoring ability of the IP816A­LPC box camera. The CaMate IR Illuminator utilizing CVA Tech
provides adjustable beam angles for different distances. An
headlight filter is implemented to reduce instances of glare
from direct headlight contact. The IP816A-LPC-v2 Kit delivers
clear license plate images for reliable recognition, in both the
sunniest days, and in the darkest nights.

Empowered with VIVOTEK Scene Mode, which provides differ­ent exposure levels to avoid overexposure in some lighting

Key Features

One Camera Covers Both Scene Overview & LPC View

•

Supreme Anti-Glare Capability

•

One Camera Covers Dual Lanes

•

Easy Installation and Low Maintenance

•

VIVTOTEK Snapshot Focus, RBF, and DIS to Support Traffic

•

Monitoring Applications

CaMate IR Illuminator with CVA Tech (Continuous Variable

•

Angle Technology)

conditions, the IP816A-LPC-v2 Kit can capture clear plate im­ages from the vehicles moving at speeds of up to 85MPH (140
km/hr).

Value-added features such as DIS (Digital Image Stabilization)
and VIVOTEK Snapshot Focus ensure that the IP816A-LPC-v2 Kit
can be easily installed and adjusted to provide the perfect LPR
solution. Further, with the high-resolution images supporting a
wide range of up to two lanes, the IP816A-LPC-v2 Kit is also the
most economic solution in LPR applications.

Vandal-Proof IK10-rated and Weather-Proof IP68-rated

•

Housing

Functions

One Camera Covers Both Scene Overview & LPC View

VIVOTEK’s 2 Mega-pixel resolution kit provides not only sufficient PPF for license plate capture, but also for a clear overview of
moving vehicles, including car color, brand and type for general traffic surveillance purposes. Therefore, with only one VIVOTEK
IP816A-LPC-v2 Kit, users can yield more information from one single location.

Scene Overview License Plate Recognition View

Supreme Anti-Glare Capability

Capturing images at night is a challenging issue for any surveillance application, but for License Plate Capture applications the
challenge is even greater due to noise and glare caused by the headlights of cars. The IP816A-LPC-v2 Kit is equipped with external
48W/80W IR Illuminators and a delicate headlight filter, which help to filter out reflected light and only capture detailed informa­tion from the plates. Moreover, the IR threshold is also programmed to deploy the IR Illuminator automatically to ensure 24/7 &
Day/Night performance.

Clear Image Captured with IR Illuminators and Headlight Filter

One Camera Covers Dual Lanes

The high image quality of the IP816A-LPC-v2 Kit ensures wide coverage of two lanes with one Camera, whether used for Highway
monitoring or for Street monitoring. With a single IP816A-LPC-v2 Kit covering dual lanes, the total cost of traffic monitoring will be
reduced.

Day Time Night Time

Suggested Installation

6 ~8m

Ordering Information

10 ~ 20m

Kit IP816A-LPC-v2 Kit (Highway) IP816A-LPC-v2 Kit (Street)

P/N. 199002900G 199002800G

Category Model/Description

IP Camera

2MP, 60fps, WDR Pro, Remote Back Focus,

IP816A-LPC (Highway)

3DNR, EIS, Snapshot Focus

2MP, 60fps, WDR Pro, Remote Back Focus,

IP816A-LPC (Street)

3DNR, EIS, Snapshot Focus

IR Illuminator

CM80I8-2040

80W IR Illuminator, 850nm,

20° ~ 40° adjustable beam angle with CVA Tech

20° ~ 40° adjustable beam angle with CVA Tech

CM48I8-2040

48W IR Illuminator, 850nm,

Enclosure

Outdoor Enclosure with Anti-Icing Heated Glass, Fan, 24V AC in, IP68, IK10, Sun shield, 80W surge protect

AE-23L

Bracket

Cable Management, Wall Mount Bracket

AM -21E

Technical Specifications

IP816A-LPC-v2 Kit

Model

Max. Speed

IR Threshold

Shutter Time

Max. Shutter Time 1/5 to 1/10,000 sec.

IR Illuminators

Capture Range Up to 20 meters

Captured Lanes Dual Lanes

Power Input AC 24V

Power Consumption

Weight 6,482 g

Housing

Operating Temperature

Humidity 90%

IP816A-LPC-v2 Kit (Highway)

IP816A-LPC-v2 Kit (Street)

Highway: 85MPH (140 km/hr)

Street: 60MPH (90 km/hr)

IR on: 300 Lux

IR off: 600 Lux

RS485 configurable

Highway: 1/1,600 to 1/10,000 sec.

Street: 1/800 to 1/10,000 sec.

Highway: 80W, 20° ~ 40° adjustable x 1

Street: 48W, 20° ~ 40° adjustable x 1

Highway:

Max. 110W (AC 24V), Suggested Power:

AC 24V / 7A

Street:

Max. 78W (AC 24V), Suggested Power:

AC 24V / 5A

Weather-proof IP68-rated housing

Vandal-proof IK10-rated housing

Starting Temperature:

0°C ~ 60°C (32°F ~ 140°F)

Working Temperature:

-20°C ~ 60°C (-4°F ~ 140°F)

-40°C ~ 60°C (-40°F ~ 140°F), with optional

cold start heater

Video

Compression H.264 & MJPEG

Maximum Streams 2 simultaneous streams

10Base-T/100BaseTX Ethernet (RJ-45)

Interface

ONVIF

*It is highly recommended to use

standard Cat. 5e & Cat. 6 cables which are

compliant with the 3P/ETL standard.

Supported, specification available at www.

onvif.org

Intelligent Video

Video Motion Detection Triple-window video motion detection

Alarm and Event

Motion Detection, manual trigger, digital

Alarm Triggers

Alarm Events

input, periodical trigger, system boot,

recording notification, camera tampering

detection, audio detection, IR Status

Event notif ication using digital output,

HTTP, SMTP, FTP, NAS server and SD Card

File upload via HTTP, SMTP, FTP, NAS

server and SD card

General

Smart Focus System RBF (Remote Back Focus)

RJ-45 for Network/PoE connection

IP Camemra Connectors

Safety Certifications

Warranty 36 months

AC 24V power input

Digital input*3

Digital output*1

IP Camera: CE, LVD, FCC Class B, VCCI,

C-Tick, UL

System
Requirements

Operating System Microsof t Windows 8/7/Vista/XP/2000

Web Browser

Other Players

Mozilla Firefox 7~43 (streaming only)

Internet Explorer 7/8/9/10/11

VLC: 1.1.11 or above

QuickTime: 7 or above

Dimensions

Time stamp, text overlay, flip & mirror;

Configurable brightness, contrast,

saturation, sharpness, white balance,

Image Settings

exposure control, gain, backlight

compensation, privacy masks, scheduled

profile settings; 3D noise reduction, DIS,

video rotation, snapshot focus, scene

mode

Network

Users Live viewing for up to 10 clients

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP,

Protocols

RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP,

NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,

802.1X, UDP, ICMP, ARP, SSL, TLS

170 mm

502.8 mm

400 mm

Technical Specifications

Network Camera

Model

CPU Multimedia SoC (System-on- Chip)

Flash 256 MB

RAM 384 MB

IP816A-LPC (Highway)

IP816A-LPC (Street)

Camera Features

Image Sensor 1/1.9" Progressive CMOS

Maximum Resolution 1920x1080 (2MP)

Lens Type Vari-focal

Focal Length f = 12 ~ 40 mm

Aperture F2.36 ~ F2.44

Auto-iris P-iris (DC-iris reserved)

10.2° ~ 30° (Horizontal)

Field of View

WDR Technology WDR Pro (Default: Off)

Day/Night

8° ~ 22° (Vertical)

12° ~ 38° (Diagonal)

Removable IR-cut filter for day & night

function

IR Illuminator

CM80I8-2040:

Model

Max. Distance

Beam Angle 20° ~ 40° adjustable

Input Power

Power Consumption

Weight 2,10 0 g

Housing

Operating Temperature -50°C ~ 60°C (-58°F ~ 140°F)

Color Black

Wavelength 850nm

Dimensions 220 x 160 x 73 mm (8.6 × 6.3 × 2.9 inch)

Highway, 80W, 20° ~ 40° adjustable

CM48I8-2040:

Street, 48W, 20° ~ 40° adjustable

CM80I8-2040: 170 ~ 280 meters

CM48I8-2040: 120 ~ 200 meters

CM80I8-2040: 24VDC ±10%,

24VAC(50/60Hz) ±10%

CM48I8-2040: 12~24VDC ±10%,

24VAC(50/60Hz) ±10 %

CM80I8-2040: 80W

CM48I8-2040: 48W

Weather-proof IP68-rated housing

Vandal-proof IK10-rated housing

Pan/Tilt/Zoom

Functionalities

On-board Storage Slot type: SD/SDHC/SDXC card slot

ePTZ:

48x digital zoom (4x on IE plug-in, 12x

built in)

Video

30 fps @ 1920x1080

Maximum Frame Rate

S/N Ratio 50.8 dB

Dynamic Range 100 dB

60 fps @ 1920x1080 (In one-stream mode

only)

(In both compression mode)

Audio

Audio Capability Two-way audio (full duplex)

Compression AAC, G.711, G.726

Interface

External microphone input

Audio output

Included Accessories U-Type Bracket (134 × 34 × 81.5 mm)

Certifications CE, FCC, IEC

Integrated Control Built-in photocell for automatic IR on/off
