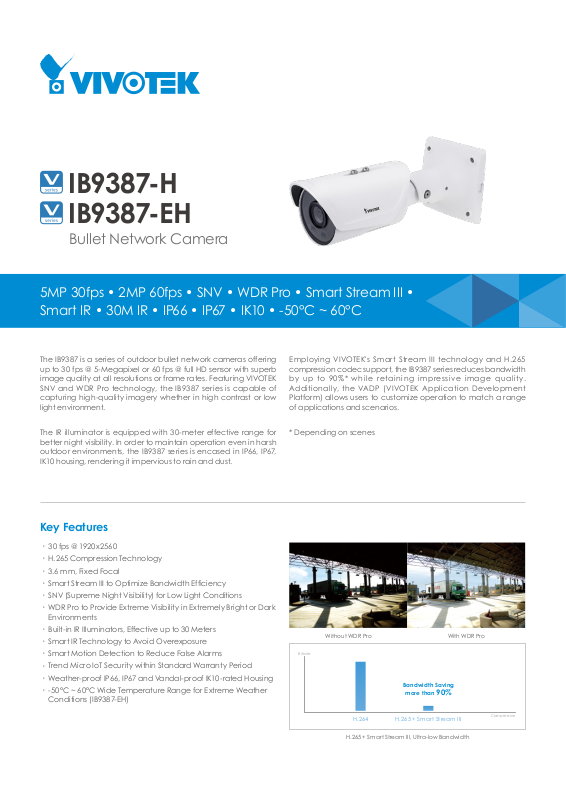

Vivotek IB9387-EH, IB9387-H Specsheet

IB9387-H
IB9387-EH

Bullet Network Camera

5MP 30fps • 2MP 60fps • SNV • WDR Pro • Smart Stream III •
Smart IR • 30M IR • IP66 • IP67 • IK10 • -50°C ~ 60°C

The IB9387 is a ser ies of outdoor bullet network cameras offering
up to 30 fps @ 5-Megapixel or 60 fps @ full HD sensor with superb
image quality at all resolutions or frame rates. Featuring VIVOTEK
SNV and WDR Pro technology, the IB9387 series is capable of
capturing high-quality imagery whether in high contrast or low
light environment.

The IR illuminator is equipped with 30-meter effective range for
better night visibility. In order to maintain operation even in harsh
outdoor environments, the IB9387 series is encased in IP66, IP67,
IK10 housing, rendering it impervious to rain and dust.

Key Features

30 fps @ 1920x2560

•

H.265 Compression Technology

•

3.6 mm, Fixed Focal

•

Smar t Stream III to Optimize Bandwidth Efciency

•

SNV (Supreme Night Visibility) for Low Light Conditions

•

WDR Pro to Provide Extreme Visibility in Extremely Bright or Dark

•

Environments

Built-in IR Illuminators, Effective up to 30 Meters

•

Smar t IR Technology to Avoid Overexposure

•

Smar t Motion Detection to Reduce False Alarms

•

Trend Micro IoT Security within Standard Warranty Period

•

Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing

•

-50 °C ~ 60 °C Wide Temperature Range for E xtreme Weather

•

Conditions (IB9387-EH)

Employing VIVOTEK's Smart Stream III technology and H.265
compression codec support, the IB9387 series reduces bandwidth
by up to 90%* while retaining impressive image quality.
Additionally, the VADP (VIVOTEK Application Development
Platform) allows users to customize operation to match a range
of applications and scenarios.

* Depending on scenes

With out WDR Pro With WD R Pro

Bitrate

Bandwidth Saving

more than

H.264 H.26 5 + Smar t Stream II I

90%

Compression

H.26 5 + Smar t Stream II I, Ultra- low Bandwidth

Technical Specications

Model

IB9387-H: Fixed-focal
IB9387-EH: Fixed-focal, -50°C ~ 60 °C

System Information

CPU Multimedia SoC (System-on-Chip)

Flash 256MB

RAM 1G B

Camera Features

Image Sensor 1/2.7" Progressive CMOS

Maximum Resolution 2560x1920 (5MP)

Lens Type Fixed-focal

Focal Length f = 3.6 mm

Aperture F2.0

Auto- iris Fixed-iris

Fiel d of View

Shutter Time 1/5 sec. to 1/32,00 0 sec.

WDR Technology WDR Pro

Day/Ni ght Yes

Removable IR-cut Filter Yes

76° (Horizontal)
56° (Vertical)
100° (Diagonal)

Audio

Audio Capability Two-way Audio (full duplex)

Compression G.711, G.726

Inter face

External M icrophone input
External line output

Network

Users Live viewing for up to 10 clients

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/

Protocol s

Inter face

ONVIF

RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP,
NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,

802.1X, UDP, ICMP, ARP, SSL/TLS

10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is h ighly recommended to use standard

CAT5e & CAT6 cables whi ch are compl iant

with the 3P/ETL sta ndard.

Suppo rted, specication available at
www.onvif.org

Intelligent Video

Smar t Motion Detection

VCA

VAD P Pac kag e

Five-window video motion detection,

human detection, time lter

Standard VCA (optiona l)

*Including line cros sing detection, eld

detection, loitering detection

Genetec package, Trend Micro IoT Security,
Stratocast, Smar t Motion Detection

Minimum Illumination

Tilt Range 90°

Rotation Range 180 °

Pan/Tilt/Zoom
Functionalities

IR Illuminators

On- board Storage

0.06 Lux @ F2.0 (Color)
<0.01 lux, F2.0 (B/W)
0 Lux with IR ill umination on

ePTZ: 48x digital zoom
(4x on IE plug-in, 12x built-in)

Built-in IR illuminators up to 30 mete rs with
Smar t IR, IR LED*2

Slot type: Micro SD/SDHC/SDXC card slot
Seamless Recording

Video

Compression H.265, H.264, MJPEG

Maximum Frame Rate

Maximum Streams 3 simu ltaneous streams

S/N Ratio 52 dB

Dynamic Range 120 dB

Video Streaming

Image Settings

30 fps @ 2560x1920
60 fps @ 1920x1080

Adjus table resolution, quality and constant
bit rate control, Smart Stream III

Time stamp, text overlay, ip & mir ror;
Cong urable brightness, contrast,

saturation, sharpness, white balance,
exposure contro l, gain, backlight

compensation, privacy masks; Scheduled
prole settings, video rotat ion, 3DNR, DIS,

HLC

Alarm and Event

Motion detection, manual trigger, digital

Alarm Triggers

Alarm Events

input, periodical tr igger, system boot,

recording notication, camera tampering

detection, audio detection, Micro SD card
life expectancy

Event notication using digital output, HTTP,

SMTP, FTP, NAS server and MicroSD card
File upload v ia HTTP, SMTP, FTP, NAS server
and MicroSD card

General

RJ- 45 cable connecto r for 10/100Mbps
Network/PoE connection
Audio input

Connectors

LED Indicator System power and status indicator

Power Input

Audio output
AC 24V power input (optional)
DC 12V power input
Digital input *1
Digital output *1

IB9387-H:
IEEE 802.3af PoE Cla ss 0
DC 12V
AC 24V (optional)
(Redundant Power)
IB9387-EH:
IEEE 802.3at PoE Class 4
DC 12V
AC 24V (optional)
(Redundant Power)
