Page 1

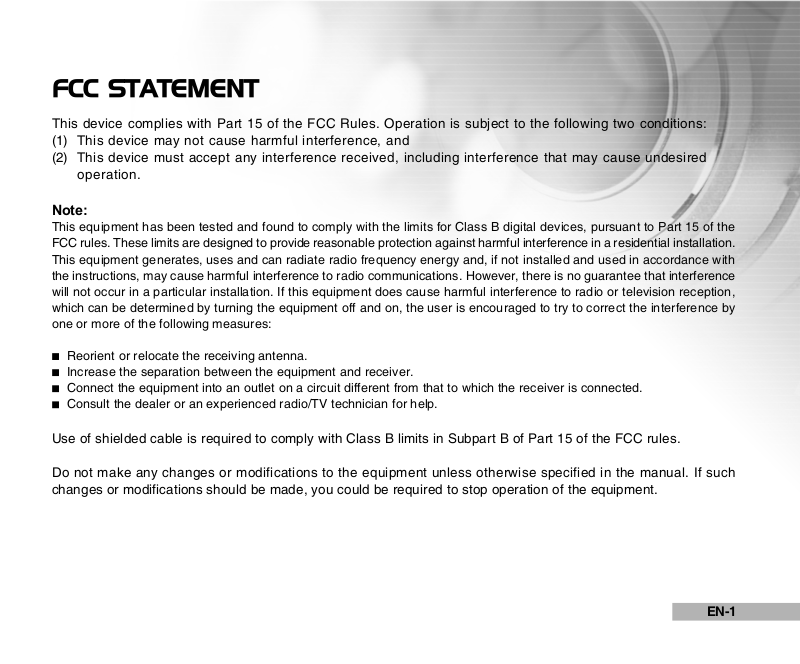

FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Note:
This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such
changes or modifications should be made, you could be required to stop operation of the equipment.
EN-1
Page 2
READ THIS FIRST
Trademark Information
Microsoft® and Windows® are U.S. registered trademarks of Microsoft Corporation.
Pentium® is a registered trademark of Intel Corporation.
SDTM is a trademark.
Other names and products may be trademarks or registered trademarks of their respective owners.
Product Information
Product design and specifications are subject to change without notice. This includes primary product
specifications, software, software drivers, and user’s manual. This User Manual is a general reference guide
for the product.
The product and accessories that come with your DVR-510 may be different from those described in this
manual. This is due to the fact that different retailers often specify slightly different product inclusions and
accessories to suit their market requirements, customer demographics, and geographical preferences.
Products very often vary between retailers especially with accessories such as batteries, chargers, memory
cards, cables, carrying cases/pouches, and language support. Occasionally a retailer will specify a unique
product color, appearance, and internal memory capacity. Contact your dealer for precise product definition
and included accessories.
The illustrations in this manual are for the purpose of explanation and may differ from the actual design of
your DVR-510.
The manufacturer assumes no liability for any errors or discrepancies in this user manual.
For user manual and driver updates, refer to our website or contact your dealer.
EN-2
Page 3
SAFETY INSTRUCTIONS
Read and understand all Warnings and Cautions before using this product.
Warnings
If foreign objects or water have entered the camera, turn the power OFF and remove the
batteries.
Continued use in this state might cause fire or electric shock. Consult the store of purchase.
If the camera has fallen or its case has been damaged, turn the power OFF and remove the
batteries.
Continued use in this state might cause fire or electric shock. Consult the store of purchase.
Do not disassemble, change or repair the camera.
This might cause fire or electric shock. For repair or internal inspection, ask the store of purchase.
Do not use the camera in areas near water.
This might cause fire or electric shock. Take special care during rain, snow, on the beach, or near the
shore.
Do not place the camera on inclined or unstable surfaces.
This might cause the camera to fall or tilt over, causing injury.
Keep the batteries out of the reach of children.
Swallowing batteries might cause poisoning. If the battery is accidentally swallowed, immediately
consult a physician.
Do not use the camera while you are walking, driving or riding a motorcycle.
This might cause you to fall over or result in traffic accident.
EN-3
Page 4
Cautions
Insert the batteries paying careful attention to the polarity (+ or –) of the terminals.
Inserting the batteries with its polarities inverted might cause fire and injury, or damage to the surrounding
areas due to the battery rupturing or leaking.
Do not fire the flash close to anyone’s eyes.
This might cause damage to the person’s eyesight.
Do not subject the LCD monitor to impact.
This might damage the glass on the screen or cause the internal fluid to leak. If the internal fluid enters
your eyes or comes into contact with your body or clothes, rinse with fresh water. If the internal fluid
has entered your eyes, consult a physician to receive treatment.
A camera is a precision instrument. Do not drop it, strike it or use excessive force when
handling the camera.
This might cause damage to the camera.
Do not use the camera in humid, steamy, smoky, or dusty places.
This might cause fire or electric shock.
Do not remove the battery immediately after long period of continuous use.
The battery becomes hot during use. Touching a hot battery might cause burns.
Do not wrap the camera or place it in cloth or blankets.
This might cause heat to build up and deform the case, resulting in fire. Use the camera in a wellventilated place.
Do not leave the camera in places where the temperature may rise significantly, such as inside a car.
This might adversely affect the case or the parts inside, resulting in fire.
Before you move the camera, disconnect cords and cables.
Failure to do this might damage cords and cables, resulting in fire and electric shock.
WARNING: Handling the USB on this product may expose you to lead, a chemical known to the
State of California to cause birth defects or other reproductive harm. Wash hands after handling.
EN-4
Page 5
Notes on Battery Usage
When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described
below:
Different battery types and surrounding temperatures may affect the battery performance.
Avoid using batteries in extremely cold environments as low temperatures can shorten the battery life and
reduce camera performance. This low temperature will also influence Alkaline battery performance, therefore
Ni-MH rechargeable battery is highly recommended.
If you are using the new rechargeable batteries or rechargeable batteries that have not been used for an
extended period of time (batteries that pass the expiry date are exceptions) might affect the number of
pictures that can be taken. Therefore, to maximize their performance and lifetime, we recommend that you
fully charge the batteries and discharge them for at least one complete cycle before use.
The battery may feel warm when using the camera for an extended period of time or using the flash
continuously. This is normal and not a malfunction.
The camera may feel warm when being used continuously or for an extended period of time. This is normal
and not a malfunction.
If you will not be using the batteries for an extended period of time, remove them from the camera to prevent
leakage or corrosion.
Never use batteries of different types (together) or mix old and new batteries.
Always keep the terminals in a clean state.
Never use manganese batteries.
EN-5
Page 6
CONTENTS
INTRODUCTION..................................................8
Package Contents........................................ 9
GETTING TO KNOW YOUR DVR-510
........................................................................10
Front View................................................... 10
Rear View.................................................... 11
LCD Monitor Information............................... 12
GETTING STARTED.......................................... 16
Installing the Batteries (Optional Accessory)..16
Turning the Power On/Off...........................16
Attaching the Strap.....................................17
LED Indicators.............................................17
Loading an SD Memory Card
(Optional Accessory).....................................18
Using the LCD Panel.................................. 19
Choosing the OSD (On-Screen Display)
Language....................................................20
Setting the Date and Time..........................20
Formatting an SD Memory Card................... 21

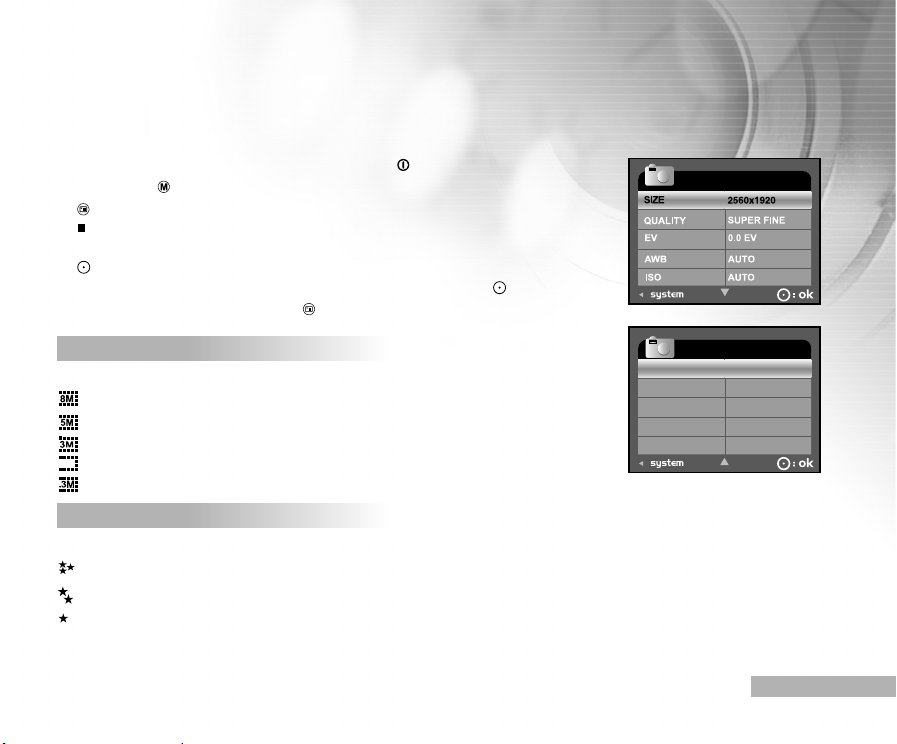

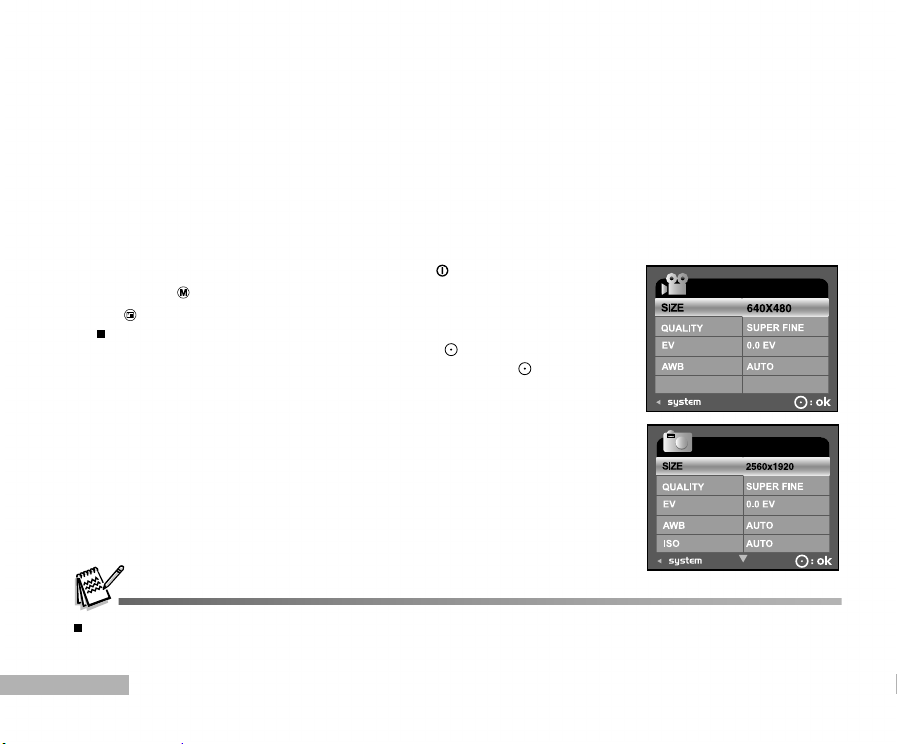

Setting Image Resolution and Quality......... 22
EN-6
PHOTOGRAPHY MODES.................................. 23
Capturing Still Images.................................. 23

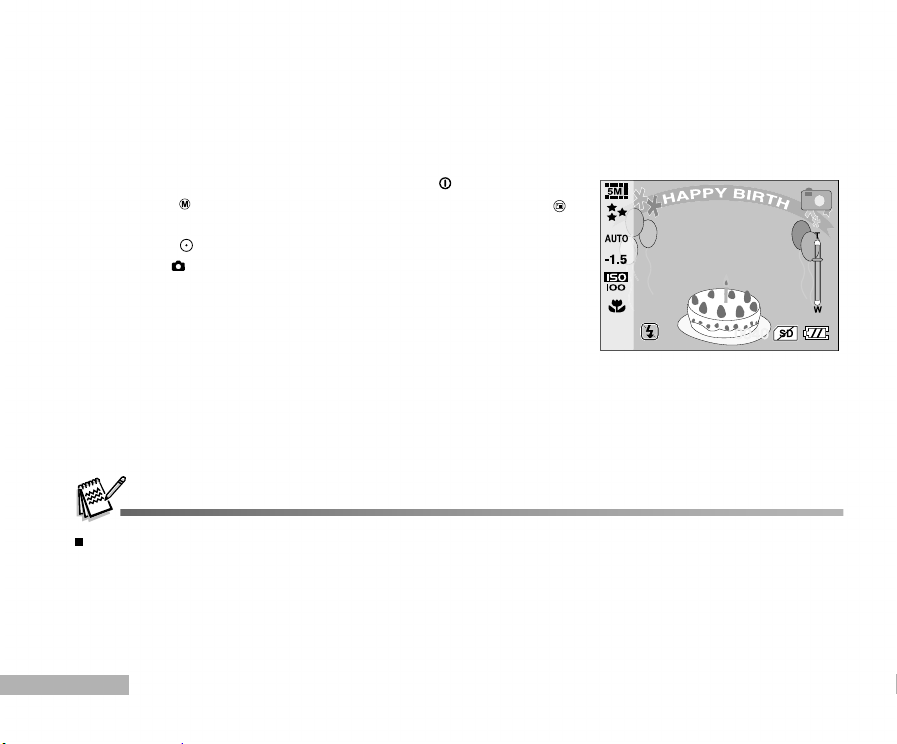

Photo Frame...............................................24
Recording Video Clips.................................. 25

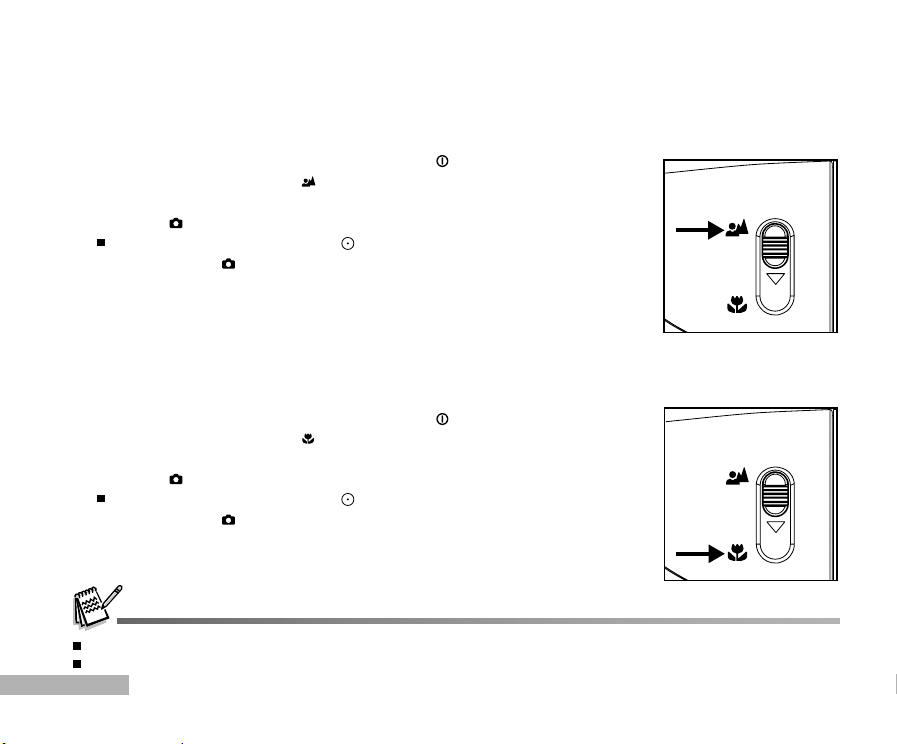

Normal Mode............................................... 26
Macro Mode................................................26

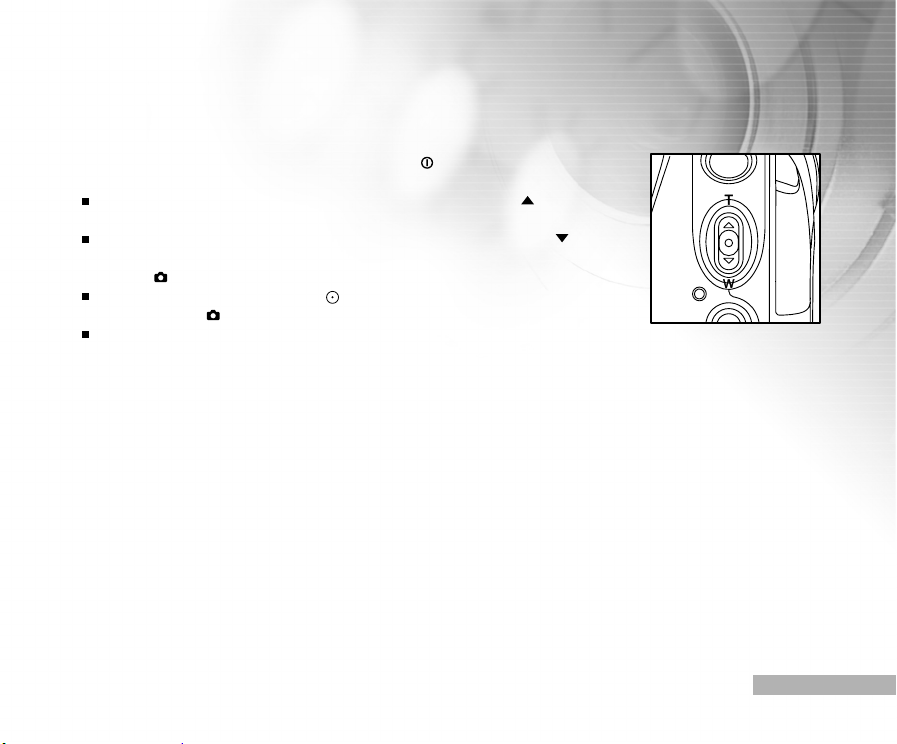

Zoom Photography...................................... 27
Setting the Flash.......................................... 28

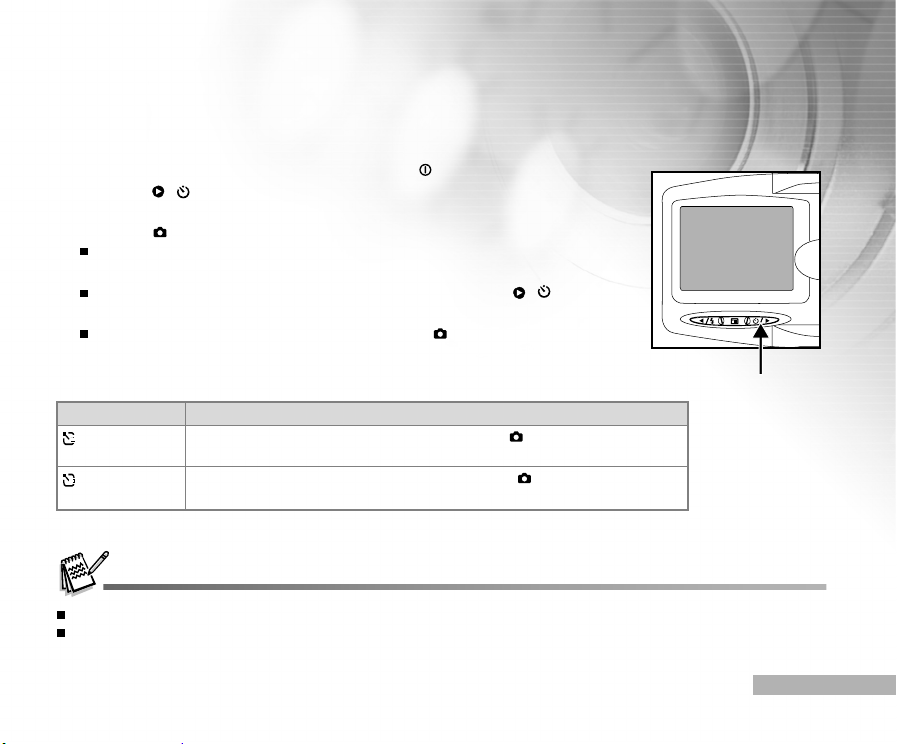

Setting the Self-Timer................................... 29
PLAYBACK MODE.............................................30

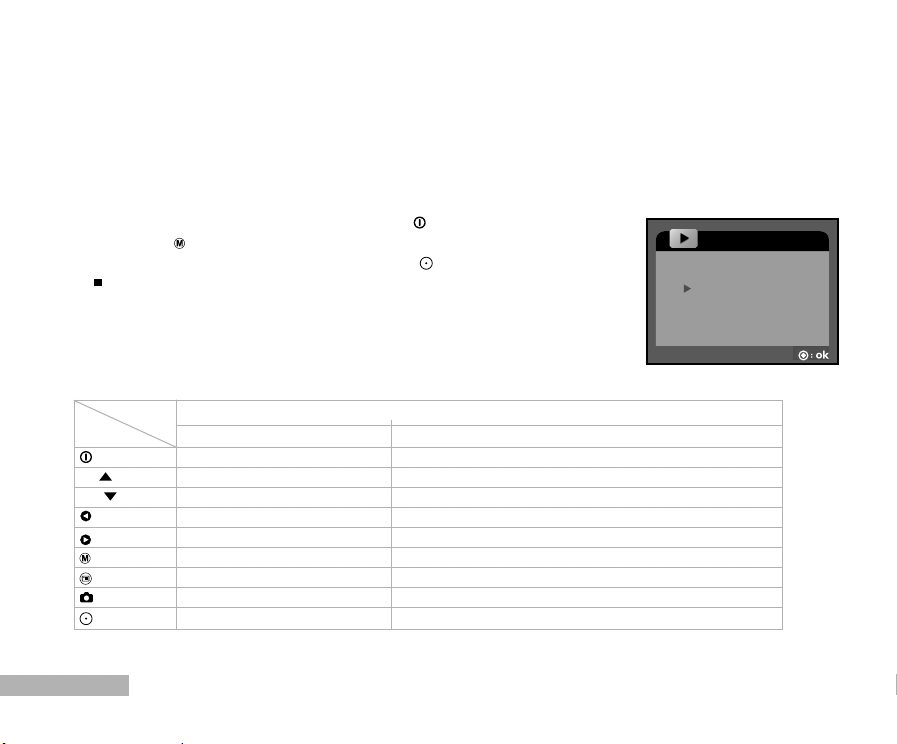

Playing Back Still Images/Video Clips..........30
Playing Back Still Images/Video Clips on TV
...................................................................31

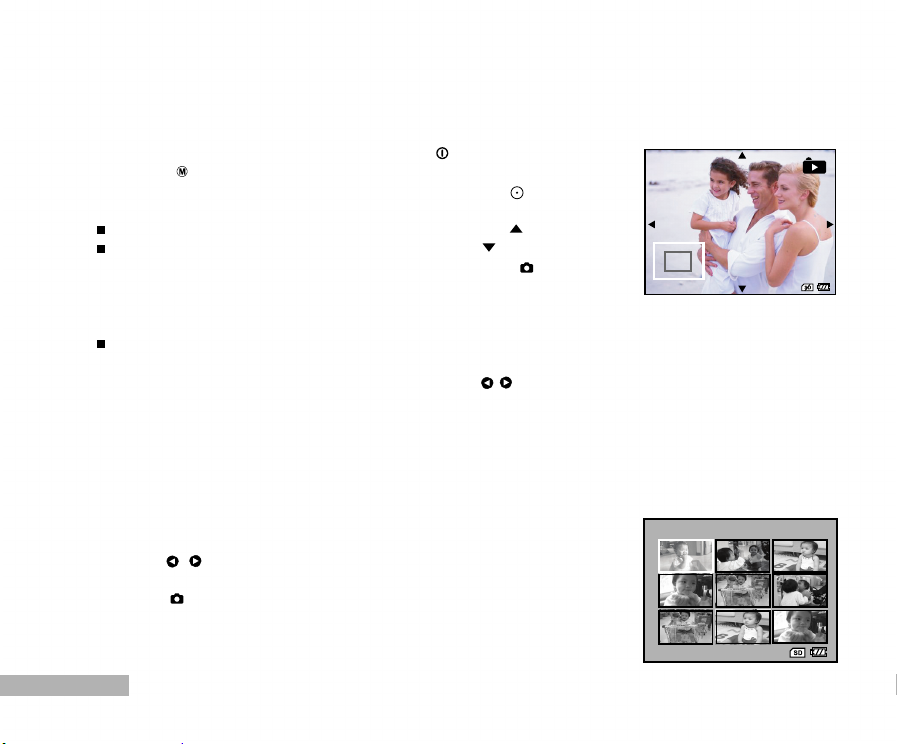

Zoom Playback.............................................32
Thumbnail Display........................................32
Protecting Still Images/Video Clips...............33
Slide Show Display.......................................34
Deleting Still Images/Video Clips..................35
CONNECTING TO A PICTBRIDGE-COMPATIBLE
PRINTER.........................................................36
Page 7
MP3 MODE.........................................................38
AUDIO RECORDING MODE...............................39
Recording Audio Files..................................39
Playing Back Audio Files.............................39
Deleting MP3 / Audio Files.........................40
MENU OPTIONS.................................................41
Movie Menu...............................................41
Capture Menu............................................43
Playback Menu...........................................46

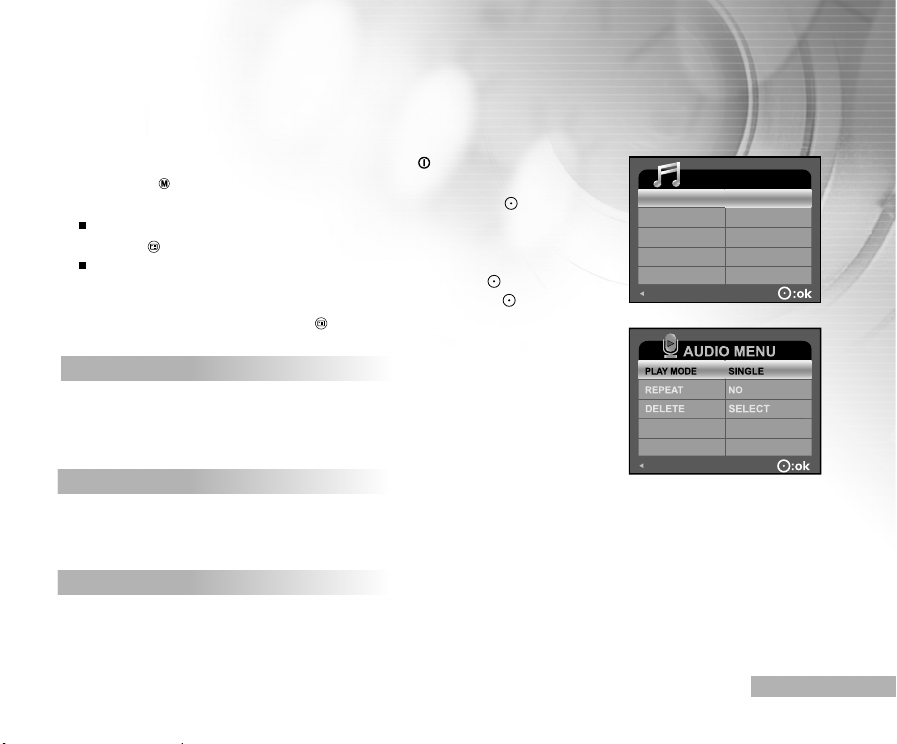

MP3 / Audio Menu......................................47
System Menu.............................................48
TRANSFERRING RECORDED FILES TO YOUR
COMPUTER........................................................51

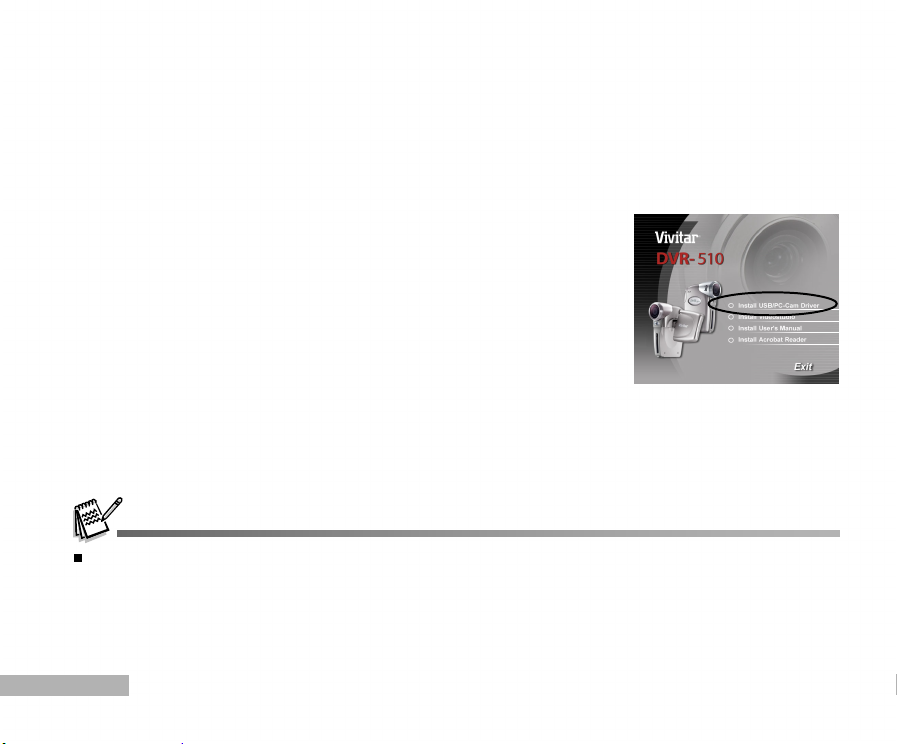

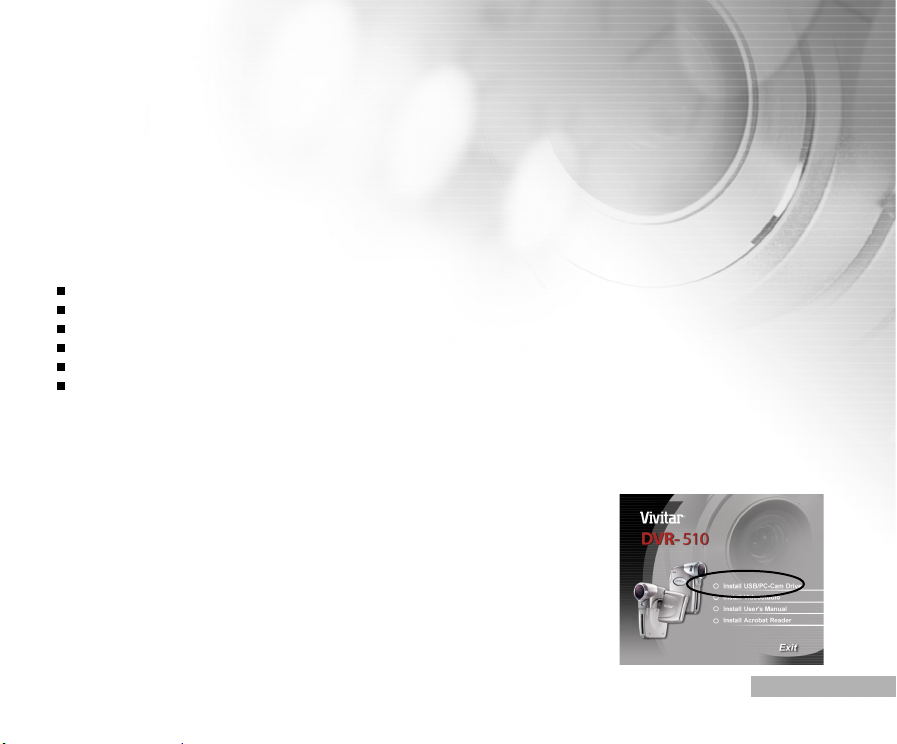

Step 1: Install the USB driver (Windows 98
users only).......................................51
Step 2: Connect the DVR-510 to your
computer.......................................52
Step 3: Download still images, video clips and
audio files........................................53

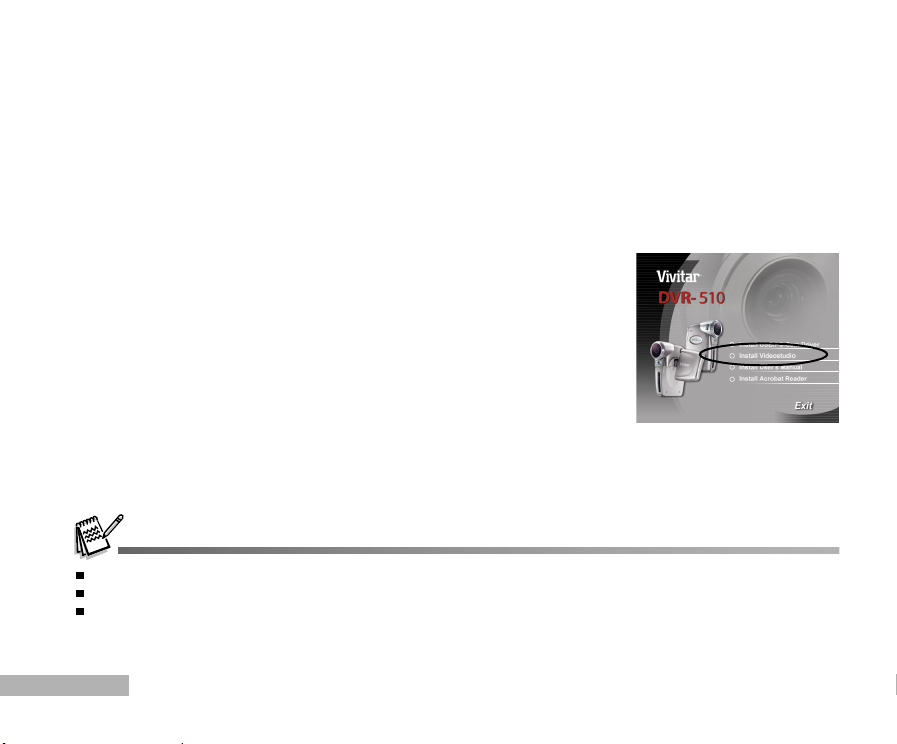

INSTALLING VIDEOSTUDIO................................54

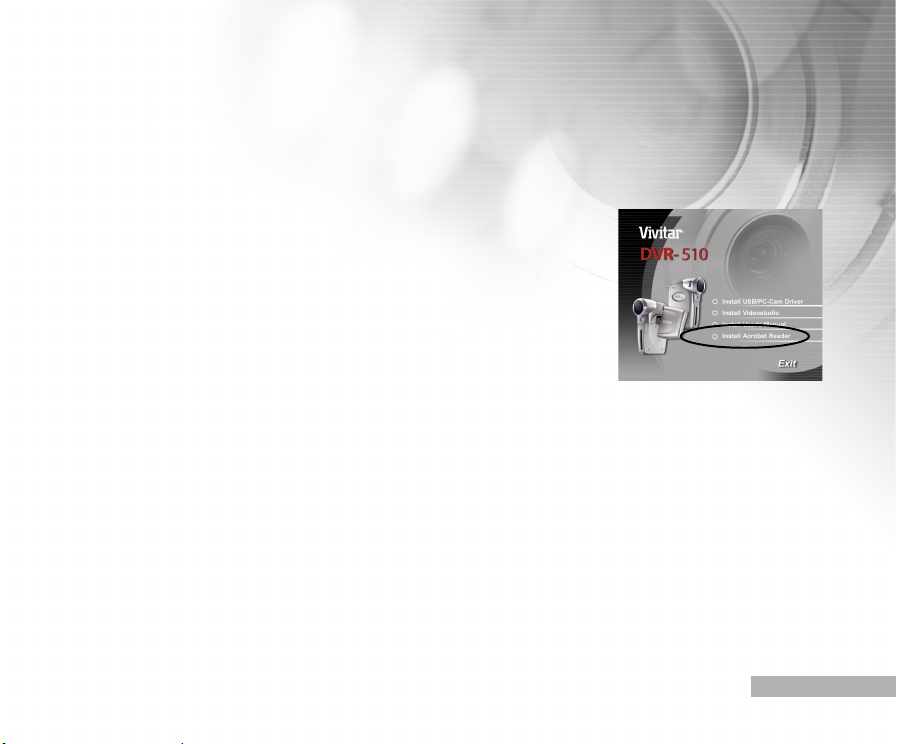

INSTALLING ADOBE ACROBAT READER...........55
USER MANUAL....................................................56
USING THE DVR-510 AS A PC CAMERA.............57
Step 1: Install the PC camera driver...............58
St ep 2 : Connect the DVR-510 to your computer..59
Step 3: Run your application software(i.e.
Yahoo Messenger)..........................59
CONNECTING THE DVR-510 TO OTHER
DEVICES............................................................60
SPECIFICATIONS...............................................61
APPENDIX............................................................62
EN-7
Page 8
INTRODUCTION
Thank you for purchasing the new DVR-510!
DVR-510 is designed as an “entry-level” handy cam.
Equipped with a 5.0 Megapixels CCD sensor, your camera delivers good quality, 2560 x 1920 resolution
images.
Other features provided by the DVR-510 include the following:
5.0 Megapixels
A high-resolution CCD sensor provides 5.0
megapixels for good quality images.
Auto flash
An auto flash sensor automatically detects
the shooting (lighting) conditions and
determines whether the flash should be
used.
2.0” LTPS color image LCD monitor
Digital zoom: 1x~8x
32MB internal (built-in) memory (24MB
available for image storage)
Images can be captured without using a
memory card.
Support for SD memory card for memory
expansion
You may wish to expand the memory
capacity (up to 1GB) by using an external
memory card.
EN-8
USB connection (USB 2.0 compliant)
Still images, video clips, or audio recording files
that you have recorded can be downloaded to
your computer using the USB cable (A USB driver
is required for Win 98 and Win98SE).
Multi functionality
In addition to still image and video, your DVR510 can act as a voice recorder, MP3 player and
PC camera.
PictBridge support
You can connect the camera directly to a printer
that supports PictBridge and perform image
selection and printing using the camera’s monitor
screen and controls.
Provided editing software: VideoStudio
You can enhance and retouch your images on
your computer by using the provided editing
software.
Page 9
Package Contents
Carefully unpack your kit box and ensure that you have the following items. In the event that any item is missing
or if you find any mismatch or damage, promptly contact your dealer.
Common product components:
DVR-510 Digital Camcorder
User’s Manual
USB Cable
Software CD-ROM
Common (optional) accessories:
SD memory card
Batteries
Tripod
Accessories and components may vary by retailer.
AV Cable
Earphone
Camera Strap
Camera Pouch
EN-9
Page 10
GETTING TO KNOW YOUR DVR-510
Front View
1. Lens
2. Microphone
3. Flash
4. Self-timer LED
5. Tripod socket
6. Focus switch
Normal mode
Macro mode
7. SD card cover
8. Battery cover
EN-10
Page 11
Rear View
1. Power button
2. Mode button
3. Zoom lever
Record button
T / Zoom in
W / Zoom out
4. State LED indicator
5. Image button
6. Earphone connector
7. A/V terminal
8. USB connector
9. Strap holder
10. Speaker
11. LCD panel / monitor
12. Menu button
13. Right / Fast forward button
Self-timer button
14. Left / Rewind button
Flash button
EN-11
Page 12
LCD Monitor Information
Movie Mode:
10
9
8
7
6
5
00:00:28
1
2
3
4
1. Movie mode icon
2. Zoom status
3. Battery power indicator
Full battery power
Medium battery power
Low battery power
Virtually no battery power
4. SD memory card indicator
An SD memory card is loaded
No SD memory card is loaded
EN-12
SD memory card is full
5. Macro mode
6. EV compensation
7. White balance
AUTO AUTO
DAYLIGHT
LAMP
FLUORESCENT-1
FLUORESCENT-2
SHADE
8. Video quality
SUPER FINE
FINE
NORMAL
9. Video resolution
640 x 480 pixels
320 x 240 pixels
10.Available recording time
(Before recording)/
Elapsed time (While recording)
Page 13
Camera Mode:
13
1. Still image mode icon
2. Zoom status
3. Battery power indicator
4. SD memory card indicator
5. Available number of shots

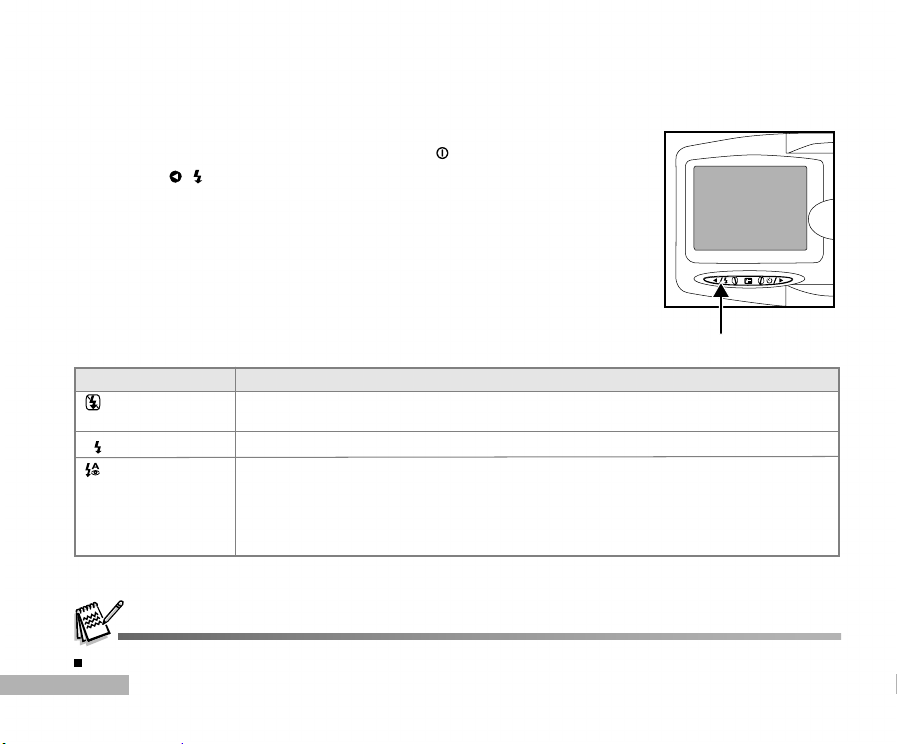

6. Flash mode
Flash off
A
Auto flash
Auto flash with
red-eye reduction
7. Macro mode
12
11
10
9
8
7
A
6
8. ISO sensitivity
AUTO
100
200
9. EV compensation
10.AWB (White balance)
11.Image quality
SUPER FINE
FINE
NORMAL
1
2
3
5
4
12.Image resolution
3264 x 2448 (FW interpolation)
2560 x 1920
2048 x 1536
1.2M
1280 x 960
640 x 480
13.Self-timer indicator (if used)
3-seconds delay
10-seconds delay
EN-13
Page 14
00:01:22
100-0004
3
4
5
21

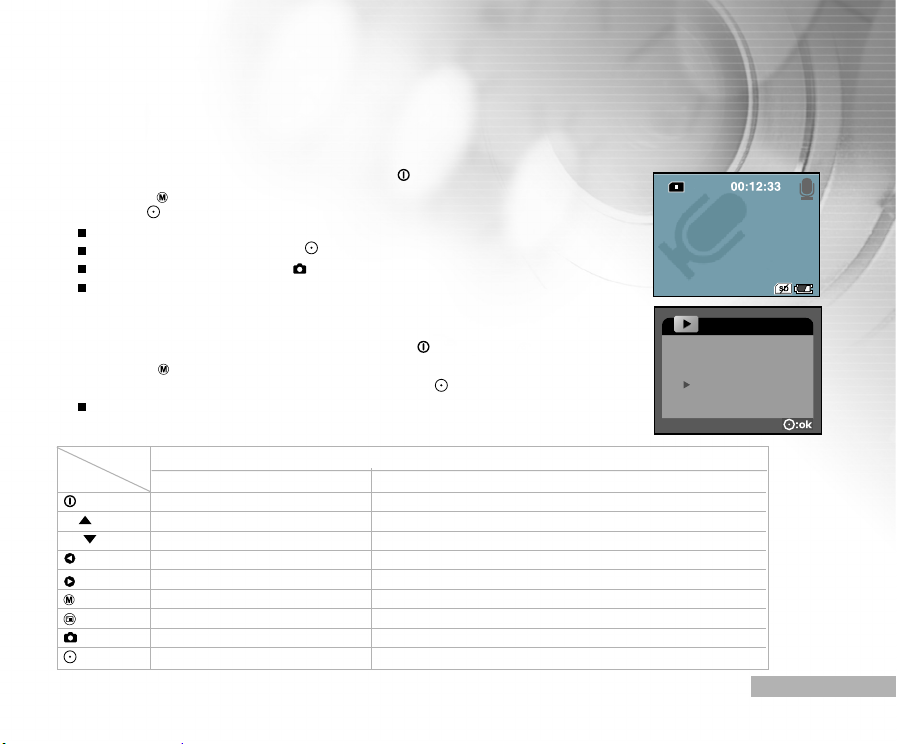

Audio Recording Mode
1. Audio recording mode
2. Remaining battery status
3. SD memory card indicator (if present)
4. Recording indicator
5. Available recording time (Before recording)/
Elapsed time (While recording)
Video (Movie) Playback
1. Folder and file name
2. Duration of current video
(Before playback)/
Elapsed time (During playback)
3. Video playback mode icon
4. Battery power indicator
5. SD memory card indicator
6. Playback indicator
7. Video status bar
8. Sound level (speaker volume)
Low volume
Mild volume
Medium volume
High volume
Fully volume
Mute (no sound)
EN-14
Before playback
6
7
8
During playback
00:01:22
Page 15
Still Image Playback
1. Still-image playback mode
2. Battery power indicator
3. SD memory card indicator
4. Folder and file name
Audio / MP3 Playback
4
100-0005
7
1
2
3
928
10
1. / Audio/MP3 playback mode icon
2. File name
3. Battery power indicator
4. SD memory card indicator
5. Audio/MP3 status bar
6. Sound level (speaker volume)
7. Playback indicator
8. Play mode indicator
Play one file
Play all files
Play the selected files
9. Repeat indicator
10.Elapsed time
00:01:22
AUD_0001
56
1
3
4
EN-15
Page 16
GETTING STARTED
Installing the Batteries (Optional Accessory)
You can use 2 AA size batteries to power the DVR-510.
1. Slide the battery cover.
2. Insert the batteries, noting correct polarity (+ or -).
3. Close the battery cover firmly.
Turning the Power On/Off
Press and hold the button until the DVR-510 turns on.
To turn the power off, press and hold the button again.
EN-16
Page 17
Attaching the Hand Strap
Attach the strap as shown in the illustration.
LED Indicators
Indicator State Description/Activity
LED indicator Solid green 1. The DVR-510 is powering up.
2. The DVR-510 is ready to record images (or movies).
LED indicator Blinking green USB communication/transfer in progress.
LED indicator Blinking red Charging the flash.
Self-timer indicator Blinking red The self-timer function is activated.
EN-17
Page 18
Loading an SD Memory Card (Optional Accessory)
The DVR-510 comes with 32MB of internal memory (24MB available for image storage), allowing you to record
video clips, captured still images, MP3 and audio files in the DVR-510. However, you can also expand the
memory capacity by using an optional SD (Secure Digital) memory card so that you can store more files.
1. Open the SD memory card cover.
2. Inset the SD memory card.
If the card cannot be inserted, check the orientation.
3. Close the SD card cover firmly.
To remove the SD memory card, make sure the camera is turned off.
Open the SD card cover, then press lightly on the edge of the
memory card and it will eject.
Be sure to format an SD memory card with this DVR-510 before using it. Refer
to section in the manual titled “Formatting an SD memory card” for further
details.
To prevent valuable data from being accidentally erased from an SD card, you
can slide the write protect tab (on the side of the SD memory card) to “LOCK”.
To save, edit, or erase data on an SD memory card, you must unlock the card.
EN-18
Page 19
Using the LCD Panel
1. Open the panel by pulling it away from the DVR-510.
2. Choose the angle of the monitor that suits you best by rotating the panel.
Make sure you open the LCD panel at 90 degrees before attempting to rotate it.
Rotate the LCD panel carefully and with the correct direction, over rotation and rotation with the wrong direction may
damage the hinge that connects the LCD monitor to the DVR-510.
Avoid contact with the LCD monitor when moving the LCD panel.
Do not hold the DVR-510 by the LCD panel.
EN-19
Page 20
Setting the Date and Time
The date/time setting screen will automatically appear:
When first turning the DVR-510 on;
When turning the power on after leaving the DVR-510 without the
batteries for an extended period of time.
To adjust the date and time:
1. Select the year, month, day and time fields with the / buttons.
2. Press the button after all fields are set.
To increase a value, slide the zoom lever to the / T side.
To decrease a value, slide the zoom lever to the / W side.
The time is displayed in 24-hours format.

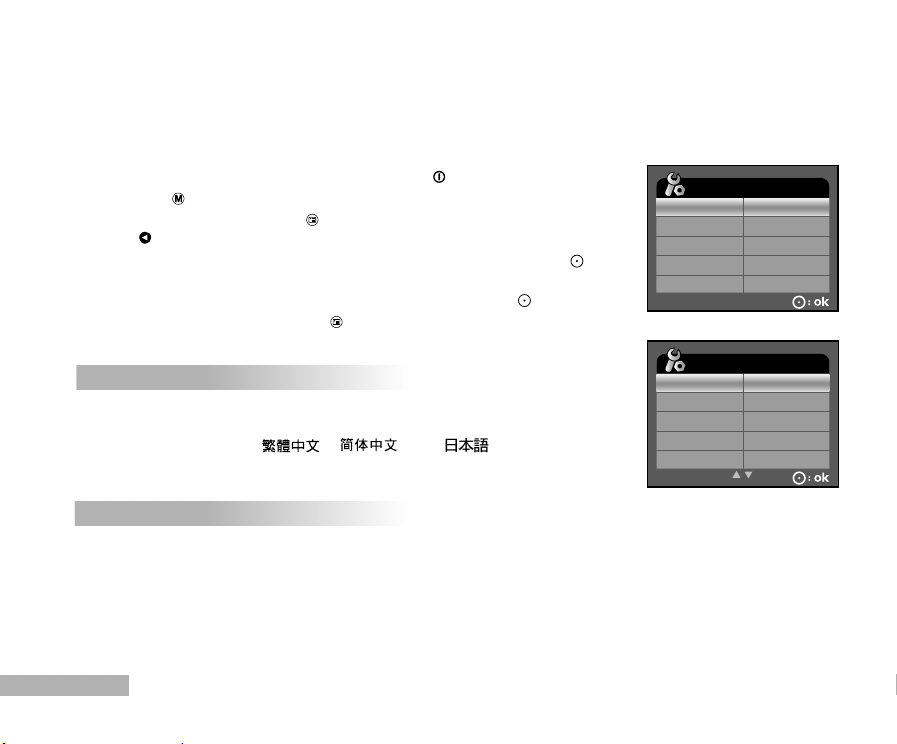

Choosing the OSD (On-Screen Display) Language
This setting specifies in which language menus and messages are to be
displayed on the LCD monitor. Select the displayed language with the
zoom lever and press the button. The setting will be stored. Refer to
section in this manual titled "LANGUAGE" in the System Menu for further
details.
EN-20
Page 21
Formatting an SD Memory Card
FORMAT
Format an SD memory card before its initial usage.
1. Turn on the power by pressing and hold the button.
2. Toggle the button to access movie, camera or playback (SELECT
MODE) mode, then press the button.
The MOVIE / CAPTURE / PLAYBACK / MP3 / AUDIO MENU is
displayed.
3. Press to access the SYSTEM MENU.
4. Select [FORMAT] with the zoom lever, and press the button.
5. Select [YES] with the zoom lever, and press the button.
Formatting an SD memory card also erases the protected images. All data other than images are also erased. Before
formatting the card, make sure that all the images are unnecessary.
Formatting is an irreversible action and data cannot be recovered at a later time.
An SD memory card having any problem cannot be properly formatted.
EN-21
Page 22
Setting Image Resolution and Quality
MOVIE MENU
As you get to know the DVR-510, you can set the image resolution (number of vertical and horizontal pixels)
and image quality (compression ratio) based on the types of images you want to shoot. These settings affect
the number of images that can be stored in memory, or on a memory card.
Higher resolution and higher quality images provide finer detail but cause the images file size to be larger.
To change image resolution or image quality, perform these steps below:
1. Turn on the power by pressing and holding the button.
2. Toggle the button to access in camera or movie mode, then press
the button.
The CAPTURE / MOVIE MENU is displayed.
3. Select [SIZE] with the zoom lever, and press the button.
4. Select the desired setting with the zoom lever, and press the button.
5. Follow the same steps 3 and 4 to set the [QUALITY].
CAPTURE MENU
The possible number of shots and recording time depend on the storage size, resolution and quality settings and the
subject of the image to be captured.
EN-22
Page 23
PHOTOGRAPHY MODES
Capturing Still Images
1. Turn on the power by pressing and holding the button.
2. Toggle the button to access in camera mode. Then press the button.
3. Compose the shot.
4. Press the button to capture a still image.
The actual captured image appears to be larger than the one on LCD preview after image captured.
Number of recordable images
The frame counter indicates the approximate number of images that can be stored on the internal memory or
the SD memory card. The number of recordable images may vary depending on the recorded subject, the
capacity of the memory card, files other that images or when the recording is made while switching the picture
quality or resolution.
Resolution Quality Compression ratio 32MB internal memory
(24MB available for image storage)
3264 x 2448 pixels SUPER FINE 4:1
(FW interpolation) FINE 8:1
NORMAL 12:1
2560 x 1920 pixels SUPER FINE 4:1
FINE 8:1
NORMAL 12:1
2048 x 1536 pixels SUPER FINE 4:1
FINE 8:1
NORMAL 12:1
1280 x 960 pixels SUPER FINE 4:1
1.2M
640 x 480 pixels SUPER FINE 4:1
The above data shows the standard testing results. The actual capacity varies according to
the shooting conditions and settings.
FINE 8:1
NORMAL 12:1
FINE 8:1
NORMAL 12:1
4
9
14
7
15
23
12
24
36
31
62
91
119
221
258
EN-23
Page 24
Photo Frame
You can set your desired photo frame before shooting. There are 12 types of frame-like borders already
storedin the camera.
1. Turn on the power by pressing and holding the button.
2. Toggle the button to access in camera mode. Then press the
button.
3. Toggle the button to display and select your desired photo frame.
4. Press the button to capture a still image with photo frame.
Photo Frame function cannot be processed when the image resolution is set to 8M (image size: 3264 x 2448).
EN-24
Page 25
Recording Video Clips
1. Turn on the power by pressing and holding the button.
2. Toggle the button to access the video camera mode. Then press the button.
3. Compose the shot.
4. Press the button.
The recording of the video clip will start.
Pressing the button again will pause the recording. Pressing the button during pause will resume
recording.
5. Press the button to stop recording.
Approximate Duration of Recording Time
The table below indicates the approximate time that you can record at each setting based on 32 MB internal
memory (24MB available for image storage).
Resolution Video Quality Estimated Recording Time
640 x 480 pixels SUPER FINE Approx. 44 sec.
320 x 240 pixels SUPER FINE Approx. 1 min. 11 sec.
* The above data shows the standard testing results. The actual capacity varies according to shooting conditions and
settings.
FINE Approx. 59 sec.
NORMAL Approx. 1 min. 14 sec.
FINE Approx. 1 min. 46 sec.
NORMAL Approx. 2 min. 20 sec.
EN-25
Page 26
Normal Mode
This mode is suitable for scenery and portrait shooting.
1. Turn on the power by pressing and holding the button.
2. Slide the focus switch to the side.
3. Compose the shot.
4. Press the button to capture a still image.
To record video clips, press the button to start recording, and
then press the button to end the recording.
Macro Mode
Select this when you want to take a close-up photography.
1. Turn on the power by pressing and holding the button.
2. Slide the focus switch to the side.
3. Compose the shot.
4. Press the button to capture a still image.
To record video clips, press the button to start recording, and
then press the button to end the recording.
After a macro shot is taken DO NOT FORGET to reset the lens to the normal position.
Flash mode is automatically set to off once you switch to Macro mode.
EN-26
Page 27
Zoom Photography
Zoom photography allows you to capture telephoto and wide-angle shots.
1. Turn on the power by pressing and holding the button.
2. Compose the shot with the zoom lever.
The subject appears closer by sliding the zoom lever to the / T
side.
The subject appears farther away by sliding the zoom lever to the
/ W side.
3. Press the button to capture a “zoomed” image.
To record video clips, press the button to start recording, and
then press the button to end the recording.
You can also use the zoom lever to zoom in or zoom out the subject
while recording the video clips.
EN-27
Page 28
Setting the Flash
Set the flash to suite the photographic conditions.
1. Turn on the power by pressing and holding the button.
2. Press the ( ) button to select the desired flash mode.
The table below will help you choose the appropriate flash mode:
Flash Mode Description
Flash off Use this mode when taking pictures using indoor lighting, for stages and indoor
A
Auto flash The flash fires automatically to suit the photographic conditions.
Auto flash with Use this mode to reduce the red-eye when you want to take natural-looking
red-eye reduction photographs of people and animals in low-light conditions.
The flash cannot be set in the movie mode.
EN-28
competitions, and when the subject is too far away for the flash to be effective.
When taking photographs of people, the red-eye effect can be reduced by increasing
the room lighting if possible and having your subject not look directly into the camera.
The camera’s pre-flash and slight delay in this mode will also help to improve your images.
Page 29
Setting the Self-Timer
This setting allows still images to be captured with the self-timer.
1. Turn on the power by pressing and holding the button.
2. Press the ( ) button to select the setting.
3. Compose the shot.
4. Press the button.
The self-timer LED and self-timer icon flash, and then the image is
captured after the preset time has elapsed.
To cancel the self-timer during operation, press again the ( )
button.
Once the self-timer has been activated and the button has been
pressed, you can not slide the zoom lever.
The table below will help you choose the appropriate self-timer mode:
Self-timer mode Description
The picture is taken about 3 seconds after the button is pressed.
3 sec.
The picture is taken about 10 seconds after the button is pressed.
10 sec.
Self-timer cannot be set in the movie mode.
The self-timer setting is automatically cancelled after an image is captured.
EN-29
Page 30
PLAYBACK MODE
Playing Back Still Images/ Video Clips
You can play back the still images on the LCD monitor.
1. Turn on the power by pressing and holding the button.
2. Toggle the button to go to [SELECT MODE].
3. Select [IMAGE/MOVIE] with the zoom lever and press the button.
The last image/video clip appears on the LCD monitor.
4. Select the desired images with the zoom lever.
To view the previous image, slide the zoom lever to the / T side.
To view the next image, slide the zoom lever to the / W side.
To start playing back the video clips, follow the steps 1-4 above,
then press the button.
A press of the / buttons during playback allows fast forward play / fast reverse play.
To pause video playback, press the button; to cancel pause, press the button again.
To stop video playback, press the button. This stops playback and returns to the start of the video clip.
To playback the video clips on the computer, we recommend using Windows Media Player 9.0 (WMP 9.0) or the
Software Application we offered. You can download WMP from the website at www.microsoft.com.
To adjust the sound level, sliding the zoom lever to the T / side will increase the volume, sliding the zoom lever to the
side will decrease the volume.
W /
EN-30
Page 31
Playing Back Still Images/Video Clips on TV
VT
You can also play back your images on a TV screen. Before connecting to any devices, make sure to select NTSC
/ PAL system to match the video output system of the video equipment you are going to connect to the DVR-510,
then turn all devices off.
1. Connect one end of the A/V cable to the A/V terminal of the DVR-510.
2. Connect the other end to the A/V input jack of the TV set.
3. Turn the TV and DVR-510 on.
4. Play back the still images / video clips.
The method of operation is the same as playing back still images
and video clips on the DVR-510’s LCD screen.
EN-31
Page 32
Zoom Playback
Images that are being play back can be enlarged. The zoom factor displayed on the screen shows the current
magnification ratio.
1. Turn on the power by pressing and holding the button.
2. Toggle the button to go to [SELECT MODE].
3. Select [IMAGE/MOVIE] with the zoom lever and press the button.
4. Select the desired images with the zoom lever.
To view the previous image, slide the zoom lever to the / T side.
To view the next image, slide the zoom lever to the / W side.
5. The displayed image can be enlarged with each press of the button.
The magnification factors range from 1x to 8x (within 16 stages: 1.0x,
1.5x, 2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x, 5.0x, 5.5x, 6.0x, 6.5x, 7.0x, 7.
5x, 8.0x and thumbnail display).
During zoom playback, the outer frame indicates the entire image;
while the inner frame indicates the location of the currently enlarged area.
6. Slide the zoom lever upward or downward or press the / buttons to
select the area to enlarge.
100-0001
2.0X
Thumbnail Display
This function allows you to view 9 thumbnail images on the LCD monitor at the same time, allowing you to
quickly search for the image that you want.
1. Follow "Zoom Playback" section steps 1-5 until the thumbnail display is
on the screen.
2. Press the / buttons or the zoom lever to select the image/video clip
to be displayed at regular size.
3. Press the button.
EN-32
100-0002
001 / 009
Page 33

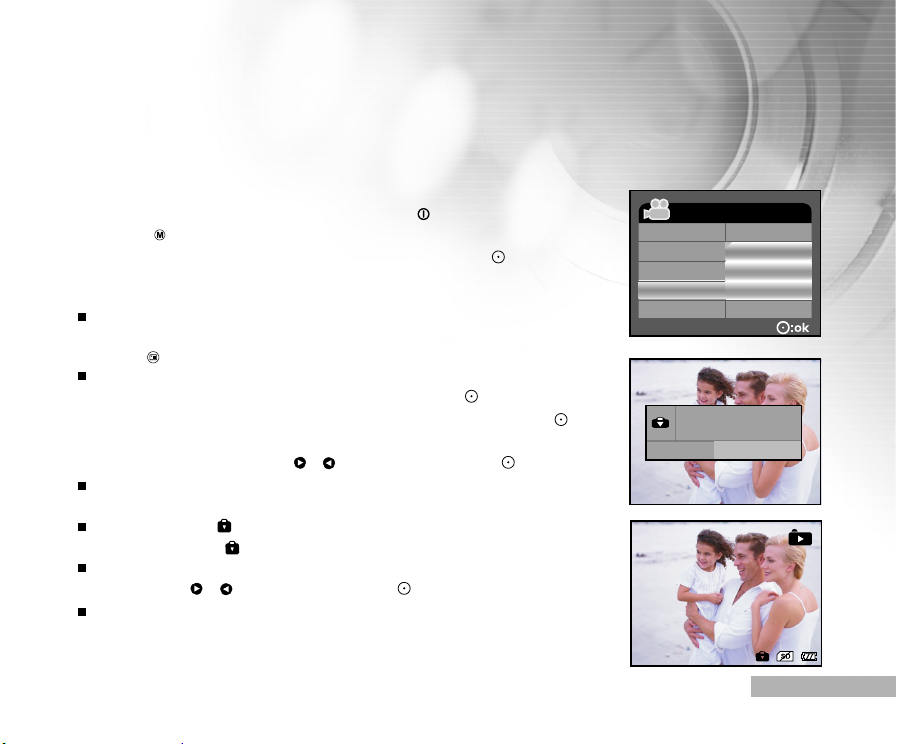

Protecting Still Images/Video Clips
PLAYBACK MENU
SLIDE SHOW
DELETE ALL
PROTECT
5 SEC
DELETE FILE
EXIT
ONE FILE
ALL FILE
ONE FILE
LOCK
UNLOCK
100-0002
Set the data to read-only to prevent images from being erased by mistake.
1. Turn on the power by pressing and holding the button.
2. Togge the button to go to [SELECT MODE].
3. Select [IMAGE/MOVIE] with the zoom lever and press the button.
4. Select the still image/video clip that you want to protect with the zoom
lever.
You may select the still image/ video clip that you want to protect from
the thumbnail display.
5. Press the button.
The PLAYBACK MENU is displayed.
6. Select [PROTECT] with the zoom lever, and press the button.
7. Select [ONE FILE] or [ALL FILE] with the zoom lever, and press the
button.
8. Select [LOCK] by pressing the / buttons, and press the button.
Protect is executed and the DVR-510 returns to the play
mode.
The protect icon is displayed with protected images. When [All
FILE] is selected, is displayed with all the images.
To cancel protection, follow the step 5-8 to select [UNLOCK] by
pressing the / buttons, and pressthe button.
The removal of image protection is executed and the DVR-510 returns
to the play mode.
EN-33
Page 34
Slide Show Display
The slide show function enables you to play back still images/video clips automatically in order one image at a time.
1. Turn on the power by pressing and holding the button.
2. Toggle the button to go to [SELECT MODE].
3. Select [IMAGE/MOVIE] with the zoom lever and press the button.
4. Press the button.
The PLAYBACK MENU is displayed.
5. Select [SLIDE SHOW] with the zoom lever, and press the button.
6. Set the playback interval with the zoom lever, and press the button.
The slide show starts.
The video clips displayed the first frame image, and are not played
back.
To stop slide show, press the button.
You can adjust slide show display interval within the range of 5 SEC, 7 SEC, and 9 SEC.
EN-34
PLAYBACK MENU
SLIDE SHOW
DELETE FILE
DELETE ALL
PROTECT
5 SEC
7 SEC
9 SEC
ONE FILE
Page 35
Deleting Still Images/Video Clips
PLAYBACK MENU
SLIDE SHOW
DELETE ALL
PROTECT
DELETE FILE
5 SEC
NO
YES
NO
1. Turn on the power by pressing and holding the button.
2. Toggle the button to go to [SELECT MODE].
3. Select [IMAGE/MOVIE] with the zoom lever and press the button.
4. Select the still image/video clip that you want to erase with the zoom
lever.
You may select the still image/ video clip that you want to erase from
the thumbnail display.
5. Press the button.
The PLAYBACK MENU is displayed.
6. Select [DELETE FILE] or [DELETE ALL] with the zoom lever, and press
the button.
DELETE FILE: Delete the current still image/video clip.
DELETE ALL: Delete all still images/video clips.
7. Select [YES] with the zoom lever, and press the button.
To not delete, select [NO], and press the button.
If all video clips/images are deleted, [NO FILE!] pops up.
If you want to turn back to the photography mode, press the
button.
PLAYBACK MENU
SLIDE SHOW
DELETE FILE
DELETE ALL
PROTECT
5 SEC
YES
NO
ONE FILE
EN-35
Page 36
USB MODE
MASS STORAGE
PICTBRIDGE
WEBCAM
USB MODE
BORDERLESS
STANDARD
STANDARD
SIZE
100-0005
: PRINT
: SELECT
: CANCEL
: MORE

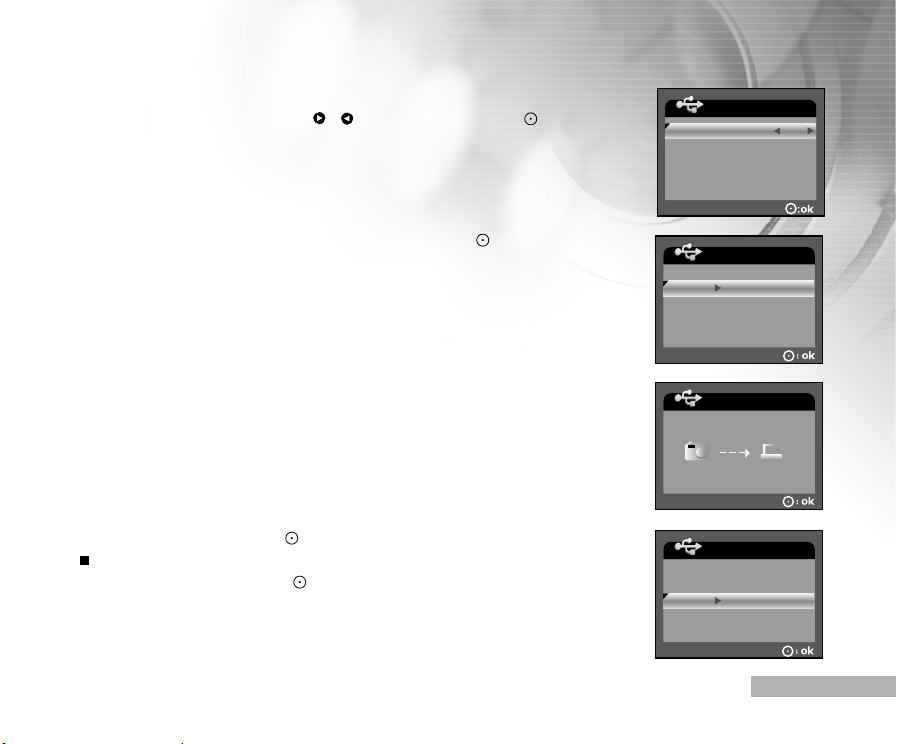

CONNECTING TO A PICTBRIDGE COMPLIANT PRINTER
IF a printer that support PictBridge is available, images can be printed by connecting the digital video camera
directly to the PictBridge-compatible printer without using a computer.
1. Connect the digital video camera to the printer using the USB cable.
2. Turn on the printer and digital video camera.
The [USB MODE] screen appears on the screen.
3. Select [PICTBRIDGE] with the zoom lever, and then press the
button.
4. Select [SIZE] or [BORDERLESS] with the zoom lever and select its print type
with the / buttons. Then press the button to confirm the selection.
[SIZE]: You may select the desired item according to the
[BORDERLESS]: You may select the desired item according to the
5. Select the image that you want to print with the / buttons, and
then use the zoom lever to set more detailed print settings.
EN-36
type of printer being used.
type of printer being used.
Page 37
6. Select [PRINT NUMBER], [DATE] or [FILE NAME] with the zoom lever
USB MODE
DATE
WITH
10
PRINT NUMBER
FILE NAME
WITH
and change their settings with the / buttons. Then press the to
confirm the selection.
[PRINT NUMBER]: Select the number of frame to be printed up to 10.
[DATE]: Select [WITH] to print the image with date imprint.
[FILE NAME]: Select [WITH] to print theimage with file name.
7. Use the zoom lever to select [PRINT]. Then press the button to
confirm the print settings and start printing.
USB MODE
PRINT
CANCEL
8. The printing starts and the figure shown on the right hand side appears
until the printing is complete.
9. To cancel printing, press the while the printing is proceeding.
A selection screen appears. Use the zoom lever to select
[CANCEL]. Then press the button to cancel printing.
USB MODE
USB MODE
CONTINUE
CANCEL
EN-37
Page 38
MP3 MODE
SELECT MODE
IMAGE / MOVIE
MP3
AUDIO
The DVR-510 offers you to playback MP3 files. You may download MP3 files to your computer and then copy
them into the DVR-510 via the USB cable or insert an SD memory card with MP3 files recorded into the DVR-
510.
1. Turn on the power by pressing and holding the button.
2. Toggle the button to go to [SELECT MODE].
3. Select [MP3] with the zoom lever and press the button.
The MP3 LIST appears on the screen.
Button operations
State
BUTTON
T / Scroll up Volume +
W / Scroll down Volume -
EN-38
Playlist During playback
Power off (press & hold) Power off (press & hold)
Previous page N/A
Next page N/A
Back to LCD preview N/A
Enter MP3 menu N/A
Select/Un-select Stop playing MP3 music
Start to play MP3 music Pause playing MP3 music
MP3
Page 39
AUDIO RECORDING MODE
SELECT MODE
IMAGE / MOVIE
MP3
AUDIO
The DVR-510 enables you to record and playback audio files anytime and anywhere.
Recording Audio Files
1. Turn on the power by pressing and holding the button.
2. Toggle the button to select audio recording mode as the illustration.
3. Press the button.
Voice starts recording.
To pause recording, press the button again.
To stop recording, press the button.
The maximum recordable time for voice recording is over 1 hour.
Playing Back Audio Files
1. Turn on the power by pressing and holding the button.
2. Toggle the button to go to [SELECT MODE].
3. Select [AUDIO] with the zoom lever and press the button.
The AUDIO LIST appears on the screen.
Button operations
State
Button Playlist During playback
T/ Scroll up Volume +
W/ Scroll down Volume -
Power off (press & hold) Power off (press & hold)
Previous page N/A
Next page N/A
Back to LCD preview N/A
Enter Voice menu N/A
Select/Un-select Stop playing audio file
Start to play voice file Pause playing audio file
Audio
EN-39
Page 40
Deleting MP3 / Audio Files
SELECT
NO
YES
1. Turn on the power by pressing and holding the button.
2. Toggle the button to go to [SELECT MODE].
3. Select [MP3] / [AUDIO] with the zoom lever and press the button.
The MP3 / AUDIO LIST appears on the screen.
4. Press the button.
The MP3 / AUDIO MENU appears on the screen.
5. Select [DELETE] with the zoom lever and press the button.
SELECT: Delete the selected audio or MP3 file.
ALL: Delete all audio or MP3 files in a single operation.
6. Select [YES] with the zoom lever, and press the button.
To not delete, select [NO], and press the button.
If all files are deleted, [NO FILE!] pops up.
If you want to turn back to the photography mode, press the button.
EN-40
MP3 MENU
Page 41
MENU OPTIONS
Movie Menu
This menu is for the basic settings to be used when capturing video clips in the photography mode.
1. Turn on the power by pressing and holding the button.
2. Press the button. The MOVIE MENU is displayed on the screen.
3. Select the desired option item with the zoom lever, and press the
button.
4. Select the desired setting with the zoom lever, and press the button.
5. To exit from the menu, press the button.
SIZE
This sets the size of the still image that will be captured.
: 640 X 480
: 320 X 240
QUALITY
This sets the quality (compression rate) at which the still image is captured.
: SUPER FINE
: FINE
: NORMAL
MOVIE MENU
EN-41
Page 42
EV
Your DVR-510 adjusts the exposure of each scene automatically. However, if the subject is very dark, or very
bright, you may override the DVR-510's automatic exposure determination to make the subject brighter or
darker. This is called EV compensation. The EV compensation can be adjusted from -1.8EV to +1.8EV.
AWB
This sets the white balance photographing under a variety of lighting conditions and permits photographs to be
taken that approach the conditions that are seen by the human eye.
[AUTO] AUTO: Automatic adjustment
[ ] DAYLIGHT: For recording outdoors on a bright day
[ ] LAMP: For recording under incandescent lights
[ ] FLUORESCENT-1: Cool white fluorescent (W3900-4500K)
[ ] FLUORESCENT-2: Day white fluorescent (W4600-5400K)
[ ] SHADE: For recording outdoors on a cloudy day
EN-42
Page 43
Capture Menu
CAPTURE MENU
CAPTURE MENU
DATE PRINT
NO
This menu is for the basic settings to be used when capturing still images in the photography mode.
1. Turn on the power by pressing and holding the button.
2. Toggle the button to access in camera mode, then press the
button.
The CAPTURE MENU is displayed on the screen.
3. Select the desired option item with the zoom lever, and press the
button.
4. Select the desired setting with the zoom lever, and press the button.
5. To exit from the menu, press the button.
SIZE
This sets the size of the still image that will be captured.
3264 x 2448 (FW interpolation)
: 2560 x 1920
: 2048 x 1536
: 1280 x 960
1.2M
: 640 x 480
QUALITY
This sets the quality (compression rate) at which the still image is captured.
: SUPER FINE
: FINE
: NORMAL
EN-43
Page 44
EV
Your DVR-510 adjusts the exposure of each scene automatically. However, if the subject is very dark, or very bright,
you may override the DVR-510's automatic exposure determination to make the subject brighter or darker. This is
called EV compensation. The EV compensation can be adjusted from -1.8EV to +1.8EV.
Examples of Exposure Compensation -
+ (positive) compensation
* Printed matter comprising black text on whitish paper
* Backlighting
* Bright scenes or strong reflected light such as ski slopes
* When the sky accounts for a large area on the screen
- (negative) compensation
* People illuminated by a spotlight, in particular, against dark background
* Printed matter comprising white text on blackish paper
* Weak reflecting bodies such as evergreen trees or darkish leaves
AWB
This sets the white balance photographing under a variety of lighting conditions and permits photographs to be
taken that approach the conditions that are seen by the human eye.
[AUTO] AUTO: Automatic adjustment
[ ] DAYLIGHT: For recording outdoors on a bright day
[ ] LAMP: For recording under incandescent lights
[ ] FLUORESCENT-1: Cool white fluorescent (W3900-4500K)
[ ] FLUORESCENT-2: Day white fluorescent (W4600-5400K)
[ ] SHADE: For recording outdoors on a cloudy day
EN-44
Page 45
ISO
This sets the sensitivity for photography. When the sensitivity is raised (and the ISO figure is increased),
photography will become possible even in dark locations, but the more pixilated (grainer) the image will appear.
[AUTO]: Auto adjustment
[100]: Equivalent to ISO100
[200]: Equivalent to ISO200
DATE PRINT
The capture date can be printed directly on your still images. This function must be activated before the image
is captured.
[YES]: Imprints the date on the still images when capturing images.
[NO]: Does not imprint the date on the still images when capturing images.
EN-45
Page 46
Playback Menu
This menu sets which settings are to be used for playback.
1. Turn on the power by pressing and holding the button.
2. Toggle the button to go to [SELECT MODE].
3. Select [IMAGE/MOVIE] with the zoom lever and press the button.
4. Press the button.
The PLAYBACK MENU is displayed on the screen.
5. Select the desired option item with the zoom lever, and press the
button.
6. Select the desired setting with the zoom lever, and press the button.
7. To exit from the menu, press the button.
SLIDE SHOW
Automatically displays one image at a time in sequence with a selected interval time.
Refer to section in this manual titled “Slide show display” for further details.
[5 SEC], [7 SEC], [9 SEC]
DELETE FILE
Delete the current file.
[YES]: Enable deletion.
[NO]: Disable deletion.
DELETE ALL
Delete all files.
[YES]: Enable deletion.
[NO]: Disable deletion.
PROTECT
Set the data to read-only to prevent images from being erased by mistake.
Refer to section in this manual titled “Protecting Still Images/Video Clips” for further details.
EN-46
PLAYBACK MENU
SLIDE SHOW
DELETE FILE
DELETE ALL
PROTECT
system
5 SEC
NO
NO
ONE FILE
Page 47
MP3 / Audio Menu
MP3 MENU
PLAY MODE
DELETE
REPEAT
NO
SELECT
SINGLE
system
system
This sets whether or not to play MP3 files repeatedly or delete MP3 files.
1. Turn on the power by pressing and holding the button.
2. Toggle the button to go to [SELECT MODE].
3. Select [MP3] or [AUDIO] with the zoom lever, and press the button.
The MP3 / AUDIO LIST is displayed.
4. Press the button.
The MP3 / AUDIO MENU is displayed on the screen.
5. Select the desired option item with the zoom lever, and press the button.
6. Select the desired setting with the zoom lever, and press the button.
7. To exit from the menu, press the button.
PLAY MODE
[SINGLE]: Play only one audio or MP3 file.
[SELECT]: Play the selected audio or MP3 files.
[ALL]: Play all audio or MP3 files.
REPEAT
This sets to playback the files repeatedly.
[NO]:Play the lised files only once.
[YES]: Repeatedly play your audio or MP3 files according to your preference.
DELETE
Delete the current file.
[SELECT]: Delete the selected audio or MP3 file.
[ALL]: Delete all audio or MP3 files in a single operation.
EN-47
Page 48
System Menu
SYSTEM MENU
FORMAT
DATE TYPE
LANGUAGE
LCD BRIGHT
DATE SETUP
NO
YES
Y/M /D
ENGLISH
ON
Sets your DVR-510’s operating environment.
1. Turn on the power by pressing and holding the button.
2. Toggle the button to access in movie, camera or playback (SELECT
MODE) mode, then press the button.
3. Press to access in SYSTEM MENU.
4. Select the desired option item with the zoom lever, and press the
button.
5. Select the desired setting with the zoom lever, and press the button.
6. To exit from the menu, press the button.
LANGUAGE
This sets the language that is displayed on the LCD monitor.
The provided languages are [ENGLISH], [FRANÇAIS], [DEUTSCH],
[ESPAÑOL], [ITALIANO], [ ], [ ] and [ ].
FORMAT
This function will delete all still images/video clips and other data recorded
on the internal memory or external memory card. Memory card cannot be
formatted if it is write-protected.
[YES]: Formats the internal memory (or memory card) and erase all still
images/video clips and other data.
[NO]: Does not format the internal memory (or memory card).
EN-48
SYSTEM MENU
POWER OFF
COPY TO CARD
BEEP
VIDEO OUT
RESET
OFF
NO
OFF
NTSC
NO
Page 49
LCD BRIGHT
This adjusts the brightness of the LCD monitor. The LCD becomes brighter by sliding the zoom lever to the T
/ side and darker to the W / side. The adjustment range is from -5 to +5.
DATE TYPE
This sets the displayed type of date and time on the screen.
[Y/M/D]: Year/Month/Day
[D/M/Y]: Day/Month/Year
[M/D/Y]: Month/Day/Year
DATE SETUP
This sets the date and the time.
Refer to section in this manual titled “Setting the Date and Time” for further details.
POWER OFF
If no operation is performed for a specific period of time, the power to the DVR-510 is automatically turned off.
This feature is useful to reduce battery wear.
[OFF](power-off is disabled) / [1 MIN.] / [3 MIN.] / [5 MIN.] / [10 MIN.]
EN-49
Page 50
COPY TO CARD
Allows you to copy your files from the DVR-510’s internal memory to a memory card. Of course, you can only do
this if you have a memory card installed and some files in internal memory.
[YES] / [NO]
BEEP
Enables or disables the sounds (beeps) associated with DVR-510 button functions.
[ON]: Enables sounds/beep tones.
[OFF]: Disables sounds/beep tones.
VIDEO OUT
This sets video output system of the video equipment that you are going to connect to the DVR-510.
[NTSC]: NTSC system
[PAL]: PAL system
RESET
This returns all basic settings to the DVR-510's default settings.
[YES]: Returns to the default settings.
[NO]: Does not return to the default settings.
EN-50
Page 51
TRANSFERRING RECORDED FILES TO YOUR COMPUTER
To transfer the recorded files from the DVR-510 to your computer, follow these steps:
Step 1: Install the USB driver (Windows 98 users only).
Step 2: Connect the DVR-510 to your computer.
Step 3: Download image, audio and video files.
System requirements (Windows)
PentiumIII 600 MHz or higher
Windows 98/98SE/Me/2000/XP
64MB RAM
128MB hard disk space
CD-ROM drive
Available USB port
Step 1: Install the USB driver (Windows 98 users only)
Windows 98 computers
The USB driver on the CD-ROM is exclusively for Windows 98 computers.
Installing the USB driver on computers running Windows 2000/ME/XP is not
necessary.
1. Insert the CD-ROM that came with the DVR-510 into your CD-ROM
drive. The welcome screen appears.
2. Click "Install USB driver/PC-Cam Driver". Follow the on-screen
instructions to complete the installation. After the USB driver has been
installed, restart your computer.
EN-51
Page 52

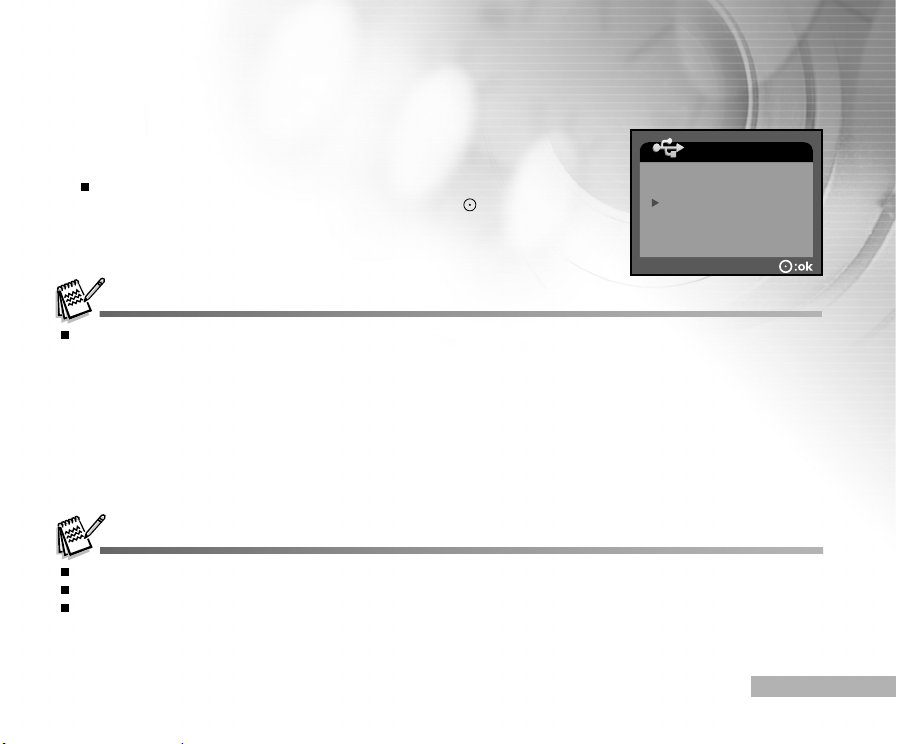

Step 2: Connect the DVR-510 to your computer
1. Connect one end of the USB cable to the USB connector on the digital
video camera.
2. Connect the other end of the USB cable to an available USB port on your
computer.
3. Turn on the power.
The [USB MODE] screen appears on the screen.
4. Select [MASS STORAGE] with the zoom lever, and press the button.
5. From the Windows desktop, double click on "My Computer".
6. Look for a new "Removable disk" icon. This "Removable disk" is actually
the memory or memory card in your DVR-510.
7. Double click on the removable disk and locate the DCIM, MP3 and
AUDIO folders.
8. Double click on the folders to open it to find more folders.
Your recorded images, video clips and audio files will be inside
these folders.
Copy, Paste or Drag-N-Drop images, videos, and audio to a folder
on your computer.
When connecting to the computer, there is no need to install any batteries into the DVR-510.
Whenever the USB power supply is used while transferring images to your computer, the other buttons on your DVR-510
will not perform the functions.
EN-52
USB MODE
MASS STORAGE
WEBCAM
PICTBRIDGE
Page 53
Step 3: Download still images, video clips and audio files
When the DVR-510 is turned on and connected to your computer, it is considered to be a disk drive, just like
a floppy disk or CD. You can download (transfer) images by copying them from the "Removable disk" to your
computer hard drive.
Windows
Open the "removable disk" and subsequent folders by double clicking on them. Your images, videos, and
audio are inside these folder(s). Select the files that you want, and then choose "Copy" from the "Edit" menu.
Open the destination location (folder) and choose "Paste" from the "Edit" menu. You may also drag and drop
image files from the DVR-510 to a desired location.
The recorded audio files are stored on the "AUDIO" folder.
For transferring MP3 files, simply copy the MP3 files from your computer hard drive to the "MP3" folder.
Memory card users may prefer to use a memory card reader (highly recommended).
Video playback application is not included with the package. Make sure that video playback application has been
installed in your computer.
EN-53
Page 54
INSTALLING VIDEOSTUDIO
Ulead® VideoStudio is home video-editing software that makes editing movies as fun as shooting them. Users can
make one in three easy steps using the new Movie Wizard mode. VideoStudio features fully customizable filters
and special effects and shares finished projects on diversified devices by supporting the latest formats.
To install VideoStudio:
1. Insert the CD-ROM that came with the camera into your CD-ROM drive.
The welcome screen appears.
2. Click “Install VideoStudio”. Follow the on-screen instructions to complete
the installation.
For more information about the operation of VideoStudio application software, refer to its respective help documentation.
For Windows 2000/XP users, please make sure to install and use the VideoStudio in “Administrator” mode.
VideoStudio is not supported on the Mac.
EN-54
Page 55
INSTALLING ADOBE ACROBAT READER
The CD-ROM includes a PDF (portable document format) copy of the user’s manual. To view a PDF you must
have Adobe Acrobat Reader installed in your computer. Adobe Acrobat Reader is included on the camera CD
ROM. Using Adobe Acrobat Reader, you can read the user’s manual and print sections of interest.
1. Insert the CD-ROM that came with the camera into the CD-ROM drive.
The welcome screen appears.
2. Click “Install Acrobat Reader”.
Follow the on-screen instructions to complete the installation.
EN-55
Page 56
USER MANUAL
A copy of the user manual is provided on the CD-ROM in PDF format. It is a backup copy of the printed manual.
If you misplace the printed guide, you may print another copy from the CD-ROM. The only requirement for
viewing the User Manual on the CD-ROM is that you have Acrobat Reader (Adobe Reader) installed on your
computer. Updates to this manual, and versions in other languages may be found on the Vivitar website (www.
vivitar.com).
1. Insert the CD-ROM that came with the camera into the CD-ROM drive.
The welcome screen appears.
2. Click “Install User’s Manual”. Follow the on-screen instructions to
complete the installation.
Alternatively, browse the CD-ROM to find the PDF file.
EN-56
Page 57
USING THE DVR-510 AS A PC CAMERA
Your DVR-510 can act as a PC camera, which allows you to videoconference with business associates, or have
a real-time conversation with friends or family.
To use the DVR-510 as a PC camera, follow these steps:
Step 1: Install the PC camera driver (same as USB driver- this is needed on ACC Windows systems).
Step 2: Connect the DVR-510 to your computer.
Step 3: Run your application software (i.e. Yahoo Messenger)
Video conferencing (or video editing) software is not included with the DVR-510.
This mode is not supported for Mac.
General system requirements for videoconference
To use the DVR-510 for videoconference, your computer system must include:
Microphone
Sound card
Speakers or headphones
Network or Internet connection
EN-57
Page 58
Step 1: Install the PC Camera Driver (same as USB driver- this is
needed on ACC Windows systems)
The PC-camera driver included on the CD-ROM is exclusively for Windows. The PC camera function is not
supported for Mac platforms.
1. Insert the CD-ROM that came with the camera into your CD-ROM drive.
The welcome screen appears.
2. Click "Install USB/PC-Cam driver". Follow the on-screen instructions
to complete the installation. After the driver installation is completed,
restart your computer.
The USB driver that bundled inside the CD-ROM is designed in a form 2 in 1 (USB & PC camera driver).
a) On Windows 98, the Windows OS will install both USB & PC camera drivers.
b) On Windows 2000/ME/XP, it will only install PC camera driver.
EN-58
Page 59
Step 2: Connect the DVR-510 to Your Computer
USB MODE
MASS STORAGE
PICTBRIDGE
WEBCAM
1. Connect one end of the USB cable to the USB connector on the DVR-510.
2. Connect the other end of the USB cable to an available USB port on your computer.
3. Turn on the power.
The [USB MODE] screen appears on the screen.
4. Select [WEBCAM] with the zoom lever, and press the button.
5. Position the DVR-510 steadily on top of your computer monitor or use
a tripod.
When using this DVR-510 as a PC camera, there is no need to install any batteries into the digital video camera.
Step 3: Run Your Application Software(i.e. Yahoo Messenger)
Yahoo Messenger is a free application available at www.yahoo.com. After installing the TWAIN driver in your
Windows operating system, restart your computer. Then select Programs / MYDSC2 / PC Cam. You can then
use your DVR-510 as a web cam allowing others to see you online.
Simply follow the instructions in Yahoo Messenger to start your camera.
The video resolution for videoconferencing applications is generally 320 x 240.
For more information about the operation of videoconference application software, refer to its respective help documentation
When the PC cam function is activated (i.e. images are being transferred), the LED (green color) blinks. If the USB cable
is unplugged at the time of transferring images, the screen would become blank the next time when you run the PC cam
function. In this situation, you should restart the computer. The proper operating method should be: Close the PC cam
application, then remove the USB cable.
EN-59
Page 60
CONNECTING THE DVR-510 TO OTHER DEVICES
EN-60
Page 61
SPECIFICATIONS
Item Description
Image Sensor 1/2.5” CCD sensor
Effective pixels 5.0 Mega pixels
Image size Still image: 3264 x 2448 (FW interpolation), 2560 x 1920, 2048 x 1536, 1280 x
Image quality Still image: SUPER FINE, FINE, NORMAL
Recording media 32MB internal memory (24MB available for image storage)
Compression format MPEG 4 SP (Video), IMA-ADPCM (Audio)
File format EXIF 2.1, DCF 1.0, JPEG, ASF (Video), PictBridge support, PC-CAM support
Lens F-no. 3.5
Focus range Normal: 1.1m-infinity
LCD monitor 2.0” LTPS color LCD
Self-timer 3-sec delay, 10-sec delay
Exposure compensation -1.8EV- +1.8EV (in 0.3EV increments)
White balance AUTO, DAYLIGHT, LAMP, FLUORESCENT-1, FLUORESCENT-2, SHADE
ISO Auto, 100, 200
Connectors USB connector, earphone jack, TV-out, SD Card slot
Power 2 x AA alcalines (included) /Ni-MH batteries (recomended)
Dimension Approx. 98 x 66 x 34 mm (3.9 x 2.6 x 1.4 in)
Weight Approx. 156g (without batteries and the SD memory card)
* Design and specifications are subject to change without notice.
960, 640 x 480
Video clip: 640 x 480, 320 x 240
Video clip: SUPER FINE, FINE, NORMAL
SD memory card (optional, up to 1GB)
Focal length:7.7mm
Macro: 0.6m-1.1m
High-resolution 130K pixels display
EN-61
Page 62
APPENDIX
Troubleshooting Guide
Symptom Possible causes Solutions / Corrective Actions
The power does not
turn on.
The DVR-510
suddenly powers down.
The image is not
captured when the
button is pressed.
The flash does not fire.
Cannot transfer files
over a USB connection.
EN-62
* The battery has run out.
* The battery is not oriented correctly.
* The battery cover is not closed properly.
* The function of POWER OFF in SYSTEM
MENU has been activated.
* The battery has run out.
* The DVR-510 is in SELECT MODE
(Playback Mode).
* Memory is full.
* The write-protect tab on the "SD Memory
Card" is set to the LOCK position.
(Flash Off) is selected in flash mode.
*
* The DVR-510 is in
mode.
* The DVR-510 is in
mode).
* USB cable is not connected securely.
* USB driver is not installed.
* The DVR-510 is turned off.
(Video)
(macro
* Load new or fully charged battery.
* Load the battery in the correct direction.
* Close the battery cover correctly.
* Set the option of POWER OFF to OFF.
* Turn the power back on or charge the
battery.
* Toggle the
camera mode.
* Transfer the desired files to your
computer and then delete unnecessary
files, or use a different memory card.
* Slide the write-protect tab to UNLOCK.
* Select a different flash mode.
* Toggle the
camera mode.
* Slide the focus switch to the
(normal mode).
* Check all connections.
* Install the USB driver on your computer.
* Turn on the DVR-510.
button to access in
