Vitek VT-4025, VT-4035 SR User Manual
ACTIVE SPEAKER SYSTEM 5.1
MODEL VT4025/VT4035 SR
2
10
www.vitekaus.com
INSTRUCTION MANUAL
4025.qxd 13.07.2005 17:51 Page 1
Know these safety symbols
Safety Precautions
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Caution: Please read the following important safe
guards carefully to ensure safe operation.
IMPORTANT SAFEGUARDS
1. Read Instructions # All the safety and operating instruc#
tions should be read before the appliance is operated.
2. Retain Instructions # The safety and operating instruc#
tions should be retained for future reference.
3. Follow Instructions # All operating instructions should be
followed.
4. Heed Warnings # All warnings on the appliance and in the
operating instructions should be adhered to.
5. Power Source # The appliance should be connected to a
power supply only of the type specified in the operating
instructions or as marked on the appliance.
6. Power#cord Protection # Power#supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, pay par#
ticular attention to cords at plugs, convenience recepta#
cles, and the point where they exit from the appliance.
7. Water and Moisture # The appliance should not be used
near water (for example, near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, or near a
swimming pool, etc.)
8. Ventilation # The appliance should be situated so that its
location or position does not interfere with its proper ven#
tilation. Do not use the appliance on a bed, sofa, rug or
similar surface that may block the ventilation openings.
9. Heat # Keep the appliance away from heat sources such
as radiators, heat registers, stoves, or other appliances
(including amplifiers) that produce heat.
10. Nonuse Periods # The power cord of the appliance
should be unplugged from the outlet when left unused
for a long period of time.
11. Damage requiring service # The appliance should be
serviced by qualified service personnel when:
a/ The power#supply cord or the plug has been dam#
aged; or
b/ Objects have fallen or liquid has been spilled into the
appliance; or
c/ The appliance has been exposed to rain; or
d/ The appliance does not appear to operate normally or
exhibits a marked change in performance; or
e/ The appliance has been dropped, or the enclosure
damaged.
12. Servicing # The user should not attempt to service the
appliance beyond that specified in the operating instruc#
tions. All other servicing should be referred to qualified
service personnel.
13. Clean only with dry cloth.
14. Do not defeat the safety purpose of the polarized or
groundingtype plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provid#
ed plug does not fit into your outlet, consult and electri#
cian for replacement of the obsolete outlet.
15. Unplug this apparatus during lightning storms or when
unused for long periods of time.
ENGLISH
2
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER#SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The "exclamation point" calls attention to
features for which you should read the
enclosed literature closely to prevent oper#
ating and maintenance problems.
This "bolt of lightning" indicates uninsulat#
ed material within your unit which may
cause an electrical shock. For the safety of
everyone in your household, please do not
remove product covering.
4025.qxd 13.07.2005 17:51 Page 2
ENGLISH
3

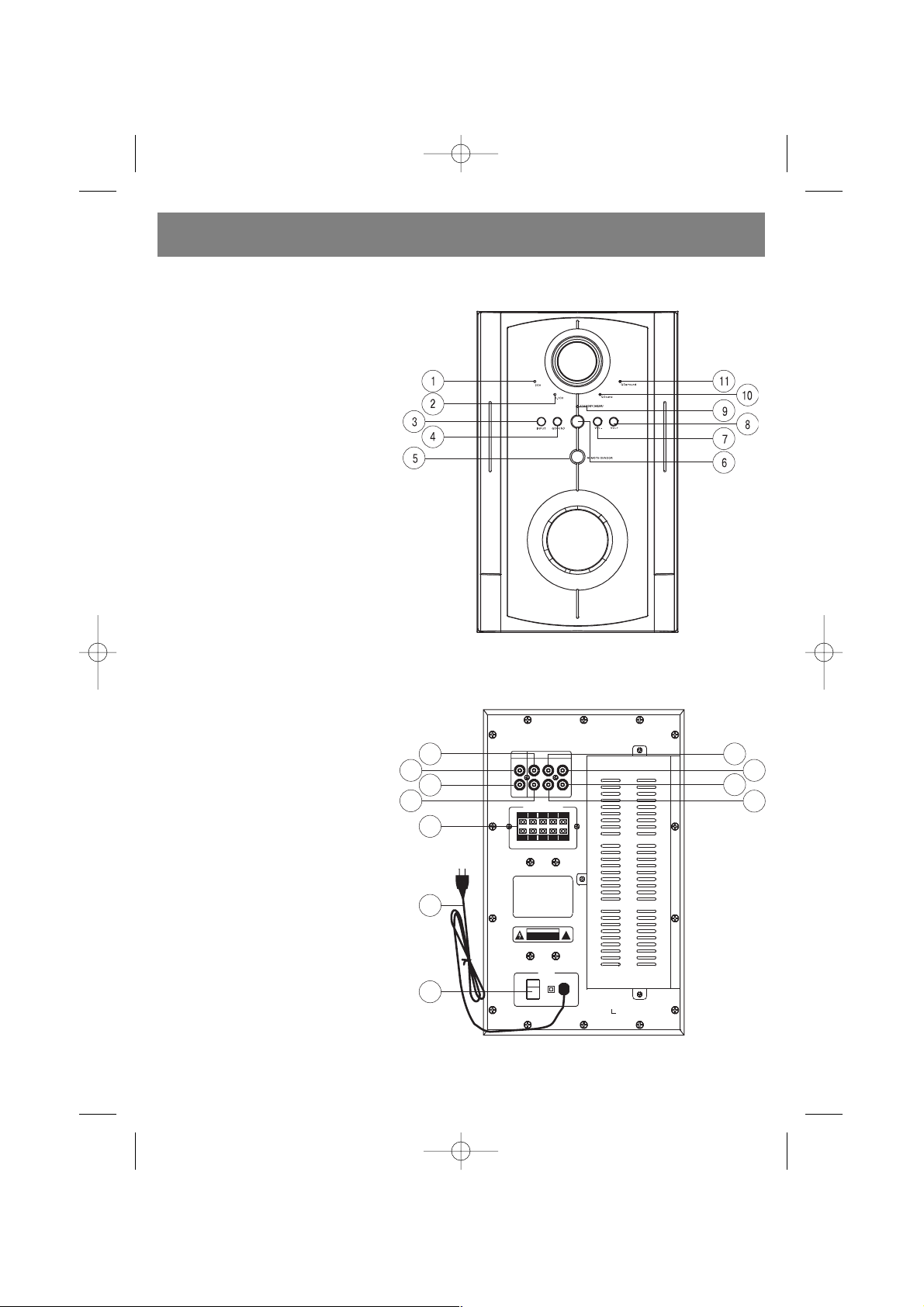

FRONT PANEL
CONTROLS AND FUNCTIONS
1. 2CH: 2 Channel Input Indicator.
2. 5.1 CH: 5.1 Channel Input Indicator.
3. INPUT Button.
4. SURROUND: Surround Sound Decoder.
5. REMOTE SENSOR: Remote Receiver.
6. STANDBY: Power Standby.
7. VOL#: Volume Down. 8.VOL+:VolumeUp.
9. MUTE: Power Standby and Mute Indicator.
10. SURR. A: 3D Stereo Indicator.
11. SURR. B: 5.1 Stereo Indicator.
REAR PANEL CONTROLS AND FUNCTIONS
12. 5.1CH Subwoofer Audio Input.
13. Stereo Left Audio Input.
14. Stereo Right Audio Input.
15. 5.1CH Centre Audio Input.
16. Speaker Output.
FR: Front Right Speaker Output.
FL: Front Left Speaker Output.
C: Centre Speaker Output.
RL: Rear Left Speaker Output.
RR: Rear Right Speaker Output.
17. AC Power Cord.
18. Power On/Off Switch.
19. 5.1CH Rear Left Audio Input.
20. 5.1CH Front Left Audio Input.
21. 5.1CH Front Right Audio Input.
22. 5.1CH Rear Right Audio Input.
4025.qxd 13.07.2005 17:51 Page 3
12
13
14
15
16
17
18
2CH 5.1CH INP UT
LWRLFL
C
RR FRR
SPEAKER OUTPUT
FR FLCRL RR
5.1 Power Amplified Home Theatre
Speaker System w/ Remote Control
MODEL NO . :AV#2009
POWER SOURCE :AC~220V/50Hz
POWER CONS UMPTIO N:200W
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
POWER
ON
OFF
AC~220V/50Hz
!
SERIAL NO:
19
20
21
22
SYSTEM CONNECTION INSTRUCTION
ENGLISH
4
4025.qxd 13.07.2005 17:51 Page 4

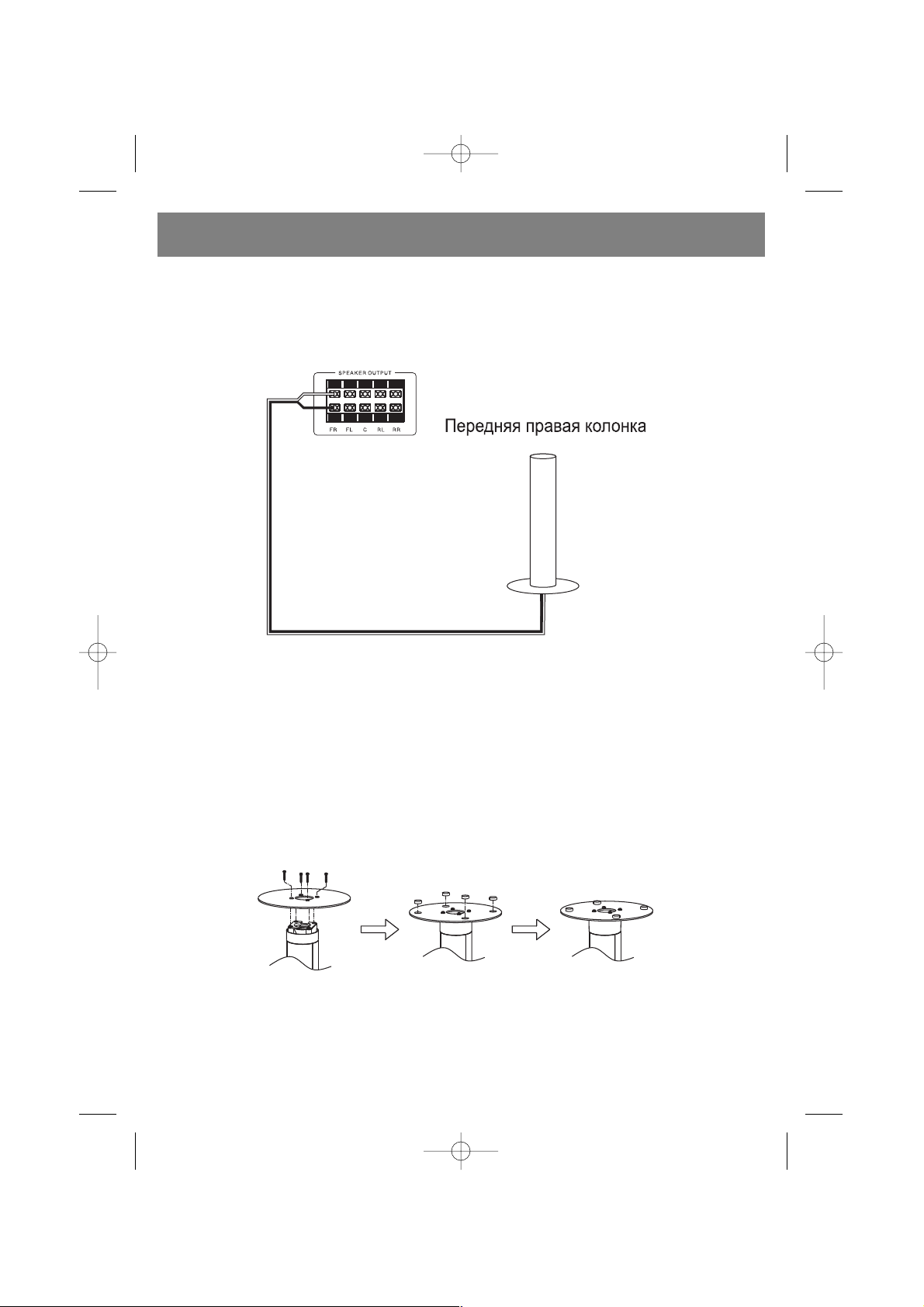

Use the SPEAKER OUTPUT jacks on the rear panel of main unit to connect to the satellite speakers.
Connection example:
ENGLISH
5
SETTING UP THE ALUMINIUM DIECASTING SPEAKERS
Remove the base, aluminium speakers, screws, and rubber feet from the packaging. Now you can set it up as follows:
1. Place the base at the bottom of the speaker pole, insert and tighten the screws to secure the base to the speaker.
2. Stick the rubber foot on the base.
4025.qxd 13.07.2005 17:51 Page 5
ENGLISH
6
REMOTE CONTROLLER
23. POWER: Power Standby.
24. SURROUND: Surround Decoder.
25. INPUT: Input Switch.
26. BALANCE L: Left Speaker Balance.
27. RL +: Rear Left Balance Output Up.
28. C +: Center Output Up.
29. RL # : Rear Left Balance Output Down.
30. BASS +: Bass Output Up.
31. VOL +: Main Volume Up.
32. BASS #: Bass Output Down.
33. MUTE: Output Suspension.
34. PRESET: Location retrieval.
35. BALANCE R: Right Speaker Balance.
36. RR +: Rear Right Balance Output Up.
37. RR #: Rear Right Balance Output Down.
38. C #: Centre Output Down.
39. TREBLE +: Treble Output Up.
40. TREBLE #: Treble Output Down.
41. VOL #: Main Volume Down.
4025.qxd 13.07.2005 17:51 Page 6
