Vishay Semiconductors
IR Receiver Modules for Remote Control Systems
Description
The TSOP22.. - series are miniaturized receivers for
infrared remote control systems. PIN diode and
preamplifier are assembled on lead frame, the epoxy
package is designed as IR filter.
The demodulated output signal can directly be
decoded by a microprocessor. TSOP22.. is the standard IR remote control receiver series, supporting all
major transmission codes.
Features
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
TSOP22..
• Improved shielding against electrical field
disturbance
• TTL and CMOS compatibility
• Output active low
• Low power consumption
Special Features
• Improved immunity against ambient light
• Suitable burst length ≥ 10 cycles/burst
Block Diagram
16835
PIN
AGCInput
Band
Pass
Control
30 kΩ
Demodulator
Circuit
2
V
S
1
OUT
3
GND

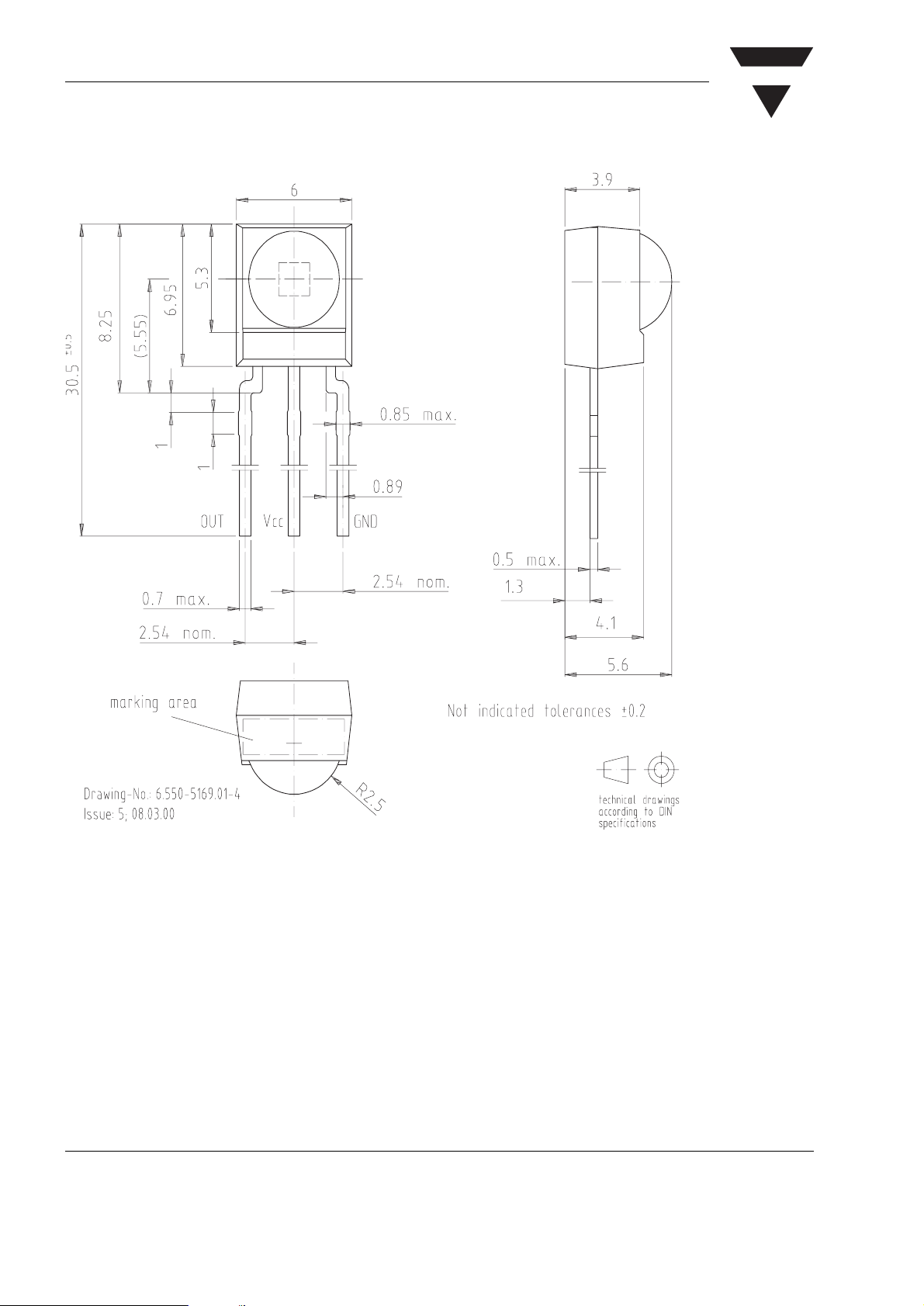

Mechanical Data
Pinning:
1 = OUT, 2 = V
, 3 = GND
S
Parts Table
Part Carrier Frequency
TSOP2230 30 kHz
TSOP2233 33 kHz
TSOP2236 36 kHz
TSOP2237 36.7 kHz
TSOP2238 38 kHz
TSOP2240 40 kHz
TSOP2256 56 kHz
Application Circuit
16842
Transmitter
with
TSALxxxx
TSOPxxxx
Circuit
V
S
OUT
GND
R1=100Ω
C1=
4.7 µF
+V
S
µC
V
O
GND
R1+C1recommended to suppress power supply
disturbances.
The output voltage should not be hold continuously at
a voltage below V
Document Number 82095
Rev. 7, 05-Aug-03
=
3.3 V by the external circuit.
O
www.vishay.com
1
TSOP22..
Vishay Semiconductors
Absolute Maximum Ratings
T
= 25 °C, unless otherwise specified
amb
Parameter Test condition Symbol Val ue Unit
Supply Voltage (Pin 2) V
Supply Current (Pin 2) I
Output Voltage (Pin 1) V
Output Current (Pin 1) I
Junction Temperature T
Storage Temperature Range T
Operating Temperature Range T
Power Consumption (T
Soldering Temperature t ≤ 10 s, 1 mm from case T
Electrical and Optical Characteristics
T
= 25 °C, unless otherwise specified
amb
Parameter Test condition Symbol Min Ty p . Max Unit
Supply Current (Pin 2) VS = 5 V, Ev = 0 I
VS = 5 V, Ev = 40 klx, sunlight I
Supply Voltage (Pin 2) V
Transmission Distance Ev = 0, test signal see fig.1,
IR diode TSAL6200,
I
= 250 mA
F
Output Voltage Low (Pin 1)
Irradiance (30 - 40 kHz) Pulse width tolerance:
Irradiance (56 kHz) Pulse width tolerance:
Irradiance tpi - 5/fo < tpo < tpi + 6/fo,
Directivity Angle of half transmission
IOL = 0.5 mA, Ee = 0.7 mW/m2,
, test signal see fig. 1
f = f
o
t
- 5/fo < tpo < tpi + 6/fo,
pi
test signal see fig.1
t
-5/fo < tpo < tpi +6/fo,
pi
test signal see fig.1
test signal see fig. 1
distance
≤ 85 °C) P
amb
SD
SH
S
0.8 1.2 1.5 mA
4.5 5.5 V
d 35 m
V
OL
E
e min
E
e min
E
e max
ϕ
1/2
30
VISHAY
- 0.3 to + 6.0 V
S
S
O
O
j
stg
amb
tot
sd
1.5 mA
0.2 0.4
0.3 0.5
± 45 deg
5 mA
- 0.3 to + 6.0 V
5 mA
100 °C
- 25 to + 85 °C
- 25 to + 85 °C
50 mW
260 °C
250 mV
mW/m
mW/m
W/m
2
2
2
www.vishay.com
2
Document Number 82095
Rev. 7, 05-Aug-03
VISHAY
TSOP22..
Vishay Semiconductors
Typical Characteristics (T
Optical Test Signal
E
e
(IR diode TSAL6200, IF = 0.4 A, 30 pulses, f = f0, T = 10 ms)
amb
tpi *
T
* t
w 10/fo is recommended for optimal function
pi
Output Signal
V
O
V
OH
V
OL
1)
7/f0< td< 15/f
2)
tpi–5/f0< tpo < tpi+6/f
1)
t
d
0
0
2)
t
po
Figure 1. Output Function
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
po
0.1
t – Output Pulse Width ( ms )
0.0
0.1 1.0 10.0 100.0 1000.010000.0
16908
Output Pulse
Input Burst Duration
l = 950 nm,
optical test signal, fig.1
Ee – Irradiance ( mW/m2 )
= 25 °C unless otherwise specified)
1.0
0.9
t
16110
t
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
on off
T ,T – Output Pulse Width ( ms )
0.0
0.1 1.0 10.0 100.0 1000.010000.0
16909
Figure 4. Output Pulse Diagram
1.2
1.0
0.8
0.6
0.4
0.2
e min e
E / E – Rel. Responsivity
0.0
0.7 0.9 1.1 1.3
16925
To n
To ff
l = 950 nm,
optical test signal, fig.3
Ee – Irradiance ( mW/m2 )
f = f0"5%
Df ( 3dB ) = f
f/f0 – Relative Frequency
/10
0
Figure 2. Pulse Length and Sensitivity in Dark Ambient
Optical Test Signal
E
e
600 ms 600 ms
T = 60 ms
Output Signal, ( see Fig.4 )
V
O
V
OH
V
OL
T
on
T
off
Figure 3. Output Function
Document Number 82095
Rev. 7, 05-Aug-03
94 8134
t
Figure 5. Frequency Dependence of Responsivity
4.0
2
t
e min
E – Threshold Irradiance ( mW/m )
16911
Correlation with ambient light sources:
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0.01 0.10 1.00 10.00 100.00
2
10W/m
^1.4klx (Std.illum.A,T=2855K)
2
10W/m
^8.2klx (Daylight,T=5900K)
Ambient, l = 950 nm
E – Ambient DC Irradiance (W/m2)
Figure 6. Sensitivity in Bright Ambient
www.vishay.com
3
