Vishay Semiconductors
IR Receiver Modules for Remote Control Systems
Description
The TSOP12.. - series are miniaturized receivers for
infrared remote control systems. PIN diode and
preamplifier are assembled on lead frame, the epoxy
package is designed as IR filter.
The demodulated output signal can directly be
decoded by a microprocessor. TSOP12.. is the standard IR remote control receiver series, supporting all
major transmission codes.
Features
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
TSOP12..
• Improved shielding against electrical field disturbance
• TTL and CMOS compatibility
• Output active low
• Low power consumption
Special Features
• Improved immunity against ambient light
• Suitable burst length ≥ 10 cycles/burst
Block Diagram
16832
2
V
S
3
OUT
1
GND
PIN
AGCInput
Band
Pass
Control
30 kΩ
Demodulator
Circuit
Parts Table
Part Carrier Frequency
TSOP1230 30 kHz
TSOP1233 33 kHz
TSOP1236 36 kHz
TSOP1237 36.7 kHz
TSOP1238 38 kHz
TSOP1240 40 kHz
TSOP1256 56 kHz
Application Circuit
16842
Transmitter
with
TSALxxxx
R1+C1recommended to suppress power supply
disturbances.
The output voltage should not be hold continuously at
a voltage below V
TSOPxxxx
Circuit
=
3.3 V by the external circuit.
O
V
S
OUT
GND
R1=100Ω
C1=
4.7 µF
V
O
µC
+V
GND
S
Document Number 82013
Rev. 11, 23-Jun-03
www.vishay.com
1
TSOP12..
Vishay Semiconductors
Absolute Maximum Ratings
T
= 25 °C, unless otherwise specified
amb
Parameter Test condition Symbol Val ue Unit
Supply Voltage (Pin 2) V
Supply Current (Pin 2) I
Output Voltage (Pin 3) V
Output Current (Pin 3) I
Junction Temperature T
Storage Temperature Range T
Operating Temperature Range T
Power Consumption (T
Soldering Temperature t ≤ 10 s, > 1 mm from case T
Electrical and Optical Characteristics
T
= 25 °C, unless otherwise specified
amb
Parameter Test condition Symbol Min Ty p . Max Unit
Supply Current (Pin 2) VS = 5 V, Ev = 0 I
VS = 5 V, Ev = 40 klx, sunlight I
Supply Voltage (Pin 2) V
Transmission Distance Ev = 0, test signal see fig.1, IR
diode TSAL6200, I
Output Voltage Low (Pin 3)
Irradiance (30 - 40 kHz) Pulse width tolerance: tpi - 5/fo <
Irradiance (56 kHz) Pulse width tolerance: tpi - 5/fo <
Irradiance tpi - 5/fo < tpo < tpi + 6/fo, test
Directivity Angle of half transmission
I
= 0.5 mA,Ee = 0.7 mW/m2,
OSL
f = f
, test signal see fig. 1
o
t
< tpi + 6/fo, test signal see
po
fig.1
t
< tpi + 6/fo, test signal see
po
fig.1
signal see fig. 1
distance
≤ 85 °C) P
amb
SD
SH
S
0.8 1.2 1.5 mA
4.5 5.5 V
d 35 m
= 400 mA
F
V
OSL
E
e min
E
e min
E
e max
ϕ
1/2
30
VISHAY
- 0.3 to + 6.0 V
S
S
O
O
j
stg
amb
tot
sd
1.5 mA
0.35 0.5
0.4 0.6
± 45 deg
5 mA
- 0.3 to + 6.0 V
5 mA
100 °C
- 25 to + 85 °C
- 25 to + 85 °C
50 mW
260 °C
250 mV
mW/m
mW/m
W/m
2
2
2
www.vishay.com
2
Document Number 82013
Rev. 11, 23-Jun-03
VISHAY
TSOP12..
Vishay Semiconductors
Typical Characteristics (T
Optical Test Signal
E
e
(IR diode TSAL6200, IF = 0.4 A, 30 pulses, f = f0, T = 10 ms)
amb
tpi *
T
* t
w 10/fo is recommended for optimal function
pi
Output Signal
V
O
V
OH
V
OL
1)
7/f0< td< 15/f
2)
tpi–5/f0< tpo < tpi+6/f
1)
t
d
0
0
2)
t
po
Figure 1. Output Function
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
po
0.1
t – Output Pulse Width ( ms )
0.0
0.1 1.0 10.0 100.0 1000.010000.0
16908
Output Pulse
Input Burst Duration
l = 950 nm,
optical test signal, fig.1
Ee – Irradiance ( mW/m2 )
= 25 °C unless otherwise specified)
1.0
0.9
t
16110
t
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
on off
T ,T – Output Pulse Width ( ms )
0.0
0.1 1.0 10.0 100.0 1000.010000.0
16909
Figure 4. Output Pulse Diagram
1.2
1.0
0.8
0.6
0.4
0.2
e min e
E / E – Rel. Responsivity
0.0
0.7 0.9 1.1 1.3
16925
To n
To ff
l = 950 nm,
optical test signal, fig.3
Ee – Irradiance ( mW/m2 )
f = f0"5%
Df ( 3dB ) = f
f/f0 – Relative Frequency
/10
0
Figure 2. Pulse Length and Sensitivity in Dark Ambient
Optical Test Signal
E
e
600 ms 600 ms
T = 60 ms
Output Signal, ( see Fig.4 )
V
O
V
OH
V
OL
T
on
T
off
Figure 3. Output Function
Document Number 82013
Rev. 11, 23-Jun-03
94 8134
t
Figure 5. Frequency Dependence of Responsivity
4.0
2
t
e min
E – Threshold Irradiance ( mW/m )
16911
Correlation with ambient light sources:
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0.01 0.10 1.00 10.00 100.00
2
10W/m
^1.4klx (Std.illum.A,T=2855K)
2
10W/m
^8.2klx (Daylight,T=5900K)
Ambient, l = 950 nm
E – Ambient DC Irradiance (W/m2)
Figure 6. Sensitivity in Bright Ambient
www.vishay.com
3
TSOP12..
Vishay Semiconductors
VISHAY
2.0
2
f = f
1.5
1.0
0.5
e min
E – Threshold Irradiance ( mW/m )
0.0
0.1 1.0 10.0 100.0 1000.0
16912
DV
sRMS
o
f = 10 kHz
f = 1 kHz
f = 100 Hz
– AC Voltage on DC Supply Voltage (mV)
Figure 7. Sensitivity vs. Supply Voltage Disturbances
2
2.0
f(E) = f
1.6
1.2
0.8
0.4
e min
E – Threshold Irradiance ( mW/m )
0.0
0.0 0.4 0.8 1.2 1.6
94 8147
E – Field Strength of Disturbance ( kV/m )
0
2.0
0.6
2
Sensitivity in dark ambient
0.5
0.4
0.3
0.2
0.1
e min
E – Threshold Irradiance ( mW/m )
0.0
–30–150 153045607590
T
16918
– Ambient Temperature ( qC )
amb
Figure 10. Sensitivity vs. Ambient Temperature
1.2
1.0
0.8
0.6
0.4
rel
0.2
l
S ( ) – Relative Spectral Sensitivity
0
750 850 950 1050
94 8408
l – Wavelength ( nm )
1150
Figure 8. Sensitivity vs. Electric Field Disturbances
0.8
0.7
0.6
0.5
0.4
0.3
0.2
Max. Envelope Duty Cycle
0.1
0.0
16913
f = 38 kHz, Ee = 2 mW/m
0 20 40 60 80 100 120
Burst Length ( number of cycles / burst )
2
Figure 9. Max. Envelope Duty Cycle vs. Burstlength
www.vishay.com
4
Figure 11. Relative Spectral Sensitivity vs. Wavelength
0°
1.0
0.9
0.8
0.7
95 11340p2
10° 20°
0.4 0.2 0 0.2 0.4
0.6
d
- Relative Transmission Distance
rel
Figure 12. Horizontal Directivity ϕ
30°
40°
50°
60°
70°
80°
0.6
x
Document Number 82013
Rev. 11, 23-Jun-03
VISHAY
1.0
0.9
0.8
0.7
0°
10° 20°
30°
40°
50°
60°
70°
80°
TSOP12..
Vishay Semiconductors
• Continuous signal at 38 kHz or at any other frequency
• Signals from fluorescent lamps with electronic ballast with high or low modulation (see Figure 14 or Figure 15).
0.6
y
95 11339p2
0.4 0.2 0 0.2 0.4
0.6
d
- Relative Transmission Distance
rel
Figure 13. Vertical Directivity ϕ
Suitable Data Format
The circuit of the TSOP12.. is designed in that way
that unexpected output pulses due to noise or disturbance signals are avoided. A bandpass filter, an integrator stage and an automatic gain control are used
to suppress such disturbances.
The distinguishing mark between data signal and disturbance signal are carrier frequency, burst length
and duty cycle.
The data signal should fulfill the following conditions:
• Carrier frequency should be close to center frequency of the bandpass (e.g. 38 kHz).
• Burst length should be 10 cycles/burst or longer.
• After each burst which is between 10 cycles and 70
cycles a gap time of at least 14 cycles is necessary.
• For each burst which is longer than 1.8 ms a corresponding gap time is necessary at some time in the
data stream. This gap time should be at least 4 times
longer than the burst.
• Up to 800 short bursts per second can be received
continuously.
Some examples for suitable data format are: NEC
Code (repetitive pulse), NEC Code (repetitive data),
Toshiba Micom Format, Sharp Code, RC5 Code,
RC6 Code, R-2000 Code, Sony Code.
When a disturbance signal is applied to the TSOP12..
it can still receive the data signal. However the sensitivity is reduced to that level that no unexpected
pulses will occur.
Some examples for such disturbance signals which
are suppressed by the TSOP12.. are:
• DC light (e.g. from tungsten bulb or sunlight)
IR Signal
IR Signal from fluorescent
lamp with low modulation
0 5 10 15 20
16920
Figure 14. IR Signal from Fluorescent Lamp with low Modulation
IR Signal from fluorescent
lamp with high modulation
IR Signal
0 5 10 15 20
16921
Figure 15. IR Signal from Fluorescent Lamp with high Modulation
Time ( ms )
Time ( ms )
Document Number 82013
Rev. 11, 23-Jun-03
www.vishay.com
5
TSOP12..
Vishay Semiconductors

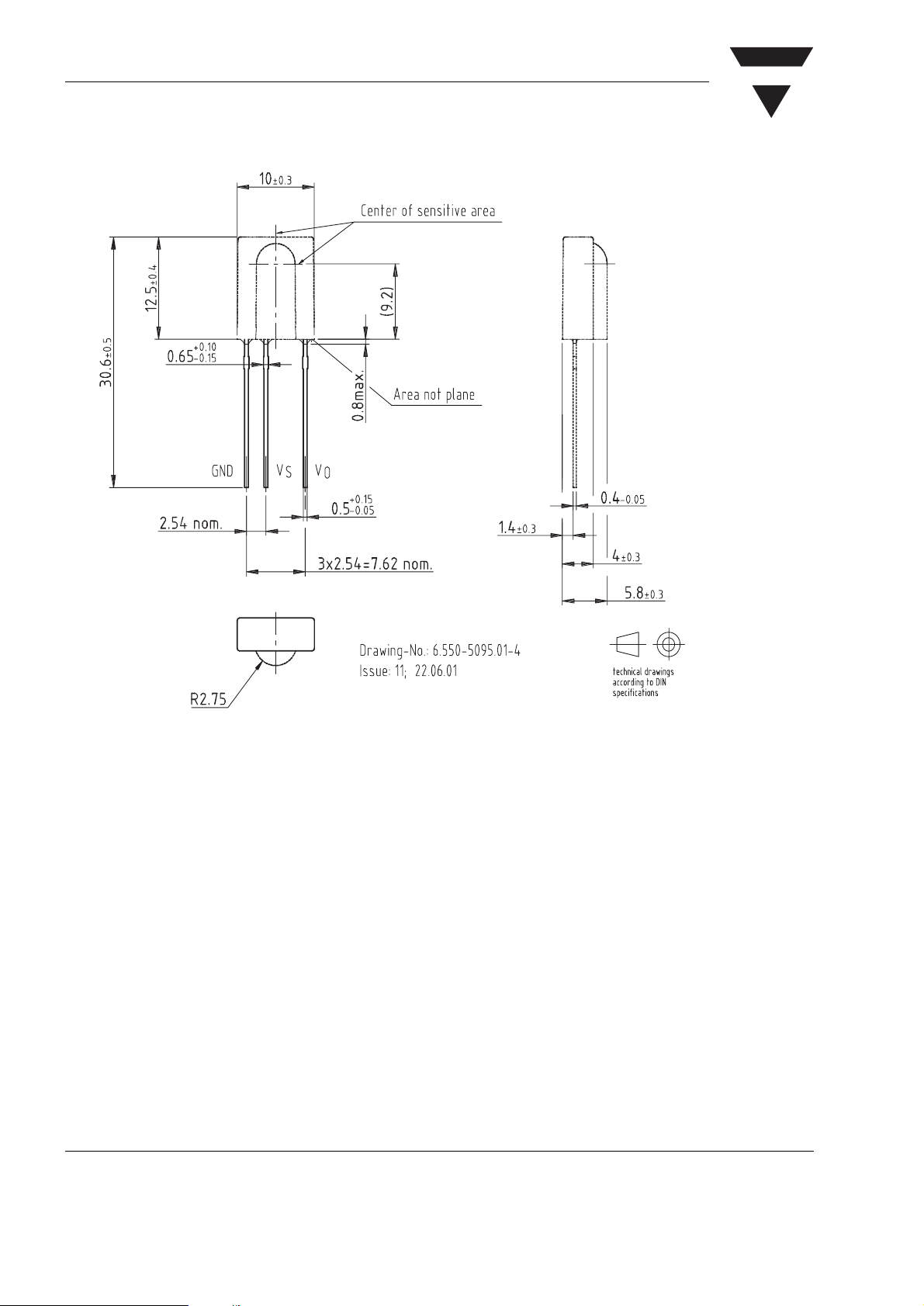

Package Dimensions in mm
VISHAY
+0.1
96 12116
www.vishay.com
6
Document Number 82013
Rev. 11, 23-Jun-03
VISHAY
TSOP12..
Vishay Semiconductors
