TSAL5300
96 11505
Vishay Semiconductors
High Power Infrared Emitting Diode, 950 nm, GaAlAs/GaAs
Description
TSAL5300 is a high efficiency infrared emitting diode
in GaAs technology, molded in clear, bluegrey tinted
plastic packages.
Features
• Extra high radiant power and radiant intensity
• Low forward voltage
• Suitable for high pulse current operation
• Standard T-1¾ (∅ 5 mm) package
• Angle of half intensity ϕ = ± 22°
• Peak wavelength λ
= 940 nm
p
e2
Applications
Infrared remote control units with high power requirements
Free air transmission systems
Infrared source for optical counters and card readers
IR source for smoke detectors
• High reliability
• Good spectral matching to Si photodetectors
• Lead (Pb)-free component
• Component in accordance to ELV 2000/53/EC,
RoHS 2002/95/EC and WEEE 2002/96/EC
Parts Table
Part Ordering Code Remarks
TSAL 5300 TSAL5300 MOQ 4000 pc (Bulk)
TSAL 5300 TSAL5300-FSZ MOQ 5000 pc (1000 pc / Ammopack)
TSAL 5300 TSAL5300-GSZ MOQ 5000 pc (1000 pc / Ammopack)
Absolute Maximum Ratings
T
= 25 °C, unless otherwise specified
amb
Parameter Test condition Symbol Value Unit
Reverse Voltage V
Forward current I
Peak Forward Current t
Surge Forward Current t
Power Dissipation P
Junction Temperature T
Operating Temperature Range T
Storage Temperature Range T
Soldering Temperature t ≤ 5 sec, 2 mm from case T
Thermal Resistance Junction/
Ambient
/T = 0.5, tp = 100 µsIFM200 mA
p
= 100 µsI
p
R
R
F
FSM
V
j
amb
stg
sd
thJA
5V
100 mA
1.5 A
210 mW
100 °C
- 55 to + 100 °C
- 55 to + 100 °C
260 °C
350 K/W
Document Number 81008
Rev. 1.7, 08-Mar-05
www.vishay.com
1
TSAL5300
VISHAY
Vishay Semiconductors
Electrical Characteristics
T
= 25 °C, unless otherwise specified
amb
Parameter Test condition Symbol Min Ty p. Max Unit
Forward Voltage I
Temp. Coefficient of V
F
Reverse Current V
Junction capacitance V
= 100 mA, tp = 20 ms V
F
= 1 A, tp = 100 µsV
I
F
IF = 100 mA TK
= 5 V I
R
= 0, f = 1 MHz, E = 0 C
R
F
F
VF
R
j
1.35 1.6 V
2.6 3 V
- 1.875 mV/K
10 µA
25 pF
Optical Characteristics
T
= 25 °C, unless otherwise specified
amb
Parameter Test condition Symbol Min Ty p. Max Unit
Radiant Intensity I
Radiant Power I
Temp. Coefficient of φ
e
Angle of Half Intensity ϕ ± 22 deg
Peak Wavelength I
Spectral Bandwidth I
Temp. Coefficient of λ
p
Rise Time I
Fall T ime I
Virtual Source Diameter method: 63 % encircled energy ∅ 2.3 mm
= 100 mA, tp = 20 ms I
F
= 1 A, tp = 100 µsI
I
F
= 100 mA, tp = 20 ms φ
F
IF = 20 mA TKφ
= 100 mA λ
F
= 100 mA ∆λ 50 nm
F
IF = 100 mA TKλ
= 100 mA t
F
= 1 A t
I
F
= 100 mA t
F
= 1 A t
I
F
e
e
e
e
p
p
r
r
f
f
30 45 150 mW/sr
260 350 mW/sr
35 mW
- 0.6 %/K
940 nm
0.2 nm/K
800 ns
500 ns
800 ns
500 ns
Typical Characteristics (Tamb = 25 °C unless otherwise specified)
250
200
150
R
thJA
100
50
V
P - Power Dissipation ( mW )
0
20 40 60 80 1000
T
94 7957
- Ambient Temperature ( °C)
amb
Figure 1. Power Dissipation vs. Ambient Temperature
www.vishay.com
2
250
200
150
100
R
F
I – Forward Current ( mA)
50
0
020406080
T
96 11986
– Ambient Temperature (°C )
amb
thJA
Figure 2. Forward Current vs. Ambient Temperature
100
Document Number 81008
Rev. 1.7, 08-Mar-05
VISHAY
TSAL5300
Vishay Semiconductors
1
10
I
=1A(Single Pulse )
FSM
tp/T=0.01
0
0.05
10
0.1
F
I – Forward Current ( A)
0.5
1.0
–1
96 11987
10
10
10
–1
–2
10
0
tp– Pulse Duration ( ms )
10
1
10
Figure 3. Pulse Forward Current vs. Pulse Duration
4
10
3
10
2
10
t
1
10
F
I - Forward Current ( mA )
p
tp= 100 s
/T = 0.001
µ
1000
100
10
1
e
I – Radiant Intensity ( mW/sr )
0.1
2
14327
10
0
1
10
I
– Forward Current ( mA )
F
10
2
10
3
10
4
Figure 6. Radiant Intensity vs. Forward Current
1000
100
10
- Radiant Power ( mW )
1
e
Φ
0
13600
10
VF- Forward Voltage(V)
43210
Figure 4. Forward Current vs. Forward Voltage
1.2
1.1
IF=10mA
1.0
0.9
0.8
Frel
V - Relative Forward Voltage
94 7990
0.7
T
- Ambient Temperature ( ° C)
amb
100806040200
Figure 5. Relative Forward Voltage vs. Ambient Temperature
0.1
13602
10
0
10
1
IF- Forward Current ( mA )
10
2
10
3
10
4
Figure 7. Radiant Power vs. Forward Current
1.6
1.2
IF=20mA
Φ
0.8
e rel e rel
I;
0.4
0
-10 10 500 100
T
94 7993
- Ambient Temperature ( ° C)
amb
140
Figure 8. Rel. Radiant Intensity/Power vs. Ambient Temperature
Document Number 81008
Rev. 1.7, 08-Mar-05
www.vishay.com
3
TSAL5300
Vishay Semiconductors
1.25
1.0
0.75
0.5
– Relative Radiant Power
e rel
0.25
Φ
IF= 100 mA
0
890 940
14291
– Wavelength ( nm )
λ
990
e rel
I - Relative Radiant Intensity
94 8883
1.0
0.9
0.8
0.7
0 °°°
0.4 0.2 0 0.2 0.4
0.6
VISHAY
10 20
30°
40°
50°
60°
70°
80°
0.6
Figure 9. Relative Radiant Power vs. Wavelength

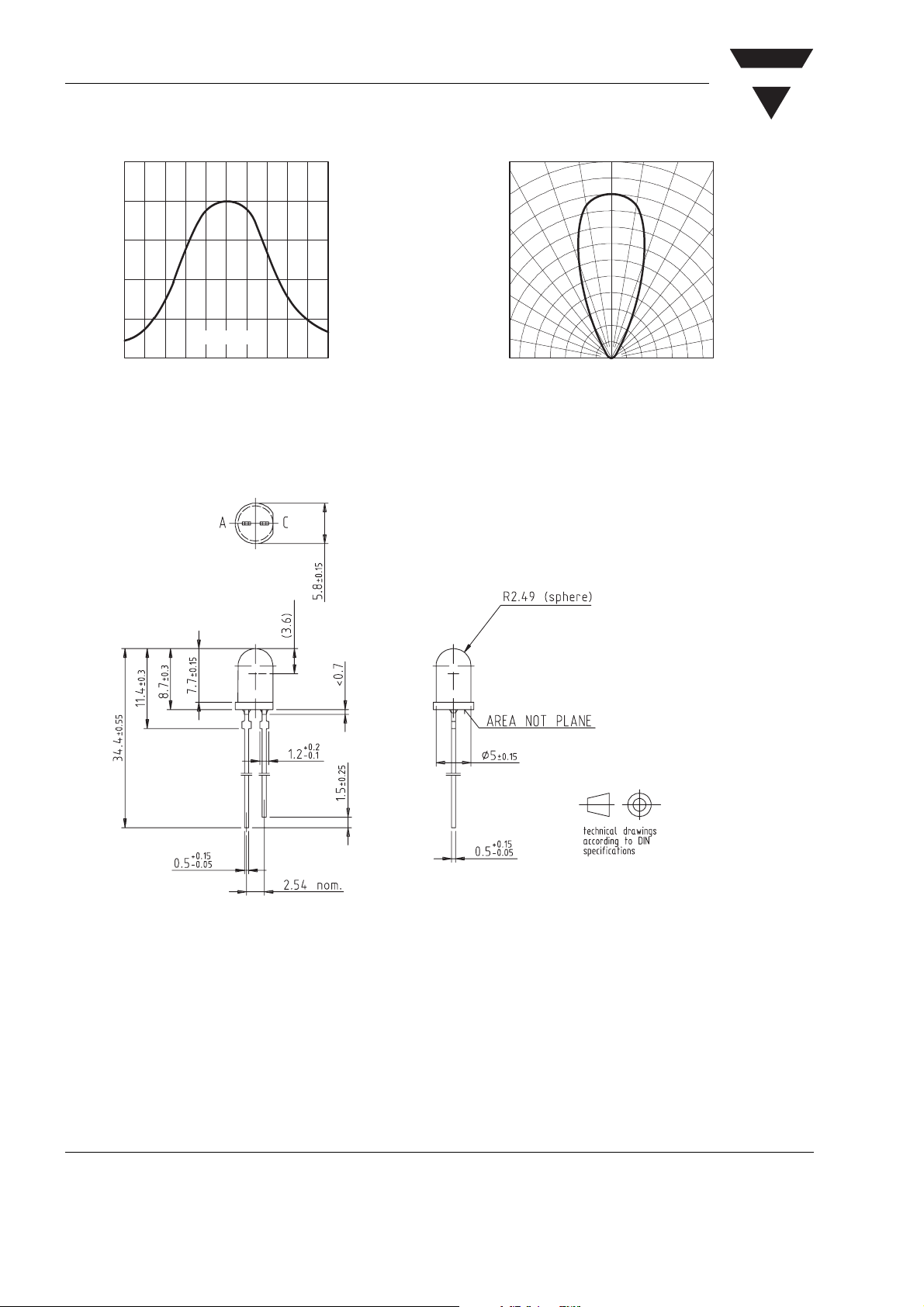

Package Dimensions in mm
Figure 10. Relative Radiant Intensity vs. Angular Displacement
96 12122
www.vishay.com
4
Document Number 81008
Rev. 1.7, 08-Mar-05
VISHAY

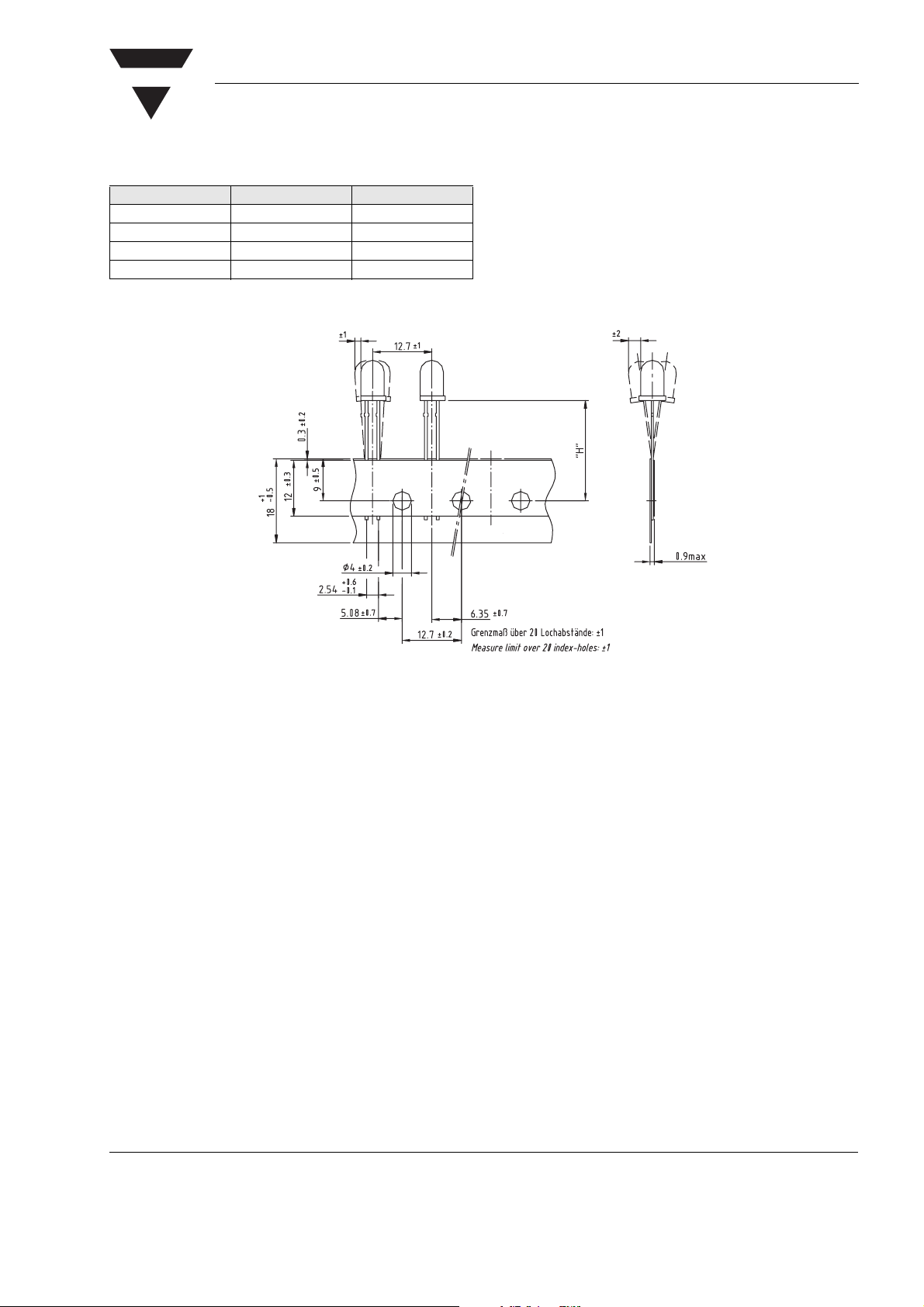

Tape Dimesions TSAL 5300
Option H ± 0.5 mm Quantity/Box
CS21Z 22 1000
FSZ 27 1000
GSZ 29 1000
MSZ 25.5 1000
TSAL5300
Vishay Semiconductors
19314
Figure 11. ∅ 5 mm devices on tape
Document Number 81008
Rev. 1.7, 08-Mar-05
www.vishay.com
5
TSAL5300
Vishay Semiconductors
Ammopack
The tape is folded in a concertina arrangement and
laid in cardboard box.
If components are required with cathode before the
anode (Figure 12), then start of tape should be taken
from the side of the box marked “–”If components are
required with anode before cathode, then tape should
be taken from the side of the box marked “+”.
Tape Feed Direction
Diodes: cathode before
anode (Code12)
VISHAY
Label
C
Tape Feed Direction
Diodes: anode before
cathode (Code21)
A
B
Figure 12. Tape direction
948667
www.vishay.com
6
Document Number 81008
Rev. 1.7, 08-Mar-05
VISHAY
TSAL5300
Vishay Semiconductors
Ozone Depleting Substances Policy Statement
It is the policy of Vishay Semiconductor GmbH to
1. Meet all present and future national and international statutory requirements.
2. Regularly and continuously improve the performance of our products, processes, distribution and operating
systems with respect to their impact on the health and safety of our employees and the public, as well as
their impact on the environment.
It is particular concern to control or eliminate releases of those substances into the atmosphere which are
known as ozone depleting substances (ODSs).
The Montreal Protocol (1987) and its London Amendments (1990) intend to severely restrict the use of ODSs
and forbid their use within the next ten years. Various national and international initiatives are pressing for an
earlier ban on these substances.
Vishay Semiconductor GmbH has been able to use its policy of continuous improvements to eliminate the use
of ODSs listed in the following documents.
1. Annex A, B and list of transitional substances of the Montreal Protocol and the London Amendments
respectively
2. Class I and II ozone depleting substances in the Clean Air Act Amendments of 1990 by the Environmental
Protection Agency (EPA) in the USA
3. Council Decision 88/540/EEC and 91/690/EEC Annex A, B and C (transitional substances) respectively.
Vishay Semiconductor GmbH can certify that our semiconductors are not manufactured with ozone depleting
substances and do not contain such substances.
We reserve the right to make changes to improve technical design
and may do so without further notice.
Parameters can vary in different applications. All operating parameters must be validated for each
customer application by the customer. Should the buyer use Vishay Semiconductors products for any
unintended or unauthorized application, the buyer shall indemnify Vishay Semiconductors against all
claims, costs, damages, and expenses, arising out of, directly or indirectly, any claim of personal
damage, injury or death associated with such unintended or unauthorized use.
Vishay Semiconductor GmbH, P.O.B. 3535, D-74025 Heilbronn, Germany
Document Number 81008
Rev. 1.7, 08-Mar-05
www.vishay.com
7
