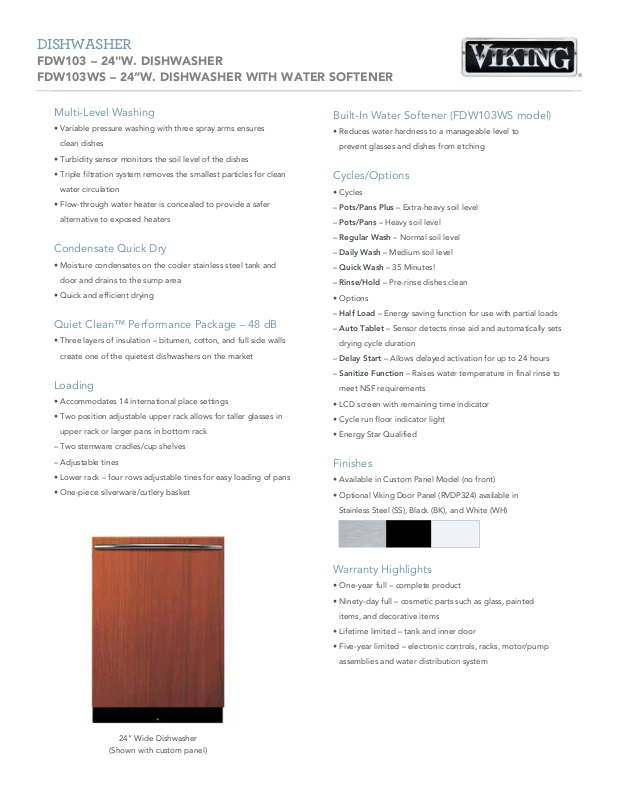

Viking FDW103WS Specification Sheet
DISHWASHER |
|
FDW103 – 24"W. DISHWASHER |
|
FDW103WS – 24”W. DISHWASHER WITH WATER SOFTENER |
® |
|
Multi-Level Washing
•Variable pressure washing with three spray arms ensures clean dishes
•Turbidity sensor monitors the soil level of the dishes
•Triple filtration system removes the smallest particles for clean water circulation
•Flow-through water heater is concealed to provide a safer alternative to exposed heaters
Condensate Quick Dry
•Moisture condensates on the cooler stainless steel tank and door and drains to the sump area
•Quick and efficient drying
Quiet Clean™ Performance Package – 48 dB
•Three layers of insulation – bitumen, cotton, and full side walls create one of the quietest dishwashers on the market
Loading
•Accommodates 14 international place settings
•Two position adjustable upper rack allows for taller glasses in upper rack or larger pans in bottom rack
–Two stemware cradles/cup shelves
–Adjustable tines
•Lower rack – four rows adjustable tines for easy loading of pans
•One-piece silverware/cutlery basket
Built-In Water Softener (FDW103WS model)
•Reduces water hardness to a manageable level to prevent glasses and dishes from etching
Cycles/Options
• Cycles
–Pots/Pans Plus – Extra-heavy soil level
–Pots/Pans – Heavy soil level
–Regular Wash – Normal soil level
–Daily Wash – Medium soil level
–Quick Wash – 35 Minutes!
–Rinse/Hold – Pre-rinse dishes clean
• Options
–Half Load – Energy saving function for use with partial loads
–Auto Tablet – Sensor detects rinse aid and automatically sets drying cycle duration
–Delay Start – Allows delayed activation for up to 24 hours
–Sanitize Function – Raises water temperature in final rinse to meet NSF requirements
•LCD screen with remaining time indicator
•Cycle run floor indicator light
•Energy Star Qualified
Finishes
•Available in Custom Panel Model (no front)
•Optional Viking Door Panel (RVDP324) available in Stainless Steel (SS), Black (BK), and White (WH)
Warranty Highlights
•One-year full – complete product
•Ninety-day full – cosmetic parts such as glass, painted items, and decorative items
•Lifetime limited – tank and inner door
•Five-year limited – electronic controls, racks, motor/pump assemblies and water distribution system
24” Wide Dishwasher (Shown with custom panel)
DISHWASHER |
|
|
FDW103 – 24"W. DISHWASHER |
|
|
FDW103WS – 24”W. DISHWASHER WITH WATER SOFTENER |
® |
|
|
|
|
|
|
|
|
2 4 ” W. 1 0 3 M O D E L D I S H WA S H E R |
|
DESCRIPTION |
FDW103/FDW103WS |
|
Overall Width |
23-9/16” (59.8 cm) |
|
|
|
|
Overall Height from Floor |
33-7/8” (86.0 cm) minimum to 35 7/8” (91.1 cm) maximum |
|
|
|
|
Overall Depth |
To front of door panel: 22 3/16” (56.4 cm) |
|
Cutout Width |
24” (61.0 cm) |
|
|
|
|
Cutout Height |
34” (86.4 cm) minimum to 36” (91.4 cm) maximum |
|
|
|
|
Cutout Depth |
24" (61.0 cm) |
|
Electrical Requirements |
12.0 amps, 115V/60Hz; 4” (120cm) electrical cord with supplied with unit |
|
|
|
|
Water-Heating Element Rating |
1240 watts |
|
|
|
|
Inlet Water Temperature |
120˚F (49˚C) required |
|
Drain Hose |
6.4’ (1.9m) drain hose provided |
|
|
|
|
Drain Hose High Loop Required |
Height from floor – 28” (71.0 cm) |
|
|
|
|
Approximate Shipping Weight |
97 lb. (44 kg) |
|
Please do not prepare installation from brochure data only. See installation instructions for important clearance/installation information.
|
max |
24” max) |
|
|
cm |
.0 |
|
(61 |
|
24” |
|
|
(61. |
|
max |
0 |
|
|
|
cm |
|
|
|
max) |
24” |
x |
|
max) |
|
|
ma |
|
|
cm |
|
|
.0 |
|
|
(61 |
|
|
|
|
|
|
|
|
VIKING RANGE, LLC 111 FRONT STREET GREENWOOD, MISSISSIPPI 38930 USA
For detailed product information, model numbers, or to request a quote call 1-888-845-4641 or visit vikingrange.com
®© 2016 Viking Range, LLC | Specifications subject to change without notice.
