Viking FDW100WS, FDW100 Use & Care Guide

F21042A (041513)

Viking Range, LLC

111 Front Street

Greenwood, Mississippi 38930 USA

[phone]

For product information,

call 1-888-845-4641

or visit our web site in the US

(www.vikingrange.com) or in Canada

(www.brigade.ca).

Use & Care Manual

100 Series Built-In Dishwasher

Congratulations

Your dishwasher is designed to offer years of reliable service. This Use
& Care Guide will provide you with the information you need to
become familiar with your dishwasher’s operation and care.

Your complete satisfaction is our ultimate goal. If you have any
questions or comments about this product, please contact the dealer
from whom you purchased it, or contact our Consumer Support Center
at 1-888-845-4641.

For more information about the complete and growing selection of
products, contact your dealer or visit us online i

n the US

(www.vikingrange.com) or in Canada (www.brigade.ca).

Table of Contents

Getting Started

Warnings & Safety ____________________________________________4
Important Safety Instructions ___________________________________5
Installation ___________________________________________________8
Features____________________________________________________10

Operation

Loading the Dishwasher ______________________________________11
Rack Adjustments ___________________________________________13
Proper and Improper Loading_________________________________17
Operating Instructions _______________________________________20
Program Table ______________________________________________21
Function Buttons ____________________________________________22
Detergent and Rinse Agent Dispenser _________________________27

Product Care

Care and Maintenance _______________________________________34
Cleaning the Filters __________________________________________36
Cleaning the Spray Arms _____________________________________38
Troubleshooting _____________________________________________39
Service Information __________________________________________45
Warranty ___________________________________________________46

32

Warnings & Safety

54

Getting Started

Getting Started

Please read this user manual and particularly the safety instructions
completely and carefully. They will save you time and effort and
help to ensure optimum dishwasher performance.

Be sure to observe all listed warnings and cautions. Look particularly for the
icons with exclamation marks inside. The information icon will also provide
important references.

Warning and Important Safety Instructions appearing in this manual are not
meant to cover all possible conditions and situations that may occur.
Common sense, caution, and care must be exercised when installing,
maintaining, or operating the appliance.

ALWAYS contact the manufacturer about problems or conditions you do
not understand.

Recognize Safety Symbols, Words, Labels

Read all instructions before using the dishwasher! Save these
operating instructions and pass them on to any future user.

• Use the dishwasher only for its intended purpose as described in
this user manual. This appliance is intended for normal household
use only.

• The manufacturer disclaims responsibility for damage or injury

caused by improper use of this appliance.

• The information in this user manual must be followed to minimize
the risk of fire or explosion and to prevent property damage,
personal injury, or loss of life.

• DO NOT operate your dishwasher unless all the enclosure panels
are properly in place.

• DO NOT tamper with the controls.

• DO NOT abuse, sit on, stand in or on the door or dish rack of the
dishwasher.

• The cup racks are designed to support cups, glasses, and kitchen
utensils. When the cup racks are in the dishwasher, do not lean on
or use the cup racks to support your body weight.

• To reduce the risk of injury, DO NOT allow children to play in, on,
or near the dishwasher.

• Use only detergents or rinse agents recommended for use in a
household dishwasher and keep them in a dry place out of the
reach of children. Check that the detergent dispenser is empty after
the completion of each wash program.

Important Safety Instructions

WARNING

Indicates a potentially hazardous situation which,

if not avoided, could result in death or serious injury.

WARNING

CAUTION

Indicates a potentially hazardous situation which,

if not avoided, may result in injury. It may also be used

to alert against unsafe practices.

NOTICE

Indicates a potentially hazardous situation which,

if not avoided, may result in damage to the dishwasher,

the tableware, the equipment, or the environment.

Read and follow all instructions before using this appliance to prevent the
potential risk of fire, electric shock, personal injury or damage to the
appliance as a result of improper usage of the appliance. Use appliance
only for its intended purpose as described in this manual.

To ensure proper and safe operation: Appliance must be properly installed
and grounded by a qualified technician. DO NOT attempt to adjust, repair,
service, or replace any part of your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a
qualified servicer.

When using the dishwasher, follow basic precautions, including the
following:

7

Getting Started

6

Getting Started

WARNING

Improper connection of the equipment-grounding conductor can result in
a risk of electric shock. Check with a qualified electrician or service
representative if you are in doubt whether the appliance is properly
grounded. Do not modify the plug provided with the appliance; if it will
not fit the outlet, have a proper outlet installed by a qualified electrician.

WARNING

State of California Proposition 65

-This product contains one or more chemicals known to the State of
California to cause cancer.

-This product contains one or more chemicals known to the State of
California to cause birth defects or other reproductive harm.

• Dishwasher detergents are alkaline. They can be dangerous if
inhaled or swallowed. Avoid contact with skin and eyes and keep
children and people in poor health away from the dishwasher when
the door is opened. Consult a doctor immediately if detergent has
been swallowed or inhaled.

• DO NOT drink water from the dishwasher! Harmful residues could
be present.

• Under certain conditions, hydrogen gas may be produced in a hot
water heater system that has not been used for two weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using the dishwasher turn on
all hot water taps and let the water flow from each for several
minutes. This will release any accumulated hydrogen gas. As gas is
flammable, do not smoke or use an open flame during this time.

• DO NOT store or use flammable liquids or vapors in the area of the
dishwasher.

• When loading items to be washed, position sharp items so that they
are not likely to damage the door seal and load sharp knives with
the handles up to reduce the risk of cut-type injuries.

• DO NOT wash plastic items unless they are marked “dishwasher
safe” or the equivalent. For plastic items not so marked, check the
manufacturer’s recommendations.

• If a malfunction occurs, switch off the appliance and turn off the
water supply to the dishwasher.

• Before cleaning or carrying out maintenance, switch off the
appliance, disconnect the power plug, and turn off the water
supply.

• Repairs and technical modifications must be carried out exclusively
by a qualified technician.

• If the dishwasher is not in use for an extended period of time (i.e.
vacation home), we recommend you check that the baskets are
empty, leave the inside of the dishwasher clean, leave the door
cracked open to allow air to circulate, and turn off both the power
and water supply to the dishwasher.

Important Safety Instructions

• This appliance must be grounded. In the event of a malfunction or
breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current. This
appliance is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into
an appropriate outlet that is installed and grounded in accordance
with all local codes and ordinances.

• This appliance must be connected to a grounded metal,
permament wiring system, or an equipment-grounding conductor
must be run with the circuit conductors and connected to the
equipment-grounding terminal or lead on the appliance.

SAVE THESE INSTRUCTIONS!

Important Safety Instructions

9

8

Getting Started

Installation

• The dishwasher installation must be performed in accordance with
the installation guide. If you did not receive an installation guide,
order it by calling 1-888-1-888-845-4641or you may also download
it from our website in the US (www.vikingrange.com) or in Canada
(www.brigade.ca).

• Installation, maintenance, and repair should be performed by a
qualified installer. Work by unqualified persons could be dangerous
and may void the warranty.

• DO NOT operate the dishwasher if damaged, malfunctioning,
partially disassembled, or if it has missing or broken parts.

• Before installation or service, disconnect the power supply to the
work area by unplugging the unit, “tripping” the circuit breaker, or
removing the fuse.

• Only connect the dishwasher to the power supply when all
installation and plumbing work is complete.

• DO NOT install or store the dishwasher where it can be exposed to
below freezing temperatures or exposed to weather.

• Dishwasher must be secured to adjacent cabinetry using the
brackets provided. Failure to do this may cause damage to property
or bodily injury.

• Connect to a properly rated, protected and sized power supply
circuit to avoid electrical overload. The dishwasher is designed for
an electrical supply of 120V (volts), 60Hz (hertz), AC, connected to a
dishwasher-dedicated, properly grounded electrical circuit with a
fuse or breakers rated for 15 amperes. Electrical supply conductors
shall be a minimum of #16 AWG copper wire rated at 167°F (75°C)
or higher. These requirements must be met to prevent injury and
machine damage. Consult a qualified electrician if in doubt.

• DO NOT use any extension cord or portable outlet device to
connect the dishwasher to a power supply.

• Remove the dishwasher door when removing an old dishwasher
from service or discarding it. Ensure that the dishwasher presents no
danger to children while being stored for disposal.

• Old appliances may contain materials that can be recycled. Please
contact your local recycling authority about the possibility of
recycling these materials.

WARNING

When using the dishwasher, follow basic precautions, including the
following:

Installation

WARNING

DANGER OF SUFFOCATION!

Ensure that any plastic wrappings, bags, small pieces, etc., are
disposed of safely and kept out of the reach of children.

Getting Started

11

Loading the Dishwasher

10

Features

• Pull the handle to open the door. If the door is opened during
operation, the dishwasher will stop running. Once the door is closed,
the program will continue.

• Remove coarse food leftovers from tableware.

• Now you can load the dishwasher.

Getting Started

Getting Started

11. Upper rack

12. Upper spray arm

13. Salt container (select models)

14. Cutlery basket

15. Detergent dispenser

16. Door

17. Control panel

18. Guiding track for the upper rack

19. Lower spray arm

10. Filters

11. Lower rack

12. Model and Serial Tag

1

Upper Rack

Top rack load pattern

for 12 place settings

according to the AHAM

DW-1 Standards

Lower Rack

Bottom rack load pattern

for 12 place settings

according to the AHAM

DW-1 Standards

CAUTION

Hot steam can escape! Danger of serious burns or other injury.

CAUTION

• Large knives and other utensils with sharp tips and edges must be
placed horizontally into the upper rack due to risk of injury. Other
smaller knives and sharp utensils should be placed with sharp side
down in the cutlery basket.

• Use extreme caution when removing knives and other sharp utensils
from the dishwasher. These items may have shifted position during the
wash program, and may be wet or slippery.

• The cup racks are designed to support cups, glasses, and kitchen
utensils. When the cup racks are in the dishwasher, do not lean on or
use the cup racks to support your body weight.

2

3

4

5
6

7

8

9

10
11

12

13

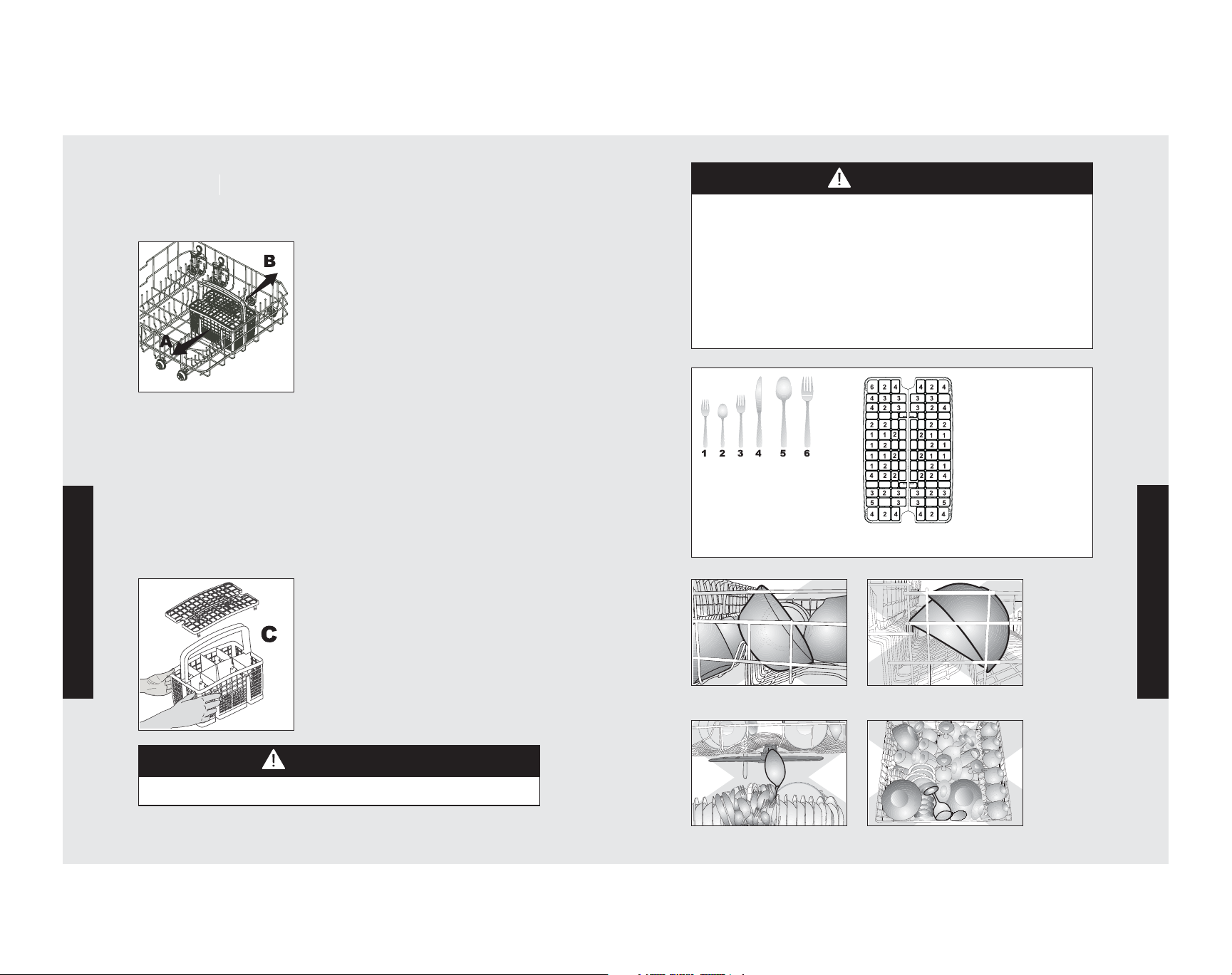

Loading the Dishwasher

12

• Your dishwasher holds a maximum of 12 place settings.

• Place all containers such as cups, glasses, and pots into the
dishwasher with the opening facing downwards (so that no water can
collect).

• Small and light items can go into the upper rack.

• Long and narrow items are placed in the middle of the racks.

• Place all large and very dirty items in the lower rack.

• Dishes and cutlery should not be placed above each other.

• Glasses should not touch each other.

• The movement of the spray arms must not be hindered.

• DO NOT overload your dishwasher and pay attention to manufacturer
instructions regarding dishes which are appropriate for use in a
dishwasher. Only with suitable dishes (mentioned in next section) will
you obtain optimal washing results with a sensible use of energy.

Upper Rack

Load the upper rack with dessert plates, cups, glasses, etc.

Getting Started

Getting Started

Rack Adjustments

Variable Height Setting

The upper rack is equipped with a lifting mechanism which enables
you to change the height of the rack even if it is fully loaded, and
without having to remove it from the dishwasher.

Lift Upper Rack

• To lift the upper rack to a higher position, hold it on one side and
carefully pull it upwards A.

• To lift the opposite side of the rack, hold it and pull it upwards in
the same manner.

Lower Upper Rack

• To lower the upper rack, hold and press in the rack lever on one
side and carefully lower the rack without releasing the lever B.

• Repeat the procedure with the lever on the opposite side of the
rack.

NOTICE

Make sure that both levers catch in the same height position.

15

14

OperationOperation

Operation

Rack Adjustments

Folding Tines

There are “folding tines” in the upper rack to allow you more space to
accommodate glasses or cups.

• Simply pull in the first front folding tine, move it to left A and right

B to place in another position. The tines will also lay flat.

Adjustable Shelves

Depending on the size of the glasses and cups, the shelf height setting
may be adjusted.

• Fold the shelf upwards A.

• Positioning at the desired height B.

• Fold the shelf again downwards C.

Rack Adjustments

Lower Rack

Use the lower rack for plates, bowls, pots, etc.

• Fold the shelf upwards A.

• Positioning at the desired height B.

• Fold the shelf again downwards C.

Four Folding Plate Support Tines

There are four separate “folding plate support tines” in the lower rack
of your dishwasher designed to allow you more space to
accommodate saucepans, pots, and large bowls in the lower rack. You
can either fold each section (1, 2, 3, 4) individually or, all at once, to
create a large empty space.

Simply press the handgrips A and fold them down. Pull tines up to fold
them up again.

NOTICE

When finished, test to ensure that the spray arm can still move freely.
