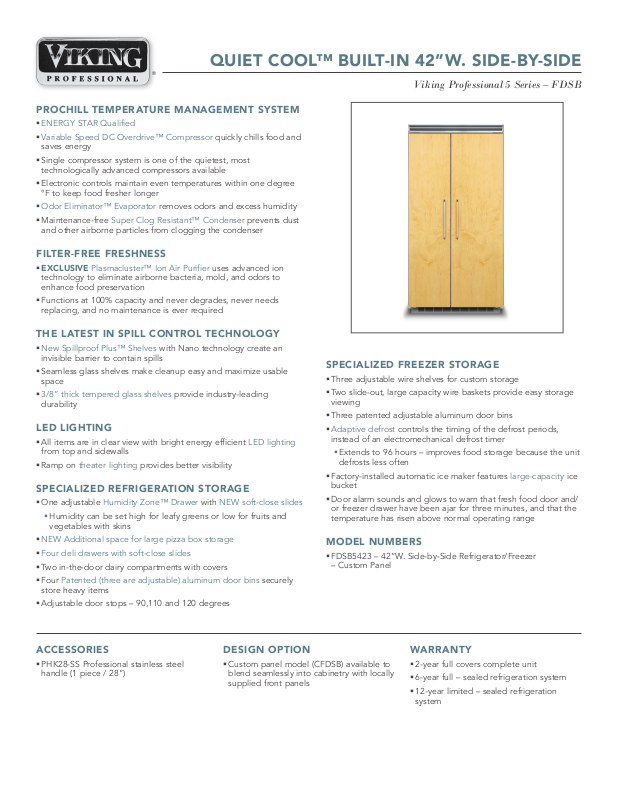

Viking FDSB5423 Specs
®
QUIET COOL™ BUILT-IN 42”W. SIDE-BY-SIDE
PROCHILL TEMPERATURE MANAGEMENT SYSTEM
§ ENERGY STAR Qualified
§ Variable Speed DC Overdrive™ Compressor quickly chills food and
saves energy
§ Single compressor system is one of the quietest, most
technologically advanced compressors available
§ Electronic controls maintain even temperatures within one degree
°F to keep food fresher longer
§ Odor Eliminator™ Evaporator removes odors and excess humidity
§ Maintenance-free Super Clog Resistant™ Condenser prevents dust
and other airborne particles from clogging the condenser
FILTER-FREE FRESHNESS
§ EXCLUSIVE Plasmacluster™ Ion Air Purifier uses advanced ion
technology to eliminate airborne bacteria, mold, and odors to
enhance food preservation
§ Functions at 100% capacity and never degrades, never needs
replacing, and no maintenance is ever required
THE LATEST IN SPILL CONTROL TECHNOLOGY
§ New Spillproof Plus™ Shelves with Nano technology create an
invisible barrier to contain spills
§ Seamless glass shelves make cleanup easy and maximize usable
space
§ 3/8” thick tempered glass shelves provide industry-leading
durability
LED LIGHTING
§ All items are in clear view with bright energy efficient LED lighting
from top and sidewalls
§ Ramp on theater lighting provides better visibility
SPECIALIZED REFRIGERATION STORAGE
§ One adjustable Humidity Zone™ Drawer with NEW soft-close slides
§ Humidity can be set high for leafy greens or low for fruits and
vegetables with skins
§ NEW Additional space for large pizza box storage
§ Four deli drawers with soft-close slides
§ Two in-the-door dairy compartments with covers
§ Four Patented (three are adjustable) aluminum door bins securely
store heavy items
§ Adjustable door stops – 90,110 and 120 degrees
Viking Professional 5 Series – FDSB
SPECIALIZED FREEZER STORAGE
§ Three adjustable wire shelves for custom storage
§ Two slide-out, large capacity wire baskets provide easy storage
viewing
§ Three patented adjustable aluminum door bins
§ Adaptive defrost controls the timing of the defrost periods,
instead of an electromechanical defrost timer
§ Extends to 96 hours – improves food storage because the unit
defrosts less often
§ Factory-installed automatic ice maker features large-capacity ice
bucket
§ Door alarm sounds and glows to warn that fresh food door and/
or freezer drawer have been ajar for three minutes, and that the
temperature has risen above normal operating range
MODEL NUMBERS
§ FDSB5423 – 42”W. Side-by-Side Refrigerator/Freezer
– Custom Panel
ACCESSORIES
§ PHK28-SS Professional stainless steel
handle (1 piece / 28”)
DESIGN OPTION
§ Custom panel model (CFDSB) available to
blend seamlessly into cabinetry with locally
supplied front panels
WARRANTY
§ 2-year full covers complete unit
§ 6-year full – sealed refrigeration system
§ 12-year limited – sealed refrigeration
system
9”
(22.9 cm)
73-3/8”
(186.4 cm)
82–7/8”
(210.5 cm) min.
anti-tip board &
opening height
84–1/16”
(213.5 cm) max.
anti-tip board &
opening height
41–5/8”
(105.7 cm) min.
to
41–3/4”
(106.0 cm) max.
42”
(106.7 cm)
Flush Mount only
Standard Mount
24”
(61.0 cm)
Flush Mount
26-1/2”
(67.3 cm)
Electric Outlet Location
Water Line Entry Area
6–3/4”
(17.1 cm)
7–5/8”
(19.4 cm)
3”
(7.6 cm)
5/8”
(1.6 cm)
5/8”
(1.6 cm)
10–1/2”
(26.7 cm)
5/8”
(1.6 cm)
10–3/4”
(27.3 cm)
1”
(2.5 cm)
3–5/8”
(9.2 cm)
Optional floor
water line entry
42”
(106.7 cm)
Flush Mount only
41–5/8”
(105.7 cm)
See Anti-Tip board installation
6”
(15.2 cm)
9”
(22.9 cm)
9”
Electric Outlet Location
6”
(15.2 cm)
9”
(22.9 cm)
®
QUIET COOL™ BUILT-IN 42”W. SIDE-BY-SIDE
Viking Professional 5 Series – FDSB
42”W. SIDE-BY-SIDE FLUSH MOUNT TRIM
AND CUSTOM DOOR OVERLAY
DESCRIPTION FDSB
Overall Width 42” (106.7 cm)
Overall Height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall Depth from rear To front edge of side trim: 25-1/2” (64.8)
Cutout Width 42” (106.7 cm)
Cutout Height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Flush Mount Cutout depth 26-3/8” (67.0 cm) min.
Electrical Requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
Maximum Amp Usage 9.9 amps
Inlet Water Requirements 1/4” copper tubing inlet waterline; minimum 20 psi; maximum
Overall Interior Dimensions
Refrigerator
Freezer
Total Capacity
Approximate Shipping Weight 525 lb. (238 kg)
Please do not prepare installation from brochure data only. See installation instructions for important
clearance/installation information.
To front of top grille: 26-1/4” (66.7 cm)
To front of handle endcap: 29-3/16” (74.1 cm)
grounded 3-prong plug attached to product
120 psi
15.76 cu. ft. (446 liters)
9.56 cu. ft. (271 liters)
25.32 cu. ft. (717 liters)
3–19/32”
(9
.1
c
m
75–15/16”
(192.9 cm
41”
(104.1 cm)
4
4
2
2
”
”
)
)
1/8”
(0.3 cm)
(106.7 cm)
-3
9
2
.1
4
(7
”
6
/1
)
m
c
-7
3
2
(60.6 cm)
24–5/8”
c
.6
2
(6
26-1/4”
.7
6
(6
1–1/2”
(3.8 cm)
9–5/32”
(23.3 cm)
82–3/4”
(21
0.2
cm
min
)
.
to
84–1/16”
(2
1
3
.5 cm
m
)
ax.
”
/8
)
m
)
m
c
*The face of the door
skin needs to be on the
same plane, ush with
the cabinets. If the door
face is pushed in past the
surface of the cabinet,
the door could run into
cabinetry when it is in the
full open position.
For detailed product information, model numbers, or to request a quote call 1-888-845-4641 or visit vikingrange.com
VIKING R ANGE, LLC 111 FRONT STREET GREENWOOD, MISSISSIPPI 38930 USA
© 2016 Viking Range, LLC All rights reserved. Specifications subject to change without notice.
23-7/8”
(60.6 cm)
24-5/8”
(62.5 cm)
Face of
stainless steel door
3/4”
(1.9 cm)
26-1/4”
(66.7 cm)
18-3/16”
(46.2 cm)
26-1/2”
(67.3 cm)
Finished
26-3/8”
(67.0 cm)
75-1/2”
(191.8 cm)
Wall
Face of
cabinet
frame
Face of
door/drawer
3/4”
(.6 cm)
25-5/8”
(65.1 cm)
Flush
Side trim
1/2” (1.3 cm)
*
3/4”
(1.9 cm)
22-13/16”
(57.9 cm)
1116
