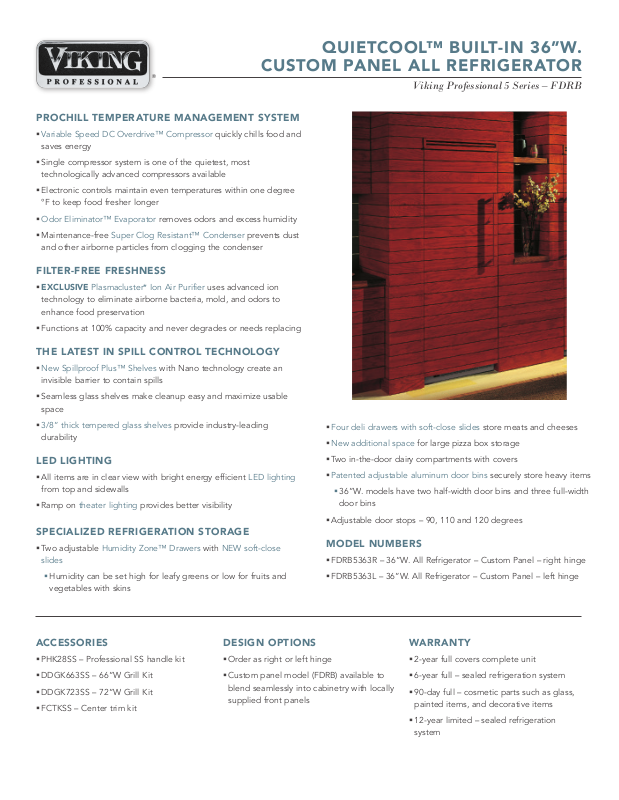

QUIETCOOL™ BUILT-IN 36”W.
®
CUSTOM PANEL ALL REFRIGERATOR
PROCHILL TEMPERATURE MANAGEMENT SYSTEM
§ Variable Speed DC Overdrive™ Compressor quickly chills food and
saves energy
§ Single compressor system is one of the quietest, most
technologically advanced compressors available
§ Electronic controls maintain even temperatures within one degree
°F to keep food fresher longer
§ Odor Eliminator™ Evaporator removes odors and excess humidity
§ Maintenance-free Super Clog Resistant™ Condenser prevents dust
and other airborne particles from clogging the condenser
FILTER-FREE FRESHNESS
§ EXCLUSIVE Plasmacluster* Ion Air Purifier uses advanced ion
technology to eliminate airborne bacteria, mold, and odors to
enhance food preservation
§ Functions at 100% capacity and never degrades or needs replacing
THE LATEST IN SPILL CONTROL TECHNOLOGY
§ New Spillproof Plus™ Shelves with Nano technology create an
invisible barrier to contain spills
§ Seamless glass shelves make cleanup easy and maximize usable
space
§ 3/8” thick tempered glass shelves provide industry-leading
durability
LED LIGHTING
§ All items are in clear view with bright energy efficient LED lighting
from top and sidewalls
§ Ramp on theater lighting provides better visibility
SPECIALIZED REFRIGERATION STORAGE
§ Two adjustable Humidity Zone™ Drawers with NEW soft-close
slides
§ Humidity can be set high for leafy greens or low for fruits and
vegetables with skins
Viking Professional 5 Series – FDRB
§ Four deli drawers with soft-close slides store meats and cheeses
§ New additional space for large pizza box storage
§ Two in-the-door dairy compartments with covers
§ Patented adjustable aluminum door bins securely store heavy items
§ 36”W. models have two half-width door bins and three full-width
door bins
§ Adjustable door stops – 90, 110 and 120 degrees
MODEL NUMBERS
§ FDRB5363R – 36”W. All Refrigerator – Custom Panel – right hinge
§ FDRB5363L – 36”W. All Refrigerator – Custom Panel – left hinge
ACCESSORIES
§ PHK28SS – Professional SS handle kit
§ DDGK663SS – 66”W Grill Kit
§ DDGK723SS – 72”W Grill Kit
§ FCTKSS – Center trim kit
DESIGN OPTIONS
§ Order as right or left hinge
§ Custom panel model (FDRB) available to
blend seamlessly into cabinetry with locally
supplied front panels
WARRANTY
§ 2-year full covers complete unit
§ 6-year full – sealed refrigeration system
§ 90-day full – cosmetic parts such as glass,
painted items, and decorative items
§ 12-year limited – sealed refrigeration
system
QUIETCOOL™ BUILT-IN 36”W.
®
CUSTOM PANEL ALL REFRIGERATOR
Viking Professional 5 Series – FDRB
36” ALL REFRIGERATOR
DESCRIPTION FDRB5363
Overall Width 36” (91.5 cm)
Overall Height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall Depth from rear
To front edge of side trim:
To front of top grille:
Cutout Width 36” (91.5 cm)
Cutout Height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout Depth 24” (61.0 cm) min.*
Electrical Requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with grounded 3-prong plug attached to product
Maximum Amp Usage 6.5 amps
Overall Interior Dimensions
Total Capacity 22.0 cu. ft. (623 liters)
Maximum Panel Weight 60 lb. (27.2 kg)
Approximate Shipping Weight 520 lb. (234 kg)
Please do not prepare installation from brochure data only. See installation instructions for important clearance/installation information.
23-3/16” (58.9 cm)
24” (61.0 cm)
35”
(88.9 cm
3–19/32”
(9.1 cm
75–15/16”
(192.9 cm)
36”
36”
(9
(9
1
1
.5
.5
c
)
)
rement varies
lied
p
Measu
cally sup
(lo
c
re)
a
w
rd
ha
)
m
m
)
)
9–5/32”
(23.3 cm
)
82–3/4”
(210.2 cm
)
m
in.
to
84–1/16”
(213.5 c
m
)
m
ax.
”
6
/1
-3
3
2
(58.9 cm)
24”
(61.0 cm)
*Custom panel models fit flush in 25” (63.5 cm) deep cabinet openings. They can be installed in standard
24” (61.0 cm) deep openings. The door faces and top grille will protrude 3/4” (1.9 cm) into the room.
24”
)
cm
.0
1
(6
82-7/8”
(210.5 cm) min
anti-tip boa
opening height
rd &
84-1/16”
(2
1
3
.5
c
m
anti-tip board &
) m
opening height
36
(91.5 cm)
”
See anti-tip board installation
.
a
x
.
NOTE: Panel overlays must be dry,
solid, straight one piece panels. The
use of multiple panel pieces to achieve
the dimensions is not recommended.
9”
(2
2
.9
73-3/8”
(1
8
6
.4
Electric Outlet Location
6”
(15.2 cm
)
c
m
)
3/4”
(1.9 cm)
c
m
)
35-1/4”
(89.5 cm)
9”
(22.9 cm
)
75-1/2”
(191.8 cm)
VIKING R ANGE, LLC 111 FRONT STREET GREENWOOD, MISSISSIPPI 38930 USA
For detailed product information, model numbers, or to request a quote call 1-888-845-4641 or visit vikingrange.com
© 2015 Viking Range, LLC All rights reserved. Specifications subject to change without notice.
