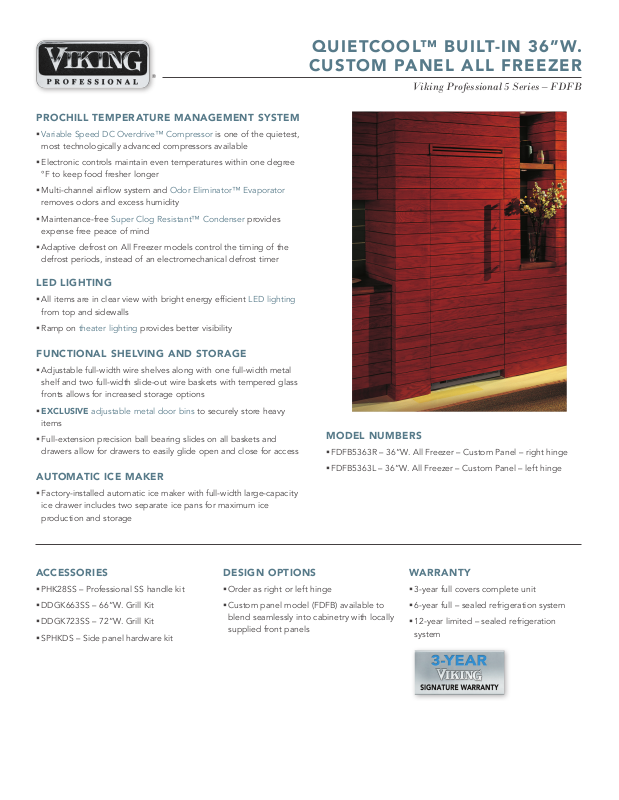

QUIETCOOL™ BUILT-IN 36”W.
®
PROCHILL TEMPERATURE MANAGEMENT SYSTEM
§ Variable Speed DC Overdrive™ Compressor is one of the quietest,
most technologically advanced compressors available
§ Electronic controls maintain even temperatures within one degree
°F to keep food fresher longer
§ Multi-channel airflow system and Odor Eliminator™ Evaporator
removes odors and excess humidity
§ Maintenance-free Super Clog Resistant™ Condenser provides
expense free peace of mind
§ Adaptive defrost on All Freezer models control the timing of the
defrost periods, instead of an electromechanical defrost timer
LED LIGHTING
§ All items are in clear view with bright energy efficient LED lighting
from top and sidewalls
§ Ramp on theater lighting provides better visibility
FUNCTIONAL SHELVING AND STORAGE
§ Adjustable full-width wire shelves along with one full-width metal
shelf and two full-width slide-out wire baskets with tempered glass
fronts allows for increased storage options
§ EXCLUSIVE adjustable metal door bins to securely store heavy
items
§ Full-extension precision ball bearing slides on all baskets and
drawers allow for drawers to easily glide open and close for access
AUTOMATIC ICE MAKER
§ Factory-installed automatic ice maker with full-width large-capacity
ice drawer includes two separate ice pans for maximum ice
production and storage
CUSTOM PANEL ALL FREEZER
Viking Professional 5 Series – FDFB
MODEL NUMBERS
§ FDFB5363R – 36”W. All Freezer – Custom Panel – right hinge
§ FDFB5363L – 36”W. All Freezer – Custom Panel – left hinge
ACCESSORIES
§ PHK28SS – Professional SS handle kit
§ DDGK663SS – 66”W. Grill Kit
§ DDGK723SS – 72”W. Grill Kit
§ SPHKDS – Side panel hardware kit
DESIGN OPTIONS
§ Order as right or left hinge
§ Custom panel model (FDFB) available to
blend seamlessly into cabinetry with locally
supplied front panels
WARRANTY
§ 3-year full covers complete unit
§ 6-year full – sealed refrigeration system
§ 12-year limited – sealed refrigeration
system
QUIETCOOL™ BUILT-IN 36”W.
®
CUSTOM PANEL ALL FREEZER
Viking Professional 5 Series – FDFB
36” ALL FREEZER
DESCRIPTION FDFB5363
Overall Width 36” (91.5 cm)
Overall Height (from bottom)
Overall Depth from rear
To front edge of side trim:
To front of top grille:
Cutout Width 36” (91.5 cm)
Cutout Height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout Depth 24” (61.0 cm) min.
Electrical Requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with grounded 3-prong plug attached to product
Maximum Amp Usage 9.5 amps
Overall Interior Dimensions
Total Capacity 19.2 cu. ft. (544 liters)
Maximum Panel Weight 60 lb. (27.2 kg)
Approximate Shipping Weight 520 lb. (234 kg)
Please do not prepare installation from brochure data only. See installation instructions for important clearance/installation information.
23-3/8” (59.4 cm)
24 (61.0 cm)
3–19/32”
(9.1 cm
75–15/16”
(192.9 cm)
35”
(88.9 cm
36”
36”
(9
(9
1
1
.5
.5
c
)
)
rement varies
lied
p
Measu
cally sup
(lo
c
re)
a
w
rd
ha
)
m
m
)
)
9–5/32”
(23.3 cm
)
82–3/4”
(210.2 cm
)
m
in.
to
84–1/16”
(213.5 c
m
)
m
ax.
”
6
/1
-3
3
2
(58.9 cm)
24”
(61.0 cm)
24”
)
cm
.0
1
(6
82-7/8”
(210.5 cm) min
anti-tip boa
opening height
rd &
84-1/16”
(2
1
3
.5
c
m
anti-tip board &
) m
opening height
36
(91.5 cm)
”
See anti-tip board installation
.
a
x
.
9”
(2
2
.9
73-3/8”
(1
8
6
.4
c
m
)
c
m
)
3-5/8”
(9.
2 cm
(27.3 cm
Electric Outlet Location
6”
(15.2 cm
)
(22.9 cm
NOTE: Panel overlays must be dry,
solid, straight one piece panels. The
use of multiple panel pieces to achieve
the dimensions is not recommended.
Water Line Entry Area
Note: Shown for All Freezer only.
36”
(91.5 cm)
7-5/8”
(19.4 cm)
5/8”
(1.5 cm)
)
10-3/4”
)
Optional floor
water line entry
6-3/4”
(17.1 cm)
3”
(7
.6
c
m
)
1
0
-1
(26.7 cm
/2
3/4”
(1.9 cm)
9”
)
5/8”
(1.5 cm)
”
)
(1.5 cm
1”
(2.5 cm)
5
/8
”
)
35-1/4”
(89.5 cm)
75-1/2”
(191.8 cm)
VIKING R ANGE, LLC 111 FRONT STREET GREENWOOD, MISSISSIPPI 38930 USA
For detailed product information, model numbers, or to request a quote call 1-888-845-4641 or visit vikingrange.com
© 2014 Viking Range, LLC All rights reserved. Specifications subject to change without notice.
F60335 0315
