PX701HD PX701HDH

Projector User Guide

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for future service. Warranty information contained in this

User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at

http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right

corner of our website.

Model No. VS17689

Model Name: PX701HD | PX701HDH

Page 2

Thank you for choosing ViewSonic®

As a world-leading provider of visual soluons, ViewSonic® is dedicated to exceeding the world’s expectaons for technological evoluon, innovaon, and simplicity. At ViewSonic®, we believe that our products have the potenal to make a posive impact in the world, and we are condent that the ViewSonic® product you have chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

Page 3

Safety Precautions - General

Please read the following Safety Precautions before you start using the projector.

• Keep this user guide in a safe place for later reference.

• Read all warnings and follow all instructions.

• Allow at least 20“ (50 cm) clearance around the projector to ensure proper ventilation.

• Place the projector in a well-ventilated area. Do not place anything on the projector that prevents heat dissipation.

• Do not place the projector on an uneven or unstable surface. The projector may fall over, causing personal injury or projector malfunction.

• Do not use if the projector is tilted at an angle of more than 10° degrees left or

right, nor at an angle of more than 15° degrees forwards or backwards.

• Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.

• Always open the lens shutter or remove the lens cap when the projector lamp is on.

• Do not block the projection lens with any objects when the projector is under operation as this could cause objects to become heated and deformed or even cause a fire.

• The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

• Do not use lamps beyond the rated lamp life. Excessive use of lamps beyond the

rated life could cause them to break on rare occasions.

• Never replace the lamp assembly or any electronic component unless the projector is unplugged.

• Do not attempt to disassemble the projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts.

• When moving the projector, be careful not to drop or bump the projector on anything.

• Do not place any heavy objects on the projector or connection cables.

• Do not stand the projector on end vertically. Doing so may cause the projector to fall over, causing personal injury or projector malfunction.

• Avoid exposing the projector to direct sunlight or other sources of sustained heat. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that may increase the temperature of the projector to dangerous levels.

Page 4

• Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply and call your local service center to have the projector serviced.

• When the projector is under operation, you may sense some heated air and odor from its ventilation grill. It is a normal operation and not a defect.

• Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide and third blade are provided for your safety. If the plug does not fit into your outlet, obtain an adapter and do not attempt to force the plug into the outlet.

• When connecting to a power outlet, DO NOT remove the grounding prong. Please ensure grounding prongs are NEVER REMOVED.

• Protect the power cord from being treaded upon or pinched, particularly at the plug, and at the point where it emerges from the projector.

• In some countries, the voltage is NOT stable. This projector is designed to operate safely within a voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10 volts occur. In areas where voltage may fluctuate or cut out, it is recommended that you connect your projector through a power stabilizer, surge protector, or uninterruptable power supply (UPS).

• If smoke, an abnormal noise, or a strange odor is present, immediately switch

the projector off and call your dealer or ViewSonic®. It is dangerous to continue

using the projector.

• Use only attachments/accessories specified by the manufacturer.

• Disconnect the power cord from the AC outlet if the projector is not being used for a long period of time.

• Refer all servicing to qualified service personnel.

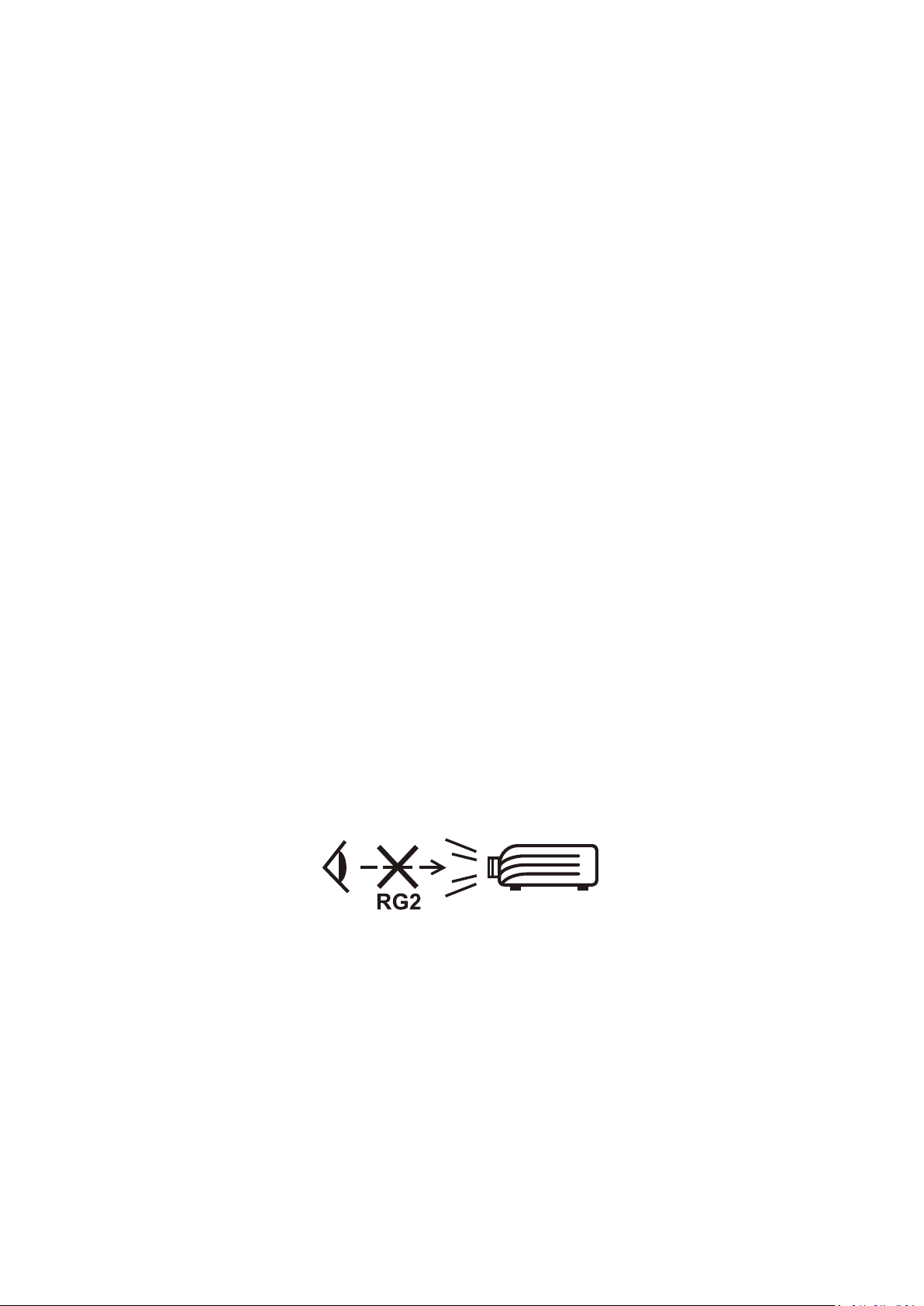

CAUTION: Possibly hazardous optical radiation is emitted from this product. As

with any bright light source, do not stare into the beam, RG2 IEC 62471-5:2015.

Page 5

Safety Precautions - Ceiling Mounting

Please read the following Safety Precautions before you start using the projector. If you intend to mount the projector on the ceiling, we strongly recommend

that you use a proper fitting projector ceiling mount kit and that you ensure it is

securely and safely installed.

If you use an inappropriate projector ceiling mount kit, there is a safety risk that the

projector may fall from the ceiling due to an improper attachment through the use of the wrong gauge or length screws.

You can purchase a projector ceiling mount kit from the place you purchased your

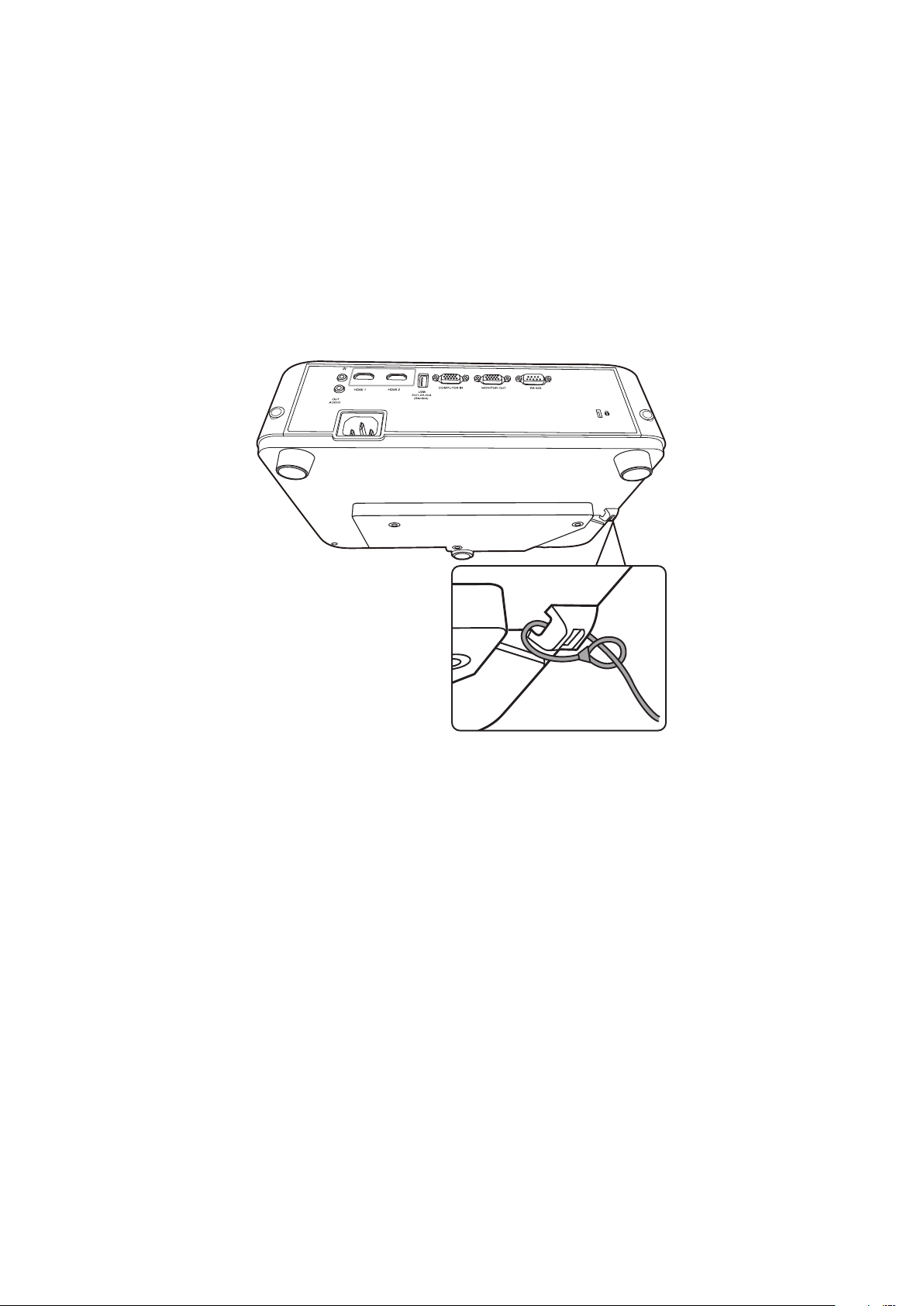

projector. We recommend that you also purchase a separate security cable and

attach it securely to both the anti-theft lock slot on the projector and the base of the ceiling mount bracket. This will perform the secondary role of restraining the projector should its attachment to the mounting bracket become loose.

Page 6

Contents

Safety Precautions - General ....................................... 3

Safety Precautions - Ceiling Mounting ......................... 5

Introduction .............................................................. 10

Features ................................................................................................................ 10

Package Contents .................................................................................................10

Product Overview ................................................................................................. 11

Projector ................................................................................................................ 11

Controls and Functions ............................................................................................... 11

Connection Ports ......................................................................................................... 12

Remote Control ..................................................................................................... 13

Controls and Functions ............................................................................................... 13

Remote Control Effective Range ................................................................................. 14

Replacing the Remote Control Batteries ..................................................................... 14

Initial Setup ............................................................... 15

Choosing a Location ..............................................................................................15

Projection Dimensions ..........................................................................................16

16:9 Image on a 16:9 Screen ................................................................................. 16

16:9 Image on a 4:3 Screen ................................................................................... 17

Mounting the Projector ........................................................................................ 18

Preventing Unauthorized Use...............................................................................19

Using the Security Slot .......................................................................................... 19

Using the Password Function ................................................................................ 20

Setting a Password ...................................................................................................... 20

Changing the Password ............................................................................................... 21

Disabling the Password Function ................................................................................ 21

Forgetting the Password ............................................................................................. 22

Password Recall Procedure ......................................................................................... 22

Locking the Control Keys ....................................................................................... 23

Page 7

Making Connections .................................................. 24

Connecting to Power ............................................................................................24

Connecting to Video Sources ................................................................................25

HDMI Connection .................................................................................................. 25

Connecting to Computer Sources ......................................................................... 26

VGA Connection .................................................................................................... 26

VGA Out Connection ............................................................................................. 26

Connecting to Audio ............................................................................................. 27

Operation .................................................................. 28

Turning the Projector On/Off ...............................................................................28

Starting Up the Projector ...................................................................................... 28

First Time Activation ................................................................................................... 28

Shutting Down the Projector ................................................................................. 29

Selecting an Input Source .....................................................................................30

Adjusting the Projected Image .............................................................................31

Adjusting the Projector's Height and Projection Angle ............................................... 31

Auto-Adjusting the Image ........................................................................................... 31

Fine-Tuning the Image Size and Clarity ................................................................. 31

Correcting Keystone .............................................................................................. 32

Controllability of the Projected Image .................................................................. 32

Hiding the Image ..................................................................................................33

Menu Functions ........................................................ 34

General On-Screen Display (OSD) Menu Operation .............................................34

On-Screen Display (OSD) Menu Tree .................................................................... 35

DISPLAY Menu ......................................................................................................40

IMAGE Menu ........................................................................................................43

POWER MANAGEMENT Menu .............................................................................47

BASIC Menu .......................................................................................................... 50

ADVANCED Menu .................................................................................................52

SYSTEM Menu .......................................................................................................55

INFORMATION Menu ...........................................................................................57

Page 8

Appendix ................................................................... 58

Specifications ........................................................................................................58

Projector Dimensions ............................................................................................ 59

Timing Chart .........................................................................................................59

Analog RGB ............................................................................................................ 59

HDMI (PC) .............................................................................................................. 60

HDMI (Video) ......................................................................................................... 62

IR Control Table ....................................................................................................62

Address Code ........................................................................................................ 63

RS-232 Command Table .......................................................................................64

Pin Assignment ...................................................................................................... 64

Interface ................................................................................................................ 64

Command Table .................................................................................................... 64

Glossary ................................................................................................................70

Troubleshooting ...................................................................................................73

Common Problems ................................................................................................ 73

LED Indicators ........................................................................................................ 74

Maintenance.........................................................................................................75

General Precautions .............................................................................................. 75

Cleaning the Lens .................................................................................................. 75

Cleaning the Case .................................................................................................. 75

Storing the Projector ............................................................................................. 75

Disclaimer .............................................................................................................. 75

Lamp Information ................................................................................................. 76

Lamp Hour ............................................................................................................. 76

Extending Lamp Life .............................................................................................. 76

Lamp Replacement Timing .................................................................................... 77

Replacing the Lamp ............................................................................................... 77

Page 9

Regulatory and Service Information .......................... 78

Compliance Information ....................................................................................... 78

FCC Compliance Statement ................................................................................... 78

Industry Canada Statement ................................................................................... 78

CE Conformity for European Countries ................................................................. 78

Declaration of RoHS2 Compliance......................................................................... 79

Indian Restriction of Hazardous Substances ......................................................... 80

Product Disposal at End of Product Life ................................................................ 80

Customer Service .................................................................................................. 82

Limited Warranty .................................................................................................. 83

Mexico Limited Warranty ...................................................................................... 86

Page 10

Introduction

The ViewSonic PX701HD/HDH is a high brightness 3,500 ANSI Lumens projector featuring a Full HD 1080p resolution that offers impressive visual performance in a brightly lit living room or meeting room. The projector adopts the latest lamp design to extend lamp life of up to 20,000 hours under SuperEco+ mode, effectively reducing lamp replacement and maintenance costs. A digital lens shift allows users

to make adjustments by remote control. It’s also compatible with the vColorTuner

function for color profile exchange and adjustments. The dual HDMI inputs and USB power supply allow users to connect to a multitude of multimedia devices for gaming, movies, or a wireless dongle for wireless presentation.

Features

• Amazing 20,000 hours lamp life.

• Power saving funcon that decreases the lamp power consumpon by up to 60%

when no input signal is detected for a set me period.

• Firmware updates via USB Type A.

• USB Type A port can provide streaming with an HDMI wireless dongle and supply power.

• 7 color modes for dierent projecon purposes.

• Presentaon mer for beer me management during presentaons.

• Vercal Lens Shi by remote control.

• 3D display supported.

• Less than 0.5W power consumpon when power saving mode is turned on.

• Quick Auto Search, thus speeding up the signal detecng process.

• One-key auto-adjustment for displaying the best picture quality (only for analog signal).

• Digital keystone correcon.

• Ability to display 1.07 billion colors.

• Mul-language On-Screen Display (OSD) menus.

• HDMI CEC (Consumer Electronics Control) funcon allowing synchronized power

ON/OFF operaon between the projector and a CEC-compable DVD player

device connected to the HDMI input of the projector.

Package Contents

• Projector

• Power cord

• Video cable

NOTE: The power cord and video cables included in your package may vary depending

on your country. Please contact your local reseller for more informaon.

• Remote Control & Baeries

• Quick Start Guide

Page 11

Product Overview

EXIT

SOURCE

ENTER

BLANK

MODE

COLOR

Projector

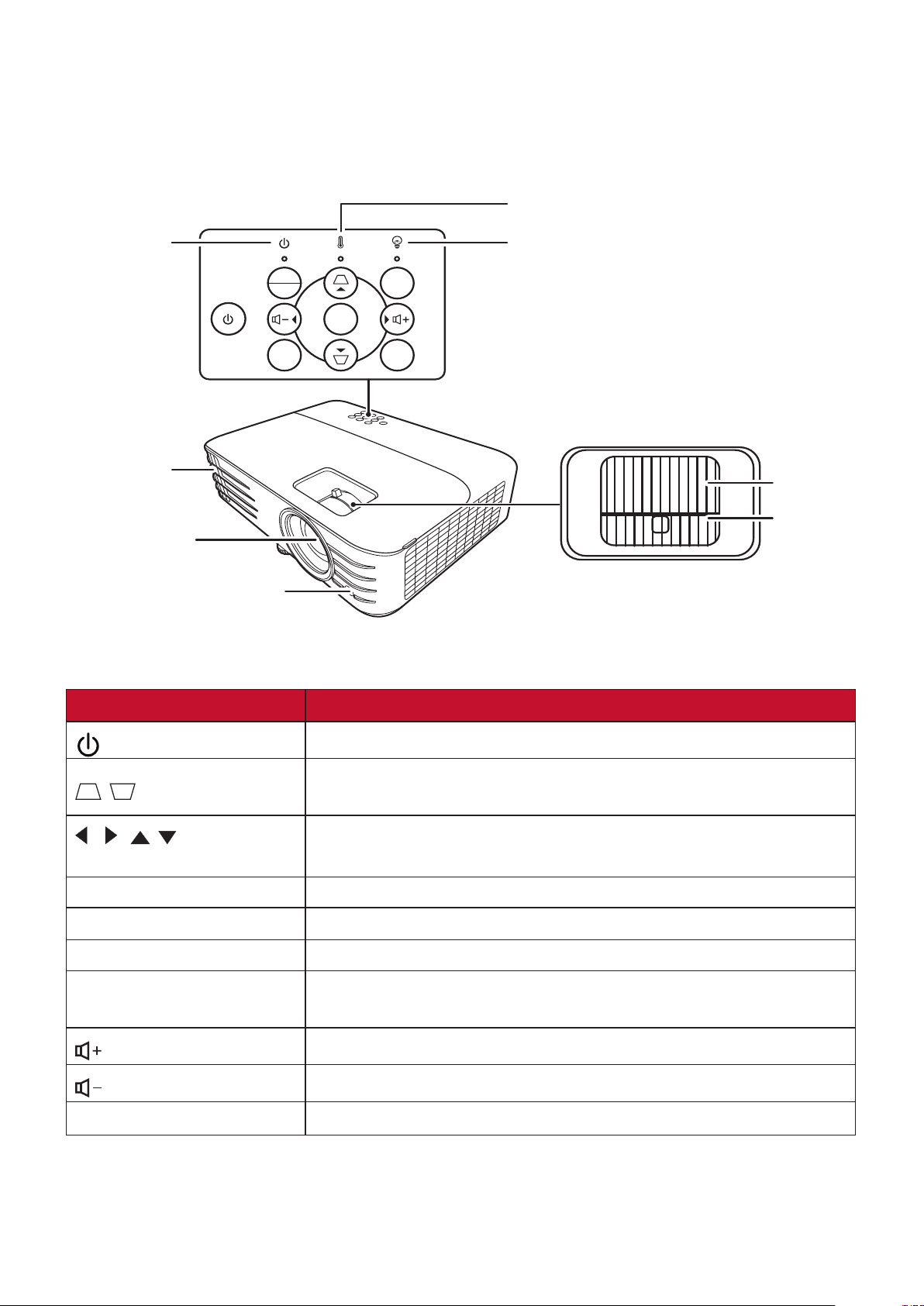

Controls and Functions

Temperature Indicator Light

Power Indicator Light

Vent (heated air exhaust)

Projection Lens

Lamp Indicator Light

Focus Ring

Zoom Ring

Remote IR sensor

Key Description

[ ] Power

[ / ] Keystone Keys

[ / / / ] Left/Right/Up/Down

Menu/Exit Turns on or off the On-Screen Display (OSD) Menu. Source Displays the input source selection bar. Blank Hides the screen picture.

Enter

[ ] Volume Up

[ ] Volume Down Color Mode Displays the color mode selection bar.

Toggles the projector between standby mode and Power On. Manually corrects distorted images resulting from an angled

projection.

Selects the desired menu items and makes adjustments

when the On-Screen Display (OSD) Menu is activated.

Enacts the selected On-Screen Display (OSD) Menu item when the OSD Menu is activated.

Increases the volume level.

Decreases the volume level.

Page 12

Connection Ports

12 3 5 6 7 8

AC Power Cord Inlet

Ceiling Mount Holes

Adjuster Foot

Port Description

1 AUDIO OUT Audio signal output socket. 2 AUDIO IN Audio signal input socket.

HDMI 1 HDMI port.

4 HDMI 2 HDMI port.

USB 5V/1.5A Out

(Service)

USB Type A port for power supply.

Security Slot

Security Bar

6 COMPUTER IN1 RGB (PC) signal input socket. 7 MONITOR OUT1 RGB (PC) signal output socket.

8 RS-232 RS-232 control port.

1 - Available for PX701HD

1212

Page 13

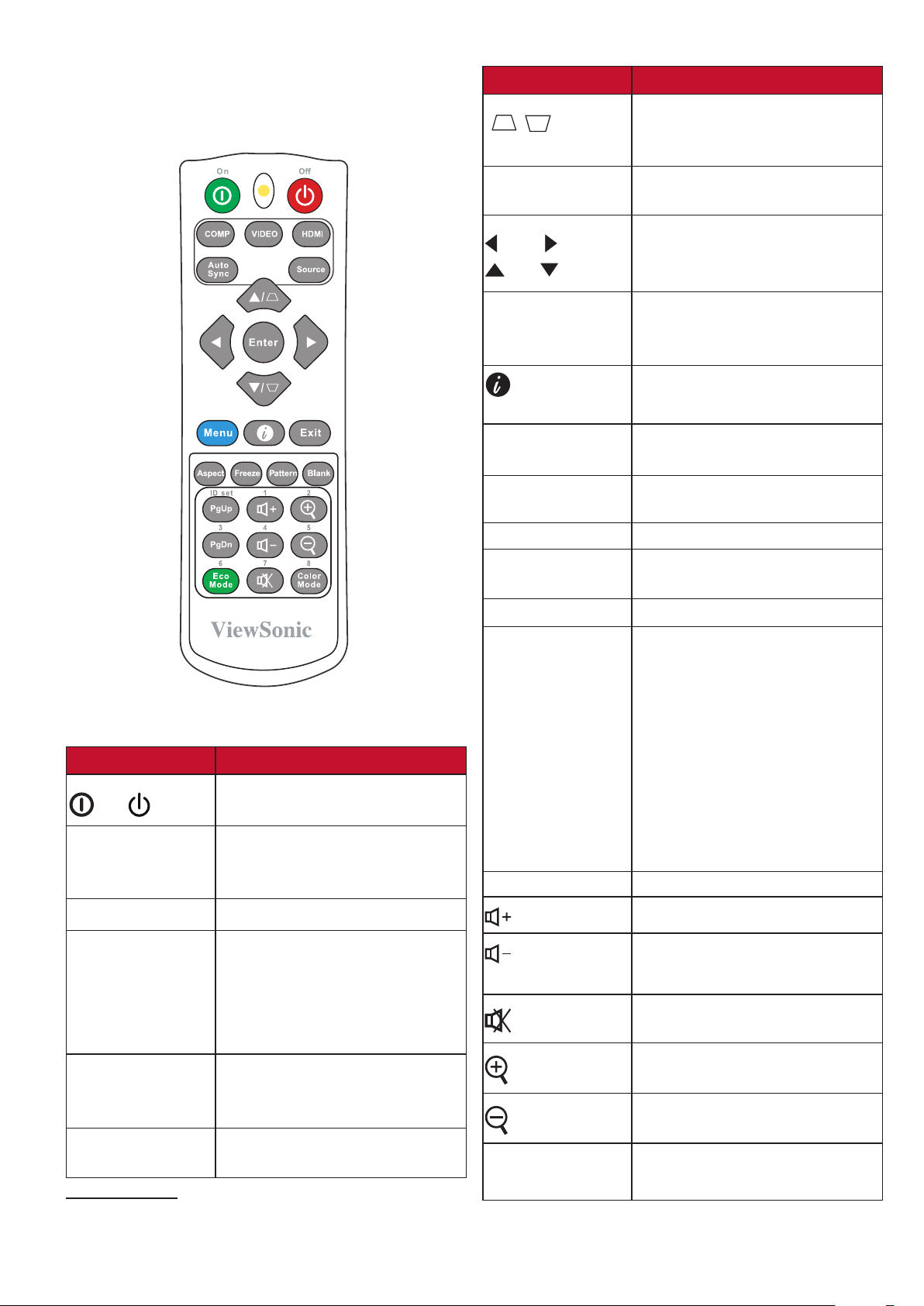

Remote Control

Controls and Functions

Button Description

[ / ]

Keystone Keys

Enter

Manually corrects distorted images resulting from an angled projection. Enacts the selected OSD Menu item.

Button Description

Toggles between standby

On/ Off

COMP2

mode and Power On. Selects source from

COMPUTER IN port for display.

Left/ Right

Up/ Down

(INFORMATION)

Exit

Aspect

Freeze Freezes the projected image.

Pattern

Blank

PgUp (Page Up)/ PgDn (Page Down)

Selects the desired

menu items and makes

adjustments. Turns on/off the On-Screen

Display (OSD) Menu or goes

back to previous OSD Menu.

Displays the INFORMATION menu.

Exits and saves menu settings. Displays the aspect ratio selection bar.

Displays embedded test pattern.

Hides the screen picture. Operates your display

software program (on a connected PC) which responds to page up/down commands

(like Microsoft

PowerPoint).

NOTE: Only available when

a PC input signal is selected.

Eco Mode Selects the Eco mode.

VIDEO Not available.

Selects source from HDMI 1 or HDMI 2 port for display.

HDMI

Auto Sync

Source

2 - Available for PX701HD

Press this button repeatedly to switch between the 2 ports.

Automatically determines the best picture timings for the displayed image. Displays the source selection bar.

Down)

Color Mode

(Volume Up)

(Volume

(Mute)

Increases the volume level.

Decreases the volume level.

Toggles audio between on and off. Magnifies the projected picture size.

Reduces the projected picture size.

Displays the color mode selection bar.

Page 14

Remote Control Effective Range

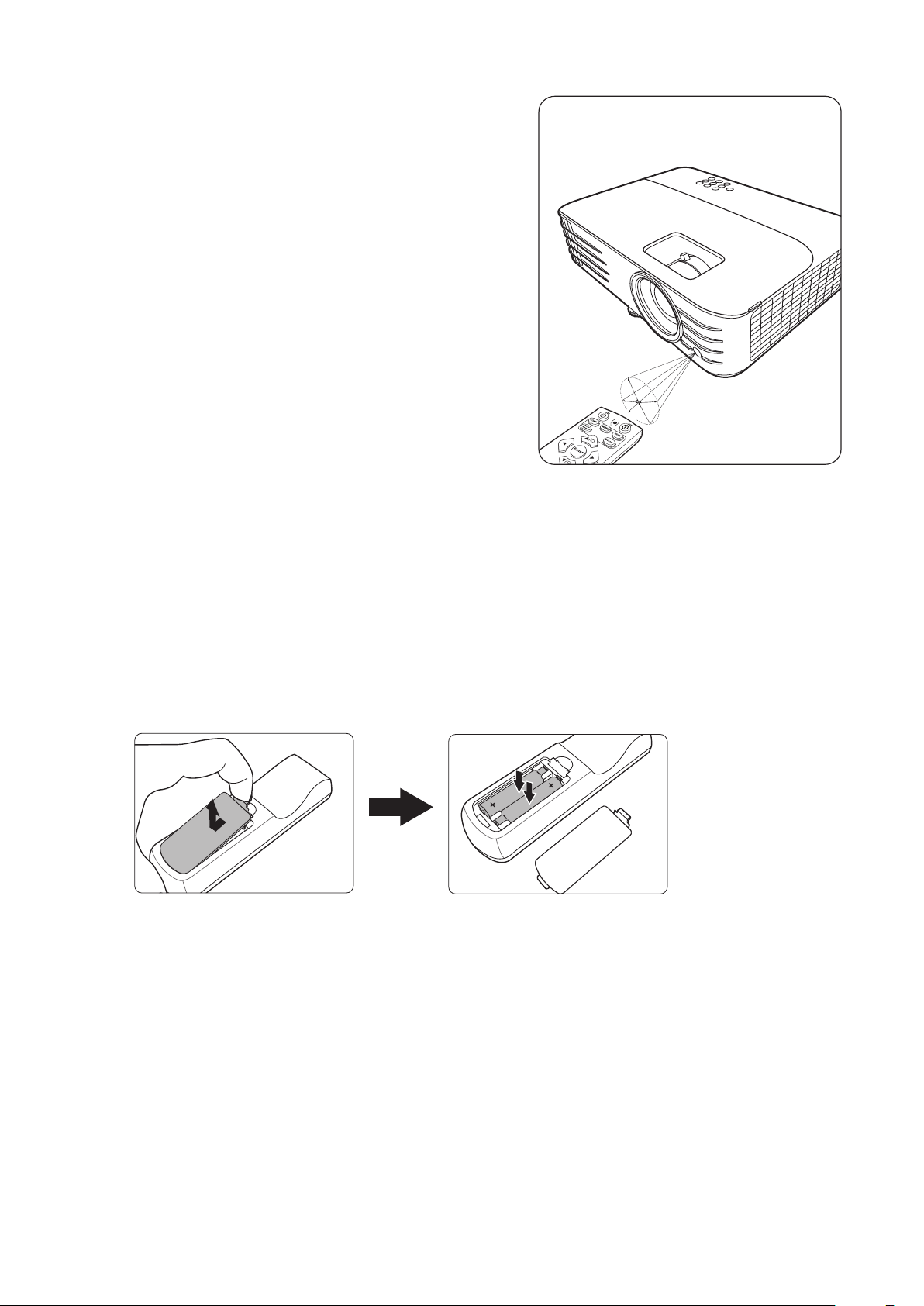

To ensure proper function of the remote control follow the steps below:

1. The remote control must be held at an angle

within 30° perpendicular to the projector’s IR remote control sensor(s).

2. The distance between the remote control and

the sensor(s) should not exceed 8 m (26 ft.)

NOTE: Refer to the illustration for the location of

the infrared (IR) remote control sensor(s).

Replacing the Remote Control Batteries

Approx. 30°

1. Remove the battery cover from the rear of the remote control by pressing the

finger grip and sliding it down.

2. Remove any existing batteries (if necessary) and install two AAA batteries.

NOTE: Observe the battery’s polarities as indicated.

3. Replace the battery cover by aligning it with the base and pushing it back into

position.

NOTE:

• Avoid leaving the remote control and batteries in excessive heat or a humid

environment.

• Replace only with the same or equivalent type recommended by the battery

manufacturer.

• Dispose of the used batteries according to the manufacturer’s instructions and

local environment regulations for your region.

• Never throw the batteries into a fire. There may be danger of an explosion.

• If the batteries are drained or if you will not be using the remote control for an

extended period of time, remove the batteries to avoid damage to the remote control.

Page 15

Initial Setup

This section provides detailed instructions for setting up your projector.

Choosing a Location

Personal preference and room layout will decide the installation location. Consider the following:

• Size and Position of your screen.

• Location of a suitable power outlet.

• Location and Distance between the projector and other equipment.

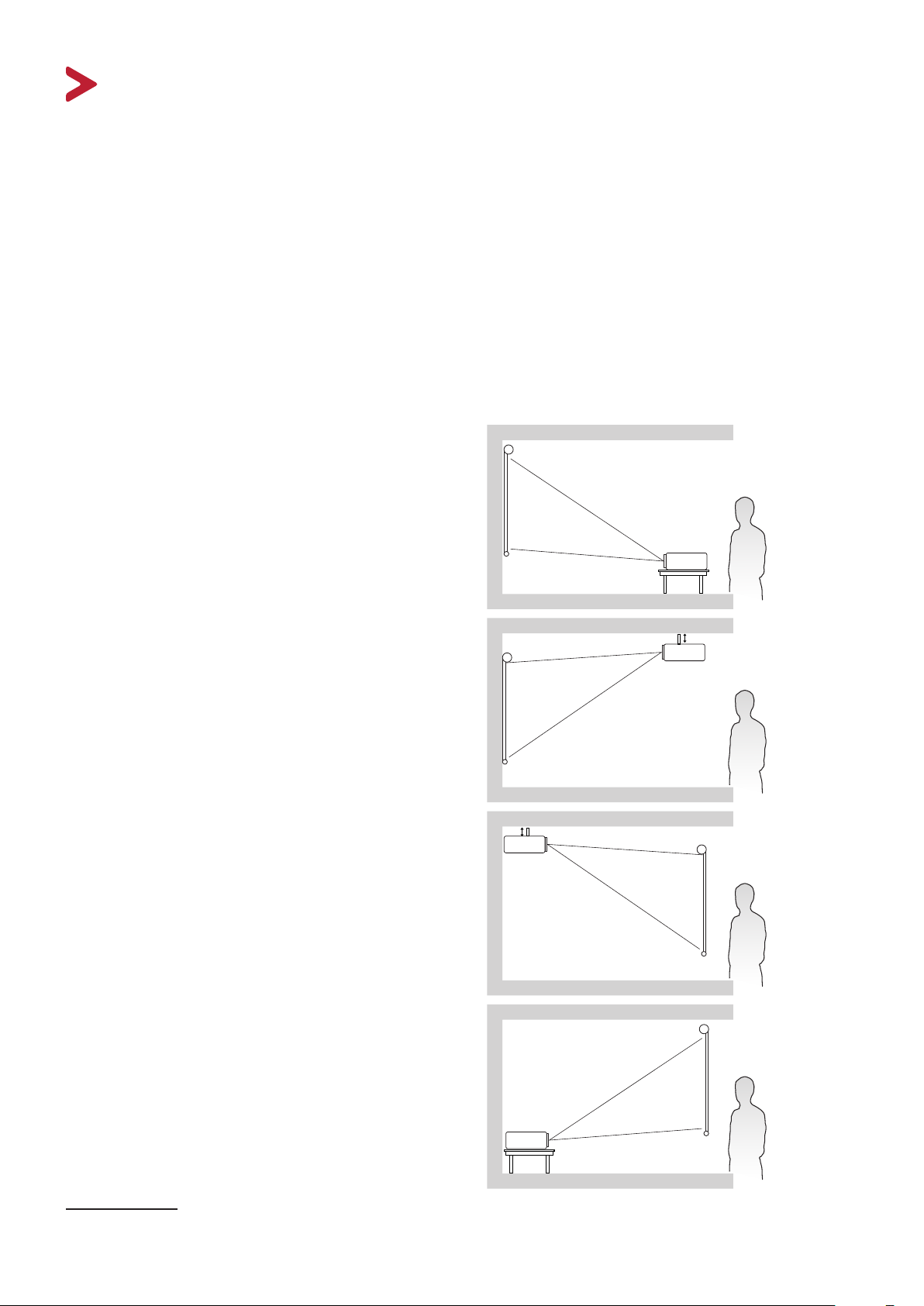

The projector is designed to be installed in one of the following locations:

Front

The projector is placed near the floor in front of the screen.

Front Ceiling

The projector is suspended upside-down from the ceiling in front of the screen.

Rear Ceiling

The projector is suspended upside-down from the ceiling behind the screen.

Rear

The projector is placed near the floor behind the screen.

1 - A special rear projection screen is required.

Page 16

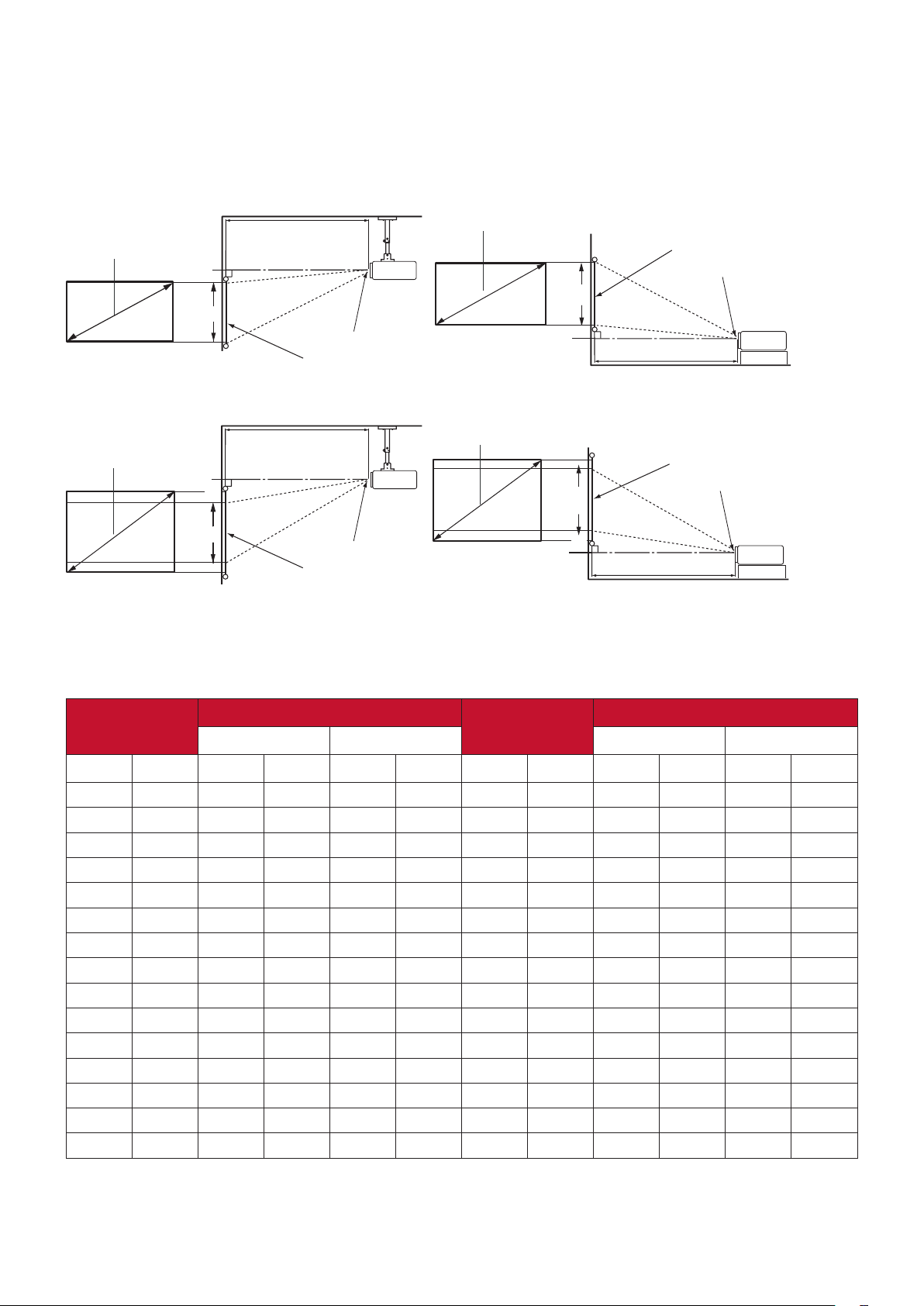

Projection Dimensions

NOTE: See “Specifications” on page 58 for the native display resolution of this

projector.

• 16:9 Image on a 16:9 Screen

(b)

(a)

(d)

(c)

(f)

(e)

• 16:9 Image on a 4:3 Screen

(b)

(a)

(d)

(c)

(f)

(e)

NOTE: (e) = Screen / (f) = Center of Lens

16:9 Image on a 16:9 Screen

(a)

(e)

(f)

(c)

(d)

(b)

(a)

(e)

(f)

(c)

(d)

(b)

(a) Screen

Size

(b) Projection Distance (c) Image

minimum maximum minimum maximum

Height

(d) Vertical Offset

in. mm in. mm in. mm in. mm in. mm in. mm 60 1524 79 1996 86 2195 29 747 1.5 37.4 1.5 37

70 1778 92 2328 101 2561 34 872 1.7 43.6 1.7 44 80 2032 105 2661 115 2927 39 996 2.0 49.8 2.0 50

90 2286 118 2994 130 3293 44 1121 2.2 56.0 2.2 56 100 2540 131 3326 144 3659 49 1245 2.5 62.3 2.5 62 110 2794 144 3659 158 4025 54 1370 2.7 68.5 2.7 68 120 3048 157 3992 173 4391 59 1494 2.9 74.7 2.9 75 130 3302 170 4324 187 4757 64 1619 3.2 80.9 3.2 81 140 3556 183 4657 202 5123 69 1743 3.4 87.2 3.4 87 150 3810 196 4989 216 5488 74 1868 3.7 93.4 3.7 93 160 4064 210 5322 230 5854 78 1992 3.9 99.6 3.9 100 170 4318 223 5655 245 6220 83 2117 4.2 105.8 4.2 106 180 4572 236 5987 259 6586 88 2241 4.4 112.1 4.4 112 190 4826 249 6320 274 6952 93 2366 4.7 118.3 4.7 118 200 5080 262 6653 288 7318 98 2491 4.9 124.5 4.9 125

Page 17

16:9 Image on a 4:3 Screen

(a) Screen

Size

(b) Projection Distance (c) Image

minimum maximum minimum maximum

Height

(d) Vertical Offset

in. mm in. mm in. mm in. mm in. mm in. mm

60 1524 72 1832 79 2015 27 686 1.4 34 1.4 34

70 1778 84 2137 93 2351 32 800 1.6 40 1.6 40

80 2032 96 2443 106 2687 36 914 1.8 46 1.8 46

90 2286 108 2748 119 3023 41 1029 2.0 51 2.0 51 100 2540 120 3053 132 3358 45 1143 2.3 57 2.3 57 110 2794 132 3358 145 3694 50 1257 2.5 63 2.5 63 120 3048 144 3664 159 4030 54 1372 2.7 69 2.7 69 130 3302 156 3969 172 4366 59 1486 2.9 74 2.9 74 140 3556 168 4274 185 4702 63 1600 3.2 80 3.2 80 150 3810 180 4580 198 5038 68 1715 3.4 86 3.4 86 160 4064 192 4885 212 5374 72 1829 3.6 91 3.6 91 170 4318 204 5190 225 5709 77 1943 3.8 97 3.8 97 180 4572 216 5496 238 6045 81 2057 4.1 103 4.1 103 190 4826 228 5801 251 6381 86 2172 4.3 109 4.3 109 200 5080 240 6106 264 6717 90 2286 4.5 114 4.5 114

NOTE: There is a 3% tolerance among these numbers due to optical component

variations. It is recommended to physically test the projection size and distance before permanently installing the projector.

Page 18

Mounting the Projector

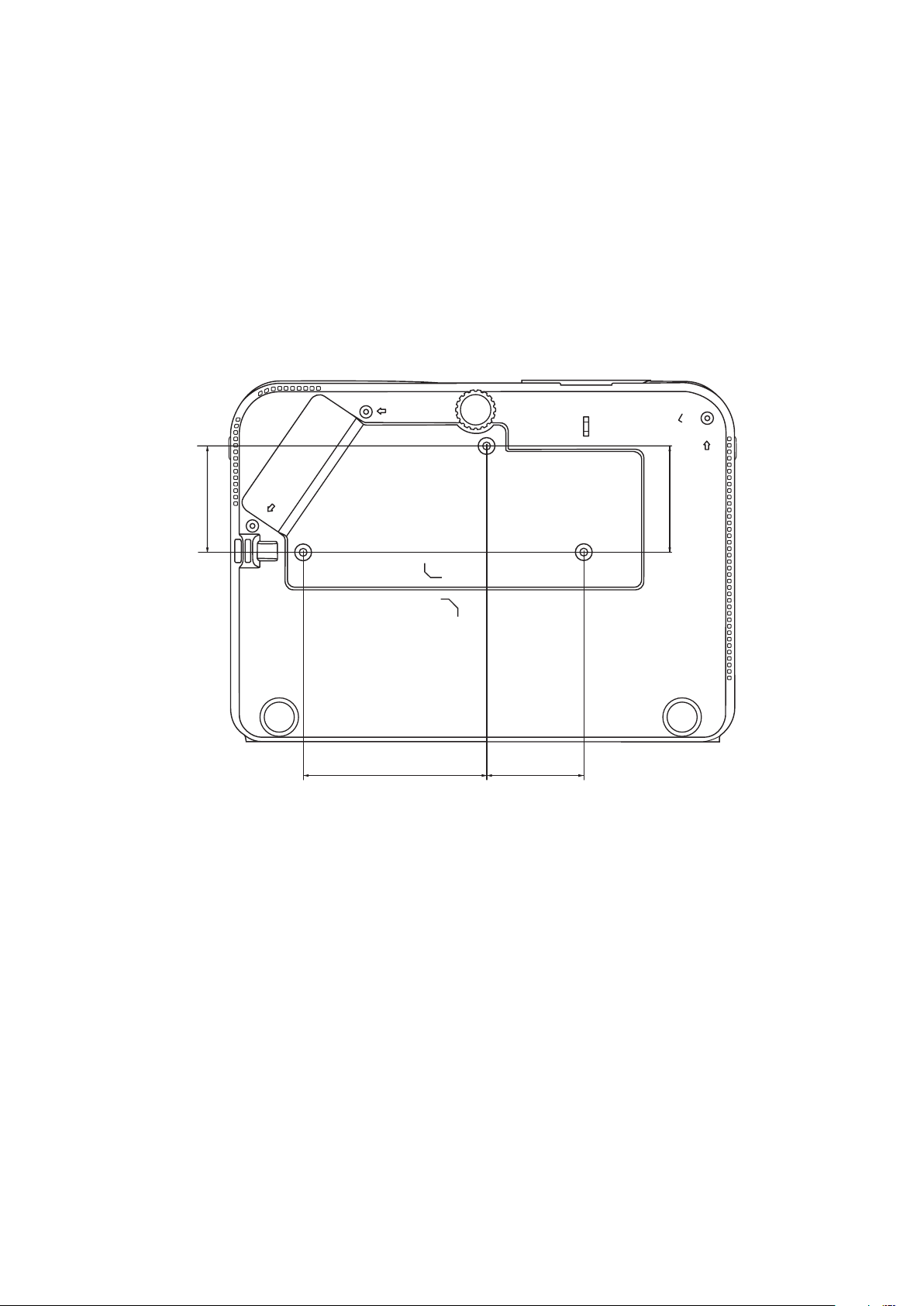

65.89

NOTE: If you buy a third-party mount, please use the correct screw size. Screw size

can vary depending on the thickness of the mounting plate.

1. To ensure the most secure installation, please use a ViewSonic® wall or ceiling

mount.

2. Ensure the screws used to attach a mount to the projector meet the following specifications:

• Screw type: M4 x 8

• Maximum Screw length: 8 mm

65.89

113.54 60.01

NOTE:

• Avoid installing the projector near a heat source.

• Keep at least a 10 cm gap between the ceiling and the bottom of the

projector.

Page 19

Preventing Unauthorized Use

The projector has several built-in security features to prevent theft, access, or accidental setting changes.

Using the Security Slot

To help prevent the projector from being stolen, use a security slot locking device

to secure the projector to a fixed object.

Below is an example of setting up a security slot locking device:

NOTE: The security slot can also be used as a safety anchor if the projector is

mounted to the ceiling.

Page 20

Using the Password Function

To help prevent unauthorized access or use, the projector offers a password security option. The password can be set through the On-Screen Display (OSD) Menu.

NOTE: Make note of your password, and keep it in a safe place.

Setting a Password

1. Press Menu to open the OSD Menu and go to: SYSTEM > Security Settings and

press Enter.

2. Highlight Power On Lock and select

On by pressing / .

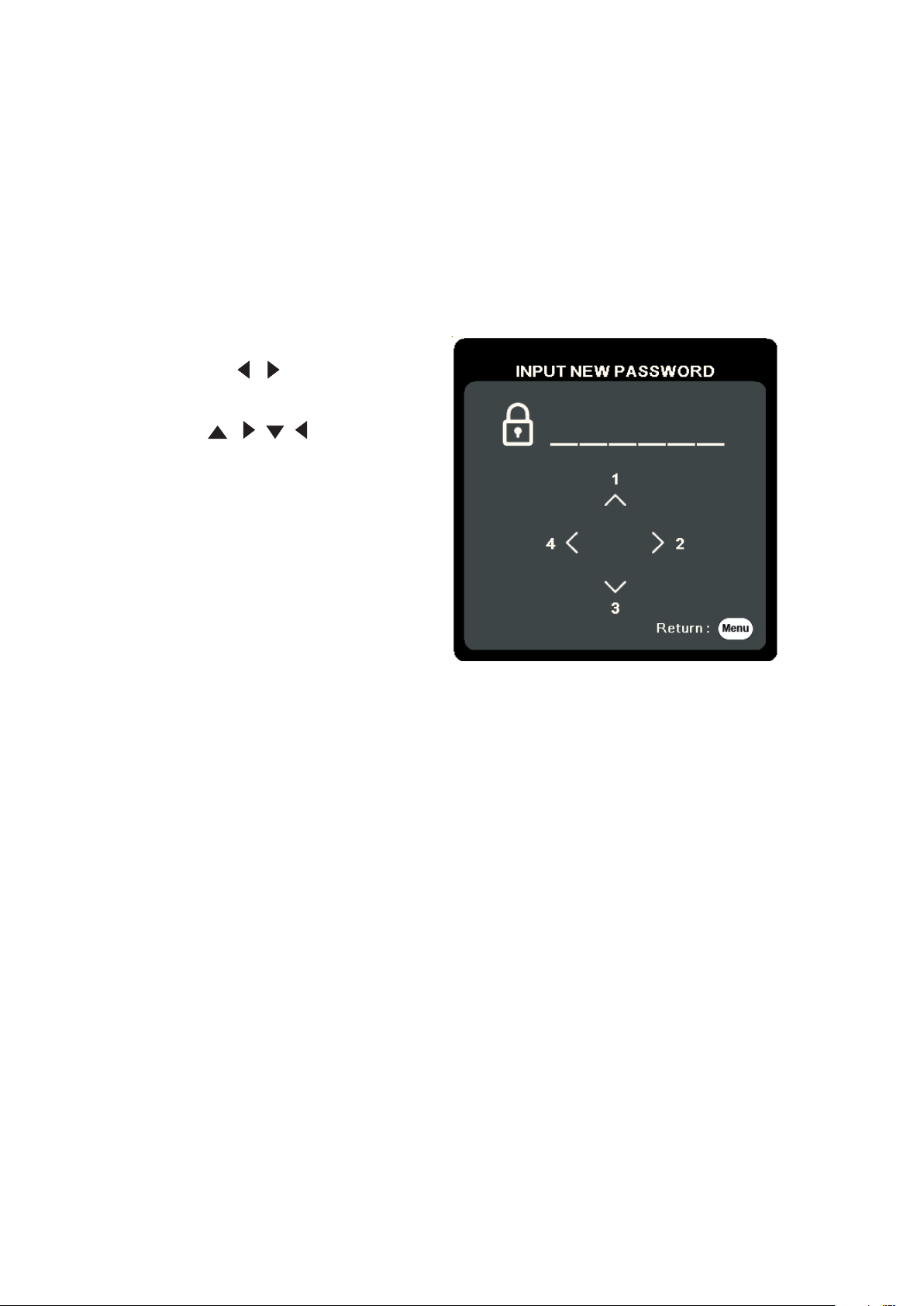

3. As pictured to the right, the four

arrow keys ( , , , ) represent 4 digits (1, 2, 3, 4). Press the arrow

keys to enter a six digit password.

5. Confirm the new password by re-entering the new password. Once the password is set, the OSD Menu will return to the Security Settings page.

6. Press Exit to leave the OSD Menu.

NOTE: Once set, the correct password must be entered every time the projector is

started.

2020

Page 21

Changing the Password

1. Press Menu to open the OSD Menu and go to: SYSTEM > Security Settings >

Change Password.

2. Press Enter, the message, ‘INPUT CURRENT PASSWORD’ will appear.

3. Enter the old password.

 If the password is correct, the message, ‘INPUT NEW PASSWORD’ will

appear.

 If the password is incorrect, a password error message will appear for 5

seconds followed by the message, ‘INPUT CURRENT PASSWORD’. You can try again or press Exit to cancel.

4. Enter a new password.

5. Confirm the new password by re-entering the new password.

6. To leave the OSD Menu, press Exit.

NOTE: The digits being input will display as asterisks (*).

Disabling the Password Function

1. Press Menu to open the OSD Menu and go to: SYSTEM > Security Settings >

Power On Lock.

2. Press / to select Off.

3. The message, “Input Password” will appear. Enter the current password.

 If the password is correct, the OSD Menu returns to the Password page with

“Off” shown in the row of Power On Lock.

 If the password is incorrect, a password error message will appear for 5

seconds followed by the message, ‘INPUT CURRENT PASSWORD’. You can try again or press Exit to cancel.

NOTE: Please keep the old password, as you will need it to reactivate the password

function.

Page 22

Forgetting the Password

If the password function is activated, you will

be asked to enter the six-digit password every

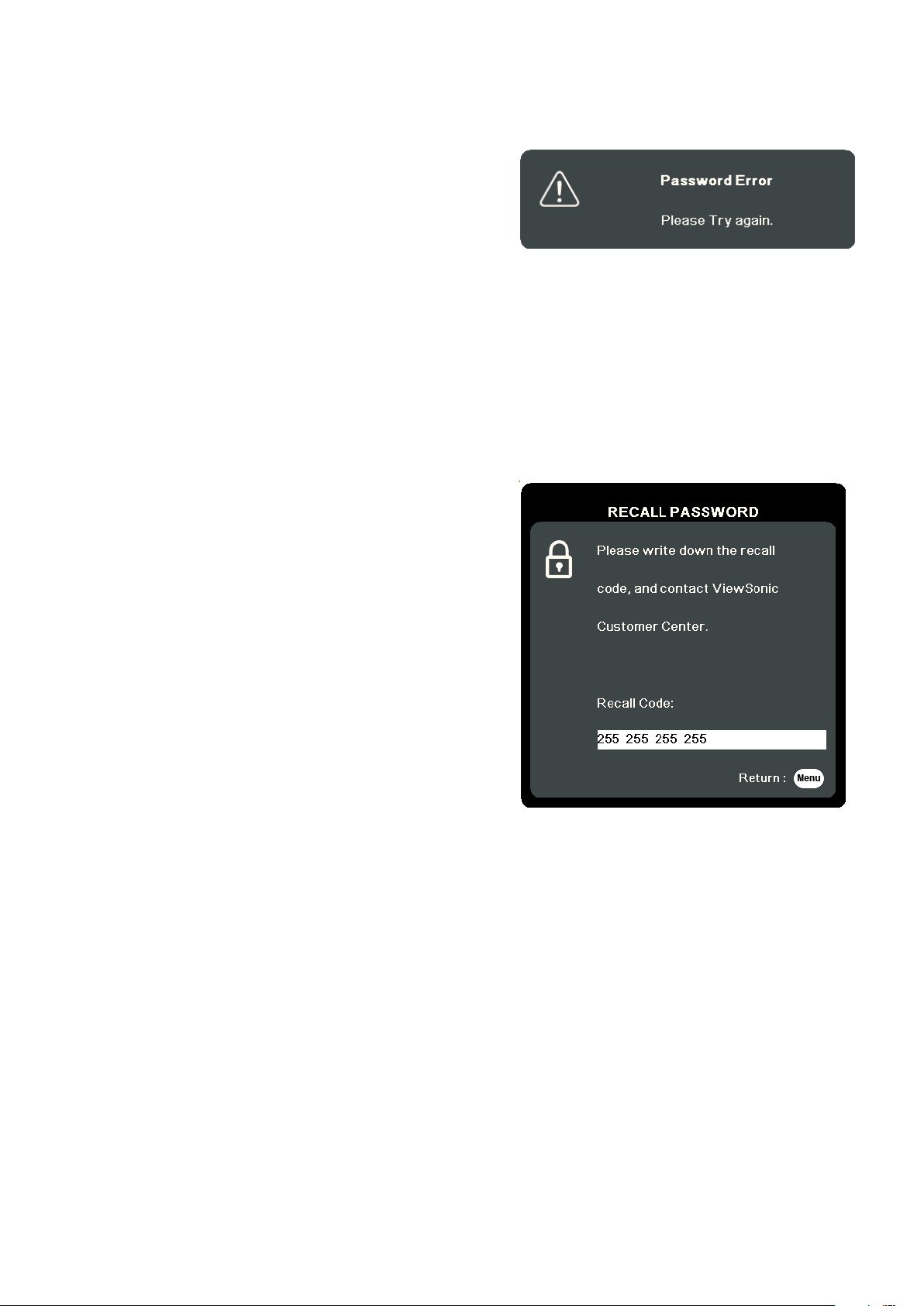

time you turn on the projector. If you enter the wrong password, the password error message, as pictured to the right, will appear for 5 seconds, and the message ‘INPUT PASSWORD’ follows.

You can retry or if you do not remember, you can use the “Password Recall Procedure”.

NOTE: If you enter an incorrect password 5 times in succession, the projector will

automatically shut down for a short time.

Password Recall Procedure

1. When the message ‘INPUT CURRENT

PASSWORD’ appears, press and hold Auto Sync for 3 seconds. The projector will display a coded number on the screen.

2. Write down the number and turn off your projector.

3. Seek help from the local service center to

decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

2222

Page 23

Locking the Control Keys

With the control keys on the projector locked, you can prevent your settings from

being changed accidentally (by children, for example).

NOTE: When the Panel Key Lock is On, no control keys on the projector will operate

except Power.

1. Press Menu to open the OSD Menu and go to: SYSTEM > Panel Key Lock.

2. Press / to select On.

3. Select Yes and press Enter to confirm.

4. To release panel key lock, press and hold on the projector for 3 seconds.

NOTE: You can also use the remote control to enter the SYSTEM > Panel Key Lock

menu and select Off.

Page 24

Making Connections

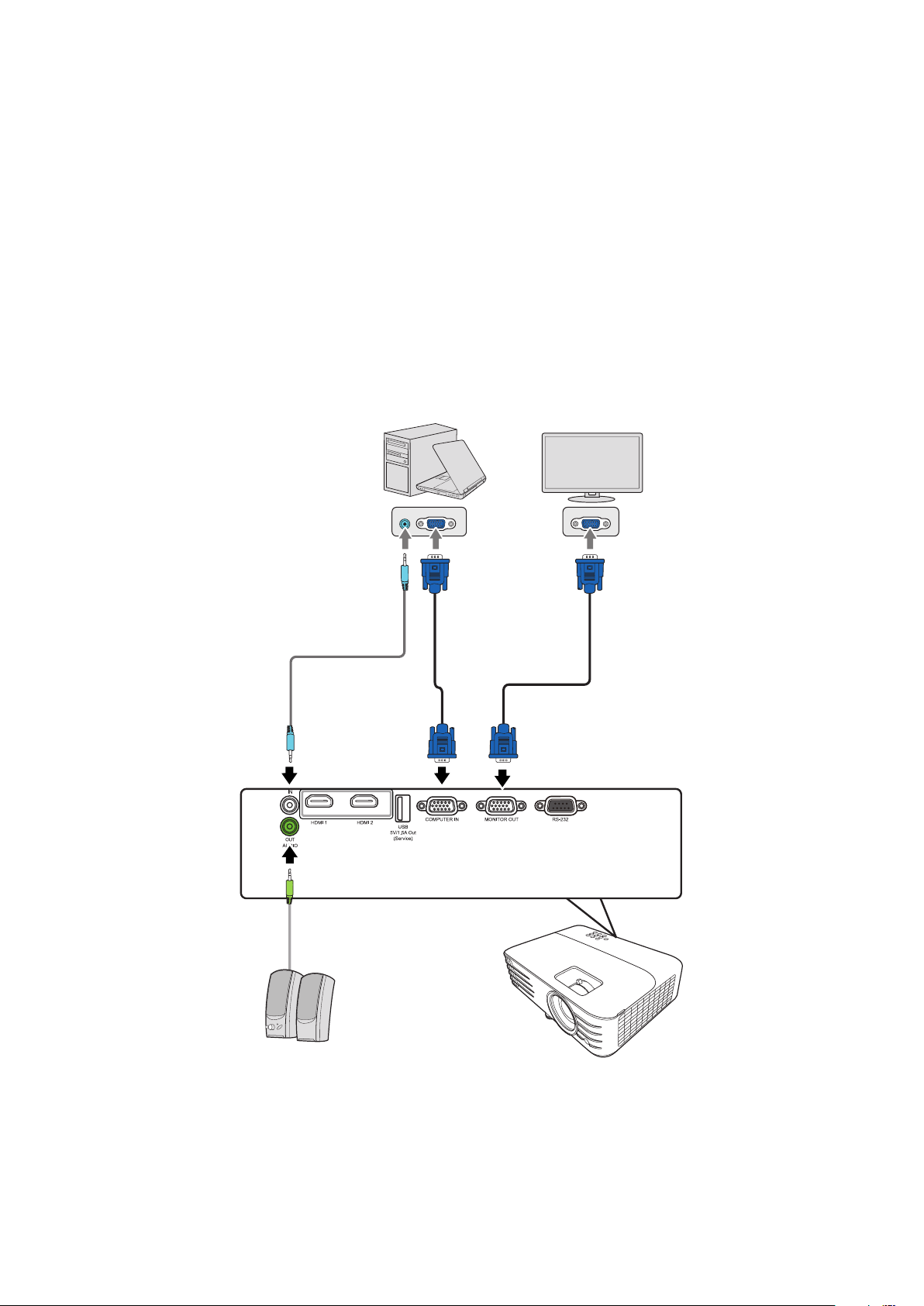

This section guides you on how to connect the projector with other equipment.

Connecting to Power

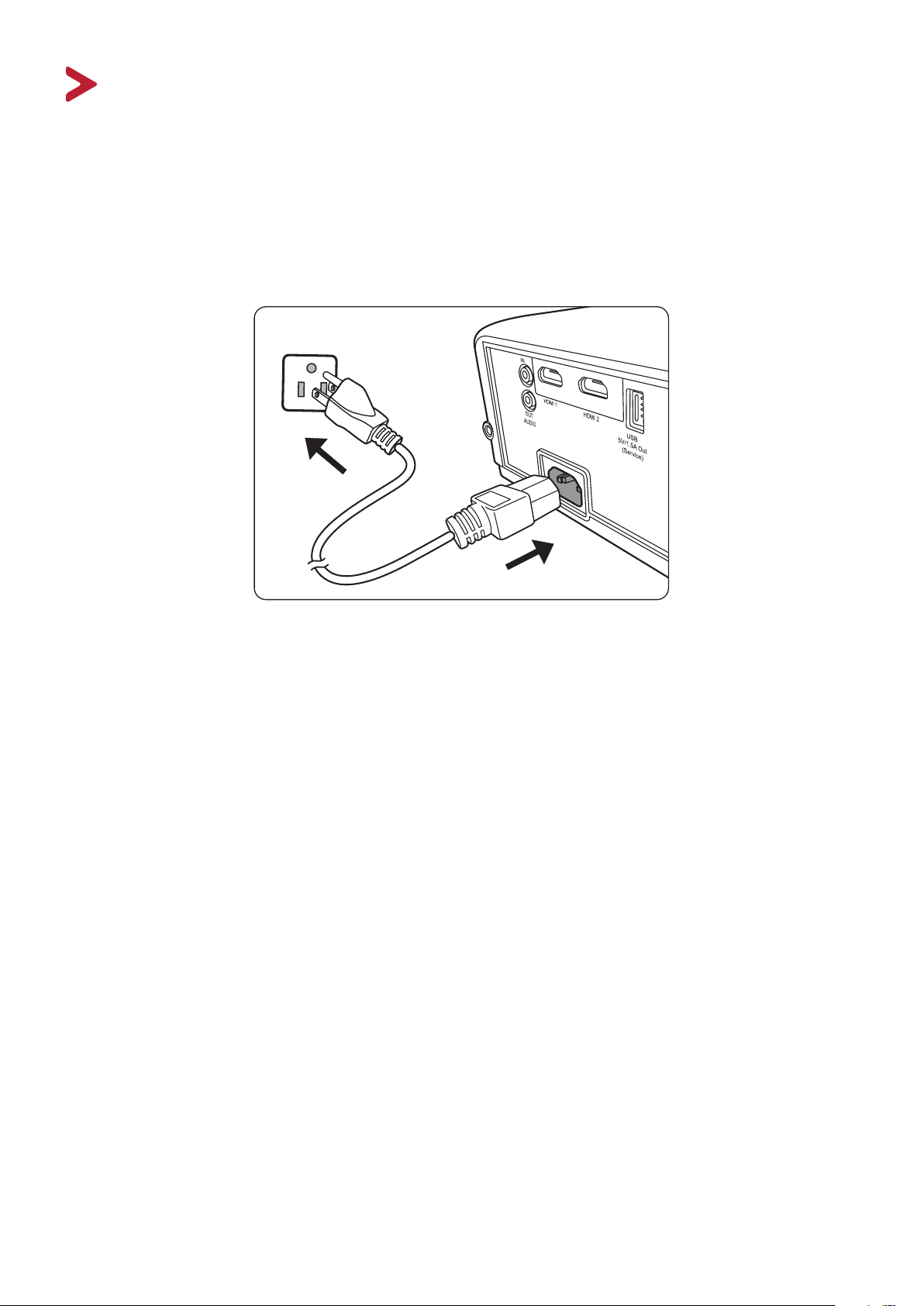

1. Connect the power cord to the AC IN jack at the rear of the projector.

2. Plug the power cord into a power outlet.

NOTE: When installing the projector, incorporate a readily accessible disconnect

device in the xed wiring, or connect the power plug to an easily accessible outlet near the unit. If a fault should occur during operaon of the projector, use the disconnect device to switch o the power supply, or disconnect the

power plug.

Page 25

Connecting to Video Sources

HDMI Connection

Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI 1 or HDMI 2 port of your projector.

Page 26

Connecting to Computer Sources

VGA Connection

Connect one end of a VGA cable to the VGA port of your computer. Then connect the other end of the cable to the COMPUTER IN port of your projector.

NOTE: Some notebooks do not turn on their external displays automacally when

connected to a projector. You may have to adjust your notebook’s projecon sengs.

VGA Out Connection

After establishing the VGA Connection, connect one end of a VGA cable to the VGA port of your monitor. Then connect the other end of the cable to the MONITOR

OUT port of your projector.

NOTE: VGA and VGA Out available for PX701HD.

Page 27

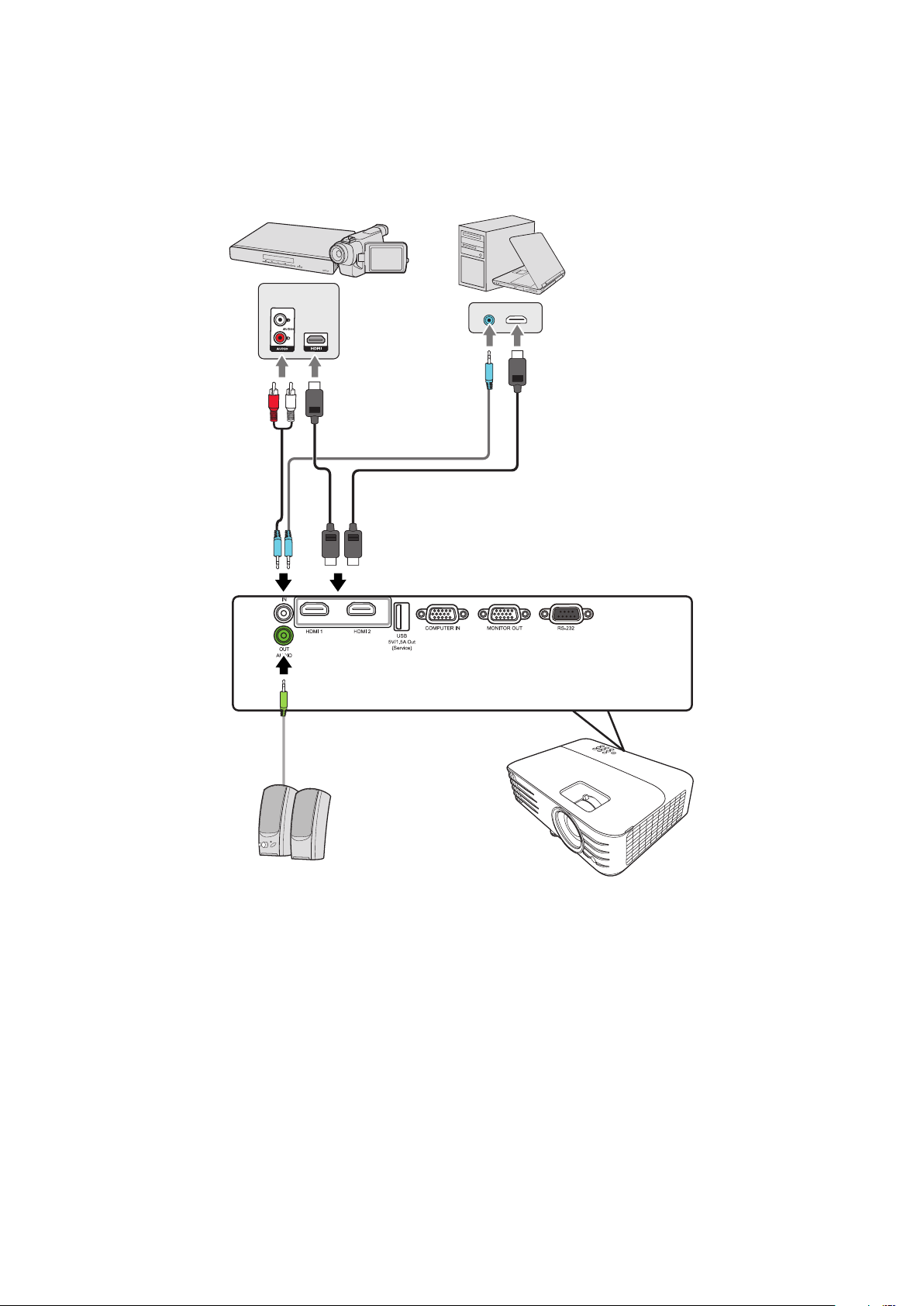

Connecting to Audio

The projector is equipped with speakers, however, you can also connect external speakers to the AUDIO OUT port of the projector.

NOTE:

• The audio output is controlled by the projector’s Volume and Mute

sengs.

• AUDIO IN may not work due to the non-standardized DVI format.

Page 28

Operation

Turning the Projector On/Off

Starting Up the Projector

1. Press the Power buon to turn on the projector.

2. The lamp will light up, and a “Power On/O Ring Tone” will play.

3. The Power Indicator Light stays green when the projector is On.

NOTE:

• If the projector is sll hot from previous use, it will run the cooling fan for 90

seconds before acvang the lamp.

• To maintain lamp life, once you turn the projector On, wait at least ve (5)

minutes before turning it o.

4. Turn on all of the connected equipment, i.e. notebook, and the projector will

start to search for an input source.

NOTE: If the projector detects an input source, the Source Selecon Bar will appear. If

an input source is not detected, the message, ‘No Signal’ will appear.

First Time Activation

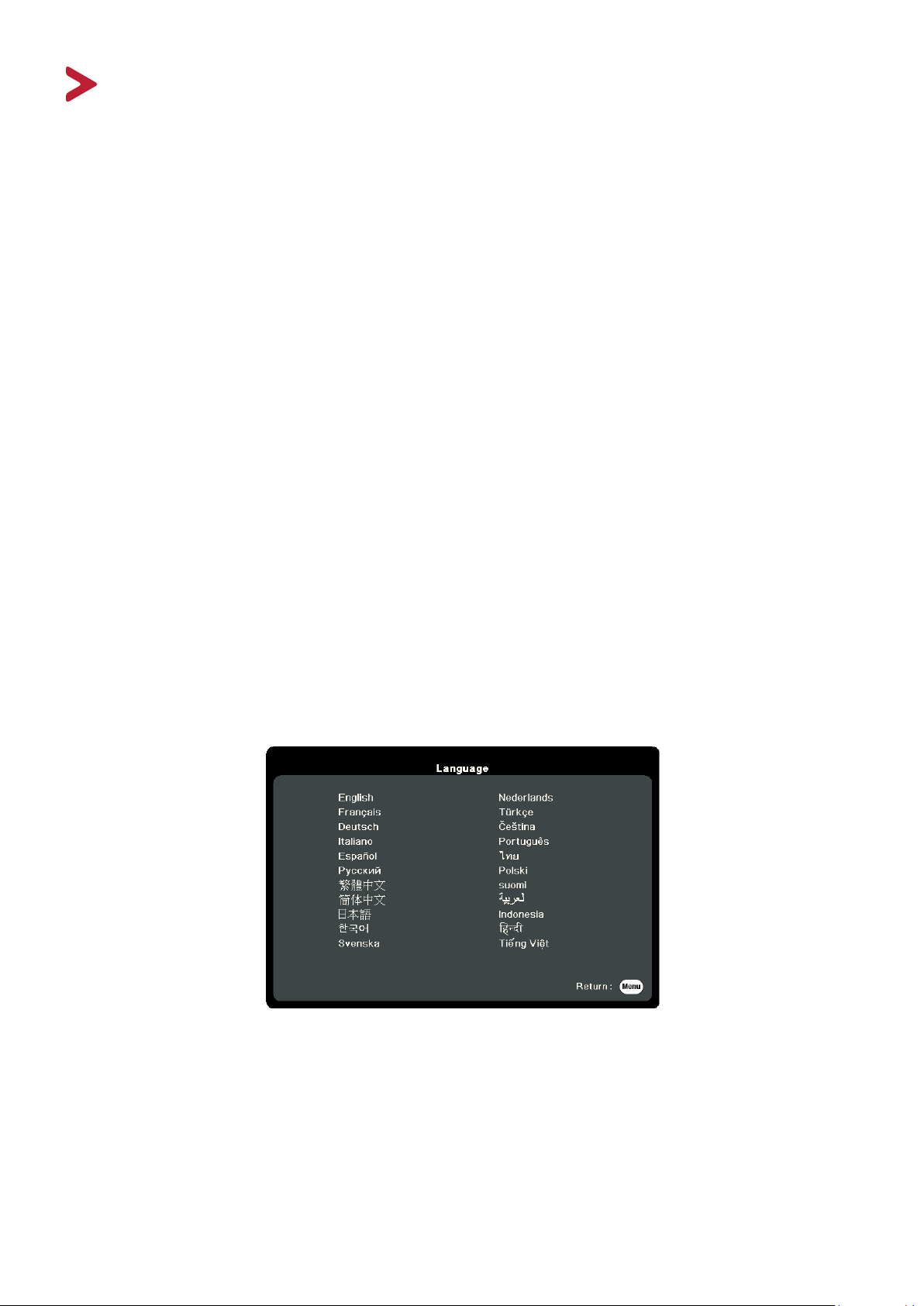

If the projector is activated for the first time, select your OSD language following the on-screen instructions.

Page 29

Shutting Down the Projector

1. Press the Power or O buon and a conrmaon message will appear to prompt

you to press the Power or O buon a second me. Addionally you can press any other buon to cancel.

NOTE: If you do not respond in a few seconds aer the rst press, the message will

disappear.

2. Once the cooling process nishes, a “Power On/O Ring Tone” will play.

3. Disconnect the power cord from the power outlet if the projector will not be

used for an extended period of me.

NOTE:

• To protect the lamp, the projector will not respond to commands during the cooling process.

• Do not unplug the power cord before the projector completely shuts down.

Page 30

Selecting an Input Source

The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.

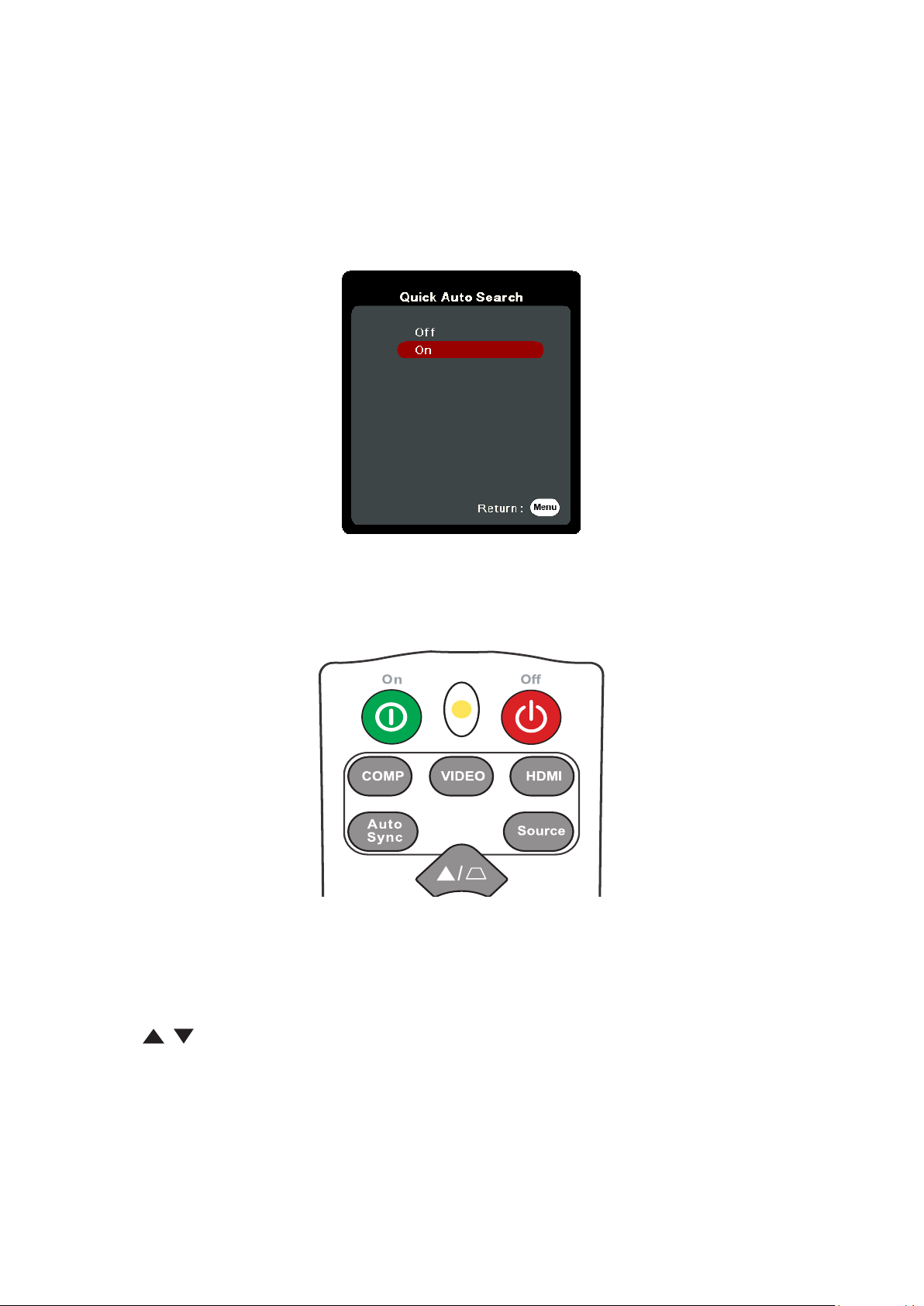

If you want the projector to automatically search for the input source, ensure the Quick Auto Search function in the SYSTEM menu is On.

The Input Source can also be manually selected by pressing one of the source selection buttons on the remote control, or by cycling through the available input sources.

To manually select the input source do the following:

1. Press Source, and a source selecon menu will appear.

2. Press / unl your desired signal is selected and press Enter.

3. Once detected, the selected source informaon will be displayed on the screen

for a few seconds.

NOTE: If there are mulple devices connected to the projector, repeat steps 1-2 to

search for another source.

Page 31

Adjusting the Projected Image

Adjusting the Projector's Height and Projection Angle

The projector is equipped with one (1) adjuster foot. Adjusting the foot will change the projector’s height and the vertical projection angle. Carefully adjust the feet to fine tune the projected image’s position.

Auto-Adjusting the Image

Sometimes, you may need to improve the picture quality. To do this, press Auto Sync on the remote control. Within five (5) seconds, the built-in Intelligent Auto

Adjustment function will re-adjust the Frequency and Clock values to provide the

best picture quality.

Upon completion, the current source information will appear in the upper left corner for three (3) seconds.

NOTE: This funcon is only available when the PC D-Sub input source (analog RGB/

COMPUTER IN) is selected.

Fine-Tuning the Image Size and Clarity

To adjust the projected image to the size that you need, rotate the Zoom Ring.

To improve the clarity of the image, rotate the Focus Ring.

Page 32

Correcting Keystone

EXIT

SOURCE

ENTER

BLANK

MODE

COLOR

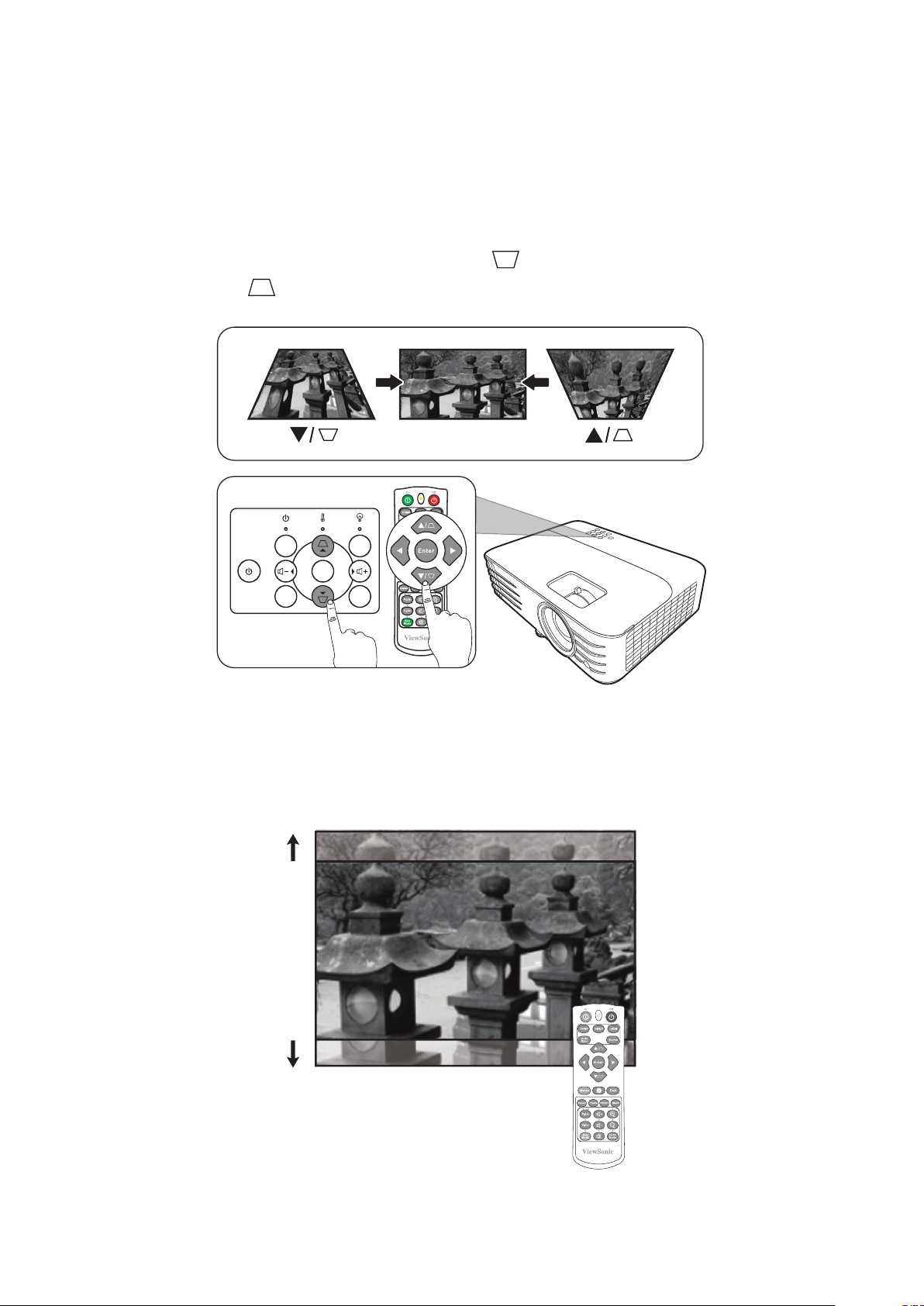

Keystoning refers to the situation where the projected image becomes a trapezoid due to angled projection. To correct this, besides adjusting the height of the projector, you may also:

1. Use the keystone keys on the projector or remote control to display the keystone

page.

2. Aer the keystone page is displayed, press to correct keystoning at the top of

the image. Press to correct keystoning at the boom of the image.

Controllability of the Projected Image

By using the remote control, you can adjust the vertical lens shift by +/- 5%, which

offers the convenience of not needing to physically move or interact with the projector. This is especially important when the projector is mounted to the ceiling.

Page 33

Hiding the Image

In order to draw the audience’s full attention to the presenter, you can press Blank

on the projector or remote control to hide the screen image. Press any key on the

projector or remote control to restore the image.

CAUTION: Do not block the projecon lens as this could cause the blocking object to

become heated and deformed or even cause a re.

Page 34

Menu Functions

This section will introduce the On-Screen Display (OSD) Menu and its options.

General On-Screen Display (OSD) Menu Operation

The projector is equipped with an On-Screen Display (OSD) Menu for making

various adjustments. It can be accessed by pressing Menu on the projector or remote control.

1. Press / to select a main menu. Then press Enter or use / to access the sub-menu list.

2. Press / to select the menu opon. Then press Enter to display its sub-menu, or press / to adjust/select the seng.

NOTE: Some sub-menu opons may have another sub-menu. To enter the respecve

sub-menu, press Enter. Use / or / to adjust/select the seng.

Page 35

On-Screen Display (OSD) Menu Tree

Main Menu Sub-menu Menu Opon

Auto 4:3

DISPLAY

Aspect Ratio

16:9 16:10

Native Keystone -40~40 Lens Shift -20~20 Position1 X: -5 ~ 5, Y: - 5 ~ 5 Phase H. Size

0~31

-15~15 Zoom 0.8X ~2.0X OverScan Off/1/2/3/4/5

Inactive

3X Fast Input

Active Brightest


Sports Standard

Color Mode

Gaming Movie User 1

User 2 Brightness 0~100 Contrast -50~50

8000K/6500K/5500K

Red Gain 0~100

Green Gain 0~100 Color Temp.

Blue Gain 0~100

Red Offset -50~+50

1 - Available for PX701HD

Green Offset -50~+50

Blue Offset -50~+50

3535

Page 36

Main Menu Sub-menu Menu Opon

Color2 -50~50

Sharpness 0~31


Advanced

Reset Color Settings

Auto Power On

Gamma

1.8/2.0/2.2/2.35/

2.5/Cubic/sRGB Off/1/2/3/4/

Brilliantcolor

5/6/7/8/9/10

Noise Reduction 0~31

Primary Color Hue

Color Management

Saturation

Gain Reset Cancel

Disable/VGA2/HDMI/ Signal

All CEC Disable/Enable Direct Power On Disable/Enable

Disable/10 min/20 Auto Power Off

min/30 min

Disable/30 min/1

Smart Energy

Sleep Timer

hr/2hr/3 hr/4 hr/ 8

hr/12 hr Power Saving Disable/Enable VGA Loop Through

Standby Settings

Audio Pass Through Off/On Disable

Quick Power Off

Enable On

USB A Power

Off

Off/On

2 - Available for PX701HD

Page 37

Main Menu Sub-menu Menu Opon

Mute Off/On

BASIC

Audio Settings

Presentation Timer

Pattern

Blank Timer

Audio Volume 0~20 Power On/Off Ring Tone Timer Period 1~240 m

Timer Display

Timer Position

Timer Counting Direction Sound Reminder Off/On Start Counting/Off Off Test Card Disable/5 min/10 min/15 min/20 min/25

min/30 min

Off/On

Always/1 min/2 min/3

min/Never

Top-Left/Bottom-Left/

Top-Right/Bottom-Right

Count Down/Count Up

ADVANCED

Message

Splash Screen

3D Settings

Off On

Black

Blue ViewSonic

Auto

Off

Frame Sequential 3D Sync

Frame Packing

Top-Bottom

Side-by-Side 3D Sync Invert Disable/Invert Save 3D Settings Yes/No

HDMI Settings

HDMI Format Auto/RGB/YUV HDMI Range

Auto/Enhanced/Normal

3737

Page 38

Main Menu Sub-menu Menu Opon

Normal/Eco/ Lamp Mode

Reset Lamp Hours Reset/Cancel

Lamp Settings

Dynamic Eco/

SuperEco+

Lamp Usage Time

Normal

ADVANCED

Eco Lamp Hours Information

Dynamic Eco

SuperEco+

Equivalent Lamp Hour Reset

Reset Settings

Cancel

Language Multi-Language OSD Selection

Front Table Rear Table

Projector Position

Rear Ceiling Front Ceiling

5 sec/10 sec/15 sec/20 Menu Display Time

sec/25 sec/30 sec

SYSTEM

Menu Settings

High Altitude Mode

Quick Auto Search

Security Settings

Center/Top-Left/

Top-Right/ Menu Position

Bottom-Left/

Bottom-Right Off On Off On Change Password Power On Lock Off/On

Page 39

Main Menu Sub-menu Menu Opon

Off

Panel Key Lock

SYSTEM

INFORMATION

Remote Control Code

Control Method

Baud Rate

Source Color Mode Resolution Color System Firmware Version 3X Fast Input S/N

1/2/3/4/5/6/7/8 RS-232 USB 2400/4800/9600/14400/19200/38400/57600/

115200

Page 40

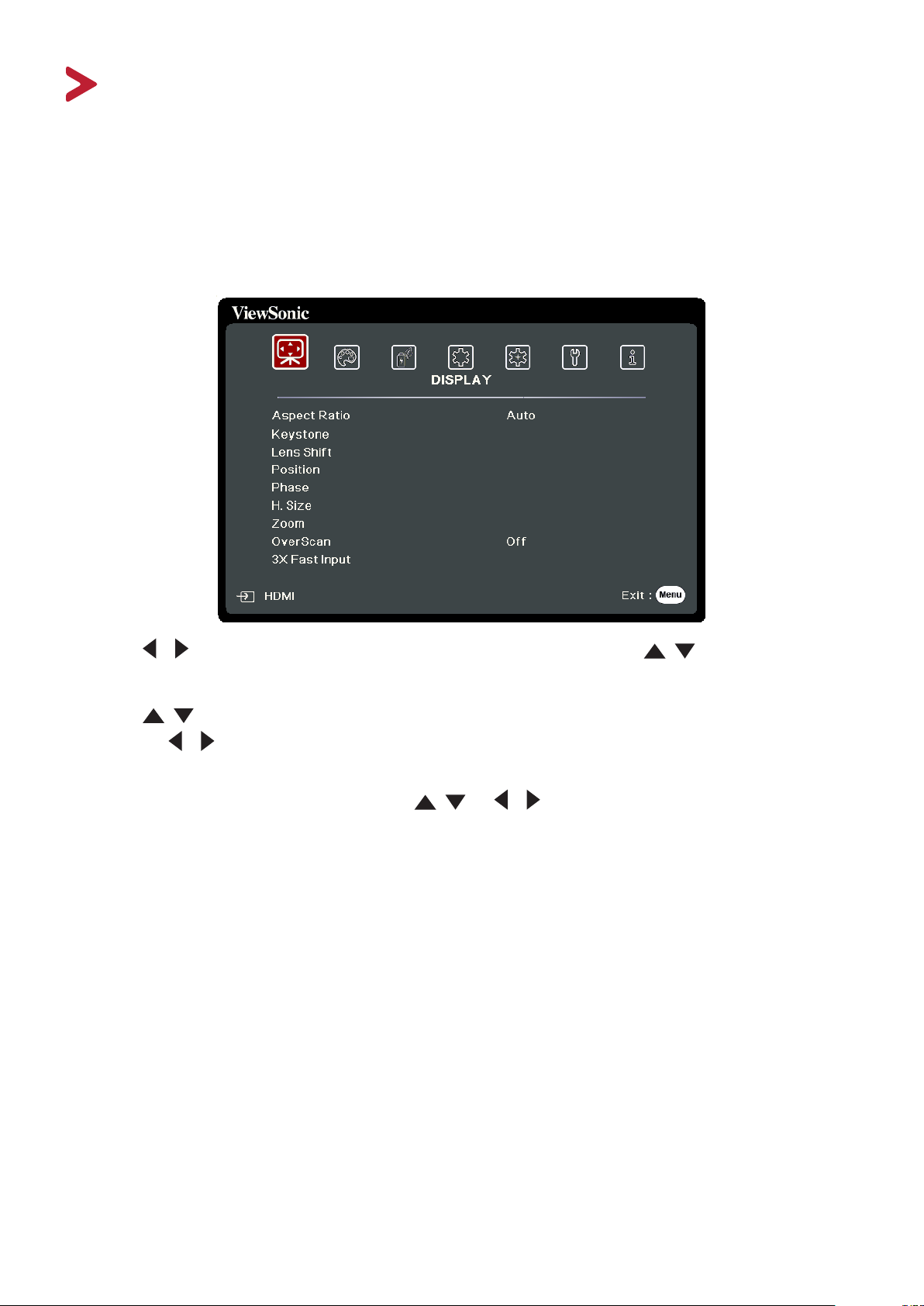

DISPLAY Menu

1. Press the Menu buon to display the On-Screen Display (OSD) Menu.

2. Press / to select the DISPLAY menu. Then press Enter or use / to access the DISPLAY menu.

3. Press / to select the menu opon. Then press Enter to display its sub-menu,

or press / to adjust/select the seng.

NOTE: Some sub-menu opons may have another sub-menu. To enter the respecve

sub-menu, press Enter. Use / or / to adjust/select the seng.

Page 41

Menu Option Description

Auto Scales an image proportionally to fit the projector’s native resolution in its horizontal width. This is suitable for the incoming image which is neither in 4:3 nor 16:9 and you want

to make most use of the screen without altering the image’s

aspect ratio. 4:3

Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3

images like computer monitors, standard definition TV, and

4:3 aspect DVD movies, as it displays them without aspect alteration.

16:9

Aspect Ratio

Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images

which are already in a 16:9 aspect, like high definition TV, as it

displays them without aspect alteration.

Keystone

Lens Shift

16:10 Scales an image so that it is displayed in the center of the screen with a 16:10 aspect ratio. This is most suitable for images which are already in a 16:10 aspect, as it displays them without aspect alteration.

Native Projects an image as its original resolution and resizes it to fit within the display area. For input signals with lower resolutions, the projected image will be displayed in its original size.

Adjusts the keystoning situation where the projected image

becomes a trapezoid due to angled projection. Provides flexibility when installing your projector. It allows you

to shift the image up and down without image distortion by using the remote control.

Adjust the position of the projected image.

NOTE:

Position

• This funcon is only available when a PC input signal is selected.

• The adjustment range may vary under dierent mings.

Page 42

Menu Option Description

Adjusts the clock phase to reduce image distortion.

Phase

H. Size

Zoom

OverScan

3X Fast Input

NOTE: This funcon is only available when a PC input signal is

selected.

Adjusts the horizontal width of the image.

NOTE: This funcon is only available when a PC input signal is

selected.

Magnifies the projected image and allows you to navigate the image.

Adjusts the overscan rate from 0% to 5%.

NOTE: This funcon is only available when a Composite Video or

HDMI input signal is selected.

This function is favorable to frame rate reducing. Quick

response time in native timing can be achieved. When enabled, the following settings will return to factory preset values: Aspect Ratio, Position, Zoom, OverScan.

NOTE: This funcon is only available when a nave ming input

signal is selected.

Page 43

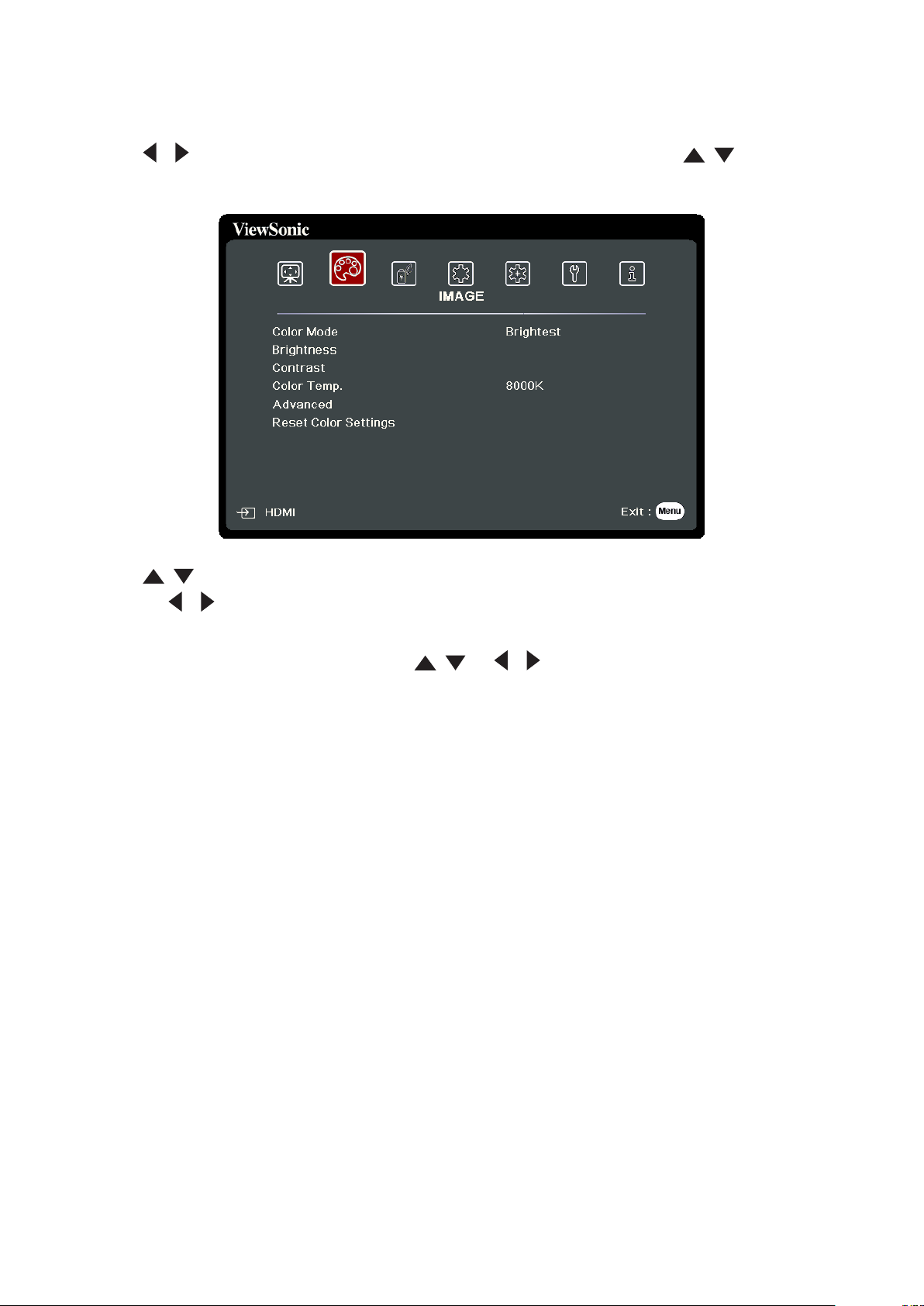

IMAGE Menu

1. Press the Menu buon to display the On-Screen Display (OSD) Menu.

2. Press / to select the IMAGE menu. Then press Enter or use / to access the IMAGE menu.

3. Press / to select the menu opon. Then press Enter to display its sub-menu,

or press / to adjust/select the seng.

NOTE: Some sub-menu opons may have another sub-menu. To enter the respecve

sub-menu, press Enter. Use / or / to adjust/select the seng.

Page 44

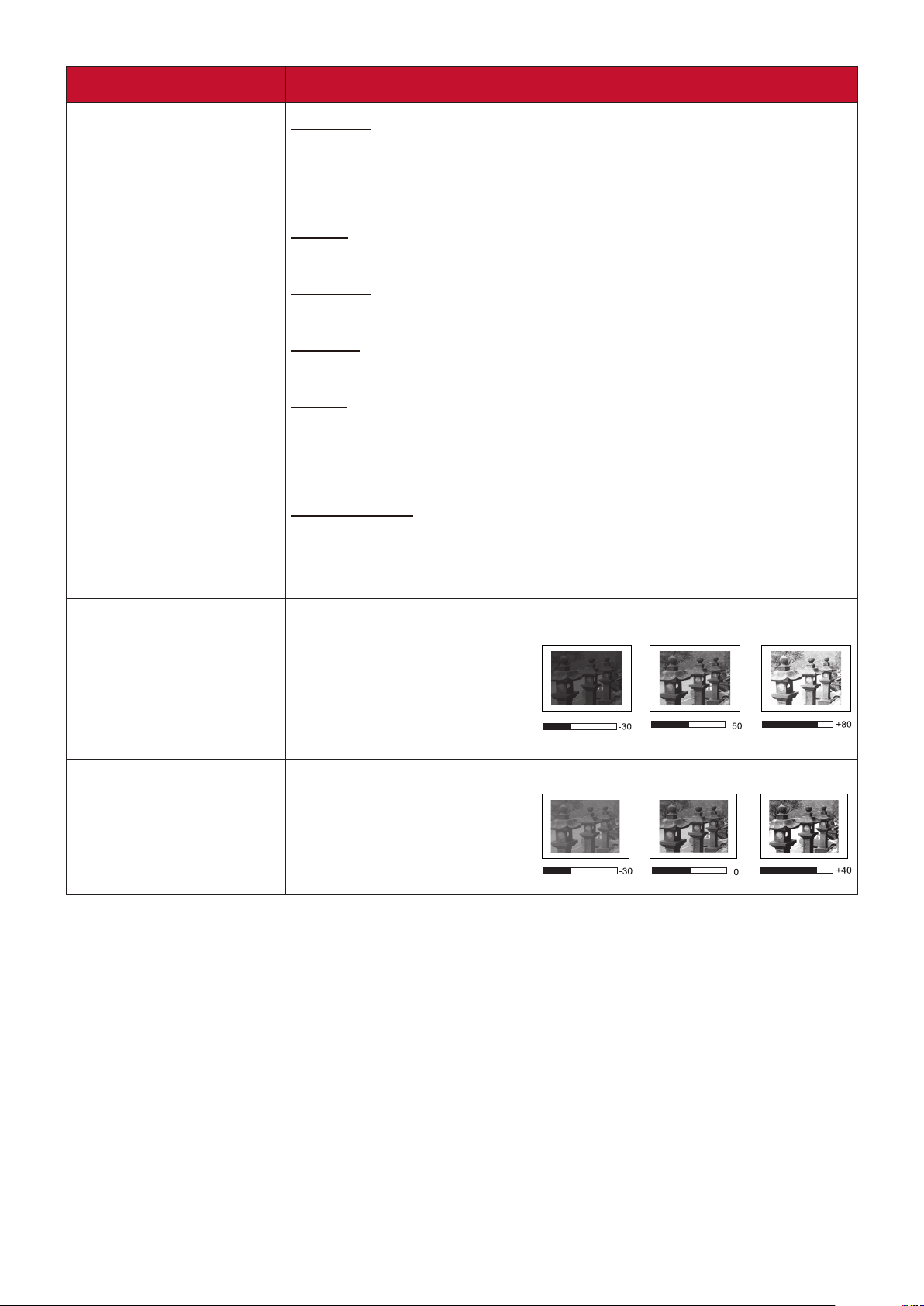

Menu Option Description

Brightest Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.

Sports Designed for viewing sports in well-lit environments.

Standard Designed for normal circumstances in a daylight environment.

Color Mode

Brightness

Contrast

Gaming Suitable for playing video games in a bright living room.

Movie For playing colorful movies, video clips from digital cameras or

DVs through the PC input for best viewing in a blackened (little

light) environment. User 1/User 2

Recalls the customized settings. After User 1/User 2 is selected, some of the sub-menus under the IMAGE menu can be adjusted, according to your selected input source.

The higher the value, the brighter the image. Adjust this option so the

black areas of the image appear just as black and details in the dark area are

more visible.

Use this to set the peak white level after you have

previously adjusted the

Brightness setting.

Page 45

Menu Option Description

8000K Images appear bluish white.

6500K Images maintain a normal white appearance.

5500K Images appear reddish white.

Color Temp.

To set a custom color temperature, you can further adjust the following items:

Red Gain/Green Gain/Blue Gain Adjusts the Contrast levels of Red, Green, and Blue.

Red Offset/Green Offset/Blue Offset Adjusts the Brightness levels of Red, Green, and Blue.

Color A lower setting produces less saturated colors. If the setting is too high, colors will be overpowering and may appear unrealistic.

Advanced

Sharpness A higher value will sharpen the image, while a lower value will soften the image.

Gamma Gamma refers to the brightness level of the projector’s grayscale levels.

Brilliantcolor This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in the projected picture.

It enables a greater than 50% brightness increase in mid-tone

images, which are common in video and natural scenes, so the projector reproduces images in realistic and true colors. If you prefer images with that quality, select a level that suits your need.

Page 46

Menu Option Description

Noise Reduction This function reduces electrical image noise caused by different media players. The higher the setting, the less the noise. (Not available when input signal is HDMI.)

Color Management

Advanced

Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should color management be considered. Color management provides fine color control adjustment to allow for more accurate color reproduction. Select Primary Color first and adjust its range/values in Hue, Saturation and Gain.

Reset Color Settings

Returns current image settings to the factory preset values.

Page 47

POWER MANAGEMENT Menu

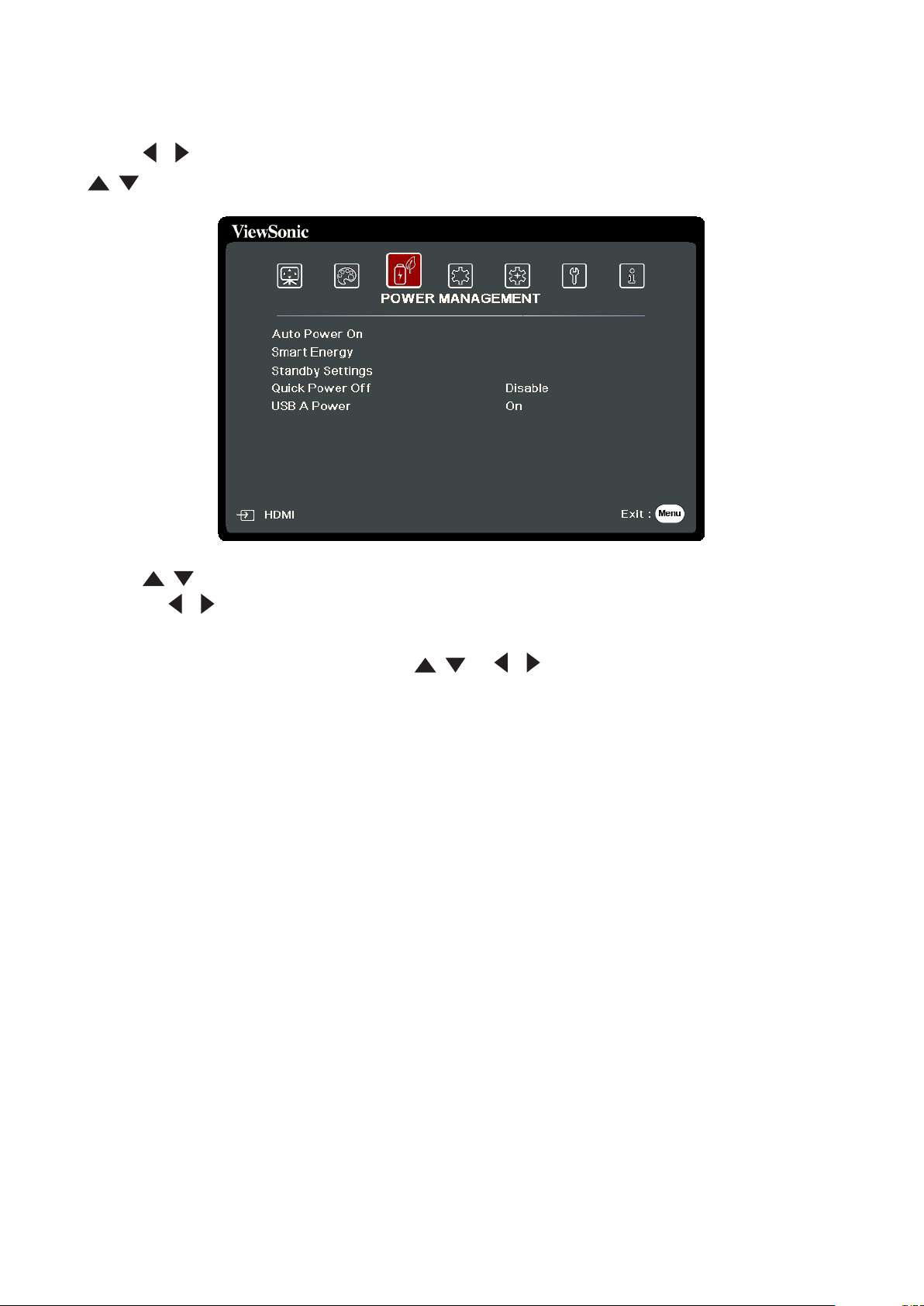

1. Press the Menu buon to display the On-Screen Display (OSD) Menu.

2. Press / to select the POWER MANAGEMENT menu. Then press Enter or use

/ to access the POWER MANAGEMENT menu.

3. Press / to select the menu opon. Then press Enter to display its sub-menu,

or press / to adjust/select the seng.

NOTE: Some sub-menu opons may have another sub-menu. To enter the respecve

sub-menu, press Enter. Use / or / to adjust/select the seng.

Page 48

Menu Option Description

Signal Selecting VGA/HDMI allows the projector to turn on automatically once the VGA/HDMI signal is fed through the VGA/HDMI cable. You can also select All and the projector will turn on automatically upon receiving either a VGA or HDMI signal.

CEC This projector supports CEC (Consumer Electronics Control) function for synchronized power on/off operation via HDMI connection. That is, if a device that also supports CEC function is connected to the HDMI input of the projector, when the projector’s power is turned off, the power of the connected

Auto Power On

device will also be turned off automatically. When the power of the connected device is turned on, the projector’s power will be turned on automatically.

NOTE:

Smart Energy

• In order for the CEC funcon to work properly, make sure that the device is correctly connected to the HDMI input

of the projector via an HDMI cable, and its CEC funcon is

turned on.

• Depending on the connected device, the CEC funcon may

not work.

Direct Power On Allows the projector to turn on automatically once power is fed through the power cord.

Auto Power Off Allows the projector to turn off automatically after a set period of time once no input source is detected to prevent unnecessary waste of lamp life.

Sleep Timer Allows the projector to turn off automatically after a set period of time to prevent unnecessary waste of lamp life.

Power Saving Lowers power consumption if no input source is detected. When Enable is selected, the projector lamp mode will change to SuperEco+ mode after no signal is detected for five (5) minutes. This will also help prevent any unnecessary waste of lamp life.

Page 49

Menu Option Description

The functions below are available in standby mode (plugged in, but not turned on).

VGA Loop Through When selecting On, the projector outputs the signal received

Standby Settings

Quick Power Off

only from COMPUTER IN. Audio Pass Through

When selecting On, the projector outputs an audio signal when

the Audio In and Audio Out sockets are correctly connected to

a proper device. Enable

The projector will not enter the cooling process after being shut down.

Disable The projector will enter the normal cooling process after being shut down.

NOTE: If you aempt to restart the projector right aer it’s been

turned o, it may not be turned on successfully and will

rerun its cooling procedure.

USB A Power

When On, the USB Type A port can supply power, and the Control Method will automatically switch to RS-232.

Page 50

BASIC Menu

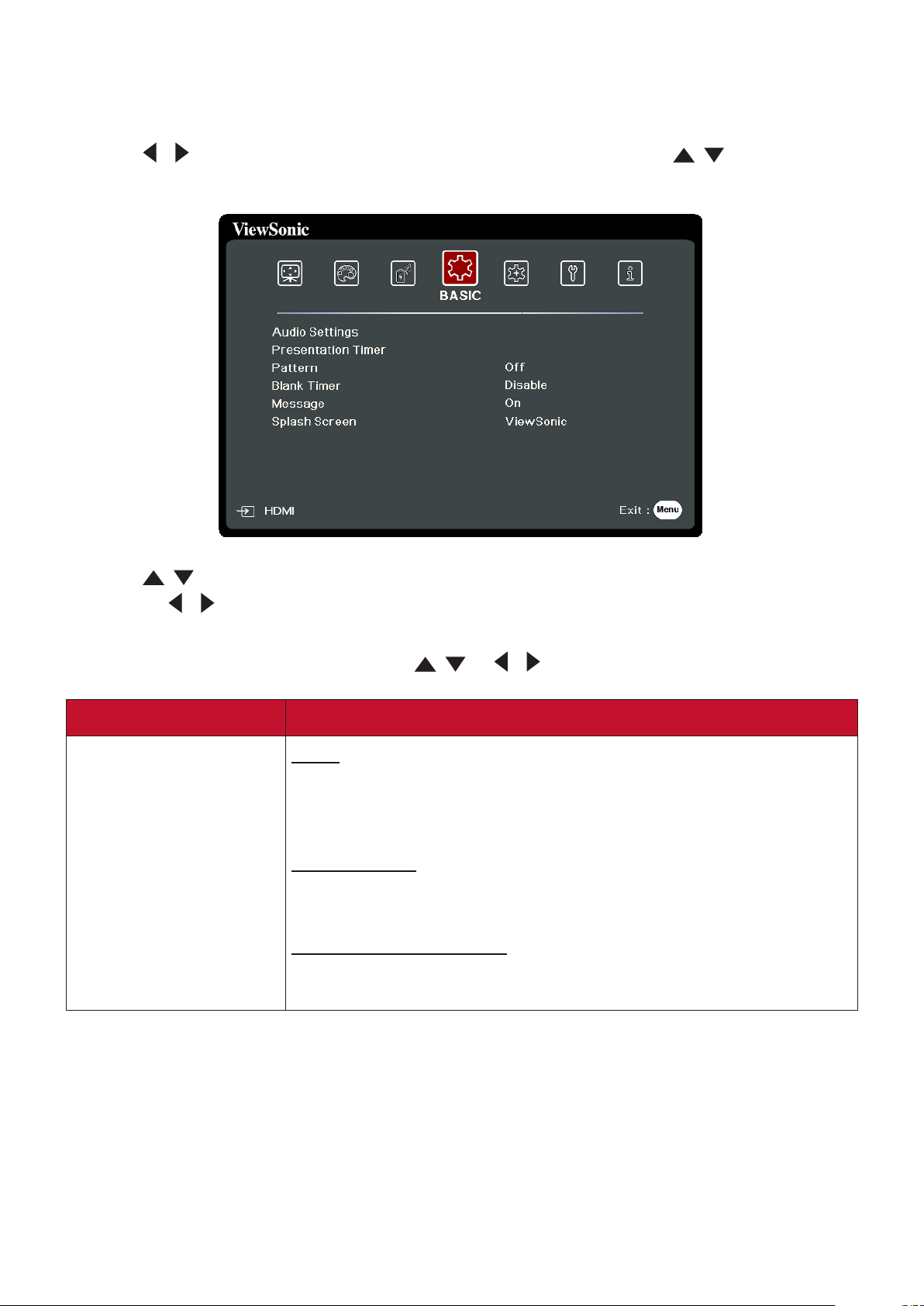

1. Press the Menu buon to display the On-Screen Display (OSD) Menu.

2. Press / to select the BASIC menu. Then press Enter or use / to access the BASIC menu.

3. Press / to select the menu opon. Then press Enter to display its sub-menu,

or press / to adjust/select the seng.

NOTE: Some sub-menu opons may have another sub-menu. To enter the respecve

sub-menu, press Enter. Use / or / to adjust/select the seng.

Menu Option Description

Mute Select On to temporarily turn off the projector’s internal

speaker or the volume being output from the audio output jack.

Audio Settings

Audio Volume

Adjusts the volume level of the projector’s internal speaker or the volume being output from the audio output jack.

Power On/Off Ring Tone Turns on/off the ring tone during the starting up and shutting down process.

Page 51

Menu Option Description

Presentation timer can indicate the presentation time on the screen to help you achieve better time management when giving presentations.

Timer Period Sets the time period. If the timer is already on, the timer will restart whenever the Timer Period is reset.

Timer Display Allows you to decide if you want the timer to show up on the screen for one of the following time periods:

 Always: Displays the mer on screen throughout the

presentaon me.

 1 min/2 min/3 min: Displays the mer on screen in the

last 1/2/3 minute(s).

 Never: Hides the mer throughout the presentaon me.

Presentation Timer

Timer Position Sets the timer position.

Pattern

Blank Timer

Timer Counting Direction Sets your desired counting direction between:

 Count Down: Decreases from the preset me to 0.  Count Up: Increases from 0 to the preset me.

Sound Reminder Allows you to decide if you want to activate a sound reminder. Once enabled, a double beep sound will be heard at the last 30 seconds of counting down/up, and a triple beep sound will be produced when the timer is up.

Start Counting/Off Select Start Counting to activate the timer. Select Off to cancel it.

Helps adjust the image size and focus, and checks for distortion

in the projected image. Allows the projector to return the image automatically after a

period of time when there is no action taken on the blank

screen. To display the blank screen, press Blank on the projector

or remote control.

Message Splash Screen

NOTE: Do not block the projecon lens as this could cause the

blocking object to become heated and deformed or even cause a re.

Sets reminder messages, i.e. “Blank” message, On or Off.

Selects which logo screen will appear during projector start-up.

Page 52

ADVANCED Menu

1. Press the Menu buon to display the On-Screen Display (OSD) Menu.

2. Press / to select the ADVANCED menu. Then press Enter or use / to access the ADVANCED menu.

3. Press / to select the menu opon. Then press Enter to display its sub-menu,

or press / to adjust/select the seng.

NOTE: Some sub-menu opons may have another sub-menu. To enter the respecve

sub-menu, press Enter. Use / or / to adjust/select the seng.

Page 53

Menu Option Description

This projector features a 3D function which enables you to enjoy 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view 3D images.

3D Sync The default setting is Auto and the projector automatically chooses an appropriate 3D format when detecting 3D contents. If the projector cannot recognize the 3D format, choose a 3D mode.

3D Settings

HDMI Settings

3D Sync Invert When you discover the inversion of the image depth, enable this function to correct the problem.

Save 3D Settings Saves current 3D settings. 3D settings will automatically be applied if the same resolution and input source are selected.

NOTE: When the 3D Sync funcon is on:

• The brightness level of the projected image will decrease.

• The Color Mode, Lamp Mode, Zoom, and OverScan cannot be adjusted.

HDMI Format Select a suitable color space according to the color space setting of the output device connected.

 Auto: Sets the projector to detect the color space seng

of the input signal automacally.

 RGB: Sets the color space as RGB.  YUV: Sets the color space as YUV.

HDMI Range Select a suitable HDMI color range according to the color range setting of the output device connected.

 Auto: Sets the projector to detect the HDMI range of the

input signal automacally.

 Enhanced: Sets the HDMI color range as 0 - 255.  Normal: Sets the HDMI color range as 16 - 235.

Page 54

Menu Option Description

Lamp Mode

 Normal: Provides full lamp brightness.  Eco: Reduces lamp power consumpon by 16% and

lowers brightness to extend the lamp life and decreases the fan noise.

 Dynamic Eco: Reduces lamp power consumpon by up to

30% depending on the content brightness level.

 SuperEco+: Reduces lamp power consumpon by 60%

and lowers brightness to extend the lamp life and decreases the fan noise.

NOTE: To control the lamp temperature, Eco Mode will be

switched on for 10 minutes in every 4 hours when the

Lamp Settings

Reset Lamp Hours Resets the lamp timer after new lamp is installed. For changing the lamp, please contact qualified service personnel.

Lamp Mode is set as SuperEco+.

Reset Settings

Lamp Hours Information

 Lamp Usage Time: Displays the number of hours the

lamp has been used.

 Equivalent Lamp Hour: Displays the overall lamp life. The

method of calculang the equivalent light source hour is

as follows: Total (equivalent) Lamp Hour = 4 x (hours used in Normal mode) + 2 x (hours used in Eco mode) + 1.67 x (hours used in Dynamic Eco mode) + 1 x (hours used in SuperEco+ mode)

Returns all settings to the factory preset values. When using Reset Settings, the following settings will still remain: Zoom, Keystone, Lens Shift, Language, Projector Position, High Altitude Mode, Security Settings, Remote Control Code, and Baud Rate.

Page 55

SYSTEM Menu

1. Press the Menu buon to display the On-Screen Display (OSD) Menu.

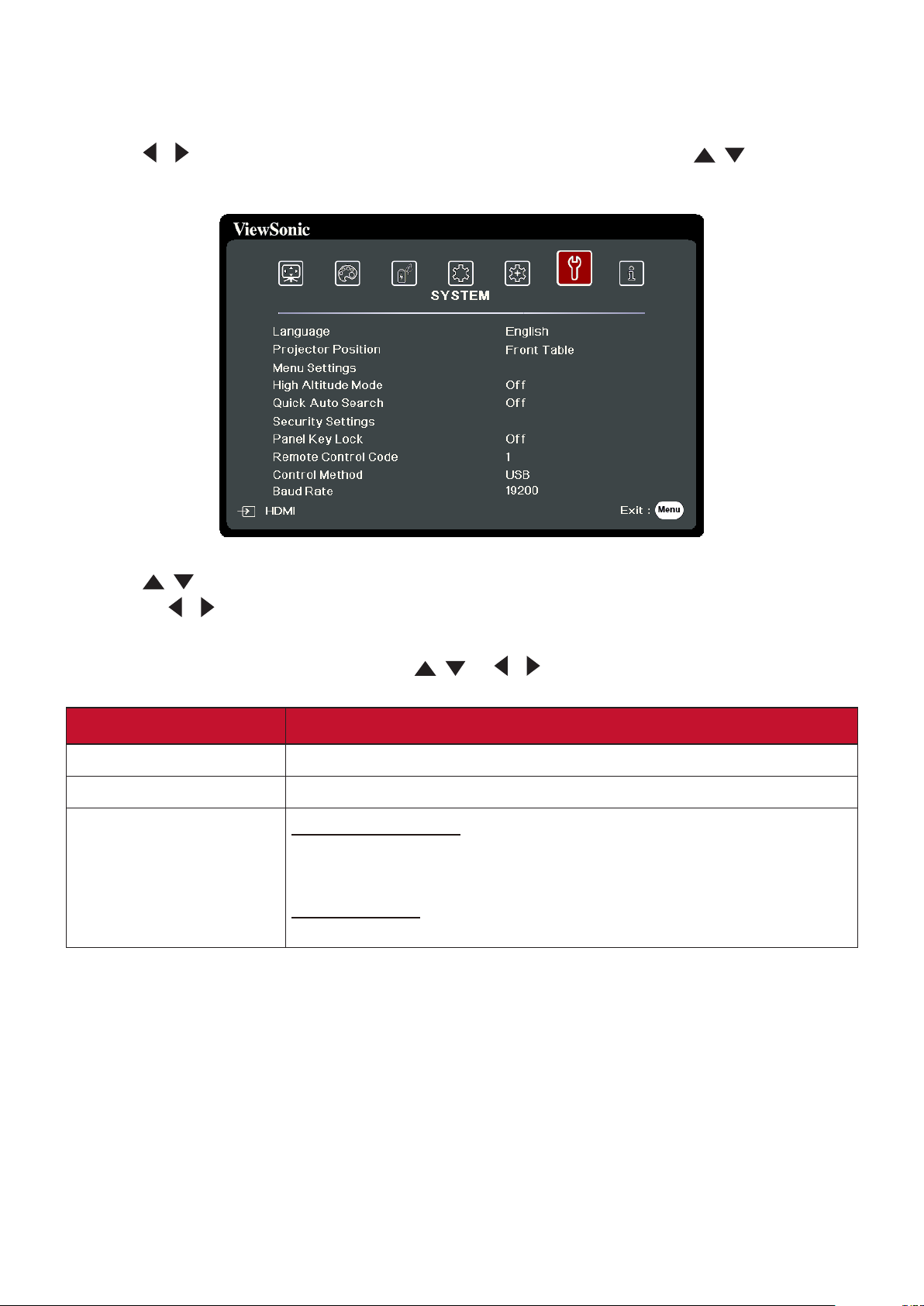

2. Press / to select the SYSTEM menu. Then press Enter or use / to access the SYSTEM menu.

3. Press / to select the menu opon. Then press Enter to display its sub-menu,

or press / to adjust/select the seng.

NOTE: Some sub-menu opons may have another sub-menu. To enter the respecve

sub-menu, press Enter. Use / or / to adjust/select the seng.

Menu Option Description

Language Projector Position

Menu Settings

Sets the language for the On-Screen Display (OSD) Menu. Selects a proper position for the projector. Menu Display Time

Sets the length of time the OSD Menu will remain active after your last interaction.

Menu Position Sets the OSD Menu’s position.

Page 56

Menu Option Description

We recommend you use the High Altitude Mode when your environment is between 1,500 m to 3,000 m above sea level, and ambient temperature is between 5°C–25°C.

NOTE:

• Do not use High Altude Mode if your environment is

High Altitude Mode

between 0 to 1,499 m, and the temperature is between 5°C to 35°C. If used, the projector will become over cooled.

• Using “High Altude Mode” may cause more operang noise, as the fan speed will be increased to improve cooling and performance.

Quick Auto Search

Security Settings

Panel Key Lock

Remote Control Code

Control Method

Baud Rate

Allows the projector to automatically search for the signals. See “Using the Password Function” on page 20.

Locks the control keys on the projector.

Sets the remote control code for this projector (between 1~8). When multiple adjacent projectors are in operaon at the same

me, switching the codes can prevent interference from other remote controls. Aer the remote control code is set, switch to

the same ID for the remote control to control this projector. Allows you to select a preferred control port: through the

RS-232 port or the USB port. When selecting USB, USB A Power

will be switched to Off automatically. Selects a baud rate that is identical with your computer’s so

that you can connect the projector using a suitable RS-232 cable and control the projector with RS-232 commands

Page 57

INFORMATION Menu

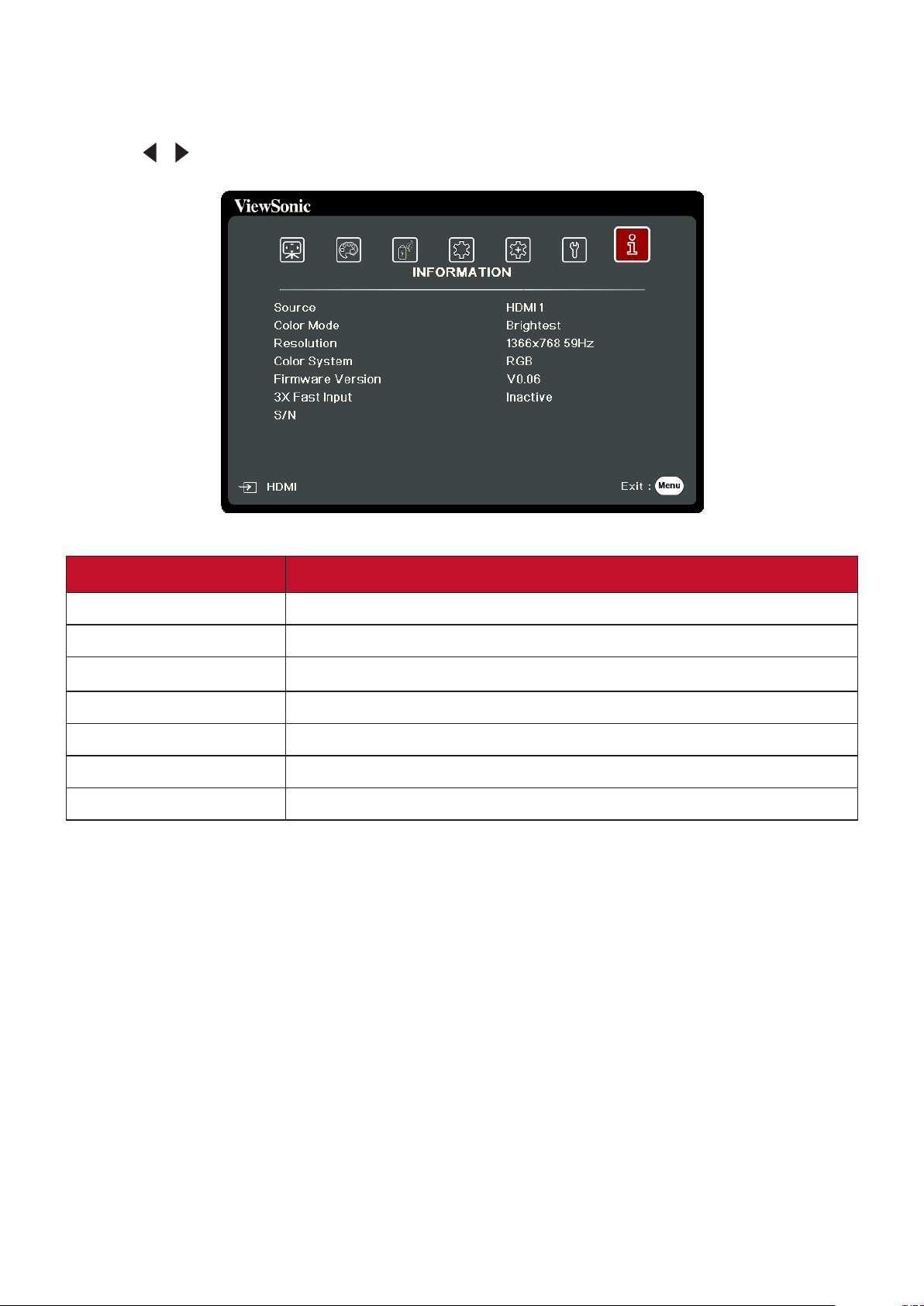

1. Press the Menu buon to display the On-Screen Display (OSD) Menu.

2. Press / to select the INFORMATION menu and display its contents.

Menu Option Description

Source Color Mode Resolution Color System Firmware Version 3X Fast Input S/N

Shows the current input source. Shows the selected mode in the IMAGE menu. Shows the native resolution of the input source. Shows input system format. Shows the current firmware version. Shows whether the function is activated or not. Shows the serial number for this projector.

Page 58

Appendix

Specifications

Item Category

Specifications

PX701HD PX701HDH

Type DLP Lamp

60” ~ 200”

Display Size

(W:1.94~6.64 T:2.13~7.11 with E

pattern)

Projector

Brightness (Lumens) 3,500 ANSI

Throw Ratio 1.50~1.65 (95”±3%@3.16m)

Lens 1.1x±2% Optical Zoom

Lamp Type OSRAM P-VIP 203/0.8 E30.5

Display System 1-CHIP DMD

fh: 15K~102kHz,

VGA

Input Signal

fv:48~120Hz,

Pixel rate: 170MHz

fh: 15K~102kHz, fv:23~120Hz,

HDMI

Pixel rate: 170MHz

Resolution Native 1920 x 1080 Power Adapter

Input Voltage AC 100-240V, 50/60 Hz (auto switch)

Temperature 0°C to 40°C (32°F to 104°F)

N/A

Operating conditions

Humidity 0% to 90% (non-condensing)

0 to 1,499 m at 5°C to 35°C

Altitude

1,500 to 3,000 m at 5°C to 25°C

Temperature -20°C to 60°C (non-condensing)

Storage

Humidity 0% to 90% (non-condensing)

conditions

Altitude 0 to 1,219 m at -20°C to 30°C Physical

312 x 108.37 x 221.8 mm

Dimensions

(W x H x D)

(12.3” x 4.3” x 8.7”)

Weight Physical 3.7 kg (8.16 lbs)

Power Saving Modes

Please use the power adapter from ViewSonic® or an authorized source only.

The test condition follows EEI standards.

Off < 0.5W (Standby)

300W (Typical)

Page 59

Projector Dimensions

312 mm (W) x 108.37 mm (H) x 221.8 mm (D)

312 mm

221.8 mm

BLANK

EXIT

ENTER

COLOR

SOURCE

MODE

Timing Chart

Analog RGB

Resolution Mode

Refresh

rate (Hz)

720 x 400 720 x 400_70 70.087 31.469 28.3221

VGA_60 59.94 31.469 25.175 Supported Supported Supported

VGA_72 72.809 37.861 31.5

640 x 480

VGA_75 75 37.5 31.5

VGA_85 85.008 43.269 36

H-

frequency

(kHz)

Clock

(MHz)

108.37 mm

62.72 mm

91.81 mm

3D Sync

Frame Sequential Top-Bottom Side-by-Side

SVGA_60 60.317 37.879 40 Supported Supported Supported

SVGA_72 72.188 48.077 50

800 x 600

SVGA_75 75 46.875 49.5

SVGA_85 85.061 53.674 56.25

SVGA_120 (Reduce

Blanking)

119.854 77.425 83 Supported

XGA_60 60.004 48.363 65 Supported Supported Supported

XGA_70 70.069 56.476 75

1024 x 768

XGA_75 75.029 60.023 78.75

XGA_85 84.997 68.667 94.5

XGA_120 (Reduce

Blanking)

119.989 97.551 115.5 Supported

1152 x 864 1152 x 864_75 75 67.5 108

1024 x 576 NB Timing 60 35.82 46.966

1024 x 600 NB Timing 64.995 41.467 51.419

1280 x 720 1280 x 720_60 60 45 74.25 Supported Supported Supported

1280 x 768 1280 x 768_60 59.87 47.776 79.5 Supported Supported Supported

Page 60

Resolution Mode

WXGA_60 59.81 49.702 83.5 Supported Supported Supported

WXGA_75 74.934 62.795 106.5

1280 x 800

WXGA_85 84.88 71.554 122.5

Refresh

rate (Hz)

H-

frequency

(kHz)

Clock

(MHz)

3D Sync

Frame Sequential Top-Bottom Side-by-Side

WXGA_120 (Reduce

Blanking)

SXGA_60 60.02 63.981 108 Supported Supported

1280 x 1024

1280 x 960

1360 x 768 1360 x 768_60 60.015 47.712 85.5 Supported Supported

1440 x 900 WXGA+_60 59.887 55.935 106.5 Supported Supported

1400 x 1050 SXGA+_60 59.978 65.317 121.75 Supported Supported

1600 x 1200 UXGA 60 75 162 Supported Supported

1680 x 1050 1680x1050_60 59.954 65.29 146.25 Supported Supported

640 x 480@67Hz MAC13 66.667 35 30.24

832 x 624@75Hz MAC16 74.546 49.722 57.28

1024 x 768@75Hz MAC19 74.93 60.241 80

1152 x 870@75Hz MAC21 75.06 68.68 100

SXGA_75 75.025 79.976 135

SXGA_85 85.024 91.146 157.5

1280 x 960_60 60 60 108 Supported Supported

1280 x 960_85 85.002 85.938 148.5

119.909 101.563 146.25 Supported

1920 x 1080 (VESA) 1920 x 1080_60 60 67.5 148.5

HDMI (PC)

Resolution Mode

VGA_60 59.94 31.469 25.175 Supported Supported Supported

640 x 480

720 x 400 720 x 400_70 70.087 31.469 28.3221

800 x 600

VGA_72 72.809 37.861 31.5

VGA_75 75 37.5 31.5

VGA_85 85.008 43.269 36

SVGA_60 60.317 37.879 40 Supported Supported Supported

SVGA_72 72.188 48.077 50

SVGA_75 75 46.875 49.5

SVGA_85 85.061 53.674 56.25

SVGA_120 (Reduce

Blanking)

Refresh

rate (Hz)

119.854 77.425 83 Supported

H-

frequency

(kHz)

Clock

(MHz)

3D Sync

Frame Sequential Top-Bottom Side-by-Side

Page 61

Resolution Mode

XGA_60 60.004 48.363 65 Supported Supported Supported

XGA_70 70.069 56.476 75

Refresh

rate (Hz)

H-

frequency

(kHz)

Clock

(MHz)

3D Sync

Frame Sequential Top-Bottom Side-by-Side

1024 x 768

1152 x 864 1152 x 864_75 75 67.5 108

1024 x 576 NB Timing 60 35.82 46.966

1024 x 600 NB Timing 64.995 41.467 51.419

1280 x 720 1280 x 720_60 60 45 74.25 Supported Supported Supported

1280 x 768 1280 x 768_60 59.87 47.776 79.5 Supported Supported Supported

1280 x 800

1280 x 1024

XGA_75 75.029 60.023 78.75

XGA_85 84.997 68.667 94.5

XGA_120 (Reduce

Blanking)

WXGA_60 59.81 49.702 83.5 Supported Supported Supported

WXGA_75 74.934 62.795 106.5

WXGA_85 84.88 71.554 122.5

WXGA_120 (Reduce

Blanking)

SXGA_60 60.02 63.981 108 Supported Supported

SXGA_75 75.025 79.976 135

SXGA_85 85.024 91.146 157.5

119.989 97.551 115.5 Supported

119.909 101.563 146.25 Supported

1280 x 960

1360 x 768 1360 x 768_60 60.015 47.712 85.5 Supported Supported

1440 x 900 WXGA+_60 59.887 55.935 106.5 Supported Supported

1400 x 1050 SXGA+_60 59.978 65.317 121.75 Supported Supported

1600 x 1200 UXGA 60 75 162 Supported Supported

1680 x 1050 1680x1050_60 59.954 65.29 146.25 Supported Supported

640 x 480@67Hz MAC13 66.667 35 30.24

832 x 624@75Hz MAC16 74.546 49.722 57.28

1024 x 768@75Hz MAC19 74.93 60.241 80

1152 x 870@75Hz MAC21 75.06 68.68 100

1920 x 1080 (VESA) 1920 x 1080_60 60 67.5 148.5

1280 x 960_60 60 60 108 Supported Supported

1280 x 960_85 85.002 85.938 148.5

Page 62

HDMI (Video)

Video mode

480i 720(1440) x 480 15.73 59.94 27 Supported

480p 720 x 480 31.47 59.94 27 Supported Supported Supported

576i 720(1440) x 576 15.63 50 27 Supported

576p 720 x 576 31.25 50 27 Supported Supported Supported

720/50p 1280 x 720 37.5 50 74.25 Supported Supported

720/60p 1280 x 720 45 60 74.25 Supported Supported

1080/50i 1920 x 1080 28.13 50 74.25 Supported

1080/60i 1920 x 1080 33.75 60 74.25 Supported

1080/24P 1920 x 1080 27 24 74.25 Supported Supported

1080/50P 1920 x 1080 56.25 50 148.5 Supported Supported

1080/60P 1920 x 1080 67.5 60 148.5 Supported Supported

Resolution

Horizontal frequency

(KHz)

Vertical

frequency

(Hz)

Dot Clock

frequency

(MHz)

3D Sync

Frame Sequential Frame Packing Top-Bottom Side-by-Side

IR Control Table

Key Format Byte 1 Byte 2 Byte 3 Byte 4

Off

COMP NEC-F2 83 F4 41 BE

HDMI/HDMI 1 NEC-F2 83 F4 58 A7

HDMI 2 NEC-F2 83 F4 59 A6

Auto Sync NEC-F2 83 F4 8 F7

Source NEC-F2 83 F4 40 BF

Up/

Left

Enter NEC-F2 83 F4 15 EA

Right

Down/

Menu NEC-F2 83 F4 30 CF

NEC-F2 83 F4 4F B0

NEC-F2 83 F4 4E B1

NEC-F2 83 F4 0B F4 NEC-F2 83 F4 0E F1

NEC-F2 83 F4 0F F0

NEC-F2 83 F4 0C F3

NEC-F2 83 F4 97 68

(INFORMATION)

Exit NEC-F2 83 F4 28 D7 Aspect NEC-F2 83 F4 13 EC Freeze NEC-F2 83 F4 03 FC

Page 63

Key Format Byte 1 Byte 2 Byte 3 Byte 4

Pattern NEC-F2 83 F4 55 AA

Blank NEC-F2 83 F4 7 F8

PgUp NEC-F2 83 F4 06 F9 PgDn NEC-F2 83 F4 05 FA

(Mute)

(Volume Down)

(Volume Up)

(Zoom in)

(Zoom out)

Eco Mode NEC-F2 83 F4 2B D4

Color Mode NEC-F2 83 F4 10 EF

NEC-F2 83 F4 14 EB

NEC-F2 83 F4 83 7C

NEC-F2 83 F4 82 7D

NEC-F2 83 F4 67 98

NEC-F2 83 F4 68 97

Address Code

Code 1 83F4 Code 2 93F4 Code 3 A3F4 Code 4 B3F4 Code 5 C3F4 Code 6 D3F4 Code 7 E3F4 Code 8 F3F4

6363

Page 64

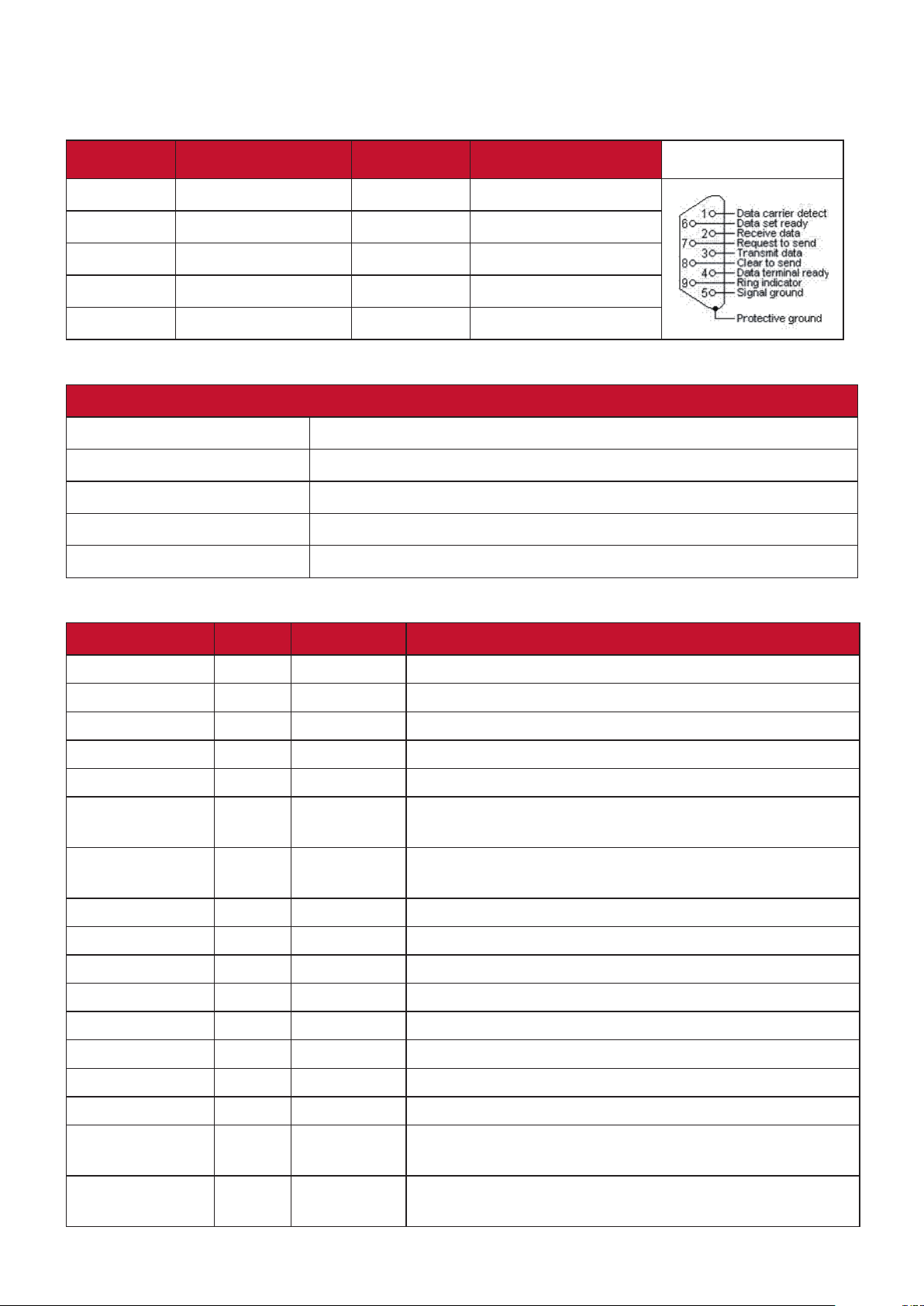

RS-232 Command Table

Pin Assignment

Pin Description Pin Description

1 3 5 7 9

GND

RTSZ

2 4 6 8

RX NC NC

CTSZ

Interface

RS-232 Protocol

Baud Rate Data Length

Parity Check

Stop Bit Flow Control

115200 bps (default)

8 bit

None

1 bit

None

Command Table

Function Type Action Command

Power Write ON 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x00 0x00 0x5D Power Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x01 0x00 0x5E Power Write ON / OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x34 0x00 0x91 Power Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x00 0x5E Projector Status Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x26 0x84

Reset All Settings Write

Reset Color Settings

Splash Screen Write Black 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x00 0x67 Splash Screen Write Blue 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x01 0x68 Splash Screen Write ViewSonic 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x02 0x69 Splash Screen Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x04 0x6B Splash Screen Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0A 0x68

Quick Power Off Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0B 0x00 0x68 Quick Power Off Write ON 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0B 0x01 0x69 Quick Power Off Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0B 0x69

Write

Reset All

Settings

Reset Color

Settings

0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x02 0x00 0x5F

0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2A 0x00 0x87

High Altitude Mode

Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0C 0x00 0x69

Write ON 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0C 0x01 0x6A

Page 65

Function Type Action Command

High Altitude Mode

Light source Mode Write Normal 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x00 0x6D Lamp Mode Write Eco 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x01 0x6E Light source Mode Write Dynamic Eco 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x02 0x6F Light source Mode Write SuperEco+ 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x03 0x70 Light source Mode Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x10 0x6E Message Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x27 0x00 0x84 Message Write ON 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x27 0x01 0x85 Message Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x27 0x85 Projector Position Write Front Table 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x00 0x5E Projector Position Write Rear Table 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x01 0x5F Projector Position Write Rear Ceiling 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x02 0x60 Projector Position Write Front Ceiling 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x03 0x61 Projector Position Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x00 0x5F 3D Sync Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x00 0x7E 3D Sync Write Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x01 0x7F

Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0C 0x6A

3D Sync Write

3D Sync Write Frame Packing 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x03 0x81 3D Sync Write Top Bottom 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x04 0x82 3D Sync Write Side by Side 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x05 0x83 3D Sync Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x20 0x7F 3D Sync Invert Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x21 0x00 0x7F 3D Sync Invert Write ON 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x21 0x01 0x80 3D Sync Invert Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x21 0x80 Contrast Write Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x02 0x00 0x60 Contrast Write Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x02 0x01 0x61 Contrast Read Get Value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x02 0x61 Brightness Write Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x03 0x00 0x61 Brightness Write Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x03 0x01 0x62 Brightness Read Get Value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x03 0x62 Aspect ratio Write Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x00 0x62 Aspect ratio Write 04:03 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x02 0x64

Frame

Sequential

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x02 0x80

Aspect ratio Write 16:09 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x03 0x65 Aspect ratio Write 16:10 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x04 0x66 Aspect ratio Write Native 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x09 0x6B Aspect ratio Read Get Value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x04 0x63 Auto Adjust Write Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x05 0x00 0x63 Horizontal position Write Shift Right 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x06 0x01 0x65

Page 66

Function Type Action Command

Horizontal position Write Shift Left 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x06 0x00 0x64 Horizontal position Read Get Value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x06 0x65 Vertical position Write Shift Up 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x07 0x00 0x65 Vertical position Write Shift Down 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x07 0x01 0x66 Vertical position Read Get Value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x07 0x66 Color temperature Write 5500K 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x00 0x66 Color temperature Write 6500K 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x01 0x67 Color temperature Write 8000K 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x03 0x69 Color temperature Read Get Value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x08 0x67

Blank Write ON 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x09 0x01 0x68 Blank Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x09 0x00 0x67 Blank Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x09 0x68

Keystone-Vertical Write Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0A 0x00 0x68 Keystone-Vertical Write Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0A 0x01 0x69 Keystone-Vertical Read Get value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0A 0x69 Color mode Write Brightest 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x00 0x69 Color mode Write Movie 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x01 0x6A Color mode Write Standard 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x04 0x6D Color mode Write Sports 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x11 0x7A Color mode Write Photo 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x13 0x7C Color mode Write Presentation 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x14 0x7D Color mode Write Gaming 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x12 0x7B Color mode Write Cycle 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x33 0x00 0x92 Color mode Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0B 0x6A Reset current

color settings Primary Color Write R 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x00 0x6E Primary Color Write G 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x01 0x6F Primary Color Write B 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x02 0x70 Primary Color Write C 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x03 0x71 Primary Color Write M 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x04 0x72 Primary Color Write Y 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x05 0x73

Write Reset 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2A 0x00 0x87

Primary Color Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x10 0x6F Hue / Tint Write Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x11 0x00 0x6F Hue / Tint Write Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x11 0x01 0x70 Hue / Tint Read Get value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x11 0x70 Saturation Write Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x12 0x00 0x70 Saturation Write Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x12 0x01 0x71 Saturation Read Get value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x12 0x71

Page 67

Function Type Action Command

Gain Write Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x13 0x00 0x71 Gain Write Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x13 0x01 0x72 Gain Read Get value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x13 0x72 Sharpness Write Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0E 0x00 0x6C Sharpness Write Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0E 0x01 0x6D Sharpness Read Get value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0E 0x6D Freeze Write ON 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x00 0x01 0x60 Freeze Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x00 0x00 0x5F Freeze Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x00 0x60

Source input Write

Source input Write HDMI 1 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x03 0x63 Source input Write HDMI 2 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x07 0x67 Source input Write USB Reader 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x1A 0x7A Source input Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x01 0x61

Quick Auto Search Write ON 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x02 0x01 0x62 Quick Auto Search Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x02 0x00 0x61 Quick Auto Search Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x02 0x62

Mute Write ON 0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x00 0x01 0x61 Mute Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x00 0x00 0x60 Mute Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x14 0x00 0x61 Volume Write Increse 0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x01 0x00 0x61 Volume Write Decrese 0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x02 0x00 0x62 Volume Write Write Value 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x2A 0x11 0x9A Volume Read Get Value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x14 0x03 0x64 Language Write English 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x00 0x61

D-Sub / Comp.

0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x00 0x60

Language Write Français 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x01 0x62 Language Write Deutsch 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x02 0x63 Language Write Italiano 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x03 0x64 Language Write Español 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x04 0x65 Language Write РУССКИЙ 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x05 0x66 Language Write Language Write Language Write Language Write Language Write Swidish 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0a 0x6B Language Write Dutch 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0b 0x6C Language Write Turkish 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0c 0x6D

繁體中文简体中文

日本語

한국어

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x06 0x67 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x07 0x68 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x08 0x69 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x09 0x6A

Page 68

Function Type Action Command

Language Write Czech 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0d 0x6E Language Write Portugese 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0e 0x6F Language Write Thai 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0f 0x70 Language Write Polish 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x10 0x71 Language Write Finnish 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x11 0x72 Language Write Arabic 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x12 0x73 Language Write Indonesia 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x13 0x74 Language Write Hindi 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x14 0x75 Language Write Vie 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x15 0x76 Language Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x00 0x62 Lamp Usage Time Write Reset to ZERO 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x01 0x00 0x62

Lamp Usage Time Read

HDMI Format Write RGB 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x00 0x85 HDMI Format Write YUV 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x01 0x86 HDMI Format Write Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x02 0x87 HDMI Format Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x28 0x86 HDMI Range Write Enhanced 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x00 0x86 HDMI Range Write Normal 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x01 0x87 HDMI Range Write Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x02 0x88 HDMI Range Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x29 0x87 CEC Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2B 0x00 0x88 CEC Write ON 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2B 0x01 0x89 CEC Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x2B 0x89 Error status Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x0C 0x0D 0x66 Brilliant Color Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x00 0x6D Brilliant Color Write Color 1 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x01 0x6E Brilliant Color Write Color 2 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x02 0x6F

Get Usage

Time

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x01 0x63

Brilliant Color Write Color 3 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x03 0x70 Brilliant Color Write Color 4 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x04 0x71 Brilliant Color Write Color 5 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x05 0x72 Brilliant Color Write Color 6 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x06 0x73 Brilliant Color Write Color 7 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x07 0x74 Brilliant Color Write Color 8 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x08 0x75 Brilliant Color Write Color 9 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x09 0x76 Brilliant Color Write Color 10 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x0A 0x77 Brilliant Color Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0F 0x6E Remote Control

Code

Write code 1 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x00 0xA0

Page 69

Function Type Action Command

Remote Control Code

Screen Color Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x00 0x8F Over Scan Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x00 0x90

Write code 2 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x01 0xA1

Write code 3 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x02 0xA2

Write code 4 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x03 0xA3

Write code 5 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x04 0xA4

Write code 6 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x05 0xA5

Write code 7 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x06 0xA6

Write code 8 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x07 0xA7

Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x0C 0x48 0xA1

Over Scan Write Value 1 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x01 0x91 Over Scan Write Value 2 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x02 0x92 Over Scan Write Value 3 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x03 0x93 Over Scan Write Value 4 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x04 0x94 Over Scan Write Value 5 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x05 0x95 Over Scan Read Get Value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x33 0x91 Remote Key Write Menu 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0F 0x61 Remote Key Write Exit 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x13 0x65 Remote Key Write Top 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0B 0x5D Remote Key Write Bottom 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0C 0x5E Remote Key Write Left 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0D 0x5F Remote Key Write Right 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0E 0x60 Remote Key Write Source 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x04 0x56 Remote Key Write Enter 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x15 0x67 Remote Key Write Auto 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x08 0x5A Remote Key Write My Button 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x11 0x63 Operating

temperature

Lamp mode cycle Write

Audio mode cycle Write

Read Get Value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x03 0x65

Lamp mode

cycle

Audio mode

cycle

0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x36 0x00 0x95

0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x35 0x00 0x94

Page 70

Glossary

This section describes the standard glossary of terms used in projector models. All terms are listed in alphabetical order.

NOTE: Some terms may not be applicable to your projector.

Aspect Ratio

Refers to the ratio of the image width to the image height.

Auto Sync

Built-in intelligent auto adjustment function that will re-adjust the

frequency and clock values to provide the best picture quality.

Blank

Temporarily hide the screen image to maintain audience focus when necessary.

Brightest Mode

Maximizes the brightness of the projected image. This mode is ideal for

environments where extra-high brightness is required, such as using the projector in well lit rooms.

Brightness

Adjusts brightness levels of the screen image.

CEC (Consumer Electronics Control)

Synchronizes power on/off operation via HDMI connection. That is, if a device that also supports CEC function is connected to the HDMI input of the projector, when the projector’s power is turned off, the power of the connected device will also be turned off automatically. When the power of the connected device is turned on, the projector’s power will be turned on automatically.

Color

Adjusts the color saturation.

Color Temp.

Allows users to select specific color temperature settings to further customize their viewing experience.

Projector Default Projector Original Status

8000K

6500K

5500K

Images appear bluish white. Default color temperature. Images maintain a normal white appearance. Recommended for general use. Images appear reddish white.

Page 71

Contrast

Adjusts the difference between the image background (black level) and the

foreground (white level).

Color Mode

The projector is preset with several predefined color modes to suit operating, environmental, and input source needs.

Focus Ring

Manually improve the clarity of the projected image.

Gamma

Allows the user to manually select the greyscale curve of the projector.

HDMI Range

Allows the user to select HDMI greyscale range between 0~255 (Enhanced

Range) , 16~235 (Normal Range) or Auto by the signal type detected.

High Altitude Mode

Optional mode for users who live in an environment between 1,500 m and 3,000 m above sea level, and the temperature is between 5° C and 25° C. Activating it will improve projector cooling and performance.

INFORMATION

Displays the timing mode (video signal input), the projector model number,

the serial number, and the ViewSonic® website URL.

Input Select

Toggles between the various input options that are available for the projector.

Keystone

The distortion of an image caused by projecting it onto an angled surface. It can be adjusted vertically via the [ / ] Keystone Keys.

Page 72

Lamp Settings

The projector’s lamp information and settings can be viewed and adjusted by viewing the “Lamp Hours Information” or adjusting the “Lamp Mode”.

Lens shift

The projector’s lens can be shifted vertically by adjusting the “Lens Shift” menu.

Movie Mode

A Color Mode appropriate for playing colorful movies, video clips from digital cameras, or DVs through the PC input. Best for a low light environment.

OverScan

Refers to a cropped image on your monitor’s screen. A setting on your monitor zooms in on movie content, so that you cannot see the outermost edges of the film.

Pattern

Projects a grid to be used for image adjustment and fine-tuning.

Projector Position

The projected image can be adjusted based on the installation location of the projector, i.e. ceiling or rear projection installation.

RS-232

A standard code for serial communication transmission of data, used for connection to other devices or controller vis serial port or LAN port.

Sharpness

Adjusts the picture quality.

Standard Mode

A Color Mode that is designed for normal viewing circumstances in a daylight environment.

Zoom Ring

Manually adjust the size of the projected image.

Page 73

Troubleshooting

Common Problems

This section describes some common problems that you may experience when using the projector.

Problem Possible Solutions

• Ensure the power cord is properly aached to the projector and to the power outlet.

• If the cooling process has not completed, please

The projector does not turn on

wait unl it has nished then try to turn on the

projector again.

• If the above does not work, try another power outlet or another electrical device with the same power outlet.

• Ensure the video source cable is connected properly, and that the video source is turned on.

There is no picture

The image is blurred

The remote control does not

work

• If the input source is not selected automacally, select the correct source with the Source key on either the projector or the remote control.

• Adjusng the Focus Ring will help correctly focus the

projecon lens.

• Ensure the projector and screen are aligned properly. If necessary, adjust the height of the projector as

well as the projecon angle and direcon.

• Ensure there are no obstacles between the remote control and projector; and that they are within 8 m

(26 ) of each other.

• The baeries may be out of power, please check and replace if necessary.

Page 74

LED Indicators

Light Status and Description

Power

Green

Flashing

Green Off Off Powering up Green Off Off Normal operation Green

Flashing

Red Off Off Downloading

Green Green Green Burn in off

Off Off Stand-by mode

Off Off Normal power-down cooling

Lamp

Green

Flashing

Off Off Red Light source error in normal operation

Green Off Red Color wheel start has failed

Off Red First light source-lit error cooling

Heating/Cooling

Off Red Off Fan 1 error (actual fan speed is outside the desired speed). Off Red Red Fan 2 error (actual fan speed is outside the desired speed). Off Red Green Fan 3 error (actual fan speed is outside the desired speed). Off Red Orange Fan 4 error (actual fan speed is outside the desired speed).

Red

Flashing

Red

Flashing

Red Red Red

Red Off Fan 5 error (actual fan speed is outside the desired speed).

Red

Off Fan 6 error (actual fan speed is outside the desired speed).

Flashing

Thermal sensor 1 open error (the remote diode has an open-circuit condition).

Red Red Green

Green Red Red

Off Red Green

Orange Red Red Temperature 1 error (over limited temperature). Orange Red Green Temperature 2 error (over limited temperature).

Off Green Red Fan IC #1 I2C connection error.

Thermal sensor 2 open error (the remote diode has an open-circuit condition).

Thermal sensor 1 short error (the remote diode has an open-circuit condition).

Thermal sensor 2 short error (the remote diode has an open-circuit condition).

Page 75

Maintenance

General Precautions

• Make sure the Projector is turned o and the power cable is unplugged from the power outlet.

• Never remove any parts from the Projector. Contact ViewSonic® or a reseller when any part of the Projector needs replacing.

• Never spray or pour any liquid directly onto the case.

• Handle the Projector with care, as a darker-colored projector, if scued, may

show marks more clearly than a lighter-colored projector.

Cleaning the Lens

• Use a canister of compressed air to remove dust.

• If the lens is sll not clean, use lens-cleaning paper or moisten a so cloth with lens cleaner and gently wipe the surface.

CAUTION: Never rub the lens with abrasive materials.

Cleaning the Case

• Use a so, lint-free, dry cloth to remove dirt or dust.

• If the case is sll not clean, apply a small amount of non-ammonia, non-alcohol

based, mild non-abrasive detergent onto a clean, so, lint-free cloth, then wipe

the surface.

CAUTION: Never use wax, alcohol, benzene, thinner, or other chemical detergents.

Storing the Projector

If you intend to store the Projector for an extended period of time:

• Ensure the temperature and humidity of the storage area are within the recommend range.

• Retract the adjuster foot completely.

• Remove the baeries from the Remote Control.

• Pack the Projector in its original packaging or equivalent.

Disclaimer

• ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the lens or case. Some chemical cleaners have been reported to damage the lens and/or case of the projector.

• ViewSonic® will not be liable for damage resulng from use of any ammonia or alcohol-based cleaners.

Page 76

Lamp Information

This section will provided a better understanding of your projector’s lamp.

Lamp Hour

When the projector is being used, the duration (in hours) of lamp usage is automatically calculated by the built-in timer.

To obtain the lamp hour information:

1. Press Menu to open the OSD Menu and go to: Advanced > Lamp Settings >

Lamp Hours Information.

2. Press Enter and the Lamp Hours Information page will appear:

3. Press Exit to leave the menu. Extending Lamp Life

To prolong lamp life, you can adjust the following settings in the OSD Menu.

Setting Lamp Mode

Setting the projector in Eco, Dynamic Eco, or SuperEco+ mode reduces system noise, power consumption, and extends the lamps operational life.

Lamp Mode Description

Normal

Eco

Dynamic Eco

SuperEco+

Provides full lamp brightness.

Reduces lamp power consumption by 16% and lowers brightness,

and decreases fan noise.

Reduces lamp power consumption by up to 30% depending on the

content's brightness level.

Reduces lamp power consumption by 60% and lowers brightness to

extend the lamp life and decreases the fan noise.

To set the Lamp Mode, open the OSD Menu and go to:Advanced > Lamp Settings >

Lamp Mode and press / to select and press Enter.

Setting Auto Power Off

This allows the projector to turn off automatically after a set period of time once no input source is detected.

Open the OSD Menu and go to: POWER MANAGEMENT > Smart Energy > Auto Power Off and press

to disable or adjust the time.

Page 77

Lamp Replacement Timing

When the Lamp Indicator Light lights up, please install a new lamp or consult your dealer.

CAUTION: An old lamp may cause a malfuncon in the projector and in some

instances the lamp may explode.

Replacing the Lamp

NOTE: It is recommended to turn the power o and disconnect the projector

from the power outlet, and contact a qualied service personnel for lamp

replacement.

Page 78

Regulatory and Service Information

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels

and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING: You are cauoned that changes or modicaons not expressly

approved by the party responsible for compliance could void your authority to operate the equipment.

Industry Canada Statement

CAN ICES-003(B) / NMB-003(B)

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

Page 79

The following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark

indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Proposed Maximum

Actual

Substance

Concentration

Cadmium (Cd) 0.01% < 0.01% Lead (Pb) 0.1% < 0.1% Mercury (Hg) 0.1% < 0.1% Hexavalent Chromium (Cr6+) 0.1% < 0.1% Polybrominated biphenyls (PBB) 0.1% < 0.1% Polybrominated diphenyl esthers (PBDE) 0.1% < 0.1% Bis(2-Ethylhexyl) phthalate (DEHP) 0.1% < 0.1% Benzyl butyl phthalate (BBP) 0.1% < 0.1% Dibutyl phthalate (DBP) 0.1% < 0.1% Diisobutyl phthalate (DIBP) 0.1% < 0.1%

Concentration

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below:

• Mercury in cold cathode fluorescent lamps and external electrode fluorescent lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):

» Short length (500 mm): maximum 3.5 mg per lamp. » Medium length (> 500 mm and 1,500 mm): maximum 5 mg per lamp. » Long length (> 1,500 mm): maximum 13 mg per lamp.

• Lead in glass of cathode ray tubes.

• Lead in glass of fluorescent tubes not exceeding 0.2% by weight.

• Lead as an alloying element in aluminum containing up to 0.4% lead by weight.

• Copper alloy containing up to 4% lead by weight.

• Lead in high melting temperature type solders (i.e. lead-based alloys containing

85% by weight or more lead).

• Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.

Page 80

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in

concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for

the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

USA & Canada:

https://www.viewsonic.com/us/company/green/go-green-withviewsonic/#recycle-program

Europe:

http://www.viewsoniceurope.com/uk/support/recycling-information/

Page 81

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft

Corporation in the United States and other countries.

ViewSonic® and the three birds logo are registered trademarks of ViewSonic®

Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are trademarks of VESA.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial

errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation

reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means,

for any purpose without prior written permission from ViewSonic® Corporation.

PX701HD_PX701HDH_UG_ENG_1a_20220218

Page 82

Customer Service

For technical support or product service, see the table below or contact your reseller.

NOTE: You will need the product’s serial number.

Country/ Region Website Country/ Region Website

Asia Pacific & Africa

Australia

中国 (China)

Hong Kong (English)

Indonesia

日本 (Japan)

Malaysia

Myanmar

New Zealand

Philippines

臺灣 (Taiwan)

Việt Nam

www.viewsonic.com/au/

www.viewsonic.com.cn

www.viewsonic.com/hk-en/

www.viewsonic.com/id/

www.viewsonic.com/jp/

www.viewsonic.com/my/

www.viewsonic.com/mm/

www.viewsonic.com/nz/

www.viewsonic.com/ph/

www.viewsonic.com/tw/

www.viewsonic.com/vn/

Bangladesh

香港 (繁體中文)

India

Israel

Korea

Middle East

Nepal

Pakistan

Singapore

ประเทศไทย

South Africa &

Maurius

www.viewsonic.com/bd/

www.viewsonic.com/hk/

www.viewsonic.com/in/

www.viewsonic.com/il/

www.viewsonic.com/kr/

www.viewsonic.com/me/

www.viewsonic.com/np/

www.viewsonic.com/pk/

www.viewsonic.com/sg/

www.viewsonic.com/th/

www.viewsonic.com/za/

United States

Lan America

Europe

Deutschland

Россия

Türkiye

United Kingdom

Americas

www.viewsonic.com/us

www.viewsonic.com/la

www.viewsonic.com/eu/

www.viewsonic.com/de/

www.viewsonic.com/ru/

www.viewsonic.com/tr/

www.viewsonic.com/uk/

Europe

Canada

France

Қазақстан

España

Україна

www.viewsonic.com/us

www.viewsonic.com/fr/

www.viewsonic.com/kz/

www.viewsonic.com/es/

www.viewsonic.com/ua/

Page 83

Limited Warranty

ViewSonic® Projector

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and

workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product.

Replacement product or parts may include remanufactured or refurbished parts or components.

Limited Three (3) year General Warranty

Subject to the more limited one (1) year warranty set out below, North and South America: Three (3) years warranty for all parts excluding the lamp, three (3) years for labor, and one (1) year for the original lamp from the date of the first consumer purchase.

Other regions or countries: Please check with your local dealer or local ViewSonic

office for the warranty information.

Limited One (1) year Heavy Usage Warranty:

Under heavy usage settings, where a projector’s use includes more than fourteen (14) hours average daily usage, North and South America: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase; Europe: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase.

Other regions or countries: Please check with your local dealer or local ViewSonic

office for the warranty information. Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

8383

Page 84

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modied or removed.

2. Damage, deterioration, failure, or malfunction resulting from:

a. Accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature,

improper maintenance, unauthorized product modification, or failure to follow

instructions supplied with the product. b. Operation outside of product specifications. c. Operation of the product for other than the normal intended use or not under

normal conditions. d. Repair or attempted repair by anyone not authorized by ViewSonic. e. Any damage of the product due to shipment. f. Removal or installation of the product. g. Causes external to the product, such as electric power fluctuations or failure. h. Use of supplies or parts not meeting ViewSonic’s specifications. i. Normal wear and tear. j. Any other cause which does not relate to a product defect.

3. Removal, installation, and set-up service charges.

How to get service:

1. For informaon about receiving service under warranty, contact ViewSonic Customer Support (please refer to “Customer Support” page). You will need to provide your product’s serial number.

2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.

4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Page 85

Exclusion of damages:

ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based

upon inconvenience, loss of use of the product, loss of me, loss of prots, loss of business opportunity, loss of goodwill, interference with business relaonships,

or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

Effect of local law:

This warranty gives you specific legal rights, and you may also have other rights which vary from local authority. Some local governances do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer.

The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card.

For users in Europe and Russia, full details of warranty provided can be found in www.viewsoniceurope.com under Support/Warranty Information.

Projector Warranty Term Template In UG VSC_TEMP_2005

Page 86

Mexico Limited Warranty

ViewSonic® Projector

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and

Replacement product or parts may include remanufactured or refurbished parts or components & accessories.

How long the warranty is effective:

3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer purchase. Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modied or removed.

2. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature,

unauthorized product modification, unauthorized attempted repair, or failure to

follow instructions supplied with the product. b. Any damage of the product due to shipment. c. Causes external to the product, such as electrical power fluctuations or failure. d. Use of supplies or parts not meeting ViewSonic’s specifications. e. Normal wear and tear. f. Any other cause which does not relate to a product defect.

3. Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time.

4. Removal, installation, insurance, and set-up service charges.

Page 87

How to get service:

For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to the attached Customer Support page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim. For Your Records

Product Name: ________________________ Model Number: ____________________________ Document Number: ____________________ Serial Number: ____________________________ Purchase Date: ________________________ Extended Warranty Purchase? _____________(Y/N) If so, what date does warranty expire? __________

1. To obtain warranty service, you will be required to provide (a) the original dated

sales slip, (b) your name, (c) your address, (d) a descripon of the problem, and

(e) the serial number of the product.

2. Take or ship the product in the original container packaging to an authorized ViewSonic service center.

3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based

upon inconvenience, loss of use of the product, loss of me, loss of prots, loss of business opportunity, loss of goodwill, interference with business relaonships,

or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

4. Repair or attempted repair by anyone not authorized by ViewSonic.

Page 88

Contact Informaon for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:

Name, address, of manufacturer and importers:

México, Av. de la Palma #8 Piso 2 Despacho 203, Corporavo Interpalmas,

Col. San Fernando Huixquilucan, Estado de México

Tel: (55) 3605-1099 hp://www.viewsonic.com/la/soporte/index.htm

NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004

Hermosillo:

Distribuciones y Servicios Computacionales SA de CV. Calle Juarez 284 local 2 Col. Bugambilias C.P: 83140 Tel: 01-66-22-14-9005

E-Mail: [email protected]

Villahermosa:

Compumantenimietnos Garanzados, S.A. de C.V.

AV. GREGORIO MENDEZ #1504 COL, FLORIDA C.P. 86040 Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09

E-Mail: [email protected]

Puebla, Pue. (Matriz):

RENTA Y DATOS, S.A. DE C.V. Domicilio: 29 SUR 721 COL. LA PAZ 72160 PUEBLA, PUE. Tel: 01(52).222.891.55.77 CON 10 LINEAS

E-Mail: [email protected]

Chihuahua

Soluciones Globales en Computación C. Magisterio # 3321 Col. Magisterial Chihuahua, Chih. Tel: 4136954

E-Mail: [email protected]

Distrito Federal:

QPLUS, S.A. de C.V. Av. Coyoacán 931 Col. Del Valle 03100, México, D.F. Tel: 01(52)55-50-00-27-35

E-Mail : [email protected]

Guerrero Acapulco

GS Computación (Grupo Sesicomp) Progreso #6-A, Colo Centro 39300 Acapulco, Guerrero Tel: 744-48-32627

Veracruz, Ver.:

CONEXION Y DESARROLLO, S.A DE C.V. Av. Americas # 419 ENTRE PINZÓN Y ALVARADO Fracc. Reforma C.P. 91919 Tel: 01-22-91-00-31-67

E-Mail: [email protected]

Cuernavaca Compusupport de Cuernavaca SA de CV Francisco Leyva # 178 Col. Miguel Hidalgo C.P. 62040, Cuernavaca Morelos Tel: 01 777 3180579 / 01 777 3124014

E-Mail: [email protected]

Guadalajara, Jal.:

SERVICRECE, S.A. de C.V. Av. Niños Héroes # 2281 Col. Arcos Sur, Sector Juárez 44170, Guadalajara, Jalisco Tel: 01(52)33-36-15-15-43

E-Mail: [email protected]

Monterrey:

Global Product Services Mar Caribe # 1987, Esquina con Golfo Pérsico Fracc. Bernardo Reyes, CP 64280 Monterrey N.L. México Tel: 8129-5103

E-Mail: [email protected]

MERIDA:

ELECTROSER

Av Reforma No. 403Gx39 y 41 Mérida, Yucatán, México CP97000 Tel: (52) 999-925-1916 E-Mail: [email protected]

Tijuana:

STD Av Ferrocarril Sonora #3780 L-C Col 20 de Noviembre Tijuana, Mexico

Projector Mexico Warranty Term Template In UG

VSC_TEMP_2006

Oaxaca, Oax.:

CENTRO DE DISTRIBUCION Y SERVICIO, S.A. de C.V. Murguía # 708 P.A., Col. Centro, 68000, Oaxaca Tel: 01(52)95-15-15-22-22 Fax: 01(52)95-15-13-67-00 E-Mail. [email protected]

FOR USA SUPPORT:

ViewSonic Corporation 14035 Pipeline Ave. Chino, CA 91710, USA Tel: 800-688-6688 E-Mail: http://www.viewsonic.com

Page 89
