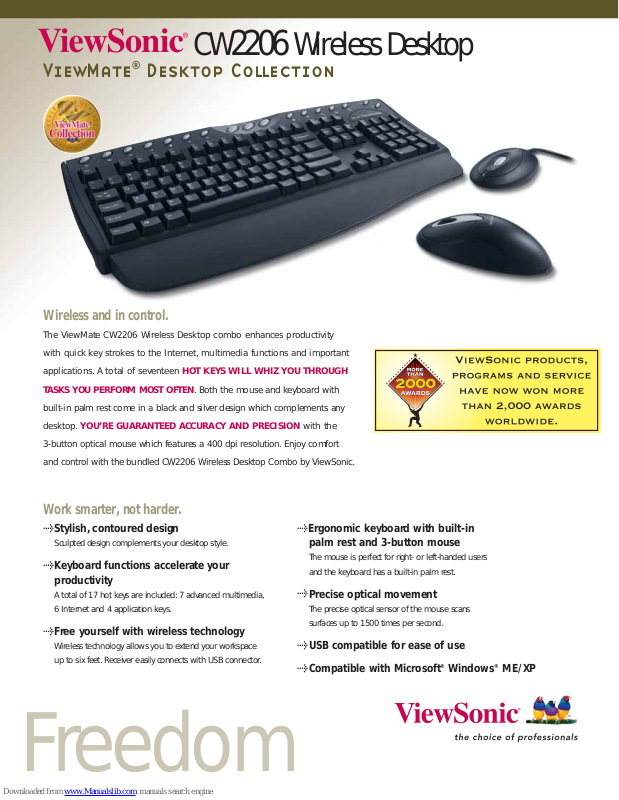

ViewSonic ViewMate CW2206 Specifications
CW2206 Wireless Desktop
ViewMate®Desktop Collection
Wireless and in control.
The ViewMate CW2206 Wireless Desktop combo enhances productivity
with quick key strokes to the Internet, multimedia functions and important
applications. A total of seventeen HOT KEYS WILL WHIZ YOU THROU GH
TASKS YOU PERFORM MOST OFTEN. Both the mouse and keyboard with
built-in palm rest come in a black and silver design which complements any
desktop. YOU’RE GUARANTE ED ACC U RACY AN D PR ECI SION with the
3-button optical mouse which features a 400 dpi resolution. Enjoy comfort
and control with the bundled CW2206 Wireless Desktop Combo by ViewSonic.
Work smarter, not harder.
>
Stylish, contoured design
Sculpted design complements your desktop style.
>
Keyboard functions accelerate your
productivity
A total of 17 hot keys are included: 7 advanced multimedia,
6 Internet and 4 application keys.
>
Free yourself with wireless technology
Wireless technology allows you to extend your workspace
up to six feet. Receiver easily connects with USB connector.
>
Ergonomic keyboard with built-in
palm rest and 3-button mouse
The mouse is perfect for right- or left-handed users
and the keyboard has a built-in palm rest.
>
Precise optical movement
The precise optical sensor of the mouse scans
surfaces up to 1500 times per second.
>
USB compatible for ease of use
>
Compatible with Microsoft®Windows®ME/XP
Freedom
p
CW2206 Wireless Desktop
ViewMate®Desktop Collection
VIEWMATE WIRELESS DESKTOP COMBO
6 Internet hot keys
4 application hot keys
7 multimedia hot keys
Removable palm rest
Receiver
Wireless mouse
DIMENSIONS Keyboard 474mm x 43mm x 244mm
(W X H X D) 18.7" x 1.7" x 9.6"
WEIGHT Keyboard-Net 2.5 lb. (1.2 kg)
KEYBOARD LAYOUT 104 keys with QWERTY format
SPECIAL KEYS Multimedia 7 multimedia hot keys (volume up, volume down, mute,
OPERATING Temperature 0 – +40°C
CONDITIONS Humidity 90–95% RH Max
MOUSE SENSOR Type Agilent 2030
POWER
CONSUMPTION Keyboard Sleep <200vA
COMPATIBILITY PC Windows®Me/XP
REGULATION WHQL, FCC-B, CE, BSMI, DGT, Canada 210
PACKAGE CONTENT Keyboard, mouse, receiver, palm rest, user guide
WARRANTY One-and-a-half-year limited warranty
Mouse 129mm x 38.5mm x 65.3mm
5.1" x 1.5" x 2.6"
Receiver 139mm x 31mm x 65mm
5.5" x 1.2" x 2.6"
Mouse-Net 0.16 lb. (0.08 kg)
Combo-Gross 4.11 lb. (1.9 kg)
previous, stop, play, next track)
Internet 6 Internet hot keys (home, e-mail, search, my favorites,
backward, forward)
Application 4 application hot keys (power, sleep, wake up, calculator)
Total of 17 enhanced function keys
Resolution 400 dpi
Frame rate 1500 fps
Sensor LED Red color
Keyboard Operation
Mouse Operation <30mA
Mouse Sleep <5mA
<10mA
and AA batteries (4)
ecifications
s
ViewSonic Corporation’s QMS & EMS have been registered
to ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Phone (800) 888-8583 or (909) 444-8888 • In Canada (866) 262-1967 • Fax (909) 839-7922 • SalesInfo@ViewSonic.com • ViewSonic.com
Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2005 ViewSonic Corporation. All rights reserved.
[12334-00B-02/05] CW2206-1
For more product information, visit us on the web at ViewSonic.com
