Vertex Wireless VW340 User Manual

1.Product Overview 1

USER MANUAL V.1.5E

Table of Contents

Technical Specification

1. Product Overview

Package Contents 05 System Requirements Features Hardware Overview

05 06 07

2. Installation

3. Configuration

Web-based Configuration 11 Basic Setup

Connection Setting Status

CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series

11 12

Advanced Setup

IP Setup Wireless Setup Traffic Control Security Utility

4. Administrator

5. Status

6. Troubleshooting

13 15 22 25 29

1.Product Overview 3

Standards

IEEE 802.11g IEEE 802.11b

Wireless Signal Rates

54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 11Mbps 9Mbps 6Mbps 5.5Mbps 2Mbps 1Mbps

Security

64/128-bit WEP WPA-PSK WPA-PSK2

Frequency Range

2.4GHz to 2.483GHz

CDMA Frequency Range

VW310 Rx: 463 ~ 468MHz

Tx: 453 ~ 458MHz

VW340 Rx: 859.64 ~ 893.37MHz

Tx: 824.64 ~ 848.37MHz Rx: 1930 ~ 1989.95MHz Tx: 1850 ~ 1909.95MHz

Channel Bandwidth

CDMA 1.23MHz

AC Adaptor

AC 110~240V, 50~60Hz DC 5.0V / 2.0A

LEDs

Power Signal 1x/EVDO WAN WLAN

Operating temperature

-20 °C ~ +60 °C

Storage temperature

-30 °C ~ +70 °C

Humidity

5 ~ 95%

Dimension

115(W)x64(D)x14.5(H)mm

Operating time

Working time: 2Hrs Standby time: 3Hrs

CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 4

1.Product Overview 5

Package Contents

○1Main set

○

AC adaptor

○

User manual

System Requirements

• At least one computer with an installed wireless network interface card or adaptor

• TCP/IP networking protocol installed on each computer

• Internet browser

Features

◆Faster Wireless Networking The VW300 provides up to 54Mbps wireless connection

with other 802.11g wireless clients.

◆Compatible with 802.11b Devices The VW300 is still fully compatible with the IEEE 802.11b

standards, so it can connect with existing 802.11b PCI, USB and Cardbus adaptors.

◆Advanced Firewall feature The Web-based user interface displays a number of

advanced network management features including:

Address, and/or URL.

Secure Multiple/Concurrent Sessions – The VW300 can pass through VPN sessions. It supports multiple and concurrent IPSec and PPTP sessions, so users behind the VW300 can surely access corporate network.

*Maximum wireless signal rate derived from IEEE Standard specification. Actual data throughput will vary. CDMA Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range.

Filter Scheduling – These filters can be scheduled to be active on certain days or for a duration of hours or minutes.

Parental Controls – Easily applied content filtering based on MAC

CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 6

1.Product Overview 7

Hardware Overview

○

Power

ctivity Description

OFF Power is not supplied to the route Solid Blue Power is supplied to the router with either

Adaptor or Battery (Full charged) Solid Violet Power is supplied to the router with half batter Solid Red Power is supplied to the router with low batter Blinking Blue Charging the batter Blinking Red Error with charging battery (bad battery, etc)

○

Signal

ctivity Description

OFF No 1x or E

-DO signal Solid Blue Strongest level Solid Violet Medium level Solid Red Low level

○

1x/EV-DO

ctivity Description

WAN

○

ctivit

Description

OFF Router is disconnected Solid Blue Router is connected to WAN

○

WLAN

ctivit

Description

OFF No Wi-Fi is used Solid Blue Wi-Fi is activated Blinking Blue

ctive data passed through Wi-Fi

Connector

○

micro SD slot for file sharing

○

USB (Mini-B) slot for battery charging

External antenna port

○

Antenna

○

ON/OFF Button

○

OFF Router is connected to 1 Solid Blue Router is connected to EV-DO

CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 8

2.Installation 9

Wireless Installation Considerations

The VW300 wireless router let your network using a wireless connection from virtually anywhere within the operating range of your wireless network. However, the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF noise in your home or business.

1. Router should be placed at the position with good CDMA signal.

2. Keep the number of walls and ceilings between the VW300 and other network devices to a minimum-each wall or ceiling can reduce your adaptor’s range from 1~30 meters. Position your devices so that the number of walls or ceilings is minimized.

3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (fish tanks), mirrors, file cabinets, brick, and concrete will degrade your wireless signal.

4. Keep your product away (at least 1~2 meters) from electrical devices or appliances that generate RF noise.

5. If you are using 2.4GHz cordless phones or X – 10 (wireless products such as ceiling fans, lights, and home security systems), your wireless connection may degrade dramatically or drop completely. Make sure your

2.4GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not in use

CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 10

3.Configuration 11

Web-based Configuration

Please open a web-browser and enter the IP address of the router (192.168.200.1)

You will see the Router’s login page in your browser window. Enter login password and press “Login” button to log in.

** Note: The Router ships with no password entered. In the login screen, leave the password blank and click the “Login” button to log in.

Basic setup

□▶Connection Setting

[Internet Setting]

Basic setting Enter your PPP user name, password and Dial

System Selection Select the CDMA system from the drop-down

(Provided by operator. Default dial: #777)

menu:1x and EVDO, 1x, and EVDO

[Wireless Setting]

Wireless Mode Select enabled to use Wi-Fi feature otherwise

select disabled. If you select Enabled, SSID and Wireless Security will be displayed below

SSID Service Set Identifier is the name of your

wireless network. Create a name using up to 32 characters.

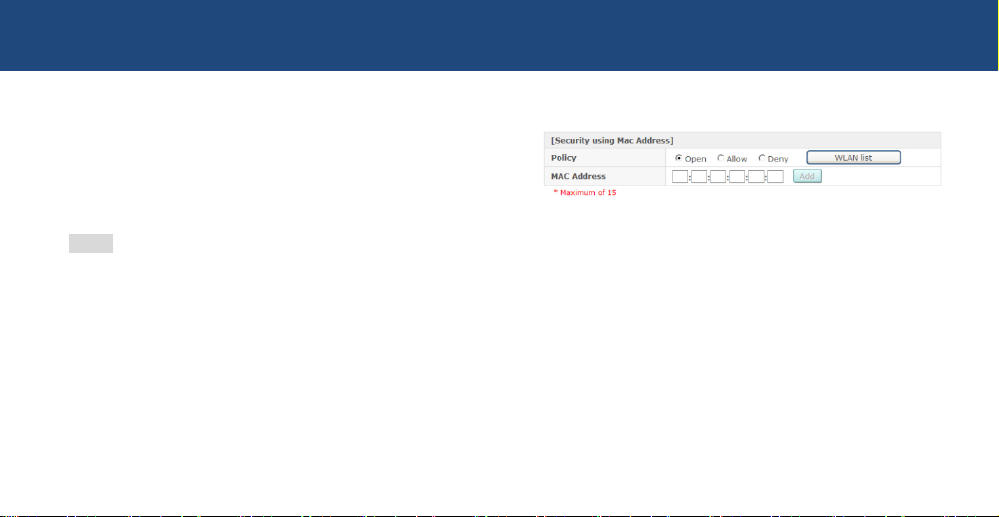

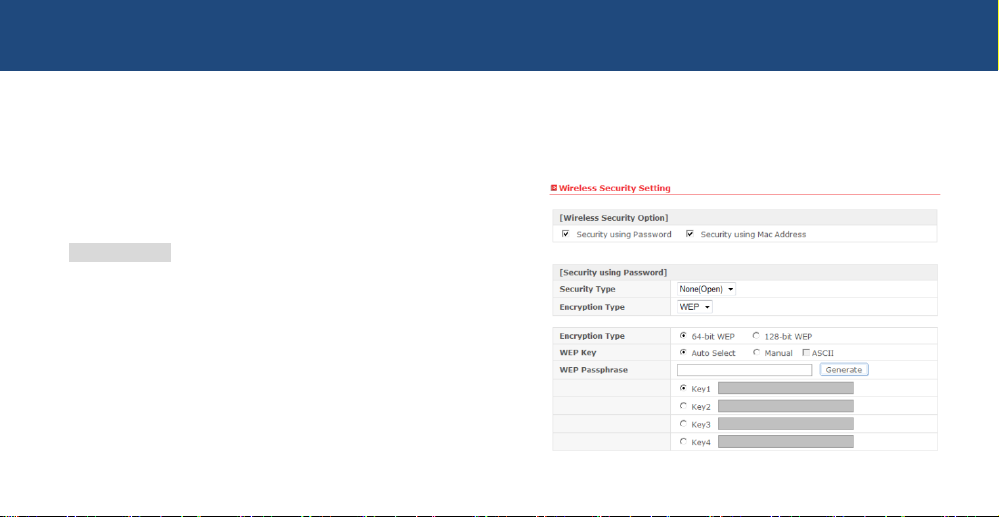

Wireless Security Select Enabled to use Wireless Security

otherwise select Disabled. If you select Enabled, Wireless Code will be displayed below (Default security option is WPA-PSK TKIP. If you want to have more option, go to Wireless Setup under Advanced Setup)

Wireless Code Enter security code for WPA-PSK TKIP

encryption if you want to use Wi-Fi security option

▶

□

Status

You can check current Router status via this menu.

CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 12

3.Configuration 13

Advanced Setup

This menu provides various enhanced network function configuration and recommend to expert user. It’s not necessary for all users.

-IP Setup

▶

□

Internet Setting

[Internet Setting]

Basic setting Enter your PPP user name, password and

System Selection Select a CDMA system from the drop-

[Dynamic IP]

DNS Server Select either Manual or Auto select for DNS

Primary DNS Address Enter the Primary DNS server IP assigned

Secondary DNS Address Enter the Secondary DNS server IP assigned by your ISP (optional)

Dial (Provided by operator. Default dial: #777)

down menu: 1x and EVDO, 1x, and EVDO

server.

by your ISP

MTU Maximum Transmission Unit – you may need to change the MTU for optimal

performance with your specific ISP. Auto select is the default MTU

▶

□

LAN Setting

IP Address This is the internal IP address of the Router.

The default IP address is “192.168.200.1” and it can be changed if needed.

Subnet Mask This is a unique, advanced feature of the

Router. The default is “255.255.255.0” and it can be changed if needed.

DHCP Server The Dynamic Host Control Protocol (DHCP) server will automatically assign an IP address to the

computers on the LAN/private network. Select Enabled to use DHCP server otherwise select Disabled

** Note: To use DHCP server, be sure to set your computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.

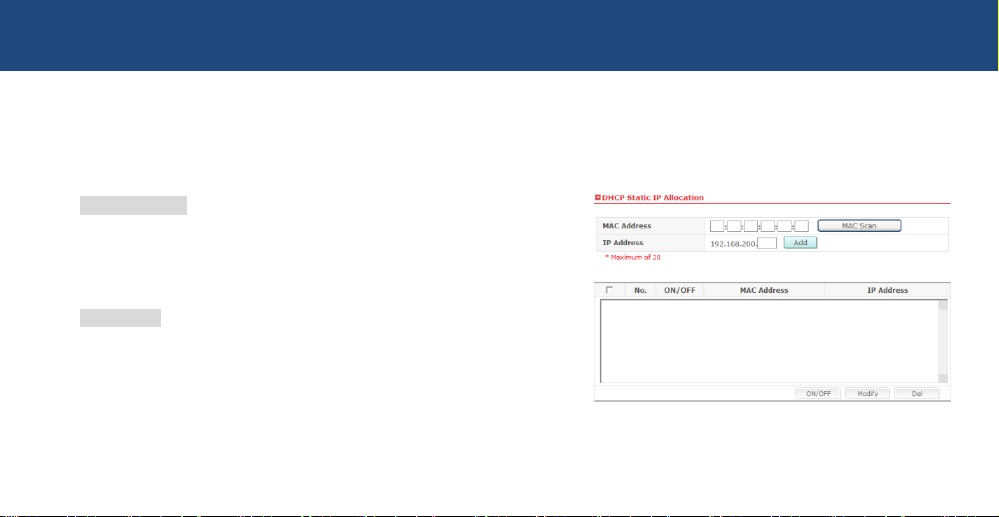

DHCP IP Pool Enter the starting and ending IP addresses for the DHCP server’s IP assignment.

The default range is 100-200.

CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 14
