Velleman VMB8PBU Datasheet
Velleman N.V.
V
This pushbutton interface module allows you to connect up to 8 pushbuttons from any brand to your Velbus installation. Easy connection of
This pushbutton interface module allows you to connect up to 8 pushbuttons from any brand to your Velbus installation. Easy connection of
optionalnotification and backlight LEDs.
March 2011
Datasheet

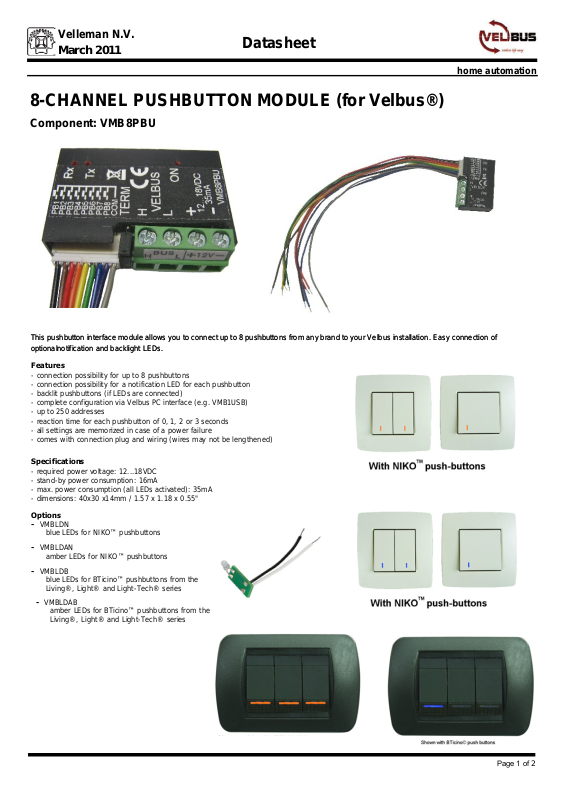

8-CHANNEL PUSHBUTTON MODULE (for Velbus®)
Component: VMB8PBU
home automation
optionalnotification and backlight LEDs.
Features
- connection possibility for up to 8 pushbuttons
- connection possibility for a notification LED for each pushbutton
- backlit pushbuttons (if LEDs are connected)
- complete configuration via Velbus PC interface (e.g. VMB1USB)
- up to 250 addresses
- reaction time for each pushbutton of 0, 1, 2 or 3 seconds
- all settings are memorized in case of a power failure
- comes with connection plug and wiring (wires may not be lengthened)
Specifications
- required power voltage: 12...18VDC
- stand-by power consumption: 16mA
- max. power consumption (all LEDs activated): 35mA
- dimensions: 40x30 x14mm / 1.57 x 1.18 x 0.55"
Options
VMBLDN
-
blue LEDs for NIKO™ pushbuttons
MBLDAN
-
amber LEDs for NIKO™ pushbuttons
VMBLDB
-
blue LEDs for BTicino™ pushbuttons from the
Living®, Light® and Light-Tech® series
VMBLDAB
-
amber LEDs for BTicino™ pushbuttons from the
Living®, Light® and Light-Tech® series
Page 1 of 2
Velleman N.V.
March 2011
Page 2 of 2
