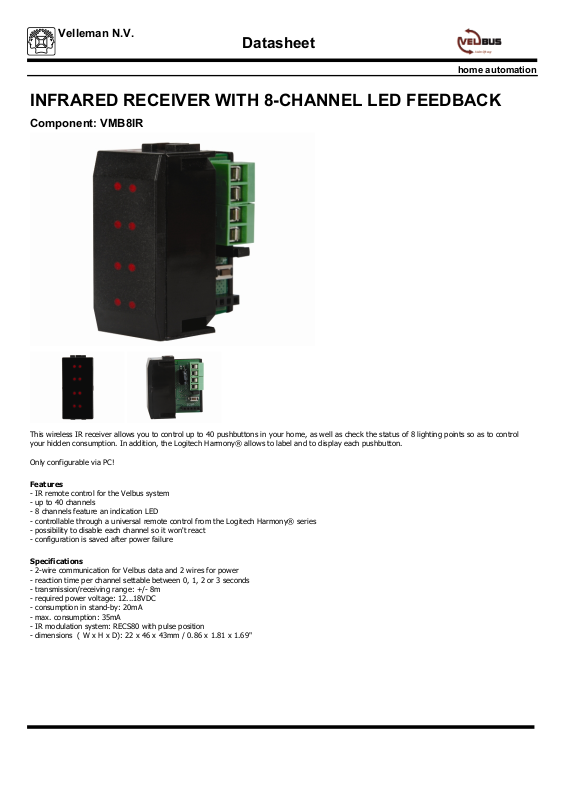

Velleman VMB8IR Datasheet

Velleman N.V.

Datasheet

home automation

INFRARED RECEIVER WITH 8-CHANNEL LED FEEDBACK

Component: VMB8IR

This wireless IR receiver allows you to control up to 40 pushbuttons in your home, as well as check the status of 8 lighting points so as to control
your hidden consumption. In addition, the Logitech Harmony® allows to label and to display each pushbutton.

Only configurable via PC!

Features

- IR remote control for the Velbus system

- up to 40 channels

- 8 channels feature an indication LED

- controllable through a universal remote control from the Logitech Harmony® series

- possibility to disable each channel so it won't react

- configuration is saved after power failure

Specifications

- 2-wire communication for Velbus data and 2 wires for power

- reaction time per channel settable between 0, 1, 2 or 3 seconds

- transmission/receiving range: +/- 8m

- required power voltage: 12...18VDC

- consumption in stand-by: 20mA

- max. consumption: 35mA

- IR modulation system: RECS80 with pulse position

- dimensions ( W x H x D): 22 x 46 x 43mm / 0.86 x 1.81 x 1.69"

Page 1 of 4
