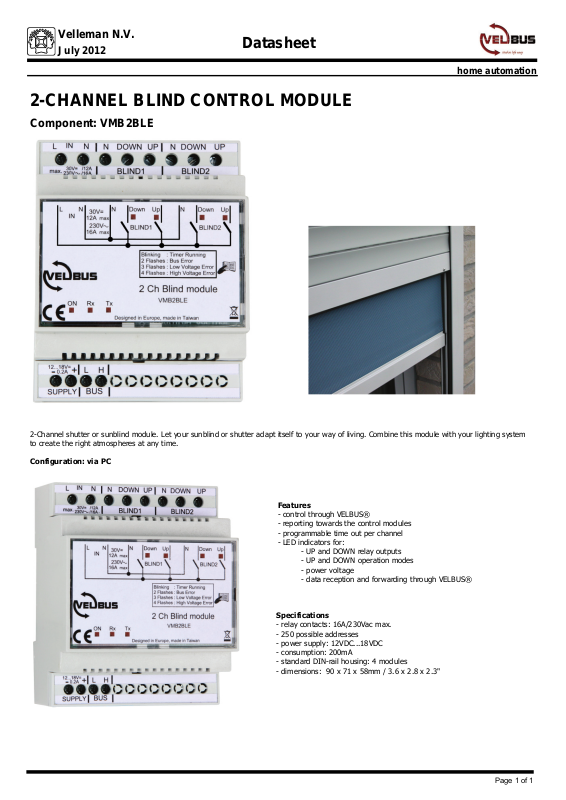

Velleman VMB2BLE Datasheet

Velleman N.V.

July 2012

Datasheet

2-CHANNEL BLIND CONTROL MODULE

Component: VMB2BLE

home automation

2-Channel shutter or sunblind module. Let your sunblind or shutter adapt itself to your way of living. Combine this module with your lighting system
to create the right atmospheres at any time.

Configuration: via PC

Features

- control through VELBUS®

- reporting towards the control modules

- programmable time out per channel

- LED indicators for:

- UP and DOWN relay outputs

- UP and DOWN operation modes

- power voltage

- data reception and forwarding through VELBUS®

Specifications

- relay contacts: 16A/230Vac max.

- 250 possible addresses

- power supply: 12VDC...18VDC

- consumption: 200mA

- standard DIN-rail housing: 4 modules

- dimensions: 90 x 71 x 58mm / 3.6 x 2.8 x 2.3"

Page 1 of 1
