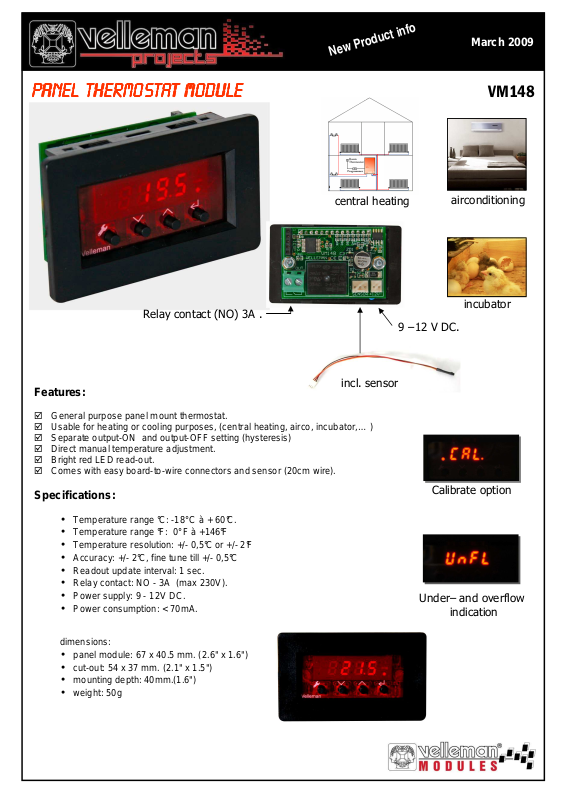

Velleman VM148 Datasheet

N

Panel Thermostat module

Panel Thermostat module

Panel Thermostat module Panel Thermostat module

o

f

n

i

t

c

u

d

o

r

P

w

e

March 2009

VM148

central heating

Relay contact (NO) 3A .

Features:

 General purpose panel mount thermostat.
 Usable for heating or cooling purposes, (central heating, airco, incubator,… )
 Separate output-ON and output-OFF setting (hysteresis)
 Direct manual temperature adjustment.
 Bright red LED read-out.
 Comes with easy board-to-wire connectors and sensor (20cm wire).

Specifications:

•

Temperature range °C: -18° C à + 60°C.

•

Temperature range °F: 0° F à +146°F

•

Temperature resolution: +/- 0,5°C or +/- 2°F

•

Accuracy: +/- 2°C, fine tune till +/- 0,5°C

•

Readout update interval: 1 sec.

•

Relay contact: NO - 3A (max 230V).

•

Power supply: 9 - 12V DC.

•

Power consumption: < 70mA.

dimensions:

•

panel module: 67 x 40.5 mm. (2.6" x 1.6")

•

cut-out: 54 x 37 mm. (2.1" x 1.5")

•

mounting depth: 40mm.(1.6")

•

weight: 50g

incl. sensor

airconditioning

incubator

9 –12 V DC.

Calibrate option

Under– and overflow

indication
