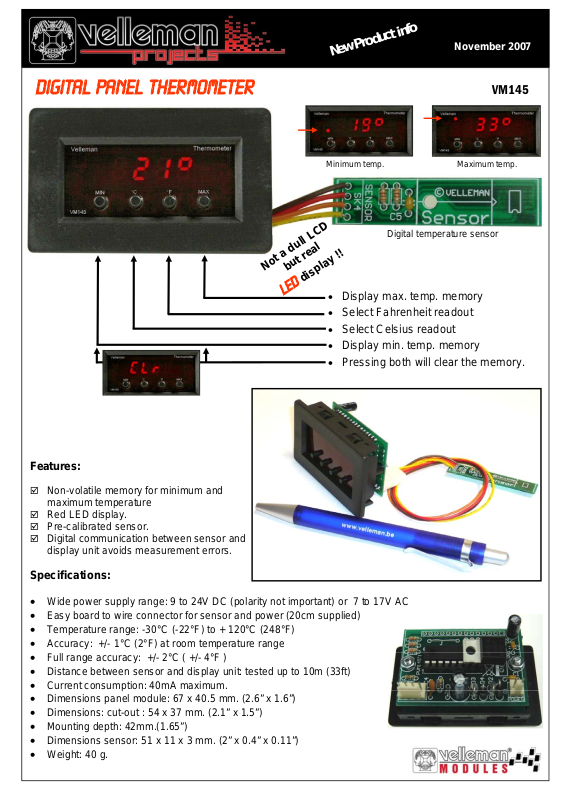

Velleman VM145 Datasheet

o

f

n

i

t

c

u

d

o

r

P

N

w

e

November 2007

Digital panel thermometer VM145

N

Minimum temp.

D

C

L

l

l

u

l

d

a

a

re

t

t

o

u

b

s

i

d

D

E

L

!

!

y

a

l

p

• Display max. temp. memory

• Select Fahrenheit readout

• Select Celsius readout

• Display min. temp. memory

• Pressing both will clear the memory.

Digital temperature sensor

Maximum temp.

Features:

 Non-volatile memory for minimum and

maximum temperature

 Red LED display.
 Pre-calibrated sensor.
 Digital communication between sensor and

display unit avoids measurement errors.

Specifications:

• Wide power supply range: 9 to 24V DC (polarity not important) or 7 to 17V AC

• Easy board to wire connector for sensor and power (20cm supplied)

• Temperature range: -30°C (-22°F) to + 120°C (248°F)

• Accuracy: +/- 1°C (2°F) at room temperature range

• Full range accuracy: +/- 2°C ( +/- 4°F )

• Distance between sensor and display unit: tested up to 10m (33ft)

• Current consumption: 40mA maximum.

• Dimensions panel module: 67 x 40.5 mm. (2.6” x 1.6”)

• Dimensions: cut-out : 54 x 37 mm. (2.1” x 1.5”)

• Mounting depth: 42mm.(1.65”)

• Dimensions sensor: 51 x 11 x 3 mm. (2” x 0.4” x 0.11”)

• Weight: 40 g.
