Velleman VM118r User Manual [en, de, es, fr]
EIGHT CHANNEL RF REMOTE CONTROL
VM118R
d
r
a
c
y
a
l
e
r
8
1
1
M
V
/
6
5
0
8
K
e
h
t
h
t
i
w
e
s
u
r
o
F
8-channel RF remote control 3
8-Kanaals RF afstandsbediening 9
Emetteur RF 8 canaux 15
8-Kanal-RF-Sender 21
Emisor RF de 8 canales 27
FCC information for the USA
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Consult the dealer or an experienced radio/TV technician for help.
If the user modifies this unit, and these modifications are not approved by Velleman, the FCC may withdraw
the user’s right to operate the equipment.
Details on the FCC regulation can aslo be found on the internet at http://www.fcc.gov
For questions regarding your product, contact:
Velleman Inc, 7354 Tower Street, Fort Worth, TX 76118
Or head office Velleman:
Legen Heirweg 33, 9890 Gavere
Belgium
FCC approved ID code : NLO8058
Thank you for purchasing this module. Please read the instructions carefully to ensure correct and safe use of this device.
WARRANTY
This product is guaranteed against defects in components and construction from the moment it is purchased and for a period of TW O YEAR starting from the
date of sale. This guarantee is only valid if the unit is submitted together with the original purchase invoice. VELLEMAN components Ltd limits its
responsibility to the reparation of defects or, as VELLEMAN components Ltd deems necessary, to the replacement or reparation of defective components.
Costs and risks connected to the transport, removal or placement of the product, or any other costs directly or indirectly connected to the repair, will not be
reimbursed by VELLEMAN components Ltd. VELLEMAN components Ltd will not be held responsible for any damages caused by the malfunctioning of a unit.
CONTENTS :
FEATURES & SPECIFICATIONS..................................................................................................................................................................4
USE...................................................................................................................................................................................................................5
SETUP..............................................................................................................................................................................................................6
SAFETY AND WARNING INSTRUCTIONS.................................................................................................................................................. 8
READ THE OPERATING AND MAINTENANCE INSTRUCTIONS IN
THIS USER’S GUIDE CAREFULLY.
3

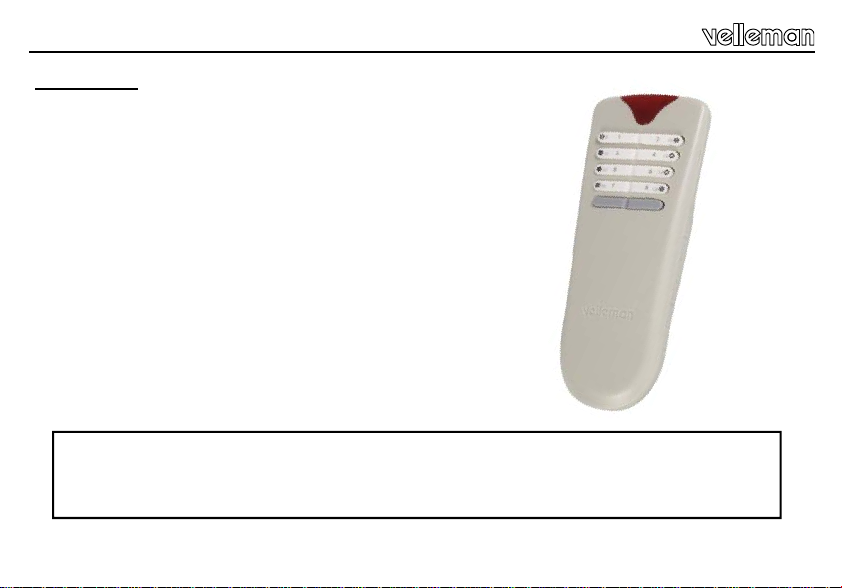

Transmitter
TRANSMITTER :
FEATURES
Works together with the K8056/VM118 relay card.
8 addresses allow the use of multiple receivers
'all clear'- function
Toggle or momentary mode for each key
Open-field range up to 50m
Rubber keypad
SPECIFICATIONS
8 digital encoded channels
433MHz operation
LED function/mode indication
Power supply: 3 AAA batteries (not included)
Dimensions: 150x58x23mm
FCC approved ID code: NLO8058
Velleman hereby certifies that the device VM118 meets the essential requirements and all other relevant
stipulations of directive 1999/5/EG and 1995/5/EC.
For the complete conformity declaration check out :http://www.velleman.be/downloads/doC/declaration_VM118.pdf
4
USE
Transmitter

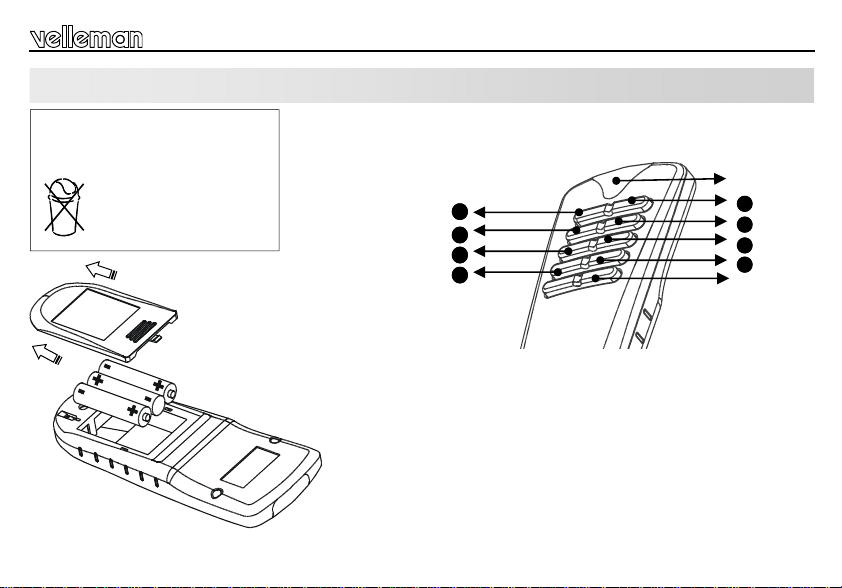

Insert the batteries in the battery
compartment as indicated in figure
and close the compartment.
Remark : Respect your
national and local laws when
disposing of empty batteries.
CHANNEL SELECTION
LED
1
3
5
7
• Channels 1..8 can be configured as 'toggle' (on/off) or pulse (see set-up)
• The indicator LED will briefly light when a button is pressed.
• Briefly pressing the shift button turns off all relays.
Note: All settings remain in memory after battery replacement
2
4
6
8
SHIFT
5
Setup
SETUP
Hold 'shift' until the LED lights to enter the 'set-up' mode.
Choose one of the following options by pressing the corresponding button :
(1) ‘Toggle’/’pulse’-selection.
(2) Display the current remote control address
(3) Change remote/relay card address
(4) Force remote/relay card address to address 1
(1) ‘Toggle’/’pulse’-selection (LED flashes once) :
Allows you to select ‘toggle’ or ‘pulse’mode for each channel.
Pressing a channel button (1..8) repeatedly allows you to choose between 'toggle'- and 'pulse'-mode for that particular
channel (LED flashes once : pulse, two flashes : toggle).
Press 'shift' to leave this mode. Press ‘shift’ again to leave set-up mode.
(2) Display the current remote control address on the K8056/V M118 relay card (LED flashes twice) :
Relay LEDs display the address in binary fashion i.e. LD8 : LSB, LD1 : MSB
Press ‘shift’ to leave the set-up mode.
(3) Change the current address of the remote and relay card (available addresses : 1..8) (LED flashes three times) :
Press button 1..8 to change the current address of the remote and the relay card.
The relay card will display the current address in binary fashion (see (2)).
Attention : All active cards will respond to this command (except when the ‘remote control’ jumper on the relay card is set to
‘off’). Press ‘shift’ to leave this mode. Press ‘shift’ again to leave the set-up mode.
6
Setup
4) Force the remote/relay card to address 1.
If the receiver (e.g. K8056 or VM118) has been set to an address other than 1..8, you can force it to respond to address 1.
Attention : All active cards will respond to this command (except when the ‘remote control’ jumper on the relay card is
set to ‘off’). Press ‘shift’ to leave the set-up mode.
7
Safety & warning instructions
WARNINGS
All repairs should be executed by qualified technicians.
Avoid the installation of the module in locations with standing or running water or excessive humidity. Indoor use only !
SAFETY INSTRUCTIONS
Handle the module g entl y and c arefu lly. D ro pping it c an damag e t he cir cuit boar d.
Never exceed the protection limit values indicated in the specifications.
As safety requirement vary , plea se c heck w ith y our l ocal auth oriti es.
Facilitate the operation of the device by familiarising yourself with its adjustments and indications.
Velleman modules are not suitable for use or as part of life support systems, or systems that might create hazardous situations of kind.
Repair under warranty is only possible with date and proof o f purchase .
8
Hartelijk dank voor de aanschaf van deze module. Lees de gebruiksaanwijzing aandachtig, zodat u het apparaat op de juiste
manier gebruikt.
WAARBORG
Dit produkt is gewaarborgd wat betreft gebreken in materialen en vakmanschap op het ogenblik van de aankoop en dit gedurende een periode van TWEE
JAAR vanaf de aankoop. De waarborg geldt enkel indien het produkt voorgelegd wordt samen met het origineel aankoop bewijs. De verplichtingen van
VELLEMAN COMPONENTS N.V. beperken zich tot het herstellen van defecten of, naar vrije keuze van VELLEMAN COMPONENTS N.V., tot het vervangen
of herstellen van defecte onderdelen. Kosten en risico’s van transport; het wegnemen en terugplaatsen van het produkt, evenals om het even welke andere
kosten die rechtstreeks of onrechtstreeks verband houden met de herstelling, worden niet door VELLEMAN COMPONENTS N.V. vergoed. VELLEMAN
COMPONENTS N.V. is niet verantwoordelijk voor schade van gelijk welke aard, veroorzaakt door het falen van een product.
INHOUD :
KENMERKEN & SPECIFICATIES................................................................................................................................................................10
GERBUIK........................................................................................................................................................................................................ 11
INSTELLING................................................................................................................................................................................................... 12
VEILIIGHEIDSAANWIJZINGEN EN WAARSCHUWINGEN...................................................................................................................... 14
LEES DE GEBRUIKS - EN ONDERHOUDSAANWIJZINGEN VAN DE
HANDLEIDING ZORGVULDIG DOOR.
9
Zender
ZENDER :
EIGENSCHAPPEN
Voor gebruik met de K8056/VM118 relaiskaart
Dankzij de 8 adressen kunnen meerdere ontvangers worden gebruikt
'All clear'- functie
Voor elke uitgang kunt u momentcontact of wisselcontact instellen
Bereik tot 50m (ononderbroken gezichtslijn)
Rubberen toetsenbord
TECHNISCHE GEGEVENS
8 digitaal gecodeerde kanalen
Werkt op 433MHz
LED indicatie functie/mode
Voeding : 3 AAA batterijen (niet bijgeleverd)
Afmetingen: 150x58x23mm
FCC goedgekeurd ID code : NLO8058
Hierbij verklaart Velleman components N.v. dat het toestel VM118 in overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van richtlijn 1999/5/EG en 1999/5/EC.
Voor d e v o l l e d i g e o v e reenstem m e n d e v e r k l aring zie : http://www.velleman.be/downloads/doC/declaration_VM118.pdf
10
GEBRUIK
Zender
Plaats drie AAA batterijen in de
batterijhouder (zie figuur)
Opmerking : Respecteer de
nationale en lokale wetten
wanneer u lege batterijen
weggooit.
KANAALKEUZE
LED
1
3
5
7
• Kanalen 1...8 kunnen als wisselcontact (on/off) of als momentcontact
worden ingesteld (zie configuratie).
• De indicatie LED licht eventjes op wanneer u een knop indrukt.
• Druk kort op de shift toets om alle relais uit te schakelen.
Opmerking: Alle instellingen blijven opgeslagen na vervanging van de
batterij.
2
4
6
8
SHIFT
11
