Operating Instructions
TDR sensor for continuous level and
interface measurement of liquids
VEGAFLEX 86
Modbus and Levelmaster protocol
Coax probe
Document ID: 42288
Quick start
Mounting
Electrical connection
Quick start
The quick start procedure enables a quick setup with many applica-
tions. You can nd further information in the respective chapters of the
operating instructions manual.
Distance from the metallic vessel wall > 300 mm. Distance from
→
non-metallic vessel wall > 500 mm. The probe must not touch any
installations or the vessel wall.
For further information see chapter "Mounting".
1. Make sure that the power supply corresponds to the specica-
tions on the type label.
2. Connect the instrument according to the following illustration
1
USB
MODBUS
)
+
(
power supply
(-)
( )
1345
2off
+
Fig. 1: Connection compartment
1 USB connection
2 Slideswitchforintegratedterminationresistor(120Ω)
For further information see chapter "Connecting to power supply".
(-)
IS GND
D0
D1
2
on
Set parameters
2
For standard applications we recommend selecting the "Quick setup"
in the display and adjustment module.

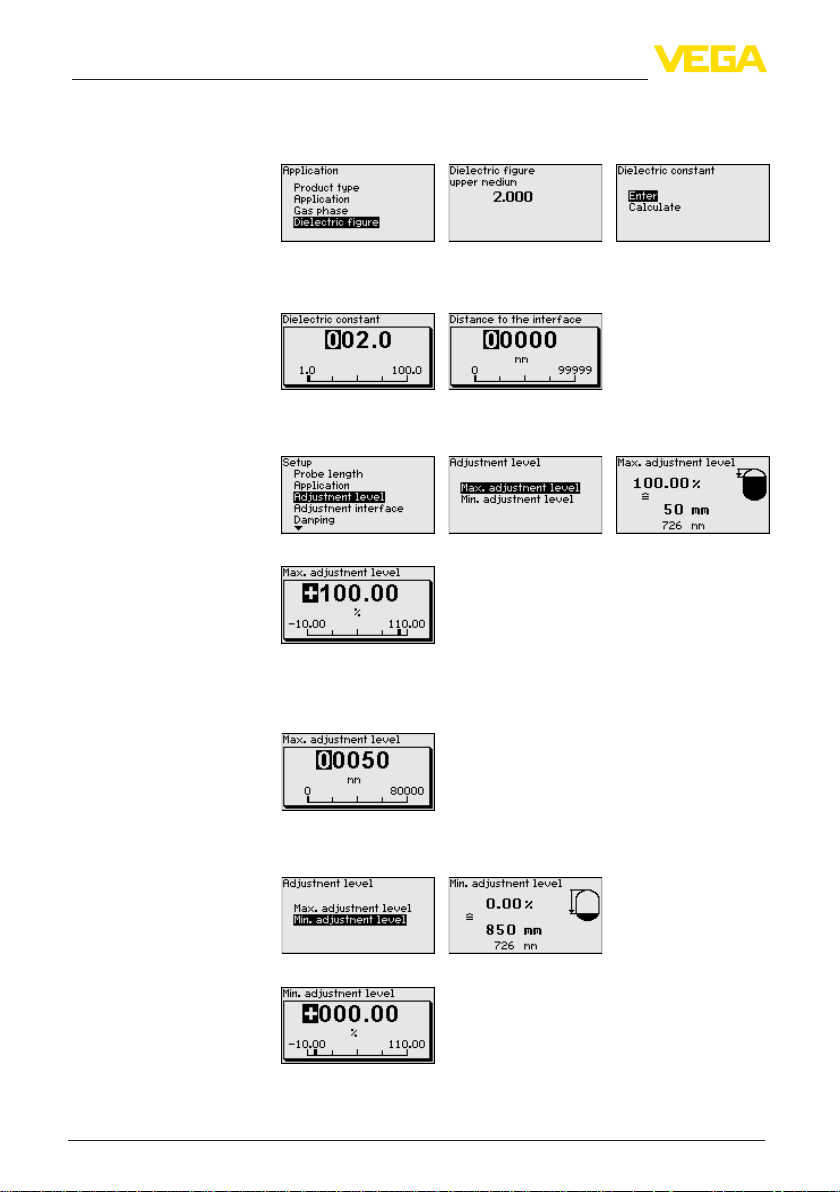

1. In this menu item you can select the application. You can choose
between level and interface measurement.
2. In the menu item "Medium - Dielectric constant" you can dene
the medium type (medium).

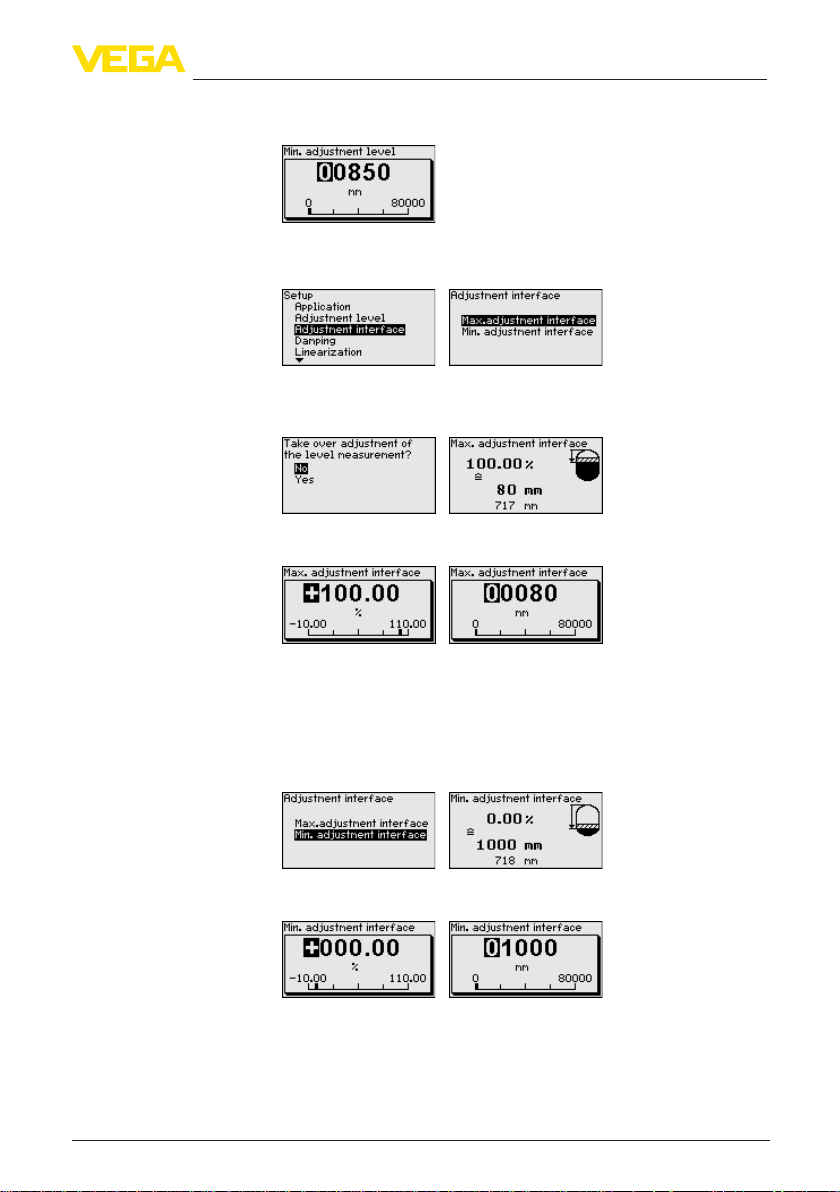

3. Carry out the adjustment in the menu items "Min. adjustment" and
"Max. adjustment".
42288-EN-130314
4. A "Linearization" is required for all vessels in which the vessel volume does not increase linearly with the level - e.g. in a horizontal
cylindrical or spherical tank. Activate the appropriate curve.
VEGAFLEX 86 • Modbus and Levelmaster protocol
Quick start

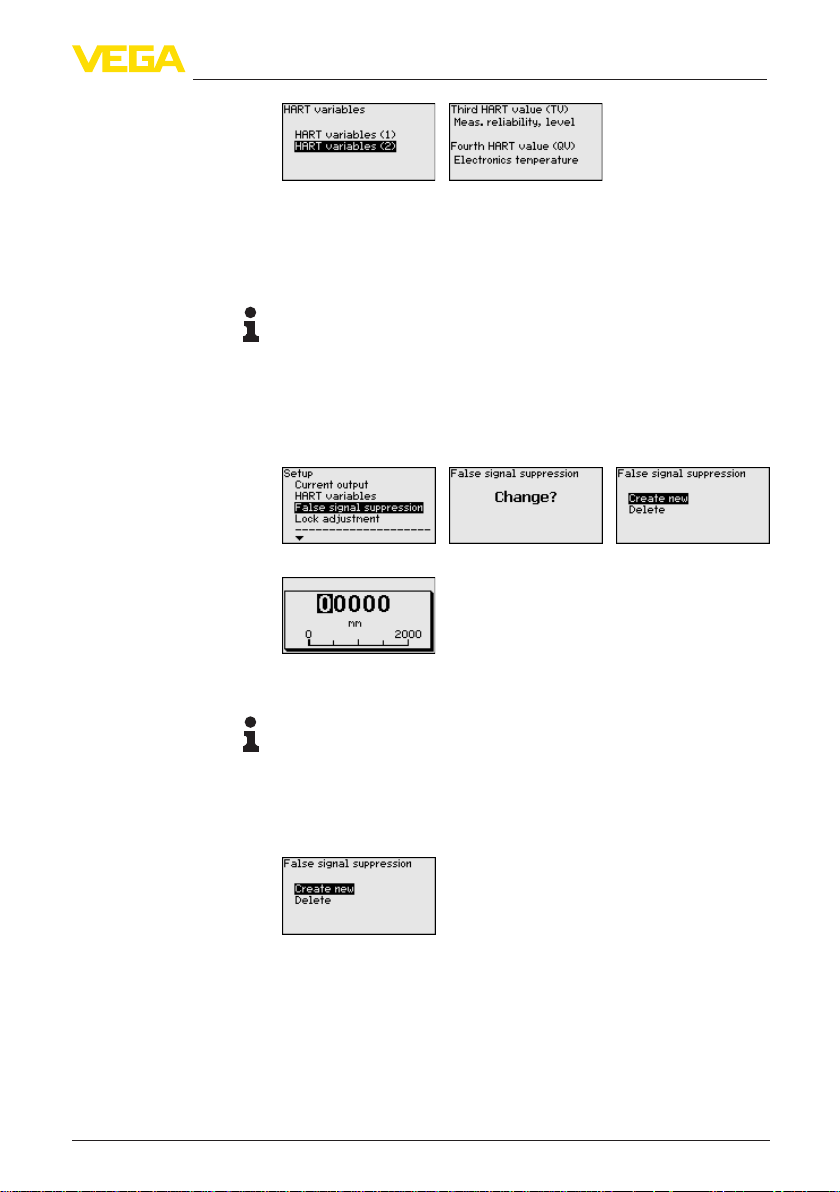

5. A "False signal suppression" detects, marks and saves the false
signals so that they are no longer taken into account for level
measurement. We generally recommend a false signal suppres-
sion.
Parameterization example
F
urther steps
The sensor measures the distance from the sensor (reference plane)
to the product surface.
1
4
2
Fig. 2: Measuring ranges - VEGAFLEX 86
1 Reference plane
2 Probe length L
3 Measuringrange(defaultsettingreferstothemeasuringrangeinwater)
4 Upperdeadband(inthisareanomeasurementispossible)
5 Lowerdeadband(inthisareanomeasurementispossible)
3
5
For this adjustment, the distance is entered when the vessel is full
and nearly empty. If these values are not known, an adjustment with
other distances, for example, 10 % and 90 % is also possible. Starting
point for these distance specications is always the seal surface of
the thread or ange.

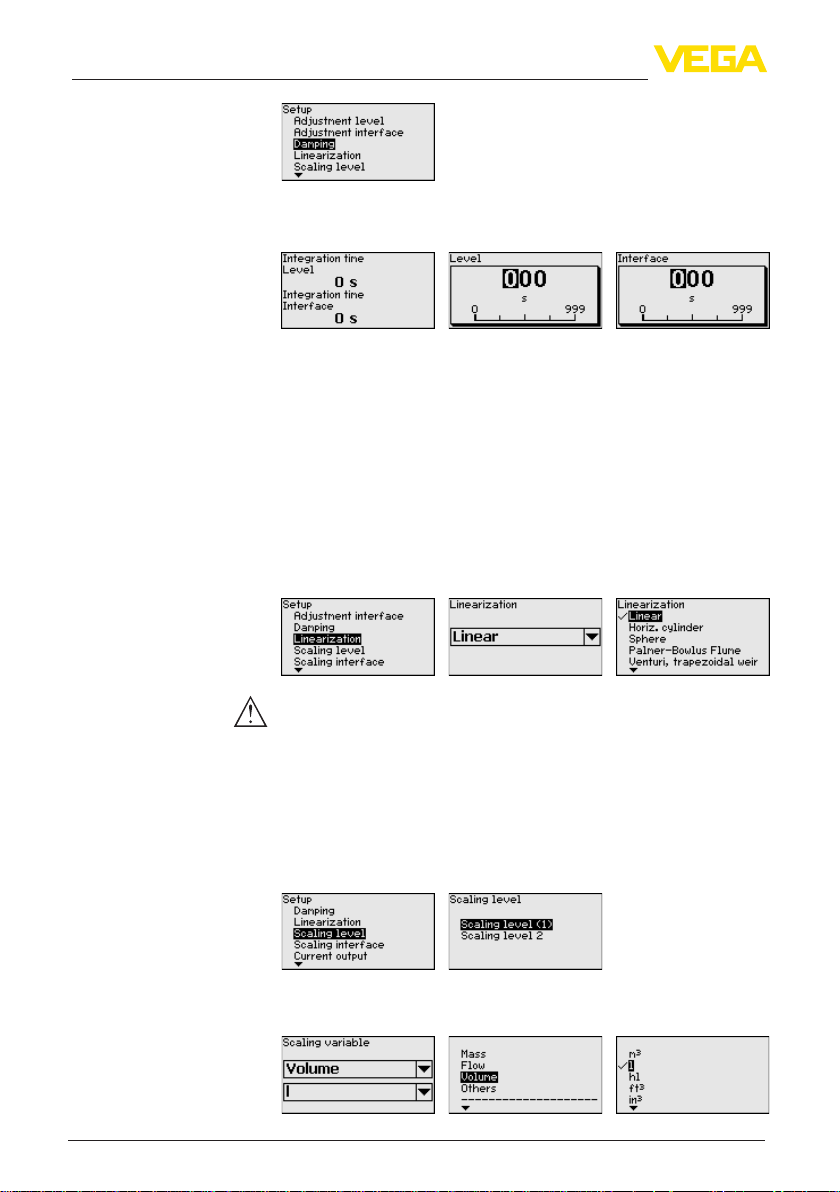

1. In the menu "Additional settings", menu item "Damping" you can
adjust the requested damping of the output signal.

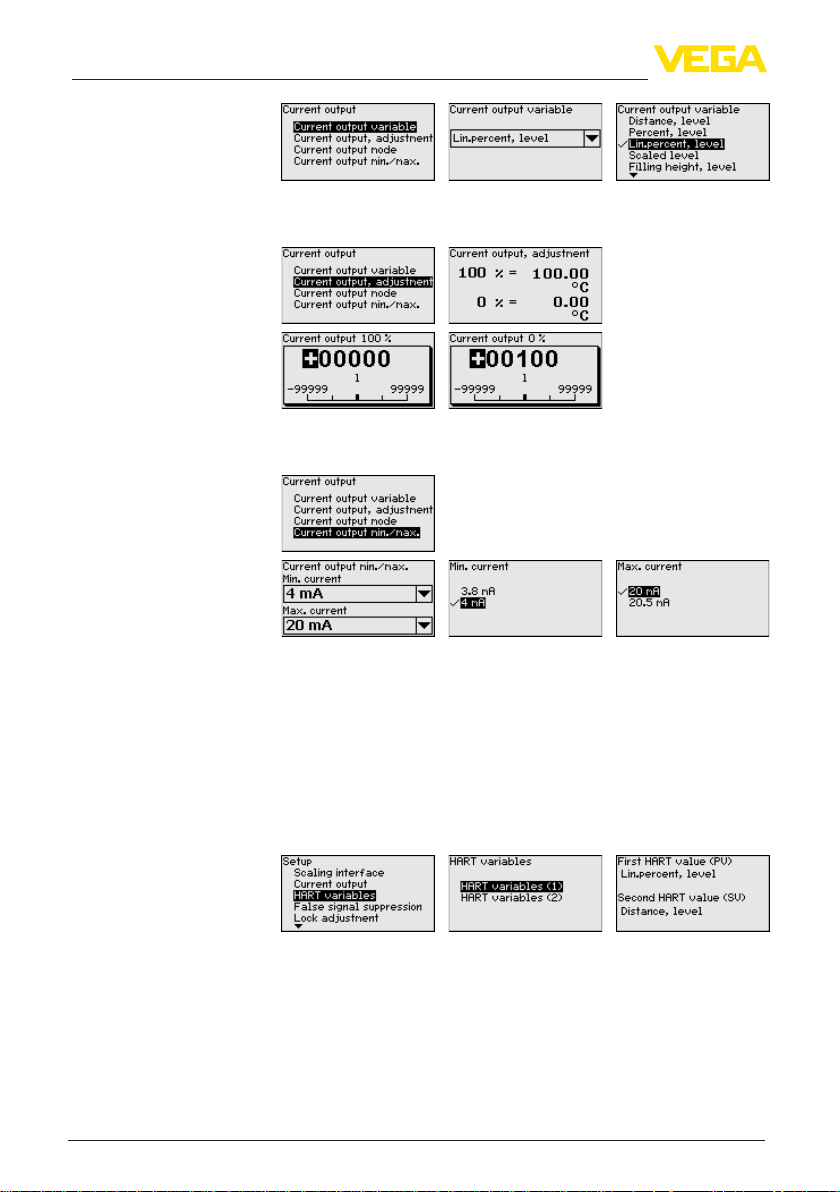

2. Select the parameter of the current output and the output characteristics in the menu item "Current output".
You can nd additional information in chapter "Parameter adjustment".
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
3
Contents
Contents
1 About this document
1.1 Function ............................................................................. 6
1.2 Target group ....................................................................... 6
1.3 Symbolism used ................................................................. 6
2 For your safety
2.1 Authorised personnel ......................................................... 7
2.2 Appropriate use .................................................................. 7
2.3 Warning about incorrect use ............................................... 7
2.4 General safety instructions ................................................. 7
2.5 CE conformity ..................................................................... 7
2.6 NAMUR recommendations ................................................ 8
2.7 Environmental instructions ................................................. 8
3 Product description
3.1 Conguration ...................................................................... 9
3.2 Principle of operation ........................................................ 10
3.3 Packaging, transport and storage ..................................... 13
3.4 Accessories and replacement parts ................................. 13
4 Mounting
4.1 General instructions ......................................................... 15
4.2 Instructions for installation ................................................ 15
5 Connecting to power supply and bus system
5.1 Preparing the connection ................................................. 19
5.2 Connection ....................................................................... 20
5.3 Wiring plan ....................................................................... 21
5.4 Switch-on phase ............................................................... 22
6 Set up with the display and adjustment module
6.1 Adjustment volume ........................................................... 23
6.2 Insert display and adjustment module .............................. 23
6.3 Adjustment system ........................................................... 24
6.4 Parameter adjustment - Quick setup ................................ 25
6.5 Parameter adjustment - Extended adjustment .................. 27
6.6 Saving the parameter adjustment data ............................. 43
7 Setting up sensor and Modbus interface with PACTware
7.1 Connect the PC ................................................................ 45
7.2 Parameter adjustment with PACTware .............................. 46
7.3 Set up with the quick setup ............................................... 47
7.4 Saving the parameter adjustment data ............................. 52
8 Set up with other systems
8.1 DD adjustment programs ................................................. 53
8.2 Communicator 375, 475 ................................................... 53
9 Diagnostics and service
9.1 Maintenance .................................................................... 54
9.2 Diagnosis memory ........................................................... 54
9.3 Status messages .............................................................. 55
9.4 Rectify faults ..................................................................... 59
42288-EN-130314
4
VEGAFLEX 86 • Modbus and Levelmaster protocol
9.5 Exchanging the electronics module .................................. 61
9.6 Software update ............................................................... 62
9.7 How to proceed in case of repair ...................................... 62
10 Dismounting
10.1 Dismounting steps ............................................................ 63
10.2 Disposal ........................................................................... 63
11 Supplement
11.1 Technical data .................................................................. 64
11.2 Basics Modbus ................................................................. 71
11.3 Modbus register ............................................................... 72
11.4 Modbus RTU commands ................................................. 75
11.5 Levelmaster commands ................................................... 78
11.6 Conguration of typical Modbus hosts.............................. 81
11.7 Dimensions ...................................................................... 85
Contents
Safety instructions for Ex areas
Please note the Ex-specic safety information for installation and operation in Ex areas. These safety instructions are part of the operating
instructions manual and come with the Ex-approved instruments.
42288-EN-130314
Editing status: 2013-03-11
VEGAFLEX 86 • Modbus and Levelmaster protocol
5
1 About this document
1 About this document
1.1 Function
This operating instructions manual provides all the information you
need for mounting, connection and setup as well as important instructions for maintenance and fault rectication. Please read this information before putting the instrument into operation and keep this manual
accessible in the immediate vicinity of the device.
1.2 Target group
This operating instructions manual is directed to trained specialist
personnel. The contents of this manual should be made available to
these personnel and put into practice by them.
1.3 Symbolism used
Information, tip, note
This symbol indicates helpful additional information.
Caution: If this warning is ignored, faults or malfunctions can result.
Warning: If this warning is ignored, injury to persons and/or serious
damage to the instrument can result.
Danger: If this warning is ignored, serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
List
•
The dot set in front indicates a list with no implied sequence.
Action
→
This arrow indicates a single action.
1 Sequence
Numbers set in front indicate successive steps in a procedure.
Battery disposal
This symbol indicates special information about the disposal of batteries and accumulators.
42288-EN-130314
6
VEGAFLEX 86 • Modbus and Levelmaster protocol
2 For your safety
2 For your safety
2.1 Authorised personnel
All operations described in this operating instructions manual must
be carried out only by trained specialist personnel authorised by the
plant operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2 Appropriate use
VEGAFLEX 86 is a sensor for continuous level measurement.
You can nd detailed information on the application range in chapter
"Product description".
Operational reliability is ensured only if the instrument is properly
used according to the specications in the operating instructions
manual as well as possible supplementary instructions.
2.3 Warning about incorrect use
Inappropriate or incorrect use of the instrument can give rise to
application-specic hazards, e.g. vessel overll or damage to system
components through incorrect mounting or adjustment.
2.4 General safety instructions
This is a state-of-the-art instrument complying with all prevailing
regulations and guidelines. The instrument must only be operated in a
technically awless and reliable condition. The operator is responsible
for the trouble-free operation of the instrument.
During the entire duration of use, the user is obliged to determine the
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new regula-
tions.
The safety instructions in this operating instructions manual, the national installation standards as well as the valid safety regulations and
accident prevention rules must be observed by the user.
For safety and warranty reasons, any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer. Arbitrary conversions or modications are explicitly forbidden.
The safety approval markings and safety tips on the device must also
be observed.
2.5 CE conformity
The device fullls the legal requirements of the applicable EC guidelines. By axing the CE marking, we conrm successful testing of the
product.
You can nd the conformity certicate in the download section of our
homepage.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
7
2 For your safety
Electromagnetic compatibility
Instruments with plastic housing as well as in four-wire or Ex-d-ia
version are designed for use in an industrial environment. Nevertheless, electromagnetic interference from electrical conductors and
radiated emissions must be taken into account, as is usual with a
class A instrument according to EN 61326-1. If the instrument is used
in a dierent environment, the electromagnetic compatibility to other
instruments must be ensured by suitable measures.
2.6 NAMUR recommendations
NAMUR is the automation technology user association in the process
industry in Germany. The published NAMUR recommendations are
accepted as the standard in eld instrumentation.
The device fullls the requirements of the following NAMUR recom-
mendations:
NE 21 – Electromagnetic compatibility of equipment
•
NE 43 – Signal level for malfunction information from measuring
•
transducers
NE 53 – Compatibility of eld devices and display/adjustment
•
components
NE 107 – Self-monitoring and diagnosis of eld devices
•
For further information see www.namur.de.
2.7 Environmental instructions
Protection of the environment is one of our most important duties.
That is why we have introduced an environment management system
with the goal of continuously improving company environmental protection. The environment management system is certied according
to DIN EN ISO 14001.
Please help us fulll this obligation by observing the environmental
instructions in this manual:
Chapter "Packaging, transport and storage"
•
Chapter "Disposal"
•
42288-EN-130314
8
VEGAFLEX 86 • Modbus and Levelmaster protocol
Type plate
3 Product description
3 Product description
3.1 Conguration
The nameplate contains the most important data for identication and
use of the instrument:
1
2
3
4
5
6
7
8
9
10
Fig.3:Layoutofthetypelabel(example)
1 Instrument type
2 Product code
3 Approvals
4 Power supply and signal output, electronics
5 Protection rating
6 Probe length
7 Process and ambient temperature, process pressure
8 Material, wetted parts
9 Hardware and software version
10 Order number
11 Serial number of the instrument
12 Symbol of the device protection class
13 ID numbers, instrument documentation
14 Note to observe the instrument documentation
15 NotiedauthorityforCEmarking
16 Approval directive
16
15
14
13
12
11
Serial number
Electronics design
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
With the serial number of the instrument on the type label you have
access to the following data on our homepage:
Article number of the instrument (HTML)
•
Delivery date (HTML)
•
Order-specic instrument features (HTML)
•
Operating instructions at the time of shipment (PDF)
•
Order-specic sensor data for an electronics exchange (XML)
•
Test certicate "Measuring Accuracy" (PDF)
•
For this purpose, move to www.vega.com and "VEGA Tools".
The instrument contains two dierent electronics in its housing cham-
bers:
The Modbus electronics for power supply and communication with
•
the Modbus-RTU
The sensor electronics for the actual measuring tasks
•
9
3 Product description
Scope of this operating
instructions manual
Versions
Scope of deliver
y
1
Fig. 4: Position of Modbus and sensor electronics
1 Modbus electronics
2 Sensor electronics
This operating instructions manual applies to the following instrument
versions:
Hardware from 1.0.0
•
Software from 1.0.0
•
Only for instrument versions without SIL qualication
•
The respective electronics version can be determined via the product
code on the type label as well as on the electronics.
Standard electronics: Type FX80HK.-
•
The scope of delivery encompasses:
Sensor
•
Documentation
•
– this operating instructions manual
– Test certicate measuring accuracy (optional)
– Operating instructions manual "Display and adjustment mod-
ule" (optional)
– Supplementary instructions "GSM/GPRS radio module"
(optional)
– Supplementary instructions manual "Heating for display and
adjustment module" (optional)
– Supplementary instructions manual "Plug connector for con-
tinuously measuring sensors" (optional)
– Ex-specic "Safety instructions" (with Ex versions)
– if necessary, further certicates
2
Application area
Functional principle level measurement
10
3.2 Principle of operation
The VEGAFLEX 86 is a level sensor with coax probe for continuous
level or interface measurement, suitable for applications in liquids
with high temperatures up to 450 °C (842 °F).
High frequency microwave pulses are guided along a steel cable or
a rod. Upon reaching the product surface, the microwave pulses are
reected. The running time is evaluated by the instrument and output-
ted as level.
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
3 Product description
1
d
h
Fig. 5: Level measurement
1 Sensorreferenceplane(sealsurfaceoftheprocesstting)
d Distancetotheinterface(HARTvalue1)
h Height - Level
Probe end tracking
To increase sensitivity, the probe is equipped with probe end tracking.
In products with a low dielectric constant, this function is very helpful.
This is the case, for example, in plastic granules, packing chips or in
uidized vessels.
Between a dielectric constant of 1.5 and 3, the function switches on, if
required. As soon as the level echo can no longer be detected, probe
end tracking is automatically activated. The measurement is continued with the last calculated dielectric constant.
The accuracy thus depends on the stability of the dielectric constant.
If you measure a medium with a dielectric constant below 1.5, probe
end tracking is always active. In this case, you have to enter the
dielectric constant of the medium. A stable dielectric constant is very
important here.
Functional principle - inter
face measur
ement
High frequency microwave impulses are guided along a steel cable or
rod. Upon reaching the product surface, a part of the microwave impulses is reected. The other part passes through the upper product
and is reected by the interface. The running times to the two product
layers are processed by the instrument.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
11
3 Product description
L3
L2
1
d2
d1
TS
Prerequisites for interface measurement
h2
h1
Fig. 6: Interface measurement
1 Sensorreferenceplane(sealsurfaceoftheprocesstting)
d1 Distancetotheinterface(HARTvalue1)
d2 Distancetothelevel(HARTvalue3)
TSThicknessoftheuppermedium(d1-d2)
h1 Height - Interface
h2 Height - Level
L1 Lower medium
L2 Upper medium
L3 Gas phase
Upper medium (L2)
The upper medium must not be conductive
•
The dielectric constant of the upper medium must be known (input
•
required). Min. dielectric constant: rod version 1.6. You can nd a
list of dielectric constants on our home page: www.vega.com
The composition of the upper medium must be stable, no varying
•
products or mixtures
The upper medium must be homogeneous, no stratications
•
within the medium
Min. thickness of the upper medium 50 mm (1.97 in)
•
Clear separation from the lower medium, no emulsion phase, no
•
mull layer
If possible, no foam on the surface
•
L1
Output signal
12
Lower medium (L1)
The dielectric constant must be 10 higher than the dielectric
•
constant of the upper medium, preferably electrically conductive.
Example: upper medium dielectric constant 2, lower medium at
least dielectric constant 12.
Gas phase (L3)
Air or gas mixture
•
Gas phase - dependent on the application, gas pahse does not
•
always exist (d2 = 0)
The instrument is always preset to the application "Level measure-
ment".
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
Packaging
T
ranspor
3 Product description
For the interface measurement, you can select the requested output
signal with the setup.
3.3 Packaging, transport and storage
Your instrument was protected by packaging during transport. Its
capacity to handle normal loads during transport is assured by a test
based on ISO 4180.
The packaging of standard instruments consists of environment-
friendly, recyclable cardboard. For special versions, PE foam or PE
foil is also used. Dispose of the packaging material via specialised
recycling companies.
t
Transport must be carried out under consideration of the notes on the
transport packaging. Nonobservance of these instructions can cause
damage to the device.
Transport inspection
Storage
Storage and transport
temperature
Display and adjustment
module
Interface adapter
The delivery must be checked for completeness and possible transit
damage immediately at receipt. Ascertained transit damage or con-
cealed defects must be appropriately dealt with.
Up to the time of installation, the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated, the packages must be stored only under
the following conditions:
Not in the open
•
Dry and dust free
•
Not exposed to corrosive media
•
Protected against solar radiation
•
Avoiding mechanical shock and vibration
•
Storage and transport temperature see chapter "Supplement -
•
Technical data - Ambient conditions"
Relative humidity 20 … 85 %
•
3.4 Accessories and replacement parts
The display and adjustment module PLICSCOM is used for measured
value indication, adjustment and diagnosis. It can be inserted into the
sensor or the external display and adjustment unit and removed at
any time.
You can nd further information in the operating instructions "Display
and adjustment module PLICSCOM" (Document-ID 27835).
The interface adapter VEGACONNECT enables the connection of
communication-capable instruments to the USB interface of a PC. For
parameter adjustment of these instruments, an adjustment software
such as PACTware with VEGA-DTM is required.
You can nd further information in the operating instructions "Interface
adapter VEGACONNECT" (Document-ID 32628).
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
13
3 Product description
External display and
adjustment unit
External display and adjustment unit with HAR
protocol
External radio unit
Protective cover
Flanges
VEGADIS 61 is an external display and adjustment unit for sensors
with single chamber housing and Ex-d double chamber housing.
It is suitable for measured value indication and adjustment of plics
sensors and is connected to the sensor with a four-wire standard
cable up to 50 m (164 ft) long.
You can nd further information in the operating instructions "VE-
GADIS 61" (Document-ID 27720).
VEGADIS 62 is suitable for measured value indication and adjustment
T
of sensors with HART protocol. It is looped into the 4 … 20 mA/HART
signal cable.
You can nd further information in the operating instructions "VEGADIS 62" (Document-ID 36469).
The PLICSMOBILE T61 is an external GSM/GPRS radio unit for
transmission of measured values and for remote parameter adjustment of plics
®
sensors. The adjustment is carried out via PACTware/
DTM by using the integrated USB connection.
You can nd further information in the supplementary instructions
"PLICSMOBILE T61" (Document-ID 36849).
The protective cover protects the sensor housing against soiling and
intense heat from solar radiation.
You will nd additional information in the supplementary instructions
manual "Protective cover" (Document-ID 34296).
Screwed anges are available in dierent versions according to the
following standards: DIN 2501, EN 1092-1, ANSI B 16.5, JIS B 22101984, GOST 12821-80.
You can nd additional information in the supplementary instructions
manual "Flanges according to DIN-EN-ASME-JIS" (Document-ID
31088).
®
Electronics module
Electronics module,
Modbus
Display and adjustment
module with heating
14
The electronics module VEGAFLEX series 80 is a replacement part
for TDR sensors of VEGAFLEX series 80. There is a dierent version
available for each type of signal output.
You can nd further information in the operating instructions manual
"Electronics module VEGAFLEX series 80".
The electronics module Modbus is a replacement part for TDR sensors of VEGAFLEX series 80.
You can nd further information in the operating instructions manual
"Electronics module Modbus VEGAFLEX series 80".
The display and adjustment module can be optionally replaced by a
display and adjustment module with heating function.
You can hence use the display and adjustment module in an ambient
temperature range of -40 … 70 °C.
You can nd further information in the operating instructions "Display
and adjustment module with heating" (Document-ID 31708).
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
Screwing in
4 Mounting
4 Mounting
4.1 General instructions
With instruments with threaded process tting, suitable tools must be
applied for tightening the hexagon.
Warning:
The housing must not be used to screw the instrument in! Applying
tightening force can damage internal parts of the housing.
Moisture
Protective caps
Suitability for the process
conditions
Installation position
Use the recommended cables (see chapter "Connecting to power
supply") and tighten the cable gland.
You can give your instrument additional protection against moisture
penetration by leading the connection cable downward in front of the
cable entry. Rain and condensation water can thus drain o. This ap-
plies mainly to:
outdoor mounting
•
installations in areas where high humidity is expected (e.g. through
•
cleaning processes)
installations on cooled or heated vessels
•
In the case of instrument housings with self-sealing NPT threads, it is
not possible to have the cable entries screwed in at the factory. The
openings for the cable glands are therefore covered with red protec-
tive caps as transport protection.
Prior to setup you have to replace these protective caps with approved cable glands or close the openings with suitable blind plugs.
The suitable cable glands and blind plugs come with the instrument.
Make sure that all parts of the instrument exposed to the process, in
particular the active measuring component, process seal and process
tting, are suitable for the existing process conditions. These include
above all the process pressure, process temperature as well as the
chemical properties of the medium.
You can nd the specications in chapter "Technical data" and on the
nameplate.
4.2 Instructions for installation
Mount VEGAFLEX 86 in such a way that the distance to vessel installations or to the vessel wall is at least 300 mm (12 in). In non-metallic
vessels, the distance to the vessel wall should be at least 500 mm
(19.7 in).
During operation, the probe must not touch any installations or the
vessel wall. If necessary, fasten the probe end.
In vessels with conical bottom it can be advantageous to mount the
sensor in the center of the vessel, as measurement is then possible
nearly down to the lowest point of the bottom. Keep in mind that
measurement all the way down to the tip of the probe may not be pos-
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
15
4 Mounting
sible. The exact value of the min. distance (lower dead band) is stated
in chapter "Technical data".
Fig. 7: Vessel with conical bottom
Welding work
Inowingmedium
Measuring range
Before beginning the welding work, remove the electronics module
from the sensor. By doing this, you avoid damage to the electronics
through inductive coupling.
Do not mount the instruments in or above the lling stream. Make sure
that you detect the product surface, not the inowing product.
Fig.8:Mountingofthesensorwithinowingmedium
42288-EN-130314
The reference plane for the measuring range of the sensors is the
sealing surface of the thread or ange.
Keep in mind that a min. distance must be maintained below the reference plane and possibly also at the end of the probe - measurement
in these areas is not possible (dead band). These dead bands are
16
VEGAFLEX 86 • Modbus and Levelmaster protocol
4 Mounting
listed in chapter "Technical data". Keep in mind for the adjustment that
the default setting for the measuring range refers to water.
Pressure
Mounting in the vessel
insulation
The process tting must be sealed if there is gauge or low pressure in
the vessel. Before use, check if the seal material is resistant against
the measured product and the process temperature.
The max. permissible pressure is specied in chapter "Technical
data" or on the type label of the sensor.
Instruments for a temperature range up to 280 °C or up to 450 °C
have a distance piece between process tting and electronics housing. Ths distance piece is used for thermal decoupling of the electron-
ics against high process temperatures.
Information:
The distance piece must only be incorporated up to max. 50 mm (2 in)
in the vessel isolation. Only then, a reliable temperature decoupling is
guaranteed.
2
1
Fig. 9: Mounting of the instrument on insulated vessels.
1 Temperature insulation
2 Ambient temperature on the housing
Steam boiler applications
Vapours, superimposed gases, high pressures and temperature differences can change the spreading speed of radar impulses.
There are two possibilities to correct these deviations.
Corrective value in the process control system
In the technical data under "Inuence of superimposed gas and pressure on accuracy" you can nd a table with deviation values in some
typical gases or in steam.
In the control system (DCS) you can correct the measurement results
of the VEGAFLEX 86 with these values.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
17
4 Mounting
The prerequisite is constant temperature and pressure in the vessel.
Automatic correction via the reference distance
The VEGAFLEX 86 can be equipped optionally with a running time
correction via reference distance. The probe can carry out an automatic running time correction with it.
The reference point must hence not be overlled. The upper dead
band is hence 450 mm (17.7 in).
1
7
2
Fig. 10: Measuring ranges - VEGAFLEX 86 with steam compensation
1 Reference plane
2 Probe length L
3 Measuring range
4 Upper dead band
5 Lower dead band
6 Additional upper dead band by steam compensation
7 Reference measurement distance to steam compensation
6
4
3
5
18
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
Safety instructions
5 Connecting to power supply and bus system
5 Connecting to power supply and bus
system
5.1 Preparing the connection
Always keep in mind the following safety instructions:
Connect only in the complete absence of line voltage
•
If overvoltage surges are expected, overvoltage arresters should
•
be installed
Voltage supply
Connection cable
Cable gland ½ NPT
Cable screening and
grounding
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
The instrument requires an operating voltage of 8 … 30 V DC. Operating voltage and digital bus signal are carried on separate two-wire
connection cables.
The instrument is connected with standard two-wire, twisted cable
suitable for RS 485. If electromagnetic interference is expected which
is above the test values of EN 61326 for industrial areas, screened
cable should be used.
For instruments with housing and cable gland, use cable with round
cross-section. To ensure the seal eect of the cable gland (IP protection rating), you have to check for which cable outer diameter the
cable gland is suitable.
5 … 9 mm (0.20 … 0.35 in)
•
6 … 12 mm (0.24 … 0.47 in)
•
10 … 14 mm (0.40 … 0.55 in)
•
Use a cable gland tting the cable diameter.
Make sure that the entire installation is carried out according to the
Fieldbus specication. In particular, make sure that the bus is terminated with suitable terminating resistors.
With plastic housing, the NPT cable gland or the Conduit steel tube
must be screwed without grease into the threaded insert.
Max. torque for all housings see chapter "Technical data".
With systems with potential equalisation, connect the cable screen
directly to ground potential at the power supply unit, in the connection
box and at the sensor. The screen in the sensor must be connected
directly to the internal ground terminal. The ground terminal outside
on the housing must be connected to the potential equalisation (low
impedance).
In systems without potential equalisation, connect the cable screen
directly to ground potential at the power supply unit and at the sensor.
In the connection box or T-distributor, the screen of the short stub to
the sensor must not be connected to ground potential or to another
cable screen. The cable screens to the power supply unit and to the
next distributor must be connected to each other and also connected
to ground potential via a ceramic capacitor (e.g. 1 nF, 1500 V). The
low frequency potential equalisation currents are thus suppressed,
but the protective eect against high frequency interference signals
remains.
19
5 Connecting to power supply and bus system
5.2 Connection
Connection technology
The voltage supply and signal output are connected via the springloaded terminals in the housing.
The connection to the display and adjustment module or to the inter-
face adapter is carried out via contact pins in the housing.
Information:
The terminal block is pluggable and can be removed from the electronics. To do this, lift the terminal block with a small screwdriver and
pull it out. When inserting the terminal block again, you should hear it
snap in.
Connection procedure
Proceed as follows:
1. Unscrew the housing cover
2. If a display and adjustment module is installed, remove it by turning it slightly to the left.
3. Loosen compression nut of the cable entry
4. Remove approx. 10 cm (4 in) of the cable mantle, strip approx.
1 cm (0.4 in) of insulation from the ends of the individual wires
5. Insert the cable into the sensor through the cable entry
Fig. 11: Connection steps 5 and 6
6. Insert the wire ends into the terminals according to the wiring plan
Information:
Solid cores as well as exible cores with wire end sleeves are
inserted directly into the terminal openings. In case of exible cores
without end sleeves, press the terminal head with a small screwdriver;
the terminal opening is freed. When the screwdriver is released, the
terminal closes again.
You can nd further information on the max. wire cross-section under
"Technical data/Electromechanical data"
7. Check the hold of the wires in the terminals by lightly pulling on
them
42288-EN-130314
20
VEGAFLEX 86 • Modbus and Levelmaster protocol
Overview
5 Connecting to power supply and bus system
8. Connect the screen to the internal ground terminal, connect the
outer ground terminal to potential equalisation
9. Tighten the compression nut of the cable entry. The seal ring must
completely encircle the cable
10. Place probably existing display and adjustment module back on
11. Screw the housing cover back on
The electrical connection is hence nished.
5.3 Wiring plan
Electronics compartment
1
Fig.12:Positionofconnectioncompartment(Modbuselectronics)andelectronicscompartment(sensorelectronics)
1 Connection compartment
2 Electronics compartment
2
2
4...20mA
+
( )
(-)
1
2
567
8
11
Fig. 13: Electronics compartment, double chamber housing
1 Internal connection to the connection compartment
2 For display and adjustment module or interface adapter
Information:
The connection of an external display and adjustment unit is not possible with this double chamber housing.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
21
5 Connecting to power supply and bus system
Connection compartment
1
USB
MODBUS
)
+
(
power supply
(-)
IS GND
D0
D1
2
(-)
( )
1345
2off
+
on
Fig. 14: Connection compartment
1 USB connection
2 Slideswitchforintegratedterminationresistor(120Ω)
Terminal Function Polarity
1 Voltage supply +
2 Voltage supply -
3 Modbus-Signal D0 +
4 Modbus-Signal D1 -
5 Function ground with installa-
tion according to CSA
5.4 Switch-on phase
After VEGAFLEX 86 is connected to the bus system, the instrument
carries out a self-test for approx. 30 seconds. The following steps are
carried out:
Internal check of the electronics
•
Indication of the instrument type, hardware and software version,
•
measurement loop name on the display or PC
Indication of the status message "F 105 Determine measured
•
value" on the display or PC
Status byte goes briey to fault value
•
As soon as a plausible measured value is found, it is outputted to the
signal cable. The value corresponds to the actual level as well as the
settings already carried out, e.g. factory settings.
22
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
6 Set up with the display and adjustment module
6 Set up with the display and adjustment
module
6.1 Adjustment volume
The display and adjustment module is only used for parameter adjustment of the sensor, i.e. for adaptation to the measurement task.
The parameter adjustment of the Modbus interface is carried out via
a PC with PACTware. You can nd the procedure in chapter "Set up
sensor and Modbus interface with PACTware".
6.2 Insert display and adjustment module
The display and adjustment module can be inserted into the sensor
and removed any time. Four positions displaced by 90° can be selected. It is not necessary to interrupt the power supply.
Proceed as follows:
1. Unscrew the housing cover
2. Place the display and adjustment module in the requested position onto the electronics and turn to the right until it snaps in
3. Screw housing cover with inspection window tightly back on
Removal is carried out in reverse order.
The display and adjustment module is powered by the sensor, an ad-
ditional connection is not necessary.
Fig. 15: Insertion of the display and adjustment module with single chamber
housing
Note:
If you intend to retrot the instrument with a display and adjustment
module for continuous measured value indication, a higher cover with
an inspection glass is required.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
23
6 Set up with the display and adjustment module
6.3 Adjustment system
Fig. 16: Display and adjustment elements
1 LC display
2 Adjustment keys
Key functions
[OK] key:
•
– Move to the menu overview
– Conrm selected menu
– Edit parameter
– Save value
[->] key:
•
– Presentation change measured value
– Select list entry
– Select editing position
[+] key:
•
– Change value of the parameter
[ESC] key:
•
– interrupt input
– Jump to next higher menu
1
2
Adjustment sy
Switch-on phase
24
stem
The sensor is adjusted via the four keys of the display and adjustment module. The LC display indicates the individual menu items. The
functions of the individual keys are shown in the above illustration.
Approx. 10 minutes after the last pressing of a key, an automatic reset
to measured value indication is triggered. Any values not conrmed
with [OK] will not be saved.
After switching on, the VEGAFLEX 86 carries out a short self-test
where the device software is checked.
The output signal transmits a fault signal during the switch-on phase.
The following information is displayed on the display and adjustment
module during the startup procedure:
Instrument type
•
Device name
•
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
Software version (SW-Ver)
•
Hardware version (HW-Ver)
•
6 Set up with the display and adjustment module
Measured value indication
Quick setup
General information
With the [->] key you can move between three dierent indication
modes.
In the rst view, the selected measured value and a respective bargraph presentation are displayed.
In the second view, the selected measured value as well as a second
selectable value, e.g. the temperature value are displayed.
In the third view, the selected measured value is displayed in large
letters.
6.4 Parameter adjustment - Quick setup
To quickly and easily adapt the sensor to the application, select
the menu item "Quick setup" in the start graphic on the display and
adjustment module.
You can nd "Extended adjustment" in the next sub-chapter.
Measurement loop name
In the rst menu item you can assign a suitable measurement loop
name. You can enter a name with max. 19 characters.
Product type
In the next menu item you can see which product type the instrument
is suitable for. If your instrument is only suitable for a certain medium,
this menu item is not visible.
Application
In this menu item, you can select the application. You can choose
between level measurement and interface measurement. You can
also choose between measurement in a vessel or in a bypass or
standpipe.
evel measurement
L
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
Medium - dielectric constant
In this menu item, you can dene the medium type (product).
Max. adjustment
In this menu item, you can enter the max. adjustment for the level.
25
6 Set up with the display and adjustment module
Enter the appropriate distance value in m (corresponding to the
percentage value) for the full vessel. The distance refers to the sensor
reference plane (seal surface of the process tting). Keep in mind that
the max. level must lie below the dead band.
Min. adjustment
In this menu item, you can enter the min. adjustment for the level.
Enter the suitable distance value in m for the empty vessel (e.g.
distance from the ange to the probe end) corresponding to the percentage value. The distance refers tot he sensor reference plane (seal
surface of the process tting).
Interface measurement
Dielectric constant - upper medium
In this menu item, you can dene the medium type (product).
Max. adjustment
In this menu item, you can enter the max. adjustment for the level.
Enter the appropriate distance value in m (corresponding to the
percentage value) for the full vessel. The distance refers to the sensor
reference plane (seal surface of the process tting). Keep in mind that
the max. level must lie below the dead band.
Min. adjustment
In this menu item, you can enter the min. adjustment for the level.
Enter the suitable distance value in m for the empty vessel (e.g.
distance from the ange to the probe end) corresponding to the percentage value. The distance refers tot he sensor reference plane (seal
surface of the process tting).
Max. adjustment - Interface
Carry out the max. adjustment for the interface.
To do this, enter the percentage value and the suitable distance value
in m for the full vessel.
Min. adjustment - Interface
Carry out the min. adjustment for the interface.
To do this, enter the percentage value and the suitable distance value
in m for the empty vessel.
42288-EN-130314
26
VEGAFLEX 86 • Modbus and Levelmaster protocol
6 Set up with the display and adjustment module
Linearization
Linearization
A linearization is necessary for all vessels in which the vessel volume
does not increase linearly with the level - e.g. a horizontal cylindri-
cal or spherical tank, when the indication or output of the volume is
required. Corresponding linearization curves are preprogrammed
for these vessels. They represent the correlation between the level
percentage and vessel volume.
The linearization applies for the measured value indication and the
current output. By activating the suitable curve, the percentage vessel
volume is displayed correctly.
False signal suppression
High sockets and internal vessel installations cause interfering reections and can inuence the measurement.
A false signal suppression detects, marks and saves these false
signals so that they are no longer taken into account for the level and
interface measurement. We generally recommend carrying out a false
signal suppression to achieve the best possible accuracy. This should
be done with the lowest possible level so that all potential interfering
reections can be detected.
Enter the actual distance from the sensor to the product surface.
All interfering signals in this section are detected by the sensor and
stored.
The instrument carries out an automatic false signal suppression
as soon as the probe is uncovered. The false signal suppression is
always updated.
6.5 Parameter adjustment - Extended adjustment
For technically demanding measurement loops you can carry out
extended settings in "Extended adjustment".
Main menu
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
The main menu is divided into ve sections with the following functions:
Setup: Settings, e.g. measurement loop name, medium, vessel,
adjustment, signal output, device unit, false signal suppression,
linearization curve
Display: Settings, e.g., for language, measured value display, lighting
Diagnosis: Information, e.g. on instrument status, pointer, measure-
ment reliability, simulation, echo curve
Additional adjustments: Reset, date/time, reset, copy function
27
6 Set up with the display and adjustment module
Info: Instrument name, hardware and software version, calibration
date, instrument features
Note:
For optimum adjustment of the measurement, the individual submenu
items in the main menu item "Setup" should be selected one after
the other and provided with the correct parameters. If possible, go
through the items in the given sequence.
The procedure is described below.
Setup - Measurement
loop name
Setup - Units
Setup - Probe length
Here you can assign a suitable measurement loop name. Push the
"OK" key to start the processing. With the "+" key you change the sign
and with the "->" key you jump to the next position.
You can enter names with max. 19 characters. The character set
comprises:
Capital letters from A … Z
•
Numbers from 0 … 9
•
Special characters + - / _ blanks
•
In this menu item you select the distance unit and the temperature
unit.
With the distance units you can choose between m, mm and ft and
with the temperature units betwenn °C, °F and K.
In this menu item you can enter the probe length or have the length
determined automatically by the sensor system.
Setup - Application Product type
28
When choosing "Ye s ", then the probe length will be determined
automatically. When choosing "No", you can enter the probe length
manually.
42288-EN-130314
In this menu item you can select which type of medium you want to
measure. You can choose between liquid or bulk solid.
VEGAFLEX 86 • Modbus and Levelmaster protocol
6 Set up with the display and adjustment module
Setup - Application - Application
Setup - Application - Medium, dielectric constant
In this menu item, you can select the application. You can choose
between level measurement and interface measurement. You can
also choose between measurement in a vessel or in a bypass or
standpipe.
Note:
The selection of the application has a considerable inuence on all
other menu items. Keep in mind that as you continue with the parameter adjustment, individual menu items are only optionally available.
You have the possibility to choose the demonstration mode.This
mode is suitable for test and demonstration purposes. In this mode,
the sensor ignores the logic parameters of the application and reacts
immediately to each change.
In this menu item, you can dene the medium type (product).
This menu item is only available if you have selected level measure-
ment under the menu item "Application".
You can choose between the following medium types:
Dielectric constant
> 10 Water-based liq-
3 … 10 Chemical mix-
< 3 Hydrocarbons Solvents, oils, liquid gas
Medium type Examples
uids
tures
Acids, alcalis, water
Chlorobenzene, nitro lacquer, aniline,
isocyanate, chloroform
Setup - Application - Gas
phase
This menu item is only available, if you have chosen interface measurement under the menu item "Application". In this menu item you can
enter if there is a superimposed gas phase in your application.
Only set the function to "Ye s ", if the gas phase is permanently pre-
sent.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
29
6 Set up with the display and adjustment module
Setup - Application - Dielectric constant
Setup - Max. adjustment
Lev
el
This menu item is only available if you have selected interface measurement under the menu item "Application". In this menu item you can
choose the medium type of the upper medium.
You can enter the dielectric gure of the upper medium directly or
have the gure determined by the instrument. For this purpose you
have to enter the measured distance to the interface.
In this menu item you can enter the max. adjustment for the level. With
interface measurement this is the maximum total level.
Adjust the requested percentage value with [+] and save with [OK].
Enter the appropriate distance value in m (corresponding to the
percentage value) for the full vessel. The distance refers to the sensor
reference plane (seal surface of the process tting). Keep in mind that
the max. level must lie below the dead band.
Setup - Min. adjustment
Level
30
In this menu item you can enter the min. adjustment for the level. With
interface measurement this is the minimum total level.
Adjust the requested percentage value with [+] and save with [OK].
42288-EN-130314
Enter the suitable distance value in m for the empty vessel (e.g.
distance from the ange to the probe end) corresponding to the per-
VEGAFLEX 86 • Modbus and Levelmaster protocol
6 Set up with the display and adjustment module
centage value. The distance refers tot he sensor reference plane (seal
surface of the process tting).
Setup - Max. adjustment Interface
Setup - Min. adjustment Interface
This menu item is only available if you have selected interface measurement under the menu item "Application".
You can accept the adjustment of the level measurement also for the
interface measurement. If you select "Yes", the current setting will be
displayed.
If you have selected "No", you can enter the adjustment for the interface separately. Enter the requested percentage value.
For the full vessel, enter the distance value in m matching the per-
centage value.
This menu item is only available if you have selected interface measurement under the menu item "Application". If you have selected "Ye s "
in the previous menu item (accept adjustment of the level measurement), the current setting will be displayed.
If you have selected "No", you can enter the adjustment for the interface measurement separately.
Enter the respective distance value in m for the empty vessel cor-
responding to the percentage value.
Setup - Damping
To damp process-dependent measured value uctuations, set an
integration time of 0 … 999 s in this menu item.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
31
6 Set up with the display and adjustment module
If you have selected interface measurement under the menu item
"Application", you can adjust the damping for the level and the interface separately.
The default setting is a damping of 0 s.
Setup - Linearization
Setup - Scaling Level
A linearization is necessary for all vessels in which the vessel volume
does not increase linearly with the level - e.g. a horizontal cylindri-
cal or spherical tank, when the indication or output of the volume is
required. Corresponding linearization curves are preprogrammed
for these vessels. They represent the correlation between the level
percentage and vessel volume.
The linearization applies to the measured value indication and the
current output. By activating the appropriate curve, the volume percentage of the vessel is displayed correctly. If the volume should not
be displayed in percent but e.g. in l or kg, a scaling can be also set in
the menu item "Display".
Caution:
Note the following, if the respective sensor is used as part of an overll protection system according to WHG:
If a linearization curve is selected, the measuring signal is no longer
linearly proportional to the level. This must be taken into consideration
by the user, particularly when setting the switching point on the limit
signal indicator.
Since the scaling is very comprehensive, the scaling of the level value
was divided into two menu items.
Setup - Scaling Level 1
32
In menu item "Level 1" you dene the scaling size and the scaling unit
for the level value on the display, e.g. volume in l.
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
6 Set up with the display and adjustment module
Setup - Scaling Level 2
Setup - Scaling Interface
Setup - Scaling Inter
face
(1)
In menu item "Level 2" you dene the scaling format on the display
and the scaling of the level measured value for 0 % and 100 %.
Since scaling is very extensive, the scaling of the interface value was
divided into two menu items.
In menu item "Interface 1" you dene the scaling size and the scaling
unit for the interface value on the display, e.g. volume in l.
You can accept the scaling of the level measurement also for the
interface measurement. If you select "Ye s", the current setting is
displayed.
If you have selected "No", you can enter the scaling for the interface
separately.
Setup - Scaling Interface
(2)
In menu item "Interface(2)" you dene the scaling format on the
display and the scaling of the interface measured value for 0 % and
100 %.
Setup - Current output
Size
In menu item"Current output, size" you determine which measured
value the current output refers to.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
33
6 Set up with the display and adjustment module
Setup - Current output,
adjustment
Setup - Curr
ent output
Min./Max.
Setup - HART v
ariables
(1)
In menu item "Current output, adjustment" you can assign a respective measured value to the current output.
In the menu item "Current output Min./Max.", you determine the reaction of the current output during operation.
The default setting is min. current 3.8 mA and max. current 20.5 mA.
Since the HART variables are very extensive, the indication was
divided into two menu items.
In the menu "HART variables 1" you can have the rst HART value PV
(primary value) and the second HART value SV (secondary value) of
the sensor displayed.
The values cannot be changed in the display and adjustment module.
To change these values, you have to use the adjustment software
PAC Tw a re .
Setup - HART variables
(2)
34
In the menu "HART variables 2" you can have the third HART value
TV (third value) and the fourth HART value QV (quarter value) of the
sensor displayed.
The values cannot be changed in the display and adjustment module.
To change these values, you have to use the adjustment software
PAC Tw a re .
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
6 Set up with the display and adjustment module
Setup - False signal suppression
The following circumstances cause interfering reections and can
inuence the measurement:
High sockets
•
Vessel installations such as struts
•
Note:
A false signal suppression detects, marks and saves these false
signals so that they are no longer taken into account for the level and
interface measurement. We generally recommend carrying out a false
signal suppression to achieve the best possible accuracy. This should
be done with the lowest possible level so that all potential interfering
reections can be detected.
Proceed as follows:
Enter the actual distance from the sensor to the product surface.
All interfering signals in this section are detected by the sensor and
stored.
Note:
Check the distance to the product surface, because if an incorrect
(too large) value is entered, the existing level will be saved as a false
echo. The lling level would then no longer be detectable in this area.
If a false signal suppression has already been created in the sensor,
the following menu window appears when selecting "False signal
suppression":
The instrument carries out an automatic false signal suppression
as soon as the probe is uncovered. The false signal suppression is
always updated.
The menu item "Delete" is used to completely delete an already created false signal suppression. This is useful if the saved false signal
suppression no longer matches the metrological conditions in the
vessel.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
35
6 Set up with the display and adjustment module
Lock/unlock setup - Adjustment
Display - Menu language
Display - Displayed value
1
In the menu item "Lock/unlock adjustment", you can protect the
sensor parameters against unauthorized modication. The PIN is
activated/deactivated permanently.
The following adjustment functions are possible without entering the
PIN:
Select menu items and show data
•
Read data from the sensor into the display and adjustment mod-
•
ule.
Caution:
With active PIN, adjustment via PACTware/DTM as well as other
systems is also blocked.
You can change the PIN number under "Additional adjustments PIN".
This menu item enables the setting of the requested national language.
In the delivery status, the sensor is set to the ordered national language.
In this menu item, you dene the indication of the measured value
on the display. You can display two dierent measured values. In this
menu item, you dene measured value 1.
Display - Displayed value
2
36
The default setting for the displayed value 1 is "Filling height Level".
In this menu item, you dene the indication of the measured value
on the display. You can display two dierent measured values. In this
menu item, you dene measured value 2.
42288-EN-130314
The default setting for the displayed value 2 is the electronics temperature.
VEGAFLEX 86 • Modbus and Levelmaster protocol
6 Set up with the display and adjustment module
Display - Backlight
Diagnostics - Device
status
Diagnostics - Peak values
Distance
The optionally integrated background lighting can be adjusted via the
adjustment menu. The function depends on the height of the supply
voltage, see "Technical data".
The lighting is switched o in the delivery status.
In this menu item, the device status is displayed.
The respective min. and max. measured value is saved in the sensor. The two values are displayed in the menu item "Peak values,
distance".
If you have selected interface measurement under the menu item
"Setup - Application", then the peak values of the interface measurement are displayed in addition to the peak values of the level
measurement.
In another window you can carry out a reset of the two peak values
separately.
Diagnostics - Peak values
Measurement certainty
The respective min. and max. measured values are saved in the
sensor. The two values are displayed in the menu item "Peak values,
measurement certainty".
The measurement can be inuenced by the process conditions. In
this menu item, the measurement certainty of the level measurement
is displayed as percentage value. The higher the value, the more reliable the measurement. Values > 90 % indicate reliable measurement.
If you have selected interface measurement under the menu item
"Setup - Application", then the peak values of the interface measurement are displayed in addition to the peak values of the level
measurement.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
37
6 Set up with the display and adjustment module
In another window you can carry out a reset of the two peak values
separately.
Diagnostics - Peak values
Additional
Diagnostics - Echo curve
The respective min. and max. measured values are saved in the
sensor. The values are displayed in the menu item "Peak values Ad-
ditional".
This menu item displays the peak values of the electronics tempera-
ture as well as the dielectric constant.
In another window you can carry out a reset of the two peak values
separately.
The menu item "Echo curve" shows the signal strength of the echoes
over the measuring range in V. The signal strength enables an evalua-
tion of the quality of the measurement.
With the following functions you can zoom part sections of the echo
curve.
"X-Zoom": Zoom function for the meas. distance
•
"Y-Zoom": 1, 2, 5 and 10x signal magnication in "V"
•
"Unzoom": Reset the presentation to the nominal measuring range
•
with single magnication
Diagnosis - Simulation
38
In this menu item you can simulate measured values via the current
output. This allows the signal path to be tested, e.g. via downstream
indicating instruments or the input card of the control system.
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
6 Set up with the display and adjustment module

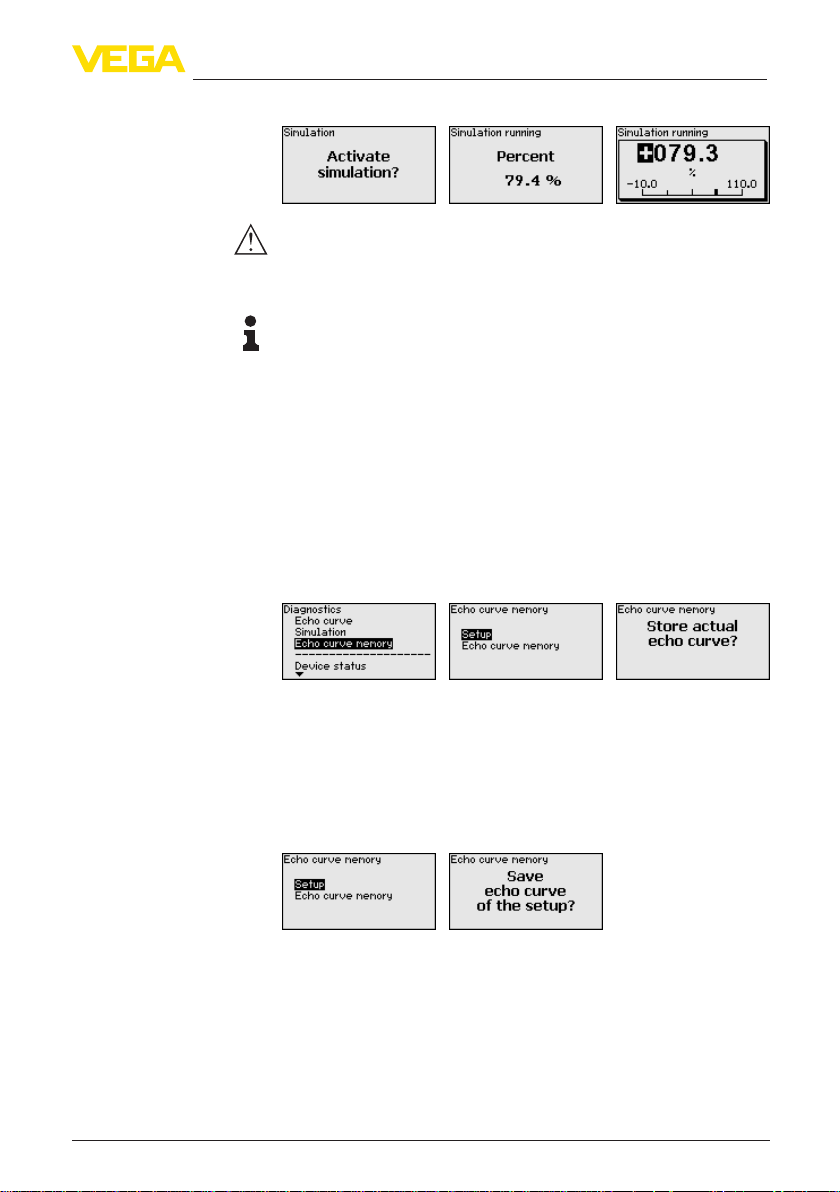

Select the requested simulation size and adjust the requested value.
Caution:
During simulation, the simulated value is outputted as 4 … 20 mA current value and digital HART signal.
Push the [ESC] key to deactivate the simulation.
Information:
The simulation is terminated automatically 60 minutes after the last
key has been pushed.
Diagnostics - Echo curve
memory
Additional settings - PIN
The function "Echo curve memory" enables storing echo curves of the
measurement.
Under the sub-menu item "Echo curve memory" you can store the
current echo curve.
Parameter settings for recording the echo curve and the settings of
the echo curve itself can be carried out in the adjustment software
PAC Tw a re .
With the adjustment software PACTware and the PC the high-reso-
lution echo curve can be displayed and used later on to assess the
quality of the measurement.
With the menu item "Setup" the echo curve it is possible to save at
the time of setup. This is generally recommended; for using the Asset
Management functions it is necessary. If possible, the curve should
be saved with a low level in the vessel.
With this, you can detect signal changes over the operating time. With
the adjustment software PACTware and the PC, the high-resolution
echo curve can be displayed and used to compare the echo curve of
the setup with the actual echo curve.
Entering a 4-digit PIN protects the sensor data against unauthorized
access and unintentional modication. In this menu item, the PIN is
displayed or edited and changed. However, this menu item is only
available if adjustment is enabled in the menu "Lock/unlock setup -
Adjustment".
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
39
6 Set up with the display and adjustment module
In delivery status, the PIN is "0000".
Additional adjustments Date Time
A
dditional adjustments
- Reset
In this menu item, the internal clock of the sensor is adjusted.
With a reset, certain parameter adjustments carried out by the user
are reset.
The following reset functions are available:
Delivery status: Restoring the parameter settings at the time of ship-
ment from the factory incl. the order-specic settings. A created false
signal suppression, user-programmable linearization curve as well as
the measured value memory will be deleted.
Basic settings: Resetting the parameter settings incl. special and
laboratory parameters to the default values of the respective instrument. A created false signal suppression, user programmable lineari-
zation curve as well as the measured value memory will be deleted.
The following table shows the default values of the instrument. Depending on the instrument version or application, all menu items may
not be available or some may be dierently assigned:
40
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
6 Set up with the display and adjustment module
Menu Menu item Default value
Setup Block operation Released
Measurement
loop name
Units Distance unit: mm
Probe length Length of the probe Ex factory
Product type Liquid
Application Level, vessel
Medium, dielectric
constant
Max. adjustment 0.000 m(d) - note blocking distances
Min. adjustment Probe length - take dead band into
Linearization Linear
Damping
Scaling size Volume in l
Current output,
adjustment
Current output
mode
Current output
Min./Max.
Display Language As set in the device
Displayed value 1 Filling height Level
Displayed value 2 Electronics temperature
Backlight Switched o
Additional settings PIN 0000
Probe type Like order
HART mode Address 0 - Analogue current output
Sensor
Temperature unit: °C
Water-based, > 10
account
0.0 s
0.00 lin %, 0 l
100.00 lin %, 100 l
Last measured value
Min. current 3.8 mA, max. current
20.5 mA
with HART
Additional adjustments Copy instrument settings
The instrument settings are copied with this function. The following
functions are available:
Read from sensor: Read data from sensor and store into the
•
display and adjustment module
Write into sensor: Store data from the display and adjustment
•
module back to the sensor
The following data or settings for adjustment of the display and adjustment module are saved:
All data of the menu "Setup" and "Display"
•
In the menu "Additional adjustments" the items "Reset, Date/Time"
•
Special parameters
•
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
41
6 Set up with the display and adjustment module
The copied data are permanently saved in an EEPROM memory in
the display and adjustment module and remain there even in case of
power failure. From there, they can be written into one or more sensors or kept as backup for a possible electronics exchange.
Note:
Before the data are stored in the sensor, a check is carried out to
determine if the data t the sensor. If the data do not t, a fault signal
is triggered or the function is blocked. When data are being written
into the sensor, the display shows which instrument type the data
originate from and which TAG-no. this sensor had.
Additional adjustments Probe type
Additional adjustments Special parameters
Additional adjustments HART mode
In this menu item you can select the type and size of your probe from
a list of all possible probes. This is necessary to adapt the electronics
optimally to the probe.
In this menu item you gain access to the protected area where
you can enter special parameters. In exceptional cases, individual
parameters can be modied in order to adapt the sensor to special
requirements.
Change the settings of the special parameters only after having contacted our service sta.
The sensor oers the HART modes "Analogue current output" and
"Fixcurrent(4mA)". In this menu item you determine the HART mode
and enter the address with Multidrop mode.
In the mode "Fixed current output" up to 63 sensors can be operated
on one two-wire cable (Multidrop operation). An address between 0
and 63 must be assigned to each sensor.
If you select the function "Analogue current output" and also enter
an address number, you can output a 4 … 20 mA signal in Multidrop
mode.
With the mode "
Fixedcurrent(4mA)" a xed 4 mA signal is outputted
independently of the actual level.
42288-EN-130314
42
VEGAFLEX 86 • Modbus and Levelmaster protocol
6 Set up with the display and adjustment module
The default setting is "Analogue current output" and the address 00.
Info - Instrument name
Info - Instrument version
Inf
o - Factory calibration
date
Info - Sensor characteristics
In this menu, you read out the instrument name and the instrument
serial number:
In this menu item, the hardware and software version of the sensor is
displayed.
In this menu item, the date of factory calibration of the sensor as well
as the date of the last change of sensor parameters are displayed via
the display and adjustment module or via the PC.
In this menu item, the features of the sensor such as approval, process tting, seal, measuring range, electronics, housing and others
are displayed.
6.6 Saving the parameter adjustment data
We recommended noting the adjusted data, e.g. in this operating
instructions manual, and archiving them afterwards. They are thus
available for multiple use or service purposes.
If the instrument is equipped with a display and adjustment module,
the data in the sensor can be saved in the display and adjustment
module. The procedure is described in the operating instructions
manual "Display and adjustment module" in the menu item "Copy
sensor data". The data remain there permanently even if the sensor
power supply fails.
The following data or settings for adjustment of the display and ad-
justment module are saved:
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
43
6 Set up with the display and adjustment module
All data of the menu "Setup" and "Display"
•
In the menu "Additional adjustments" the items "Sensor-specic
•
units, temperature unit and linearization"
The values of the user programmable linearization curve
•
The function can also be used to transfer settings from one instrument to another instrument of the same type. If it is necessary to
exchange a sensor, the display and adjustment module is inserted
into the replacement instrument and the data are likewise written into
the sensor via the menu item "Copy sensor data".
44
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
2
To the sensor electronics
7 Setting up sensor and Modbus interface with PACTware
7 Setting up sensor and Modbus interface
with PACTware
7.1 Connect the PC
The connection of the PC to the sensor electronics is carried out via
the interface adapter VEGACONNECT 4.
Scope of the parameter adjustment:
Sensor electronics
•
1
3
Fig. 17: Connection of the PC directly to the sensor via the interface adapter
1 USB cable to the PC
2 Interface adapter VEGACONNECT 4
3 Sensor
To the Modbus electronics
The connection of the PC to the Modbus electronics is carried out via
a USB cable.
Scope of the parameter adjustment:
Sensor electronics
•
Modbus electronics
•
1
Fig. 18: Connecting the PC via USB to the Modbus electronics
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
1 USB cable to the PC
45
7 Setting up sensor and Modbus interface with PACTware
To the RS 485 cable
Prerequisites
The connection of the PC to the RS 485 cable is carried out via a
standard interface adapter RS 485/USB.
Scope of the parameter adjustment:
Sensor electronics
•
Modbus electronics
•
Information:
For the parameter adjustment it is absolutely necessary to separate
the connection to the RTU.
4
5
RS485
USB
3
2
1
Fig. 19: Connection of the PC via the interface adapter to the RS 485 cable
1 Interface adapter RS 485/USB
2 USB cable to the PC
3 RS 485 cable
4 Sensor
5 Voltage supply
7.2 Parameter adjustment with PACTware
For parameter adjustment of the sensor via a Windows PC, the conguration software PACTware and a suitable instrument driver (DTM)
according to FDT standard are required. The up-to-date PACTware
version as well as all available DTMs are compiled in a DTM Collec-
tion. The DTMs can also be integrated into other frame applications
according to FDT standard.
Note:
To ensure that all instrument functions are supported, you should
always use the latest DTM Collection. Furthermore, not all described
functions are included in older rmware versions. You can download
the latest instrument software from our homepage. A description of
the update procedure is also available in the Internet.
Further setup steps are described in the operating instructions manu-
al "DTM Collection/PACTware" attached to each DTM Collection and
which can also be downloaded from the Internet. Detailed descriptions are available in the online help of PACTware and the DTMs.
42288-EN-130314
46
VEGAFLEX 86 • Modbus and Levelmaster protocol
7 Setting up sensor and Modbus interface with PACTware
Fig. 20: Example of a DTM view
Standard/Full version
All device DTMs are available as a free-of-charge standard version
and as a full version that must be purchased. In the standard version,
all functions for complete setup are already included. An assistant for
simple project conguration simplies the adjustment considerably.
Saving/printing the project as well as import/export functions are also
part of the standard version.
In the full version there is also an extended print function for complete
project documentation as well as a save function for measured value
and echo curves. In addition, there is a tank calculation program as
well as a multiviewer for display and analysis of the saved measured
value and echo curves.
The standard version is available as a download under www.vega.
com/downloads and "Software". The full version is available on CD
from the agency serving you.
7.3 Set up with the quick setup
General information
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
The quick setup is another option for parameter adjustment of the
sensor. It allows fast, convenient adjustment of the most important
parameters to adapt the sensor quickly to standard applications. To
use it, select the function "Quick setup" in the start screen.
47
7 Setting up sensor and Modbus interface with PACTware
Fig. 21: Select quick setup
1 Quick setup
2 Extended adjustment
3 Maintenance
Quick setup
With quick setup you can carry out the parameter adjustment of
VEGAFLEX 86 for your application in just a few simple steps. The
assistant-driven adjustment includes the basic settings for simple,
reliable setup and commissioning.
Information:
If the function is inactive, then possibly no instrument is connected.
Check the connection to the instrument.
Extended adjustment
With the extended adjustment, you carry out the parameter adjustment for the instrument via the clear menu structure in the DTM
(Device Type Manager). This enables additional and special settings
over and above those oered by quick setup.
Maintenance
Under the menu item "Maintenance" you get comprehensive and
important support for servicing and maintenance. You can call up
diagnostic functions and carry out an electronics exchange or a
software update.
Start quick setup
Step 1 of 7
Instrumentconguration
48
Click to the button "Quick setup", to start the assistant-driven adjustment for a simplied and reliable setup.
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
Step 2 of 7
Application
7 Setting up sensor and Modbus interface with PACTware
Device name
Here, you can nd the instrument name. You cannot change this line
because the instrument name is unmodiably saved in the instrument.
Serial number
Here, you can nd the serial number of your instrument. You cannot
change this line because the serial number is unmodiably saved in
the instrument.
Measurement loop name
Here you can enter a suitable measurement loop name for your VEGAFLEX 86. You can enter a name with max. 19 characters. You can
use capital and small letters as well as numbers. The following special
characters are also possible: + - . : , ( ) / < >
Probelengthmodied?
If you have modied the probe length, this must be entered in the
selection eld.
If you select "No", then the instrument uses automatically the
•
preset length of the default setting.
If you select "Yes ", then you can enter in another eld the modied
•
length of the instrument.
Probe length L from seal surface
If you have modied the length of the probe, you can enter in this eld
the modied probe length. Keep the selected unit in mind.
Determine probe length automatically
If you do not know the probe length, you can have the length of the
probe determined automatically. The requirement for this is a probe
unrestricted and not covered by the medium.
Click to "Carry out now", to start the automatic length determination.
Product type
Here you can see which medium type your instrument is suitable for.
If this function is inactive, the medium type your instrument is suitable
for was already preset.
Information:
In special cases you can change the medium type. This setting can be
changed under "Extended adjustment".
Application
In this eld you can select the application you want to use your instrument for. You have the following selection options:
Level in the vessel
•
Level in the bypass/standpipe
•
Interface in the vessel
•
Interface in the bypass/standpipe
•
Demonstration mode
•
Level measurement: If you select "Level", you can select the properties of the medium in another eld.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
49
7 Setting up sensor and Modbus interface with PACTware
Interface measurement: If you select "Interface", the instrument needs
more information, such as the distance to the interface, the dielectric
constant of the upper medium or whether or not there is a superim-
posed gas phase.
Demonstration mode: This mode is suitable for test and demonstration purposes. In this mode, the sensor ignores all logic parameters
and reacts immediately to all measured value changes within the
measuring range.
Application - Level measurement
The level measurement refers to the product surface which is the limit
to the gas phase.
Liquids
•
– Solvents, oils, LPG - dielectric constant < 3
– Chemical mixtures - dielectric constant 3 … 10
– Water-based - dielectric constant > 10
Bulk solids
•
– Dusts, wood chips - dielectric constant < 1.5
– Granules, dusts, powders - dielectric constant 1.5 … 3
– Cereals, our - dielectric constant > 3
Application - Interface measurement
The interface measurement refers to the phase limit between two
liquids. The total level is also available as a measured value.
Superimposed gas phase present
•
– Check if there is a superimposed gas phase in the vessel. This
is always the case if the total level never touches the process
tting.
Properties
•
– Here you can enter the dielectric constant of the upper medium
– As an alternative you can enter the distance to the interface
Step 3 of 7
Adjustment
Step 4 of 7
Linearization
50
Adjustment for the level measurement
If you have selected level measurement in the previous menu, then
you can enter the values for the min. and max. adjustment. The value
to be entered refers to the distance from the sealing surface of the
process tting (sensor reference plane) to the surface of the product.
Adjustment for the level and interface measurement
If you have selected interface measurement in the previous menu,
then you can enter the values for the min. and max. adjustment of
level and interface or accept the values of the level measurement. The
entered value refers to the distance from the sealing surface of the
process tting (sensor reference plane) to the total level or interface.
Linearization is required if the measured value should be outputted
in proportion to the volume and not the level. The linearization acts
identically on the level and the interface measurement. You can nd
further linearization types in the extended adjustment.
If you have a non-linear vessel, you can select here the respective
linearization curve.
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
7 Setting up sensor and Modbus interface with PACTware
Linear
•
Spherical tank
•
Horizontal cylindrical tank
•
You must enter the following vessel dimensions with non-linear conditions:
Height of the socket h
•
Vessel height D
•
Step 5 of 7
Setting - Output signal
Step 6 of 7
Sensor optimization
Step 7 of 7
Additional settings
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
In this window you can adjust the output signal. When the function is
inactive, you can change the settings via the "Extended adjustment".
These settings allow you to optimize the sensor. With them you can
compare a sounded distance with the indicated value and correct it, if
necessary.
Probe immersed in the liquid (covered)
Select whether or not the probe is immersed in the medium.
Measured distance to the medium
If the probe is immersed in the medium, you can enter here the measured distance to the medium.
Displayeddistancecorrect?
Is the displayed distance value correct? If you have the possibility, you
can enter here the sounded distance to the medium.
False signal suppression
With this function you can carry out the automatic false signal suppression. We recommend carrying out false signal suppression in any
case.
When the setup of the instrument is nished, additional settings can
be made. These are various backups and the locking of the instru-
ment against unauthorised or inadvertent adjustment.
Prepareabackupleoftheinstrumentparameteradjustment?
For backup purposes, the current parameter adjustment of the instrument is stored in a le. You can use this le later on to restore the
instrument parameter adjustment. The complete data set is down-
loaded from the device. This procedure can last several minutes.
Createinstrumentdocumentation?
This function is used to print or create a PDF le of the current parameter adjustment. To read the PDF le, you need a suitable program
(for example Acrobat Reader). To print or create the PDF le, all data
are downloaded from the device. For this function, the full version
of the DTM Collection is required. This procedure can last several
minutes.
Storeechocurveofthesetupinthesensor?
Have you completed the initial setup of the instrument? In such case,
we recommend storing the current signal conditions in the device for
later instrument tests and diagnostics.
51
7 Setting up sensor and Modbus interface with PACTware
LockadjustmentwithPINaftersetting?
The instrument is locked with the current PIN. A parameter adjust-
ment is possible only after the PIN is entered again.
7.4 Saving the parameter adjustment data
We recommend documenting or saving the parameter adjustment
data via PACTware. That way the data are available for multiple use or
service purposes.
52
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
8 Set up with other systems
8 Set up with other systems
8.1 DD adjustment programs
Device descriptions as Enhanced Device Description (EDD) are
available for DD adjustment programs such as, for example, AMS™
and PDM.
The les can be downloaded at www.vega.com/downloads under
"Software".
8.2 Communicator 375, 475
Device descriptions for the instrument are available as DD or EDD for
parameter adjustment with the Field Communicator 375 or 475.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
53
9 Diagnostics and service
9 Diagnostics and service
9.1 Maintenance
If the device is used correctly, no maintenance is required in normal
operation.
9.2 Diagnosis memory
The instrument has several memories which are available for diagnosis purposes. The data remain even with voltage interruption.
Measured value memory
Event memor
y
Up to 100,000 measured values can be stored in the sensor in a ring
memory. Each entry contains date/time as well as the respective
measured value. Storable values are for example:
Distance
•
Filling height
•
Percentage value
•
Lin. percent
•
Scaled
•
Current value
•
Meas. reliability
•
Electronics temperature
•
When the instrument is shipped, the measured value memory is
active and stores distance, measurement certainty and electronics
temperature every 3 minutes.
In the "Extended operation", you can select the respective measured
values.
The requested values and recording conditions are set via a PC with
PACTware/DTM or the control system with EDD. Data are thus read
out and also reset.
Up to 500 events are automatically stored with a time stamp in the
sensor (non-deletable). Each entry contains date/time, event type,
event description and value. Event types are for example:
Modication of a parameter
•
Switching on and o times
•
Status messages (according to NE 107)
•
Error messages (according to NE 107)
•
The data are read out via a PC with PACTware/DTM or the control
system with EDD.
Echo curve memory
54
The echo curves are stored with date and time and the corresponding
echo data. The memory is divided into two sections:
Echo curve of the setup: This is used as reference echo curve for
the measurement conditions during setup. Changes in the measurement conditions during operation or buildup on the sensor can thus
be recognized. The echo curve of the setup is stored via:
PC with PACTware/DTM
•
Control system with EDD
•
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
9 Diagnostics and service
Display and adjustment module
•
Further echo curves: Up to 10 echo curves can be stored in a ring
buer in this memory section. Further echo curves are stored via:
PC with PACTware/DTM
•
Control system with EDD
•
Display and adjustment module
•
9.3 Status messages
The instrument features self-monitoring and diagnostics according
to NE 107 and VDI/VDE 2650. In addition to the status messages in
the following tables there are more detailed error messages available
under the menu item "Diagnostics" via the display and adjustment
module, PACTware/DTM and EDD.
Status messages
The status messages are divided into the following categories:
Failure
•
Function check
•
Out of specication
•
Maintenance requirement
•
and explained by pictographs:
41 2 3
Fig. 22: Pictographs of the status messages
1 Failure - red
2 Outofspecication-yellow
3 Function check - orange
4 Maintenance - blue
Failure: Due to a malfunction in the instrument, a failure message is
outputted.
This status message is always active. It cannot be deactivated by the
user.
Function check: The instrument is in operation, the measured value
is temporarily invalid (for example during simulation).
This status message is inactive by default. It can be activated by the
user via PACTware/DTM or EDD.
Outofspecication: The measured value is unstable because the
instrument specication is exceeded (e.g. electronics temperature).
This status message is inactive by default. It can be activated by the
user via PACTware/DTM or EDD.
Maintenance: Due to external inuences, the instrument function
is limited. The measurement is aected, but the measured value is
still valid. Plan in maintenance for the instrument because a failure is
expected in the near future (e.g. due to buildup).
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
55
9 Diagnostics and service
This status message is inactive by default. It can be activated by the
user via PACTware/DTM or EDD.
Failure (failure)
The following table shows the codes and text messages of the status
message "Failure" and provides information on causes as well as
corrective measures.
Code
Text message
F013
no measured value
available
F017
Adjustment
span too
small
F025
Error in the
linearization table
F036
No operable
software
F040
Error in the
electronics
F080
F105
Determine
measured
value
F113
Communication error
Cause Rectication PA DevS-
– Sensor does not
detect an echo during
operation
– Antenna system con-
taminated or defective
– Adjustment not within
specication
– Index markers are not
continuously rising, for
examle unlogical value
pairs
– Failed or interrupted
software update
– Hardware defect – Exchanging the elec-
– General software error – Separate operating
– The instrument is still
in the start phase, the
measured value could
not yet be determined
– Error in the internal
instrument communication
– Check or correct
installation and/or
parameter adjustment
– Clean or exchange
process component or
antenna
– Change adjustment
according to the limit
values (dierence
between min. and
max. ≥ 10 mm)
– Check linearization
table
– Delete table/Create
new
– Repeat software
update
– Check electronics
version
– Exchanging the elec-
tronics
– Send instrument for
repair
tronics
– Send instrument for
repair
voltage briey
– Wait for the end of the
switch-on phase
– Duration depending
on the version and
parameter adjustment
up to approximately
3 min.
– Separate operating
voltage briey
– Send instrument for
repair
pec
Diagnosis
Bit 0
Bit 1
Bit 2
Bit 3
Bit 4
Bit 5
Bit 6
Bit 7
42288-EN-130314
56
VEGAFLEX 86 • Modbus and Levelmaster protocol
9 Diagnostics and service
Code
Text message
F125
Unpermissible
electronics
temperature
F260
Error in the
calibration
F261
Error in the
conguration
F264
Installa-
tion/Setup
error
F265
Measurement
function
disturbed
F267
No execut-
able sensor
software
Cause Rectication PA DevS-
– Temperature of the
electronics in the non-
specied section
– Error in the calibra-
tion carried out in the
factory
– Error in the EEPROM
– Error during setup
– False signal suppres-
sion faulty
– Error when carrying
out a reset
– Adjustment not within
the vessel height/
measuring range
– Max. measuring range
of the instrument not
sucient
– Sensor no longer
carries out a measurement
– Operating voltage
too low
– Sensor cannot start – Exchanging the elec-
– Check ambient tem-
perature
– Isolate electronics
– Use instrument with
higher temperature
range
– Exchanging the elec-
tronics
– Send instrument for
repair
– Repeat setup
– Repeat reset
– Check or correct
installation and/or
parameter adjustment
– Use an instrument
with bigger measuring
range
– Check operating
voltage
– Carry out a reset
– Separate operating
voltage briey
tronics
– Send instrument for
repair
pec
Diagnosis
Bit 8
Bit 9
Bit 10
Bit 11
Bit 12
-
Function check
The following table shows the error codes and text messages in the
status message "Function check" and provides information on causes
as well as corrective measures.
Code
Text message
C700
Simulation ac-
tive
Outofspecication
The following table shows the error codes and text messages in the
status message "Outofspecication" and provides information on
causes as well as corrective measures.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
Cause Rectication
– A simulation is active – Finish simulation
– Wait for the automatic end
after 60 mins.
57
9 Diagnostics and service
Maintenance
Code
Text message
S600
Unpermissible electronics
temperature
S601
Overlling
Cause Rectication
– Temperature of the elec-
tronics in the non-specied
section
– Danger of vessel overlling – Make sure that there is no
– Check ambient temperature
– Isolate electronics
– Use instrument with higher
temperature range
further lling
– Check level in the vessel
The following table shows the error codes and text messages in the
status message "Maintenance" and provides information on causes
as well as corrective measures.
Code
Text message
M500
Error with the
reset delivery
status
M501
Error in the
non-active
linearization
table
M502
Error in the
diagnosis
memory
M503
Reliability too
low
M504
Error on an
device inter-
face
M505
No echo available
Cause Rectication
– With the reset to delivery
status, the data could not
be restored
– Hardware error EEPROM – Exchanging the electronics
– Hardware error EEPROM – Exchanging the electronics
– The echot/noise ratio is the
small for a reliable measurement
– Hardware defect – Check connections
– Level echo can no longer
be detected
– Repeat reset
– Load XML le with sensor
data into the sensor
– Send instrument for repair
– Send instrument for repair
– Check installation and
process conditions
– Clean the antenna
– Change polarisation direc-
tion
– Use instrument with higher
sensitivity
– Exchanging the electronics
– Send instrument for repair
– Clean the antenna
– Use a more suitable
antenna/sensor
– Remove possible false
echoes
– Optimize sensor position
and orientation
42288-EN-130314
58
VEGAFLEX 86 • Modbus and Levelmaster protocol
Reaction when malfunctions occur
9 Diagnostics and service
9.4 Rectify faults
The operator of the system is responsible for taking suitable measures to rectify faults.
Procedure f
or fault recti-
cation
Check the 4 … 20 mA
signal
The rst measures are:
Evaluation of fault messages, for example via the display and
•
adjustment module
Checking the output signal with 4 … 20 mA instruments
•
Treatment of measurement errors
•
Further comprehensive diagnostics options oer a PC with the software PACTware and the suitable DTM. In many cases, the reasons
can be determined in this way and faults can be rectied.
Connect a handmultimeter in the suitable measuring range according
to the wiring plan. The following table describes possible errors in the
current signal and helps to remove them:
Error Cause Rectication
4 … 20 mA signal
not stable
4 … 20 mA signal
missing
Current signal greater than
22 mA or less
than 3.6 mA
– Level uctua-
tions
– Electrical con-
nection faulty
– Voltage supply
missing
– Operating volt-
age too low or
load resistance
too high
– Electronics
module in the
sensor defective
– Set damping according to the
instrument via the display and
adjustment module or PACTware/
DTM
– Check connection according to
chapter "Connection steps" and
if necessary, correct according to
chapter "Wiring plan"
– Check cables for breaks; repair if
necessary
– Check, adapt if necessary
– Exchange the instrument or send it
in for repair
Treatment of measurement errors
The below tables show typical examples for application-relevant
measurement errors. There are two measurement errors:
Constant level
•
Filling
•
Emptying
•
The images in column "Error pattern" show the real level with a broken line and the level displayed by the sensor as a continuous line.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
59
9 Diagnostics and service
time
0
time
0
time
time
Level
1
2
0
time
Fig. 23: The broken line 1 shows the real level, the continuous line 2 shows the
level displayed by the sensor
Note:
Wherever the sensor displays a constant value, the reason could
•
also be the fault setting of the current output to "Hold value"
In case of a too low level indication, the reason could be a line
•
resistance that is too high
Measurement error with constant level
Fault description Error pattern Cause Rectication
1. Measured value
shows a too low or too
high level
Level
– Min./max. adjustment not
correct
– Wrong linearization curve – Adapt linearization curve
– Running time error (small
– Adapt min./max. adjustment
– Repeat setup
measurement error close to
100 %/serious error close to
0 %)
2. Measured value
jumps towards 100 %
Level
– Due to the process, the ampli-
tude of the product echo sinks
– Carry out false signal suppres-
sion
– A false signal suppression was
not carried out
– Amplitude or position of a
false signal has changed (e.g.
buildup); false signal suppres-
sion no longer matches
– Determine the reason for the
changed false signals, carry out
false signal suppression, e.g.
with buildup
Measurementerrorduringlling
Fault description Error pattern Cause Rectication
3. Measured value re-
mains in the area of the
bottom during lling
4. Measured value remains momentarily
unchanged during lling and then jumps to
the correct level
Level
– Echo from the probe end larger
than the product echo, for
example, with products with
0
Level
0
εr < 2.5 oil-based, solvents, etc.
– Turbulence on the product
surface, quick lling
– Check application parameter
"Medium" and "Vessel height",
adapt if necessary
– Check application parameters,
change if necessary, e.g. in
dosing vessel, reactor
42288-EN-130314
60
VEGAFLEX 86 • Modbus and Levelmaster protocol
9 Diagnostics and service
time
0
time
0
time
0
Fault description Error pattern Cause Rectication
5. Measured value
jumps sporadically to
Level
– Varying condensation or con-
tamination on the probe
– Carry out false signal suppres-
sion
100 % during lling
6. Measured value
jumps to ≥ 100 % or
0 m distance
Level
– Level echo is no longer
detected in the close range
due to false signals in the close
range. The sensor goes into
overll protection mode. The
– Eliminate false signals in the
close range
– Check installation conditions
– If possible, switch o the func-
tion "Overll protection"
max. level (0 m distance) as
well as the status message
"Overll protection" are outputted.
Measurement error during emptying
Fault description Error pattern Cause Rectication
7. Measured value remains unchanged in
the close range during
emptying
Level
– False echo larger than the level
echo
– Level echo too small
– Eliminate false signals in the
close range
– Remove contamination on the
probe. After having removed
the source of the false signals,
the false signal suppression
must be deleted.
– Carry out a new false signal
suppression
8. Measured value remains reproducible
in one position during
Level
– Stored false signals in this
position are larger than the
level echo
– Delete false signal memory
– Carry out a new false signal
suppression
emptying
Reaction after fault recti-
cation
Depending on the reason for the fault and the measures taken, the
steps described in chapter "Setup" must be carried out again or must
be checked for plausibility and completeness.
24 hour ser
vice hotline
Should these measures not be successful, please call in urgent cases
the VEGA service hotline under the phone no.
+49 1805 858550.
The hotline is also available outside the normal working hours on
seven days a week around the clock.
Since we oer this service worldwide, the support is in the English
language. The service itself is free of charge, the only costs involved
are the normal call charges.
42288-EN-130314
9.5 Exchanging the electronics module
If the electronics module is defective, it can be replaced by the user.
In Ex applications only one instrument and one electronics module
with respective Ex approval may be used.
If there is no electronics module available on site, the electronics
module can be ordered through the agency serving you. The electron-
VEGAFLEX 86 • Modbus and Levelmaster protocol
61
9 Diagnostics and service
ics modules are adapted to the respective sensor and dier in signal
output or voltage supply.
The new electronics module must be loaded with the default settings
of the sensor. These are the options:
In the factory
•
Or on site by the user
•
In both cases, the serial number of the sensor is needed. The serial
numbers are stated on the type label of the instrument, on the inside
of the housing as well as on the delivery note.
When loading on site, rst of all the order data must be downloaded
from the Internet (see operating instructions manual "Electronics
module").
9.6 Software update
The following components are required to update the sensor software:
Sensor
•
Voltage supply
•
Interface adapter VEGACONNECT 4
•
PC with PACTware
•
Current sensor software as le
•
You can nd the actual sensor software as well as detailed information of the procedure under "www.vega.com/downloads" and
"Software".
You can nd information about the installation in the download le.
Caution:
Instruments with approvals can be bound to certain software versions. Therefore make sure that the approval remains eective with a
software update.
You can nd detailed information on www.vega.com/downloads and
"Approvals".
62
9.7 How to proceed in case of repair
You can nd a repair form as well as detailed information on how to
proceed under www.vega.com/downloads and "Formsandcerti-
cates".
By doing this you help us carry out the repair quickly and without hav-
ing to call back for needed information.
If a repair is necessary, please proceed as follows:
Print and ll out one form per instrument
•
Clean the instrument and pack it damage-proof
•
Attach the completed form and, if need be, also a safety data
•
sheet outside on the packaging
Please contact for the return shipment the agency serving you. You
•
can nd the agency on our home page www.vega.com.
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
10 Dismounting
10 Dismounting
10.1 Dismounting steps
Warning:
Before dismounting, be aware of dangerous process conditions such
as e.g. pressure in the vessel, high temperatures, corrosive or toxic
products etc.
Take note of chapters "Mounting" and "Connecting to power supply"
and carry out the listed steps in reverse order.
10.2 Disposal
The instrument consists of materials which can be recycled by specialised recycling companies. We use recyclable materials and have
designed the parts to be easily separable.
Correct disposal avoids negative eects on humans and the environment and ensures recycling of useful raw materials.
Materials: see chapter "Technical data"
If you have no way to dispose of the old instrument properly, please
contact us concerning return and disposal.
WEEE directive 2002/96/EG
This instrument is not subject to the WEEE directive 2002/96/EG and
the respective national laws. Pass the instrument directly on to a specialised recycling company and do not use the municipal collecting
points. These may be used only for privately used products according
to the WEEE directive.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
63
11 Supplement
11 Supplement
11.1 Technical data
General data
Material 316L corresponds to 1.4404 or 1.4435
Materials, wetted parts
Ʋ Process tting - coax version 316L and Aluminium oxide-ceramic 99.7 % (Al2O3),
Ʋ Tube: ø 42.2 mm (1.661 in) 316L or Hastelloy C22 (2.4602)
Ʋ Process seal on the instrument side
(cable/rod leadthrough)
Ʋ Process seal On site
Ʋ Inner conductor (up to the separation
rod)
Materials, non-wetted parts
Ʋ Plastic housing plastic PBT (Polyester)
Ʋ Aluminium die-casting housing Aluminium die-casting AlSi10Mg, powder-coated - basis:
Ʋ Stainless steel housing - precision
casting
Ʋ Stainless steel housing, electropol-
ished
Ʋ Second line of defence Borosilicate glass GPC 540
Ʋ Seal between housing and housing
cover
Ʋ Inspection window in housing cover
(optional)
Ʋ Ground terminal 316L
Process ttings
Ʋ Pipe thread, cylindrical (DIN 3852-A) G1½
Ʋ American pipe thread, conical
(ASME B1.20.1)
Ʋ Flanges e.g. DIN from DN 50, ANSI from 2"
Weight
Ʋ Instrument weight (depending on
process tting)
Ʋ Tube: ø 42.2 mm (1.661 in) approx. 3100 g/m (33.3 oz/ft)
Probe length L (from seal surface)
Ʋ Tube: ø 42.2 mm (1.661 in) up to 6 m (19.69 ft)
Ʋ Trimming accuracy - tube ±1 mm
Lateral load
Hastelloy C22 (2.4602) and Aluminium oxide-ceramic
99.7 % (Al2O3)
Ceramic-graphite
316L
Polyester
316L
316L
NBR (stainless steel housing, precision casting), silicone
(aluminium/plastic housing; stainless steel housng,
electropolished)
Polycarbonate (with Ex d version: glass)
1½ NPT
approx. 6 … 12 kg (13.23 … 26.46 lbs)
42288-EN-130314
64
VEGAFLEX 86 • Modbus and Levelmaster protocol
Ʋ Tube: ø 42.2 mm (1.661 in) 300 Nm (221 lbf ft)
Torque for NPT cable glands and Conduit tubes
Ʋ Plastic housing max. 10 Nm (7.376 lbf ft)
Ʋ Aluminium/Stainless steel housing max. 50 Nm (36.88 lbf ft)
Input variable
Measured variable Level of liquids
Min. dielectric constant of the medium ε
≥ 1.4
r
11 Supplement
1
4
2
Fig. 32: Measuring ranges - VEGAFLEX 86
1 Reference plane
2 Probe length L
3 Measuringrange(defaultsettingreferstothemeasuringrangeinwater)
4 Upperdeadband(seediagramsunderAccuracy-greysection)
5 Lowerdeadband(seediagramsunderAccuracy-greysection)
3
5
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
65
11 Supplement
Output variable
Output
Ʋ Physical layer Digital output signal according to standard EIA-485
Ʋ Bus specications Modbus Application Protocol V1.1b, Modbus over serial
line V1.02
Ʋ Protocols Modbus RTU, Modbus ASCII, Levelmaster
Max. transmission rate
9.6 Kbit/s
Accuracy (according to DIN EN 60770-1)
Process reference conditions according to DIN EN 61298-1
Ʋ Temperature +18 … +30 °C (+64 … +86 °F)
Ʋ Relative humidity 45 … 75 %
Ʋ Air pressure +860 … +1060 mbar/+86 … +106 kPa
(+12.5 … +15.4 psig)
Installation reference conditions
Ʋ Min. distance to installations > 500 mm (19.69 in)
Ʋ Vessel metallic, ø 1 m (3.281 ft), centric installation, process
tting ush with the vessel ceiling
Ʋ Medium Water/Oil (dielectric constant ~2.0)
1)
Ʋ Installation Probe end does not touch the vessel bottom
Sensor parameter adjustment Gating out of false signals carried out
Typical deviation - Interface measure-
± 5 mm (0.197 in)
ment
Typical deviation - Total level interface
See following diagrams
measurement
Typical deviation - Level measurement
Max. deviation - Version with reference
2)3)
See following diagrams
± 10 mm (0.39 in)
distance
Deviating upper dead band - Version with
450 mm (17.7 in)
reference distance
1)
with interface measurement = 2.0
2)
Depending on the installation conditions, there can be deviations which can be rectied with an adaptation of
the adjustment or a change of the measured value oset in the DTM service mode
3)
The dead bands can be optimizes by a false signal suppression.
66
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
5mm (0.197")
2mm (0.079
-2mm (-0.079")
-5mm (-0.197")
-10mm (-0.394")
11 Supplement
L
")
0
1
0,03 m (1.18
")
0,15 m (5.906")
0,1 m
(3.937
")
Fig. 33: Deviation VEGAFLEX 86 in coax version in water
1 Dead band - no measurement possible in this area
L Probe length
L
10mm (0.394")
2mm (0.079")
-2mm (-0.079")
-10mm (-0.394")
0
1 1
0,1 m (3.937")
0,25 m (9.842")
0,1 m
(3.937
")
0,05 m
(1.968
")
Fig. 34: Deviation VEGAFLEX 86 in coax version in oil
1 Dead band - no measurement possible in this area
L Probe length
Repeatability ≤ ±1 mm
Variablesinuencingmeasurementaccuracy
Temperature drift - Digital output ±3 mm/10 K relating to the max. measuring range or
max. 10 mm (0.394 in)
Additional deviation through electromag-
< ±10 mm (< ±0.394 in)
netic interference acc. to EN 61326
Inuenceofthesuperimposedgasandpressuretotheaccuracy
The propagation speed of the radar impulses in gas or vapour above the medium is reduced by
high pressure. This eect depends on the superimposed gas or vapour and is especially large at
low temperatures.
The following table shows the resulting deviation for some typical gases and vapours. The specied
values refer to the distance. Positive values mean that the measured distance is too large, negative
values that the measured distance is too small.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
67
11 Supplement
Gas phase Temperature Pressure
10 bar
(145 psig)
Air 20 °C/68 °F 0.22 % 1.2 % 2.4 % 4.9 % 9.5 %
200 °C/392 °F 0.13 % 0.74 % 1.5 % 3.0 % 6.0 %
400 °C/752 °F 0.08 % 0.52 % 1.1 % 2.1 % 4.2 %
Hydrogen 20 °C/68 °F 0.10 % 0.61 % 1.2 % 2.5 % 4.9 %
200 °C/392 °F 0.05 % 0.37 % 0.76 % 1.6 % 3.1 %
400 °C/752 °F 0.03 % 0.25 % 0.53 % 1.1 % 2.2 %
Steam (satu-
rated steam)
100 °C/212 °F - - - - -
180 °C/356 °F 2.1 % - - - -
264 °C/507 °F 1.44 % 9.2 % - - -
366 °C/691 °F 1.01 % 5.7 % 13.2 % 76.0 % -
50 bar
(725 psig)
100 bar
(1450 psig)
200 bar
(2900 psig)
400 bar
(5800 psig)
Characteristics and performance data
Measuring cycle time
Step response time
4)
< 500 ms
≤ 3 s
Max. lling/emptying speed 1 m/min
Ambient conditions
Ambient, storage and transport tempera-
-40 … +80 °C (-40 … +176 °F)
ture
Process conditions
For the process conditions, please also note the specications on the type label. The lowest value
always applies.
The measurement error from the process conditions is in the specied pressure and temperature
range of below 1 %.
Process pressure
Ʋ Process tting with PPS GF 40 -1 … 6 bar/-100 … 600 kPa (-14.5 … 87 psi), depending
on the process tting
Ʋ Process tting with Al2O
3
Vessel pressure relating to the ange
nominal stage
-1 … +40 bar/-100 … +4000 kPa (-14.5 … +580 psig),
depending on the process tting
see supplementary instructions manual "Flanges ac-
cording to DIN-EN-ASME-JIS"
Process temperature (thread or ange temperature)
Ʋ PPS GF 40 -40 … +80 °C (-40 … +176 °F)
Ʋ FKM (SHS FPM 70C3 GLT) -40 … +150 °C (-40 … +302 °F)
Ʋ EPDM (A+P 75.5/KW75F) -40 … +150 °C (-40 … +302 °F)
Ʋ Silicone FEP coated (A+P FEP-O-
-40 … +150 °C (-40 … +302 °F)
SEAL)
Ʋ FFKM (Kalrez 6375) -20 … +150 °C (-4 … +302 °F)
42288-EN-130314
4)
Time span after a sudden measuring distance change by max. 0.5 m in liquid applications, max 2 m with bulk
solids applications, until the output signal has taken for the rst time 90 % of the nal value (IEC 61298-2).
68
VEGAFLEX 86 • Modbus and Levelmaster protocol
11 Supplement
1
Ʋ FFKM (Kalrez 6375) - with tempera-
-20 … +200 °C (-4 … +392 °F)
ture adapter
80°C
-40°C
(-104°F)
(176°F)
65°C
(149°F)
0°C
(32°F)
-40°C
(-104°F)
80°C
(176°F)
130°C
(266°F)
150°C
(302°F)
2
3
4
Fig. 35: Ambient temperature - process temperature, standard version
1 Ambient temperature
2 Processtemperature(dependingonthesealmaterial)
3 Maximum permissible temperature - standard
4 Limited temperature range - plastic housing and stainless steel housing, electropolished
1
80°C
(176°F)
3
4
55°C
(131°F)
-20°C
(-68°F)
0°C
(32°F)
-40°C
(-104°F)
150°C
(302°F)
200°C
(392°F)
2
Fig. 36: Ambient temperature - process temperature, version with temperature adapter
1 Ambient temperature
2 Processtemperature(dependingonthesealmaterial)
3 Maximum permissible temperature - standard
4 Limited temperature range - plastic housing and stainless steel housing, electropolished
Vibration resistance
Ʋ Instrument housing 4 g at 5 … 200 Hz according to EN 60068-2-6 (vibration
with resonance)
Ʋ Rod probe 1 g with 5 … 200 Hz according EN 60068-2-6 (vibration
at resonance) with rod length 50 cm (19.69 in)
Shock resistance
Ʋ Instrument housing 100 g, 6 ms according to EN 60068-2-27 (mechanical
shock)
Ʋ Rod probe 25 g, 6 ms according to EN 60068-2-27 (mechanical
shock) with rod length 50 cm (19.69 in)
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
69
11 Supplement
Electromechanical data - version IP 66/IP 67
Options of the cable entry
Ʋ Cable gland M20 x 1.5
Ʋ Cable diameter (options) 5 … 9 mm (0.20 … 0.35 in)
6 … 12 mm (0.24 … 0.47 in)
10 … 14 mm (0.39 … 0.55 in)
Ʋ Cable entry ½ NPT
Ʋ Blind plug M20 x 1.5; ½ NPT
Plug options
Ʋ Supply and signal circuit (only with low
M12 x 1 plug
voltage)
Ʋ Indication circuit M12 x 1 plug
Wire cross-section (spring-loaded terminals)
Ʋ Massive wire, cord 0.2 … 2.5 mm² (AWG 24 … 14)
Ʋ Stranded wire with end sleeve 0.2 … 1.5 mm² (AWG 24 … 16)
Display and adjustment module
Display element Display with backlight
Measured value indication
Ʋ Number of digits 5
Ʋ Size of digits W x H = 7 x 13 mm
Adjustment elements 4 keys
Protection rating
Ʋ unassembled IP 20
Ʋ mounted into the housing without
IP 40
cover
Materials
Ʋ Housing ABS
Ʋ Inspection window Polyester foil
Integrated clock
Date format Day.Month.Year
Time format
12 h/24 h
Time zone Ex factory CET
Measurement electronics temerature
Resolution
1 °C (1.8 °F)
Accuracy ±1 °C (1.8 °F)
Voltage supply
Operating voltage
8 … 30 V DC
Interpolation protection Integrated
70
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
11 Supplement
Electrical protective measures
Protection rating
IP 66/IP 67
Overvoltage category III
Protection class I
Approvals
Instruments with approvals can have dierent technical data depending on the version.
For that reason the associated approval documents of these instruments must be carefully noted.
They are part of the delivery or can be downloaded under www.vega.com and "VEGA Tools" as
well as under "Downloads" and "Approvals".
11.2 Basics Modbus
Bus description
The Modbus protocol is a communication protocol for the communication between instruments. It is
based on a Master/Slave or Client/Server architecture. By means of Modbus, a Master and several
Slaves can be connected. Each bus participant has an unambiguous address and can send messages to the bus. This is initiated by the Master, the addessed Slave answers. The versions Ethernet
and serial (EIA-232 and EIA-485) as well as the modes ASCII, TCP and RTU are available for the
data transfer. In the RTU and ASCII mode interesting here, data will be transmitted in binary form.
The telegram consists generally of the address, the function, the data as well as the transmission
check.
Bus architecture
In the version Modbus RTU, up to 32 participants can be connected to the bus. The length of the
twisted two-wire cable can be up to 1200 m. The bus must be terminated on both sides at the last
bus participant with a terminating resistor of 120 Ohm. The resistor is already integrated in the
VEGAFLEX 86 and is activated/deactivated via a slide switch.
4
USB
MODBUS
)
+
(
power supply
(-)
( )
1345
2off
+
(-)
IS GND
D0
D1
on
3 3 3
1
Fig. 37: Bus architecture Modbus
1 RTU
2 Connection resistor
3 Bus participant
4 Voltage supply
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
USB
MODBUS
)
+
(-)
2off
(
D0
on
power supply
( )
1345
+
USB
MODBUS
)
+
(-)
2off
(
(-)
IS GND
D0
D1
on
(-)
IS GND
D1
power supply
( )
1345
+
2
71
11 Supplement
Protocol description
The VEGAFLEX 86 is suitable for connection to the following RTUs with Modbus RTU or ASCII
protocol.
RTU Protocol
ABB Totalow Modbus RTU, ASCII
Bristol ControlWaveMicro Modbus RTU, ASCII
Fisher ROC Modbus RTU, ASCII
ScadaPack Modbus RTU, ASCII
Thermo Electron Autopilot Modbus RTU, ASCII
Parameters for the bus communication
The VEGAFLEX 86 is preset with the default values:
Parameter CongurableValues Default Value
Baud Rate 1200, 2400, 4800, 9600, 19200 9600
Start Bits 1 1
Data Bits 7, 8 8
Parity None, Odd, Even None
Stop Bits 1, 2 1
Address range Modbus
1 … 255 246
Start bits and data bits cannot be modied.
Generalcongurationofthehost
The data exchange with status and variables between eld device and host is carried out via
register. For this, a conguration in the host is required. Floating point numbers with short prevision
(4 bytes) according to IEEE 754 are transmitted with individually selectable order of the data bytes
(byte transmission order). This "Byte transmission order" is determined in the parameter "Format
Code". Hence the RTU knows the registers of the VEGAFLEX 86 which must be contacted for the
variables and status information.
Format Code Byte transmission order
0 ABCD
1 CDAB
2 DCBA
3 BADC
11.3 Modbus register
Holding Register
The Holding registers consist of 16 bit. They can be read and written. Before each command, the
address (1 byte), after each command, a CRC (2 byte) is sent.
Register Name Register Num-
ber
Address 200 Word
72
Type Congurable
Values
1 … 255 246 -
VEGAFLEX 86 • Modbus and Levelmaster protocol
Default Value Unit
42288-EN-130314
11 Supplement
Register Name Register Num-
Baud Rate 201 Word 1200, 2400,
Parity 202 Word 0 = None, 1 =
Stopbits 203 Wor d 1 = None, 2 =
Delay Time 206 Word
Byte Oder (Float-
ing point format)
ber
3000 Word 0, 1, 2, 3 0 -
Type Congurable
Values
4800, 9600,
19200
Odd, 2 = Even
Two
10 … 250 50 ms
Default Value Unit
9600 -
0 -
1 -
Input register
The input registers consist of 16 bits. They can only be read out. Before each command, the address (1 byte) is sent, after each command a CRC (2 bytes) is sent.
PV, SV, TV and QV can be adjusted via the sensor DTM.
Register Name Register Number Type Note
Status 100 DWord Bit 0: Invalid Measurement Value PV
Bit 1: Invalid Measurement Value SV
Bit 2: Invalid Measurement Value TV
Bit 3: Invalid Measurement Value QV
PV Unit 104 DWord Unit Code
PV 106 Primary Variable in Byte Order CDAB
SV Unit 108 DWord Unit Code
SV 110 Secondary Variable in Byte Order CDAB
TV Unit 112 DWor d Unit Code
TV 114 Third Variable in Byte Order CDAB
QV Unit 116 DWord Unit Code
QV 118 Quarternary Variable in Byte Order CDAB
Status 1300 DWord See Register 100
PV 1302 Primary Variable in Byte Order of Register 3000
SV 1304 Secondary Variable in Byte Order of Register 3000
TV 1306 Third Variable in Byte Order of Register 3000
QV 1308 Quarternary Variable in Byte Order of Register 3000
Status 1400 DWord See Register 100
PV 1402 Primary Variable in Byte Order CDAB
Status 1412 DWord See Register 100
SV 1414 Secondary Variable in Byte Order CDAB
Status 1424 DWord See Register 100
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
73
11 Supplement
Register Name Register Number Type Note
TV 1426 Third Variable in Byte Order CDAB
Status 1436 DWord See Register 100
QV 1438 Quarternary Variable in Byte Order CDAB
Status 2000 DWord See Register 100
PV 2002 DWord Primary Variable in Byte Order ABCD (Big Endian)
SV 2004 DWor d Secondary Variable in Byte Order ABCD (Big Endian)
TV 2006 DWord Third Variable in Byte Order ABCD (Big Endian)
QV 2008 DWor d Quarternary Variable in Byte Order ABCD (Big En-
dian)
Status 2100 DWord See Register 100
PV 2102 DWord Primary Variable in Byte Order DCBA (Little Endian)
SV 2104 DWor d Secondary Variable in Byte Order DCBA (Little En-
dian)
TV 2106 DWord Third Variable in Byte Order ABCD DCBA (Little En-
dian)
QV 2108 DWor d Quarternary Variable in Byte Order DCBA (Little En-
dian)
Status 2200 DWord See Register 100
PV 2202 DWord Primary Variable in Byte Order BACD (Middle Endian)
SV 2204 DWor d Secondary Variable in Byte Order BACD (Middle En-
dian)
TV 2206 DWord Third Variable in Byte Order BACD (Middle Endian)
QV 2208 DWor d Quarternary Variable in Byte Order BACD (Middle En-
dian)
Unit Codes for Register 104, 108, 112, 116
Unit Code Measurement Unit
32 Degree Celsius
33 Degree Fahrenheit
40 US Gallon
41 Liters
42 Imperial Gallons
43 Cubic Meters
44 Feet
45 Meters
46 Barrels
47 Inches
42288-EN-130314
74
VEGAFLEX 86 • Modbus and Levelmaster protocol
11 Supplement
Unit Code Measurement Unit
48 Centimeters
49 Millimeters
111 Cubic Yards
112 Cubic Feet
113 Cubic Inches
11.4 Modbus RTU commands
FC3 Read Holding Register
With this command, any number (1-127) of holding registers can be read out. The start register,
from which the readout should start, and the number of registers are transmitted.
Request:
Parameter Length Code/Data
Function Code 1 Byte 0x03
Start Address 2 Bytes 0x0000 to 0xFFFF
Number of Registers 2 Bytes 1 to 127 (0x7D)
Response:
Parameter Length Code/Data
Function Code 1 Byte 0x03
Start Address 2 Bytes 2*N
Register Value N*2 Bytes Data
FC4 Read Input Register
With this command, any number (1-127) of input registers can be read out. The start register, from
which the readout should start, and the number of registers are transmitted.
Request:
Parameter Length Code/Data
Function Code 1 Byte 0x04
Start Address 2 Bytes 0x0000 to 0xFFFF
Number of Registers N*2 Bytes 1 to 127 (0x7D)
Response:
Parameter Length Code/Data
Function Code 1 Byte 0x04
Start Address 2 Bytes 2*N
Register Value N*2 Bytes Data
FC6 Write Single Register
With this function code an individual holding register can be written.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
75
11 Supplement
Request:
Parameter Length Code/Data
Function Code 1 Byte 0x06
Start Address 2 Bytes 0x0000 to 0xFFFF
Number of Registers 2 Bytes Data
Response:
Parameter Length Code/Data
Function Code 1 Byte 0x04
Start Address 2 Bytes 2*N
Register Value 2 Bytes Data
FC8 Diagnostics
With this function code dierent diagnostic functions can be triggered or diagnostic values read out.
Request:
Parameter Length Code/Data
Function Code 1 Byte 0x08
Sub Function Code 2 Bytes
Data N*2 Bytes Data
Response:
Parameter Length Code/Data
Function Code 1 Byte 0x08
Sub Function Code 2 Bytes
Data N*2 Bytes Data
Implemented function codes:
Sub Function Code Name
0x00 Return Data Request
0x0B Return Message Counter
With sub function codes 0x00 only one 16 bit value can be written.
FC16 Write Multiple Register
With this function code, several holding registers can be writen. Only registers can be written in an
enquiry which are immediately consecutive. If there are gaps (registers do not exist) between the
registers, then they cannot be written in a telegram.
Request:
Parameter Length Code/Data
Function Code 1 Byte 0x10
Start Address 2 Bytes 0x0000 to 0xFFFF
Register Value 2 Bytes 0x0001 to 0x007B
76
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
Parameter Length Code/Data
Byte Number 1 Byte 2*N
Register Value N*2 Bytes Data
Response:
Parameter Length Code/Data
Function Code 1 Byte 0x10
Sub Function Code 2 Bytes 0x0000 to 0xFFFF
Data 2 Bytes 0x01 to 0x7B
FC17 Report Slave ID
With this function code, the Slave ID can be queried.
Request:
Parameter Length Code/Data
Function Code 1 Byte 0x11
Response:
Parameter Length Code/Data
Function Code 1 Byte 0x11
Byte Number 1 Byte
Slave ID 1 Byte
Run Indicator Status 1 Byte
11 Supplement
FC43Sub14,ReadDeviceIdentication
With this function code, the Device Identication can be queried.
Request:
Parameter Length Code/Data
Function Code 1 Byte 0x2B
MEI Type 1 Byte 0x0E
Read Device ID Code 1 Byte 0x01 to 0x04
Object ID 1 Byte 0x00 to 0xFF
Response:
Parameter Length Code/Data
Function Code 1 Byte 0x2B
MEI Type 1 Byte 0x0E
Read Device ID Code 1 Byte 0x01 to 0x04
Conrmity Level 1 Byte 0x01, 0x02, 0x03, 0x81, 0x82, 0x83
More follows 1 Byte 00/FF
Next Object ID 1 Byte Object ID number
Number of Objects 1 Byte
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
77
11 Supplement
Parameter Length Code/Data
List of Object ID 1 Byte
List of Object length 1 Byte
List of Object value 1 Byte Depending on the Object ID
11.5 Levelmaster commands
The VEGAFLEX 86 is also suitable for connection to the following RTUs with Levelmaster protocol.
The Levelmaster protocol is often called "Siemens" "Tank protocol".
RTU Protocol
ABB Totalow Levelmaster
Kimray DACC 2000/3000 Levelmaster
Thermo Electron Autopilot Levelmaster
Parameters for the bus communication
The VEGAFLEX 86 is preset with the default values:
Parameter CongurableValues Default Value
Baud Rate 1200, 2400, 4800, 9600, 19200 9600
Start Bits 1 1
Data Bits 7, 8 8
Parity None, Odd, Even None
Stop Bits 1, 2 1
Address range Levelmaster 32 32
The Levelmaster commands are based on the following syntax:
Capital letters are at the beginning of certain data elds
•
Small letters stand for data elds
•
All commands are terminated with "<cr>" (carriage return)
•
All commands start with "Uuu", whereby "uu" stands for the address (00-31)
•
"*" can be used as a joker for any position in the address. The sensor always converts this in
•
its address. In case of more than one sensor, the joker must not be used, because otherwise
several slaves will answer
Commands that modify the instrument return the command with "OK“. "EE-ERROR" replaces
•
"OK" if there was a problem changing the conguration
Report Level (and Temperature)
Request:
Parameter Length Code/Data
Report Level (and Temperature) 4 characters ASCII Uuu?
78
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
11 Supplement
Response:
Parameter Length Code/Data
Report Level (and Temperature) 24 characters ASCII UuuDlll.llFtttEeeeeWwwww
uu = Address
lll.ll = PV in inches
ttt = Temperature in Fahrenheit
eeee = Error number (0 no error, 1
level data not readable)
wwww = Warning number (0 no
warning)
Level in inches is repeated for sensors with 2 levels. PV value is transmitted as rst measured value,
SV as second measured value.
PV, SV, TV and QV can be adjusted via the sensor DTM.
Report Unit Number
Request:
Parameter Length Code/Data
Report Unit Number 5 characters ASCII U**N?
Response:
Parameter Length Code/Data
Report Level (and Temperature) 6 characters ASCII UuuNnn
Assign Unit Number
Request:
Parameter Length Code/Data
Assign Unit Number 6 characters ASCII UuuNnn
Response:
Parameter Length Code/Data
Assign Unit Number 6 characters ASCII UuuNOK
uu = new Address
Set number of Floats
Request:
Parameter Length Code/Data
Set number of Floats 5 characters ASCII UuuFn
Response:
Parameter Length Code/Data
Set number of Floats 6 characters ASCII UuuFOK
If the number is set to 0, no level is returned
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
79
11 Supplement
Set Baud Rate
Request:
Parameter Length Code/Data
Set Baud Rate 8 (12) characters ASCII UuuBbbbb[b][pds]
Bbbbb[b] = 1200, 9600 (default)
pds = parity, data length, stop bit
(optional)
parity: none = 81, even = 71 (default), odd = 71
Response:
Parameter Length Code/Data
Set Baud Rate 11 characters ASCII
Example: U01B9600E71
Change instrument on address 1 to baudrate 9600, parity even, 7 data bits, 1 stop bit
Set Receive to Transmit Delay
Request:
Parameter Length Code/Data
Set Receive to Transmit Delay 7 characters ASCII UuuRmmm
mmm = milliseconds (50 up to 250),
default = 127 ms
Response:
Parameter Length Code/Data
Set Receive to Transmit Delay 6 characters ASCII UuuROK
Report Number of Floats
Request:
Parameter Length Code/Data
Set Receive to Transmit Delay 4 characters ASCII UuuF
Response:
Parameter Length Code/Data
Set Receive to Transmit Delay 5 characters ASCII UuuFn
n = number of measurement values
(0, 1 or 2)
Report Receive to Transmit Delay
Request:
Parameter Length Code/Data
Report Receive to Transmit Delay 4 characters ASCII UuuR
80
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
11 Supplement
13
Response:
Parameter Length Code/Data
Report Receive to Transmit Delay 7 characters ASCII UuuRmmm
mmm = milliseconds (50 up to 250),
default = 127 ms
Error codes
Error Code Name
EE-Error Error While Storing Data in EEPROM
FR-Error Erorr in Frame (too short, too long, wrong data)
LV-Error Value out of limits
11.6 CongurationoftypicalModbushosts
Fisher ROC 809
Wiring plan
IS GND
D1
(-)
+
( )
MODBUS
USB
1
D0
power supply
45
on
(-)
2off
+
( )
B
A
Y
Z
COM
(Rx/Tx -)
(Rx/Tx +)
2
+8 +30
Vdc
to
GND
3
Fig. 38: Connection of VEGAFLEX 86 to RTU Fisher ROC 809
1 VEGAFLEX 86
2 RTU Fisher ROC 809
3 Voltage supply
Parameter
Parameter Value
Baud Rate 9600
Floating Point Format Code 0
RTU Data Type Conversion Code 66
Input Register Base Number 0
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
81
11 Supplement
13
The basic number of the input registers is always added to the input register address of VEGAFLEX
86.
Address 1300 must hence be entered as register address for RTU Fisher ROC 809.
ABB Total Flow
Wiring plan
+
MODBUS
USB
IS GND
D1
(-)
D0
( )
power supply
45
on
(-)
2off
+
( )
Bus +
8
7
6
Bus -
2
GND
VBAT
1
1 2
Fig. 39: Connection of VEGAFLEX 86 to RTU ABB Total Flow
1 VEGAFLEX 86
2 RTU ABB Total Flow
Parameter
Parameter Value
Baud Rate 9600
Floating Point Format Code 0
RTU Data Type 16 Bit Modicon
Input Register Base Number 1
The basic number of the input registers is always added to the input register address of VEGAFLEX
86.
Address 1303 must hence be entered as register address for 1302 for RTU ABB Total Flow.
82
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
11 Supplement
13
Thermo Electron Autopilot
Wiring plan
IS GND
D1
(-)
+
( )
MODBUS
USB
1
D0
power supply
45
on
(-)
2off
+
( )
Rx -
2
Rx+
1
2
+8 +30
Vdc
to
GND
3
Fig. 40: Connection of VEGAFLEX 86 to RTU Thermo Electron Autopilot
1 VEGAFLEX 86
2 RTU Thermo Electron Autopilot
3 Voltage supply
Parameter
Parameter Value
Baud Rate 9600
Floating Point Format Code 0
RTU Data Type IEE Fit 2R
Input Register Base Number 0
The basic number of the input registers is always added to the input register address of VEGAFLEX
86.
Address 1300 must hence be entered as register address for 1300 for RTU Thermo Electron Auto-
pilot.
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
83
11 Supplement
13
Bristol ControlWave Micro
Wiring plan
485 on COM1
IS GND
D1
(-)
+
( )
MODBUS
USB
1
D0
power supply
45
on
(-)
2off
+
( )
RS
1 +SV
2 RX3 TX4 GND
5 RXT
6 TXT
7 not used
8 not used
2
+8 +30
Vdc
to
GND
3
Fig. 41: Connection of VEGAFLEX 86 to RTU Bristol ControlWave Micro
1 VEGAFLEX 86
2 RTU Bristol ControlWave Micro
3 Voltage supply
Parameter
Parameter Value
Baud Rate 9600
Floating Point Format Code 2 (FC4)
RTU Data Type 32-bit registers as 2 16-bit registers
Input Register Base Number 1
The basic number of the input registers is always added to the input register address of VEGAFLEX
86.
Address 1303 must hence be entered as register address for 1302 for RTU Bristol ControlWave
Micro.
84
VEGAFLEX 86 • Modbus and Levelmaster protocol
42288-EN-130314
ScadaPack
13
Wiring plan
11 Supplement
IS GND
D1
(-)
+
( )
MODBUS
USB
1
D0
power supply
45
on
(-)
2off
+
( )
COM Part 3 (C3)
RS485
1
2
3
TXDTXD+
4
GND
5
6
7
8
9
3
+8 +30
Vdc
to
GND
2
Fig. 42: Connection of VEGAFLEX 86 to RTU ScadaPack
1 VEGAFLEX 86
2 RTU ScadaPack
3 Voltage supply
Parameter
Parameter Value
Baud Rate 9600
Floating Point Format Code 0
RTU Data Type Floating Point
Input Register Base Number 30001
The basic number of the input registers is always added to the input register address of VEGAFLEX
86.
Address 31303 must hence be entered as register address for 1302 for RTU ScadaPack.
11.7 Dimensions
The following dimensional drawings represent only an extract of all possible versions. Detailed
dimensional drawings can be downloaded at www.vega.com/downloads under "Drawings".
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
85
11 Supplement
Housing
~ 87 mm (3.43")
M16x1,5
ø 84 mm
(3.31")
120 mm (4.72")
M20x1,5/
½ NPT
1
Fig. 43: Dimensions housing - with integrated display and adjustment module the housing is 9 mm/0.35 in higher
86
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
VEGAFLEX 86, coax version
237 mm (9.33")
SW 60
(2.36")
3
(1.38")
35 mm
11 Supplement
G1½ /
1½ NPT
L
ø 42,2 mm
(1.66")
ø 42,2 mm
(1.66")
1 2
Fig. 44: VEGAFLEX 86, threaded version
L Sensor length, see chapter "Technical data"
1 Temperatureversion-196…+280°C(-321…536°F)
2 Temperatureversion-196…+450°C(-321…842°F)
3 Max. height of the vessel isolation
(2.24")
57 mm
L 312 mm (12.28")
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
87
11 Supplement
11.8 Industrial property rights
VEGA product lines are global protected by industrial property rights. Further information see
www.vega.com.
Only in U.S.A.: Further information see patent label at the sensor housing.
VEGA Produktfamilien sind weltweit geschützt durch gewerbliche Schutzrechte.
Nähere Informationen unter www.vega.com.
Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec-
tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com.
VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus-
trial. Para mayor información revise la pagina web www.vega.com.
Линии продукции фирмы ВЕГА защищаются по всему миру правами на интеллектуальную
собственность. Дальнейшую информацию смотрите на сайте www.vega.com.
VEGA系列产品在全球享有知识产权保护。
进一步信息请参见网站<www.vega.com>。
11.9 Trademark
All the brands as well as trade and company names used are property of their lawful proprietor/
originator.
88
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
INDEX
INDEX
A
Accessories
– Display and adjustment module 13
– External display and adjustment unit 14
– External radio unit 14
– Flanges 14
– Interface adapter 13
– Protective cover 14
Adjustment
– Max. adjustment 30, 31
– Min. adjustment 30, 31
Adjustment system 24
Application 29, 30
Application area 10
B
Backlight 37
Block operation 36
C
Cable entry 19
Calibration date 43
Check signal 59
Connection procedure 20
Connection technology 20
Copy sensor settings 41
Current output, adjustment 34
Current output Min./Max. 34
Current output, size 33
Curve indication
– Echo curve 38
D
Damping 31
Date/Time 40
DD (Device Description) 53
Default values 40
Deviation 59
E
Echo curve memory 54
Echo curve of the setup 39
EDD (Enhanced Device Description) 53
Electronics compartment 21
Error messages 55
Event memory 54
F
Factory calibration date 43
False signal suppression 35
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
Fault rectication 59
Functional principle 10
G
Gas phase 29
H
HART address 42
HART variables 34
I
Inowing medium 16
Installation position 15
K
Key function 24
L
Language 36
Linearization 32
M
Main menu 27
Meas. reliability 37
Measured value indication 36
Measured value memory 54
Measurement loop name 28
Moisture 15
N
NAMUR NE 107
– Failure 56
– Function check 57
– Maintenance 58
– Out of specication 57
P
Packaging 13
Peak value 37, 38
PIN 39
Probe length 28
Probe type 42
Product type 28
Q
Quick setup 25
R
Read out info 43
Repair 62
Replacement parts
89
INDEX
– Display and adjustment module with
heating 14
– Electronics module 14
– Electronics module, Modbus 14
Reset 40
S
Scaling measured value 32, 33
Sensor characteristics 43
Sensor status 37
Service hotline 61
Simulation 38
Special parameters 42
Status messages 55
Storage 13
T
Type plate 9
U
Units 28
V
Vessel insulation 17
90
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
Notes
42288-EN-130314
VEGAFLEX 86 • Modbus and Levelmaster protocol
91
Printing date:
All statements concerning scope of delivery, application, practical use and operating conditions of the sensors and processing systems correspond to the information
available at the time of printing.
Subject to change without prior notice
© VEGA Grieshaber KG, Schiltach/Germany 2013
VEGA Grieshaber KG
Am Hohenstein 113
77761 Schiltach
Germany
Phone +49 7836 50-0
Fax +49 7836 50-201
E-mail: info.de@vega.com
www.vega.com
42288-EN-130314
Loading...
