Operating Instructions

TDR sensor for continuous level measurement of bulk solids

VEGAFLEX 82

4 … 20 mA/HART - four-wire

Document ID: 41830

Quick start

Mounting

Electrical connection

Quick start

The quick start procedure enables a quick setup with many applica-

tions. You can nd further information in the respective chapters of the

operating instructions manual.

1. Distance from the metallic vessel wall > 300 mm. Distance from non-metallic vessel wall > 500 mm. The probe must not touch any installations or the vessel wall.

2. Place a metal sheet beneath the process tting with non-metal vessels.

1 2

Fig. 1: Installation in plastic silo

1 Flange 2 Metal sheet

3. If necessary, fasten probe end.

For further information see chapter "Mounting".

1. Make sure that the power supply corresponds to the specications on the type label.

2. Connect the instrument according to the following illustration

Set parameters

4...20mA

power supply

( )

(-)

/L /N

active

67 8

passive

common

IS GND

Fig. 2: Connection compartment with double chamber housing with mains voltage

For further information see chapter "Connecting to power supply".

For standard applications we recommend selecting the "Quick setup" in the display and adjustment module.

1. In this menu item you can select the application.

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

41830-EN-130314

Quick start

2. In the menu item "Medium - Dielectric constant" you can dene the medium type (medium).

3. Carry out the adjustment in the menu items "Min. adjustment" and "Max. adjustment".

4. A "Linearization" is required for all vessels in which the vessel vol-

ume does not increase linearly with the level - e.g. in a horizontal cylindrical or spherical tank. Activate the appropriate curve.

5. A "False signal suppression" detects, marks and saves the false signals so that they are no longer taken into account for level

measurement. We generally recommend a false signal suppression.

Parameterization example

The sensor measures the distance from the sensor (reference plane) to the product surface.

Fig. 3: Measuring ranges - VEGAFLEX 82

1 Reference plane 2 Probe length L 3 Measuring range 4 Upper dead band (in this area no measurement is possible) 5 Lower dead band (in this area no measurement is possible)

For this adjustment, the distance is entered when the vessel is full and nearly empty. If these values are not known, an adjustment with

other distances, for example, 10 % and 90 % is also possible. Starting

point for these distance specications is always the seal surface of the thread or ange.

Further steps

1. In the menu "Additional settings", menu item "Damping" you can adjust the requested damping of the output signal.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

Quick start

2. Select the parameter of the current output and the output characteristics in the menu item "Current output".

You can nd additional information in chapter "Parameter adjustment".

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

Contents

1 About this document

1.1 Function ............................................................................. 7

1.2 Target group ....................................................................... 7

1.3 Symbolism used ................................................................. 7

2 For your safety

2.1 Authorised personnel ......................................................... 8

2.2 Appropriate use .................................................................. 8

2.3 Warning about incorrect use ............................................... 8

2.4 General safety instructions ................................................. 8

2.5 CE conformity ..................................................................... 8

2.6 NAMUR recommendations ................................................ 9

2.7 Environmental instructions ................................................. 9

3 Product description

3.1 Conguration .................................................................... 10

3.2 Principle of operation ........................................................ 11

3.3 Packaging, transport and storage ..................................... 12

3.4 Accessories and replacement parts ................................. 12

4 Mounting

4.1 General instructions ......................................................... 15

4.2 Instructions for installation ................................................ 15

5 Connecting to power supply

5.1 Preparing the connection ................................................. 20

5.2 Connection ....................................................................... 21

5.3 Wiring plan, double chamber housing .............................. 23

5.4 Switch-on phase ............................................................... 24

6 Set up with the display and adjustment module

6.1 Insert display and adjustment module .............................. 25

6.2 Adjustment system ........................................................... 26

6.3 Parameter adjustment - Quick setup ................................ 27

6.4 Parameter adjustment - Extended adjustment .................. 30

6.5 Saving the parameter adjustment data ............................. 43

7 Setup with PACTware

7.1 Connect the PC ................................................................ 45

7.2 Parameter adjustment with PACTware .............................. 46

7.3 Set up with the quick setup ............................................... 47

7.4 Saving the parameter adjustment data ............................. 50

8 Set up with other systems

8.1 DD adjustment programs ................................................. 51

8.2 Communicator 375, 475 ................................................... 51

9 Diagnostics and service

9.1 Maintenance .................................................................... 52

9.2 Diagnosis memory ........................................................... 52

9.3 Status messages .............................................................. 53

9.4 Rectify faults ..................................................................... 56

9.5 Exchanging the electronics module .................................. 59

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

Contents

9.6 Exchange or shorten cable/rod......................................... 60

9.7 Software update ............................................................... 61

9.8 How to proceed in case of repair ...................................... 62

10 Dismounting

10.1 Dismounting steps ............................................................ 63

10.2 Disposal ........................................................................... 63

11 Supplement

11.1 Technical data .................................................................. 64

11.2 Dimensions ...................................................................... 75

41830-EN-130314

Safety instructions for Ex areas

Please note the Ex-specic safety information for installation and operation in Ex areas. These safety instructions are part of the operating

instructions manual and come with the Ex-approved instruments.

Editing status: 2013-03-11

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

1 About this document

1.1 Function

This operating instructions manual provides all the information you

need for mounting, connection and setup as well as important instructions for maintenance and fault rectication. Please read this information before putting the instrument into operation and keep this manual

accessible in the immediate vicinity of the device.

1.2 Target group

This operating instructions manual is directed to trained specialist

personnel. The contents of this manual should be made available to

these personnel and put into practice by them.

1.3 Symbolism used

Information, tip, note

This symbol indicates helpful additional information.

Caution: If this warning is ignored, faults or malfunctions can result.

Warning: If this warning is ignored, injury to persons and/or serious

damage to the instrument can result.

Danger: If this warning is ignored, serious injury to persons and/or destruction of the instrument can result.

Ex applications

This symbol indicates special instructions for Ex applications.

List

•

The dot set in front indicates a list with no implied sequence.

Action

→

This arrow indicates a single action.

1 Sequence

Numbers set in front indicate successive steps in a procedure.

Battery disposal

This symbol indicates special information about the disposal of batteries and accumulators.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

2 For your safety

2.1 Authorised personnel

All operations described in this operating instructions manual must be carried out only by trained specialist personnel authorised by the plant operator.

During work on and with the device the required personal protective

equipment must always be worn.

2.2 Appropriate use

VEGAFLEX 82 is a sensor for continuous level measurement. You can nd detailed information on the application range in chapter

"Product description".

Operational reliability is ensured only if the instrument is properly

used according to the specications in the operating instructions

manual as well as possible supplementary instructions.

2.3 Warning about incorrect use

Inappropriate or incorrect use of the instrument can give rise to application-specic hazards, e.g. vessel overll or damage to system

components through incorrect mounting or adjustment.

2.4 General safety instructions

This is a state-of-the-art instrument complying with all prevailing

regulations and guidelines. The instrument must only be operated in a

technically awless and reliable condition. The operator is responsible

for the trouble-free operation of the instrument.

During the entire duration of use, the user is obliged to determine the compliance of the necessary occupational safety measures with the current valid rules and regulations and also take note of new regulations.

The safety instructions in this operating instructions manual, the na-

tional installation standards as well as the valid safety regulations and accident prevention rules must be observed by the user.

For safety and warranty reasons, any invasive work on the device

beyond that described in the operating instructions manual may be carried out only by personnel authorised by the manufacturer. Arbi-

trary conversions or modications are explicitly forbidden. The safety approval markings and safety tips on the device must also

be observed.

2.5 CE conformity

The device fullls the legal requirements of the applicable EC guidelines. By axing the CE marking, we conrm successful testing of the

product.

You can nd the conformity certicate in the download section of our

homepage.

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

41830-EN-130314

2 For your safety

Electromagnetic compatibility

Instruments with plastic housing as well as in four-wire or Ex-d-ia version are designed for use in an industrial environment. Nevertheless, electromagnetic interference from electrical conductors and radiated emissions must be taken into account, as is usual with a class A instrument according to EN 61326-1. If the instrument is used

in a dierent environment, the electromagnetic compatibility to other

instruments must be ensured by suitable measures.

2.6 NAMUR recommendations

NAMUR is the automation technology user association in the process industry in Germany. The published NAMUR recommendations are

accepted as the standard in eld instrumentation. The device fullls the requirements of the following NAMUR recom-

mendations:

NE 21 – Electromagnetic compatibility of equipment

•

NE 43 – Signal level for malfunction information from measuring

•

transducers

NE 53 – Compatibility of eld devices and display/adjustment

•

components

NE 107 – Self-monitoring and diagnosis of eld devices

•

For further information see www.namur.de.

2.7 Environmental instructions

Protection of the environment is one of our most important duties. That is why we have introduced an environment management system with the goal of continuously improving company environmental protection. The environment management system is certied according

to DIN EN ISO 14001.

Please help us fulll this obligation by observing the environmental

instructions in this manual:

Chapter "Packaging, transport and storage"

•

Chapter "Disposal"

•

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

3 Product description

Type plate

3 Product description

3.1 Conguration

The nameplate contains the most important data for identication and

use of the instrument:

3 4

5 6

7 8 9

Fig. 4: Layout of the type label (example)

1 Instrument type 2 Product code 3 Approvals 4 Power supply and signal output, electronics 5 Protection rating 6 Probe length 7 Process and ambient temperature, process pressure 8 Material, wetted parts 9 Hardware and software version 10 Order number 11 Serial number of the instrument 12 Symbol of the device protection class 13 ID numbers, instrument documentation 14 Note to observe the instrument documentation

15 NotiedauthorityforCEmarking

16 Approval directive

16 15

14 13

Serial number

Scope of this operating instructions manual

With the serial number of the instrument on the type label you have

access to the following data on our homepage:

Article number of the instrument (HTML)

•

Delivery date (HTML)

•

Order-specic instrument features (HTML)

•

Operating instructions at the time of shipment (PDF)

•

Order-specic sensor data for an electronics exchange (XML)

•

Test certicate "Measuring Accuracy" (PDF)

•

For this purpose, move to www.vega.com and "VEGA Tools".

This operating instructions manual applies to the following instrument

versions:

Hardware from 1.0.0

•

Software from 1.0.0

•

Only for instrument versions without SIL qualication

•

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

41830-EN-130314

3 Product description

Versions

Scope of deliv

Application ar

Functional principle level measurement

ery

The instrument can be supplied in two dierent electronics versions. Each electronics version can be identied via the product code on the

type label as well as on the electronics.

Standard electronics with operating voltage 90 … 253 V AC;

•

50/60 Hz: Typ FX80B.Standard electronics with supply voltage 9.6 … 48 V DC;

•

20 … 42 V AC: Type FX80I.-

The scope of delivery encompasses:

Sensor

•

Documentation

•

– this operating instructions manual – Test certicate measuring accuracy (optional) – Operating instructions manual "Display and adjustment mod-

ule" (optional)

– Supplementary instructions "GSM/GPRS radio module"

(optional)

– Supplementary instructions manual "Heating for display and

adjustment module" (optional)

– Supplementary instructions manual "Plug connector for con-

tinuously measuring sensors" (optional)

– Ex-specic "Safety instructions" (with Ex versions) – if necessary, further certicates

3.2 Principle of operation

The VEGAFLEX 82 is a level sensor with cable or rod probe for continuous level measurement, suitable for applications in bulk solids.

High frequency microwave pulses are guided along a steel cable or a rod. Upon reaching the product surface, the microwave pulses are reected. The running time is evaluated by the instrument and outputted as level.

Probe end tracking

To increase sensitivity, the probe is equipped with probe end tracking. In products with a low dielectric constant, this function is very helpful.

This is the case, for example, in plastic granules, packing chips or in

uidized vessels. Between a dielectric constant of 1.5 and 3, the function switches on, if

required. As soon as the level echo can no longer be detected, probe end tracking is automatically activated. The measurement is contin-

ued with the last calculated dielectric constant.

The accuracy thus depends on the stability of the dielectric constant.

If you measure a medium with a dielectric constant below 1.5, probe end tracking is always active. In this case, you have to enter the dielectric constant of the medium. A stable dielectric constant is very

important here.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

3 Product description

Packaging

ranspor

3.3 Packaging, transport and storage

Your instrument was protected by packaging during transport. Its

capacity to handle normal loads during transport is assured by a test based on ISO 4180.

The packaging of standard instruments consists of environmentfriendly, recyclable cardboard. For special versions, PE foam or PE foil is also used. Dispose of the packaging material via specialised

recycling companies.

Transport must be carried out under consideration of the notes on the

transport packaging. Nonobservance of these instructions can cause damage to the device.

Transport inspection

Storage

Storage and transport temperature

Display and adjustment module

Interface adapter

The delivery must be checked for completeness and possible transit

damage immediately at receipt. Ascertained transit damage or concealed defects must be appropriately dealt with.

Up to the time of installation, the packages must be left closed and stored according to the orientation and storage markings on the outside.

Unless otherwise indicated, the packages must be stored only under the following conditions:

Not in the open

•

Dry and dust free

•

Not exposed to corrosive media

•

Protected against solar radiation

•

Avoiding mechanical shock and vibration

•

Storage and transport temperature see chapter "Supplement -

•

Technical data - Ambient conditions"

Relative humidity 20 … 85 %

•

3.4 Accessories and replacement parts

The display and adjustment module PLICSCOM is used for measured

value indication, adjustment and diagnosis. It can be inserted into the sensor or the external display and adjustment unit and removed at

any time.

You can nd further information in the operating instructions "Display and adjustment module PLICSCOM" (Document-ID 27835).

The interface adapter VEGACONNECT enables the connection of

communication-capable instruments to the USB interface of a PC. For parameter adjustment of these instruments, an adjustment software such as PACTware with VEGA-DTM is required.

You can nd further information in the operating instructions "Interface adapter VEGACONNECT" (Document-ID 32628).

41830-EN-130314

External display and adjustment unit

VEGADIS 61 is an external display and adjustment unit for sensors

with single chamber housing and Ex-d double chamber housing.

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

3 Product description

It is suitable for measured value indication and adjustment of plics®

sensors and is connected to the sensor with a four-wire standard

cable up to 50 m (164 ft) long. You can nd further information in the operating instructions "VE-

GADIS 61" (Document-ID 27720).

External display and adjustment unit with HART protocol

External r

adio unit

Protective cover

Flanges

Electronics module

VEGADIS 62 is suitable for measured value indication and adjustment

of sensors with HART protocol. It is looped into the 4 … 20 mA/HART signal cable.

You can nd further information in the operating instructions "VEGADIS 62" (Document-ID 36469).

The PLICSMOBILE T61 is an external GSM/GPRS radio unit for

transmission of measured values and for remote parameter adjustment of plics

sensors. The adjustment is carried out via PACTware/

DTM by using the integrated USB connection.

You can nd further information in the supplementary instructions

"PLICSMOBILE T61" (Document-ID 36849).

The protective cover protects the sensor housing against soiling and

intense heat from solar radiation.

You will nd additional information in the supplementary instructions

manual "Protective cover" (Document-ID 34296).

Screwed anges are available in dierent versions according to the following standards: DIN 2501, EN 1092-1, ANSI B 16.5, JIS B 2210-

1984, GOST 12821-80.

You can nd additional information in the supplementary instructions

manual "Flanges according to DIN-EN-ASME-JIS" (Document-ID

31088).

The electronics module VEGAFLEX series 80 is a replacement part

for TDR sensors of VEGAFLEX series 80. There is a dierent version available for each type of signal output.

You can nd further information in the operating instructions manual

"Electronics module VEGAFLEX series 80".

Display and adjustment module with heating

The display and adjustment module can be optionally replaced by a

display and adjustment module with heating function.

You can hence use the display and adjustment module in an ambient temperature range of -40 … 70 °C.

You can nd further information in the operating instructions "Display and adjustment module with heating" (Document-ID 31708).

Rod extension

If you are using an instrument with rod version, you can extend the rod probe individually with curved segments and rod extensions of dierent lengths.

All extensions used must not exceed a total length of 6 m (19.7 ft).

The extensions are available in the following lengths:

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

3 Product description

Rod: ø 16 mm (0.63 in)

Basic segments: 20 … 5900 mm (0.79 … 232 in)

•

Rod segments: 20 … 5900 mm (0.79 … 232 in)

•

Curved segments: 100 x 100 mm (3.94 … 3.94 in)

•

You can nd further information in the operating instructions manual

"Rod extension VEGAFLEX series 80".

Spacer

If you mount the VEGAFLEX 82 in a bypass tube or standpipe, you

have to avoid contact to the bypass tube by using a spacer at the

probe end.

You can nd further information in the operating instructions manual

"Bypass tube VEGAPASS 81".

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

Screwing in

4 Mounting

4.1 General instructions

With instruments with threaded process tting, suitable tools must be

applied for tightening the hexagon.

Warning:

The housing must not be used to screw the instrument in! Applying tightening force can damage internal parts of the housing.

Moisture

Protective caps

Suitability for the process conditions

Installation position

Use the recommended cables (see chapter "Connecting to power supply") and tighten the cable gland.

You can give your instrument additional protection against moisture

penetration by leading the connection cable downward in front of the cable entry. Rain and condensation water can thus drain o. This applies mainly to:

outdoor mounting

•

installations in areas where high humidity is expected (e.g. through

•

cleaning processes)

installations on cooled or heated vessels

•

In the case of instrument housings with self-sealing NPT threads, it is

not possible to have the cable entries screwed in at the factory. The openings for the cable glands are therefore covered with red protective caps as transport protection.

Prior to setup you have to replace these protective caps with approved cable glands or close the openings with suitable blind plugs.

The suitable cable glands and blind plugs come with the instrument.

Make sure that all parts of the instrument exposed to the process, in

particular the active measuring component, process seal and process tting, are suitable for the existing process conditions. These include above all the process pressure, process temperature as well as the

chemical properties of the medium. You can nd the specications in chapter "Technical data" and on the

nameplate.

4.2 Instructions for installation

Mount VEGAFLEX 82 in such a way that the distance to vessel installations or to the vessel wall is at least 300 mm (12 in). In non-metallic vessels, the distance to the vessel wall should be at least 500 mm

(19.7 in).

During operation, the probe must not touch any installations or the

vessel wall. If necessary, fasten the probe end. In vessels with conical bottom it can be advantageous to mount the

sensor in the center of the vessel, as measurement is then possible

nearly down to the lowest point of the bottom. Keep in mind that measurement all the way down to the tip of the probe may not be pos-

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

4 Mounting

sible. The exact value of the min. distance (lower dead band) is stated

in chapter "Technical data".

Fig. 5: Vessel with conical bottom

Type of vessel

Plastic vessel/Glass vessel

The guided microwave principle requires a metal surface on the process tting. Therefore use in plastic vessels etc. an instrument version with ange (from DN 50) or place a metal sheet (ø > 200 mm/8 in) beneath the process tting when screwing it in.

Make sure that the plate has direct contact with the process tting. When installing rod or cable probes without metal vessel wall, e.g.

in plastic vessels, the measured value can be inuenced by strong electromagnetic elds (emitted interference according to EN 61326:

class A).

Use a probe in coax version for applications in liquids.

1 2

Fig. 6: Installation in non-metal vessel

1 Flange 2 Metal sheet

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

4 Mounting

Concrete vessel

When installed in thick concrete ceilings, VEGAFLEX 82 should be

mounted front ush to the lower edge. In concrete silos, the distance to the wall should be at least 500 mm (20 in).

ø >160mm

(ø >6.3")

Fig. 7: Installation in concrete silo

Socket

If possible, avoid sockets. Mount the sensor ush with the vessel top.

If this is not possible, use short sockets with small diameter.

Higher sockets or sockets with a bigger diameter can generally be used. They simply increase the upper blocking distance. Check if this

is relevant for your measurement.

In such cases, always carry out a false signal suppression after instal-

lation. You can nd further information under "Setup procedure".

Fig. 8: Mounting socket

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

DN40 ... DN150

> DN150 ... DN200

150

100

4 Mounting

When welding the socket, make sure that the socket is ush to the vessel top.

1 2

Fig.9:Socketmustbeinstalledush

1 Unfavourable installation

2 Socketush-optimuminstallation

Welding work

Inowingmedium

Measuring range

Before beginning the welding work, remove the electronics module from the sensor. By doing this, you avoid damage to the electronics through inductive coupling.

Do not mount the instruments in or above the lling stream. Make sure that you detect the product surface, not the inowing product.

Fig.10:Mountingofthesensorwithinowingmedium

The reference plane for the measuring range of the sensors is the

sealing surface of the thread or ange.

Keep in mind that a min. distance must be maintained below the reference plane and possibly also at the end of the probe - measurement in these areas is not possible (dead band). The length of the cable

can be used all the way to the end only when measuring conductive

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

4 Mounting

products. These blocking distances for dierent mediums are listed

in chapter "Technical data". Keep in mind for the adjustment that the default setting for the measuring range refers to water.

Pressure

Fixing

od extensions

The process tting must be sealed if there is gauge or low pressure in

the vessel. Before use, check if the seal material is resistant against

the measured product and the process temperature.

The max. permissible pressure is specied in chapter "Technical data" or on the type label of the sensor.

If there is a danger of the cable probe touching the vessel wall during operation due to product movements or agitators etc., the measuring probe should be securely xed.

In the gravity weight there is an internal thread (M12), e.g. for an eye-

bolt (optional) - (article no. 2.27423).

Make sure that the probe cable is not completely taut. Avoid tensile

loads on the cable.

Avoid undened vessel connections, i.e. the connection must be either grounded reliably or isolated reliably. Any undened change of

this requirement can lead to measurement errors.

In case of dicult installation conditions, for example in a socket, the probe can be adapted respectively with a rod extension.

Let the probe length determine automatically by the instrument to compensate the resulting running time changes.

You can nd further information in the supplementary instructions of

the rod extension.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

5 Connecting to power supply

Safety instructions

5 Connecting to power supply

5.1 Preparing the connection

Always keep in mind the following safety instructions:

Connect only in the complete absence of line voltage

•

If overvoltage surges are expected, overvoltage arresters should

•

be installed

Voltage supply via mains voltage

Voltage supply via low voltage

Connection cable

In this case, the instrument is designed in protection class II. To maintain this protection class, it is absolutely necessary that the ground conductor be connected to the internal ground terminal. Take note of the general installation regulations.

Supply voltage and current signal are carried on separate connection cables if reliable separation is required. The supply voltage range can dier depending on the instrument version.

The data for power supply are specied in chapter "Technical data".

In this case, the instrument is designed in protection class II. Gener-

ally connect the instrument to vessel ground (potential equalization) or with plastic vessels to the next ground potential. For this purpose, a

ground terminal is located laterally on the instrument housing.

An approved, three-wire installation cable with PE conductor is required for voltage supply with mains voltage.

The 4 … 20 mA current output is connected with standard two-wire cable without screen. If electromagnetic interference is expected

which is above the test values of EN 61326-1 for industrial areas,

screened cable should be used.

For instruments with housing and cable gland, use cable with round

cross-section. To ensure the seal eect of the cable gland (IP protection rating), you have to check for which cable outer diameter the

cable gland is suitable.

5 … 9 mm (0.20 … 0.35 in)

•

6 … 12 mm (0.24 … 0.47 in)

•

10 … 14 mm (0.40 … 0.55 in)

•

Use a cable gland tting the cable diameter.

Cable gland ½ NPT

Cable screening and grounding

With plastic housing, the NPT cable gland or the Conduit steel tube

must be screwed without grease into the threaded insert.

Max. torque for all housings see chapter "Technical data".

If screened cable is necessary, connect the cable screen on both ends to ground potential. In the sensor, the screen must be connected directly to the internal ground terminal. The ground terminal on the outside of the housing must be connected to the potential equalisation (low impedance).

If potential equalisation currents are expected, the connection on the

processing side must be made via a ceramic capacitor (e. g. 1 nF, 1500 V). The low-frequency potential equalisation currents are thus

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

41830-EN-130314

Connection technology

5 Connecting to power supply

suppressed, but the protective eect against high frequency interfer-

ence signals remains.

Warning:

Signicant potential dierences exist inside galvanization plants as well as on vessels with cathodic corrosion protection. Considerable equalisation currents can ow over the cable screen if the screen is

grounded on both ends. To avoid this in such applications, the cable screen must be connect-

ed to ground potential only at one end (in the switching cabinet). The cable screen must not be connected to the internal ground terminal in the sensor and the outer ground terminal on the housing must not be connected to the potential equalisation!

Information:

The metallic parts of the instrument (process tting, transmitter, concentric tube, etc.) are conductively connected with the inner and outer

ground terminal on the housing. This connection exists either directly

via connecting metallic parts or, in case of instruments with external electronics, via the screen of the special connection cable.

You can nd specications on the potential connections inside the

instrument in chapter "Technical data".

5.2 Connection

The voltage supply and signal output are connected via the spring-

loaded terminals in the housing.

The connection to the display and adjustment module or to the inter-

face adapter is carried out via contact pins in the housing.

Information:

The terminal block is pluggable and can be removed from the electronics. To do this, lift the terminal block with a small screwdriver and

pull it out. When inserting the terminal block again, you should hear it snap in.

Connection procedure

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

Proceed as follows:

1. Unscrew the housing cover

2. If a display and adjustment module is installed, remove it by turn-

ing it slightly to the left.

3. Loosen compression nut of the cable entry

4. Remove approx. 10 cm (4 in) of the cable mantle, strip approx. 1 cm (0.4 in) of insulation from the ends of the individual wires

5. Insert the cable into the sensor through the cable entry

5 Connecting to power supply

Fig. 11: Connection steps 5 and 6

6. Insert the wire ends into the terminals according to the wiring plan

Information:

Solid cores as well as exible cores with wire end sleeves are inserted directly into the terminal openings. In case of exible cores without end sleeves, press the terminal head with a small screwdriver; the terminal opening is freed. When the screwdriver is released, the

terminal closes again.

You can nd further information on the max. wire cross-section under

"Technical data/Electromechanical data"

7. Check the hold of the wires in the terminals by lightly pulling on them

8. Connect the screen to the internal ground terminal, connect the outer ground terminal to potential equalisation

9. Tighten the compression nut of the cable entry. The seal ring must completely encircle the cable

10. Place probably existing display and adjustment module back on

11. Screw the housing cover back on

The electrical connection is hence nished.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

Electronics compartment

Connection compartment with mains voltage

5 Connecting to power supply

5.3 Wiring plan, double chamber housing

The following illustrations apply to the non-Ex as well as to the Ex-d

version.

4...20mA

( )

(-)

Fig. 12: Electronics compartment, double chamber housing

1 Internal connection to the connection compartment 2 For display and adjustment module or interface adapter

Information:

The connection of an external display and adjustment unit is not possible with this double chamber housing.

567

4...20mA

Fig. 13: Connection compartment with double chamber housing with mains voltage

Terminal Function Polarity

1 Voltage supply +/L

2 Voltage supply -/N

7 Mass - output -

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

power supply

( )

(-)

/L /N

4 … 20 mA output (active) +

4 … 20 mA output (passive) +

active

passive

67 8

common

IS GND

5 Connecting to power supply

Connection compartment

w v

with lo

oltage

Terminal Function Polarity

8 Function ground with installa-

tion according to CSA

4...20mA

power supply

( )

(-)

Fig. 14: Connection compartment with double chamber housing with low voltage

Terminal Function Polarity

1 Voltage supply +/L

2 Voltage supply -/N

7 Mass - output -

8 Function ground with installa-

4 … 20 mA output (active) +

4 … 20 mA output (passive) +

tion according to CSA

active

common

passive

67 8

IS GND

5.4 Switch-on phase

After connecting the instrument to power supply or after a voltage

recurrence, the instrument carries out a self-check for approx. 30 s:

Internal check of the electronics

•

Indication of the instrument type, hardware and software version,

•

measurement loop name on the display or PC Indication of the status message "F 105 Determine measured

•

value" on the display or PC The output signal jumps to the set error current

•

As soon as a plausible measured value is found, the corresponding current is outputted to the signal cable. The value corresponds to the actual level as well as the settings already carried out, e.g. factory

setting.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

6 Set up with the display and adjustment module

6 Set up with the display and adjustment

module

6.1 Insert display and adjustment module

The display and adjustment module can be inserted into the sensor and removed any time. Four positions displaced by 90° can be selected. It is not necessary to interrupt the power supply.

Proceed as follows:

1. Unscrew the housing cover

2. Place the display and adjustment module in the requested position onto the electronics and turn to the right until it snaps in

3. Screw housing cover with inspection window tightly back on

Removal is carried out in reverse order.

The display and adjustment module is powered by the sensor, an additional connection is not necessary.

Fig. 15: Insertion of the display and adjustment module with single chamber housing into the electronics compartment

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

6 Set up with the display and adjustment module

Fig. 16: Insertion of the display and adjustment module with double chamber housing

1 In the electronics compartment 2 In the connection compartment (with Ex-d-ia version not possible)

Note:

If you intend to retrot the instrument with a display and adjustment module for continuous measured value indication, a higher cover with

an inspection glass is required.

6.2 Adjustment system

1 2

Key functions

Fig. 17: Display and adjustment elements

1 LC display 2 Adjustment keys

[OK] key:

•

– Move to the menu overview – Conrm selected menu – Edit parameter

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

41830-EN-130314

6 Set up with the display and adjustment module

– Save value

[->] key:

•

– Presentation change measured value – Select list entry – Select editing position

[+] key:

•

– Change value of the parameter

[ESC] key:

•

– interrupt input – Jump to next higher menu

Adjustment system

Switch-on phase

Measured v tion

alue indica-

The sensor is adjusted via the four keys of the display and adjust-

ment module. The LC display indicates the individual menu items. The functions of the individual keys are shown in the above illustration.

Approx. 10 minutes after the last pressing of a key, an automatic reset

to measured value indication is triggered. Any values not conrmed

with [OK] will not be saved.

After switching on, the VEGAFLEX 82 carries out a short self-test

where the device software is checked.

The output signal transmits a fault signal during the switch-on phase.

The following information is displayed on the display and adjustment module during the startup procedure:

Instrument type

•

Device name

•

Software version (SW-Ver)

•

Hardware version (HW-Ver)

•

With the [->] key you can move between three dierent indication

modes. In the rst view, the selected measured value and a respective bar-

graph presentation are displayed.

In the second view, the selected measured value as well as a second selectable value, e.g. the temperature value are displayed.

In the third view, the selected measured value is displayed in large

letters.

6.3 Parameter adjustment - Quick setup

Quick setup

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

To quickly and easily adapt the sensor to the application, select

the menu item "Quick setup" in the start graphic on the display and adjustment module.

6 Set up with the display and adjustment module

You can nd "Extended adjustment" in the next sub-chapter.

General information

Measurement loop name

In the rst menu item you can assign a suitable measurement loop

name. You can enter a name with max. 19 characters.

Product type

In the next menu item you can see which product type the instrument is suitable for. If your instrument is only suitable for a certain medium,

this menu item is not visible.

Application

In this menu item, you can select the application. You can choose

between level measurement and interface measurement. You can also choose between measurement in a vessel or in a bypass or

standpipe.

Lev

el measurement

Medium - dielectric constant

In this menu item, you can dene the medium type (product).

Max. adjustment

In this menu item, you can enter the max. adjustment for the level. Enter the appropriate distance value in m (corresponding to the

percentage value) for the full vessel. The distance refers to the sensor reference plane (seal surface of the process tting). Keep in mind that the max. level must lie below the dead band.

Min. adjustment

In this menu item, you can enter the min. adjustment for the level. Enter the suitable distance value in m for the empty vessel (e.g.

distance from the ange to the probe end) corresponding to the percentage value. The distance refers tot he sensor reference plane (seal surface of the process tting).

Interface measurement

Dielectric constant - upper medium

In this menu item, you can dene the medium type (product).

Max. adjustment

In this menu item, you can enter the max. adjustment for the level. Enter the appropriate distance value in m (corresponding to the

percentage value) for the full vessel. The distance refers to the sensor

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

41830-EN-130314

6 Set up with the display and adjustment module

reference plane (seal surface of the process tting). Keep in mind that the max. level must lie below the dead band.

Min. adjustment

In this menu item, you can enter the min. adjustment for the level. Enter the suitable distance value in m for the empty vessel (e.g.

distance from the ange to the probe end) corresponding to the percentage value. The distance refers tot he sensor reference plane (seal surface of the process tting).

Max. adjustment - Interface

Carry out the max. adjustment for the interface.

To do this, enter the percentage value and the suitable distance value in m for the full vessel.

Min. adjustment - Interface

Carry out the min. adjustment for the interface.

To do this, enter the percentage value and the suitable distance value in m for the empty vessel.

Linearization

A linearization is necessary for all vessels in which the vessel volume does not increase linearly with the level - e.g. a horizontal cylindrical or spherical tank, when the indication or output of the volume is required. Corresponding linearization curves are preprogrammed for these vessels. They represent the correlation between the level percentage and vessel volume.

The linearization applies for the measured value indication and the current output. By activating the suitable curve, the percentage vessel volume is displayed correctly.

False signal suppression

High sockets and internal vessel installations cause interfering reections and can inuence the measurement.

A false signal suppression detects, marks and saves these false signals so that they are no longer taken into account for the level and

interface measurement. We generally recommend carrying out a false

signal suppression to achieve the best possible accuracy. This should be done with the lowest possible level so that all potential interfering reections can be detected.

Enter the actual distance from the sensor to the product surface.

All interfering signals in this section are detected by the sensor and stored.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

6 Set up with the display and adjustment module

The instrument carries out an automatic false signal suppression

as soon as the probe is uncovered. The false signal suppression is

always updated.

6.4 Parameter adjustment - Extended adjustment

For technically demanding measurement loops you can carry out extended settings in "Extended adjustment".

Main menu

Setup - Measurement loop name

The main menu is divided into ve sections with the following func-

tions:

Setup: Settings, e.g. measurement loop name, medium, vessel, adjustment, signal output, device unit, false signal suppression, linearization curve

Display: Settings, e.g., for language, measured value display, lighting

Diagnosis: Information, e.g. on instrument status, pointer, measure-

ment reliability, simulation, echo curve

Additional adjustments: Reset, date/time, reset, copy function Info: Instrument name, hardware and software version, calibration

date, instrument features

Note:

For optimum adjustment of the measurement, the individual submenu

items in the main menu item "Setup" should be selected one after

the other and provided with the correct parameters. If possible, go through the items in the given sequence.

The procedure is described below.

Here you can assign a suitable measurement loop name. Push the "OK" key to start the processing. With the "+" key you change the sign and with the "->" key you jump to the next position.

You can enter names with max. 19 characters. The character set comprises:

Capital letters from A … Z

•

Numbers from 0 … 9

•

Special characters + - / _ blanks

•

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

6 Set up with the display and adjustment module

Setup - Units

Setup - Probe length

Setup - Medium type

In this menu item you select the distance unit and the temperature unit.

With the distance units you can choose between m, mm and ft and with the temperature units betwenn °C, °F and K.

In this menu item you can enter the probe length or have the length

determined automatically by the sensor system.

When choosing "Ye s ", then the probe length will be determined automatically. When choosing "No", you can enter the probe length manually.

In this menu item you can select which type of medium you want to measure. You can choose between liquid or bulk solid.

Setup - Application

In this menu item you can select the application. You can choose

between metallic oder non-metallic vessels.

Note:

The selection of the application has a considerable inuence on all

other menu items. Keep in mind that as you continue with the param-

eter adjustment, individual menu items are only optionally available. You have the possibility to choose the demonstration mode.This

mode is suitable for test and demonstration purposes. In this mode, the sensor ignores the logic parameters of the application and reacts immediately to each change.

Setup - Medium, dielectric constant

In this menu item, you can dene the medium type (product). This menu item is only available if you have selected level measure-

ment under the menu item "Application".

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

6 Set up with the display and adjustment module

You can choose between the following medium types:

Dielectric constant

> 3 Cereals, our All kind of cereals, wheat our

1.5 … 3 Granules, cement Lime, gypsum, cement

< 1.5 Dusts, wood chips Wood chips, sawdust

Medium type Examples

Setup - Max. adjustment

Leve

Setup - Min. adjustment Level

In this menu item, you can enter the max. adjustment for the level.

Adjust the requested percentage value with [+] and save with [OK].

Enter the appropriate distance value in m (corresponding to the percentage value) for the full vessel. The distance refers to the sensor reference plane (seal surface of the process tting). Keep in mind that the max. level must lie below the dead band.

In this menu item, you can enter the min. adjustment for the level.

Adjust the requested percentage value with [+] and save with [OK].

Enter the suitable distance value in m for the empty vessel (e.g. distance from the ange to the probe end) corresponding to the percentage value. The distance refers tot he sensor reference plane (seal surface of the process tting).

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

41830-EN-130314

6 Set up with the display and adjustment module

Setup - Damping

Setup - Linearization

To damp process-dependent measured value uctuations, set an

integration time of 0 … 999 s in this menu item.

The default setting is a damping of 0 s.

The linearization applies to the measured value indication and the current output. By activating the appropriate curve, the volume percentage of the vessel is displayed correctly. If the volume should not

be displayed in percent but e.g. in l or kg, a scaling can be also set in the menu item "Display".

Caution:

If a linearization curve is selected, the measuring signal is no longer linearly proportional to the level. This must be taken into consideration

by the user, particularly when setting the switching point on the limit signal indicator.

Setup - Scaling Level 1

Since the scaling is very comprehensive, the scaling of the level value was divided into two menu items.

In menu item "Level 1" you dene the scaling size and the scaling unit for the level value on the display, e.g. volume in l.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

6 Set up with the display and adjustment module

Setup - Scaling Level 2

Setup - Current output Size

Setup - Current output, adjustment

Since the scaling is very comprehensive, the scaling of the level value was divided into two menu items.

In menu item "Level 2" you dene the scaling format on the display and the scaling of the level measured value for 0 % and 100 %.

In menu item"Current output, size" you determine which measured

value the current output refers to.

In menu item "Current output, adjustment" you can assign a respec-

tive measured value to the current output.

Setup - Current output Min./Max.

In the menu item "Current output Min./Max.", you determine the reaction of the current output during operation.

41830-EN-130314

The default setting is min. current 3.8 mA and max. current 20.5 mA.

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

6 Set up with the display and adjustment module

Setup - HART variables (1)

Setup - HART variables (2)

Setup - F pression

alse signal sup-

Since the HART variables are very extensive, the indication was divided into two menu items.

In the menu "HART variables 1" you can have the rst HART value PV (primary value) and the second HART value SV (secondary value) of

the sensor displayed.

The values cannot be changed in the display and adjustment module. To change these values, you have to use the adjustment software

PACTwa re .

In the menu "HART variables 2" you can have the third HART value

TV (third value) and the fourth HART value QV (quarter value) of the

sensor displayed.

The values cannot be changed in the display and adjustment module. To change these values, you have to use the adjustment software

PACTwa re .

The following circumstances cause interfering reections and can

inuence the measurement:

High sockets

•

Vessel installations such as struts

•

Deectors, etc.

•

Note:

A false signal suppression detects, marks and saves these false signals so that they are no longer taken into account for level measure-

ment.

This should be done with the lowest possible level so that all potential interfering reections can be detected.

Proceed as follows:

Enter the actual distance from the sensor to the product surface.

All interfering signals in this section are detected by the sensor and stored.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

6 Set up with the display and adjustment module

Note:

Check the distance to the product surface, because if an incorrect

(too large) value is entered, the existing level will be saved as a false echo. The lling level would then no longer be detectable in this area.

If a false signal suppression has already been created in the sensor, the following menu window appears when selecting "False signal suppression":

The instrument carries out an automatic false signal suppression

as soon as the probe is uncovered. The false signal suppression is

always updated.

The menu item "Delete" is used to completely delete an already cre-

ated false signal suppression. This is useful if the saved false signal

suppression no longer matches the metrological conditions in the

vessel.

Lock/unlock setup - Adjustment

Display - Menu language

In the menu item "Lock/unlock adjustment", you can protect the

sensor parameters against unauthorized modication. The PIN is activated/deactivated permanently.

The following adjustment functions are possible without entering the PIN:

Select menu items and show data

•

Read data from the sensor into the display and adjustment mod-

•

ule.

Caution:

With active PIN, adjustment via PACTware/DTM as well as other

systems is also blocked.

You can change the PIN number under "Additional adjustments - PIN".

This menu item enables the setting of the requested national lan-

guage.

In the delivery status, the sensor is set to the ordered national language.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

6 Set up with the display and adjustment module

Display - Displayed value 1

Display - Displayed value 2

Display - Backlight

In this menu item, you dene the indication of the measured value on the display. You can display two dierent measured values. In this menu item, you dene measured value 1.

The default setting for the displayed value 1 is "Filling height Level".

In this menu item you can dene the indication of the measured value

on the display.

You can display two dierent measured values. In this menu item, you dene measured value 2.

The default setting for the displayed value 2 is the electronics tem-

perature.

The optionally integrated background lighting can be adjusted via the

adjustment menu. The function depends on the height of the supply

voltage, see "Technical data".

The lighting is switched o in the delivery status.

Diagnostics - Device

In this menu item, the device status is displayed.

status

Diagnostics - Peak values Distance

The respective min. and max. measured value is saved in the sen-

sor. The two values are displayed in the menu item "Peak values,

distance".

In another window you can reset the peak value.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

6 Set up with the display and adjustment module

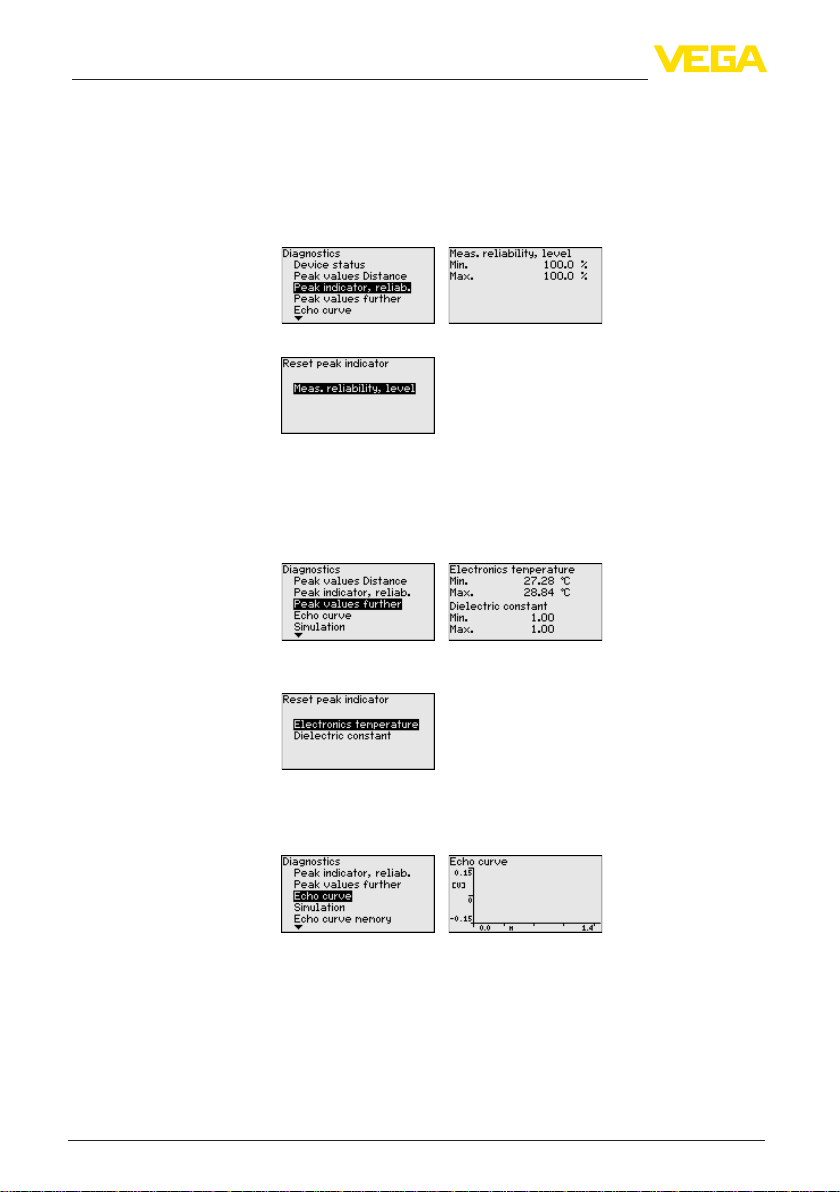

Diagnostics - Peak values Measurement certainty

Diagnostics - P Additional

eak values

The respective min. and max. measured values are saved in the

sensor. The two values are displayed in the menu item "Peak values,

measurement certainty".

The measurement can be inuenced by the process conditions. In this menu item, the measurement certainty of the level measurement is displayed as percentage value. The higher the value, the more reliable the measurement. Values > 90 % indicate reliable measurement.

In another window you can reset the peak value.

The respective min. and max. measured values are saved in the

sensor. The values are displayed in the menu item "Peak values Ad-

ditional".

This menu item displays the peak values of the electronics temperature as well as the dielectric constant.

In another window you can carry out a reset of the two peak values

separately.

Diagnostics - Echo curve

The menu item "Echo curve" shows the signal strength of the echoes

over the measuring range in V. The signal strength enables an evaluation of the quality of the measurement.

With the following functions you can zoom part sections of the echo curve.

"X-Zoom": Zoom function for the meas. distance

•

"Y-Zoom": 1, 2, 5 and 10x signal magnication in "V"

•

"Unzoom": Reset the presentation to the nominal measuring range

•

with single magnication

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

41830-EN-130314

6 Set up with the display and adjustment module

Diagnosis - Simulation

Diagnostics - Echo curve memory

In this menu item you can simulate measured values via the current output. This allows the signal path to be tested, e.g. via downstream

indicating instruments or the input card of the control system.

Select the requested simulation size and adjust the requested value.

Caution:

During simulation, the simulated value is outputted as 4 … 20 mA current value and digital HART signal.

Push the [ESC] key to deactivate the simulation.

Information:

The simulation is terminated automatically 60 minutes after the last key has been pushed.

The function "Echo curve memory" enables storing echo curves of the

measurement.

Under the sub-menu item "Echo curve memory" you can store the

current echo curve. Parameter settings for recording the echo curve and the settings of

the echo curve itself can be carried out in the adjustment software

PACTwa re .

With the adjustment software PACTware and the PC the high-reso-

lution echo curve can be displayed and used later on to assess the

quality of the measurement.

With the menu item "Setup" the echo curve it is possible to save at

the time of setup. This is generally recommended; for using the Asset Management functions it is necessary. If possible, the curve should be saved with a low level in the vessel.

With this, you can detect signal changes over the operating time. With

the adjustment software PACTware and the PC, the high-resolution

echo curve can be displayed and used to compare the echo curve of the setup with the actual echo curve.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

6 Set up with the display and adjustment module

Additional settings - PIN

Additional adjustments Date Time

Additional adjustments

- R

eset

Entering a 4-digit PIN protects the sensor data against unauthorized access and unintentional modication. In this menu item, the PIN is displayed or edited and changed. However, this menu item is only available if adjustment is enabled in the menu "Lock/unlock setup -

Adjustment".

In delivery status, the PIN is "0000".

In this menu item, the internal clock of the sensor is adjusted.

With a reset, certain parameter adjustments carried out by the user

are reset.

The following reset functions are available:

Delivery status: Restoring the parameter settings at the time of ship-

ment from the factory incl. the order-specic settings. A created false signal suppression, user-programmable linearization curve as well as the measured value memory will be deleted.

Basic settings: Resetting the parameter settings incl. special and

laboratory parameters to the default values of the respective instrument. A created false signal suppression, user programmable lineari-

zation curve as well as the measured value memory will be deleted. The following table shows the default values of the instrument. De-

pending on the instrument version or application, all menu items may not be available or some may be dierently assigned:

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

6 Set up with the display and adjustment module

Menu Menu item Default value

Setup Block operation Released

Measurement loop name

Units Distance unit: mm

Probe length Length of the probe Ex factory

Product type Bulk solid

Application Level, vessel

Medium, dielectric constant

Max. adjustment 0.000 m(d) - note blocking distances

Min. adjustment Probe length - take dead band into

Linearization Linear

Damping

Scaling size Volume in l

Current output, adjustment

Current output mode

Current output Min./Max.

Display Language As set in the device

Displayed value 1 Filling height Level

Displayed value 2 Electronics temperature

Backlight Switched o

Additional settings PIN 0000

Probe type Like order

HART mode Address 0 - Analogue current output

Sensor

Temperature unit: °C

Granules, powder, 1.5 … 3

account

0.0 s

0.00 lin %, 0 l

100.00 lin %, 100 l

Last measured value

Min. current 3.8 mA, max. current

20.5 mA

with HART

Additional adjustments Copy instrument settings

The instrument settings are copied with this function. The following

functions are available:

Read from sensor: Read data from sensor and store into the

•

display and adjustment module Write into sensor: Store data from the display and adjustment

•

module back to the sensor

The following data or settings for adjustment of the display and ad-

justment module are saved:

All data of the menu "Setup" and "Display"

•

In the menu "Additional adjustments" the items "Reset, Date/Time"

•

Special parameters

•

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

6 Set up with the display and adjustment module

The copied data are permanently saved in an EEPROM memory in the display and adjustment module and remain there even in case of

power failure. From there, they can be written into one or more sensors or kept as backup for a possible electronics exchange.

Note:

Before the data are stored in the sensor, a check is carried out to

determine if the data t the sensor. If the data do not t, a fault signal

is triggered or the function is blocked. When data are being written into the sensor, the display shows which instrument type the data originate from and which TAG-no. this sensor had.

Additional adjustments Probe type

Additional adjustments Special parameters

Additional adjustments HART mode

In this menu item you can select the type and size of your probe from

a list of all possible probes. This is necessary to adapt the electronics optimally to the probe.

In this menu item you gain access to the protected area where

you can enter special parameters. In exceptional cases, individual parameters can be modied in order to adapt the sensor to special

requirements.

Change the settings of the special parameters only after having contacted our service sta.

The sensor oers the HART modes "Analogue current output" and

"Fix current (4 mA)". In this menu item you determine the HART mode and enter the address with Multidrop mode.

In the mode "Fixed current output" up to 63 sensors can be operated on one two-wire cable (Multidrop operation). An address between 0 and 63 must be assigned to each sensor.

If you select the function "Analogue current output" and also enter an address number, you can output a 4 … 20 mA signal in Multidrop mode.

With the mode "

Fixed current (4 mA)" a xed 4 mA signal is outputted

independently of the actual level.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

6 Set up with the display and adjustment module

The default setting is "Analogue current output" and the address 00.

Info - Instrument name

Info - Instrument version

Inf

o - Factory calibration

date

Info - Sensor characteristics

In this menu, you read out the instrument name and the instrument serial number:

In this menu item, the hardware and software version of the sensor is

displayed.

In this menu item, the date of factory calibration of the sensor as well

as the date of the last change of sensor parameters are displayed via the display and adjustment module or via the PC.

In this menu item, the features of the sensor such as approval, process tting, seal, measuring range, electronics, housing and others

are displayed.

6.5 Saving the parameter adjustment data

We recommended noting the adjusted data, e.g. in this operating

instructions manual, and archiving them afterwards. They are thus available for multiple use or service purposes.

If the instrument is equipped with a display and adjustment module,

the data in the sensor can be saved in the display and adjustment

module. The procedure is described in the operating instructions manual "Display and adjustment module" in the menu item "Copy

sensor data". The data remain there permanently even if the sensor

power supply fails.

The following data or settings for adjustment of the display and ad-

justment module are saved:

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

6 Set up with the display and adjustment module

All data of the menu "Setup" and "Display"

•

In the menu "Additional adjustments" the items "Sensor-specic

•

units, temperature unit and linearization"

The values of the user programmable linearization curve

•

The function can also be used to transfer settings from one instrument to another instrument of the same type. If it is necessary to exchange a sensor, the display and adjustment module is inserted into the replacement instrument and the data are likewise written into the sensor via the menu item "Copy sensor data".

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

Via the interface adapter directly on the sensor

Connection via HART

7 Setup with PACTware

7.1 Connect the PC

Fig. 18: Connection of the PC directly to the sensor via the interface adapter

1 USB cable to the PC 2 Interface adapter VEGACONNECT 4 3 Sensor

Information:

The interface adapter VEGACONNECT 3 is not suitable for connection to the sensor.

Fig. 19: Connecting the PC via HART to the signal cable

1 VEGAFLEX 82

2 HARTresistance250Ω(optionaldependingonprocessing)

3 Connection cable with 2 mm pins and terminals 4 Processing system/PLC/Voltage supply

Necessary components:

VEGAFLEX 82

•

PC with PACTware and suitable VEGA DTM

•

VEGACONNECT 4

•

HART resistance approx. 250 Ω

•

Power supply unit or processing system

•

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

2 4

LOCK

USB

TWIST

OPEN

7 Setup with PACTware

Prerequisites

Note:

With power supply units with integrated HART resistance (internal

resistance approx. 250 Ω), an additional external resistance is not

necessary. This applies, e.g. to the VEGA instruments VEGATRENN

149A, VEGAMET 381 and VEGAMET 391). Commercially available Ex separators are also usually equipped with sucient current limita-

tion resistance. In such cases, VEGACONNECT 4 can be connected parallel to the 4 … 20 mA cable.

7.2 Parameter adjustment with PACTware

For parameter adjustment of the sensor via a Windows PC, the conguration software PACTware and a suitable instrument driver (DTM)

according to FDT standard are required. The up-to-date PACTware version as well as all available DTMs are compiled in a DTM Collection. The DTMs can also be integrated into other frame applications according to FDT standard.

Note:

To ensure that all instrument functions are supported, you should always use the latest DTM Collection. Furthermore, not all described

functions are included in older rmware versions. You can download

the latest instrument software from our homepage. A description of

the update procedure is also available in the Internet.

Further setup steps are described in the operating instructions manual "DTM Collection/PACTware" attached to each DTM Collection and which can also be downloaded from the Internet. Detailed descrip-

tions are available in the online help of PACTware and the DTMs.

Standard/Full version

41830-EN-130314

Fig. 20: Example of a DTM view

All device DTMs are available as a free-of-charge standard version and as a full version that must be purchased. In the standard version,

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

General information

7 Setup with PACTware

all functions for complete setup are already included. An assistant for

simple project conguration simplies the adjustment considerably. Saving/printing the project as well as import/export functions are also part of the standard version.

In the full version there is also an extended print function for complete project documentation as well as a save function for measured value and echo curves. In addition, there is a tank calculation program as well as a multiviewer for display and analysis of the saved measured value and echo curves.

The standard version is available as a download under www.vega. com/downloads and "Software". The full version is available on CD from the agency serving you.

7.3 Set up with the quick setup

The quick setup is another option for parameter adjustment of the

sensor. It allows fast, convenient adjustment of the most important

parameters to adapt the sensor quickly to standard applications. To use it, select the function "Quick setup" in the start screen.

Fig. 21: Select quick setup

1 Quick setup 2 Extended adjustment 3 Maintenance

Quick setup

With quick setup you can carry out the parameter adjustment of VEGAFLEX 82 for your application in just a few simple steps. The

assistant-driven adjustment includes the basic settings for simple,

reliable setup and commissioning.

Information:

If the function is inactive, then possibly no instrument is connected.

41830-EN-130314

Check the connection to the instrument.

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

7 Setup with PACTware

Extended adjustment

With the extended adjustment, you carry out the parameter adjust-

ment for the instrument via the clear menu structure in the DTM (Device Type Manager). This enables additional and special settings over and above those oered by quick setup.

Maintenance

Under the menu item "Maintenance" you get comprehensive and important support for servicing and maintenance. You can call up

diagnostic functions and carry out an electronics exchange or a software update.

Start quick setup

Step 1 of 7

Instrumentconguration

Step 2 of 7 Application

Click to the button "Quick setup", to start the assistant-driven adjustment for a simplied and reliable setup.

Device name

Here, you can nd the instrument name. You cannot change this line because the instrument name is unmodiably saved in the instrument.

Serial number

Here, you can nd the serial number of your instrument. You cannot change this line because the serial number is unmodiably saved in

the instrument.

Measurement loop name

Here you can enter a suitable measurement loop name for your VEGAFLEX 82. You can enter a name with max. 19 characters. You can use capital and small letters as well as numbers. The following special

characters are also possible: + - . : , ( ) / < >

Probelengthmodied?

If you have modied the probe length, this must be entered in the selection eld.

If you select "No", then the instrument uses automatically the

•

preset length of the default setting. If you select "Yes", then you can enter in another eld the modied

•

length of the instrument.

Probe length L from seal surface

If you have modied the length of the probe, you can enter in this eld the modied probe length. Keep the selected unit in mind.

Determine probe length automatically

If you do not know the probe length, you can have the length of the

probe determined automatically. The requirement for this is a probe

unrestricted and not covered by the medium.

Click to "Carry out now", to start the automatic length determination.

Product type

Here you can see which medium type your instrument is suitable for.

If this function is inactive, the medium type your instrument is suitable

for was already preset.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

7 Setup with PACTware

Information:

In special cases you can change the medium type. This setting can be changed under "Extended adjustment".

Application

In this eld you can select the application you want to use your instrument for. You have the following selection options:

Level in the metallic vessel

•

Level in the non-metallic vessel

•

Demonstration mode

•

Level measurement: If you select "Level", you can select the proper-

ties of the medium in another eld.

Demonstration mode: This mode is suitable for test and demonstration purposes. In this mode, the sensor ignores all logic parameters

and reacts immediately to all measured value changes within the

measuring range.

Application - Level measurement

The level measurement refers to the product surface which is the limit

to the gas phase.

With bulk solids:

•

– Dusts, wood chips - dielectric constant < 1.5 – Granules, dusts, powders - dielectric constant 1.5 … 3 – Cereals, our - dielectric constant > 3

Step 3 of 7 Adjustment

Step 4 of 7 Linearization

Step 5 of 7 Setting - Output signal

Step 6 of 7 Sensor optimization

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

Adjustment for the level measurement

If you have selected level measurement in the previous menu, then you can enter the values for the min. and max. adjustment. The value

to be entered refers to the distance from the sealing surface of the

process tting (sensor reference plane) to the surface of the product.

A linearization is required if the measured value should be outputted volume-proportional and not level-proportional. You can nd further linearization types in the extended adjustment.

If you have a non-linear vessel, you can select here the respective linearization curve.

Linear

•

Spherical tank

•

Horizontal cylindrical tank

•

In addition you have to enter the following vessel dimensions with

non-linear conditions:

Height of the socket h

•

Vessel height D

•

In this window you can adjust the output signal. When the function is inactive, you can change the settings via the "Extended adjustment".

7 Setup with PACTware

These settings allow you to optimize the sensor. With them you can compare a sounded distance with the indicated value and correct it, if

necessary.

Probe immersed in the liquid (covered)

Select whether or not the probe is immersed in the medium.

Measured distance to the medium

If the probe is immersed in the medium, you can enter here the measured distance to the medium.

Displayeddistancecorrect?

Is the displayed distance value correct? If you have the possibility, you

can enter here the sounded distance to the medium.

False signal suppression

With this function you can carry out the automatic false signal suppression. We recommend carrying out false signal suppression in any case.

Step 7 of 7 Additional settings

When the setup of the instrument is nished, additional settings can

be made. These are various backups and the locking of the instrument against unauthorised or inadvertent adjustment.

Prepareabackupleoftheinstrumentparameteradjustment?

For backup purposes, the current parameter adjustment of the instru-

ment is stored in a le. You can use this le later on to restore the

instrument parameter adjustment. The complete data set is down-

loaded from the device. This procedure can last several minutes.

Createinstrumentdocumentation?

This function is used to print or create a PDF le of the current parameter adjustment. To read the PDF le, you need a suitable program (for example Acrobat Reader). To print or create the PDF le, all data are downloaded from the device. For this function, the full version of the DTM Collection is required. This procedure can last several

minutes.

Storeechocurveofthesetupinthesensor?

Have you completed the initial setup of the instrument? In such case, we recommend storing the current signal conditions in the device for

later instrument tests and diagnostics.

LockadjustmentwithPINaftersetting?

The instrument is locked with the current PIN. A parameter adjustment is possible only after the PIN is entered again.

7.4 Saving the parameter adjustment data

We recommend documenting or saving the parameter adjustment data via PACTware. That way the data are available for multiple use or service purposes.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

8 Set up with other systems

8.1 DD adjustment programs

Device descriptions as Enhanced Device Description (EDD) are available for DD adjustment programs such as, for example, AMS™

and PDM. The les can be downloaded at www.vega.com/downloads under

"Software".

8.2 Communicator 375, 475

Device descriptions for the instrument are available as DD or EDD for parameter adjustment with the Field Communicator 375 or 475.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

9 Diagnostics and service

9.1 Maintenance

If the device is used correctly, no maintenance is required in normal

operation.

9.2 Diagnosis memory

The instrument has several memories which are available for diagnosis purposes. The data remain even with voltage interruption.

Measured value memory

Event memor

Up to 100,000 measured values can be stored in the sensor in a ring memory. Each entry contains date/time as well as the respective measured value. Storable values are for example:

Distance

•

Filling height

•

Percentage value

•

Lin. percent

•

Scaled

•

Current value

•

Meas. reliability

•

Electronics temperature

•

When the instrument is shipped, the measured value memory is active and stores distance, measurement certainty and electronics temperature every 3 minutes.

In the "Extended operation", you can select the respective measured values.

The requested values and recording conditions are set via a PC with

PACTware/DTM or the control system with EDD. Data are thus read out and also reset.

Up to 500 events are automatically stored with a time stamp in the sensor (non-deletable). Each entry contains date/time, event type, event description and value. Event types are for example:

Modication of a parameter

•

Switching on and o times

•

Status messages (according to NE 107)

•

Error messages (according to NE 107)

•

The data are read out via a PC with PACTware/DTM or the control

system with EDD.

Echo curve memory

The echo curves are stored with date and time and the corresponding

echo data. The memory is divided into two sections: Echo curve of the setup: This is used as reference echo curve for

the measurement conditions during setup. Changes in the measurement conditions during operation or buildup on the sensor can thus

be recognized. The echo curve of the setup is stored via:

PC with PACTware/DTM

•

Control system with EDD

•

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

41830-EN-130314

9 Diagnostics and service

Display and adjustment module

•

Further echo curves: Up to 10 echo curves can be stored in a ring buer in this memory section. Further echo curves are stored via:

PC with PACTware/DTM

•

Control system with EDD

•

Display and adjustment module

•

9.3 Status messages

The instrument features self-monitoring and diagnostics according

to NE 107 and VDI/VDE 2650. In addition to the status messages in the following tables there are more detailed error messages available

under the menu item "Diagnostics" via the display and adjustment module, PACTware/DTM and EDD.

Status messages

The status messages are divided into the following categories:

Failure

•

Function check

•

Out of specication

•

Maintenance requirement

•

and explained by pictographs:

41 2 3

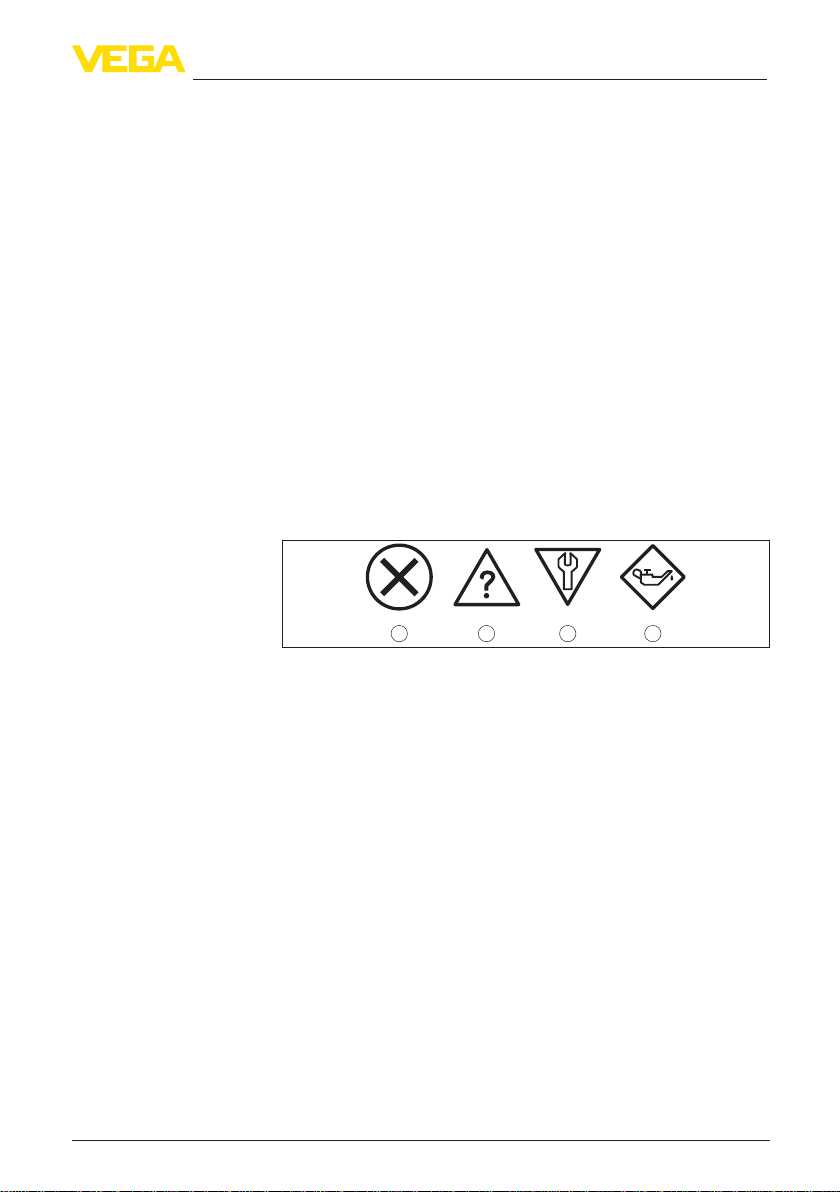

Fig. 22: Pictographs of the status messages

1 Failure - red

2 Outofspecication-yellow

3 Function check - orange 4 Maintenance - blue

Failure: Due to a malfunction in the instrument, a failure message is outputted.

This status message is always active. It cannot be deactivated by the

user.

Function check: The instrument is in operation, the measured value is temporarily invalid (for example during simulation).

This status message is inactive by default. It can be activated by the user via PACTware/DTM or EDD.

Outofspecication: The measured value is unstable because the instrument specication is exceeded (e.g. electronics temperature).

This status message is inactive by default. It can be activated by the user via PACTware/DTM or EDD.

Maintenance: Due to external inuences, the instrument function is limited. The measurement is aected, but the measured value is still valid. Plan in maintenance for the instrument because a failure is

expected in the near future (e.g. due to buildup).

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

9 Diagnostics and service

This status message is inactive by default. It can be activated by the user via PACTware/DTM or EDD.

Failure

The following table shows the error codes in the status message

"Failure" and gives information on the reason and rectication. Keep

in mind that some information is only valid with four-wire instruments.

Code

Text message

F013

no measured value available

F017

Adjustment span too small

F025

Error in the

linearization

table

F036

No operable software

F040

Error in the electronics

F041

Probe loss

F080

General software error

F105

Measured value is determined

F113

Communication error

F125

Unpermissible electronics temperature

Cause Rectication

– Sensor does not detect an

echo during operation

– Process component or

probe contaminated or

defective

– Adjustment not within

specication

– Index markers are not con-

tinuously rising, for examle

unlogical value pairs

– Failed or interrupted soft-

ware update

– Hardware defect – Exchanging the electronics

– Cable probe broken or rod

probe defective

– General software error – Separate operating voltage

– The instrument is still in the

start phase, the measured

value could not yet be

determined

– EMC interferences – Transmission error with the

external communication with 4-wire power supply unit

– Temperature of the elec-

tronics in the non-specied

section

– Check or correct installation

and/or parameter adjustment

– Clean or exchange process

component or probe

– Change adjustment accord-

ing to the limit values (difference between min. and

max. ≥ 10 mm)

– Check values of the lineari-

zation table

– Delete/create a new lineari-

zation table

– Repeat software update – Check electronics version – Exchanging the electronics – Send instrument for repair

– Send instrument for repair

– Check probe and exchange,

if necessary

briey

– Wait for the end of the

switch-on phase

– Duration depending on

the version and parameter adjustment max. 5 min.

– Remove EMC inuences – Exchange 4-wire power

supply unit or electronics

– Check ambient temperature – Isolate electronics – Use instrument with higher

temperature range

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

9 Diagnostics and service

Function check

Code

Text message

F260

Error in the calibration

F261

Error in the instrument settings

F264

Installation/ Setup error

F265

Measurement function disturbed

F266

Impermissible operating

voltage

F267

No executable sensor software

Cause Rectication

– Error in the calibration car-

ried out in the factory

– Error in the EEPROM

– Error during setup – Error when carrying out a

reset

– False signal suppression

faulty

– Error during setup – Check or correct installation

– Sensor no longer carries

out a measurement

– Operating voltage below

specied range

– Sensor cannot start – Exchanging the electronics

– Exchanging the electronics – Send instrument for repair

– Carry out a reset – Repeat setup

and/or parameter adjustment

– Check probe length

– Carry out a reset – Separate operating voltage

briey

– Check electrical connection – if necessary, increase

operating voltage

– Send instrument for repair

The following table shows the error codes and text messages in the

status message "Function check" and provides information on causes

as well as corrective measures.

Code

Text message

C700

Simulation ac-

tive

Cause Rectication

– A simulation is active – Finish simulation

– Wait for the automatic end

after 60 mins.

Outofspecication

The following table shows the error codes and text messages in the

status message "Outofspecication" and provides information on

causes as well as corrective measures.

Code

Text message

S600

Unpermissible electronics temperature

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

Cause Rectication

– Temperature of the elec-

tronics in the non-specied

section

– Check ambient temperature – Isolate electronics – Use instrument with higher

temperature range

9 Diagnostics and service

Maintenance

Code

Text message

S601

Overlling

Cause Rectication

– Danger of vessel overlling – Make sure that there is no

further lling

– Check level in the vessel

The following table shows the error codes and text messages in the

status message "Maintenance" and provides information on causes

as well as corrective measures.

Code

Text message

M500

Error with the

reset delivery

status

M501

Error in the

non-active linearization

table

M502

Error in the diagnosis memory

M503

Reliability too low

M504

Error on an device interface

M505 No echo avail-

able

Cause Rectication

– With the reset to delivery

status, the data could not be restored

– Hardware error EEPROM – Exchanging the electronics

– The echot/noise ratio is the

small for a reliable measurement

– Hardware defect – Check connections

– Level echo can no longer

be detected

– Repeat reset – Load XML le with sensor

data into the sensor

– Send instrument for repair

– Check installation and

process conditions – Clean the antenna – Change polarisation direc-

tion – Use instrument with higher

sensitivity

– Exchanging the electronics – Send instrument for repair

– Clean the antenna – Use a more suitable

antenna/sensor – Remove possible false

echoes – Optimize sensor position

and orientation

Reaction when malfunctions occur

9.4 Rectify faults

The operator of the system is responsible for taking suitable meas-

ures to rectify faults.

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

41830-EN-130314

9 Diagnostics and service

Procedure for fault recti-

cation

Check the 4 … 20 mA signal

The rst measures are:

Evaluation of fault messages, for example via the display and

•

adjustment module Checking the output signal with 4 … 20 mA instruments

•

Treatment of measurement errors

•

Further comprehensive diagnostics options oer a PC with the software PACTware and the suitable DTM. In many cases, the reasons

can be determined in this way and faults can be rectied.

Connect a handmultimeter in the suitable measuring range according to the wiring plan. The following table describes possible errors in the

current signal and helps to remove them:

Error Cause Rectication

4 … 20 mA signal not stable

4 … 20 mA signal missing

Current signal greater than 22 mA or less than 3.6 mA

– Level uctua-

tions

– Electrical con-

nection faulty

– Voltage supply

missing

– Operating volt-

age too low or load resistance too high

– Electronics

module in the sensor defec-

tive

– Set damping according to the

instrument via the display and

adjustment module or PACTware/ DTM

– Check connection according to

chapter "Connection steps" and if necessary, correct according to chapter "Wiring plan"

– Check cables for breaks; repair if

necessary

– Check, adapt if necessary

– Exchange the instrument or send it

in for repair

Treatment of measurement errors

The below tables show typical examples for application-relevant

measurement errors. There are two measurement errors:

Constant level

•

Filling

•

Emptying

•

The images in column "Error pattern" show the real level with a bro-

ken line and the level displayed by the sensor as a continuous line.

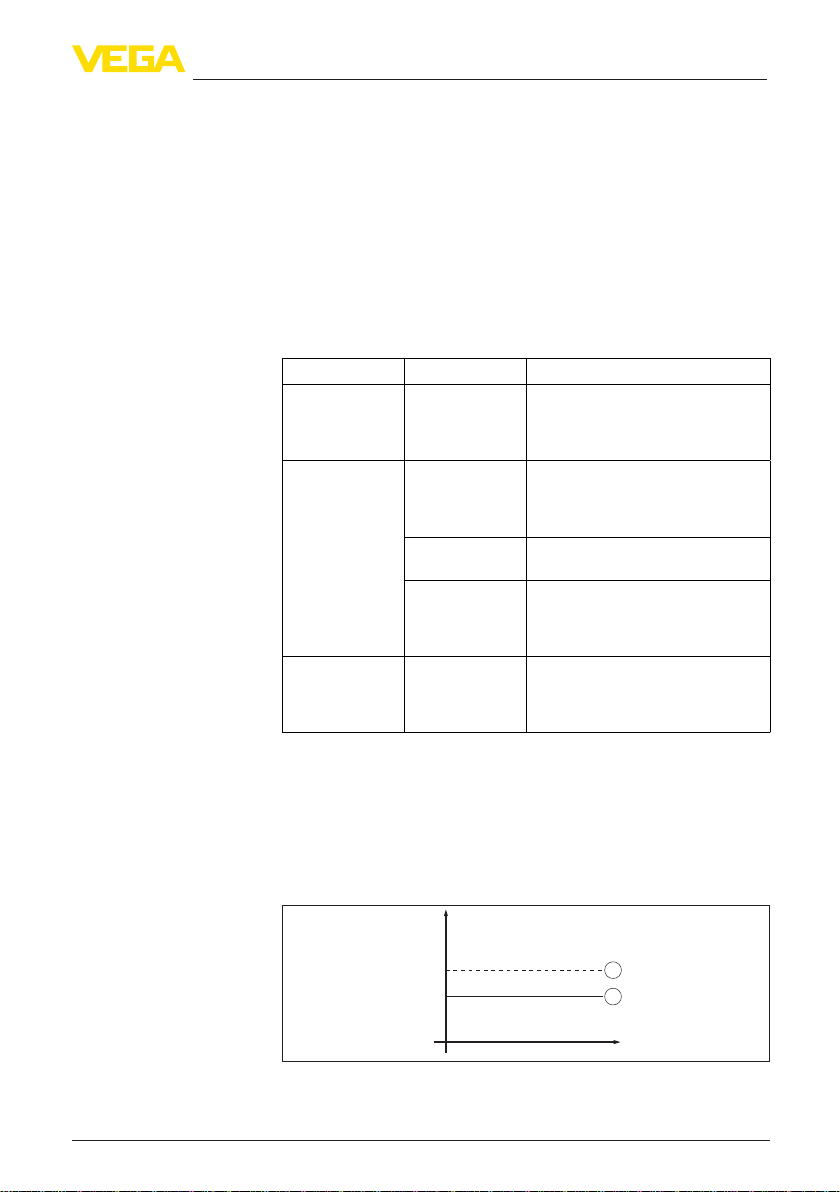

Fig. 23: The broken line 1 shows the real level, the continuous line 2 shows the level displayed by the sensor

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

Level

1 2

time

9 Diagnostics and service

time

Note:

Wherever the sensor displays a constant value, the reason could

•

also be the fault setting of the current output to "Hold value"

In case of a too low level indication, the reason could be a line

•

resistance that is too high

Measurement error with constant level

Fault description Error pattern Cause Rectication

1. Measured value

shows a too low or too

high level

Level

– Min./max. adjustment not

correct

– Wrong linearization curve – Adapt linearization curve

– Running time error (small

– Adapt min./max. adjustment

– Repeat setup measurement error close to 100 %/serious error close to 0 %)

2. Measured value

jumps towards 100 %

Level

– Due to the process, the ampli-

tude of the product echo sinks

– Carry out false signal suppres-

sion

– A false signal suppression was

not carried out

– Amplitude or position of a

false signal has changed (e.g. buildup); false signal suppression no longer matches

– Determine the reason for the

changed false signals, carry out false signal suppression, e.g. with buildup

Measurementerrorduringlling

Fault description Error pattern Cause Rectication

3. Measured value remains in the area of the

bottom during lling

4. Measured value re-

mains momentarily unchanged during lling and then jumps to

the correct level

5. Measured value

jumps sporadically to

100 % during lling

Level

– Echo from the probe end larger

than the product echo, for example, with products with

εr < 2.5 oil-based, solvents, etc.

Level

– Turbulence on the product

surface, quick lling

– Varying condensation or con-

tamination on the probe

– Check application parameter

"Medium" and "Vessel height", adapt if necessary

– Check application parameters,

change if necessary, e.g. in

dosing vessel, reactor

– Carry out false signal suppres-

sion

6. Measured value jumps to ≥ 100 % or

0 m distance

Level

– Level echo is no longer

detected in the close range due to false signals in the close range. The sensor goes into

overll protection mode. The max. level (0 m distance) as

– Eliminate false signals in the

close range

– Check installation conditions

– If possible, switch o the func-

tion "Overll protection"

41830-EN-130314

well as the status message "Overll protection" are outputted.

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

9 Diagnostics and service

time

Measurement error during emptying

Fault description Error pattern Cause Rectication

7. Measured value remains unchanged in the close range during emptying

8. Measured value remains reproducible in one position during emptying

Level

– False echo larger than the level

echo

– Level echo too small

– Stored false signals in this

position are larger than the

level echo

– Eliminate false signals in the

close range

– Remove contamination on the

probe. After having removed

the source of the false signals, the false signal suppression must be deleted.

– Carry out a new false signal

suppression

– Delete false signal memory

– Carry out a new false signal

suppression

Reaction after fault recti-

cation

24 hour service hotline

Depending on the reason for the fault and the measures taken, the steps described in chapter "Setup" must be carried out again or must be checked for plausibility and completeness.

Should these measures not be successful, please call in urgent cases

the VEGA service hotline under the phone no.

+49 1805 858550.

The hotline is also available outside the normal working hours on seven days a week around the clock.

Since we oer this service worldwide, the support is in the English language. The service itself is free of charge, the only costs involved

are the normal call charges.

9.5 Exchanging the electronics module

If the electronics module is defective, it can be replaced by the user.

In Ex applications only one instrument and one electronics module

with respective Ex approval may be used. If there is no electronics module available on site, the electronics

module can be ordered through the agency serving you. The electronics modules are adapted to the respective sensor and dier in signal output or voltage supply.

The new electronics module must be loaded with the default settings of the sensor. These are the options:

In the factory

•

Or on site by the user

•

In both cases, the serial number of the sensor is needed. The serial numbers are stated on the type label of the instrument, on the inside

of the housing as well as on the delivery note. When loading on site, rst of all the order data must be downloaded

from the Internet (see operating instructions manual "Electronics module").

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

9 Diagnostics and service

Exchanging the cable/rod

9.6 Exchange or shorten cable/rod

The cable or rod (meas. part) of the probe can be shortened, if neces-

sary. To loosen the rod or cable you need a fork spanner with spanner width 13.

1. Loosen the rod or cable by applying a fork spanner to the at surfaces (SW 13), provide counterforce with another fork spanner

(SW 13)

2. Unscrew the loosened rod or cable manually.

3. Place the enclosed new double washer onto the thread.

Caution:

Make sure that the two components of the double washer remain together.

4. Screw the new rod and the new cable manually to the thread on

the process tting.

5. Exert counterforce with the second fork spanner and tighten the or or cable on the at surfaces with a torque of 15 Nm (11 lbf ft).

Shorten cable/rod

Fig. 32: Exchange cable or rod

Information:

Please keep the stated torque so that the max. tensile strength remains.

The rod or cable of the probe can be shortened individually.

1. Mark the requested length with mounted measuring rod.

2. Cable: Loosen the three pins on the gravity weight Cable ø 4: 6 hexagon 3 Cable ø 6, cable ø 8: hexagon 4

3. Cable: remove the pins

4. Cable: Pull the cable out of the gravity weight

5. Shorten the cable/rod with a cut-o wheel or metal saw at the marking. Take note of the specications in the following illustration

when shortening the cable.

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

41830-EN-130314

9 Diagnostics and service

6. Cable: shift the cable into the gravity weight (according to the

drawing)

Plastic coated cable: remove coating according drawing to 70 mm

(2.76 in).

7. Cable: Fasten the cable with three pins, torque 20 Nm

(14.75 lbf in) Cable ø 4: 7 Nm (5.16 lbf ft) Cable ø 6, cable ø 8: 20 Nm (14.75 lbf ft)

8. Enter new probe length and then carry out a fresh adjustment (see "Setup procedure, Carrying out min. adjustment - Carrying out max. adjustment").

(1.77")

45 mm

(5.91")

150 mm

Fig. 33: Shortening the cable probe

A Gravity weight - cable ø 4 mm B Gravity weight - cable ø 6 mm 1 Pins 2 Thread M12 for eye-bolt 3 Pins

(2.76")

70 mm

(5.91")

150 mm

9.7 Software update

The following components are required to update the sensor software:

Sensor

•

Voltage supply

•

Interface adapter VEGACONNECT 4

•

PC with PACTware

•

Current sensor software as le

•

You can nd the actual sensor software as well as detailed information of the procedure under "www.vega.com/downloads" and "Software".

You can nd information about the installation in the download le.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

9 Diagnostics and service

Caution:

Instruments with approvals can be bound to certain software versions. Therefore make sure that the approval remains eective with a

software update. You can nd detailed information on www.vega.com/downloads and

"Approvals".

9.8 How to proceed in case of repair

You can nd a repair form as well as detailed information on how to

proceed under www.vega.com/downloads and "Formsandcerti- cates".

By doing this you help us carry out the repair quickly and without having to call back for needed information.

If a repair is necessary, please proceed as follows:

Print and ll out one form per instrument

•

Clean the instrument and pack it damage-proof

•

Attach the completed form and, if need be, also a safety data

•

sheet outside on the packaging

Please contact for the return shipment the agency serving you. You

•

can nd the agency on our home page www.vega.com.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

10 Dismounting

10.1 Dismounting steps

Warning:

Before dismounting, be aware of dangerous process conditions such

as e.g. pressure in the vessel, high temperatures, corrosive or toxic

products etc.

Take note of chapters "Mounting" and "Connecting to power supply"

and carry out the listed steps in reverse order.

10.2 Disposal

The instrument consists of materials which can be recycled by spe-

cialised recycling companies. We use recyclable materials and have

designed the parts to be easily separable. Correct disposal avoids negative eects on humans and the environ-

ment and ensures recycling of useful raw materials.

Materials: see chapter "Technical data"

If you have no way to dispose of the old instrument properly, please

WEEE directive 2002/96/EG

This instrument is not subject to the WEEE directive 2002/96/EG and the respective national laws. Pass the instrument directly on to a spe-

cialised recycling company and do not use the municipal collecting

points. These may be used only for privately used products according to the WEEE directive.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

11 Supplement

11.1 Technical data

General data

316L corresponds to 1.4404 or 1.4435

Materials, wetted parts

Ʋ Process tting 316L and PPS GF 40, Hastelloy C22 (2.4602) and PPS

Ʋ Process seal on the instrument side

(cable/rod leadthrough)

Ʋ Process seal On site (instruments with thread: Klingersil C-4400 is

Ʋ Inner conductor (up to the separation

cable/rod)

Ʋ Rod: ø 16 mm (0.63 in) 316L or Hastelloy C22 (2.4602) Ʋ Cable: ø 4 mm (0.157 in) 316 (1.4401) Ʋ Cable: ø 6 mm (0.236 in) - PA coated PA Ʋ Cable: ø 6 mm (0.236 in) 316 (1.4401) Ʋ Cable: ø 11 mm (0.433 in) - PA coated PA Ʋ Gravity weight (optionally available) 316L

Materials, non-wetted parts

Ʋ Plastic housing plastic PBT (Polyester) Ʋ Aluminium die-casting housing Aluminium die-casting AlSi10Mg, powder-coated - basis:

Ʋ Stainless steel housing - precision

casting

Ʋ Stainless steel housing, electropol-

ished

Ʋ Second line of defence (optional) Ʋ Seal between housing and housing

cover

Ʋ Inspection window in housing cover

(optional)

Ʋ Ground terminal 316L

Ohmic contact Between ground terminal, process tting and probe

Process ttings

Ʋ Pipe thread, cylindrical (ISO 228 T1) G¾, G1, G1½ according to DIN 3852-A Ʋ American pipe thread, conical

(ASME B1.20.1)

Ʋ Flanges e.g. DIN from DN 25, ANSI from 1"

Weight

GF 40

FKM (SHS FPM 70C3 GLT), FFKM (Kalrez 6375), EPDM (A+P 75.5/KW75F)

attached)

316L

Polyester

316L

Borosilicate glass GPC 540

NBR (stainless steel housing, precision casting), silicone

(aluminium/plastic housing; stainless steel housng,

electropolished)

Polycarbonate (with Ex d version: glass)

¾ NPT, 1 NPT, 1½ NPT

41830-EN-130314

Only with Ex d version

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

11 Supplement

Ʋ Instrument weight (depending on

approx. 0.8 … 8 kg (0.176 … 17.64 lbs)

process tting)

Ʋ Rod: ø 16 mm (0.63 in) approx. 1580 g/m (17 oz/ft) Ʋ Cable: ø 4 mm (0.157 in) approx. 78 g/m (0.84 oz/ft) Ʋ Cable: ø 6 mm (0.236 in) - PA coated approx. 180 g/m (1.9 oz/ft) Ʋ Cable: ø 6 mm (0.236 in) approx. 80 g/m (0.86 oz/ft) Ʋ Cable: ø 11 mm (0.433 in) - PA coated approx. 320 g/m (3.44 oz/ft) Ʋ Gravity weight for cable ø 4 mm

325 g (11.46 oz)

(0.157 in) and cable: ø 6 mm

(0.236 in) - PA coated

Ʋ Gravity weight for cable ø 6 mm

780 g (27.51 oz)

(0.236 in) and cable: ø 11 mm

(0.433 in) - PA coated

Probe length L (from seal surface)

Ʋ Rod: ø 16 mm (0.63 in) up to 6 m (19.69 ft) Ʋ Trimming accuracy - rod ±1 mm Ʋ Cable: ø 4 mm (0.157 in) up to 75 m (246.1 ft) Ʋ Cable: ø 6 mm (0.236 in) - PA coated up to 65 m (213.3 ft) Ʋ Cable: ø 6 mm (0.236 in) up to 75 m (246.1 ft) Ʋ Cable: ø 11 mm (0.433 in) - PA coated up to 65 m (213.3 ft) Ʋ Trimming accuracy - cable ±0.05 %

Lateral load with rod: ø 16 mm (0.63 in) 30 Nm (22.13 lbf ft)

Max. tensile load

Ʋ Cable: ø 4 mm (0.157 in) 12 KN (2698 lbf) Ʋ Cable: ø 6 mm (0.236 in) - PA coated 8 KN (1798 lbf) Ʋ Cable: ø 6 mm (0.236 in) 30 KN (6744 lbf) Ʋ Cable: ø 11 mm (0.433 in) - PA coated 30 KN (6744 lbf)

The tensile force of solids are subject of a normal uctuation range. For this reason, the determined diagram value of the following diagrams must be multiplied with safety factor 2.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

11 Supplement

0510 15 20 25 30 35 0510 15 20 25 30 35

Fig. 34: Max. tensile load with cereals and plastic granules - Cable: ø 4 mm (0.157 in)

A Cereals B Plastic granules 1 Tensile force in kN (the determined value must be multiplied with safety factor 2) 2 Cable length in m 3 Vessel diameter 12 m (39.37 ft) 4 Vessel diameter 9 m (29.53 ft) 5 Vessel diameter 6 m (19.69 ft) 6 Vessel diameter 3 m (9.843 ft)

0510 15 20 25 30 35 0510 15 20 25 30 35

Fig. 35: Max. tensile load with sand and cement - Cable: ø 4 mm (0.157 in)

C Sand D Cement 1 Tensile force in kN (the determined value must be multiplied with safety factor 2) 2 Cable length in m 3 Vessel diameter 12 m (39.37 ft) 4 Vessel diameter 9 m (29.53 ft) 5 Vessel diameter 6 m (19.69 ft) 6 Vessel diameter 3 m (9.843 ft)

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

11 Supplement

0510 15 20 25 30 35 0510 15 20 25 30 35

Fig. 36: Max. tensile load with cereals and plastic granules - Cable: ø 6 mm/ø 11 mm - PA coated

C D

0510 15 20 25 30 35

Fig. 37: Max. tensile load with sand and cement - Cable: ø 6 mm/ø 11 mm - PA coated

Thread in gravity weight, e.g. for eye-bolt

M 12

(cable version) Torque for exchangeable cable or rod probe (in the process tting)

Ʋ Cable: ø 4 mm (0.157 in) 8 Nm (5.9 lbf ft) Ʋ Cable: ø 6 mm (0.236 in) - PA coated 8 Nm (5.9 lbf ft)

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

11 Supplement

Ʋ Cable: ø 6 mm (0.236 in) 20 Nm (14.75 lbf ft) Ʋ Cable: ø 11 mm (0.433 in) - PA coated 20 Nm (14.75 lbf ft) Ʋ Rod: ø 16 mm (0.63 in) 20 Nm (14.75 lbf ft)

Torque for NPT cable glands and Conduit tubes

Ʋ Plastic housing max. 10 Nm (7.376 lbf ft) Ʋ Aluminium/Stainless steel housing max. 50 Nm (36.88 lbf ft)

Input variable

Measured variable Level of solids Min. dielectric constant of the medium ε

≥ 1.5

Fig. 38: Measuring ranges - VEGAFLEX 82

1 Reference plane 2 Probe length L 3 Measuring range 4 Upper dead band (see diagrams under Accuracy - grey section) 5 Lower dead band (see diagrams under Accuracy - grey section)

Output variable

Output signals

4 … 20 mA/HART - active; 4 … 20 mA/HART - passive

Terminal voltage passive 9 … 30 V DC

Shortcircuit protection Available Potential separation Available

Signal resolution

0.3 µA

Failure signal current output (adjustable) Last valid measured value, ≥ 21.0 mA, ≤ 3.6 mA

Max. output current 22 mA

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

11 Supplement

Starting current ≤ 3.6 mA

Load (4 … 20 mA/HART - active) < 500 Ω Damping (63 % of the input variable) 0 … 999 s, adjustable HART output values according to HART 7 (default setting)

Ʋ First HART value (PV) Linearised percentage value, level Ʋ Second HART value (SV) Distance to the level Ʋ Third HART value (TV) Measurement certainty, level Ʋ Fourth HART value (QV) Electronics temperature

Indication value - DIsplay and adjustment module

Ʋ Displayed value 1 Filling height - Level Ʋ Displayed value 2 Electronics temperature

Resolution, digital

< 1 mm (0.039 in)

Accuracy (according to DIN EN 60770-1)

Process reference conditions according to DIN EN 61298-1

Ʋ Temperature +18 … +30 °C (+64 … +86 °F) Ʋ Relative humidity 45 … 75 % Ʋ Air pressure +860 … +1060 mbar/+86 … +106 kPa

(+12.5 … +15.4 psig)

Installation reference conditions

Ʋ Min. distance to installations > 500 mm (19.69 in) Ʋ Vessel metallic, ø 1 m (3.281 ft), centric installation, process

tting ush with the vessel ceiling

Ʋ Reector metallic, ø 1 m Ʋ Medium Bulk solids - cereals, our, cement (dielectric con-

stant ~2.0)

Ʋ Installation Probe end does not touch the vessel bottom

Sensor parameter adjustment Gating out of false signals carried out

Typical deviation

See following diagrams

The output values can be assigned individually

The indication values can be assigned individually

Depending on the installation conditions, there can be deviations which can be rectied with an adaptation of

the adjustment or a change of the measured value oset in the DTM service mode

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

11 Supplement

15mm

(0.591")

2mm

(0.079")

-2mm

(-0.079")

(-0.394

-10mm

0,08 m (3.15")

0,3 m

(11.811")

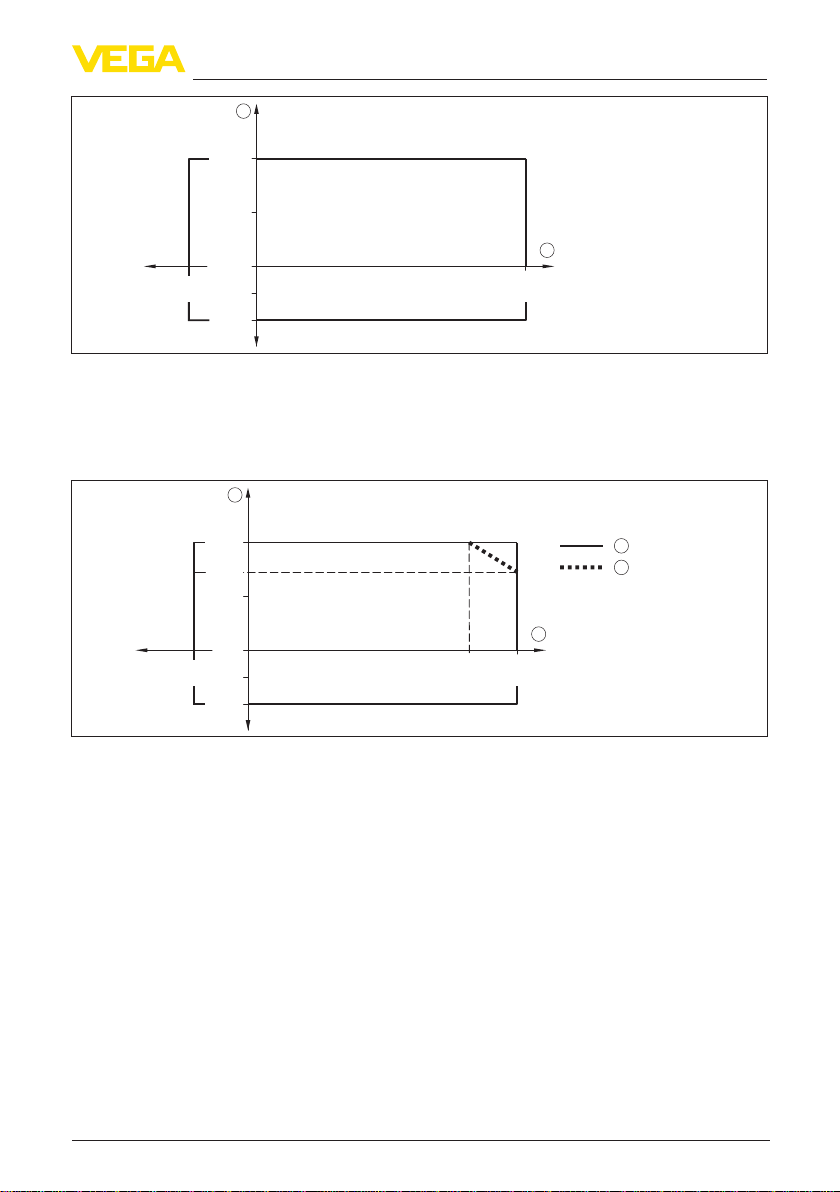

Fig. 39: Deviation VEGAFLEX 82 in rod version

1 Dead band - no measurement possible in this area L Probe length

15mm

(0.591")

2mm

(0.079")

-2mm

(-0.079")

10mm

(0.394")

0,08 m (3.15")

0,3 m

(11.811")

Fig. 40: Deviation VEGAFLEX 82 in cable version in water

1 Dead band - no measurement possible in this area L Probe length

Repeatability ≤ ±1 mm

0,02 m

(0.787

0,1 m

(3.94

Variablesinuencingmeasurementaccuracy

Specicationsforthedigitalmeasuredvalue

Temperature drift - Digital output ±3 mm/10 K relating to the max. measuring range or

max. 10 mm (0.394 in)

Additional deviation through electromag-

< ±10 mm (< ±0.394 in)

netic interference acc. to EN 61326

Specicationsapplyalsotothecurrentoutput

Temperature drift - Current output ±0.03 %/10 K relating to the 16 mA span max. ±0.3 %

Deviation on the current output by ana-

< ±15 µA

logue/digital conversion

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

41830-EN-130314

11 Supplement

Additional deviation through electromag-

< ±150 µA

netic interference acc. to EN 61326

Inuenceofthesuperimposedgasandpressuretotheaccuracy

The propagation speed of the radar impulses in gas or vapour above the medium is reduced by high pressure. This eect depends on the superimposed gas or vapour and is especially large at

low temperatures.

The following table shows the resulting deviation for some typical gases and vapours. The specied values refer to the distance. Positive values mean that the measured distance is too large, negative values that the measured distance is too small.

Gas phase Temperature Pressure

1 bar (14.5 psig) 10 bar (145 psig) 50 bar (725 psig)

Air 20 °C/68 °F 0.00 % 0.22 % 1.2 %

200 °C/392 °F -0.01 % 0.13 % 0.74 %

400 °C/752 °F -0.02 % 0.08 % 0.52 %

Hydrogen 20 °C/68 °F -0.01 % 0.10 % 0.61 %

200 °C/392 °F -0.02 % 0.05 % 0.37 %

400 °C/752 °F -0.02 % 0.03 % 0.25 %

Steam (saturated steam)

100 °C/212 °F 0.26 % - -

180 °C/356 °F 0.17 % 2.1 % -

264 °C/507 °F 0.12 % 1.44 % 9.2 %

366 °C/691 °F 0.07 % 1.01 % 5.7 %

Characteristics and performance data

Measuring cycle time

Step response time

< 500 ms ≤ 3 s

Max. lling/emptying speed 1 m/min

Ambient conditions

Ambient, storage and transport tempera-

-40 … +80 °C (-40 … +176 °F)

ture

Process conditions

For the process conditions, please also note the specications on the type label. The lowest value

always applies.

The measurement error from the process conditions is in the specied pressure and temperature

range of below 1 %. Process pressure -1 … +40 bar/-100 … +4000 kPa (-14.5 … +580 psig),

depending on the process tting

Vessel pressure relating to the ange

nominal stage

see supplementary instructions manual "Flanges ac- cording to DIN-EN-ASME-JIS"

Process temperature (thread or ange temperature)

Ʋ FKM (SHS FPM 70C3 GLT) -40 … +150 °C (-40 … +302 °F)

Time span after a sudden measuring distance change by max. 0.5 m in liquid applications, max 2 m with bulk

solids applications, until the output signal has taken for the rst time 90 % of the nal value (IEC 61298-2).

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

11 Supplement

Ʋ EPDM (A+P 75.5/KW75F) -40 … +150 °C (-40 … +302 °F) Ʋ FFKM (Kalrez 6375) - with tempera-

-20 … +200 °C (-4 … +392 °F)

ture adapter

80°C

(176°F)

65°C

(149°F)

3 4

-40°C

(-104°F)

0°C

(32°F)

-40°C

(-104°F)

130°C

(266°F)

150°C

(302°F)

Fig. 41: Ambient temperature - process temperature, standard version

Cable version with ø 4 mm (0.157 in) Cable version, PA coated with ø 6 mm (0.236 in)

1 Ambient temperature 2 Process temperature (depending on the seal material) 3 Maximum permissible temperature - standard 4 Limited temperature range - plastic housing and stainless steel housing, electropolished

80°C

(176°F)

3 4

55°C

(131°F)

-20°C

(-68°F)

0°C

(32°F)

-40°C

(-104°F)

150°C

(302°F)

200°C

(392°F)

Fig. 42: Ambient temperature - process temperature, version with temperature adapter

Cable version with ø 4 mm (0.157 in) Cable version, PA coated with ø 6 mm (0.236 in)

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

80°C

(176°F)

11 Supplement

-40°C

(-104°F)

0°C

(32°F)

-40°C

(-104°F)

150°C

(302°F)

Fig. 43: Ambient temperature - process temperature, standard version

Cable version with ø 6 mm (0.236 in) Cable version, PA coated with ø 11 mm (0.433 in)

1 Ambient temperature 2 Process temperature (depending on the seal material)

80°C

-20°C

(-68°F)

(176°F)

65°C

(149°F)

0°C

(32°F)

-40°C

(-104°F)

170°C

(338°F)

200°C

(392°F)

3 4

Fig. 44: Ambient temperature - process temperature, version with temperature adapter

Cable version with ø 6 mm (0.236 in) Cable version, PA coated with ø 11 mm (0.433 in)

Vibration resistance

Ʋ Instrument housing 4 g at 5 … 200 Hz according to EN 60068-2-6 (vibration

with resonance)

Ʋ Rod probe 1 g with 5 … 200 Hz according EN 60068-2-6 (vibration

at resonance) with rod length 50 cm (19.69 in)

Shock resistance

Ʋ Instrument housing 100 g, 6 ms according to EN 60068-2-27 (mechanical

shock)

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

11 Supplement

Ʋ Rod probe 25 g, 6 ms according to EN 60068-2-27 (mechanical

shock) with rod length 50 cm (19.69 in)

Electromechanical data - version IP 66/IP 67

Options of the cable entry

Ʋ Cable gland M20 x 1.5 Ʋ Cable diameter (options) 5 … 9 mm (0.20 … 0.35 in)

6 … 12 mm (0.24 … 0.47 in)

10 … 14 mm (0.39 … 0.55 in)

Ʋ Cable entry ½ NPT Ʋ Blind plug M20 x 1.5; ½ NPT

Plug options

Ʋ Supply and signal circuit (only with low

M12 x 1 plug

voltage)

Ʋ Indication circuit M12 x 1 plug

Wire cross-section (spring-loaded terminals)

Ʋ Massive wire, cord 0.2 … 2.5 mm² (AWG 24 … 14) Ʋ Stranded wire with end sleeve 0.2 … 1.5 mm² (AWG 24 … 16)

Display and adjustment module

Display element Display with backlight

Measured value indication

Ʋ Number of digits 5 Ʋ Size of digits W x H = 7 x 13 mm

Adjustment elements 4 keys

Protection rating

Ʋ unassembled IP 20 Ʋ mounted into the housing without

IP 40

cover

Materials

Ʋ Housing ABS Ʋ Inspection window Polyester foil

Integrated clock

Date format Day.Month.Year

Time format

12 h/24 h

Time zone Ex factory CET

Measurement electronics temerature

Resolution 1 °C (1.8 °F)

Accuracy ±1 °C (1.8 °F)

Voltage supply

Operating voltage

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

41830-EN-130314

11 Supplement

Ʋ Version for low voltage 9.6 … 48 V DC, 20 … 42 V AC, 50/60 Hz Ʋ Version for mains voltage 90 … 253 V AC, 50/60 Hz

Interpolation protection Integrated

Max. power consumption

4 VA; 2.1 W

Electrical protective measures

Protection rating

IP 66/IP 67

Overvoltage category III

Protection class I

Approvals

Instruments with approvals can have dierent technical data depending on the version. For that reason the associated approval documents of these instruments must be carefully noted.

They are part of the delivery or can be downloaded under www.vega.com and "VEGA Tools" as

well as under "Downloads" and "Approvals".

11.2 Dimensions

The following dimensional drawings represent only an extract of all possible versions. Detailed dimensional drawings can be downloaded at www.vega.com/downloads under "Drawings".

Housing

~ 87 mm (3.43")

M16x1,5

ø 84 mm

(3.31")

120 mm (4.72")

M20x1,5/ ½ NPT

Fig. 45: Dimensions housing - with integrated display and adjustment module the housing is 9 mm/0.35 in higher

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

11 Supplement

VEGAFLEX 82, cable version ø 4 mm (0.157 in)/ø 6 mm (0.236 in) - PA coated

SW 36 mm

(1.42")

G ¾

(1.81")

46mm

ø 4mm (0.16")

ø 20mm

(0.79")

(0.87")

22mm

150mm (5.91")

ø 6mm (0.24")

1 2

Fig. 46: VEGAFLEX 82, cable ø 4 mm (0.157 in)/ø 6 mm (0.236 in) threaded version with gravity weight (all gravity weights with thread M12 for eye-bolt)

L Sensor length, see chapter "Technical data" 1 Cable ø 4 mm (0.157 in) 2 Cable ø 6 mm (0.236 in) - PA coated 3 Joint - cable

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

11 Supplement

VEGAFLEX 82, cable version ø 6 mm (0.236 in)/ø 11 mm (0.433 in) - PA coated

SW 55 mm

(2.17")

G1½

ø 30mm

(1.18")

(3.15")

80mm

(1.18")

30mm

ø 6 mm

(0.24")

150mm (5.91")

ø 11 mm

(0.43")

Fig. 47: VEGAFLEX 82, cable ø 6 mm (0.236 in)/ø 11 mm (0.433 in) threaded version with gravity weight (all gravity weights with thread M12 for eye-bolt)

L Sensor length, see chapter "Technical data" 1 Cable ø 6 mm (0.236 in) 2 Cable ø 11 mm (0.433 in) - PA coated 3 Joint - cable

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

11 Supplement

VEGAFLEX 82, rod version ø 16 mm (0.63 in)

SW 55 mm

(2.17")

G1½

Fig. 48: VEGAFLEX 82, rod ø 16 mm (0.63 in), threaded version

L Sensor length, see chapter "Technical data" 1 Joint - rod

ø 16mm

(0.63")

(3.15")

80mm

(1.18")

30mm

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

11 Supplement

11.3 Industrial property rights

VEGA product lines are global protected by industrial property rights. Further information see www.vega.com.

Only in U.S.A.: Further information see patent label at the sensor housing. VEGA Produktfamilien sind weltweit geschützt durch gewerbliche Schutzrechte.

Nähere Informationen unter www.vega.com. Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec-

tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus-

trial. Para mayor información revise la pagina web www.vega.com.

Линии продукции фирмы ВЕГА защищаются по всему миру правами на интеллектуальную собственность. Дальнейшую информацию смотрите на сайте www.vega.com.

VEGA系列产品在全球享有知识产权保护。进一步信息请参见网站<www.vega.com>。

11.4 Trademark

All the brands as well as trade and company names used are property of their lawful proprietor/ originator.

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

INDEX

Accessories

– Display and adjustment module 12 – External display and adjustment unit 12, 13 – External radio unit 13 – Flanges 13 – Interface adapter 12 – Protective cover 13

Adjustment

– Max. adjustment 32

– Min. adjustment 32 Adjustment system 27 Application 31 Application area 11

Backlight 37 Block operation 36

Cable entry 20 Calibration date 43

Check signal 57

Connection cable 20 Connection compartment

– Double chamber housing 23, 24 Connection procedure 21 Connection technology 21 Copy sensor settings 41 Current output, adjustment 34 Current output Min./Max. 34

Current output, size 34 Curve indication

– Echo curve 38

Damping 33 Date/Time 40

DD (Device Description) 51 Default values 40 Deviation 57

Echo curve memory 52 Echo curve of the setup 39 EDD (Enhanced Device Description) 51

Electronics compartment, double chamber housing 23

Error messages 53 Event memory 52

Factory calibration date 43

False signal suppression 35 Fault rectication 57

Functional principle 11

Grounding 20

HART address 42

HART variables 35

Inowing medium 18 Installation position 15

Key function 26

Language 36

Linearization 33

Main menu 30 Meas. reliability 38

Measured value indication 37 Measured value memory 52

Measurement loop name 30

Moisture 15

NAMUR NE 107

– Failure 54 – Function check 55 – Maintenance 56 – Out of specication 55

Packaging 12

Peak value 37, 38

PIN 40 Potential equalisation 20 Probe length 31 Probe type 42 Product type 31 Protection class 20

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

Quick setup 28

Read out info 43 Repair 62 Replacement parts

– Display and adjustment module with

heating 13 – Electronics module 13 – Rod extension 13 – Spacer 14

Reset 40

Scaling measured value 33, 34

Sensor characteristics 43 Sensor status 37

Service hotline 59

Shielding 20 Simulation 39 Special parameters 42

Status messages 53

Storage 12

Type plate 10

INDEX

Units 31

Voltage supply 20, 74

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

Notes

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

Notes

41830-EN-130314

VEGAFLEX 82 • 4 … 20 mA/HART - four-wire

Printing date:

All statements concerning scope of delivery, application, practical use and operating conditions of the sensors and processing systems correspond to the information available at the time of printing. Subject to change without prior notice

VEGA Grieshaber KG Am Hohenstein 113 77761 Schiltach Germany

Phone +49 7836 50-0 Fax +49 7836 50-201 E-mail: info.de@vega.com www.vega.com

41830-EN-130314

VEGA FLEX82 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
