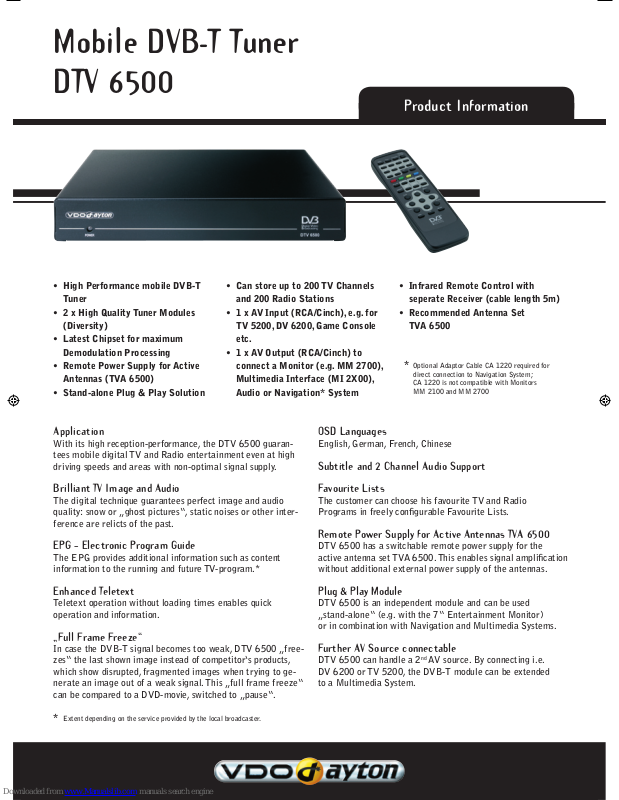

VDO DTV 6500 Product Information

Mobile DVB-T Tuner
DTV 6500

Product Information

• High Performance mobile DVB-T
Tuner

• 2 x High Quality Tuner Modules
(Diversity)

• Latest Chipset for maximum
Demodulation Processing

• Remote Power Supply for Active
Antennas (TVA 6500)

• Stand-alone Plug & Play Solution

• Can store up to 200 TV Channels
and 200 Radio Stations

• 1 x AV Input (RCA/Cinch), e.g. for
TV 5200, DV 6200, Game Console
etc.

• 1 x AV Output (RCA/Cinch) to
connect a Monitor (e.g. MM 2700),
Multimedia Interface (MI 2X00),
Audio or Navigation* System

Application

With its high reception-performance, the DTV 6500 guaran­tees mobile digital TV and Radio entertainment even at high
driving speeds and areas with non-optimal signal supply.

Brilliant TV Image and Audio

The digital technique guarantees perfect image and audio
quality: snow or „ghost pictures“, static noises or other inter­ference are relicts of the past.

EPG – Electronic Program Guide

The EPG provides additional information such as content
information to the running and future TV-program.*

• Infrared Remote Control with
seperate Receiver (cable length 5m)

• Recommended Antenna Set
TVA 6500

* Optional Adaptor Cable CA 1220 required for

direct connection to Navigation System;
CA 1220 is not compatible with Monitors
MM 2100 and MM 2700

OSD Languages

English, German, French, Chinese

Subtitle and 2 Channel Audio Support

Favourite Lists

The customer can choose his favourite TV and Radio
Programs in freely configurable Favourite Lists.

Remote Power Supply for Active Antennas TVA 6500

DTV 6500 has a switchable remote power supply for the
active antenna set TVA 6500. This enables signal amplification
without additional external power supply of the antennas.

Enhanced Teletext

Teletext operation without loading times enables quick
operation and information.

„Full Frame Freeze“

In case the DVB-T signal becomes too weak, DTV 6500 „free­zes“ the last shown image instead of competitor‘s products,
which show disrupted, fragmented images when trying to ge­nerate an image out of a weak signal. This „full frame freeze“
can be compared to a DVD-movie, switched to „pause“.

* Extent depending on the service provided by the local broadcaster.

Plug & Play Module

DTV 6500 is an independent module and can be used
„stand-alone“ (e.g. with the 7“ Entertainment Monitor)
or in combination with Navigation and Multimedia Systems.

Further AV Source connectable

DTV 6500 can handle a 2nd AV source. By connecting i.e.
DV 6200 or TV 5200, the DVB-T module can be extended
to a Multimedia System.

Mobile DVB-T Tuner

grey

red

Radio* (AUX IN) /
IR Transmitter WT 5100* /

etc. ...

MM 2700*

AV Source:

DVD* / Camera* /

Game Console*, etc.

Antenna Set:

TVA 6500*

ANT IN 1ANT IN

2

R ñ AUDIO IN ñ

L

VIDEO IN

R ñ AUDIO OUT ñ LVIDEO OUT

I

R

R

emote

R

ece

i

v

e

r

DC 12-24

V

BATACC

SAFETYG

ND

yellow

blac

k

12 V -

1 A

Handbrake

+ 12 V - 24 V

ACC

24 V

GND

IR Receiver

ANT PWR

1 2

Set to ìONî with TVA 6500

DTV 6500

Technical Information

Connectors

•

Audio and Video Connector Type: RCA/

Cinch

•

Video Output Level 1 Vpp ± 5 % at

75 Ohms

•

Video Input 1.5 Vpp max. at 75 Ohms

•

Audio Input 2 Vrms max. at 10 KOhms

Resistance

•

Audio Output Level 0.5 Vrms ± 20 % at

10 KOhms

• Audio Frequency Range 20 Hz to 20 KHz

• Audio Channel Seperation > 65 dB at
1 KHz

• Audio Mode Mono/Stereo/Dual

Connection Example

TV System

•

TV System Standard PAL/NTSC

•

Aspect Ratio 4:3, 16:9

•

DVB-T Compliance

ETSI EN 300 744

•

Video Decoding MPEG2

(ISO/IEC 13818-2, ML)

COFDM Modulation Handling

•

Constellation QPSK, 16QAM, 64QAM

•

Transmission Modes 2K & 8K FFT

•

Guard Interval 1/4, 1/8, 1/16, 1/32

•

Code Rate 1/2, 2/3, 3/4, 5/6, 7/8

General

•

Operating Voltage range: 12 ~ 24 V DC

•

Power Consumption: < 1 mA (Stand-By),

< 2 A (Operation)

•

Operating temperature range:

-10 °C ~ +60 °C

• Storage temperature range:

-25 °C

•

~ +85 °C

Dimensions (w x h x d):

27 x 4 x 16 cm

Reception Parameters

•

Frequency Range: 174 MHz to 230 MHz

(VHF), 470 MHz to 862 MHz (UHF)

•

Channel Bandwidth 8 MHz (standard),

7 MHz (possible)

• Antenna RF Input Impendance 75 Ohms

• Antenna Connector F Type

Package content

• Mounting Brackets and Screws

• 2 stripes of Tape

• Instruction for Use

•

Set-top Box

•

Power Cable

• Infrared Remote Control

• Infrared receiver

01/2006 • subject to modification • VU26-0013-03 355 02

The playback of TV- and/or Radio-Programs is
depending on the availability, strength and quality of
the broadcasted DVB-T Signal.
