Veriteq
> > > > >
Spectrum 4.0
User Guide
w w w . v e r i t e q . c o m
w w w . v a i s a l a . c o m
Copyright
Copyright © 2010 Veriteq Instruments, Inc. All rights reserved.
No copying, distribution, publication, modification, or incorporation of this document, in whole or part, is permitted
for commercial purposes without the express written permission of Veriteq Instruments.
Veriteq, a Vaisala company
13775 Commerce Parkway
Richmond, BC V6V 2V4
Canada
Trademarks
Veriteq Instruments, Veriteq, and Veriteq Spectrum are trademarks of Veriteq Instruments.
Windows is a registered trademark of Microsoft Corporation.
All other trademarks referred to are the property of their respective owners.
Disclaimer and Limitation of Liability
Veriteq Instruments, Inc. and its subsidiaries assume no responsibility for any damage or loss resulting from the
use of this manual.
Veriteq Instruments, Inc. and its subsidiaries assume no responsibility for any loss or claims by third parties which
may arise through the use of this software. Veriteq Instruments, Inc. and its subsidiaries assume no responsibility
for any damage or loss caused by deletion of data as a result of hardware malfunction. Be sure to make backup
copies of all important data to protect against data loss.
Veriteq Instruments, Inc. makes no warranties, either expressed or implied, regarding Veriteq data loggers or software, its merchantability, or its fitness for any particular purpose. The exclusion of implied warranties is not permitted by some states. As such, the exclusion may not apply to you.
Veriteq Spectrum has been tested using a variety of network systems. However, the large number of possible
hardware and network configurations makes testing under every circumstance impossible. If you have trouble using Veriteq Spectrum software, contact Veriteq Instruments.
Technical Support
Call Veriteq for free technical support 1-866-861-3388 (8am-4pm Pacific Standard Time)
Email customersupport@veriteq.com
Document part number: 880-0100-00
Release date: July 2010
.
Introducing Veriteq Spectrum....................................................................................................1
Welcome...........................................................................................................................................2
Conventions Used in this Document................................................................................................2
Understanding the Veriteq Spectrum System...................................................................................2
SP-Series Data Loggers.............................................................................................................5
Understanding the Spectrum Window..............................................................................................5
Using the Menus........................................................................................................................6
Using the Tool Bar ....................................................................................................................8
Using the Online User’s Guide.........................................................................................................9
Getting Help .....................................................................................................................................9
Installing Spectrum Software....................................................................................................11
System Requirements.....................................................................................................................12
Installing Spectrum Software ...................................................... ...................................................12
Getting Started.......................................................................................................................... 15
Setting Up and Using Spectrum—Overview.................................................................................16
Ensuring Data Loggers are Calibrated............................................................................................16
Connecting Data Loggers to PCs....................................................................................................16
Setting up PC Communication Ports..............................................................................................17
Configuring Data Loggers..............................................................................................................18
Configuring the Data Logger Description...............................................................................21
Setting the Data Logger Sample Timing.................................................................................22
Setting the Clear Mode............................................................................................................22
Setting the Start Mode.............................................................................................................24
Setting the Stop Mode.............................................................................................................25
Setting the Sample Interval .....................................................................................................26
Enabling and Disabling Logger Channels...............................................................................27
Configuring Channels to Work with Transducers...................................................................28
Configuring Warm Up Time...................................................................................................30
Configuring Data Logger Channels to Work with Thermocouples........................................31
Clearing Logger Samples........................................................................................................32
Mounting Data Loggers..................................................................................................................33
Using External Temperature Probes...............................................................................................33
Caring for Relative Humidity Sensors............................................................................................34
Transferring Logger Files.........................................................................................................35
Transferring Data............................................................................................................................36
Setting Transfer Preferences...........................................................................................................36
Configuring the Default File Name Format ............................................................................36
Transferring Logger Data to the PC...............................................................................................37
Setting System Date and Time .......................................................................................................41
Working with Graphs................................................................................................................43
Displaying Existing Graph Files.....................................................................................................44
Creating New Graph Files..............................................................................................................44
Inserting Logger Files.....................................................................................................................44
Inserting Multiple Logger Files......................................................................................................46
Scrolling Through Graphs..............................................................................................................46
Pinpointing Graph Values and Times.............................................................................................46
Adding Graph Titles.......................................................................................................................47
Selecting a Graph Font...................................................................................................................47
Zooming In.....................................................................................................................................48
Zooming In Using the Zoom Selection Box............................................................................48
Zooming In by Formatting the Time Scale .............................................................................50
Zooming Out...................................................................................................................................51
Formatting Time Zones..................................................................................................................51
Formatting Measurement Units......................................................................................................52
Specifying the Y-axis Scale.....................................................................................................52
Changing the Decimal Place Precision................................................................. .... ..... ..........53
Changing the Temperature Scale....................................................................................................53
Setting Sample Smoothing .............................................................................................................54
Displaying Line Numbers on Graphs.............................................................................................55
Copying and Pasting Graphs ..........................................................................................................56
Exporting Graph Data.....................................................................................................................56
Saving Graphs.............................................................................................................. ...................58
Printing Graphs...............................................................................................................................58
Printing Line Numbers on Graphs...........................................................................................58
Print Preview...........................................................................................................................59
Printing Graphs........................................................................................................................59
Viewing Reports and Statistics................................................................................................61
Working with Reports ....................................................................................................................62
Copying and Pasting Report Data ..................................................................................................63
Saving Reports......................................................................... .... ..... ..............................................64
Printing Reports..............................................................................................................................64
Troubleshooting........................................................................................................................65
Serial Port Problems.......................................................................................................................66
Software Error Messages you May Encounter…....................................................................66
Frequently Asked Questions...........................................................................................................67
Glossary..................................................................................................................................... 69
A–B................................................................................................................................................70
C–E ................................................................................................................................................70
F–K ................................................................................................................................................70
L–Q................................................................................................................................................70
R–T ................................................................................................................................................71
U–Z................................................................................................................................................72
Index........................................................................................................................................... 73
1
Introducing Veriteq Spectrum
Welcome..............................................................2
Conventions Used in this Document....................2
Understanding the Veriteq Spectrum System......2
Understanding the Spectrum Window .................5
Using the Online User’s Guide ............................9
Getting Help.........................................................9
1
Introducing Veriteq Spectrum
Welcome
Welcome to Veriteq Spectrum 4.0 software. Veriteq Spectrum provides recordings of temperature, humidity, and other conditions. Veriteq Spectrum software
is designed to be used with SP-Series Data Loggers.
With Veriteq Spectrum you can:
• Create electronic records of temperature, humidity, and other conditions.
• Create graphs and reports from logger files.
• Produce detailed graph reports.
• Overlay logger files from other Veriteq SP-Series Data Loggers within the
same graph to check relationships between logger files.
• Zoom-in and zoom-out for a customized view of the graph.
• Use the on-screen graph cursor to pinpoint exact values, times, and dates.
• Open multiple graph windows.
• V iew, customize, and print tabular -format reports with dates, times, and
logged values.
• Export graph data and reports to external databases, word processors, or
spreadsheets.
• Manually or automatically scale graphs.
• Use multiple Y-axes scaling and ranges.
• Enable and disable input channels.
• Set data logger start and stop times, sample intervals, and other logger settings.
Conventions Used in this Document
This document uses the following conventions:
• Select: Choose a menu item, check box, or option with a mouse.
• Click: Click a button with a mouse.
• A sequence of actions is indicated by a list separated by the greater than
sign.
For example, “select File>Save As...” means choose the Save As... item
from the File menu.
• Menu selections, items you select, the names of boxes and tabs, and buttons
you click are shown in bold.
• Keys on the keyboard are shown in S
MALL CAPS.
Understanding the Veriteq Spectrum System
The Veriteq SP-Series system consists of one or more Veriteq SP-Series Data
Loggers, Veriteq Spectrum 4.0 software, a Veriteq cable (PC-IC cable if connecting by Serial port, INT-USB-DL cable if connecting by USB, or Digi and
Ethernet cables if connecting via Digi or Veriteq vNet device through the network), and a PC with an attached printer.
2
Veriteq Spectrum 4.0 User’s Guide
The SP-Series Data Loggers are connected to a PC and the Spectrum software
is used to configure settings such as the sampling interval. The data loggers are
then placed in the area where conditions are to be monitored and they record
the information. The data loggers collect the information and store it in their internal memory. Once the desired information is collected, it is transferred to a
PC with Spectrum. The data is imported (“inserted”) into a Spectrum graph and
Spectrum software is used to display, analyze, print graphical or tabular reports,
and export the information.
The following illustration shows how the Veriteq SP-Series system is used to
collect and report data.
3
Introducing Veriteq Spectrum
Connect the data logger to the PC and configure the data logger
1
(sample intervals, channels, start time, stop time, and so on).
Data logger
Serial or USB Logger cable
or Digi/vNet Device
Place the data logger in the area you want to monitor.
2
The data logger collects and stores the information.
Connect the data logger to the PC and transfer data to PC.
3
Veriteq Spectrum creates a logger file (.spl).
Data logger
Serial or USB Logger cable
or Digi/vNet Device
Insert the Logger file (.spl) into a newly created or existing Graph.
4
Logger file (.spl)
Customize and verify the Graph file.
5
Customize and view Report (data in tabular format).
Export file to spreadsheet, database, or word processor.
Print the Graph file or Report and
6
have it signed and approved.
Graph file (.spg)
Printed Graph
Printed Report
Spreadsheet file
4
SP-Series Data Loggers
G
Each Veriteq SP-Series Data Logger is factory-calibrated against National Institute of Standards and Technology (NIST) traceable standards. All calibration
information is stored digitally in the logger’s memory. For data logger specifications, see www.veriteq.com or contact Veriteq.
There are many models of SP-Series Data Loggers to choose from, including
the SP-1000, SP-1400, SP-1700, SP-2000, and SP-4000. Each logger has one
or more channels and can monitor and record data, including ambient temperature and relative humidity. Many loggers can also have optional plug-in external probes attached.
Understanding the Spectrum Window
The following illustration shows the main sections of the Spectrum window,
with items described in Table 1:
Title bar
Menu bar
Toolbar
Title
Veriteq Spectrum 4.0 User’s Guide
Left-side axis (Y)
(here, temperature)
Time axis (X)
raphing grid details
Channel information
Status bar
Graph plot area
Right-side axis (Y)
(here, RH)
Graph time zone
Logger file names Graph file name
5
Introducing Veriteq Spectrum
Table 1: Items in the Spectrum Window
Title bar Shows the name of the active Graph file
Menu bar Allows access to the various software functions.
Toolbar Allows quick access to the most used software functions.
Graph title Shows the graph title, if you have added one.
Graph plot area The Graph file is displayed here.
Left-side Y-axis scale Shows the scale for the data displayed in the graph.
Right-side Y-axis
scale
X-Axis time scale Shows the time scale.
Graphing grid details Shows the time per division, graph duration, and date and time
Channel information Shows the name(s) of the logger files currently being dis-
Status bar Displays information about the menu items and the toolbar. If
Graph Time Zone Shows the time zone used for this Graph file.
This scale is used when two or more scales are displayed on
the graph.
format.
played, along with other identifying information including the
logger serial number, logger description, logger channel number, measurement units, and measurement parameter.
The color shown for each channel corresponds to the color of
the graph lines.
the software is idle, the message Press F1 for Help is displayed. You can alternatively display or hide the status bar by
selecting View>Status Bar.
The default time zone is based on the time zone setting of the
PC when the Graph file was created. The time zone can be
changed using the Format>Time Zone menu item.
Note: The logger data displayed is based on UTC time, an
absolute time reference.
Graph file name Shows the name and location of the Graph file.
Using the Menus
6
The following illustration provides an overview of the menus on the Spectrum
window. Take a few minutes to become familiar with the menu items. Rightclick on various parts of the window to discover additional ways to access the
menu items.
Veriteq Spectrum 4.0 User’s Guide
Create a new blank Graph file (.spg)
Open an existing Graph file (.spg)
Close the Graph file
Save the Graph file
Save the Graph file under a different name
Insert a Logger file (.spl) into an open Graph file
Insert a Logger file from sGo into an open Graph file
Export the Graph file
Print the Graph file
View a preview of the printed Graph file
Change the settings on the printer
Exit Spectrum software
Copy contents of graph to Clipboard.
Produce a report associated with the active Graph file
Show or hide the Toolbar
Show or hide the Status Bar
Change the title that appears above the graph
Position the cursor on the graph
Remove the cursor from the graph
Zoom in to enlarge a portion of the graph
Zoom out
Scroll the graph to the left
Scroll the graph to the right
Change the units on the Y-axis of the graph
Change the time scale on the X-axis of the graph
Change the time zone
Move window split line to change view of data and graph proportion
Open the Logger Setup window
Change the logger description
Change the logger sample timing
Enable or disable channels
Clear the data stored in the data logger
Transfer information from the data logger to your PC
Set Spectrum options such as temperature scale, file name formats, export options, etc.
Open a copy of the active graph in a new window
Arrange open windows in a cascade
Tile open windows horizontally
Tile open windows vertically
Switch to another open window
Open a PDF version of this User’s Guide
Go to the Veriteq Instruments web site
View information on this version of Spectrum software
7
Introducing Veriteq Spectrum
Using the Tool Bar
The Veriteq Spectrum Toolbar allows quick access to the most commonly used
features of the program. You can hide or display the toolbar by selecting
View>Toolbar.
The following table describes the function of each of the toolbar icons.
Toolbar
icon
Function
Creates a new Graph file you can insert Logger files into. Same
as File>New.
Opens an existing Graph file (.spg)
Saves the currently-active Graph file using the same file name
Inserts a Logger file into the currently-active Graph file
Copies graph to the Clipboard
Positions a vertical cursor line on the active graph to determine
exact graph values and times
Removes the vertical cursor line from the active graph
Zooms-in for a closer look at graph data
Zooms-out
Scrolls the graph to the left
Time base is shifted backward by one graph division
Scrolls the graph to the right
Time base is shifted forward by one graph division
Opens the Logger Setup window
Transfers logger data to the computer and creates Logger file
8
Prints the currently-active graph
Using the Online User’s Guide
Veriteq Spectrum includes an online version of this user’s guide in PDF format.
To access this guide from within Veriteq Spectrum, press F1 or click the Help
icon on the tool bar.
Getting Help
For more information about Veriteq Instruments products and services, visit
our websites at www.veriteq.com
For technical and product application support:
Telephone 1-866-861-3388 (North America only) (or +1 604-
273-6850)
Email customersupport@veriteq.com
Free technical support is available from Veriteq
from 8am-4pm PST Monday - Friday
Veriteq Spectrum 4.0 User’s Guide
and www.vaisala.com/veriteq.
For information, sales, pricing, and quotations:
Telephone 1-800-683-8374 (North America only) (or +1 604-
Email sales@veriteq.com
273-6850)
9
Introducing Veriteq Spectrum
10
2
Installing Spectrum Software
System Requirements..........................................12
Installing Spectrum Software ...............................12
11
Installing Spectrum Software
System Requirements
Veriteq Spectrum Software requires a PC with the following minimum configuration:
• 32-bit version of Windows
• 32-bit or x64 versions of: Windows
dows V ista
• one available Serial or USB communication port (for transferring logger
data files; you can view graphs and reports for previously transferred logger
files without this port).
®
, Windows Server
Installing Spectrum Software
To install Spectrum software:
1. Ensure you have administrator privileges.
2. Start Windows, log in as the administrator, and close all running applica-
tions.
®
2000.
®
XP, Windows Server® 2003, Win-
®
2008, and Windows® 7.
3. Insert the Veriteq Spectrum CD into the CD-ROM drive and wait for it to
start automatically. If it does not start automatically, from the Start menu,
select Run. Type d:\setup and press the E
ROM drive, type the appropriate drive letter.
The Veriteq Spectrum Setup window opens.
4. Click Next.
NTER key. If d:\ is not your CD-
12
Veriteq Spectrum 4.0 User’s Guide
5. Accept the default Destination Folder, or click the Browse... button to se-
lect a new Destination Folder.
6. Click Next.
7. Accept the default Program Folder or select another folder from the list of
Existing Folders.
8. Click Next.
9. Click Finish.
Spectrum is now installed. Continue to Getting Started for information on logger configuration and using Spectrum.
13
Installing Spectrum Software
14
3
Getting Started
Setting Up and Using Spectrum—Overview........16
Ensuring Data Loggers are Calibrated.................16
Connecting Data Loggers to PCs ........................16
Setting up PC Communication Ports ...................17
Configuring Data Loggers....................................18
Mounting Data Loggers........................................33
Using External Temperature Probes....................33
Caring for Relative Humidity Sensors..................34
15
Getting Started
Setting Up and Using Spectrum—Overview
The main steps in setting up and using Veriteq Spectrum are:
1. Ensure that the data loggers are calibrated. (See page 16.)
2. Connect the data loggers to the PC. (See page 16.)
3. Select a communications port. (See page 17.)
4. Configure the data logger. (See page 18.)
5. Place the data logger in the area you want to monitor and collect samples
for the desired time. (See page 33.)
6. Transfer the raw data in the form of a Logger file (.spl) to the PC. (See
Chapter 4.)
7. Insert Logger files (.spl) into Graph files (.spg). (See Chapter 5.)
8. View, copy, customize and print Graph files. (See Chapter 5.)
9. View, copy, customize and print Reports. (See Chapter 6.)
Ensuring Data Loggers are Calibrated
Veriteq SP-Series Data Loggers are calibrated at Veriteq Instruments and
should be calibrated on a suitable frequency as determined by the accuracy requirements of the application in which the product is used.
Veriteq Instruments recommends a 90-day interval for the most critical applications, while a one-year interval may be adequate for less demanding situations.
To calibrate your loggers, contact Veriteq Instruments for pricing, lead times,
and delivery arrangements.
Note: Treat the calibration process very carefully. The consequences of poor
calibration can be very expensive. Veriteq SP-Series Data Loggers are
high-accuracy instruments. In order to maintain the specified accuracy,
it is essential to have trained calibration personnel, strict calibration
procedures, and proper test and calibration facilities. If you have questions about the calibration process, contact Veriteq Instruments.
Connecting Data Loggers to PCs
To connect your data logger to a PC using USB or Serial cable:
1. USB only: Using the supplied Veriteq Spectrum + USB cable driver CD,
install USB drivers on your PC.
16
Veriteq Spectrum 4.0 User’s Guide
2. Connect the data logger to a Veriteq USB or Serial cable.
3. Attach the other end of this cable to the PC (as shown below) connecting
to the USB port.
To connect your data logger to a PC using a Digi or vNet device:
1. Connect Digi or vNet device (will be referred to as device, following) to
power supply and Ethernet outlet.
2. Connect data logger to device (Digi requires Veriteq cable).
3. Obtain static IP address for device from your IT department. If your net-
working policy requires you to reserve IP addresses using DHCP, see
www.veriteq.com/digi for instructions.
4. Insert device driver CD into PC. The Device Setup Wizard launches auto-
matically. Click
NEXT.
5. Select device that matches the MAC address from the bottom of your de-
vice. Click
NEXT.
6. In the Configure Network Settings window, enter a Static IP address. Click
NEXT two times.
7. In the Configure Real Port Settings screen, select “Install Digit Real Port
on this computer”. Click NEXT.
8. Click NEXT again. The settings are saved.
9. Click
FINISH. Drivers required to connect to your data logger through the
device have been installed.
Setting up PC Communication Ports
Before using a data logger with Veriteq Spectrum, you must select the correct
PC serial communication (COM) port. Veriteq Spectrum can support up to
4096 COM ports, numbered COM1 to COM4096.
To select a COM port:
1. Using Windows Device Manager, determine which COM port has been al-
located to your data logger. Make a note of it.
17
Getting Started
2. In Spectrum, choose Tools>Options, then choose the General tab.
3. From the COM port drop-down list, select an available COM port.
4. Click OK.
Once you have selected a COM port, you do not need to change the setting unless you change the communication port your loggers are connected to.
Configuring Data Loggers
Setting up the data logger varies slightly depending on the data logger you are
using and the configuration options you prefer.
To configure data loggers:
1. If you have not already done so, connect the logger to the PC.
2. From Spectrum, do one
• Select Logger>Setup.
• Press F11.
• Click the Logger Setup toolbar button ( ).
of the following:
18
Veriteq Spectrum 4.0 User’s Guide
3. The Logger Setup window opens.
The information shown in the Logger Setup window relates to the data
logger connected to the COM port you have specified. Some fields shown
will vary depending on the model of data logger in use.
Description
Hardware Model
Hardware Revision
Firmware Version
Serial Number
You can use this window to:
• Edit the data logger description.
• Set the sample timing.
• Enable or disable data logger channels.
Any changes will affect only the data logger currently connected to the
COM.
4. Click Close to close.
Understanding the Logger Setup Window
The following table describes the information displayed on the Logger Setup
window:
Logger description. (For information on configuring the logger descrip tion, see
Configuring the Data Logger Description on page 21.)
Hardware model number of the currently-connected data logge r.
Hardware version number associated with the currently connected data log-
ger.
Firmware version associated with the currently connected data logger.
Unique eight-character product serial number of the currently-connected data
logger. This number should match the serial number label on the back of the
data logger.
19
Getting Started
Logger Status
Start Time
Indicates the sampling status of the currently-connected data logger. The possible modes are:
• Sampling: The logger is currently taking samples and the memory is
not full.
• Sampling (wrapped): The logger is currently taking samples with
the memory full. The oldest reading is discarded and replaced with
the newest.
• Stopped at specified time: The logger is not sampling and has
stopped because the user-set stop time has been reached.
• Stopped when full: The logger is not sampling and has stopped
because it is configured to stop when the memory is full.
• Start at specified time: The logger is not sampling, but is set to
begin sampling as soon as the Start time is reached.
• No enabled channels: The logger is not sampling because no chan-
nels are enabled.
The Setup button to the righ t of the Lo gger Status enable s you to clear the logger’s memory and change the Sample Interval, Start Mode, and Stop Mod e
settings.
Indicates either the time that the curr ently-connected data logger began taking
samples, or the time (in the future) that it is set to begin taking readings
Future Start times are indicated by a ( ) symbol.
For information on changing the Start Time, see
Setting the Start Mode on
page 24.
Sample Interval
Stop Mode
Stop Time
Samples per channel
Log Time
Warmup Time
Indicates the current sample interval setting (how freque ntly the da ta lo gge r is
programmed to take readings). For information on setting sample intervals,
see
Setting the Sample Interval on page 26.
Note: The most frequent sampling rate possible with SP-1016 and SP-1416
loggers is once per minute. For other loggers, the most frequent sampling possible is once every 10 seconds; however, sampling of this frequency will have a negative effect on battery life.
Indicates how the currently-connected data logger is set to stop while recording samples in its memory. There are three choices: Wrap when full, Stop
when full, and Stop at specified time. For more information on setting Stop
modes, see
Indicates the programmed Stop Time, if set.
If a Stop Time has not been set, it reads None.
For information on setting the Stop Time, see
page 25
Identifies how many samples have been stored for each enabled channel on
the currently connected logger, the capacity available (in samples) for each
channel, and the percentage of memory used.
Click the Refresh button to update values.
Identifies the length of time the data logger has been recording.
The value is based on the number of samples in the memory multiplied b y the
sampling interval.
Click the Refresh button to update values.
This function applies to SP-4000 data loggers. See
Time on page 30
Setting the Stop Mode on page 25.
Setting the Stop Mode on
.
Configuring Warm Up
.
20
Channel 1
Temperature or Relative Humidity or other me a s ure d co nd itio n.
Veriteq Spectrum 4.0 User’s Guide
Channel 2
(there can be more
than 2 channels)
Temperature or Relative Humidity or other measured condition. Veriteq 4000Series data loggers have several channels, each which can be configured for
use with various transducers. See
Transducers
Click the Refresh button to update the currently displayed values. Click the
Setup... button to enable and disable channels.
on page 28.
Configuring the Data Logger Description
The Data Logger Description helps identify the logger every time you communicate with it. Using a description that refers to the application or location of
the data logger, and checking the logger description prior to each use, is a quick
way to ensure you have the correct logger.
To configure the Description for the currently-connected logger:
1. Do one of the following:
• Select Logger>Description...
• Press F11 or Select Logger>Setup or click the Logger Setup icon on
the toolbar ( ). In the window that appears, click Setup in the row for
Description.
Configuring Channels to Work with
2. In the box provided, type a description of the data logger, using up to sixteen characters.
3. Click OK to save or Cancel to close without saving.
The text from the Description field is displayed on all on-screen graphs, tabular
displays and printouts. The text can also be used in the creation of a default file
name when transferring logger data to a PC if you choose to include it.
21
Getting Started
Setting the Data Logger Sample Timing
To set the logger sample timing:
Do one of the following:
• Select Logger>Sample Timing...
• Select Logger>Setup, and click the Setup... button in the row for Log-
ger Status.
• Press F11 and click the Setup... button in the row for Logger Status.
The Logger Sample Timing window opens.
There are four main steps in setting the Logger Sample Timing:
1. Setting the Clear Mode
2. Setting the Start Mode
3. Setting the Stop Mode
4. Setting the Sample Interval
Setting the Clear Mode
To configure the Clear mode:
1. Select Logger>Sample Timing....
22
See page 22.
See page 24.
See page 25.
See page 26.
Veriteq Spectrum 4.0 User’s Guide
1. Under Clear Mode, select one of the following options:
Do not clear logger
Clear Logger
This is the default setting if the logger memory is
not yet full.
Use this setting when the logger memory is not yet
full and all you want to do is change Stop mode settings without clearing the existing samples.
If the logger memory is full, or if Start mode or
Sample Interval changes are required, you must
use the Clear logger setting to make the necessary
changes.
This is the default setting if the logger memory is
full.
The Clear logger setting allows you to modify
both Start and Stop mode parameters and change
Sample Interval values. Choosing this setting results in the logger’s memory being cleared following completion of the setup changes. You will lose
data unless you transfer it first.
If you are in doubt as to whether the information on
the logger is still valuable, first make a copy of the
data using Logger>Transfer, and then make the
necessary logger setup changes.
When you choose Clear logger, the Start Mode
and Stop Mode radio buttons become available.
23
Getting Started
Setting the Start Mode
The Start Mode enables you to choose how, and when the data logger starts
taking samples.
To set the Start Mode:
1. Under Clear Mode, select the Clear logger option.
2. Under Start Mode, select one of the following options:
Start now
This option sets a connected data logger to start taking
samples immediately (within one sample interval) after the
changes in the Logger Sample Timing window have been
applied to the logger’s memory.
Start at
specified
time
This option sets a connected data logger to start taking
samples at a pre-defined date and time in the future. Until
then, the logger remains dormant. This delayed start feature helps to save logger memory and minimizes the collection of unwanted data. You can also use the Start Time
option to ensure that multiple data loggers are synchronized to start logging at the same time.
3. When you choose the Start at specified time option, the Start Time sec-
tion of the Logger Sample Timing window becomes available. Use the
Date, Hours, and Minutes drop-down lists and AM/PM radio buttons to
set the time you want the data logger to begin recording samples.
Note: You can not choose a date or time earlier than the current date and
time values.
24
You can use the Start at specified time option in conjunction with the Stop at
specified time option to create a pre-defined data logger monitoring period.
Setting the Stop Mode
The Stop Mode enables you to choose how the connected data logger operates
once the memory is full, or when a specified time is reached.
Veriteq Spectrum 4.0 User’s Guide
If desired, use the Preset button to automatically set the start time hours
and minutes to the earliest possible setting for the date selected. For any
day other than the current day, this value is 12:00AM.
25
Getting Started
To set the Stop Mode:
1. Under Stop Mode, select one of the following options:
Wrap when full
Stop when full
This is the default method of collecting samples on
the data logger. When you choose this setting, samples are recorded in a first in, first out manner. When
the memory is full, the logger continues to take samples by discarding the oldest one, and replacing it
with the newest one.
The Wrap when full setting ensures that you always
have the latest data when you transfer from the data
logger. The length of time that the memory fills and
wraps around is a function of the Sample Interval
(see Setting the Sample Interval on page 26) you have
set on the logger. Veriteq Spectrum automatically
calculates this time and displays it in the Log Time
section of the Logger Sample Timing window.
Note: If the memory wraps around too quickly, you
can choose a longer sample interval.
When you choose this method, the logger stops taking readings once the memory is full. This option allows the maximum amount of samples to be taken
without overwriting data. It is particularly important
in any application where there is an excessive time
delay between the gathering of the data and the transferring of that data to the PC.
Stop at specified
time
The Log Time drop-down lists enable you to set an elapsed time for the data
logger to collect samples. For example, you can set the data logger to collect
samples for 24 hours, 48 hours, 7 days, and so on.
The Stop Time drop-d own lists enable you to set absolute date and time values
for when the logger is to stop taking samples.
Note: The Log Time and Stop Time options are interrelated. Setting the Log
Time to a specified period automatically adjusts the Stop Time values.
Adjusting the Stop Time Date and Time values, in turn, automatically
adjusts the Log Time values.
Setting the Sample Interval
You can change the sample intervals on the logger to suit the requirements of
the application. You can set up more frequent sampling intervals to capture rapidly changing data, or spread out the readings to maximize memory and cover
extended monitoring periods.
This method enables you to set a precise time for a
logger to stop recording data. When you choose this
setting, both the Log Time and Stop Time sections
of the Logger Sample Timing window are available.
26
Veriteq Spectrum 4.0 User’s Guide
Note: You can only change sample intervals if you set the Clear Mode to the
Clear logger setting (see Setting the Clear Mode on page 22).
To change the sample interval on the currently-connected logger:
1. Select Logger>Sample Timing....
2. Under Sample Interval, use the drop-down lists to set the Days, Hours,
Minutes, and Seconds to the desired sample interval.
If you want to use a sample interval of once per minute, click the Default
button.
You can choose intervals ranging from a minimum of ten seconds to once
every 24 hours.
The total period covered by a logger before the memory is full depends on
how many channels are enabled and the sample interval. This information
is automatically calculated in the Log Time section of the Logger Sample
Timing window.
Note: Running the logger with a sample interval shorter than one minute for a
prolonged time shortens the battery life.
Enabling and Disabling Logger Channels
The Logger Channels option enables you to enable or disable the channels on
the currently-connected data logger.
Note: During this process the data logger’s memory is cleared. If the informa-
tion on the data logger is still of value, transfer the data to a PC before
enabling or disabling channels.
27
Getting Started
To enable or disable data logger channels:
1. Do one of the following:
• Select Logger>Channels...
• You can also enable or disable data logger channels by selecting Log-
ger>Setup (or pressing F11 or clicking the Logger Setup icon on the
toolbar ( )). Then, in the Logger Setup window, click the Setup... button beside the channel you want to enable or disable.
2. In the window that appears, select or deselect the checkbox to enable or disable a channel.
3. Click OK. This initiates the process of clearing the data logger’s memory.
Note:
• A channel must be enabled before it can start collecting readings.
• It is a good idea to disable unused channels to maximize logger memory.
• If you are using a temperature and humidity data logger, remember that the
humidity sensor requires temperature values. You cannot disable the temperature sensor channel if you are using the humidity channel.
Configuring Channels to Work with Transducers
This section applies only to those using Veriteq SP-4000 series data loggers.
Used with transducers, you can configure SP-4000 series data loggers to display measurements in units other than milliAmps or volts.
To configure SP-4000 loggers to work with transducers:
1. In Spectrum, choose Logger>Setup.
2. From the Setup window, click Setup next to the channel to configure.
Different loggers offer different channel types, each with different setup windows and slightly different steps. In general, configure the logger’s typical units
and range to reflect the units and range you want to display.
28
Veriteq Spectrum 4.0 User’s Guide
3. To setup a DC Current channel:
a. Ensure the Channel is enabled by selecting the Channel Enabled check
box.
b. If applicable, enter a new channel description.
c. From Input Signal, specify the range for your transducer output.
d. Under Display Units, specify the range and units to display instead of
the input signal range. For example, psi instead of mA.
e. To set warmup time and save transducer battery life, see Configuring
Warm Up Time on page 30.
4. To setup a Voltage channel:
a. Ensure the Channel is enabled by selecting the Channel Enabled check
box.
b. If applicable, enter a new channel description.
c. If applicable, for input range, choose whether this is a 1 or 10 volt range
channel.
d. From Input Signal, specify the range for your transducer output.
e. Under Display Units, specify the range and units to display instead of
the input signal range. For example, psi instead of v.
Veriteq also supports a Boolean DC Voltage Channel type on some SP4000 loggers. For this type, specify the Threshold Voltage and the resulting display units. For example, if you want voltage above the threshold
29
Getting Started
value to show as 1, indicate 1 for Above Threshold and specify the units.
Boolean choices are typically 1 (above threshold) and 0 (below threshold).
5. Click OK.
Configuring Warm Up Time
Note: This section only applies to Veriteq SP-4000 data loggers.
Some SP-4000 data loggers have the ability to switch power from an external
battery onto a transducer using the Warmup Time feature, also known as the
XPS excitation control switch. This is useful for conserving power when an external transducer is being powered from an external battery.
Set transducer warm up time to a number of minutes or seconds before data is
recorded by the data logger. To set when the data logger will record data, see
Setting the Data Logger Sample Timing on page 22.
To configure transducer warmup time:
1. Choose Logger>Setup.
2. From the row for the channel you want to set up the warm up time for, click
Setup.
3. From the Setup Channel screen, click Warmup Time.
4. From the Warmup Time screen, select the Timer radio button.
You can also set up warmup time from the Logger Setup window.
30
Veriteq Spectrum 4.0 User’s Guide
5. For Timer Value, set the number of minutes or seconds you want the transducer to begin warming up before taking a sample. The default is 10 seconds.
6. Click OK.
Configuring Data Logger Channels to Work with Thermocouples
This section applies only to those using Veriteq SP-1700 Series Loggers. Veriteq SP-1700 loggers work with various types of thermocouples (E, J, K, R, S,
and T). You need to configure your channel to specify the type of thermocouple
you are using.
To configure SP-1700 loggers to work with thermocouples:
1. In Spectrum, choose Logger>Setup.
2. From the Setup window, click Setup next to the channel to configure.
3. From the Setup Thermocouple Channel screen, select Enable Channel.
4. From the Display Method list, choose your thermocouple type.
5. Enter a description.
6. Advanced: If your installation includes very long thermocouple cables,
Veriteq may recommend you specify a temperature offset. Enter it here. All
values will be adjusted by this offset.
31
Getting Started
7. Click OK to save or cancel to close without saving.
Clearing Logger Samples
Clearing a logger deletes all recorded samples in a logger’s memory.
You can clear the data logger without making any setup changes, or as an es-
sential part of the following logger setup functions:
• Enabling or disabling channels
• Changing Start Mode settings
• Changing logger sample intervals
Note: You do not have to clear the data logger samples before you start a new
To clear the logger without changing the logger setup:
1. Select Logger>Clear....
logging session, but doing so minimizes the storage of unneeded information.
2. In the Confirm System Time window, check the system time.
If the time shown is correct, click OK.
If the time shown is incorrect, click Cancel, and then use the Windows
Control Panel to make the appropriate changes. See Setting System Date
and Time on page 41.
Note: The PC's date and time must be accurate when clearing a data log-
ger’s memory or the date and time values in future logger files may
be incorrect.
After you click OK, a confirmation window opens.
3. Click OK.
32
Mounting Data Loggers
Because they are small and light, you can easily mount Veriteq data loggers in
the field using a variety of techniques including Velcro strips, double-sided
tape, duct tape, and magnetic strips.
In harsh environments, place the data logger in a standard industrially-rated enclosure, and run external sensors and probes from the enclosure using special
fittings in the openings.
Some tips for placing the data loggers:
Ventilation: Don’t obstruct the air passage holes in the logger. There should be
a clear path for the air to get to the internal sensors (if they are used or available).
Vibration: Excessive vibration can knock the unit off its mounting. If the location is subject to excessive jarring or vibration, mount the logger more securely.
Temperature: Excessive temperature (low or high) can affect adhesives.
Moisture: Moisture can also affect the adhesive durability.
Veriteq Spectrum 4.0 User’s Guide
Permanence: Make sure the mounting location is permanent for the duration
of the recording period.
Public access: If the logger location is too visible, people may interfere with
the readings. Make sure it is not too accessible.
Using External Temperature Probes
Veriteq SP 1000, 1016, 1400, 1416, and 1700-series data loggers have external
temperature channel(s) for use with an external temperature probe. Using the
external temperature probe enables you to collect data from hard-to-get-at locations, such as in duct work or under pipe insulation.
You can use an external temperature probe with these data loggers, provided
the probe was calibrated with the data logger.
To use an external temperature probe:
1. Enable the desired channel on the logger (see Enabling and Disabling Logger Channels on page 27). If you do not need to monitor from the internal
temperature sensor, disable it to conserve memory.
Note: You can disable most unused channels - external probe or not - to
save data logger memory. One exception is the internal temperature
channel on SP-1700 data loggers.
33
Getting Started
2. Attach the temperature probe to the connector on the data logger.
3. Use the Logger>Setup window to test the data logger operation (refresh
the readings as required).
4. Place the logger in the desired location and start recording.
Caring for Relative Humidity Sensors
Each Veriteq SP-2000 data logger has a relative humidity sensor. Although the
sensor has been designed to resist contamination and condensation, avoid exposing the data logger to contaminants, if possible.
For information on specific environments, contact Veriteq Instruments.
34
4
Transferring Logger Files
Transferring Data.................................................36
Setting Transfer Preferences...............................36
Transferring Logger Data to the PC .................... 37
Setting System Date and Time............................ 41
35
Transferring Logger Files
Transferring Data
When you transfer data from a data logger’s memory, Spectrum creates a copy
of the data and stores it on your PC as a logger file.
After inserting a logger file into Spectrum, you can view the information as a
graph or as a tabular report.
Note: The transfer process does not affect or delete the data on the data logger.
Before transferring data, you may want to set the transfer preferences.
You should also ensure that you have write permission to the folder on the PC
where you are going to save your transferred files.
Setting Transfer Preferences
You can configure the default file name format for the Logger file.
Configuring the Default File Name Format
To configure the default file name format:
1. Select Tools>Options, then choose the Transfer tab.
36
2. In each of the three fields, select the information you want to include in the
file name. The options for each field are:
Option Format
None This field is not used in the Logger file name format
Veriteq Spectrum 4.0 User’s Guide
Option Format
Serial number Eight digit logger serial number
Description Description of logger
Date and time yyyy-MM-dd_hh-mm, where:
• yyyy is the year
• MM is the month
• dd is the day
• hh is the hour
• mm is the minutes
Date yyyy-MM-dd, where:
• yyyy is the year
• MM is the month
• dd is the day
Time hh-mm, where:
• hh is the hour
• mm is the minutes
3. Click OK.
Transferring Logger Data to the PC
To transfer the information stored in the data logger to the PC:
1. Connect the data logger to the PC (see page 16).
2. Ensure that the COM port is configured (see page 17).
3. Ensure that you have write permission to the folder on the PC where you
are going to save the transferred files.
4. Do one
• Select Logger>Transfer.
• Press F12.
• Click the Transfer values toolbar icon ( ).
of the following:
37
Transferring Logger Files
This starts the communications process between the logger and the PC and
opens the Transfer Wizard window.
5. Confirm that the current date and time shown in the window are correct. If
the date and time are not correct, u se the Windows Control Panel to update
the system and time. See Setting System Date and Time on page 41.
Note: The PC's date and time must be correct when setting up a data logger, or
transferring logger data. Otherwise, the timestamp in the Logger file is
incorrect.
6. Click Next.
7. Edit or confirm the description of the logger using a maximum of 40 characters. The default entry for this field draws from the existing Description
in the logger’s memory (maximum 16 characters, see Configuring Data
Loggers on page 18). You can accept the default, or use the extra characters
to further describe the application or location of the data logger.
38
Veriteq Spectrum 4.0 User’s Guide
Note: Changing the description here does not modify the description in the
logger’s memory.
8. Edit or confirm the description of listed logger channels using a maximum
of 12 characters.
9. Click Next.
10. Accept the default name for the Logger file or click the Browse... button to
save the Logger file under a different name.
11. Click Finish.
The logger transfers its data to the PC while displaying the progress of the
transfer in the Transferring Samples window.
Note: After the transfer, the data remains in the logger. If the logger mem-
ory was not full, the data logger continues to store additional data in
its internal memory without interruption. If you want to clear the
data logger, see Clearing Logger Samples on page 32.
39
Transferring Logger Files
12. A dialog box appears, prompting you to insert the newly transferred logger
file into a new graph or the active (current) graph, if one is active. Choose
the appropriate radio button.
13. Click OK.
14. From the Select Channels window that appears, confirm the channels you
want to display in the graph.
15. Click OK.
16. If one of the channels you want to display record s relative humidity, the following window opens. Confirm the display method for the relative humidity channel.
17. Click OK.
18. The newly transferred file will appear in the active graph or a new graph
based on your choice in step 12.
40
Setting System Date and Time
To set the PC’s date and time using the Windows operating system:
1. Select Start>Control Panel, and then double-click Date/Time.
2. Reset the time to the correct values.
3. Click OK.
Veriteq Spectrum 4.0 User’s Guide
41
Transferring Logger Files
42
5
Working with Graphs
Displaying Existing Graph Files...........................44
Creating New Graph Files...................................44
Inserting Logger Files.......................................... 44
Inserting Multiple Logger Files ............................ 46
Scrolling Through Graphs ................................... 46
Pinpointing Graph Values and Times..................46
Adding Graph Titles............................................. 47
Selecting a Graph Font ....................................... 47
Zooming In .......................................................... 48
Zooming Out........................................................ 51
Formatting Time Zones ....................................... 51
Formatting Measurement Units...........................52
Changing the Temperature Scale........................53
Setting Sample Smoothing..................................54
Displaying Line Numbers on Graphs................... 55
Copying and Pasting Graphs .............................. 56
Exporting Graph Data.......................................... 56
Saving Graphs..................................................... 58
Printing Graphs ................................................... 58
43
Working with Graphs
Displaying Existing Graph Files
To open an existing Graph file (.spg):
1. Do one of the following:
• Select File>Open.
• Press C
• Click the Open File icon on the toolbar ( ).
2. Navigate to the Graph file you want to open.
3. Click Open.
The graph opens in the Spectrum window.
TRL+O.
Creating New Graph Files
To create a new graph:
1. Do one of the following:
• Select File>New.
• Press C
TRL+N.
• Click on the New Graph icon on the toolbar ( ).
An empty graph window opens, ready for you to insert one or more Logger
files. The new Graph file has a default name (for example, Graph1). You can
rename the graph when you save it.
Inserting Logger Files
To insert a Logger file into a new graph:
1. Do one of the following:
• Select File>Insert Logger Files...
• Select File>Insert Logger Files from sGo Folder...
• Press C
• Right-click the graph, and select Insert Logger Files...
• Right-click the graph, and select Insert Logger Files from sGo Folder..
• Click the Insert Logger File icon on the toolbar ( ).
2. Navigate to the Logger file you want to insert.
3. Click Open.
TRL+I.
44
Veriteq Spectrum 4.0 User’s Guide
The Select Channels window opens.
4. Select the channels you want to display in the graph.
5. Click OK.
6. If you are inserting a file with temperature and humidity, and the option for
confirming display method for relative humidity has been set to YES, the
Confirm Relative Humidity Channel window opens, prompting you to
choose a display method for relative humidity
a. Confirm the method for displaying values:
• Relative Humidity
• Dewpoint.
b. Click OK.
If you do not want to see this window every time you work with humidity
logger files, do one
of the following:
• Select the Do not display this message again check box before
clicking OK.
• Select Tools>Options, choose the Insert tab, and clear the Confirm
display method for relative humidity channels check box.
7. The Logger file is displayed as a graph in the Graph file. If the Logger file
has more than one channel, Spectrum automatically selects distinct colors
for each graph line.
You can insert multiple logger files in one graph. This works best if the range
and dates measured in the logger files are similar. For more, see Inserting Mul-
tiple Logger Files on page 46.
45
Working with Graphs
Inserting Multiple Logger Files
You can insert more than one Logger file into a single Graph file. This enables
you to easily compare data, and is especially useful for before-and-after studies
or to check interactions of data collected from different loggers.
To insert additional Logger files into a Graph file, follow the instructions in In-
serting Logger Files on page 44 for each Logger file you want to insert.
Scrolling Through Graphs
Scrolling allows you to shift the view of an on-screen graph to the right or to
the left. Each time you scroll, the graph view shifts by one graph division.
To scroll the on-screen graph to the left:
1. Do one of the following:
• Select Format>Scroll Backward.
• Press A
• Click the Scroll Backward icon on the toolbar ( ).
LT+Left Arrow.
To scroll the graph to the right:
1. Do one of the following:
• Select Format>Scroll Forward.
• Press A
• Click the Scroll Forward icon on the toolbar ( ).
LT+Right Arrow.
Pinpointing Graph Values and Times
To pin-point exact values and times on the currently-active graph:
1. Do one of the following:
• Select Format>Position Cursor.
• Press F7.
• Right-click the graph, and then select Position Cursor.
• Click the Position cursor icon on the toolbar ( ).
2. Position the cursor line along the X axis using the mouse or the arrow keys.
The values at the bottom left portion of the window indicate the exact date
and time where the cursor line is positioned as well as the exact values that
correspond to that point.
46
Veriteq Spectrum 4.0 User’s Guide
Date/time
Measured readings
3. To lock the cursor in place, click the mouse or press ENTER.
To remove the vertical cursor bar:
1. Do one of the following:
• Select Format>Remove Cursor.
• Press F8.
• Right-click the graph.
• Click the Remove cursor icon on the toolbar ( ).
Adding Graph Titles
To add a descriptive title to the currently active graph:
1. Do one of the following:
• Select Format>Title...
• Right-click the center of the window, just above the graph, an d sel e ct
Format Title...
• Double-click the center of the window, just above the graph.
The Title window opens.
2. Type the desired title (up to 50 characters long).
3. Click OK.
Selecting a Graph Font
You can select any font that is on the PC to use for all displayed and printed
graphs.
47
Working with Graphs
To change the graph font:
1. Select Tools>Options, then choose the General tab.
2. Click the Graph Font... button.
3. Select the desired Font, Font style, and Size.
4. Click OK.
5. If the font style and size are inappropriate, choose Restore Defaults.
Zooming In
Zooming allows you to look closer at a portion of the currently-displayed
graph. It also enables you to eliminate extraneous data and produce a graph and
a tabular printout that cover a set time period, such as 24 hours.
You can zoom-in two ways:
• Use the zoom selection box. This is the quickest and easiest way to zoom.
• Use the Format>Time Scale... option. This gives you precise control over
the X-axis time scale of the zoom. You can zoom-in by entering exact start
and end times and dates. For instructions on using this option, see Zooming
In by Formatting the Time Scale on page 50).
Zooming In Using the Zoom Selection Box
To zoom in on the graph using the zoom selection box:
1. Do one of the following:
• Select Format>Zoom-in.
• Press F9.
• Right-click the graph, and then select Zoom-in.
• Click the Zoom-in icon on the toolbar ( ).
A vertical line appears on the graph.
2. Use the mouse or arrow keys to move the vertical line to the beginning of
the section you want to zoom-in on.
48
Veriteq Spectrum 4.0 User’s Guide
3. Either:
a. Press and hold the left mouse button, and move the second cursor line
to the end of the section you want to zoom in on.
b. Release the mouse button and the zoomed-in area is displayed.
Or:
a. Press E
NTER to anchor the vertical line.
b. Use the arrow keys to stretch the zoom selection box.
c. Press E
NTER and the zoomed in area is displayed.
Note: If you have difficulty stretching the Zoom box accurately over the data,
try turning off the Time Scale rounding setting. Select Tools>Options,
then choose the General tab and clear the Automatically round off
time scale after zooming in check box.
49
Working with Graphs
Zooming In by Formatting the Time Scale
To zoom in by formatting the time scale:
1. Do one of the following:
• Select Format>Time Scale...
• Place the cursor over the date and time at the bottom of the graph, and
right-click, and then select Format>Time Scale...
The Format Time Scale window opens.
50
Zooming Out
Veriteq Spectrum 4.0 User’s Guide
2. Under Start Time, use the drop-down lists to select the start date and time
that correspond to the beginning of the section of the graph you want to
view in greater detail.
3. Under End Time, use the drop-down lists to select the end date and time
that correspond to the end of the section of the graph you want to view in
greater detail.
You can also use the Preset buttons to automatically set the time to the
beginning of the Calendar day chosen (12:00:00 AM).
4. Click OK.
To zoom-out:
1. Do one of the following:
• Select Format>Zoom-Out.
• Press F10.
• Right-click the graph, and then select Zoom-out.
• Click the Zoom-out icon on the toolbar ( ).
You can keep zooming out until you have returned the graph to its original condition.
Formatting Time Zones
Veriteq Spectrum Software sets the default time zone when the Graph file is
created. If desired, the time zone can be changed.
To change the time zone:
1. Do one of the following:
• Select Format>Time Zone.
• Right-click the x-axis of the graph, and then select Format>Time Zone.
51
Working with Graphs
2. Select the appropriate time zone from the drop-down list.
3. Click OK.
Formatting Measurement Units
Veriteq Spectrum Software automatically determines Y-axes scales appropriate for any displayed graph and sets a default level of decimal place precision.
If desired, you can override these settings.
Specifying the Y-axis Scale
To change a Y-axis scale:
1. Do one of the following:
• With the Graph file you want to modify open, select
Format>Units...
• Right-click the Y-axis units, and select Format>Units...
• Double-click the Y-axis units.
The Format Units window opens.
52
2. Under Units, use the drop-down list to select the desired units of measure-
ment.
3. Choose to apply the settings to the current graph or all new graphs (System
Default) using the appropriate radio buttons. If you select System Default,
the settings entered here automatically apply to new graphs that use the
same units (that is, °C, °F, and so on).
4. Under Scale, select the Manual button, then enter the maximum and minimum values for the axis that you want displayed.
5. Click Apply to apply changes, and OK to close.
Changing the Decimal Place Precision
To change decimal place precision:
1. Do one of the following:
• With the Graph file you want to modify open, select
Format>Units...
• Right-click the Y-axis units, and select Format>Units...
• Double-click the Y-axis units.
The Format Units window opens.
Veriteq Spectrum 4.0 User’s Guide
2. Under Units, use the drop-down list to select the measurement units you
want to change.
3. Under Change Settings For, use the drop-down list to select where you
want the changes to apply—the Current Graph or System Default. If you
select System Default, the set tings entered here automatically apply to new
graphs that use the same units.
4. Under Decimal Places, select the Manual option and use the drop-down
list to select the desired number of decimal places.
5. Click Apply to apply changes, and OK to close.
Changing the Temperature Scale
You can display temperature in Fahrenheit or Celsius.
To change the temperature scale:
1. Select Tools>Options, then choose the General tab.
53
Working with Graphs
2. Under Temperature scale, select Fahrenheit or Celsius.
This setting affects the data in all graphs, displays, and printed reports.
Setting Sample Smoothing
In Spectrum, sample smoothing controls how samples in a logger file are interpreted when they are inserted into a graph, allowing you to dampen the effects
of ‘noise’ in Logger files.
Sample smoothing is the minimum change in input signal required to cause a
change in displayed channel values, and is defined in raw analog-to-digital converter counts.
Spectrum allows you to set two different sample smoothing values: one for
thermocouple channels, the other for other channel types.
Note: Sample smoothing only affects how samples are interpreted and pre-
sented in graphs and reports; the data in the loggers and the logger files
is not affected by any settings related to sample smoothing.
54
Veriteq Spectrum 4.0 User’s Guide
To set sample smoothing:
1. Select Tools>Options, then choose the Insert tab.
2. Under Sample smoothing (in raw counts), select one of the following options.
Zero Produces the most responsive graph, but makes
One (default) Suitable for most applications
Two Decreases input noise and produces a more sta-
the recorded readings susceptible to noise
ble graph
3. Click OK.
Displaying Line Numbers on Graphs
Spectrum displays the lines on graphs in different colors. If desired, you can
add numbers to the lines in the graph.
55
Working with Graphs
To display numbers on the graph lines:
1. Select Tools>Options, then choose the General tab.
2. Under Line numbers on displayed graphs, select Enabled.
3. Click OK.
Copying and Pasting Graphs
Spectrum allows you to copy graphs into the Clipboard for pasting into other
applications, such as Microsoft Word.
To copy graph data:
1. From Spectrum, choose Edit>Copy.
2. Go to the application you want to paste the graph image into. In this application, choose Edit>Paste.
Exporting Graph Data
Spectrum allows you to export graph data into either .txt or .csv format. You
can also specify whether to have date and time saved within one column or separated. As an alternative, you can view and save the Report; it contains identical
data, plus much more.
56
Veriteq Spectrum 4.0 User’s Guide
To export graph data to .txt or .csv files:
1. By default, date and time are exported in a single column.
To have date and time exported into separate columns:
a. Select Tools>Options, then choose the Export tab.
b. Select the Export the date and time in separate columns option.
c. Click OK
2. To export the file, choose File>Export....
The File Save As window opens.
3. Navigate to the location where you want to save the file.
4. In the File name box, type the desired file name.
5. In the Save as type box, accept the default CSV (comma-separated val-
ues)(.csv) file type, or select Text (Comma delimited)(*.txt). You can
readily import either file format into most popular spreadsheet and database programs for further analysis and manipulation.
6. Click Save.
57
Working with Graphs
Saving Graphs
To save changes to a graph file (.spg) for later use:
1. Choose File>Save or File>Save As.
2. Navigate to the location to save your file, enter a file name, and click Save.
To export graph data, use File Export and see Exporting Graph Data on page
56.
Printing Graphs
Printing Line Numbers on Graphs
Spectrum displays lines on graphs in different colors. For monochromatic
printers, Spectrum automatically adds numbers to the graph lines when the
graph is printed (when in auto mode).
To change this option:
1. Select Tools>Options, then choose the General tab.
2. Under Line numbers on printed graphs, select one of the following options.
Auto Lines are numbered if the graph is printed on a monochro-
matic printer and not numbered if the graph is printed on a
color printer.
58
Disabled Lines are not numbered on the printed graph, even if it is
printed on a monochromatic printer.
Enabled Lines are numbered on the printed graph, even if it is
printed on a color printer.
Print Preview
Veriteq Spectrum 4.0 User’s Guide
3. Click OK.
To view a print preview of the current graph:
1. Select File>Print Preview.
The Print Preview window opens.
Printing Graphs
2. If you want to view the graph in more detail, select Zoom In.
3. When you are ready to print the file, select Print....
To print a currently-active graph:
1. Do one of the following:
• Click the Print Graph icon on the toolbar ( ), which sends the graph
immediately to the printer. (Skip steps 2 &3).
• Select File>Print.
• Press C
TRL+P.
The Print window opens.
2. Configure the printer settings.
3. Click Print.
59
Working with Graphs
60
6
Viewing Reports and Statistics
Working with Reports .......................................... 62
Copying and Pasting Report Data....................... 63
Saving Reports.................................................... 63
Printing Reports................................................... 64
61
Viewing Reports and Statistics
Working with Reports
Reports display logger file information in a tabular format. You must have at
least one file inserted in Spectrum to view a report. To insert a file, see Inserting
Logger Files on page 44.
To view a report for the currently-active graph:
1. Do one of the following:
• Select View>Report.
• Press F6.
• Right-click anywhere on the graph and select View Report.
• Double-click anywhere on the graph.
62

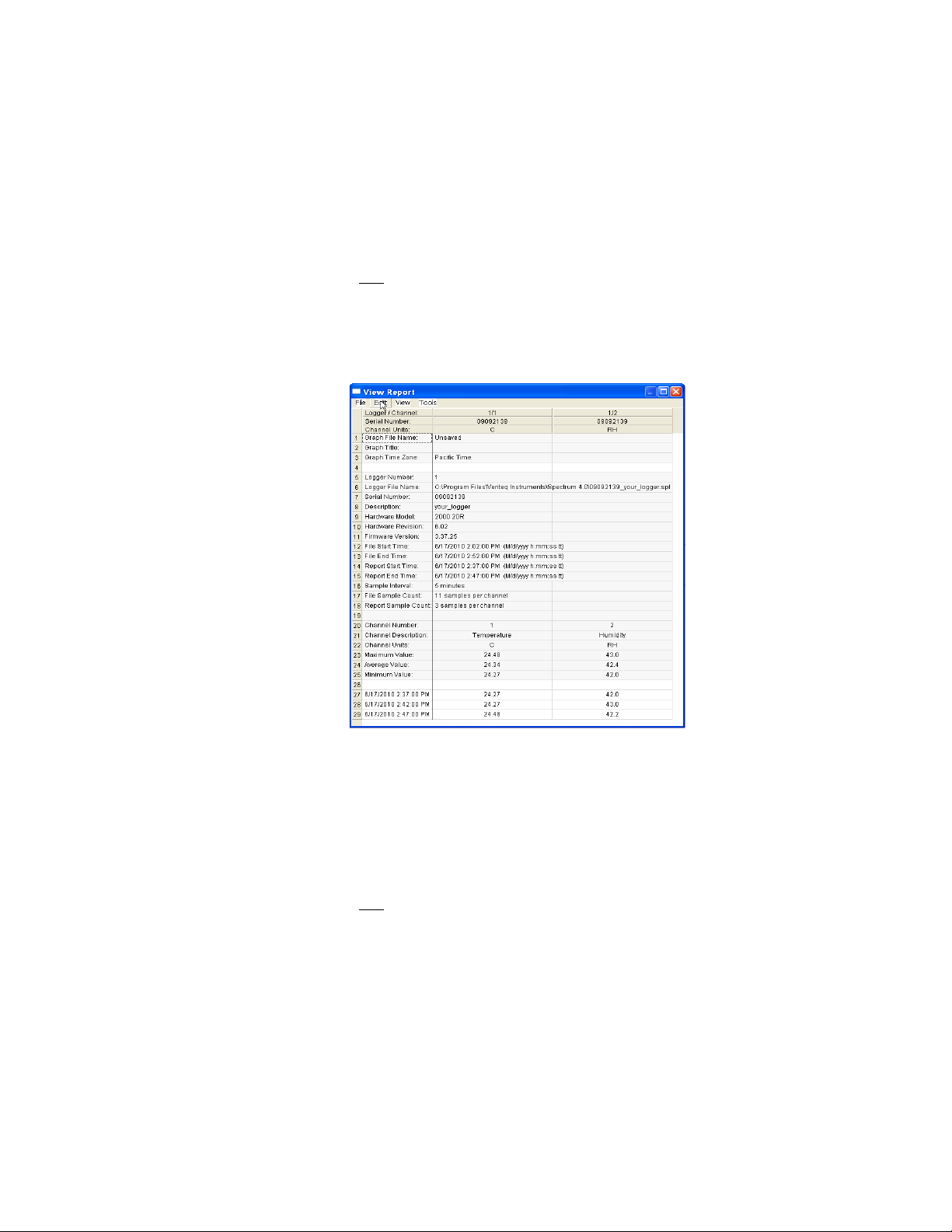

2. The Report window summarizes the information in the Graph file, as well
as related information on the data loggers whose files are inserted and the
loggers’ setup parameters.
3. To print the report, from the Report window, select File>Print or press
C
TRL+P.
To change the font size in printed reports:
1. Do one of the following:
• From Spectrum, select Tools>Options, then choose the Report tab.
• From the Report window , select Tools>Options, then choose the Report
tab.
• From the Report window, right-click and choose Options, then choose
the Report tab.
Veriteq Spectrum 4.0 User’s Guide

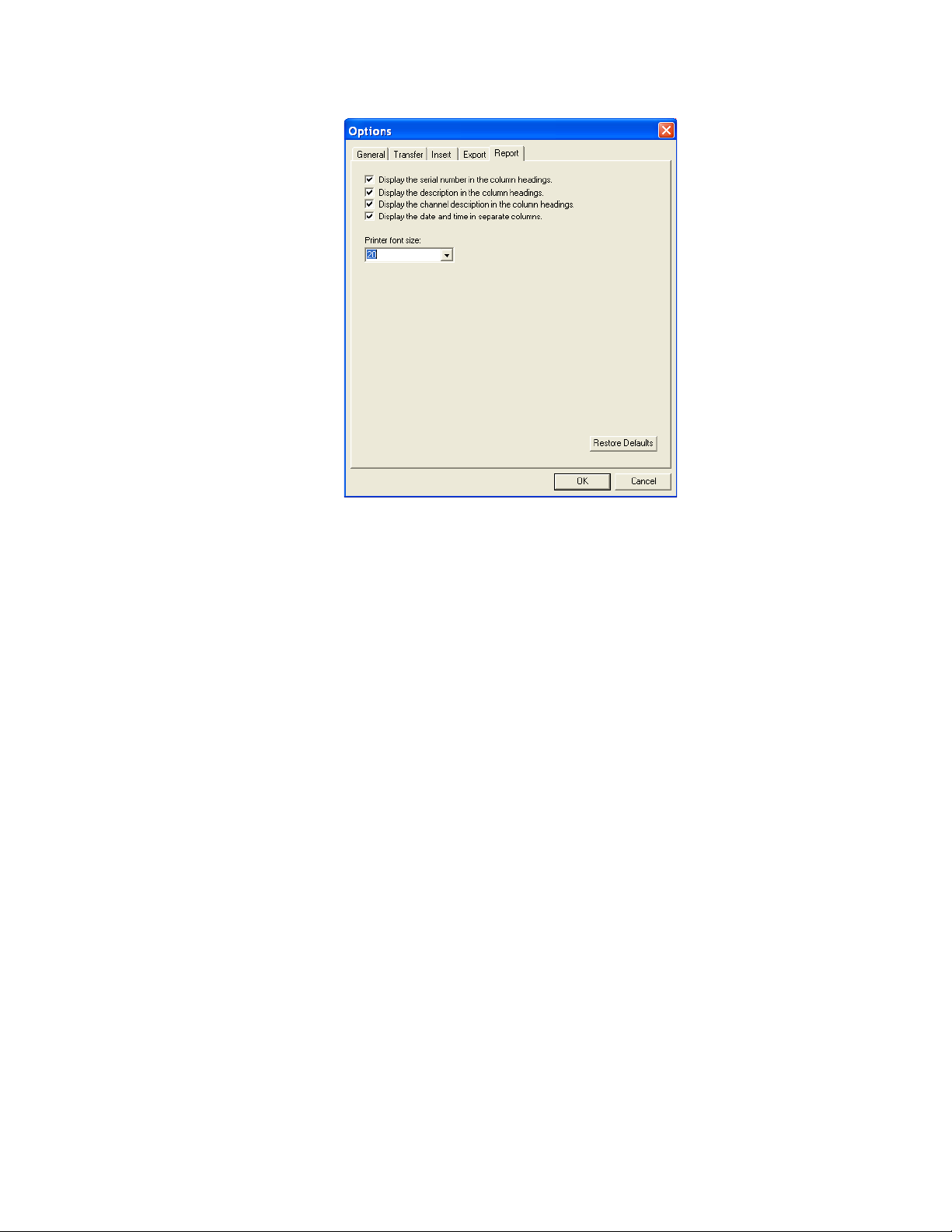

2. From the Report tab, on the Printer font size box, select an option from the
drop-down list, or type the desired font size.
3. Click OK.
Copying and Pasting Report Data
You can copy report data from all Spectrum Reports for use in other applications, such as Microsoft Word or Microsoft Excel.
To copy report data:
1. From Spectrum, choose the report to view from the View menu.
2. From the report window, choose Edit>Select All.
3. From View Report, with all contents highlighted, choose Edit>Copy.
4. Go to the application you want to paste the report data into. In this applica-
tion, choose Edit>Paste.
63
Viewing Reports and Statistics
Saving Reports
To save report data:
1. From the report window, choose File>Save As.
2. Navigate to the location where you want to save the file.
3. In the File name box, type the desired file name.
4. In the Save as type box, choose one of the following file types for your file:
• CSV (comma-separated values)(.csv)
• Text (Comma delimited)(*.txt)
• Plain text (*.txt).
You can readily import these file formats into most popular spreadsheet
and database programs for further analysis and manipulation.
Printing Reports
5. Click Save.
To print reports, from the report window, do the following:
1. Select File>Print.
2. Configure the printer settings.
3. Click Print.
64
7
Troubleshooting
Serial Port Problems.................................66
Frequently Asked Questions.....................67
65
Troubleshooting
Serial Port Problems
If you are experiencing difficulties communicating with Veriteq data loggers,
here are some tips and things to try before calling Veriteq Instruments.
Software Error Messages you May Encounter…
Unable to allocate COM port because it is busy
This error message means that Spectrum was unable to allocate the COM port
because it was already allocated by a different program. You may have to wait
until the COM port becomes available.
Unable to allocate COM port because it is unavailable
This error message means that Spectrum was unable to allocate the COM port
because it did not exist in the operating system. Check your available COM
ports.
Unable to receive sync byte from COM port
This error message means that Spectrum sent a request message to the data logger, but did not receive any response from the data logger. This could mean the
data logger is unplugged or the cable is not connected properly.
Unable to receive all of the bytes from COM port
This error message means that Spectrum sent a request message to the data logger, but received an incomplete response message from the data logger. This
may mean there is a problem with the COM port on this PC, a problem with the
cable, or a problem with the logger itself. Check these possibilities.
Unable to communicate with logger on COM port
This error message covers miscellaneous error conditions, other than those listed previously. This message could mean that there is a problem with the COM
port on this PC, a problem with the cable, or a problem with the logger.
Things to Try:
1. Does the logger and interface cable work on a different PC? If so, the problem likely resides in the serial port configurations on the PC.
2. Are there other devices (such as a mouse) that use the serial port in question
without problems? If so, that port is likely not the problem.
3. Can you transfer data using a different interface cable? If so, the cable may
be damaged.
4. Can you transfer data using a different logger (with the same interface cable)? If so, the data logger may be damaged.
66
Invalid hardware model
This error message means that Spectrum did not recognize the hardware model
of the data logger, and as a result, did not know how to interpret the information
stored in the data logger. Ensure you are using a data logger supported by Spectrum.
Unable to create logger file
This error message is generated when Spectrum attempts to create a logger file
on a disk and an error occurs. Some possible reasons include:
• The disk is full.
• The user does not have write access to the disk. Ensure the user has write
permission to the folder where the logger file is being saved.
• The file is already open by a different program. Close it.
• The file name is invalid. Try using a more simple .spl file name.
Frequently Asked Questions
I have recently upgraded Veriteq Spectrum software to the latest version. Will
this new software work with my existing loggers and files?
Yes. Each version of Veriteq Spectrum software is designed with backward
compatibility. This means that it works with all previous versions of loggers or
files created from those loggers.
Veriteq Spectrum 4.0 User’s Guide
I have recently purchased a new logger. Will it work with my older version of
Spectrum software?
Not always. In our pursuit of continual product improvement, we periodically
upgrade logger hardware or release new logger models. Unfortunately, these
changes may not be recognized by an older version of Veriteq Spectrum software and can result in difficulties. For that reason, each logger that you purchase includes a note indicating which software version it must be used with.
The safest choice is to always upgrade to the latest version of software. Contact
Veriteq Instruments if you require a software update.
Does the software account for daylight savings time changes?
Yes. Daylight savings time changes are automatically accounted for in all graph
and tabular displays.
How many logger files can I overlay onto the same graph?
You can overlay many channels of data onto the same graph; in testing, we inserted more than 100 channels successfully.
Do all graphs have to be created from one data logger?
No. You can create graphs using files from different data loggers and different
data logger models.
67
Troubleshooting
68
8
Glossary
A–B.....................................................................70
C–E.....................................................................70
F–K .....................................................................70
L–Q.....................................................................70
R–T.....................................................................71
U–Z.....................................................................72
69
Glossary
A– B
Ambient temperature The average or mean temperature of the surrounding air that comes in con-
tact with the equipment or instrument .
Axis A line that borders one side of the graph area, p ro viding a fr am e of refe re nce
for measurement or comparison. In Spectrum software, measurement values
are plotted on the vertical Y-axis while date and time values are plotted on the
horizontal X-axis.
C–E
Calibrate To compare and correlate readings against a standard measurement.
Calibration certificate Documented evidence that a product has been calibrated against a standard
Channel The path through which an instrument receives the input signa ls it measures.
Dewpoint Dewpoint is defined as the temperature at which the amount of moisture
measurement reference and that it falls within the specified requirements.
present in the air is the MAXIMUM amount the air can hold (at a constant
pressure and water vapor content). This means that when the temperature
falls to the dew point, the relative humidity is 100% and the air is considered
saturated.
Dewpoint does not vary with temperature, as does relative humidity (RH).
Rather, dewpoint is a DIRECT measure of the actual moisture content in the
air and thus is preferred as the unit of measurement in many scientific and
industrial applications—particularly in tightly controlled environments where
precise indications of water content in the air are required.
The dewpoint is never greater than the air temperature. Once the dewpoint is
reached and the air temperature continues to drop, water vapor is forced to
leave the air through condensation. This condensation may take the form of
water droplets, dew, or may remain suspended in the air as clouds or fog.
To better understand how dewpoint and relative humidity are related to each
other, try inserting a logger file with relative humidity (RH) channel values into
a graph twice—once, displaying RH using dewpoint and once displaying RH
using relative humidity.
In Spectrum, dewpoint readings below 0 degrees C are recorded as frostpoint.
F–K
Graph file A file that is created to display the data from one or more Logger files. Graph
files retain formatting information such as graph title, zoom levels, Y-axis scaling, and Logger file data; and are identified by their .spg extension (for example, LAB_1.spg).
L–Q
Local time A value equal to the current time used at a particular location. A relative indi-
cator of time meaningful only if Time Zone Information is also known. Local
Time contrasts with UTC Time, an absolute time reference. The software
records Local Time and UTC Time in each Logger file.
70
Veriteq Spectrum 4.0 User’s Guide
Logger file A file that is created after transferring a logger’s data to the PC. The file con-
tains the collected readings (from all active channels) for the transferred logger, including the logger’s description, model number, serial number,
firmware version number, file description, Local time, and UTC (Universal
Time Coordinated) time. Logger files are identified by their .spl extension (for
example, PRIMARY_GAS_FLOW.spl). Logger files cannot be viewed
directly—you have to insert the Logger file into a Graph file before the data is
displayed as a graph.
NIST An acronym for the National Institute of Standards and Technology.
R–T
Range Normal operating limits, specified by the lowest calibration point to the high-
est calibration point.
Relative humidity Relative humidity is the measure of the amount of water vapor in the air com-
pared to how much it can possibly hold at that temperat ur e. A relativ e humid ity of 50% means that the air contains only one-half as much water as it could
possibly hold. The capacity of air to hold water is heavily dependent on the
temperature of the air. The colder the air, the less wat er it can ho ld. Air at
50°F can hold only one-quarter the amount of water as air at 95°F.
Sample A measurement reading that is stored to data logger’s memory.
Sample smoothing
(deadband)
Sample interval The sample interval is the rate at which the logger takes and records readin gs
Scale The range of values a graph displays.
Serial port The communications port to which you can attach devices such as a modem ,
Stability The ability of a sensor or measurement instrument to maintain its perfor-
Thermistor A temperature-sensing element (a thermally-sensitive resistor) composed of
A setting in Spectrum (Tools>Options>Insert tab - Sample smoothing) that
controls how the samples in a logger file are interpreted when they are
inserted into a graph. Sample smoothing (or sample deadband) is the minimum change in the input signal required to cause a change in the displayed
channel values. Sample smoothing is used to dampen the effects of noise,
and is defined in terms of raw analog-to-digital converter counts.
to memory. The sample interval applies to all enabled channels on the logge r.
You may want to occasionally change the sample interval on the logger
because:
• Faster sample rates may be required by the application.
• You need to record readings over a longer duration.
• You want to minimize the collection of unnecessary data.
mouse, or serial printer to the computer. The serial communication ports on
the computer are commonly referred to as COM1, COM2, COM3 , and so on .
Serial ports exchange data sequentially, one unit at time.
mance characteristics over a specified period of time.
sintered semiconductor material that exhibits a large change in resistance in
proportion to a small change in temperature. The relationship between temperature and resistance is approximated for most thermistors by the Steinhart-Hart equation.
Traceable Capable of being traced back to a recognized measurement standard or ref-
erence.
71
Glossary
Transfer The term used when the software makes a cop y of the data contained in a
connected data logger. The transfer process creates a file on the PC but does
not affect or delete the data on the logger. Other terms commonly used to
describe the transfer process are download, upload, backup, or copy.
U–Z
USB An acronym for Universal Serial Bus, a standard for connecting external
devices such as a mouse, keyboard, scanner, printer. USB offers many benefits over serial and parallel port connections, including thinner and cheaper
cables, greater expandability (with the addition of a USB hub, a single USB
port can handle over 100 peripheral devices) and greater speed.
UTC An acronym for Universal Time Coordinated, UTC is a standard time com-
mon to every place in the world. Also known as Greenwich Mean Time (GMT)
and World Time. UTC is expressed using a 24-hour clock but can be converted into a 12-hour clock (AM and PM). An absolute time reference that
does not rely on Time Zone information, UTC contrasts with Local time. UTC
and Local Time information is contained in Logger files and is used to form
the time base on logger graphs and data.
Zooming Enlarging a portion of an on-screen graph.
72
Index
Veriteq Spectrum 4.0 User’s Guide
A
ASCII file
creating 57
audit trail files
reports 64
axes 70
unit precision 53
B
batch setup
reports 64
C
cables 16
calibration 16, 70
celsius 53
CFR
21 CFR Part 11 70
channels 27, 28, 70
disabling on loggers 27
samples per channel 20
clear loggers 23
clear mode 22
clipboard, copying graphs or report data to 8
COM ports 16, 17, 66
troubleshooting 66
copying report data 63
csv files 56
cursors
positioning 46
D
data
exporting 56
transferring to PCs 16, 37
data logger. See loggers.
dates, setting 41
daylight savings time
loggers awareness of 67
DC Current 29
DC current channels 29
deadband 71
decimal place precision 53
descriptions 19, 21
dewpoint 45, 70
documentation 9
F
fahrenheit 53
files 57, 64
Graph 70
inserting into graphs 44
logger 16, 36
spg 70
spl 36, 71
firmware revision 19
fonts
in graphs 47
in printed reports 63
formatting time scales 50
G
graphs 70
copying into clipboard 8, 56
creating 44
displaying 44
exporting data 56
files 70
fonts 47
inserting multiple files into 46
line number display 55
opening 44
positioning cursors 46
print preview 59
printing 58, 59
printing with line numbers 58
saving 58
scrolling 46
titles 47
zooming 48, 50, 72
H
hardware model 19
hardware revision 19
help (F1) 9
historical data reports 62–??
saving 64
humidity sensor 34
I
inserting logger files 44
installation 12–13
intervals, sample 26
L
line numbers 55, 58
log time 20, 26
logger files
inserting into graphs 16
loggers
clear mode 22
clearing 23
clearing samples 32
configuration 18
connecting to PC 16
connecting to PCs 16
73
Index
daylight savings 67
description 19, 21
disabling channels 27
logger file filenames 36
models 5, 19
mounting 33
mounting tips 33
operation when full 25
recording data 26
recording time 70
sample intervals 26
sample timing 22
sampling 20
serial numbers 19
setup 18
status 20
transferring data 16, 37
ventilation 33
wrapping data 26
M
minimum requirements 12
models, loggers 5
modes
clear mode 22
start 23, 24
stop 20, 23
stop mode 25
mounting data loggers 33
N
numbers, on graph lines 55
O
offset, temperature 31
P
ports 16, 18
serial 71
troubleshooting 66
ports, COMM, setting 17
position cursor 46
printing
graphs 58, 59
print preview 59
reports 64
probes 33
R
relative humidity 71
relative humidity sensor 34
reports
copying data to the clipboard 8, 63
font size in printed 63
historical data 62–??
printing 64
saving 64
requirements 12
S
sample intervals 20, 26, 27, 71
sample smoothing 71
sample timing 27
configuration 22
samples 20
clearing from loggers 32
starting taking 24
stopping taking 26
sampling 20
saving graphs 58
saving reports 64
scale
y-axis 52, 53
scale, time
formatting to zoom in 50
scrolling, graphs 46
serial numbers 19
serial ports 16, 71
setting COM ports 17
spl files 16, 36, 71
start mode 23, 24
start time 20
status
logger 20
stop mode 20, 23, 25
stop time 20, 26
system requirements 12
T
tabular listing 62
temperature offset 31
temperature probe 33
temperatures
changing units 53
thermistor 71
thermocouples 31
time 41, 70, 72
log time 20
sample 22, 27
setting system time 41
stop time 20
UTC 72
zone 51
titles, graphs 47
toolbar 8
transducers 28
configuring VL-4000 loggers to work with 29
transferring logger data to PCs 36, 72
troubleshooting 66
txt files 56
V
validation 16
74
Veriteq Spectrum 2
Veriteq vLog 2
VL-1700 loggers 31
VL-4000 loggers 28, 29
vLog
documentation 9
features overview 2
getting started with 16
installation 12–13
interface overview 5
operation overview 3
VL-Series Validatable Data Loggers 5
voltage channels 29
W
warmup time, configuring 30
wrapping data 26
X
x-axis 6, 70
XPS excitation control switch 30
Y
y-axis 52, 53, 70
Veriteq Spectrum 4.0 User’s Guide
Z
zooming in and out 48, 51, 72
75
VERITEQ, A VAISALA COMPANY
1 3 7 7 5 C o m m e r c e P a r k w a y , R i c h m o n d , B C , C a n a d a , V 6 V 2 V 4
T e l 1 8 0 0 6 8 3 8 3 7 4 ( N . A m e r i c a o n l y ) 1 6 0 4 2 7 3 6 8 5 0
c u s t o m e r s u p p o r t @ v e r i t e q . c o m
w w w . v e r i t e q . c o m
w w w . v a i s a l a . c o m
8 8 0 - 0 1 0 0 - 0 0
Loading...
