Appliance instructions
Do not place heat source (e.g. grilles, fryers, etc.) near the oven. The heating system and the fan automatically switch o when opening the oven cavity door (only for the "Domenica" model). The built-in fan disengage mechanism is triggered. The fan continues to spin briey. If the appliance was left running for more than 15 minutes without selecting an operating mode, stand-by is automatically engaged for energy savings. To exit stand-by mode simply touch the START/STOP button for at least 3 seconds.
If the oven undergoes lengthy stand-by (e.g. during the night), leave the oven cavity door slightly ajar.
If the oven is inactive for lengthy periods (e.g. non-business days), take the appliance power o line.
The oven must not be disposed of as domestic waste or placed in the used appliance bins of municipal waste collection centres when the oven has reached its end of life. We are glad to help you properly dispose of the appliance.
Guarantee
Installation of the UNOX product must be performed by an Authorized UNOX Assistance Ser­vice. The installation date and appliance model must be documented by the end purchaser, by means of written conrmation or an installation invoice issued by the dealer or the Author­ised UNOX Customer Assistance Service, otherwise this guarantee will not be valid;
The UNOX guarantee covers all malfunctions objectively linked to production defects. The guarantee excludes damage due to transport, poor product storage or maintenance or incor­rect product use. Also excluded is damage due to installation not conform to the technical specications provided by Unox and linked to the environment of use, such as, for example, unclean and aggressive water supply, low quality gas supply, or electrical supply failing to respect nominal voltage and power ratings. The guarantee also excludes any damage due to power surges or tampering by unauthorized or incompetent persons. The guarantee is also invalidated for damage to the appliance by lime scale deposits. In addition, the guarantee does not cover consumables, such as: seals, light bulbs, glass panels, decorative parts and parts consumed during use. Guarantee rights will also be invalidated in the event of damage arising as a result of incor­rect installation, or installation which has not been carried out by an Authorised Customer Assistance Service.
English
8
LineMicro
Manual Control
Setting the cooking duration

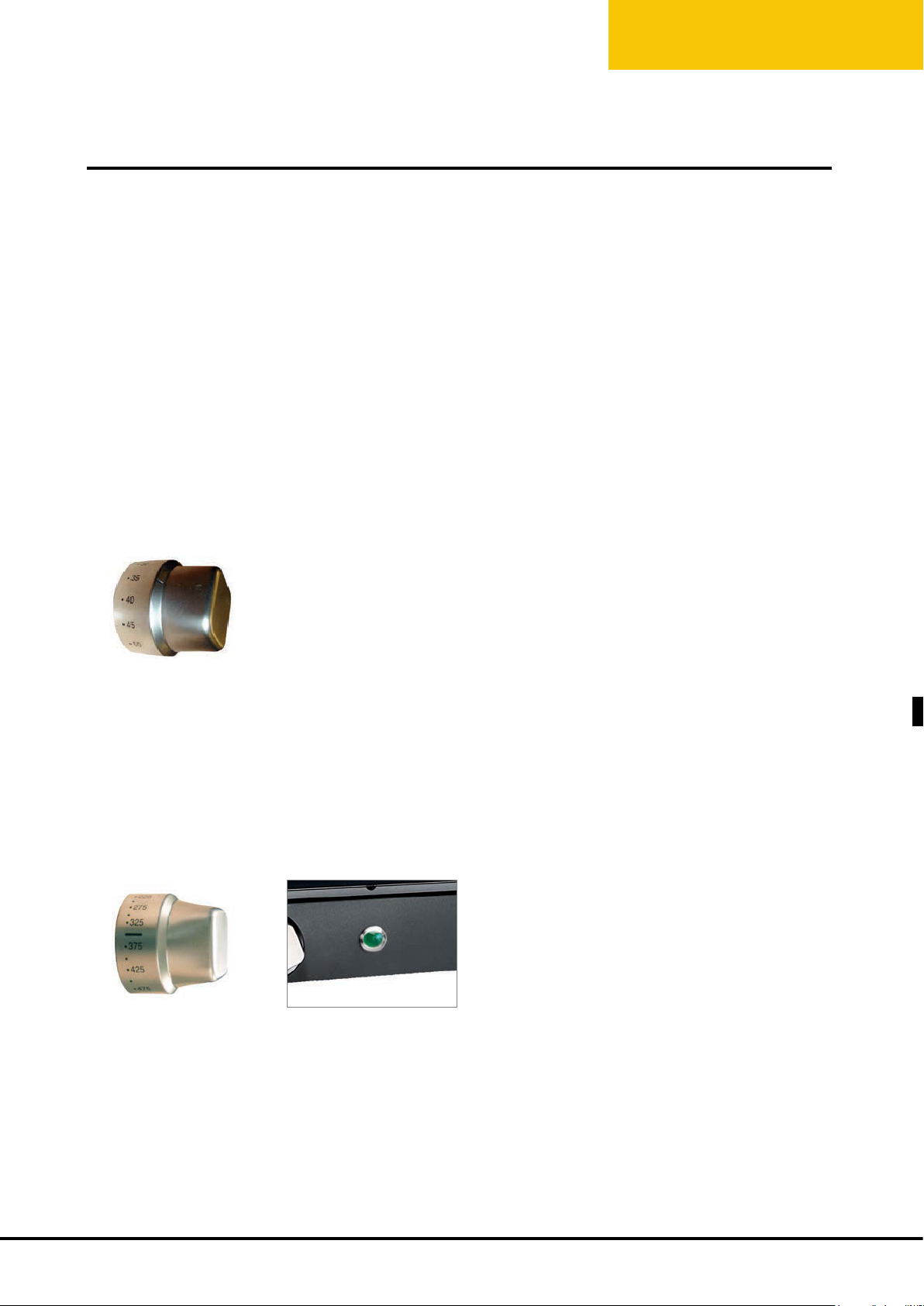

The cooking duration can be set by using the dial (dial on the left): the time can be set any-
where from 0 to 60 minutes.
Turning the dial clockwise sets cooking duration; while turning it counter-clockwise (man-
ual position) sets the oven to continuous mode.
Turning the dial starts the oven and activates fan rotation and any interior lights. The dial stops on the zero and the oven switches o when the cooking cycle is over.
The oven is o only when the timer dial rests precisely on the zero "0" mark. Wait 5 minutes
before leaving the appliance unattended to ensure proper functioning.
Setting the cooking temperature
The temperature inside the oven cavity can be set by using the temperature dial (dial to
the right):
the temperature can be set anywhere between 0 to 260 °C (0 - 500 °F). when on, the green temperature indicator light shows that the resistor is activated, which
switches o as soon as target temperature has been reached.
English
9
LineMicro
Certification
Manufacturer: UNOX S.p.A. Address: Via Majorana, 22 - 35010 Cadoneghe, Padua, Italy
Declares, under its own responsibility, that the product
LineMicro™
complies with Directive 2006/42/EC in compliance with the following standards:
- EN60335-1:2012 + A11: 2014
- EN 60335-2-42: 2003 + A1: 2008 + A11:2012
- EN62233: 2008
complies with EM Compatibility Directive 2004/108/EC and is built in compliance with the following standards:
- EN 55014-1: 2006 + A1: 2009 + A2: 2011
- EN 55014-2: 1997 + A1: 2001 + A2: 2008
- EN 61000-3-2: 2006 + A1: 2009 + A2: 2009
- EN 61000-3-3: 2008
- EN 61000-3-11: 2000
- EN 61000-3-12: 2011
- EN 61000-6-2: 2005
- EN 61000-6-3: 2007
XAF series ovens are compliant the following standards: UL197 CSA C22.2 No. 109 NSF/ANSI 4-2009
15
