Item
Name
Quantity
Unit
1
Switch
1
Set
2
Power cord
1 Piece
3
Plastic-foot
4
Piece
4
Quick Installation Guide
1
Piece
5
Mounting Kits
2
Piece
6
TM6*12mm Screw
4
Stars
7 KM4*8mm Screw
8
Stars
POE PORTS
POE PORTS
POE PORTS
COMBO
COMBO
The Switch you purchased contains following items：
LED
Panel
Status
Meaning
Power LED
PWR
Green
Power connected
Off
Power disconnected or power failure
Status LED
Link/Act
Green
Link established
Flashing
Sending/receiving data
Off
No link
POE LED
POE Staus
Orange
Supplying power
Off
Not supplying power
Items
16/24-port PoE Ethernet Switch
Dimensions
(L x W x H)
440*280*44mm
Fixed Port
● 16/24×10/100Base-TX auto-sensing Ethernet PoE ports
● 2×Gigabit combo uplink port (SFP (default)and RJ45)
Cable type
● 10Base-T: Cat 3/4/5 UTP, maximum transmission distance: 100m.
● 100Base-TX: Cat 5/6 UTP, maximum transmission distance: 100m.
● 1000Base-T: Cat 5/6 UTP, maximum transmission distance: 100m.
● 1000Base-SX: 62.5μm/50μm multimode fiber, maximum
transmission distance: 550m.
● 1000Base-LX: 62.5μm/50μm multimode fiber, maximum
transmission distance: 550m. 10μm single-mode fiber, maximum
Input voltage
100V/AC~240V/AC
PoE Power
Port: Max 30 W.
Total: Max 250 W/400W
Operating temperature
0℃～40℃
5%～95%, non-condensing
Heat dissipation
Fan cooling

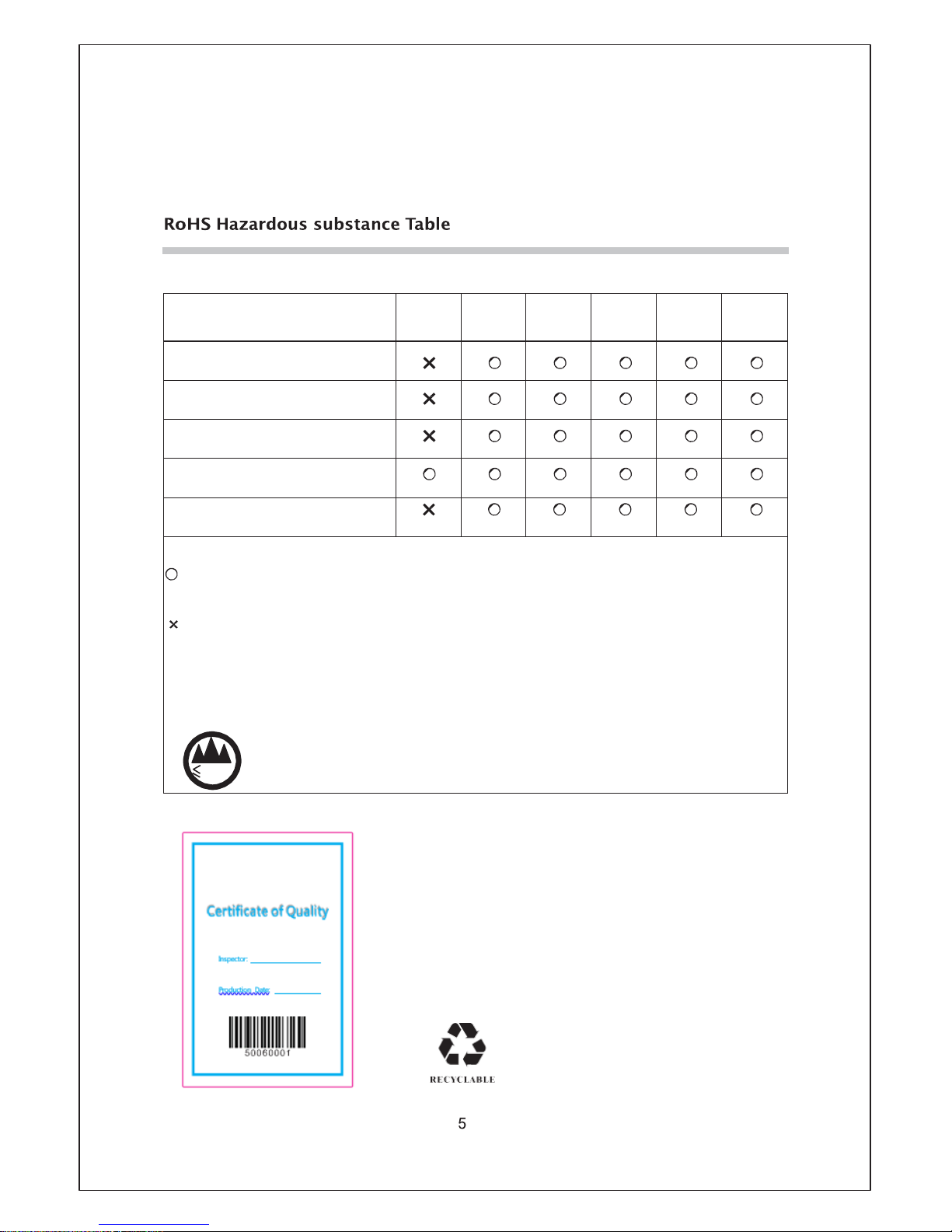

P
arts
Pb
Hg
Cd
Cr6
+
PBB PBDE
Mechanical part
Board/circuit module
Signal cable
Cable connector
Power adapter
Notes:
: Indicates that this hazardous substance contained in all homogeneous materials of
this part is below the limit requirement in SJ/T11363-2006.
: Indicates that this hazardous substance contained in at least one of the
homogeneous materials of this part is above the limit requirement in SJ/T11363-
2006.However, the component is still in accordance with EU directive 2011/65/EU
and the specification of exclusion clauses
The environmental protection use period
refers to
using
under normal conditions.
5000m
This product is only suitable for safe use in the area below 5000m altitude.
● This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and ( 2)
this device must accept any interference received, including interference that may
cause undesired operation.
