Universal Remote Control (URS) RFX150 User Manual

MRF-300/RFX150

INSTALLATION

MANUAL

Multi-Zone RF Base Station for the MX-3000, the Aurora ,

the Aeros , the Omega and the Osiris remote controls.

TM TM TM

TM

MRF-300 Installation Manual ©2005 Universal Remote Control, Inc.

The information in this manual is copyright protected. No part of this manual may be copied
or reproduced in any form without prior written consent from Universal Remote Control, Inc.

UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL,TECHNI­CAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.

The information in this manual may be subject to change without prior notice.

Complete Control,Aurora,Aeros, Omega and Osiris are registered trademarks of Universal
Remote Control, Inc.

All other brand or product names are trademarks or registered trademarks of their respective
companies or organizations.

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: [phone] Fax: [phone]

TABLE OF CONTENTS

Introduction 1

Features and Benefits 2

Parts Guide 2

Installation 3

Front Blaster Overload 7

Disabling the Front Blaster - Step by Step 7

Controlling An Array of Identical Components or Zones 8

Identical Components/Zones - Step by Step 8

Programming For Multiple Equipment Locations 11

Frequently Asked Questions 12

Warranty 12

Specifications 12

MRF-300 BASE STATION

Introduction

The MRF-300 base station is an “addressable” base station. It is only compati­ble with Universal Remote Control’s line of Custom Programmed Remotes
with RF Addressing such as the MX-3000, the MX-950 Aurora, the MX-850 Aeros,

the MX-800, MX-650 Omega and the MX-350 Osiris.

ability to control as many as 90 identical components throughout a house.

1. URC “Addressable” remote
controls send radio waves in
every direction, so you don’t have
to point the remote anymore!

2.The RFX-150 RF Sensor can be freely
positioned out of way of the interference
the A/V components create, connecting to
the MRF-300 via a 10’ cable (which can be
extended).

RF Addressing gives you the

3.The MRF-300’s built-in Front Blaster sends commands to
components in the same cabinet space as the MRF-300.

4. Self-adhesive “Flashers” affix to the
Infrared sensors on the front panels of your
components. The Flashers relay commands
to components out of sight of the MRF­300’s Front Blaster. The flashers plug in to
the MRF-300’s rear flasher line outputs via
their 10 foot cables. Uniquely, the MRF-300
can also connect to rear panel IR Inputs via
its adjustable IR Line Outputs.

Page 1

MRF-300 BASE STATION

Features and Benefits

Interference Rejection and Adjustable RF Range via RFX-150

The MRF-300 receives RF (radio frequency) signals via the RFX-150 RF Sensor.
The RFX-150 displays RF interference via a bright RED LED, which flickers when
interference is present. Simply relocate the RFX-150 out of the interference or
reduce the range to eliminate interference via the RF Range adjust screw.

Expand Range by Adding RFX-150 RF Sensors in Remote Areas

The MRF-300 can power up to three RFX-150 RF Sensors connected in parallel
to the RF Input connector.

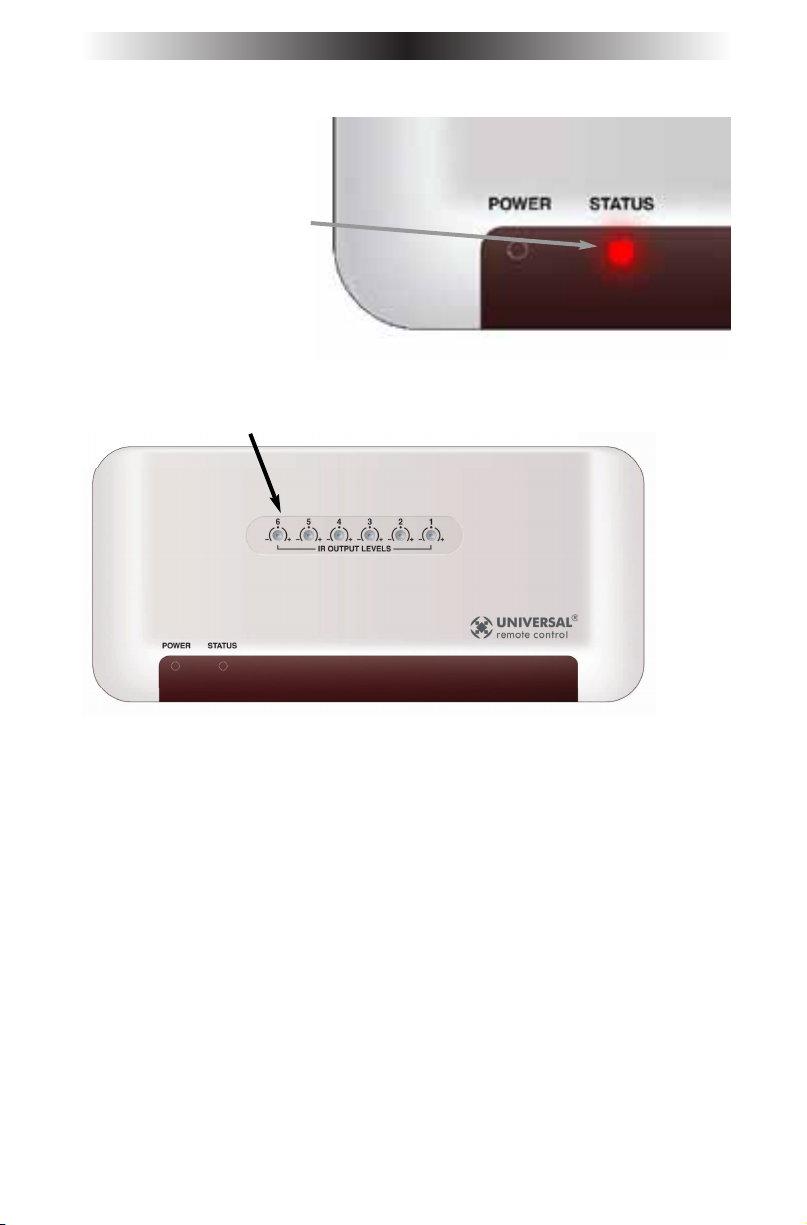

Variable IR Output Matches Rear Panel IR Inputs

The MRF-300 is equipped with adjustable IR line outputs, each output can be indi­vidually matched to rear panel IR inputs on any component that is designed to be
operated by a standard IR repeater.The outputs utilize a 3.5mm jack.

Up To Fifteen Equipment Locations With Identical Components

Each URC MX series “addressable” remote control can be programmed to
specifically control components in a particular room, by installing a base station at
each location. In operation it’s simple: when you select a device located in the
Den, the MX series remote only sends commands to the Den. When you select
a device located in the Family Room, the MX-3000 only sends commands to it.

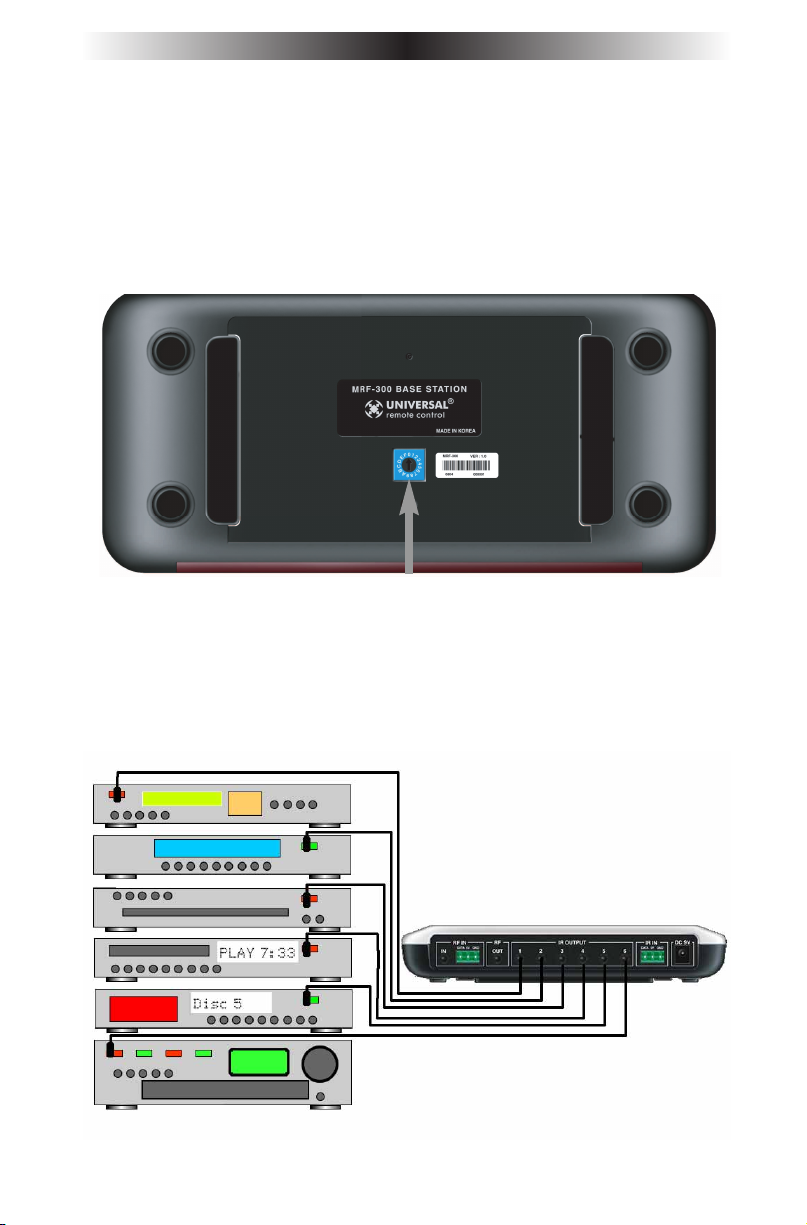

A Single MRF-300 Can Control an Array of Identical Components
or Identical Zones of a Multi Zone Preamp/Matrix Switcher

Each MRF-300 has six “addressable” IR Line Outputs. For example, you can con­trol up to six identical TV’s with one MRF-300 or route volume commands for a
specific zone to a particular zone IR input on a multi-zone preamp. If you have
more than six identical components or zones, up to 15 additional MRF-300’s can
be installed to control them (thus allowing up to 90 identical components or
zones in one house).

IR Input for Keypads or IR Repeater Systems

The MRF-300’s rear panel IR input will relay IR Data from IR repeaters or Multi­Zone Keypads to all IR line outputs (does not support IR routing).The 5V, 100
milliamp output will directly power some brands and models of keypad directly.

Parts Guide

The MRF-300 RF Base Station includes:

1 - RFX-150 RF Sensor with integrated antenna
1 - MRF-300 Base Station
1 - Mounting Plate for wall mounting the MRF-300
4 - Screws for wall mounting the mounting plate
1 - 9V-300mA Power Supply
6 - Visible Flashers with 10 foot plug in cables.
1 - 10’ cable with Tinned leads to 3.5 mono mini plug (connects RFX to MRF)
1 - 10’ cable with 3.5 to 3.5 (connects MRF to MRF for expansion)
1 - RF Adjustment Tool (Screwdriver for RFX-150 adjustment)

Page 2
