MASTERCONTROL™ RF20 Owner’s Manual

The information in this manual is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Universal Remote Control, Inc. UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS / OMISSIONS MADE IN THIS MANUAL. The information in this manual may be subject to change without prior notice. MASTERCONTROL, PowerBlaster, MacroPower, and SimpleSound are trademarks of Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations.

LOCATION OF CONTROLS

Keypad Layout 3

GETTING STARTED

Overview 4 Battery Installation 4 Activating Component Commands 5 Light Button 6

BASIC SETUP

Overview 7 Pre-Programmed Code Method 7 Learning Method 15 Transmitting (Busy Signal) Icon. 19 Child Lock Feature 19

CUSTOMIZING YOUR RF20 WITH SPECIAL ADVANCED FEATURES

Customizing the LCD Screen 20 Favorite Channel Setup 23 MacroPower™ Setup 26 SimpleSound™ Setup &

Other 'Punch Throughs' 30 Setting Backlight Options 32 Hiding & Adding Pages 33 Recalling Pre-programmed

Setup Code Numbers 35 Cloning other RF20s 36

ERASING COMMANDS

Overview 37 Erasing Learned Button,Macro or Favorite

Channel Commands 37 Re-setting RF20 to Original

Factory Default Settings 39

THE OPTIONAL POWERBLASTER

PowerBlaster

PRE-PROGRAMMED CODE TABLES

TV 45 CABLE 48 DVD 50 VCR 53 AUDIO 56

SAT 59 CD 60 DVR 62 AUX 63

Pre-Programmed Code Tables 44

OTHER INFO

FAQ 65 Warranty 66 Specifications 66

Information To The User 67 Warning 67 NOTE 68

PREPROGRAMMED CODE NOTES

Pre Programmed Code Notes 43

Congratulations on purchasing Universal Remote Control’s MASTERCONTROL™ RF20 Pre-programmed and Learning Remote Control! You now have the power to control your entire home entertainment system with one easy-to-use remote. The RF20 can be used with thousands of audio/video Components because of the extensive code library pre-programmed into the remote. And, the RF20’s impressive lineup of special advanced features can automate and customize the operation of your system in many ways. So... get ready to sit back, relax and simplify your home entertainment

experience. The Quick Setup DVD Program Guide supplied with the RF20 will assist you in programming your remote by guiding you through an easy step-by-step process. This Owner’s Manual is designed as a companion reference source to the DVD Guide, should you need to refer back to a particular section, or review certain instruction detail not covered in the DVD. However, if you are unable to watch the DVD Guide for some reason, everything you need to know about programming the RF20 is contained in this Manual.

Congratulations!

The RF20 Remote

3 4

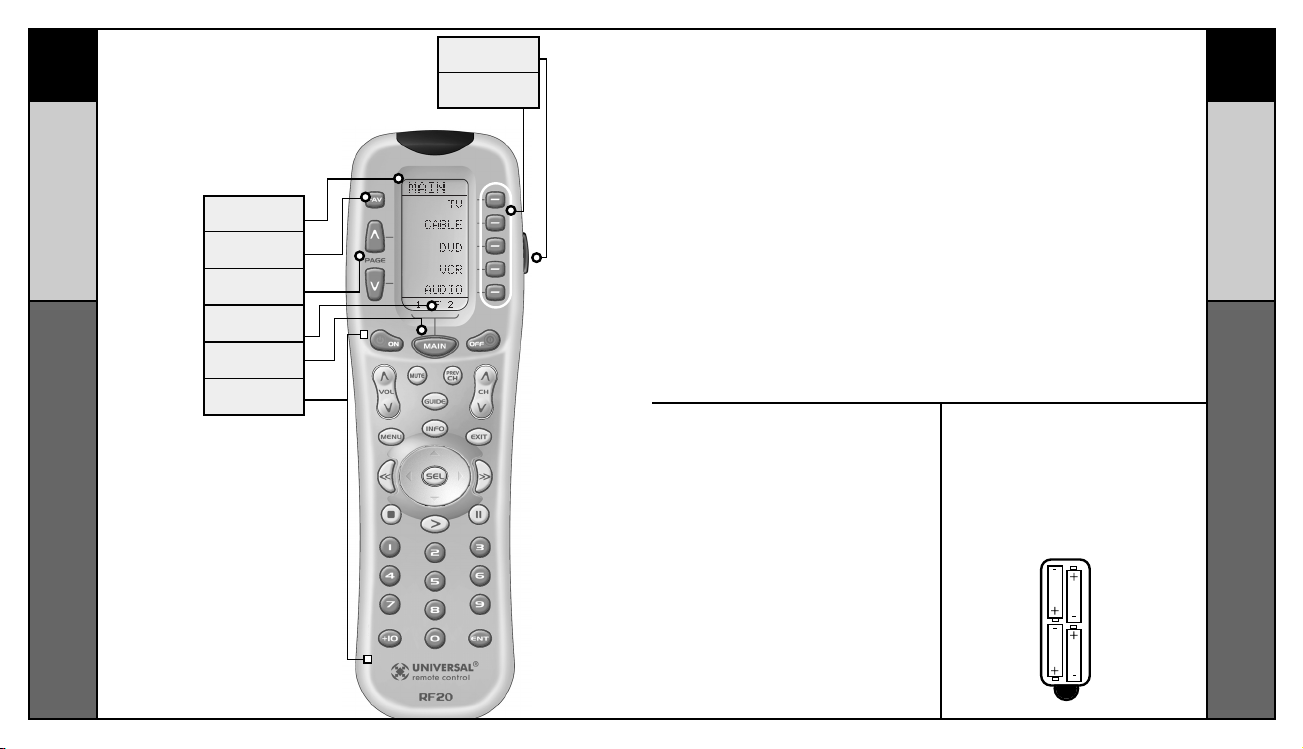

CONTROL LOCATIONS

Keypad Layout

GETTING STARTED

Getting Started-Overview

This is what MASTERCONTROL™ RF20 is all about!

The RF20 is designed to operate up to 10 different Audio/Video Components and is pre-programmed to operate virtually all brands of TV, VCR, DVD and CD Players, Cable Set Top Boxes, Satellite Receivers, TiVo and other DVRs, Audio Components, Tape Decks, Multimedia PCs, XM Radio, Ipod, X-Box, Lighting Controls and other custom installation products. It also offers an impressive lineup of special features designed to provide you with many time-saving conveniences and enhance your overall entertainment experience. However, we strongly recommend that you fully complete all of the Basic Setup steps before proceeding to customize your RF20 with any of the special advanced features.

Battery Installation

The very first step is to insert the four AAA batteries that are included in the package into the battery compartment located in the back of the remote. Just press the tab and lift off the cover. Please be sure to insert the batteries correctly as you see in the diagram. Remember, there is a positive and negative end to each battery and you can tell by the + (positive) and

- (negative) symbols. Once the batteries are correctly installed, replace the cover. Now you’re ready to start!

Overview & Battery Installation

TITLE

FAVORITE CHANNEL

PAGE

BUTTONS

changes the page of

buttons displayed

PAGE

NUMBERS

MAIN

BUTTON

takes you to the main menu

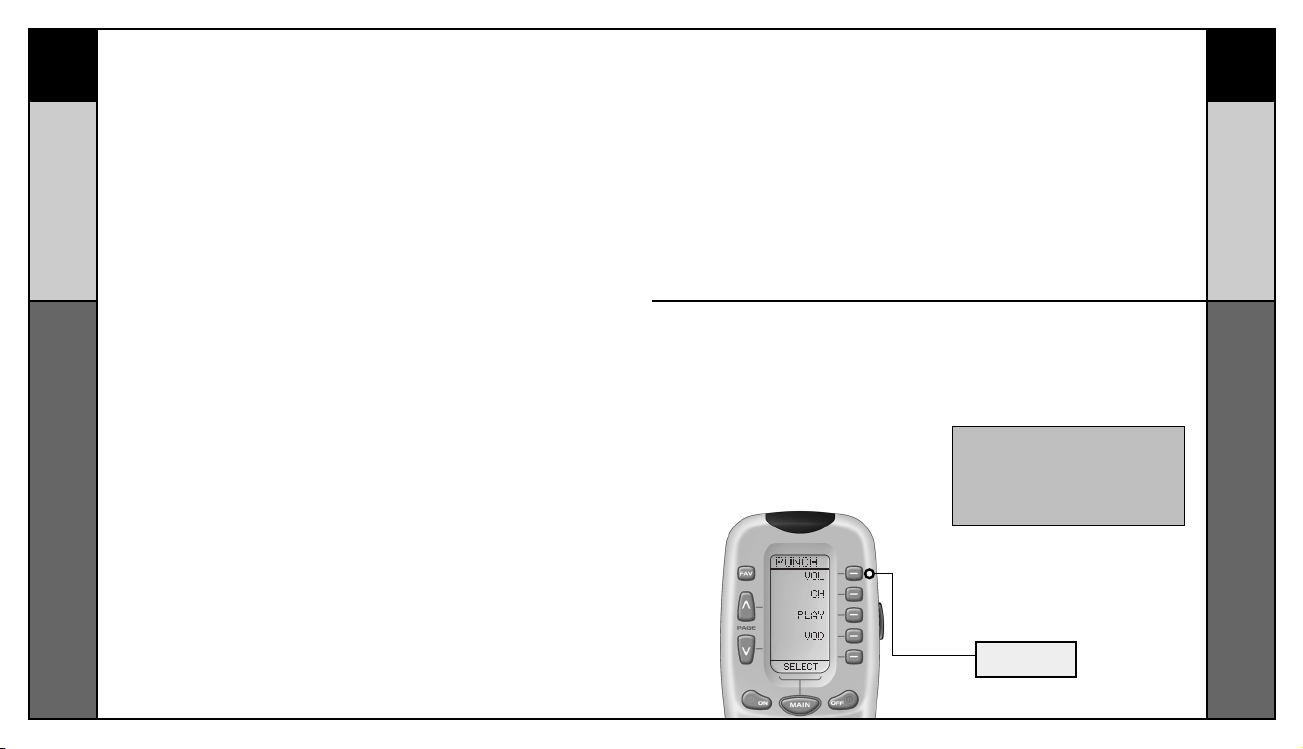

FUNCTION

BUTTONS

LIGHT

BUTTON

SCREEN-LABELED

DISPLAY BUTTONS

5 6

GETTING STARTED

Activating Component Commands

LIGHT BUTTON

Activating Component Commands – Simple, Easy, Intuitive

Once you’ve programmed RF20 for your Components, all you have to do to operate a specific Component is first, press the MAIN button. This will display Page 1 of the MAIN menu on the LCD screen. Page 1 of the MAIN menu displays five Components. Then, simply select the Component you want to operate by pressing the corresponding ScreenLabeled Component Display Button on the right side of the LCD Screen. As an example, if you press the TV Display Button, the display label at the top of the screen will change from MAIN to TV, and all the but- tons on RF20 will work your TV. To operate another Component, simply press the MAIN button again to return to Page 1 of the MAIN menu and select the next Component you want to operate.

If you don’t see the Component you want to control on Page 1 of the MAIN menu, just use the PAGE ( ) ( ) buttons on the left side of the screen to bring up Page 2 of the MAIN menu which displays an additional five Components.

Each Component is provided with five pages of pre-labeled command display buttons (or space for additional command display buttons). Once again, simply use the PAGE (

) ( ) buttons to take you to the next command page, or return you to the previous command page.

Light Button

The fully backlit keypad makes the RF20 easy to use in the dark or dim lighting conditions. Simply press the LIGHT button to backlight all the keypad buttons and LCD screen. To turn off the backlight, press the LIGHT button again, or just wait ten seconds (the backlight automatically shuts itself off). Lights out!

Try it out!

TV DEVICE

BUTTON

MAIN

BUTTON

LIGHT

BUTTON

7 8

Overview &

Pre-Programmed Code Method

BASIC SETUP

Basic Setup - Overview

There are two ways to program the RF20:

• The Pre-Programmed Code Method

• The Learning Method

The Pre-Programmed Code Method allows you to set up all the buttons at once, so it’s the fastest and easiest of the two methods. The Learning Method allows you to transfer functions from other remotes (old or new), one button at a time.

Pre-Programmed Code Method

STEP 1:

The pre-programmed 3-digit codes are found in the back of this Manual on page

45. The codes are listed by Component category (i.e., TV, VCR, DVD, etc.), then by brand name. For instance, if you want to locate a code for a Sony TV, first locate the TV category, and then look for the Sony brand.

Once you have located the 3-digit code (or in some cases, several code numbers) for the Component that you want to operate with your RF20, write them ALL down on a piece of note paper. It’s important that you write down all the codes because only one code is going to work for you.

STEP 2:

Now, turn on the Component you want to program... let’s say your TV to start. Look up your TV’s manufacturer setup code from your reference list.

STEP 3:

Press and hold the MAIN and ENT (Enter) buttons at the same time for approximately 3 seconds, until the word “SETUP” is displayed at the top of the LCD screen. This signals that you are now in setup mode.

IMPORTANT: You now have 30 seconds to perform the next step while you are in SETUP mode. If you don’t press a button within 30 seconds, SETUP will disappear from the screen, signaling that you have exited setup mode and you will need to start over.

MAIN

BUTTON

ENTER

BUTTON

9 10

BASIC SETUP

Pre-Programmed Code Method

STEP 4:

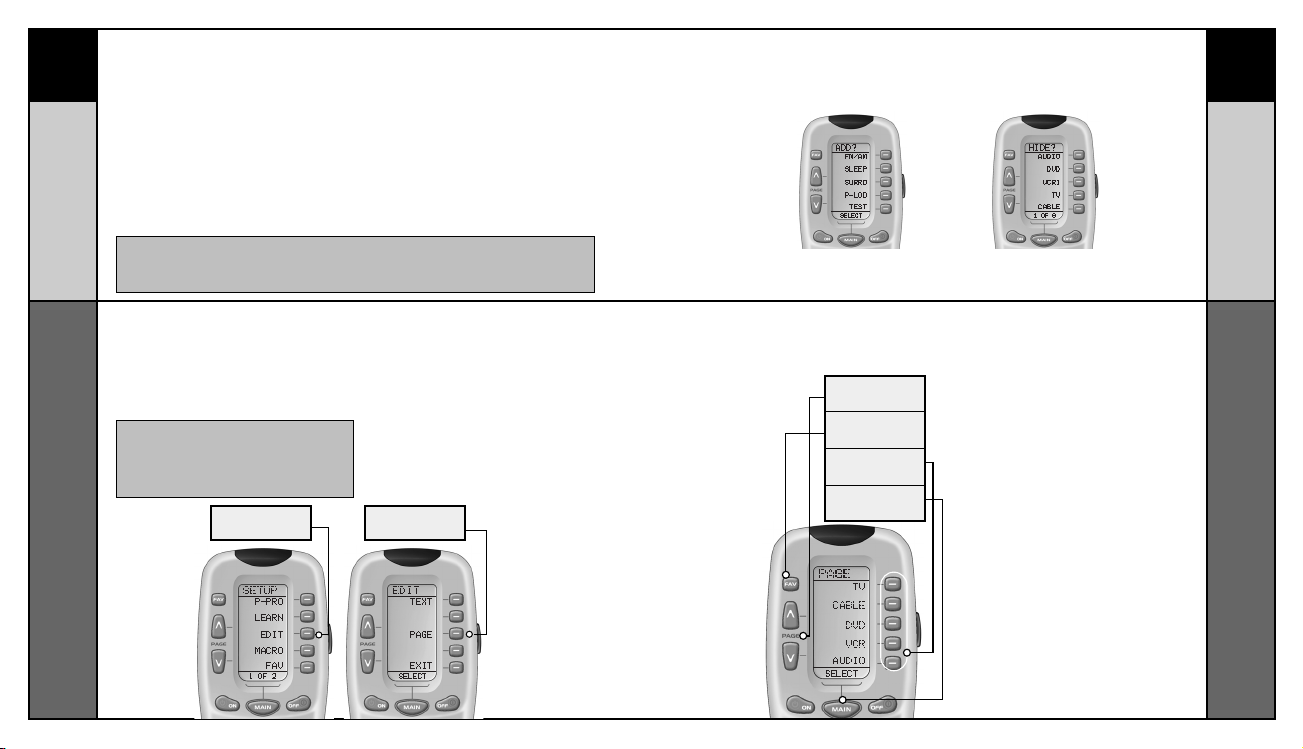

Press the P-PRO display button to select the Pre-Programmed Method.

The screen will then display the five Components from Page 1 of the MAIN menu.

To display Page 2 of the MAIN menu that lists an additional five Components, simply press the PAGE ( ) ( ) buttons.

STEP 5:

Press the Component display button you want to program. For example: If you want to setup the TV Component button, press the TV Component display button. The display at the bottom of the LCD screen will flash “FROM - TABLE”.

STEP 6:

In this step you verify the type of component you plan to operate with this component button. For example: If you plan to operate the TV component with the TV button, simply press the TV display button once again. However, if for example you are setting up AUX to operate a second DVD Player, you would first need to press AUX in Step 5, and then DVD in Step 6.

FIRST FIVE

DEVICE NAMES

PAGE

BUTTONS

P-PRO

BUTTON

11 12

BASIC SETUP

Pre-Programmed Code Method

Pre-Programmed Code Methoda

NOTE:

If the Component fails to turn off after you have entered all the code numbers listed for your brand, you can scan through all the other code numbers that are pre-loaded into the RF20 for that Component (in this case TV) by using the UP or DOWN display buttons on the screen. (There is a chance that your Component was actually manufactured by another brand.) However, most of the code tables are so large that it is usually faster to use the Learning Method on Page 15.

STEP 7:

Point the RF20 toward the Component you want to program, (in this example, TV), and punch in the 3-digit code that you wrote down for that specific Component. Use the Number buttons 0-9 on the remote to punch in the code. If the 3-digit code number that you just punched in is correct, the Component will turn off. If the Component does not turn off, continue entering code numbers from your list until the Component turns off. Somebrands have several possible code numbers.

STEP 8:

When the Component turns off, press the ON button to turn the Component back on. Now you can test the Volume and Channel buttons (for TV), or PLAY and STOP (for VCR and DVD) to make sure they all work. If any of the buttons do not work properly, you need to find a new correct code. For

example, maybe your Sony TV turned off with code number 147, but the volume controls did not work properly. If this is the case, try the next code number listed for that Component until you find a perfect match.

BUTTON

VOLUME

BUTTONS

CHANNEL BUTTONS

PLAY

BUTTON

STOP

BUTTON

UP & DOWN

BUTTONS

NUMBER

BUTTONS

13 14

BASIC SETUP

Pre-Programmed Code Method

Pre-Programmed Code Methoda

STEP 9:

Once you have found the right code, save the code number by pressing the SAVE display button that appears on the LCD screen. The LCD screen will blink “SAVED” two times, signaling that the code number has been successfully saved.

STEP 10 :

Exit SETUP mode by pressing the MAIN button two times. When the LCD screen displays MAIN, you are back in normal operating mode.

NOW, PROGRAM THE REST OF YOUR COMPONENTS BY REPEATING STEPS 1 THROUGH 9. IN MOST SYSTEMS,YOU CAN FINISH BASIC SETUP IN JUST A FEW MINUTES AND PUT ALL YOUR OLD REMOTES AWAY.

IF YOU ARE STILL MISSING COMMANDS TO CONTROL ANY OF YOUR COMPONENTS, USE THE LEARNING METHOD ON PAGE 15.

SAVE

BUTTON

MAIN

BUTTON

15 16

BASIC SETUP

Learning Method

The RF20 can actually ‘learn’ commands from other remote controls (old or new), one-button-at-a-time, so it will never become obsolete. RF20 is the last remote you’ll ever need! Just follow these simple steps:

STEP 1:

Line-up the RF20 with the other remote control, headto-head, one or two inches apart.

STEP 2:

On the RF20, press and hold the MAIN and ENT (Enter) buttons at the same time for approximately three seconds, until the word “SETUP” is displayed at the top of the LCD screen. This signals you are now in SETUP mode.

IMPORTANT You now have 30 seconds to perform the next step while you are in SETUP mode. If you don’t press a button within 30 seconds, SETUP will disappear from the screen, signaling that you have exited setup mode and you will need to start over.

STEP 3:

Press the LEARN display button on the LCD screen. The top of the screen will change to “LEARN” and display the five Components from Page 1 of the MAIN menu.

STEP 4:

Select the Component you want to teach commands to by pressing that Component display button on the LCD screen (in this example, TV). The top of the TV screen will change to “TV”.

To display Page 2 of the MAIN menu that lists an additional five Components, simply press the PAGE ( ) ( ) buttons.

NOTE: If you want to teach any command to a Component button, press the desired Component display button once the top of the screen displays “MAIN”, by pressing the PAGE button. The top of the screen wil change to “READY”. Then go to STEP 6.

MAIN

BUTTON

ENTER

BUTTON

LEARN

BUTTON

17 18

BASIC SETUP

Learning Method

STEP 5:

Press any button on the RF20 that you want to teach a command to. The top of the screen will change to “READY” and the bottom of the screen will display the button name you pressed.

STEP 6:

Press and hold the button on the other remote control that you want to ‘teach’ to the RF20 until the LCD display on the RF20 changes to either “GOOD” or “FAILD”. If the “GOOD” label appears on top of the display, you were successful. If the “FAILD” label appears on top of the display, try ‘teaching’ thesame button to the RF20 once again by repeating STEPS 5 and 6.

STEP 7:

Now, continue to teach the RF20 any other commands from your other remotes by repeating STEPS 4 through 6 (to go back to STEP 4, simply press MAIN once).

STEP 8:

Once you have completed teaching all the button commands to the RF20, return to normal operation by pressing the MAIN button twice.

• Move to another room. Plasma TVs, sunlight, halogen or quartz lighting can interfere with the learning process.

• Even though the old remote seems to be working fine, put in fresh alkaline batteries.

• Gradually vary the distance between the remote controls. Try 1”, 2” and so on, up to 4 feet.

• Try tapping the button on your old remote instead of pressing and holding it during the learning process.

Some additional Information regarding the Learning Process:

• Learned functions override any existing pre-programmed functions on the remote control.

• All buttons can be learned except for the PAGE, MAIN and LIGHT buttons.

• Learned functions are automatically erased when a new function is learned on the same button.

• Learned functions are retained even after a different Setup Code Number is programmed into the remote.

• To return to an original pre-programmed function, a learned function must be erased.

NOTE: If you don't see the display button you would like to teach on the LCD screen, use the PAGE (

) ( ) buttons. The only buttons you

can't teach are the PAGE and MAIN buttons.

NOTE: Test all your new commands. If any of them don’t work, try the Learning Method again, following these suggestions:

19 20

BASIC SETUP

CUSTOMIZING

Transmitting (Busy Signal) Icon

Customizing the LCD Screen

Transmitting (Busy Signal) Icon

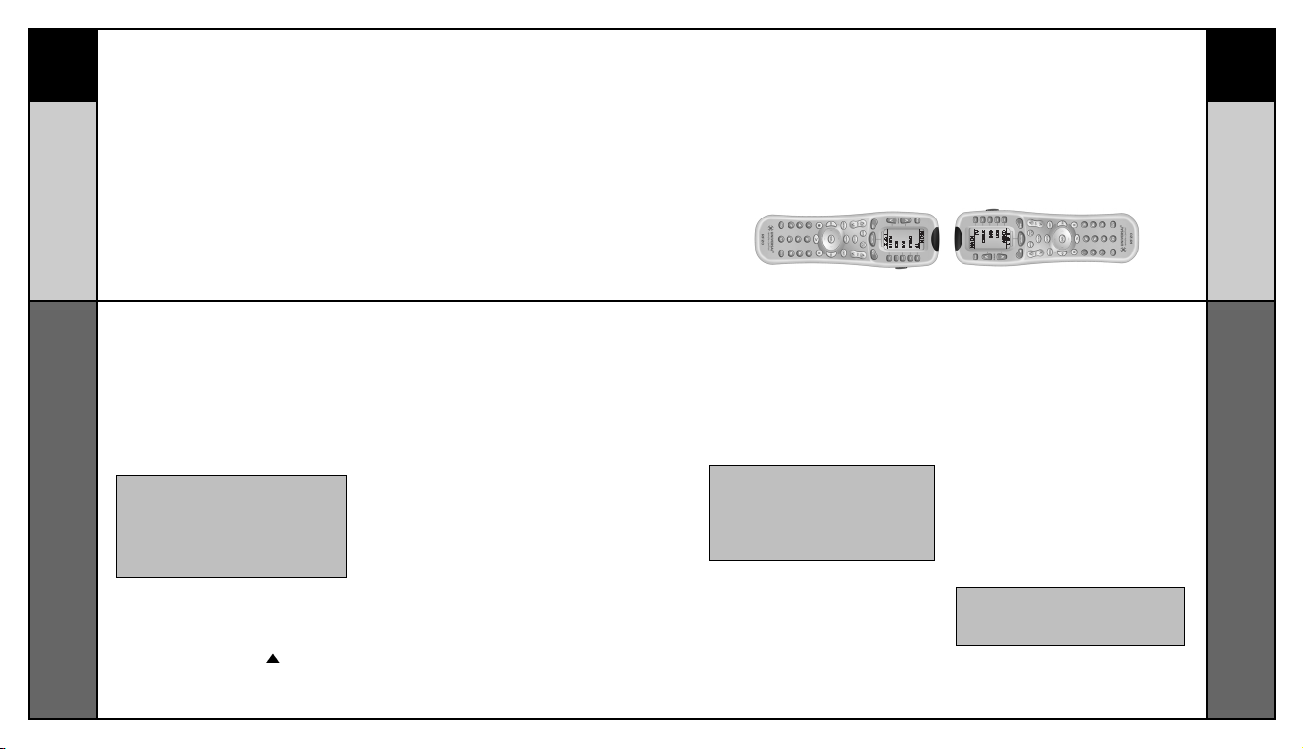

When a command is being transmitted, an icon will appear in the upper right corner of the LCD screen. This indicates that a signal is being sent. This is particularly useful when setting up Macros and FAVs, since it flashes with every step of a sequence of commands.

Customizing Your RF20 with Special Advanced Features

After you’ve finished all your basic setup, you can choose to make operation easier by customizing the RF20 just the way you want, using the Special Advanced Setup Features described in this section.

Customizing the LCD Screen

You can easily edit or change the name of any of the display buttons (including Favorite Channels) on the LCD screen by following these steps:

CHILD LOCK FEATURE

This ‘child-lock’ feature prevents the unauthorized use of the remote control by children. It blocks all operations of the remote control.

To Activate:

Press the +10 and ENT (Enter) buttons simultaneously for 3 seconds. The bottom of the LCD will blink “LOCKED” three times and then display “LOCKED”.

To Return to Normal Operation:

Press the +10 and ENT (Enter) buttons simultaneously again for 3 seconds. The LCD will display the last use mode.

STEP 1:

STEP 2:

Press the EDIT display button. The LCD display will change to the EDIT menu.

STEP 3:

Press the TEXT display button. The screen will display the list of Components and “EDIT” will appear at the top of the screen.

STEP 4:

Navigate to the Component and page where there is a button label you want to EDIT, selecting between the FAV, MAIN, COMPONENT display buttons; then using the PAGE button.

IMPORTANT:You now have 30 seconds to perform the next step while you are in SETUP mode. If you don’t press a button within 30 seconds, SETUP will disappear from the screen, signaling that you have exited setup mode and you will need to start over.

NOTE: If you wish to change the name of a Component button, press the Page (

) Up button twice. The top of the display will change to MAIN, and you can navigate to MAIN page 1 or page 2 before going on to Step 5.

21 22

CUSTOMIZING

Customizing the LCD Screen

STEP 5:

Press the button you wish to edit. The first character space of your button label will start to blink.

STEP 6:

Change the character by using any of the number keys. Each press of the same number button selects the next character of that number’s group, as shown in the diagram below.

STEP 7:

Once the character you want appears, move to the next space by pressing the Right cursor button.

STEP 8:

When you are finished editing the button, press the button you edited and “SAVED” will flash at the bottom of the display.

To change any other button labels on the same Component, press the next button, then repeat steps 6-8. If you wish to edit a button on another Component, press the MAIN button once, then repeat Steps 4-8.

STEP 9:

Once you’ve finished editing buttons, press the MAIN button four times to return to normal operation.

UP CURSOR

Button deletes all text

LEFT CURSOR

Moves blinking

character left

DOWNCURSOR

deletes the currently

blinking character

RIGHT CURSOR

Moves blinking

character right

BLINKING

CHARACTER

23 24

Favorite Channel Setup

CUSTOMIZING

Favorite Channel Setup

This is one of RF20’s most desirable features. Once it’s set up, you can select up to 40 favorite channels with the press of a button - without the need to remember or type in a channel number. Let the channel surfing begin!

To access Favorite Channel listings, simply press the FAV button to display Page 1 of Favorite Channel listings. There are eight pages of Favorite Channels, with five Channels on each page, for a total of 40 Channels. Just use the PAGE ( )( ) buttons to locate the Channel you want to setup. Each Channel can be setup to be instantly selected with the press of one button.

FAV

BUTTON

STEP 3:

Use the PAGE ( ) ( ) buttons until you locate the name (i.e.,ABC, CBS, NBC) of the favorite channel you want to setup.

STEP 4:

Press the favorite channel display button you want to setup. The top of the screen will change to show the channel name. The bottom of the screen displays “STEP0”, indicating that you have not entered the channel number yet.

STEP 5:

Press either the TV, SAT or CABLE Component button (select the Component you use to enter channel numbers).

STEP 6:

Press each of the number buttons for the channel.

Note: If a number is repeated when setting the channel (for example, channel “33” or “522”), it is usually best to set a half second delay in between the identi-cal numbers by pressing the (II) PAUSE button. Each press of the PAUSE button increases the delay by a half second.

PAUSE

BUTTON

STEP 1:

STEP 2:

Press the FAV display button. The top of the display will show “FAV”.

The bottom of the display will flash “SELECT”

NOTE: Some brands of television require an ENT (Enter) command after the channel numbers.

To setup a Favorite Channel button, follow these steps:

25 26

CUSTOMIZING

MacroPower

™ Setup

STEP 7:

Press the LIGHT button after you enter the channel number. A new screen appears displaying SAVE, UNDO or EXIT.

STEP 8:

To save the channel you entered, press the SAVE display button. The UNDO display button lets you erase the last entry. The EXIT display button erases all entries for this button.

STEP 9:

When you are finished setting up Favorite Channel buttons, press the MAIN button twice to return to normal operation.

STEP 1:

Press and hold the MAIN and ENT (Enter) buttons at the same time for approximately 3 seconds, until the word “SETUP” is displayed at the top of the LCD touch screen. This signals that you are now in setup mode.

STEP 2:

Press the MACRO display button on the LCD screen. The top of the screen will display “MACRO”. The bottom of the display will flash “SELECT”.

STEP 3:

Press the ON button. “ON” will display at the top of the LCD screen. “STEP0” will display at the bottom of the screen indicating that no macro steps have been entered yet.

STEP 4:

Press the first component display button you want the Macro to turn on (in this example, TV) and “TV” will display at the top of the screen and “STEP 1” at the bottom.

STEP 5:

Then, press the ON button to confirm the command and “STEP 2” will display at the bottom of the screen. (NOTE: Whenever a button is pressed, another Macro step is counted and dis-played at the bottom of the screen.)

STEP 6:

Now, press the MAIN button to return to the Main Component listing. (“STEP 3” will display at the bottom of the screen.)

MacroPower™ Setup

MacroPower™ is a unique feature that enables you to turn all of your Components ON or OFF, at the same time, simply with the press of one button. We call that a “Macro”. What would normally take multiple remotes and button pushes, the RF20 can accomplish with the press of one button. In addition to the Power ON or OFF buttons, any of the Display buttons (on any Component or Page) can be set to be Macro buttons as well. Feel the power!

To setup a Power ON macro button that will turn ON several components at the same time (for example, TV, VCR and CABLE), follow these easy steps:

Favorite Channel Setup

SAVE

BUTTON

27 28

CUSTOMIZING

STEP 7:

Press the second component display button that you want the Macro to turn on (in this example, VCR) and “VCR” will display at the top of the screen. (“STEP 4” will display at the bottom of the screen.)

STEP 8:

Then, press the ON button to confirm the command. (“STEP 5” will display at the bottom of the screen.)

STEP 9:

Now, press the MAIN button to return to the Main Component listing. (“STEP 6” will display at the bottom of the screen.)

STEP 10:

Press the third component display button that you want the Macro to turn on (in this example, CABLE) and “CABLE” will display at the top of the screen. (“STEP 7” will display at the bottom of the screen.)

STEP 11:

Then, press the ON button to confirm the command. (“STEP 8” will display at the bottom of the screen.)

You can also program delays in between commands by pressing the (II) PAUSE button. Each press adds half a second to the delay.

STEP 12:

Press the LIGHT button to end your macro. A new screen will appear:

STEP 13:

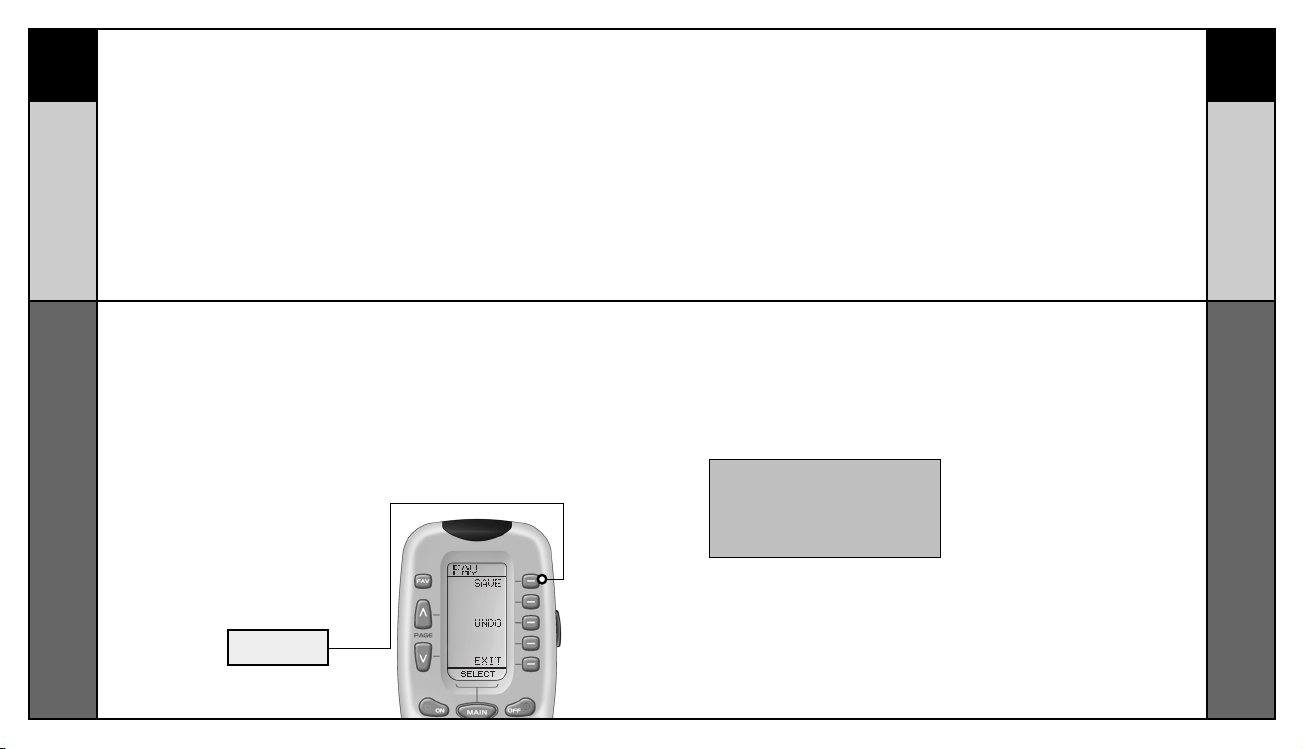

If you are satisfied with your macro, press the SAVE display button. The UNDO display button lets you erase the last step. The EXIT display button erases all the macro steps.

STEP 14:

Press the MAIN button twice to return to normal operation.

NOTE : Don’t worry about the number of steps. Each macro button can store up to 190 steps, so you are not likely to run out of steps!

MacroPower

™

Setup

MacroPower

™ Setup

SAVE

BUTTON

UNDO

BUTTON

EXIT

BUTTON

29 30

CUSTOMIZING

MacroPower

™

Setup

CUSTOMIZING

Advanced Macro Options:

SETTING UP A POWER OFF MACRO:

Simply follow the same steps as outlined above, except press the OFF button in place of the ON button.

SETTING A COMPONENT BUTTON AS MACRO:

If you wish to set one of the Component buttons as a macro, in STEP 3, press the Page Up button twice. The top of the display will change to MAIN, and you can navigate to MAIN page 1 or page 2. Press the Component button you want to set as a Macro button. The top of the screen will display the button label you selected. Select the Component and Page that has a button you want in your Macro using the MAIN, Component and Page buttons. Simply press the button(s) with the command(s) you want in your Macro. Then complete and save the Macro by following STEPs 12 and 13 as outlined above.

PROGRAMMING A “PRESS & HOLD” MACRO:

Another option for Component button macros is to only send the macro if the button is pressed and held. This is setup by entering a delay as the first step of the macro. The amount of delay determines how long the user must press the button before the macro is sent. The advantage of this option is that a normal press of the COMPONENT button will simply switch Components without sending the macro command.

SimpleSound™ Setup & Other ‘Punch Throughs’

SimpleSound™ is a dynamic feature that gives you total volume control over all the Components in your system, even those without their own built-in volume control, such as TiVo, DVD and VCR... saving you the hassle and inconvenience of constantly needing to switch between Component modes on the remote. With SimpleSound™, you can set the RF20’s volume control buttons to always control the sound in your system, even when you’re in VCR or DVD mode, without switching back to AUDIO or TV. Even more exciting, SimpleSound™ is what is called a ‘Punch Through’ feature and is not limited strictly to volume control. Click and enjoy!

STEP 1:

In a basic home entertainment system, the sound may come from your TV. In a more advanced system, the sound may come from your audio Component such as a Surround Sound Receiver or Home Theatre system. So, first, you need to identify which Component you want to use in your system for sound.

STEP 2:

Press and hold the MAIN and ENT (Enter) buttons at the same time for approximately 3

seconds, until the word “SETUP” is displayed at the top of the LCD screen. This signals that you are now in setup mode.

STEP 3:

Press the PAGE ( ) UP button to display Page 2 of the Setup Menu on the LCD screen. Press the PUNCH display button.

STEP 4:

Then press the VOL (Volume) display button. The screen will display “VOL” at the top. This sets up the group of three buttons (Volume Up, Volume Down and Mute) in one action!

IMPORTANT:You now have 30 seconds to perform the next step while you are in SETUP mode. If you don’t press a button within 30 seconds, SETUP will disappear from the screen, signaling that you have exited setup mode and you will need to start over.

SimpleSound Setup &

Other ‘Punch Throughs’

VOLUME BUTTON

31 32

CUSTOMIZING

SimpleSound Setup &

Other "Punch Throughs"

Setting Backlight Options

The bottom of the display flashes “PUNCH TO”. Press the button for the Component that doesn’t have volume control commands yet (i.e.,DVD). This is the Component you are going to PUNCH TO for the volume and mute commands.

STEP 5:

The bottom of the display will then flash “PUNCH FROM”. Now select the Component that has the volume commands you want to use (i.e.,TV for systems using the TV speakers, AUDIO for systems with surround sound receivers). The bottom of the display will flash “SAVED”.

STEP 6:

Repeat STEPS 4-5 until all your Components operate the volume perfectly.

STEP 7:

Press the MAIN button twice to return to normal operating mode and test your SimpleSound™ settings.

Simply perform the steps outlined above, but in STEP 4, press one of the control options (CH, PLAY or VOD).

NOTE: If you want to PUNCH TO the MAIN Component, press the POWER OFF button at this time.

NOTE: The Punch Through feature is not limited to volume and can also be applied to channel selection or other functions. If you find yourself switching to a particular Component frequently to use a group of controls, consider using Punch Through for another group, as listed here:

VOL Volume Up,Volume Down and Mute CH Channel Up, Channel Down, Previous Ch

and Channel (0-9) buttons. PLAY Play, Stop, Pause, Rewind and Fast Forward VOD Guide, Menu, Info, Exit, Up, Down, Left,

Right, Select

Setting Backlight Options

You can customize the backlighting feature to suit your specific preferences by following these simple steps:

Adjusting Length of Backlight Time

You can adjust the amount of time that the RF20 backlight stays on by entering the SETUP mode and proceeding to page 2 (using the PAGE (

) UP button), then pressing the LIGHT display button on the LCD screen (not the Backlight button). Then enter the amount of time you would like the light to stay on using the number pad (0-99 seconds). After making your selection, press the SAVE display button.

Adjusting Contrast

You can make the text darker by pressing both the MAIN and cursor UP buttons at the same time. To make the text appear lighter, press both the MAIN and cursor DOWN buttons at the same time.

Turning OFF Backlighting

If you don’t want backlighting at all (this extends battery life), press the ON display button that appears on the screen. The ON will change to OFF. Press the SAVE display button. Exit the setup mode by pressing the MAIN button.

MAIN

BUTTON

UP & DOWN

CURSOR

HIGH

CONTRAST

LOW

CONTRAST

33 34

CUSTOMIZING

Hiding and Adding Pages

Each of your RF20 Components actually contains eight pages. However, only five pages are visible in the factory default setting. Three page are hidden in each Component. If you wish to use the hidden pages, you can ADD it. If you don’t want to use some of the existing pages, you can HIDE them. You can add or hide pages on Components OR on your favorite channel pages using this simple process:

NOTE: Be sure to program your Macros before you hide pages with potential macros in them. You can’t access hidden pages during macro setup. However, after you finish Macro setup, you can hide pages without affecting operation of your macros.

IMPORTANT:You now have 30 seconds to perform the next step while you are in SETUP mode. If you don’t press a button within 30 seconds, SETUP will disappear from the screen, signaling that you have exited setup mode and you will need to start over.

STEP 1:

STEP 2:

Press the EDIT display button on the LCD screen.

STEP 3:

Press the PAGE display button once the screen changes to EDIT mode.

STEP 4:

“PAGE” appears at the top of the screen. Now, you can navigate to any page, using the MAIN, COMPONENT, FAV, and PAGE display buttons.

STEP 5:

When you select a page, the top of the screen indicates whether you want to “ADD?” or “HIDE?” the page displayed. When you want to change a page’s visibility (i.e., either ADD or HIDE), simply press the LIGHT button.

STEP 6:

You can continue to ADD or HIDE pages on other Components by repeating Steps 4 and 5.

STEP 7:

When you are finished adding and hiding pages, press the MAIN button four times to return to normal operation.

This page is hidden. To ADD

it, press the LIGHT button.

This page is visible.To HIDE

it, press the LIGHT button.

Hiding and Adding Pages

PAGE

BUTTON

FAV

BUTTON

COMPONENT

BUTTONS

MAIN

BUTTON

EDIT

BUTTON

PAGE

BUTTON

35 36

CUSTOMIZING

Cloning Other RF20s

Recalling Pre-Programmed Setup Code Numbers

In case you didn’t write down the Pre-Programmed Code Numbers that you used to set up your RF20, you can easily recall them using this simple process:

Cloning Other RF20s

If you are fortunate enough to own more than one RF20, you’ll be happy to know that you can easily copy and transfer all the setup from one RF20 to another. Just follow these easy steps:

STEP 1:

STEP 2:

Go to Page 2 of the Setup Menu by pressing the PAGE ( ) button.

STEP 3:

Press the RECAL display button on the LCD screen. The display will change to the Recall screens. The screen automatically switches between four screens,

alternately flashing Page 1 components and code numbers, then Page 2 components and code numbers.

STEP 4:

Write down the code numbers as they appear for future reference. Page 43 of this manual provides a convenient space for you to record your code numbers.

STEP 5:

Return to normal operation by pressing the MAIN button twice.

STEP 1:

For both the programmed RF20 that you want to clone, and unprogrammed RF20, press and hold the MAIN and ENT (Enter) buttons at the same time for pproximately 3 seconds, until the word “SETUP” is displayed at the top of their respective LCD screens. This signals that both remotes are now in setup mode.

STEP 2:

Press a PAGE button on each remote to bring up Page 2 of Setup and display the CLONE button.

STEP 3:

Press the CLONE button on each remote.

STEP 4:

Align the two RF20s head-to- head, about an inch apart.

STEP 5:

Press the RECV display button on the unprogrammed RF20 that you want to setup by cloning.

STEP 6:

Press the SEND display button on the programmed RF20 that you want to clone.

STEP 7:

Press the START button on the unprogrammed RF20, and then press the START button on the programmed RF20 that you want to clone.

STEP 8:

Return to normal operation by pressing the MAIN button twice.

IMPORTANT:You now have 30 seconds to perform the next step while you are in SETUP mode. If you don’t press a button within 30 seconds, SETUP will disappear from the screen, signaling that you have exited setup mode and you will need to start over.

NOTE: Cloning typically takes about 40 seconds. After successful cloning is completed, the newly cloned RF20 will flash “GOOD”.

Recalling Pre-Programmed

Setup Code Numbers

+ 42 hidden pages

Universal Remote Control (URS) RFS200 User Manual [en, es]

Specifications and Main Features

Frequently Asked Questions

User Manual
